Product Type	Inverter Generator
Brand	Black & Decker
Model	BD 2000S
Rated Voltage (AC)	230 V ~
Rated Voltage (DC)	12 V DC
Continuous Power (S1)	1.7 kW
Maximum Power	1.9 kW
Frequency	50 Hz
Power Factor	1 (cos φ)
Performance Class	G2
Ingress Protection	IP23M
Engine Type	Single-cylinder, 4-stroke, OHC, forced air-cooled
Displacement	113 cm³
Fuel Type	98# unleaded petrol
Fuel Tank Capacity	3.5 L
Engine Oil Capacity	Approx. 0.4 L
Recommended Oil	15W40 (above 0°C), 5W30 (below 0°C)
Spark Plug	NGK CR7HSA (electrode gap 0.6 mm)
Weight	22.2 kg
Sound Power Level (LWA)	93 dB(A)
Max Ambient Temperature	40 °C
Max Altitude	1000 m above sea level
Output Sockets	2 x AC 230 V, 1 x DC 12 V, 1 x USB 5 V
Safety Features	Overload cut-out, low oil shutdown, earth connection
Warranty	24 months

Frequently Asked Questions - BD 2000S BLACK & DECKER

What type of oil should I use in the BD 2000S generator?

Use SAE 15W40 engine oil for temperatures above 0°C, and SAE 5W30 for temperatures below 0°C. The oil capacity is approximately 0.4 L. Always check the oil level with the dipstick without screwing it in.

How do I start the generator?

1. Turn the ventilating pole to OPEN. 2. Turn the engine switch to ON. 3. Move the choke lever to position I∅I. 4. Use the start booster by compressing the air in the fuel tank (optional). 5. Pull the recoil starter firmly. Wear gloves to prevent hand injuries from kickback.

Can I connect the generator to my home's electrical system?

No, never connect the generator to the public power supply or home wiring. This can cause backfeeding, fire, electrocution, or damage to the generator and appliances. Use extension cords directly to devices.

What should I do if the engine does not start?

Check the oil level (low oil cut-out may prevent starting). Ensure the spark plug is clean and gapped to 0.6 mm. Verify there is fuel and the fuel cock is open. If the battery voltage is low, charge the battery. Refer to the troubleshooting section in the manual.

How often should I change the engine oil?

Change the oil after the first month or 20 hours of use, then every 3 months or 50 hours, then every 6 months or 100 hours, and annually or every 200 hours. Always drain used oil when the engine is warm.

How do I clean the air filter?

Remove the air filter cover bolt, take out the filter elements. Tap them on a flat surface or clean with soapy water for heavy dirt, then rinse and air dry. Do not use petrol or abrasive cleaners. Reassemble in reverse order.

What is the overload cut-out and how do I reset it?

The overload cut-out protects the generator from excessive load. It shuts down the AC sockets. To reset, reduce the load or remove faulty appliances, then restart the generator. If the cut-out fails, it must be replaced with an identical part by a service center.

Can I run the generator indoors?

No. The generator produces toxic carbon monoxide gas, which is colorless and odorless. Only operate outdoors in a well-ventilated area, at least 1 meter away from buildings and other equipment. Never use in enclosed spaces.

How do I store the generator for a long period?

For storage over 3 months: empty the fuel tank and carburetor (unscrew carburetor outlet screw or run generator until it stops). Drain engine oil to prevent deterioration. Store in a dry, protected area. Never store outdoors uncovered.

What is the start booster?

The start booster is a feature that allows you to compress air in the fuel tank before starting, making it easier to start the generator. It is especially useful in cold conditions.

USER MANUAL BD 2000S BLACK & DECKER

Black and Decker portable gas generator device (no visible text or symbols on body)

GB

Original instructions

Silent inverter generator

D

Übersetzung der

Black & Decker and the Black & Decker logo are REGISTERED trademarks of The Black & Decker Corporation.

Used under license by:

Close-up of a hand using a screwdriver to press or adjust a component on a door (no visible text or symbols)

Close-up of a hand holding a white plastic component attached to a mechanical device (no visible text or symbols)

Close-up of a hand using a tool to adjust internal components of an open kitchen appliance (no visible text or symbols)

Close-up of a hand inserting a plastic component into a device casing (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a cylindrical pin (no visible text or symbols)

Close-up of a mechanical component with a circular top and flanged side, showing a curved arrow indicating rotation (no text or symbols)

Close-up of a hand using a tool to adjust or install internal components into a car's engine compartment (no visible text or symbols)

Interior view of a mechanical device showing internal components and wiring (no visible text or symbols)

Important!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times.

If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Explanation of the warning signs and symbols on the machine

Read and understand the safety instructions before using the generator.

During operation, toxic gases are produced e.g. carbon monoxide (Which is a colorless and odorless gas) this gas may lead to by suffocation. Only operate the generator outside to ensure adequate ventilation.

Switch the engine off and allow to cool before refuelling the generator. Fuel is extremely flammable and under certain conditions can be explosive. Only refuel the generator in well ventilated areas ensuring that naked lights, sparks and cigarettes are not present. Any spillage of fuel should be immediately cleaned up.

The exhaust gets very hot during operation. Allow the engine to cool before performing maintenance storage and refueling. Do not touch the exhaust to avoid the risk of burns and injury.

The generator must not be connected to the public power supply. In case of improper connection there is a risk of fire and damage to property including electrocution to persons using the generator and working on the public power supply.

Warning hazardous voltages are present when the generator is in use, Always switch the generator off before performing maintenance.

Wear ear protection when using the generator.

Disconnect all equipment from the socket outlets when performing maintenance or when left unattended and switched off.

Warning: the gasoline is highly volatile, flammable and explosive

Warning: Check the oil level before operation.

Choke lever

1/0

ON/OFF

Alternating current (AC)

Direct current (DC)

Overload cut-out

2. General Safety Instructions

• Important: No changes may be made to the generator.
• Only original parts may be used for maintenance and accessories.
• No changes may be made to the settings of the motor or generator. The speed preset by the manufacturer is not allowed to be changed. The generator or connected equipment may be damaged.
• Repairs and adjustment work may only be carried out by authorized trained personnel.
• Important: Petrol and petrol fumes are highly combustible or explosive.
• Risk of explosion: Never operate the generator in rooms with combustible materials.
• Do not refuel or empty the tank near open lights, fire or sparks. Do not smoke! Important: Exhaust gases can escape despite the exhaust hose. Due to the fire hazard, never direct the exhaust hose towards inflammable materials.
• Always switch off the engine when transporting and refueling the generator.
• Make sure that when you refuel the generator, No fuel is spill on the engine or exhaust pipe.

- Place the generator in a secure, level position. Do not turn, tip or change the generator's position while it is working.

- Secure the generator against shifting and toppling during transport.

• Guard against electric danger.
• Make sure the generator is properly grounded before use.
• Never connect the generator to the power grid.
• Never operate the generator in rain or snow.
• Never touch the generator with wet hands.
• Never use faulty or damaged electrical equipment (this also applies to extension cables and plug connections)
• When working outdoors, use only extension cables that are approved for outdoor use and which are marked accordingly (H07RN).
• The overall length of the extension cables used may not exceed 50 m for 1.5 mm ^2 and 100 m for 2.5 mm.
• Important: Risk of burns. Do not touch the exhaust system or drive unit.
• The generator is driven by a combustion engine, which produces heat in the area of the exhaust (on the opposite side of the sockets) and the exhaust outlet. You should therefore keep clear of these surfaces because of risk of skin burns.
• Do not touch any mechanically driven or hot parts. Do not remove the safety guards.
• Children are to be kept away from the generator.
• Important: Danger of poisoning, do not inhale emissions.
• Never operate the generator in non-ventilated rooms. When operating the generator in rooms with good ventilation, the exhaust gases must be channeled directly outdoors through an exhaust hose.
• Place the generator at least 1m away from buildings and the equipment connected to it.
• Wear suitable ear protection when in the

vicinity of the equipment.

- The values quoted in the technical data for sound power level (LWA) and sound pressure level (LWM) are emission values and not necessarily reliable workplace values. As there is a correlation between emission and emission levels, the values are not a reliable basis for deciding on any additional precautions which may be needed. Factors influencing the actual user emission level include the properties of the work area, other sound sources etc., the number of machines and other processes in the vicinity, as well as the time span in which the operator is subjected to the noise. Also, the permitted emission level can vary from country to country. Nevertheless, with this information the user is able to make a better assessment of the dangers and risks involved.

CAUTION: Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

3. Proper Use

The generator is intended to provide electric tools, light sources and household appliances. When using the device with precise equipments, please check their suitability in accordance with the relevant manufacturer's instructions. In case of doubt, ask an authorized dealer of the respective appliance. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

The device is designed for applications operated with a 230 V alternating current source for 230 V.

4. Technical Data

BD2000S

Generator

Generator type: Inverter

Ingress Protection: IP23M

Rated voltage Urated:

230 Va.c. / 12V d.c.

Continuous rated power Prated (S1): 1,7 kW

Maximum power Pmax: 1,9 kW

Frequency Frated: 50 Hz

Power factor: Cos_=1

Performance class: G2

Operating mode S1 (continuous operation)

The machine can be continuously operated with the quoted power output.

Operating mode S2 (temporary operation)

The machine may be temporarily operated with the quoted power output. Afterwards the machine must be stopped for a while to prevent it from overheating

Engine

Engine design:

Single-cylinder forced air-cooled 4-stroke OHC

Spark plug: NGK CR7HSA

Displacement: 113 cm ^4

Fuel type: 98# unleaded petrol

Tank capacity: 3,5 L

Engine oil: Appox.0.4 l (15W40/<0 °C: 5W30)

Weight: 22,2 kg

Guaranteed sound power level L_WA : 93 dB(A)

Max. Temperature: 40 °C

Max. Altitude (above mean sea level): 1000 m

5. Parts Layout

1. Start booster
2. Ventilating pole
3. Fuel cap

4. 230 V\~ socket out lets

5. 12 V d.c. connector out lets

6. 12 V d.c. circuit breaker
7. 5 V USB charger out lets
8. Warning lights
9. Earth connection
10. ESC switch

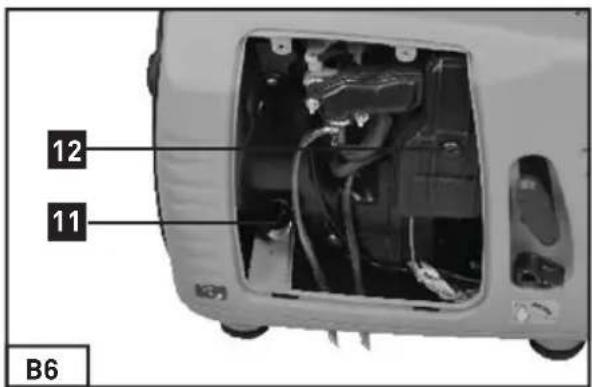

11. Oil filler plug
12. Air filter set
13. Engine switch
14. Choke lever
15. Pull cord

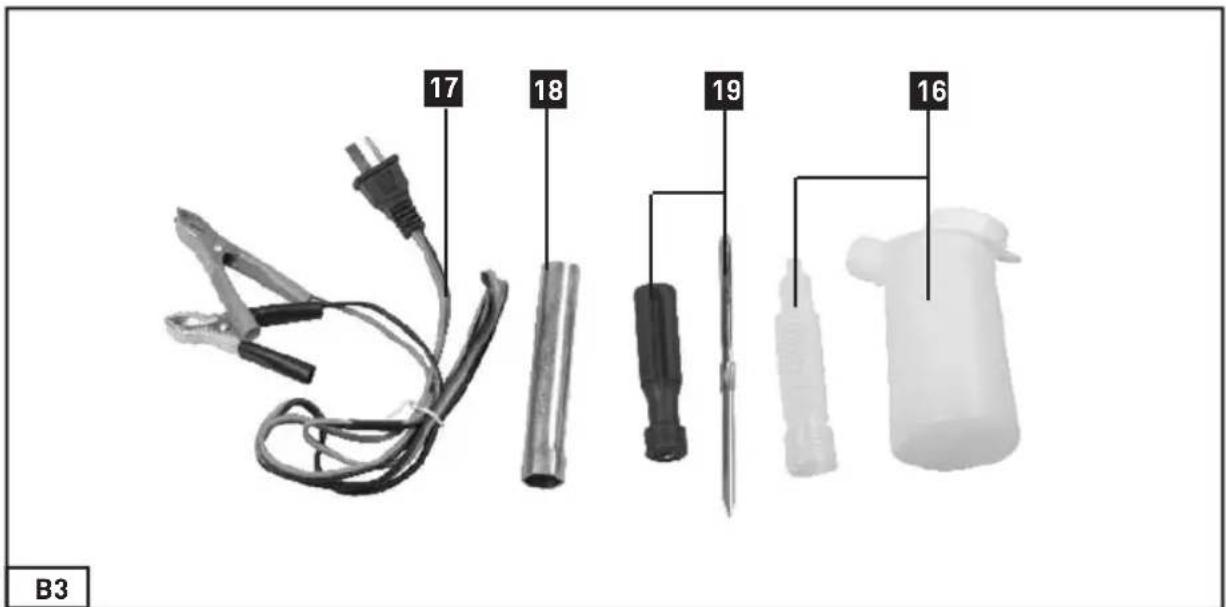

16. Oil filling jug
17. DC connecting cord
18. Spark plug wrench
19. Screw driver
20. Spark plug

6. Before Use.

6.1 Important: Electrical safety

• Electric supply cables and connected equipment must be in perfect condition.
• The generator is to be operated only with equipment whose voltage specifications conform to the generator's output voltage.
• Never connect the generator to any other power supply.
• Keep the cable length to the consumer as short as possible.

6.2 Connecting to earth

-The housing is allowed to be connected to earth in order to discharge static electricity. To do this, connect one end of a cable to the earth connection (9) on the generator and the other end to an external earth (for example an earth rod).

6.3 Environmental protection

• Dispose of soiled maintenance material and operating materials at the appropriate collection point.
• Recycle packaging material, metal and plastics.

7. Operation.

7.1 Before starting the generator.

• You must fill up with engine oil (B7) and fuel before you can start the engine.
• Check the fuel level and top it up if necessary.
• Make sure that the generator has sufficient ventilation.
• Make sure that the ignition cable is secured to the spark plug.
• Inspect the immediate vicinity of the generator.
• Disconnect any electrical equipment which may already been connected to the generator.
• Permissible ambient temperature – 10 to +40°C, max. altitude above sea level 1000 m, relative humidity:90 % (noncondensing)
• Never use the generator in dusty area.

7.2 Starting the engine (reversing starter)

- Totally turn the Ventilating pole (2) to the "OPEN" position clockwise. Note: when transporting the engine, you should turn the Ventilating pole (2) of the fuel cap to the "OFF" position.

• Turn the Engine switch(13) of the engine to the "ON" position
• Move the choke lever (14) to position I∅I.
• Note: This generator is equipped with start booster(1). You can compress the air in the fuel tank to make the generator easy started.

Important!

When starting with the pull cord, the motor may recoil suddenly as it starts up, resulting in hand injuries. Wear protective gloves when starting the equipment.

7.3 Connecting equipment to the generator

- Connect the equipment you want to use to the socket outlets (4)

Important!

- Never connect the generator to the domestic power network as this may result in damage to the generator itself or to other electrical appliances in your home.

- Switch off the machine immediately and contact your service station:

- If the generator is making unusual vibrations or noise.

If the engine is overloaded within rated load range or misfires.

Note: Some electrical appliances (power jigsaws, drills, etc.) may have a higher level of power consumption when used in difficult conditions or starting.

- Use the supplied DC connecting cable to make connection to 12VDC powered appliance.

Important!

The 12 V DC output of the generator is not treated by a precise electric circuit.

Never use it to power any precise DC instrument.

This generator is equipped with DC5V USB charger. You can charge USB powered device by connecting it to the 5V USB charging socket(7)

Important!

When using the generator to powering a heating device. Please do keep the powered heating device far from the generator.

7.4 Switching off the engine

- Before you switch off the generator, allow it to run briefly with no consumers so that it can "cool down".

- Move the Engine switch (13) to position "OFF".

7.5 Overload cut-out for socket-outlets

Important!

The generator is fitted with an overload cutout. This shuts down the sockets (4). You can restart the sockets by restart the generator.

Important!

If this happens, reduce the electric power you are taking from the generator or remove any defective connected appliances.

Important!

Defective overload cut-outs must be replaced only by overload cut-outs of identical design and with the same performance data. If repairs are necessary, please contact your customer service center.

8. Cleaning, maintenance and storage

Switch off the generator and pull the spark plug boot from the spark plug before doing any cleaning and maintenance work on the equipment.

8.1 Cleaning

- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

• We recommend that you clean the device after each time finished using.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

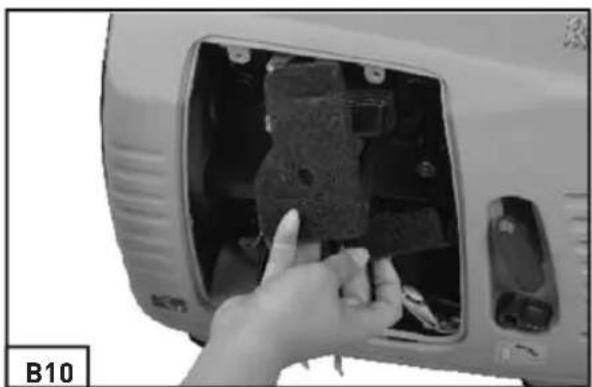

8.2 Air filter (B9-10)

In this connection, please also read the service information.

• Clean the air filter at regular intervals, and replace it if necessary.

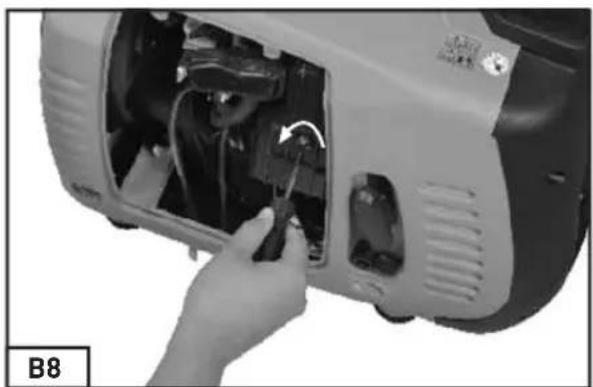

• Remove fixing bolt on the air filter cover (B9).
• Remove the filter elements (B8).

Important!

Do not use abrasive cleaning agents or petrol to clean the elements.

• Clean the elements by tapping them on a flat surface. In cases of stubborn dirt first clean with soapy water, and then rinse with clear water and air dry.
• Assemble in reverse order.

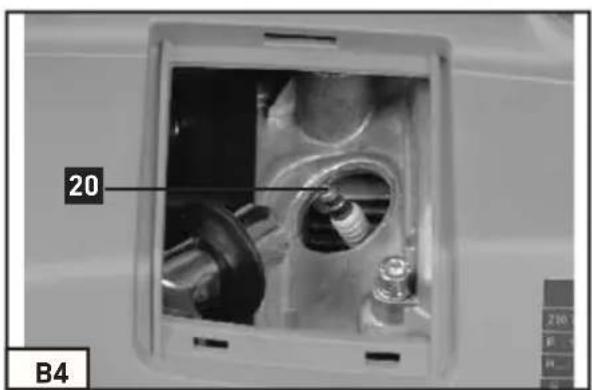

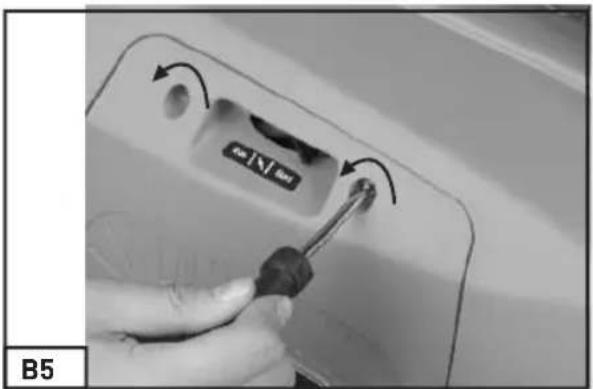

8.3. Spark plug (B4)

Check the spark plug (item 20) for dirt and grime after 50 hours of operation and if necessary clean with a copper wire brush. Thereafter service the spark plug after every 50 hours of operation.

• Pull off the spark plug boot with a twist.
• Remove the spark plug with the supplied spark plug wrench (18).
• Assemble in reverse order.

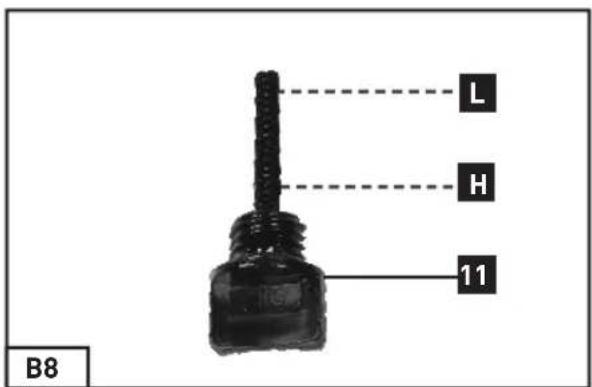

8.4 Changing the oil and checking the oil level (B7-8)

The motor oil is best changed when the Engine is at working temperature.

- Only use motor oil SAE - 15W40 / (<0 °C) [SAE - 5W30].

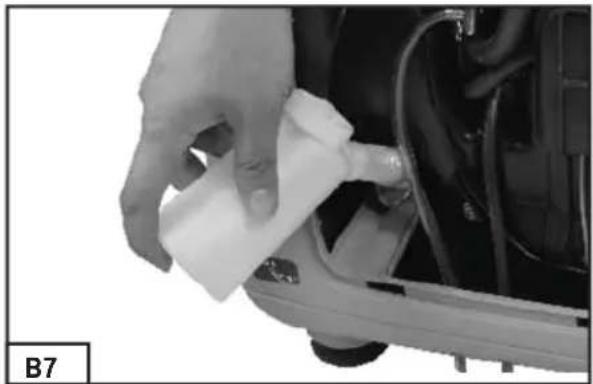

8.4.1 Fill up Oil. (B7)

• Open the oil filler plug by screw it off (11).
• Add exactly 0.6L engine oil with an oil filling jug.

Or refer to content in 7.4.2.

- Screw the Oil filler plug back.

8.4.2 Checking Oil level. (B8)

• Place the generator on a slightly inclined surface so that the dip stick is at proper position.
• Screw off the Oil Filler plug and wipe off any oil on the dip stick.
• Put the oil dip stick back without screw into the Oil filler.

Important!

Do not screw the dipstick in to check the oil level; simply insert it up to the thread.

• Check the dip stick; make sure the oil level is between "H" and "L" mark.

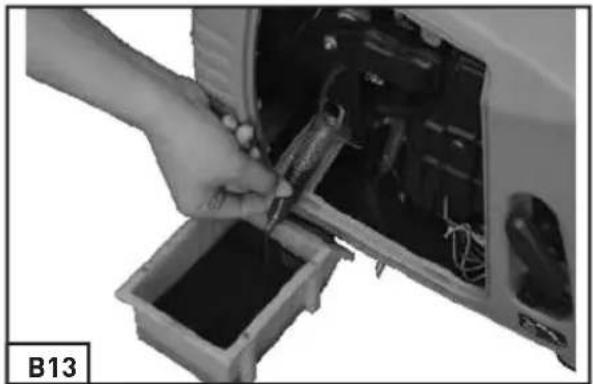

  8.4.3 Let out used Oil (B13)
• Open the oil filler screw (11) and connect the drain pipe and oil jug (16).
• Drain the used oil into a suitable receptacle by tilting the generator.
  8.4.4 Changing Engine Oil
• changing engine oil refers to the content in

8.4.3 and 8.4.1.

8.5 Oil shortage cut-out

This generator has a Low Oil level Protection system.

The oil shortage cut-out responds if there is too little oil in the engine. In this case it will not be possible to start the engine or it will cut out automatically after a short period of time. It cannot be started again until the engine oil has been topped up (see point 8.4.1).

8.6 Storage

If the generator is going to stop used for long time (more than 3 months).

Make sure have done following points:

- Make sure the fuel tank is empty.

The fuel tank of the generator is not fully sealed. Long time fuel storage could cause fuel deteriorate.

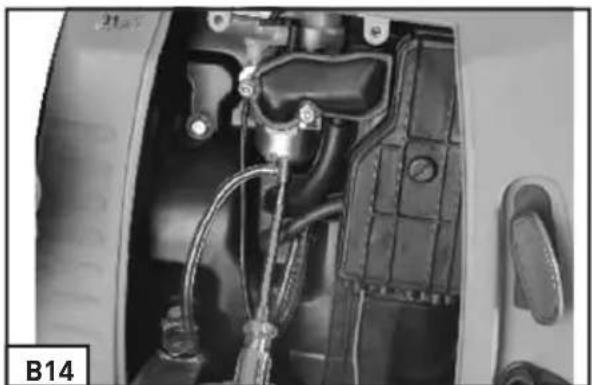

- Make sure there is no fuel in the carburetor. To empty the carburetor. Unscrew the carburetor out let screw. Collect the fuel inside. Then screw it back on (B14) or run the generator with no load till stop. Fuel residual could cause carburetor jamming.

- Make sure the engine is oil empty. Emptying the oil refers to the content in 7.4.3. Long time oil storage could cause oil deteriorate. Deteriorated oil could jam the oil sensor.

Important!

Never storage the generator exposed out door.

9. Transport

ATTENTION!

Slipping or falling unit can crush hands and feet.

• Carry the generator on transportation handles:
• Lift the generator evenly.
• Carry the generator to the operating place.
• Drop the generator evenly.

10. Troubleshooting

Fault Cause Remedy
Engine does not start Oil shortage	cut-out has not respondedSpark plug fouledNo fuelBattery voltage too low	Check oil level, top up engine oilClean or replace spark plug (electrode spacing 0.6 mm)Refuel / check the petrol cockCharge the battery
Generator has too little or no voltage	Controller or capacitor defectiveOverload cut-off has triggeredAir filter dirty	Contact your dealerActuate the circuit-breaker and reduce the consumersClean or replace the filter

11. Maintenance schedule

Regular service periodPerform at every indicatedmonth or operating hourinterval, whichever comesfirst.		Eachuse	Firstmonthor20 Hrs.	Every3monthsor50 Hrs.	Every6monthsor100 Hrs.	Everyyearor200 Hrs.
ITEM
Engineoil Checklevel		0
		Change	0	0
Air cleaner	Check	0
	Clean			0 (1)
Spark plug	Check-adjust			0
	Replace				0
Spark arrester	Clean				0
Valve clearance	Check-adjust					0 (2)
Combustion chamber	Clean	After every 300 hrs. (2)
Fuel tank andfilter	Clean			0 (2)
Fuel tube	Check	Every 1 year (Replace if necessary) (2)
Remark:(1) Service more frequently when used in dusty areas.(2) These items should be serviced by your servicing dealer, Refer to the manual for service procedures.Failure to follow this maintenance schedule could result in non-warrantable failures.

Wichtig!

Read and understand the safety instructions before using the generator.

During operation, toxic gases are produced e.g. carbon monoxide (Which is a colorless and odorless gas) this gas may lead to by suffocation. Only operate the generator outside to ensure adequate ventilation.

2. General Safety Instructions

8.4.3 Let Oil out usato (B13)

5. Legenda (afb. 1-7)

FWFJMJHJOH UFHFO PMJFUFLPSU

Nominell spanning Urated:

230 V\~a.c./12 Vd.c.

Kontinuerlig effekt PRP (S1): 1.7kW

Max. effekt Pmax: 1.9kW

Frekvens Frated: 50 Hz

Effektfaktor cos φ: 1

Effektklass: G2

Driftart S1 (kontinuerlig drift)

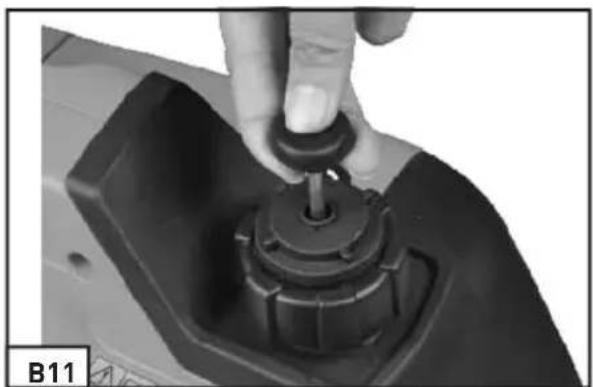

-Totally turn the Ventilating pole(2) to the

"open" POSITION clockwise.

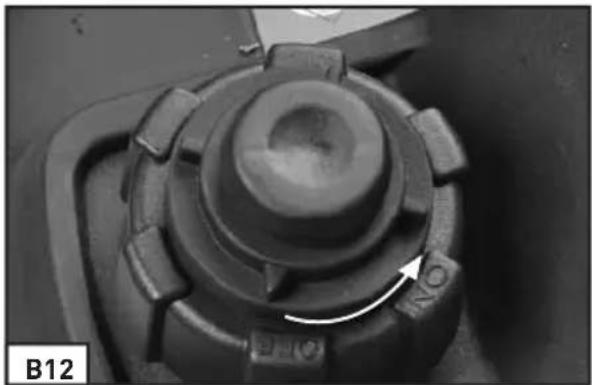

Note: when transporting the engine, you should turn the 2 of the fuel cap to the "Off" position.

Note: this generator is equipped with starter booster. You can compress the air in the fuel tank to make the generator easy started.

No.	Material name quantity
1	M6*14cross head screw 4
2	M5*10cross head screw 4
3	front cover 1
4	digital display 1
5	M4*10flat head screw 8
6	AC socket 2
7	M3*25flat head screw 2
8	USB output socket 1
9	DC socket 1
10	intelligent switch	1
11	panel	1
12	igniter	1
13	M6*14flange screw	1
14	fuel tank cap	1
15	opening pad	1
16	fuel tank 1
17	9.8mm,10.5mm,shroud ring	4
18	oil pipe	1
19	M6*16flange screw	2
20	inverter jack	2
21	inverter shock pad	2
22	inverter 1
23	M6*48six angle screw 4
24	M6*25flange screw	1
25	bridge rectifier	1
26	front bracket	1
27	M6*45flange screw	2
28	oil pump	1
29	M6*14flange screw	3
30	startup disk 1
31	pull cover 1

32 handle 1
33	handle cover
34	M6*55flange screw
35	front wind channel 1
36	M5*20tapping screw
37	ignition coil
38	M6*16flange screw
39	startup support 1
40	vane
41 flywheel 1
42	motor
43	M6*20flange screw
44	right wind channel
45	M6*35flange screw
46	shell shock pad
47	12mm pad 4
48	right shell 1
49	M6nut
50 spark plug cover 1
51	soundproof sponge
52	upper bracket 1
53	M6*8flange screw
54	upper bracket shock pad
55 M6*15hex screw 4
56	valve plug 1
57 engine 1
58 oil sensor 1
59	carbon tank
60	wind channel shock pad
61	baseboard 1
62 engine shock pad 4
63	wind channel seal ring
64 M6*8 4
65 stepper motor 1
66 M6*8 2
67 M8*10 4
68 carburetor 1
69 M5*120 double head worm 2
70 carburetor, air filter pad 2
71 air filter box 1
72 M5*16tapping screw 1
73 small air filter cover	1
74 air filter lining	2
75 air filter sponge	2
76 big air filter cover	1
77 M5*10slotted screw	1
78 maintenance cover	1
79 M6*14cross head screw 2
80 M6*20cross head screw 3
81 left shell 1
82 main switch spanner 1
83 M4*20cross head screw 1
84 touch switch shifting block	1
85 oil switch valve	1
86 oil switch 1
87 oil switch stand	1
88 touch switch	1
89 M5*14tapping screw 2
90 oil ruler 1
91 oil mouth scraper ring	1
92 left wind channel 1
93 M6*20flange screw	2
94 black lead pad 1
95 tail bracket	1

96 silencer elbow 1
97	silencer pad 1
98	silencer pad 1
99 silencer 1
100	M6*40flange	2
101	rear cover seal ring	1
102	rear cover	1
103	M4*12cross head screw 4

hereby declares the following conformity under the EU Directive and standards for the following article

D

This appliance is a quality product. It was designed in compliance with current technical standards and made carefully using normal, good quality materials.

The warranty period is 24 months and commences on the date of purchase, which can be verified by the receipt, invoice or delivery note. During this warranty period all functional errors, which, despite the careful treatment described in our operating manual, are verifiably due to material aws, will be rectified by our after-sales service staff.

The warranty takes the form that defective parts will be repaired or replaced with perfect parts free of charge at our discretion. Replaced parts will become our property. Repair work or the replacement of individual parts will not extend the warranty period not will it result in a new warranty period being commenced for the appliance. No separate warranty period will commence for spare parts that may be ted. We cannot offer a warranty for damage and defects on appliances or their parts caused by the use of excessive force, improper treatment and servicing.

This also applies for failures to comply with the operating manual and the installation or spare and accessory parts that are not included in our range of

products. In the event of interference with of modifications to the appliance by unauthorised persons, the warranty will be rendered void.

Damages that are attributable to improper handling, over loading, or natural wear and tear are excluded from the guarantee.

Damages caused by the manufacturer or by a material defect will be corrected at no charge by repair or by providing spare parts.

The prerequisite is that the equipment is handed over assembled, and complete with the proof of sale and guarantee.

For a guarantee claim, only use the original packaging.

That way, we can guarantee quick and smooth guarantee processing.

Please send us the appliances post-paid or request a Freeway sticker. Unfortunately we will be unable to accept appliances that are not pos

The warranty does not cover parts that are subject to natural wear and tear. If you wish to make a warranty claim, report faults or order spare parts or accessories, please contact the after-sales centre below:

Subject to change without prior notice.

Matrix GmbH Service

. Postauer Str. 26 . D - 84109 Wörth/Isar

. Tel.: [phone] . Fax: [phone]

. e-mail: [e-mail]

GARANTIE

Tradepartner and aftersales office:

Please check our service centres at www.matrix-direct.net.

Takuu
