HNU51311S - Range hood BEKO - Free user manual and instructions

Product Type	Built-in Range Hood
Model	HNU51311S / HNU51311SH

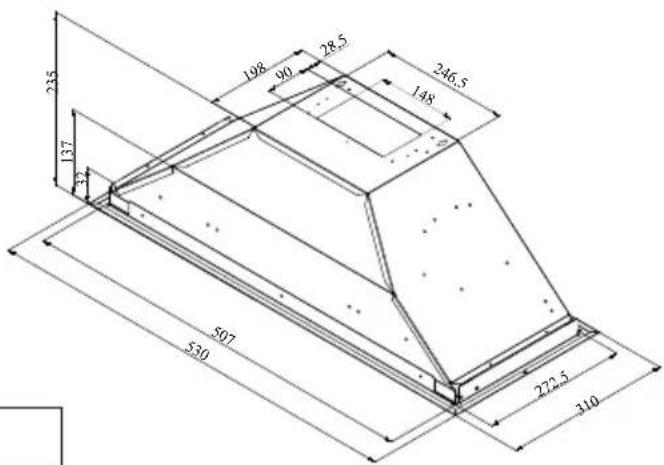

Width	597 mm
Depth	530 mm
Height	272.5 mm (body)
Supply Voltage	220-240 V ~ 50 Hz
Motor Power	185 W
Lamp Power	2 x 3 W (E14, 220-240 V)
Max Airflow (3rd Speed)	381 m³/h
Number of Speeds	3 (motor) + 1 (lamp on/off)
Control Type	Mechanical switches
Insulation Class	F
Minimum Distance to Hob	65 cm
Exhaust Diameter	120 mm or 150 mm (recommended)
Operation Modes	Ducted (air exhaust) or Recirculating (with carbon filter)
Grease Filter	Aluminum, washable (monthly)
Carbon Filter	Optional, replace every 3 months
Light Source Energy Class	E

Frequently Asked Questions - HNU51311S BEKO

How often should I clean the grease filter?

Under normal use, clean the aluminum grease filter at least once a month. You can wash it by hand with liquid detergent or in a dishwasher.

How often should I replace the carbon filter?

Replace the carbon filter every 3 months. It cannot be washed and must be obtained from authorized services.

What type of lamp does the hood use?

The hood uses 2 lamps of 3W each, with E14 socket, voltage 220-240V. Replacement lamp dimensions: 35x100 mm, 400 lm, 2700K.

Can I use the hood without a chimney connection?

Yes, in recirculation mode. You must install a carbon filter. The air is filtered and returned to the room. Remove the flaps inside the flue adapter when using this mode.

What is the minimum distance between the hob and the hood?

The minimum distance is 65 cm from the supporting surface (grate for gas cookers or glass for electric cookers). Check gas hob instructions if a greater distance is required.

Why is the hood not working?

Check the fuse (make sure it is on), electrical connection (voltage between 220-240V), and whether other kitchen appliances work. If the lamp doesn't work, check the lamp switch and lamps.

Why is the air intake poor?

Check the aluminum grease filter (clean if clogged), the air vent flue (ensure it is open), and the carbon filter (replace if overdue). Ensure the ducting is not blocked.

How do I replace the lamp?

First, disconnect the hood from the power supply. Remove the aluminum grease filter. Replace the faulty lamp with a new one of the same type (3W, E14). Wait for lamps to cool down before touching.

Can I install the hood myself?

Installation should be done by an authorized service. The customer must prepare the location and electrical installation. Follow the installation template and safety instructions. Use protective gloves and glasses.

What should I do if the appliance is damaged?

If the power cable or appliance is damaged, do not use it. Contact the dealer, service center, or authorized service for repair or replacement. Faulty repairs can be dangerous.

USER MANUAL HNU51311S BEKO

Simple line drawing of a chimney emitting steam (no text or symbols)

HNU51311SH - HNU51311S

EN - DE - FR - PL - CS - SK - ET - LV - LT - RO - ES - PT - RU - HU

CONTENTS

ENGLISH 3-15

DEUTSCH 16-30

FRANÇAIS 31-44

POLSKI 45-60

ČESKY 61-72

SLOVENSKÝ 73-85

EESTI 86-97

LATVISKI 98-109

LIETUVA 110-121

ROMÂNĂ 122-136

ESPAÑOL 137-151

PORTUGUÊS 152-166

RUSSIAN 167-185

MAGYAR 186-198

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

WARNING: Warning for danger of fire.

WARNING: Warning for electric shock.

1 Important safety and environmental instructions

1.1 General Safety

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

- Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses

- By clients in hotels, and other residential type environments;

- Bed and Breakfast type environments.

- Operate the appliance for its intended purpose only as described in this manual.

- The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1 Important safety and environmental instructions

• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.
• If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.
• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.
• Never use the appliance if the power cable or the appliance itself is damaged.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

- Place the appliance in a way so that the plug is always accessible.

- Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

- Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).

- Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

- Turn off the hob before taking the pot, pan etc. from it.

- Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.

- Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.

- Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.

1 Important safety and environmental instructions

- Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

- Do not use non-fire-resistant filtering materials instead of the current filter.

- Only use the original parts or parts recommended by the manufacturer.

- Do not operate the product without the filter and do not remove the filters while the product is running.

- In the event of be started any flame, de-energize your product and cooking appliances.

• In the event of be started any flame, cover the flame and never use water to extinguish.

- Unplug the appliance before each cleaning and when the appliance is not in use.

- The negative pressure in the environment should not exceed 4 Pa (4x10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.

- In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.

- When connecting the flue, use pipes with a diameter of 120 or 150 ~mm . Pipe connection must be as short as possible and have as few elbows as possible.

- Danger of choking! Keep all the packaging materials away from children.

CAUTION: Accessible parts may become hot when used with coo-king appliances.

- The product outlet must not be connected to air channels that include other smoke.

1 Important safety and environmental instructions

- The ventilation in the room may be insufficient when the hood for electric hob is used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

- Objects placed on the product may fall. Do not place any objects on the product. - Do not flambe under the your product.

WARNING: Before installing the Hood, remove the protective films.

- Never leave high naked flames under the hood when it is in operation

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General appearance

2.1 Overview

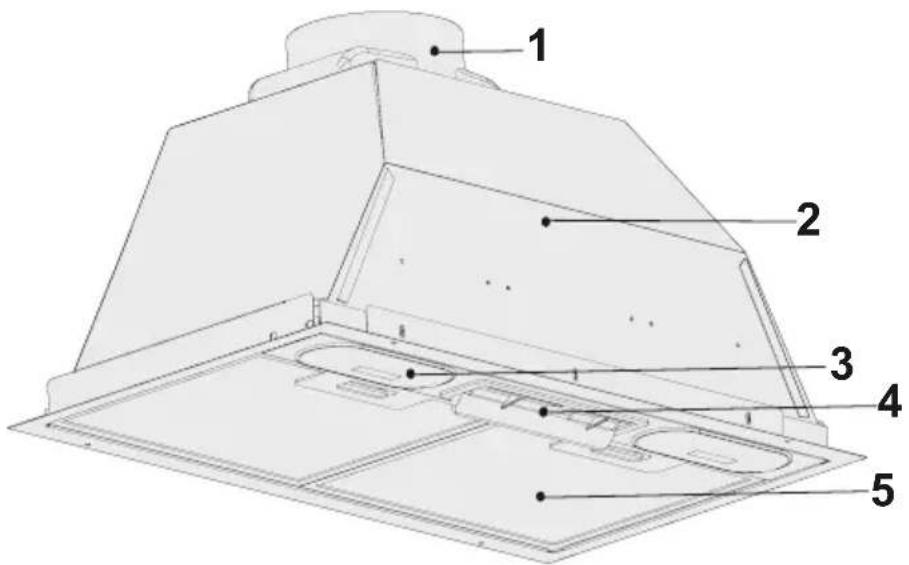

Control and parts

1. Air exhaust flue
2. Body
3. Hob lighting
4. Control panel
5. Grease filter

2.2 Technical data

Model HNU51311SH H	NU51311S
Supply voltage & frequency	220-240V ~ 50 Hz
Lamp power 2x3 W
Motor power 185 W
Flow rate - 3. Level 381 m3/h
Insulation class F

3 Using the appliance

3.1 Use of the appliance

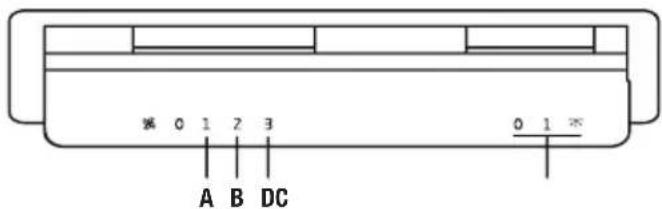

• Bring the lamp switch to position '0' to turn off the lamp.
• Bring the lamp switch to position '1' to turn on the lamp.
• Bring the motor switch to position '0' to turn off the motor.
• You can operate the motor in the 1st speed level minimum and in the 3rd speed level maximum according to the density of cooking steam.

3.2 Energy efficient usage

• When using your appliance, adjust the speed settings according to vapour and odour intensity, in order to save energy.
• Use low speeds (1-2) under normal conditions, and high speed (3) for intense odour and vapour.
• The lamps on the hood are placed for illuminating the cooking area.
• Using them for environmental lighting shall cause unnecessary energy expenditure and insufficient lighting.

3.3 Operating the hood

• Your appliance contains a motor that has various speeds.
• For better performance, we recommend using low speeds under normal conditions and high speeds in cases of strong odours and intense vapour.
• You can start your appliance by pressing on the desired speed setting button. (A, B, C).
• You may illuminate the cooking area by pressing the lamp (D).

3.4 Lamp replacement

Lamp
Power 3 W
Socket E14
Voltage 220 – 240 W
Dimension 35x100 mm
ILCOS Code DRBB/F	-3-220-240-E14-35/100
Luminous flux 400 lm
Correlated colour temperature	2700 K

This product contains a light source of energy efficiency class "E".

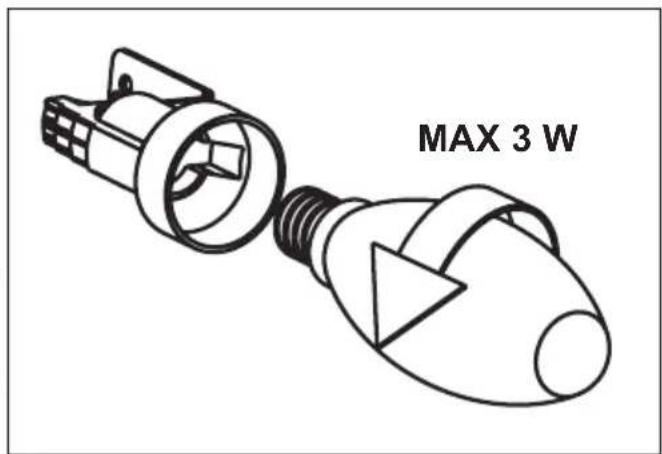

- Remove the aluminum cartridge filter. Remove the faulty lamp and replace it with the one having the same value.

WARNING: Cut the power supply of the hood. Lamps may burn your hands while hot, so wait for them to cool down.

3 Using the appliance

• If the appliance breaks down or gets damaged, shut down the fuse or unplug the appliance and call the authorised service agent.
• If the supply cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified personnel to avoid any danger.
• Shut down the fuse or unplug the appliance in case of breakdown of the lamps of the appliance. Replace immediately the faulty lamps in order to prevent other lamps from being overloaded (wait for the lamps to cool down first).

- Replace aluminum grease filter.

3.5 Operation with chimney connection

tracted through the

flue duct, which is fastened to the connection head on the hood.

- The diameter of the flue duct must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10^ ) so that the air can exit the room easily.

3.6 Operation without chimney connection

through the carbon

filter and recirculated in the room. Carbon filter is used when it is impossible to use a flue in the house.

• In flueless use, remove the flaps inside the flue adapter.
• Remove the aluminum grease filter. To install the carbon filter, fit the filter to the tabs by centring it on the plastic piece on both sides of the fan body. tighten it by turning right or left.

4 Cleaning and maintenance

Before cleaning and maintenance, unplug the product or turn off the switch.

4.1 Cleaning of the grease filter

This filter retains the oil particles in the air. Grease filter may change colour as they are washed; this is normal and does not require replacing your grease filter.

Technical line drawing of a mechanical component with internal structure and mounting holes (no text or symbols)

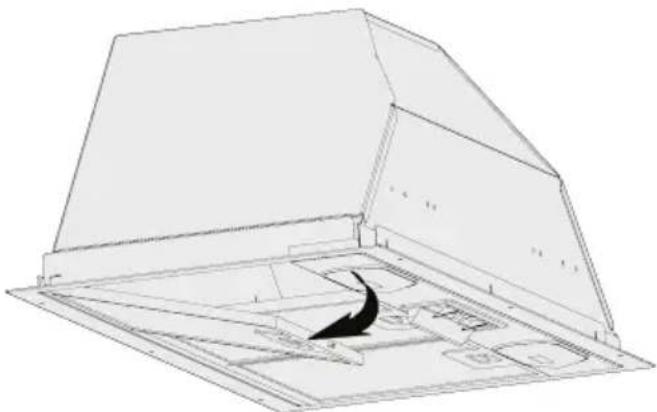

- Push the grease filter lock forward.

- Then pull it slightly down and pull it out. Otherwise, you can bend the filter. Wash and rinse Grease filter with liquid detergent and replace grease filter to their sockets by carrying out the steps specified above in reverse order. This filter retains the oil particles in the air.

You may wash your grease filter in the dishwasher.

CAUTION: In case of normal use, clean your filter once in a month.

4.2 Replacement of Carbon Filters

Odour removing filters contain charcoal (Active carbon). Grease filter must be installed in the product, regardless of whether or not carbon filters are used.

Diagram of a mechanical or electrical component with a hand operating a rotating arm (no text or symbols visible)

- Remove the grease filter.

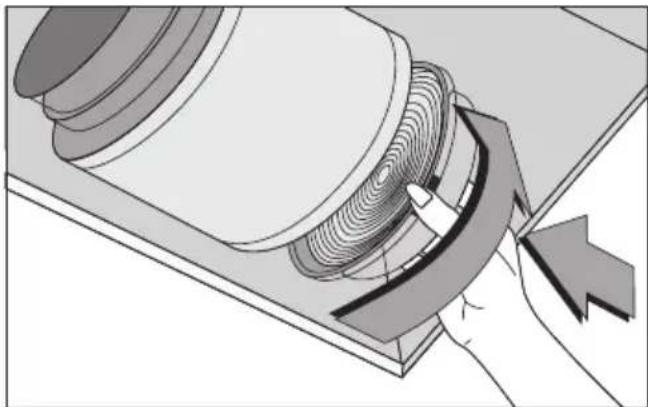

- To remove the carbon filter, remove the carbon filter from its housing by rotating it counter-clockwise from the tab.

• Install the new carbon filter.
• Install the grease filter.

CAUTION

• Carbon filter shall never be washed.
• Replace carbon filters once every 3 months.
• You can obtain the carbon filter from the authorized services.

5 Setting up the device

WARNING: Before starting the installation, read the safety information on user manual.

WARNING: Failure to install with screws and stabilizers in accordance with these instructions may result in electric shock.

For the installation of the hood, please contact the nearest Authorized Service.

It is the customer's responsibility to prepare the location and electrical installation of the hood.

5.1 Position of the appliance

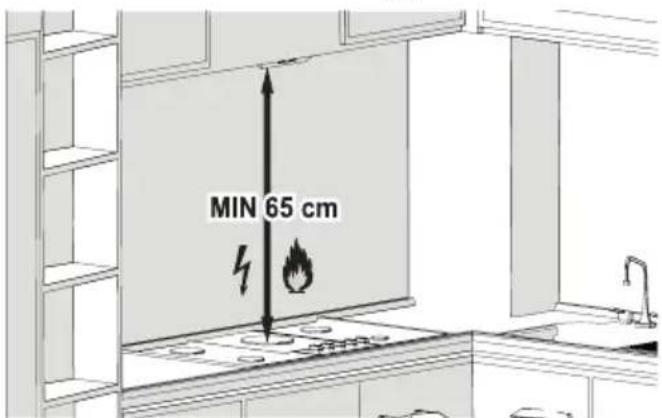

• Distance between the cooker and the cooker hood must be considered prior to assembly. This distance should be 65 cm.
• Distance must be measured from the surface of grate for gas cookers,
  • from surface of glass for electric cookers.

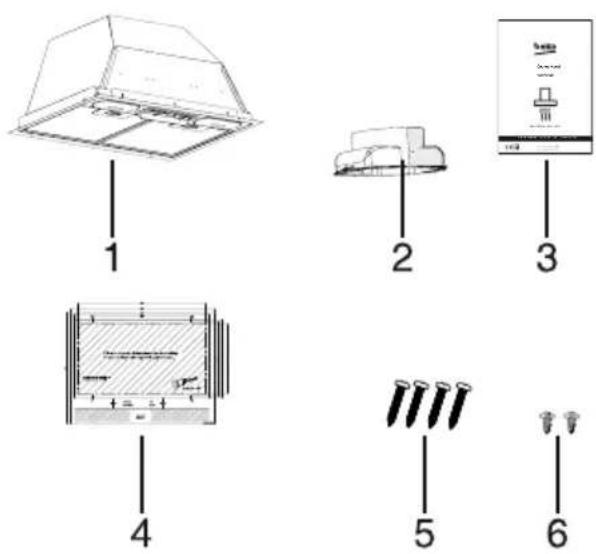

5.2 Package content

1. Hood
2. ∅120 mm plastic flue
3. User manual
4. Installation draft
5. 4x3,9x32 screw ( Used for installation of hood )
6. 3.5x9.5 screw (Used for installation of plastic flue)

The information required to make the location suitable for the installation of the hood is given below.

5.3 Installation of the appliance

Use protective gloves and glasses while performing drilling and cutting operations.

5 Setting up the device

Figure 1

5.4 Drilling mounting holes

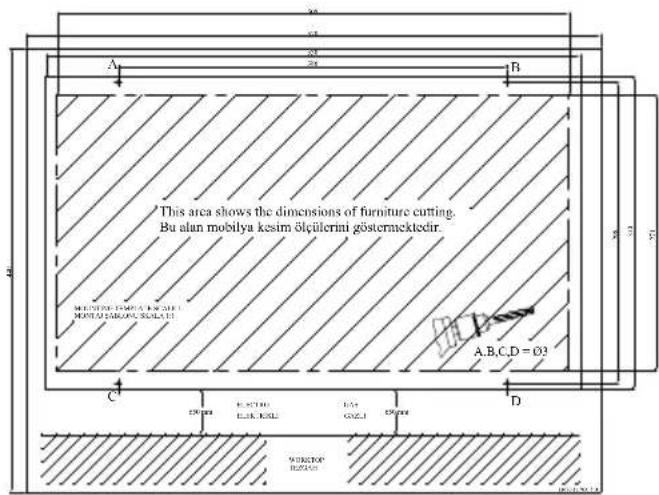

• Adhere the installation template provided with the appliance onto the surface on which the installation will be carried out.
• Drill the holes indicated on the installation draft with A, B, C, D using a ∅4 mm drill bit. (Figure 1)

Technical line drawing of a saw cutting through a rectangular frame (no text or symbols)

Figure 2

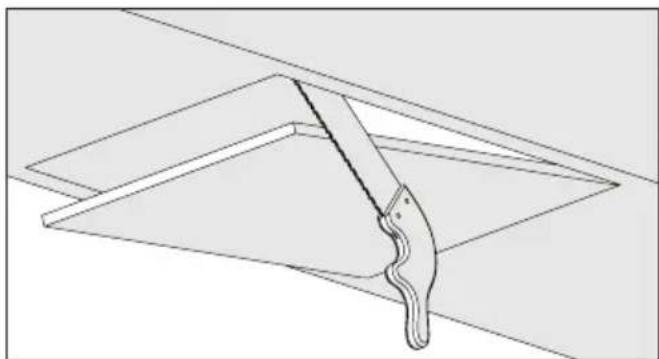

- Cut the lower surface of the cabinet where the hood will be installed in the dimensions specified in the technical drawing (Figure 2).

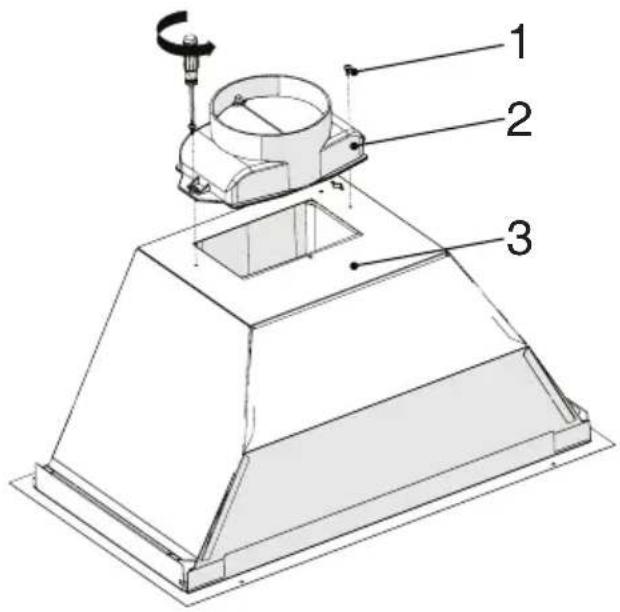

Figure 3

1. 3.5×9.5 screw
2. ∅ 120 mm plastic flue
3. BodyValve pin socket

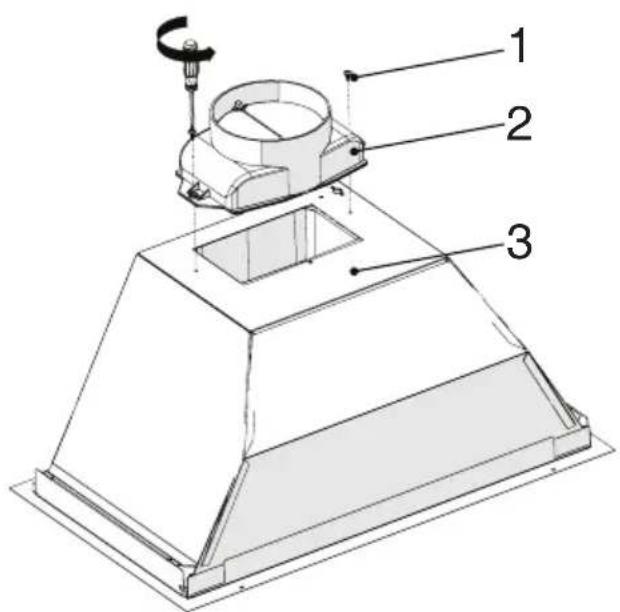

4. Attach the plastic flue contained in the package to the body of the appliance using 2 screws 3.5x9.5. Do not rub it against the surface. (Figure 3)

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Figure 4

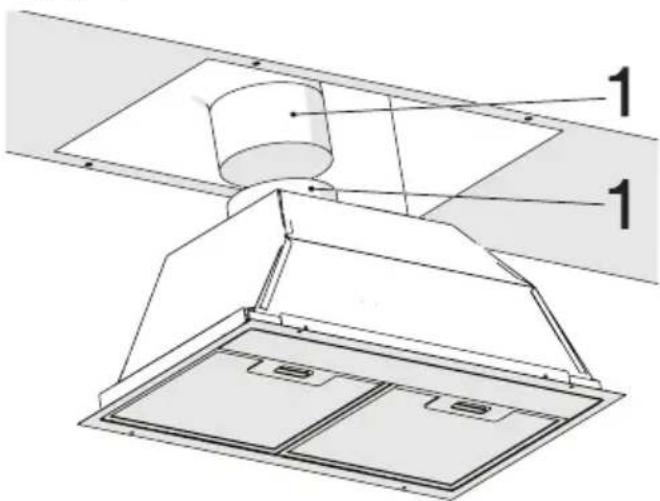

1. Air discharge pipe
2. Air exhaust flue of the hood

- Attach the air discharge pipe to the air exhaust flue and fasten via clamp (Figure 4).

5 Setting up the device

CAUTION: As the bends and elbows in the aluminum pipe will cause decrease in the air suction power, using these must be avoided as much as possible.

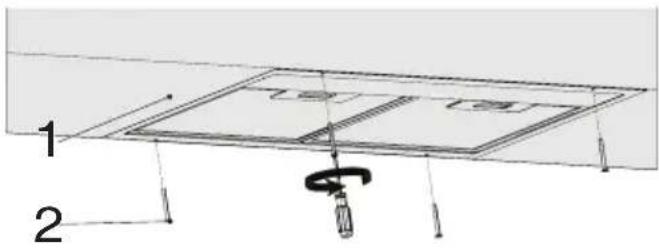

Figure 5

1. Kitchen cabinet bottom view
2. 4x3,9x32 hood installation screw

- Place the hood into the kitchen cabinet and attach the hood to 4 installation holes drilled before (Figure 5).

5.5 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children

5.6 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

6 Troubleshooting

Troubleshooting Reason Help
The product does not work. Check your fuse. Your fuse might be closed, make it work.
The product does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The product does not work.	Check the electrical connection.	Check if the other products in your kitchen are working or not.
The lighting lamp does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The lighting lamp does not work. Check the lamp switch. The lamp switch should be in the “on” position.
The lighting lamp does not work. Check the lamps. The lamps of the product should not be faulty.
The air intake of the product is poor.	Check the aluminum filter. The aluminum oil filter should be cleaned at least once a month under normal conditions.
The air intake of the product is poor.	Check the air vent flue. The air vent flue should be in the "on" position.
The air intake of the product is poor.	Check the carbon filter. For products with carbon filters, the filter should normally be changed every 3 months.

Technical line drawing of a 3D mechanical component with internal structure and directional arrow (no text or symbols)

Diagram of a mechanical component with a hand operating a curved tool, showing internal layered structure (no text or symbols)

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Abb. 2

Abb. 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Abb. 4

Troubleshooting Reason Help
The product does not work. Check your fuse. Your fuse might be closed, make it work.
The product does not work. Check the electrical connection. The mains voltage should be between 220-240 V.
The product does not work.	Check the electrical connection.	Check if the other products in your kitchen are working or not.
The lighting lamp does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The lighting lamp does not work. Check the lamp switch. The lamp switch should be in the “on” position.
The lighting lamp does not work. Check the lamps. The lamps of the product should not be faulty.
The air intake of the product is poor.	Check the aluminum filter. The aluminum oil filter should be cleaned at least once a month under normal conditions.
The air intake of the product is poor.	Check the air vent flue. The air vent flue should be in the “on” position.
The air intake of the product is poor.	Check the carbon filter. For products with carbon filters, the filter should normally be changed every 3 months.

Garantiebedingungen

Anschrift:

Contrôle et pièces

Simple line drawing of a box inside a house-shaped frame with arrows indicating direction (no text or symbols)

Technical line drawing of a 3D architectural structure with internal components and an arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to interact with a mechanical component, showing concentric ridges and a curved blade (no text or symbols)

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Pic. 2

Pic. 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Pic. 4

Kontrola i części

Technical line drawing of a 3D mechanical component with internal structure and mounting holes (no text or symbols)

Diagram of a mechanical component with a hand holding a curved arrow, showing internal layered structure (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Rys. 2

Rys. 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Rys. 4

Ovládání a části

Technical line drawing of a 3D architectural structure with a curved arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a hand operating a curved tool, showing internal layered structure (no text or symbols)

Technical line drawing of a saw cutting through a rectangular frame (no text or symbols)

Obr. 2

Obr. 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Obr. 4

Technical line drawing of a 3D architectural structure with a curved arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a hand operating a curved tool, showing internal layered structure (no text or symbols)

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Obr. 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Obr. 2

Juhtimine ja osad

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Diagram of a mechanical component with a hand holding a curved arrow, showing internal layered structure (no text or symbols)

Technical line drawing of a saw cutting through a rectangular frame (no text or symbols)

Pilt 2

Pilt 3

1. 3,5 x 9,5 kruvi

2. ∅ 120 mm plastlõõr

3. KorpusKlapp Varras Pesa

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Pilt 4

Vadība un detaļas

Technical line drawing of a 3D architectural structure with a curved arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a hand operating a rotating arm (no text or symbols visible)

Technical line drawing of a saw cutting through a rectangular frame (no text or symbols)

Att. 2

Att. 3

1. 3,5 x 9,5 skrūve
2. ∅ 120 mm Plastmasas dūmvads
3. KorpussVärsts Tapas ligzda

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Att. 4

Valdymas ir dalys

Technical line drawing of a mechanical component with internal structure and mounting holes (no text or symbols)

Diagram of a mechanical component with a hand holding a curved tab and arrow, no visible text or symbols

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Pav. 2

Pav. 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Pav. 4

Technical diagram of a mechanical assembly with labeled parts (1 and 2), no readable text or symbols present.

Pav. 5

Control și piese

Technical line drawing of a 3D architectural structure with a curved arrow indicating a component or feature (no text or symbols present)

Diagram of a mechanical component with a hand operating a rotating arm (no text or symbols visible)

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Imagine 2

Imagine 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Imagine 4

Controle e peças

Technical line drawing of a 3D architectural structure with internal components and a curved arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a tool interacting with it, showing internal layered structure (no text or symbols)

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Fig. 2

Fig. 3

1. Parafuso 3,5 X 9,5
2. Chaminé de plástico de ∅120 mm
3. Conetor de pinos da válvulado corpo
4. Encaixe a chaminé de plástico contida na embalagem ao corpo do aparelho utilizando 2 parafusos 3,5 X 9,5. Não friccione contra a superfície. (Fig. 3)

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Fig. 4

Control y piezas

Technical line drawing of a 3D architectural structure with a curved arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a hand operating a curved tool, showing internal layered structure (no text or symbols)

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Fig. 2

Fig. 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Fig. 4

Simple line drawing of a chimney emitting steam (no text or symbols)

HNU51311SH - HNU51311S

RU

Описание прибора

Simple line drawing of a box inside a house-shaped frame with arrows indicating direction (no text or symbols)

Technical line drawing of a 3D mechanical component with internal structure and directional arrow (no text or symbols)

Diagram of a mechanical component with a hand operating a curved tool, showing internal layered structure (no text or symbols)

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Рис. 2

Рис. 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Рис. 4

Technical line drawing of a 3D mechanical component with internal structure and mounting holes (no text or symbols)

Diagram of a mechanical component with a hand operating a curved tool, showing internal layered structure (no text or symbols)

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

2. ábra

3. ábra

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

4. ábra
