HAM1010 - Heat gun Ferm - Free user manual and instructions

Product type	Heat gun
Brand	Ferm
Model	HAM1010
Input power	2000 W
Power supply	230 V / 50 Hz (European standard)
Air flow	Position I: 300 l/min (constant 50°C) Position II: 300 l/min (70-600°C) Position III: 500 l/min (70-600°C)
Temperature range	50°C (fixed) or 70-600°C (adjustable in 10°C steps)
Display	Digital with target and actual temperature
Dimensions (L x W x H)	Approx. 250 x 80 x 80 mm
Weight	Approx. 0.5 kg
Protection class	II (double insulation, no grounding required)
Main uses	Soldering, paint stripping, drying, plastic forming, cable shrinking, etc.
Safety	Automatic thermal cut-off above 600°C, hot metal nozzle, do not obstruct outlet
Maintenance and cleaning	Brush ventilation slots, do not use water or flammable liquids
Spare parts	Available through the after-sales service center indicated on the warranty card
Repairability	Contact authorized service for any repair other than wear parts
Warranty	According to the provided warranty certificate
Standards	EN60335-1, EN60335-2-45, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3
Certifications	Compliant with directives 98/37/EC, 73/23/EEC, 89/336/EEC, 2002/95/EC, 2002/96/EC
Included accessories	Auxiliary nozzles (not specified, but mentioned)

Frequently Asked Questions - HAM1010 Ferm

How to set the temperature on the Ferm HAM1010?

For positions II and III, use the + and - buttons to increase or decrease the target temperature in 10°C steps. The display shows the actual temperature with a flashing indicator until the target is reached.

What is the difference between positions I, II and III?

Position I: air flow 300 l/min at constant 50°C (not adjustable). Position II: air flow 300 l/min, temperature adjustable from 70 to 600°C. Position III: air flow 500 l/min, temperature adjustable from 70 to 600°C.

Can this appliance be used for drying hair?

No, the Ferm HAM1010 heat gun is not designed for drying hair or for any living being. It is intended for technical use (soldering, stripping, etc.).

How to clean the heat gun?

First unplug the appliance. Clean the ventilation slots with a brush. Never use water or flammable liquids. Do not immerse the appliance in water.

What to do if the motor overheats?

The ventilation slots are probably blocked by dirt. Clean them carefully. If the problem persists, contact after-sales service.

Can I use an extension cord with this appliance?

Avoid long extension cords. If necessary, use an extension cord with sufficient cross-section (at least 1.5 mm²) and fully unrolled to avoid overheating.

How to change the nozzle?

Make sure the appliance is turned off, unplugged and the nozzle is cold. Then replace the auxiliary nozzle by clipping it onto the outlet.

Does this appliance have overheating protection?

Yes, when the temperature exceeds 600°C, the heat is automatically turned off. The heating reactivates when the temperature drops back to a normal level.

What to do if the appliance does not work after plugging in?

Check that the mains socket is live and that the cable is not damaged. Also check the switch. If the problem persists, consult after-sales service.

Where can I find spare parts?

Spare parts are available from the service center indicated on the warranty card. Consult the parts diagram at the end of the manual to order the correct references.

USER MANUAL HAM1010 Ferm

GB Subject to change

D Änderungen vorbehalten
NL Wijzigingen voorbehouden
F Sous réserve de modifications
E Reservado el derecho de
modificaciones técnicas
P Reservado o direito a modificações
I Con riserva di modifiche
S Ändringarförbehålles
FIN Pidätämme oikeuden muutoksiin
N Rett till endringer forbeholdes
DK Rettil ændringerforbeholdes

JUST A PERFECT TOOL

Art.no.HAM1010

FHG-2000ND

Black and white photo of a semi-compact industrial tool kit with metal components and a thermosorbent (no visible text or symbols)

GB USERS MANUAL 03
D GEBRAUCHSANWEISUNG 09
NL GEBRUIKSAANWIJZING 15
F MODED'EMPLOI21
E MANUAL DE INSTRUCCIONES 27
P MANUAL DE INSTRUÇÕES 33
I MANUALE UTILIZZATI 39
( S ) BRUKSANVISNING 45
FIN KÄYTTÖOHJE 51
N BRUKSANVISNING 57
DK BRUGERVEJLEDNING 62

CE

www.ferm.com

Close-up of a handheld electric shaver with labeled parts (1 and 2), no visible text or symbols beyond labels

Ferm 7102 Ferm

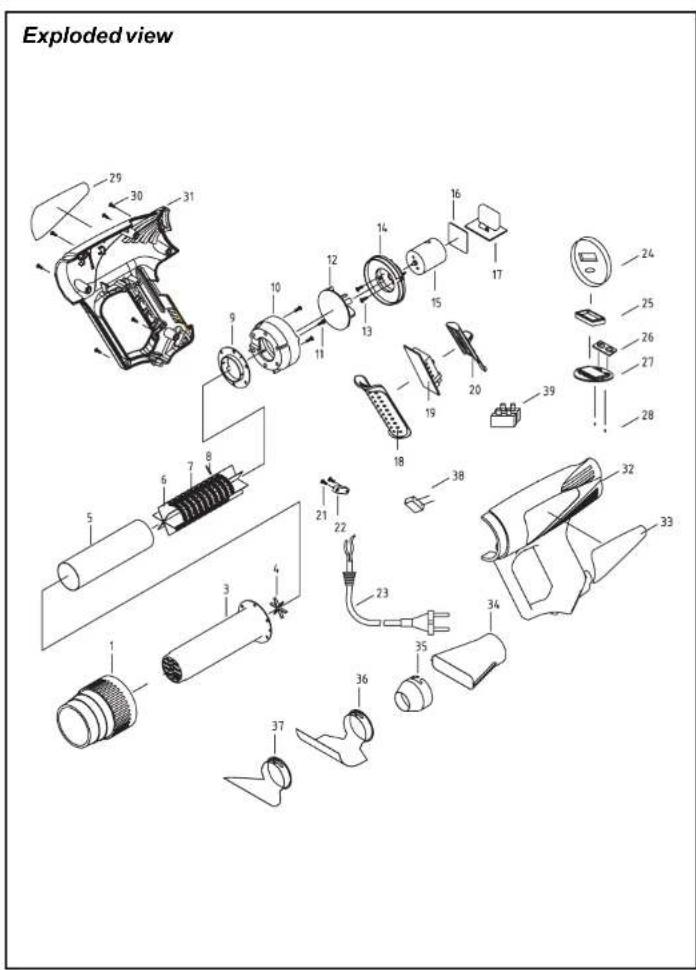

Spare parts list

No. Description Position
8 Thermical link 401257
16, 17 Printed circuit board	401256
19, 20 Switch complete	401255

HOTAIRGUN

The numbers in the following text correspond with the pictures at page 2.

Always read the instruction for electrical products carefully before use. It will help you understand your product more easily and avoid unnecessary risks. Keep this instruction manual in a safe place for future use.

Contents

1. Machine data
2. Safety instructions
3. Using the appliance
4. Maintenance

1. MACHINE DATA

Technical specifications

Voltage 230 V\~

Frequency 50 Hz

Power input 2000 W

Position I

Airflow 300 l/min

Air temperature 50°C constant

Position II

Airflow 300 l/min

Air temperature 70°C - 600°C

Position III

Airflow 500 l/min

Air temperature 70°C - 600°C

Product information

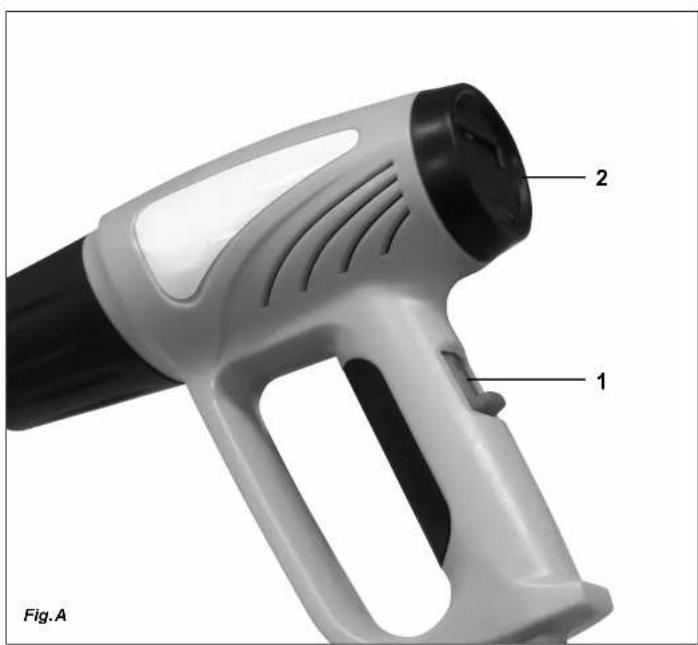

Fig. A

1. Switch
2. Display + temperature regulation
3. Nozzle outlet
4. Ventilation slots

2. SAFETY INSTRUCTIONS

The following symbols are used in these instructions for use:

Read instructions carefully

Ferm 0370 Ferm

In accordance with essential applicable safety standards of European directives

Class II machine – Double insulation – You don't need any earthed plug.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

Risk of fire

Immediately unplug the plug from the mains electricity in the case that the cord gets damaged and during maintenance

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Additional safety instructions

When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate this product and save these instructions.

Before using the appliance:

- Check the following:

- Make sure the voltage of the hot air gun corresponds with the power voltage; - Are the mains lead and the mains plug in a good state: strong, without ravels or damages.

• Avoid the use of long extension cables;
• Do not use the appliance under moist circumstances;
  • The metal mouthpiece gets hot. Watch out and do not touch the metal mouthpiece;
• Prevent damage of the heating element. Do not lock or block the mouth piece;
• Do not leave the appliance when switched on;
• When the appliance is not in use, it can be put away on the collapsible support, which is on the air gun. By collapsing this support, the air gun can easy be put away on it. The hot air gun now stands on the support with the mouthpiece up;
• Do not use the appliance for drying hair or for drying living human beings in general;
• Do not use the appliance in a bath, above water or in spaces where easy inflammable liquids are used.

This appliance operates at a temperature of 600 degrees without visible signs of this temperature (no flames), still there is a chance of fire risk. Watch out for the hot air stream from the mouth piece. This air stream can cause burns.

When operating the appliance

• If you are going to use the hot air gun, vapours and gas can be liberated during a short time. This can be harmful for your health. Asthmatics can suffer hindrance of it;
• Before connecting the plug to the mains voltage you have to check if the switch is in position "0";
• Keep the mains lead always away from the mouthpiece of the hot air gun;
• Keep children and animals away from the appliance if you are using it.

Immediately switch off the appliance when:

• Plug and/or cable are defective or damaged;
  • The switch is defective;
• You smell or see smoke caused by scorched insulation from the hot air gun.

3. USING THE APPLIANCE

The Hot air gun can be used for:
- Plumbing work like tube connections, solder, bowing tubes;
- Removing paint, varnish and lacquer without firerisk;
- Quickly drying of appliances which have become wet;
• Drying surfaces for quick repairing;
- Removing self-adhesive labels in a clean way placing PVC labels;
- Blistering after sticking PVC materials can be smoothed after heating;
- Easy removing of vinyl carpeting:
- Forming all synthetics with a low temperature (350 degrees) among which polyethylene and PVC;
- Forming all synthetics with a high temperature (580 degrees) among which acryl and plexiglass;
- Smelting synthetics, among which matters and foils with PVC layer;
- Applying heat shrinking tubes;
- Shrinkwrappers;
• Thawing tubes and engines;
- Repairing finishing layers: email of bath and household appliances;
- Applying epoxypowder coverlayers;
• Repairing of ski's, surf-boards and other sports goods;
- Unscrewing too fast fixed screws and connections.

Before operating

Before you switch on the hot airgun you have to search for the right adapter for the mouthpiece and assemble it on the mouthpiece if it is still cold.

Replace the mouthpiece only:
- With a stationary engine.
- When the appliance is disconnected;
- When the mouth piece is cold.

Operation

Fig. B

Switching on:

Slide the switch to I, II or III.

I: 300 l/min 50°C constant (not adjustable)

II: 300 l/min 70°C - 600°C

III: 500 l/min 70°C - 600°C

On the steps II and III, the temperature at the nozzle outlet can the continuously regulated. After displaying the target temperature, the actual temperature (e.g. 100^ ) at the nozzle outlet is shown with blinking until the selected target temperature is reached. The arrows then disappear and the display shows the actual temperature.

The target temperature can be increased in steps of 10^ C by pressing the “+” side of the temperature button or reduced pressing the “-”. Brief pressing of the button increases or decreases the target temperature one time by 10^ C. When the temperature is excess 600^ C, the heats switches it off automatically, however, the heater continues to run. When the heater has cooled to operating temperature, the heater is switched on again.

Switching off:

Slide the switch to 0.

Tip: If you want to get the best result, test all appliances on a little part of the workpiece.

4. MAINTENANCE

Always disconnect the apparatus before carrying out inspection or cleaning. Never use water or other liquids to clean the electrical parts of the hot air gun.

• Never use easy inflammable liquids for cleaning the hot air gun, especially for the mouthpiece.
• Regular maintenance of your hot air gun prevents unnecessary problems. Keep the ventilation slots of the hot air gun clean to prevent overheating.

Troubleshooting

In case the hot air gun does not work well, we give you subjoined some possible causes and their solutions.

Fejl

CEO Ferm BV Quality Manager Ferm Global

The engine gets overheated.	The ventilation slots of the hot air gun are dirty.	Clean the ventilation slots.
The hot air gun does not start when it is switched on.	Interruption in the electrical circuit.The switch is defective.	Check the mains lead and the mains plug
The engine does not work, but it does heat.	Interruption in the electrical circuit.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Guarantee

The guarantee conditions can be found on the separately enclosed guarantee card.

CE DECLARATION OF CONFORMITY (GB)

We declare under our sole responsibility that

FHG-2000ND

is in conformity with the following standards or standardized documents:

EN60335-1, EN60335-2-45, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3

in accordance with the regulations:

98/37/EC, 73/23/EEC, 89/336/EEC, 2002/95/EC, 2002/96/EC

from 01-11-2006

ZWOLLENL

CEO Ferm BV Quality Manager Ferm Global

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV•Lingenstraat6•8028 PM Zwolle•The Netherlands

I: 300 l/min 50 °C konstant (ikke justerbar)

II: 300 l/min 70 °C - 600 °C

III: 500 l/min 70 °C - 600 °C

CE ERKLÆRING AVANSVARSFORHOLD (N)

CEO Ferm BV Quality Manager Ferm Global

CEO Ferm BV Quality Manager Ferm Global

CEO Ferm BV Quality Manager Ferm Global

CEO Ferm BV Quality Manager Ferm Global

Specifications techniques

Tension 230 V\~

Fréquence 50 Hz

CEO Ferm BV Quality Manager Ferm Global

CE DÉCLARATION DE CONFORMITÉ (F)

CEO Ferm BV Quality Manager Ferm Global

CEO Ferm BV Quality Manager Ferm Global

CEO Ferm BV Quality Manager Ferm Global

CEO Ferm BV Quality Manager Ferm Global
