VCP 3830 - Vacuum Cleaner GRUNDIG - Free user manual and instructions

Product type	2-in-1 rechargeable stick vacuum
Brand	Grundig
Model	VCP 3830
Rated input power	100 W
Input voltage	100-240 V~, 50-60 Hz
Input current	0.8 A max
Charger output	26 V = 0.6 A
Battery type	Rechargeable lithium-ion, model ZB1852 or ZB1852-01
Charging time	3 to 4 hours
Runtime at maximum power	22 minutes
Runtime at minimum power	Up to 40 minutes
Filter	EPA E12, regular cleaning, replacement every 3 to 6 months
Included accessories	Electric turbo brush, 2-in-1 brushes, crevice tool, metal tube
Charging indicator	Flashing light blue during charging, solid blue when charged, flashing red when battery low
Safety	Do not use on wet surfaces, without filter, or with large objects; automatic shut-off in case of blockage
Maintenance	Clean filter regularly, empty dust bin, use only original Grundig accessories
Repairability	Spare parts available for at least 5 years; repair by qualified professional
Warranty	Manufacturer warranty void in case of industrial or commercial use

Frequently Asked Questions - VCP 3830 GRUNDIG

What is the runtime of the Grundig VCP 3830 vacuum cleaner?

The runtime at maximum power is approximately 22 minutes, and up to 40 minutes at minimum power.

How to charge the battery?

Plug the supplied charger (model DK20C-260060H-V) into a wall outlet. The charging indicator flashes blue while charging and becomes solid blue when fully charged. Charging time is 3 to 4 hours.

What accessories are included with the VCP 3830?

The vacuum comes with an electric turbo brush, 2-in-1 brushes, a crevice tool, and a metal tube.

How to clean the EPA E12 filter?

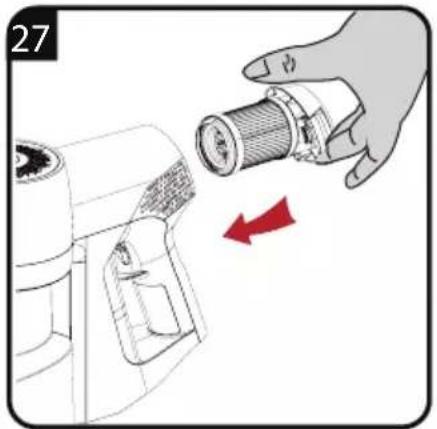

Remove the filter by pressing the designated button. Gently clean it with a soft brush or tap it to remove dust. Avoid water. Replace the filter every 3 to 6 months depending on usage.

Can I use the vacuum on wet floors?

No, the vacuum is not designed for wet surfaces. Never use it on liquids or wet objects to avoid electric shock risk.

How to empty the dust bin?

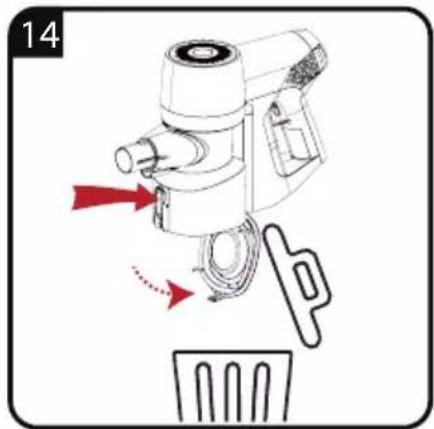

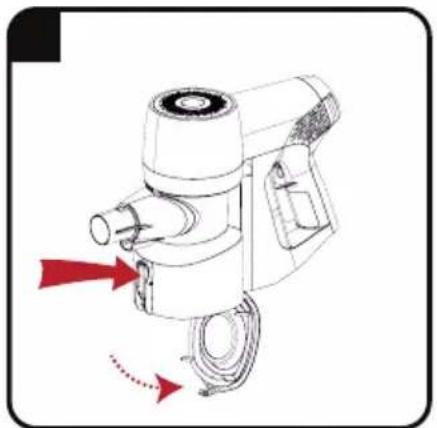

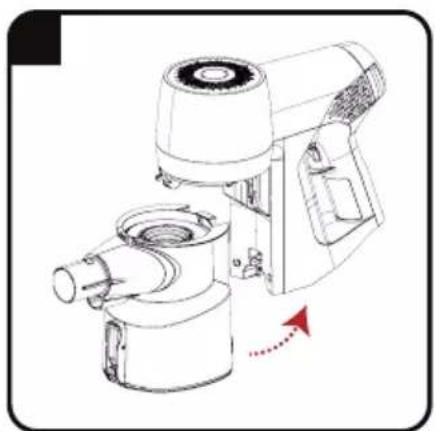

Press the waste bin release button located on the vacuum body to release the bin. Empty it over a trash can and replace it by clipping it until it clicks.

What to do if the vacuum does not turn on?

First, check if the battery is charged. If the indicator flashes red, the battery is low. Recharge it. If the problem persists, contact an authorized after-sales service.

Is it possible to replace the battery myself?

The battery is removable, but replacement must be done by a qualified person. Use only batteries of model ZB1852 or ZB1852-01.

Can the vacuum pick up ashes or cigarette butts?

No, never use the vacuum to pick up hot ashes, cigarette butts, or matches, as this could cause a fire.

How long are spare parts available?

Grundig guarantees the availability of spare parts and accessories for at least 5 years after purchase of the product.

USER MANUAL VCP 3830 GRUNDIG

2 In 1 Cordless Stick Vacuum Cleaner

User Manual

Two abstract geometric patterns: a woven bamboo design and a square with circular cutouts (no text or symbols)

VCP 3830 - VCP 4830

Pure mechanical diagram of a cylindrical component with internal channels and a labeled point L (no text or symbols beyond label)

Simple line drawing of a mechanical device with a vertical support and base (no text or symbols)

Simple diagram of a mechanical or electrical component with a central shaft and a hanging weight (no text or symbols)

Diagram showing a mechanical component being processed with red arrows indicating motion (no text or symbols)

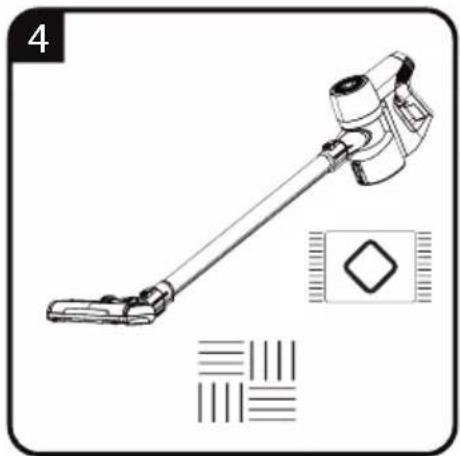

Line drawing of a vacuum cleaner with a handle and control panel, no text or symbols present

Illustration of a mechanical device with three components and a red arrow indicating transformation (no text or symbols)

Diagram of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Technical illustration of a mechanical device with a red downward arrow indicating a change or adjustment (no text or symbols present)

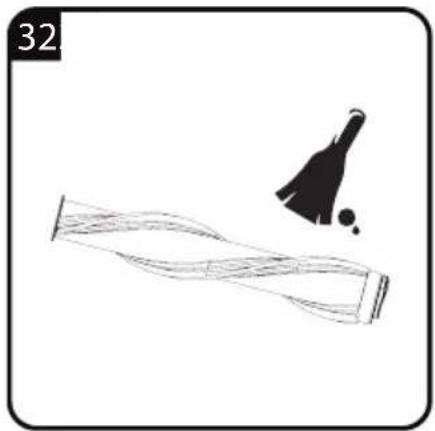

Illustration of a hand cleaning a cylindrical object with a cloth (no text or symbols)

Illustration of a hand cleaning a cylindrical object with a cloth (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

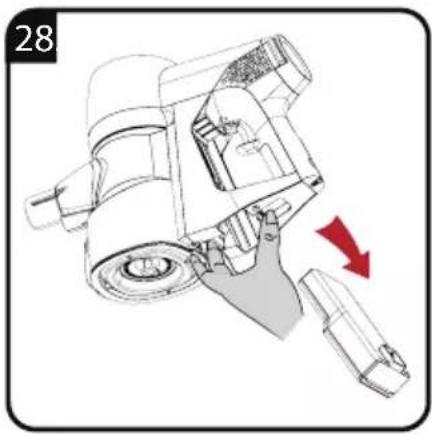

Illustration of a hand holding a device with a red downward arrow indicating compression or disassembly (no text or symbols present)

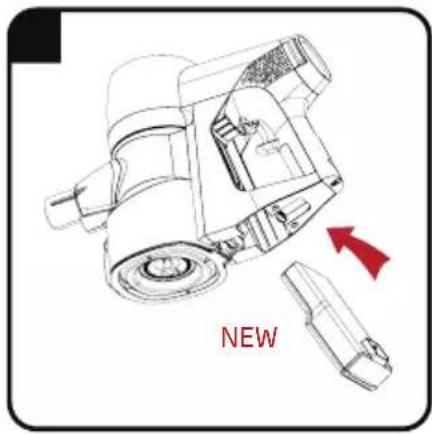

Illustration of a hand holding a device with a red arrow indicating motion (no text or symbols)

Illustration of a hand holding a cylindrical connector next to a device component, with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a cylindrical connector next to a device component, with a red arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a hand holding a component with a red arrow indicating motion (no text or symbols)

Technical line drawing of a vacuum cleaner with a magnified inset showing the component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a ribbon-like object with a small black silhouette above it, no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLEME VE BAKIM
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
HR	RAD ČIŠĆENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
SV	ANVÄNDNING RENGÖRING OCH SKÖTSEL
NO	DRIFT RENGJ∅RING OG PLEIE
FI	KÄYTTÖ ČIŠĆENJE I ODRŽAVANJE
DA	BETJENING RENG∅RING OG VEDLIGEHOLDELSE

Ladestation (VCP 4830)
J Wandhaken

K Netzstecker

Technical illustration of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Minibürste N

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Ladeanzeige

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.

■ The appliance is designed for domestic use only. Warranty will be voided if the appliance is used for industrial or commercial purposes.

- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.

■ Do not use on wet surfaces and do not attempt to use on wet objects.

■ Do not use the appliance in wet surroundings.

■ Do not use the appliance with wet hands.

■ This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.

■ Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.

■ This appliance is not designed for cleaning people or animals.

■ Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.

■ Never operate the appliance without the filter.

■ Clean the filter when necessary.

■ Only use original GRUNDIG accessories when replacing parts.

■ Check if the mains voltage on the rating label corresponds to your local mains supply.

■ Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit.

■ Avoid using extension cables or multipoint connectors. Plug the appliance directly in a wall socket if possible.

SAFETY

■ For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30 mA. Consult your electrician for advice.

■ Do not disconnect the plug by pulling on the cable.

■ Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.

- Our GRUNDIG Household Appliances meet all applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.

- Keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

- Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.

■ Only use the power cord provided.

■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

■ Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

- Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.

■ The battery must be removed from the appliance before it is scrapped;

■ The appliance must be discon-

nected from the supply mains when removing the battery;

■ Please dispose of used batteries according to local laws and regulations.

■ This appliance contains batteries that are only replaceable by skilled persons.

■ WARNING: For the purposes of recharging the battery, only use the detachable supply unit DK20C-260060H-V provided with this appliance.

■ Please remove and insert the batteries according to UM

■ Rechargeable batteries are to be removed from the appliance before being charged;

■ Different types of batteries or new and used batteries are not to be mixed

■ Batteries are to be inserted with the correct polarity

■ Exhausted batteries are to be removed from the appliance and safely disposed of

■ If the appliance is to be stored unused for a long period, the batteries should be removed

■ The supply terminals are not to be short-circuited

■ Only use with ZB1852 or ZB1852-01 battery.

■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

■ Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

- Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.

■ The battery must be removed from the appliance before it is scrapped;

■ The appliance must be disconnected from the supply mains when removing the battery;

■ Please dispose of used batteries according to local laws and regulations.

■ This appliance contains batteries that are only replaceable by skilled persons.

■ WARNING: For the purposes of recharging the battery, only use the detachable supply unit DK20C-260060H-V provided with this appliance.

■ Please remove and insert the batteries according to UM

■ Rechargeable batteries are to be removed from the appliance before being charged;

■ Different types of batteries or new and used batteries are not to be mixed

■ Batteries are to be inserted with the correct polarity

■ Exhausted batteries are to be removed from the appliance and safely disposed of

■ If the appliance is to be stored unused for a long period, the batteries should be removed

■ The supply terminals are not to be short-circuited

■ Only use with ZB1852 or ZB1852-01 battery.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG 2 in 1 rechargeable vertical vacuum cleaner VCP 3830, VCP 4830.

Please read the following user notes carefully so that you can enjoy your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living.

Grundig.

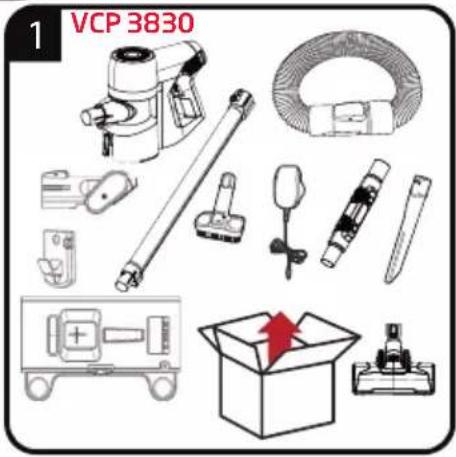

Controls parts

See image on page 3.

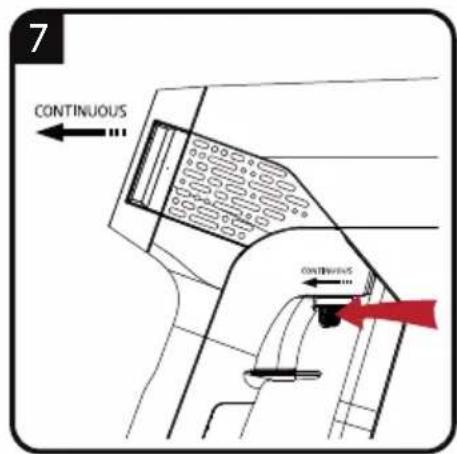

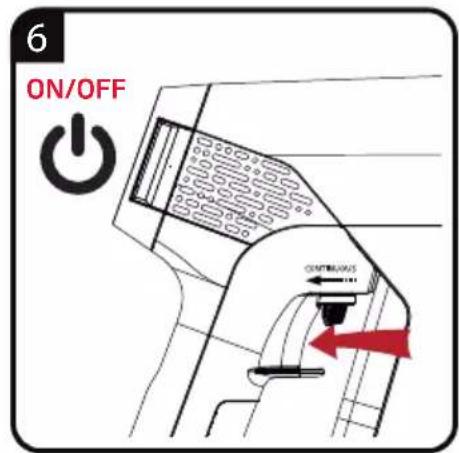

A On/off button
B Dust bin discharge button
Metal tube release button
D Electrical turbo brush

E Vacuum cleaner body

F Battery pack

G Dust cup

H Two-in-one brush

☐ Charging dock (VCP 4830)

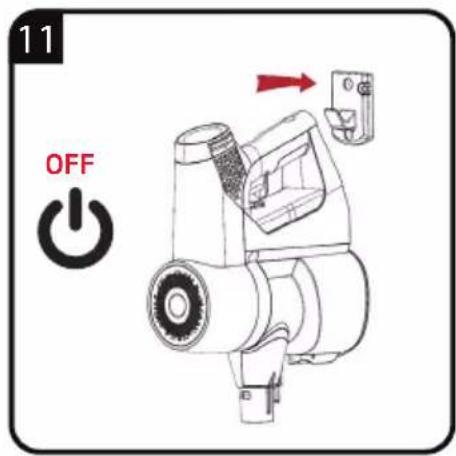

J Wall hook

Power supply plug

Elbow (VCP 4830)

M Crevice

N Mini turbo brush (VCP 4830)

Flexible hose (VCP 4830)

P Dust brush (VCP 4830)

Metal wand

s On/Off locking latch

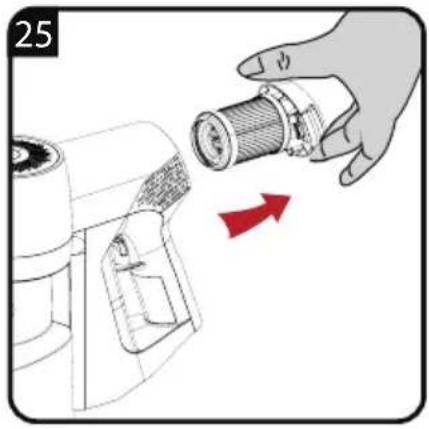

T EPA E12 Filter removal button

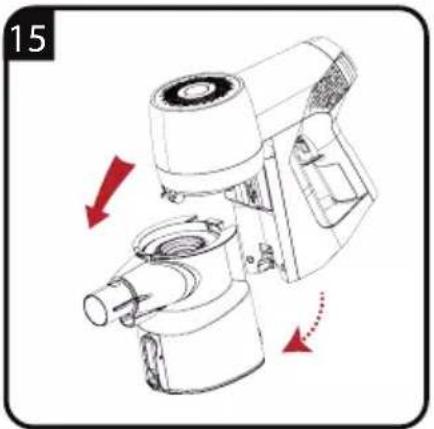

☐ Dust bin removal button

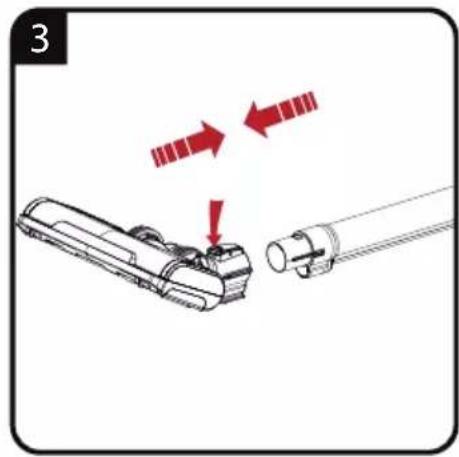

PART ASSEMBLING

Elbow and flexible hose L, O

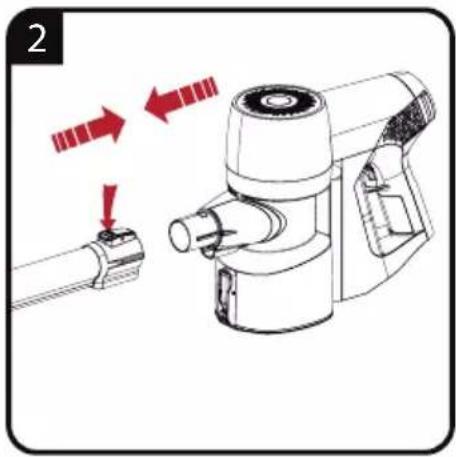

The elbow and flexible hose are extension tools, one end is inserted into the suction port, the other end is connected with the accessories, which can clean corners or narrow spaces

Technical illustration of a mechanical component with threaded ends and a separate cylindrical assembly (no text or symbols)

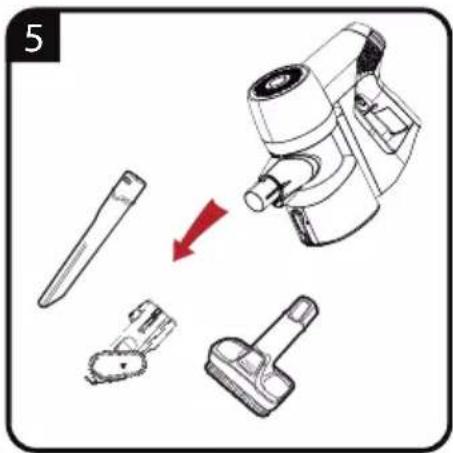

Crevice M, 2in1 Brush H and dust brush P

Push the round part of the accessory into the suction part until it clicks.

The hairbrush of the 2in1 accessory can be removed.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Mini turbo brush N

Push the end of the Mini-brush into the suction part until it clicks.

Remove it by pulling the buttons.

Technical line drawing of a mechanical device with an arrow indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

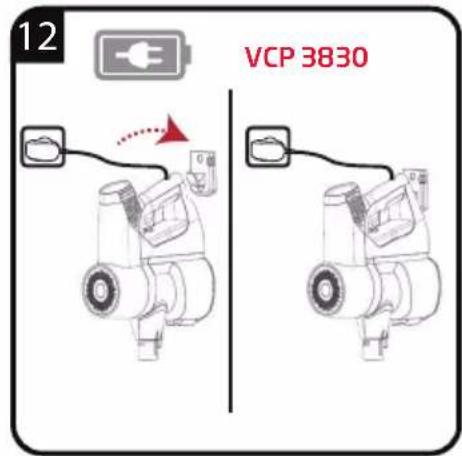

Charging indicator

Working Charging		Fully charged	Lower power
Persistent light blue	Blinking light blue	Persistent light blue 2 minutes and then going out.	Blinking red light

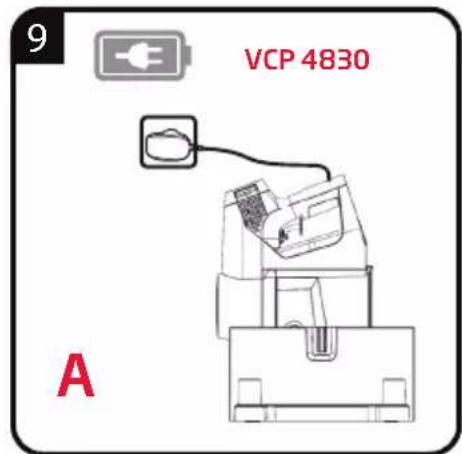

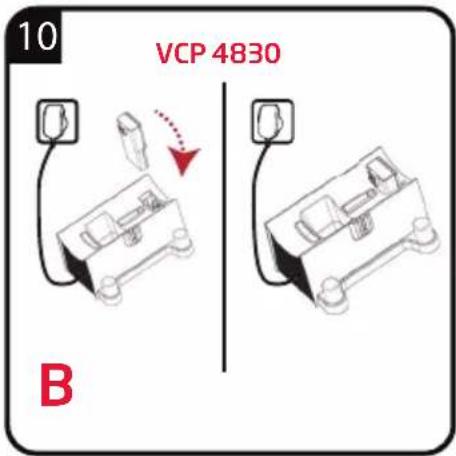

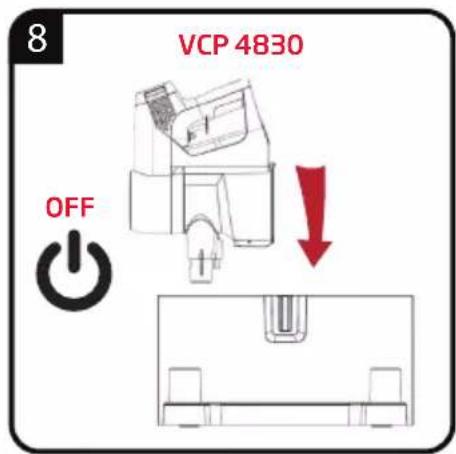

Charging dock 1

While charging the battery on the charging dock the charge indicator flashes blue.

Note

■ Recharge and discharge the battery every 3 months when the product shall not be used for a long period of time.

- Do not place the battery on the charging base for a very long time, if it is still charging(Blinking light blue) beyond the normal charging time (3-4 hour), stop it immediately. Otherwise, the battery may cause heating, deformation or burning hazard. It's not needed to remove charger after charging completed (no lights on charging indicator).

■ When the battery is not in use for a long time or it is over-discharged, you may find the working time is reduced at the first few times. We recommend you fully charge the battery (usually 3-4 hours) and discharge it. Repeat this action two times.

INFORMATION

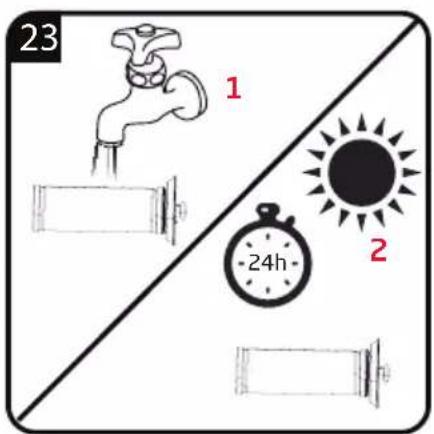

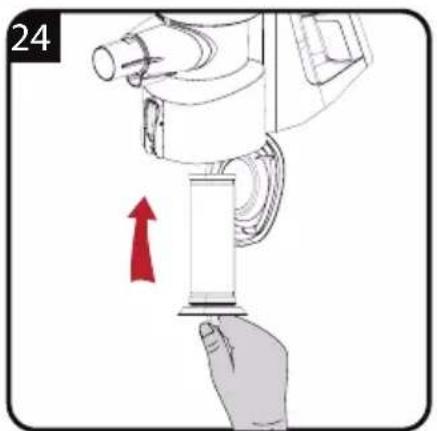

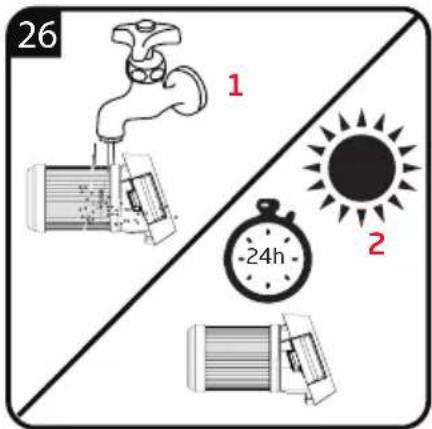

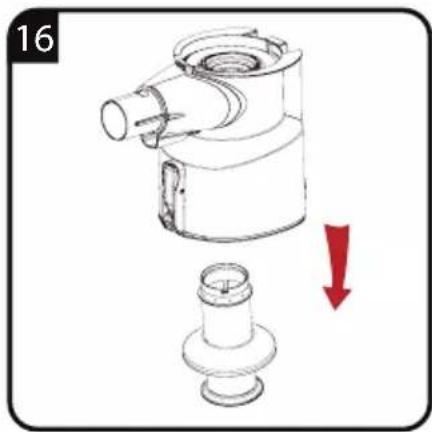

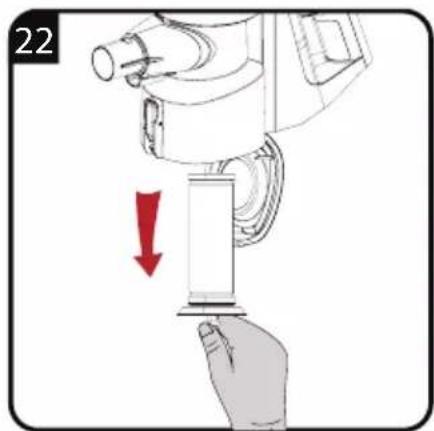

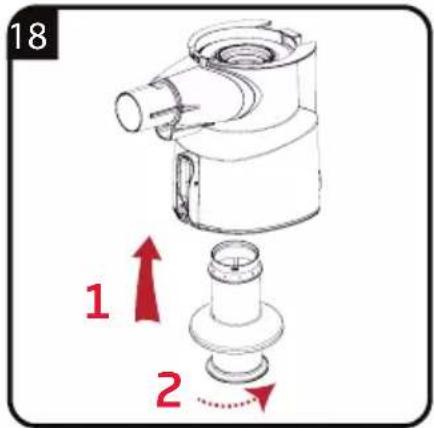

EPA E12 Filter

In order to ensure the performance of the product, we recommend you clean regularly, and replace one after 3-6 months. (Depending on usage)

Warning

- Long-term no use, please keep the battery intact, stored in a cool dry place, and let the battery in the semi-state of charge. Not full or empty. Please enclose the battery with non-conductive material to avoid the metal touching the battery directly, causing the battery to be damaged.

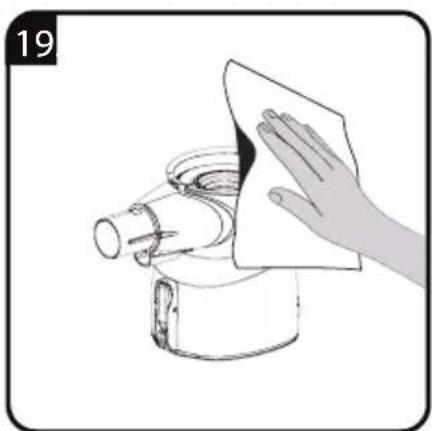

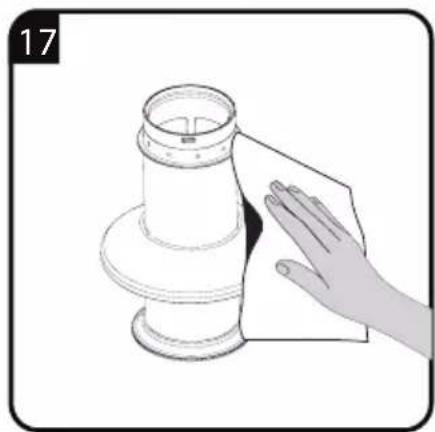

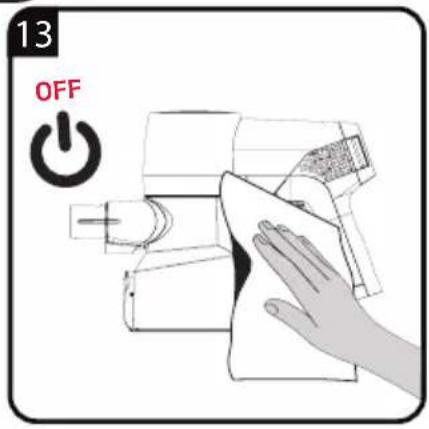

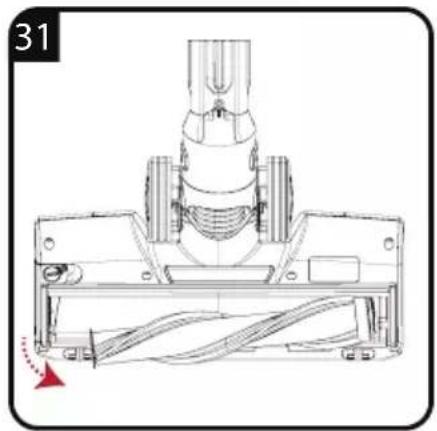

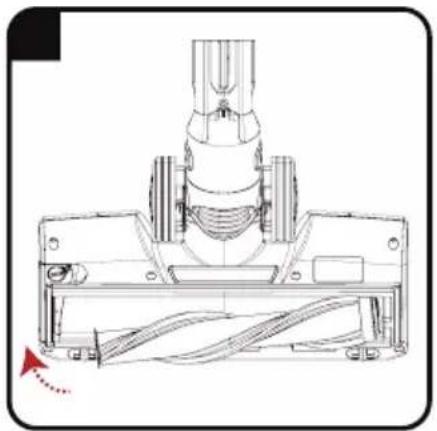

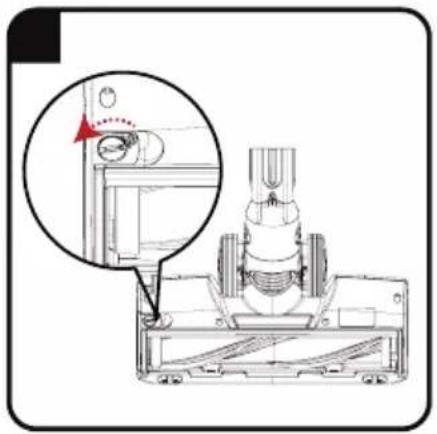

Cleaning and care

Switch off and unplug the appliance, before cleaning it.

Warning

■ Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Storage

If you do not intend to use the appliance for a long time, store it carefully.

■ Unplug the appliance.

- Keep the appliance out of the reach of children.

Handling and transportation

■ During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.

- Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.

■ Dropping the appliance may render it non-operational or cause permanent damage.

Information on waste batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Rated input power:

180W (VCP 4830)

100W (VCP 3830)

Input:

100 - 240 V\~ 50-60Hz 0.8 A (max)

Output: 26 V =0.6A

Charging time: 3-4 hours

Running time max. power:

VCP 3830: 22 min.

VCP 4830: 12 min.

Running time min. power to up to: 40 min.

Technical and design modifications reserved!

Parameter_of_External_Power_Supply

Manufacturer_: DONGGUAN

DONGKUN POWER TECHNOLOGY CO.,LTD

Model_Identifier__:

DK20C-260060H-V

Input_Voltage_:100-240V

Input_Frequency__:50-60Hz

Input_Current__:_0.8A

Output_Voltage_:26.0V

Output_Current__:_0.6A

Output_Power_:15.6W

Average_active_efficiency__:87.15%

Efficiency_at_low_load(10%)_:84.34%

No-load_power_consumption_:0.064W

Technical illustration of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion or assembly (no text or symbols present)

Mini turbo fırça N

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Şari göstergesi

Technical illustration of a mechanical component with threaded shaft and connector (no text or symbols)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols present)

Mini cepillo turbo N

Technical line drawings of a mechanical device with an arrow indicating motion (no text or symbols present)

Indicador de carga

Technical illustration of a mechanical component with threaded shaft and connector (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Mini-brosse turbo N

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical illustration of a mechanical component with a cylindrical shaft and attached rectangular bar (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Mini turbo četka N

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Indikator punjenja

Rad Punjenje		Potpuno napunjen	Niža snaga
Trajno svijetlo plavo svijetlo	Trepereće svijetlo plavo svijetlo	Trajno bijelo svijetlo 2 minuta i zatim gašenje.	Trepereće crveno svjetlo

Punjač I

Technical illustration of a mechanical component with threaded shaft and flange (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Wskaźnik ładowania

Technical illustration of a mechanical component with a cylindrical shaft and attached fastener (no text or symbols)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols present)

Miniturboborste N

Technical line drawings of a mechanical device with two views (top and bottom) showing internal components and directional arrows, no text or symbols present.

Laddningsindikator

Technical illustration of a mechanical component with two views: one showing internal threading and the other showing a threaded fastener (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Miniturbobørste N

Skyv den røde delen av tilbehøret inn i sugedelen til den klikker.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Ladeindikator

Technical illustration of a mechanical component with cylindrical and threaded parts (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Mini-turbosuulake N

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Technical illustration of a mechanical component with a cylindrical shaft and a rectangular bar (no text or symbols)

Three technical line drawings of a mechanical device with arrows indicating motion or assembly (no text or symbols present)

Mini turbobørste N

Technical line drawings of a mechanical device with two views (top and bottom) showing internal components and directional arrows, no text or symbols present.

Opladningsindikator
