Product type	Action camera
Brand	Nedis
Model	DCAM40BK
Dimensions (approx.)	60 x 40 x 30 mm
Weight (approx.)	100 g
Power supply	Rechargeable lithium-ion battery
Maximum video resolution	1920 x 1080 pixels (Full HD)
Maximum photo resolution	12 Megapixels
Viewing angle	170° wide angle
Waterproof	Up to 30 m with included waterproof housing
Storage	microSD card (up to 32 GB)
Connectivity	USB 2.0, HDMI
Mounting	Adhesive mount and mounting strap
Image stabilization	Electronic stabilization
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not use solvents.
Safety	Avoid shocks and prolonged exposure to heat.
Spare parts / Repairability	Battery and USB cable replaceable. Contact after-sales service for repairs.
General information	Nedis DCAM40BK action camera, ideal for outdoor activities.

Frequently Asked Questions - DCAM40BK NEDIS

How to reset the Nedis DCAM40BK camera?

To reset, press and hold the power button for 10 seconds until the device turns off. Release and turn on normally.

How to recharge the battery?

Use the included USB cable and plug it into a wall adapter (5V/1A). The LED indicator lights up during charging and turns off when complete.

Is the camera waterproof without the housing?

No, the camera is not waterproof without its housing. Always use the included waterproof housing for underwater use up to 30 meters.

What type of memory card to use?

Use a microSD card of class 10 or higher, up to 32 GB. Format the card in the camera before first use.

How to change the video resolution?

Press the Menu button, navigate to 'Video resolution' and select the desired resolution (1080p, 720p, etc.). Confirm with the OK button.

Does the camera have a mobile app?

No, the Nedis DCAM40BK does not have Wi-Fi connectivity or a mobile app. Files are transferred via USB cable or by removing the microSD card.

How to mount the camera on a helmet?

Use the included adhesive mount. Clean the surface, remove the protective film and stick the mount. Then attach the camera to the mount.

What is the battery life?

The battery life is approximately 60 minutes of continuous Full HD video recording. It may vary depending on settings and usage conditions.

How to update the firmware?

Check the Nedis website (nedis.com) in the support section. Download the update file, copy it to an empty microSD card, insert it into the camera and follow the instructions.

What to do if the camera won't turn on?

Check that the battery is charged. Try a forced reset (power button 10s). If the problem persists, contact Nedis after-sales service.

USER MANUAL DCAM40BK NEDIS

For 1440p Wide quad HD car recordings

DCAM40BK

Line drawing of a portable air conditioner unit with handle and control panel (no text or symbols)

EN Quick start guide 5
DE Kurzanleitung 9
FR Guide de démarrage rapide 15
NL Snelstartgids 20
IT Guida rapida all'avvio 25
ES Guía de inicio rápido 30
PT Guia de iniciação rápida 35
SV Snabbstartsguide 40
FI Pika-aloitusopas 44
NO Hurtigguide 49
DA Vejledning til hurtig start 54
HU Gyors beüzemelési útmutató 58
PL Przewodnik Szybki start 63
EL Οδηγός γρήγορης εκκίνησης 68
SK Rýchly návod 73
CS Rychlý návod 78
RO Ghid rapid de inițiere

B

Diagram of a smart speaker with a circular head and antenna, showing internal components and wiring (no text or symbols)

Diagram of a syringe inserted into a car intake channel with an arrow indicating direction (no text or symbols)

Dashboard Camera DCAM40BK

For more information see the extended manual online: ned.is/dcam40bk

Intended use

The DCAM40BK is a dashboard camera that can be mounted to the windshield of your vehicle.

This product is intended to take photos, record videos and playback recordings and is equipped with a g-sensor and night vision.

Any modification of the product may have consequences for safety, warranty and proper functioning.

The product is not intended for professional use.

Specifications

Product Dashboard Camera
Article number DCAM40BK
Dimensions (l x w x h) 100 x 55 x 43 mm
Input voltage 5V DC
Input current 1 A
Battery Lithium-ion polymer 3.7 VDC / 200 mAh
Battery capacity 200 mAh
Power consumption 660 – 750 mAh dual camera recording
Storage temperature -10 - 70 °C
Operating temperature -10 - 60 °C
Display 2.31 inch LCD display
Front camera IMX323 Sensor + 650NM camera
Cabin camera IMX323 Sensor + 940NM camera
Viewing angle 140 degrees
Minimum illumination 1 Lux
Video	Loop video / motion detecting
Video format .mp4
Video encoding H.264
Video resolution 2560 x 1440p / 1920 x 1080p / 1280 x 720p
Image resolution 4032 x 3024 / 3648 x 2736 / 3264 x 2448 / 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 960 / 640 x 480
HDMI output No
Seamless video Yes
Boot automatically video Support
G-sensor Support
Language English / French / German / Italian / Dutch / Swedish / Finnish / Romanian / Hungarian / Czech / Danish
Video recording time 3 / 5 / 10 min
Recording audio Built-in microphone	The microphone can be switched on/off
Memory card MicroSD card
Memory card capacity 8 - 128 GB
USB interface Mini5Pin USB2.0

Main parts (image A)

1 Suction fix clip
2 Suction fix
3 Mini USB port
4 MicroSD card slot
5 Front camera
6 Speaker
7 Reset button
8 Microphone

9 Auxiliary power plug
10 Infrared light
11 Cabin camera
12 Infrared light
13 Display
14 Power button
15 Menu / mode button
16 Up button

17 Down button
18 OK button
19 Mini USB cable

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this manual.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not expose the product to water or moisture.
  • Non-rechargeable batteries are not to be recharged.
• Do not short-circuit a cell or a battery.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Do not use any charger other than that specifically provided for use with the equipment.
• Do not cover ventilation openings.
• Be careful when using the product while driving. Always focus your attention on the road.
• Do not place the product near heat sources, this can damage the product.
• Do not expose the product to very hot or very cold temperatures or drastic changes in temperature or humidity.
• Do not install the product within the operation range of the airbag.
• Ensure the product and the power cable are installed and do not interfere with the sight of the driver or impede with the operation of any driving controls.

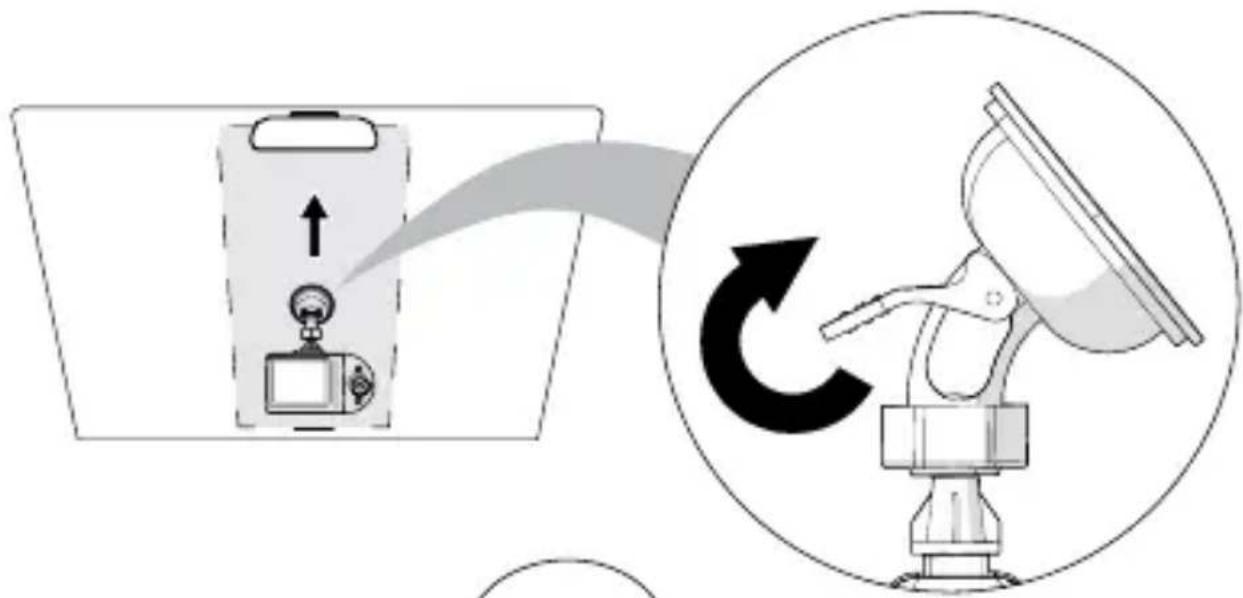

Installing the product (image B)

Before using the product, the user shall check the applicable laws and regulations on the use of the product.

In some jurisdictions, the use of this product can be considered as an invasion of privacy.

The mounting of the product on the windshield might be regulated by law in some jurisdictions.

It is the user's own responsibility to consult the local laws and regulations before installing and using this product.

Switch off the car engine.

1. Clean and degrease the spot where you want to fix the product.

Place the product just behind or below the rearview mirror.

1. Place suction fix A ② on the windshield.

2. Use the suction fix clip A ① to fix the product to the windshield.

3. Insert a microSD card (not included) into the microSD card slot A ④.

4. Adjust the position of the front camera A ⑤ for optimal view of the road.

5. Adjust the position of the cabin camera A ⑪ for optimal view of the inside.

Ensure the product and the power cable are installed and do not interfere with the sight of the driver or impede with the operation of any driving controls.

Always focus your attention on the road.

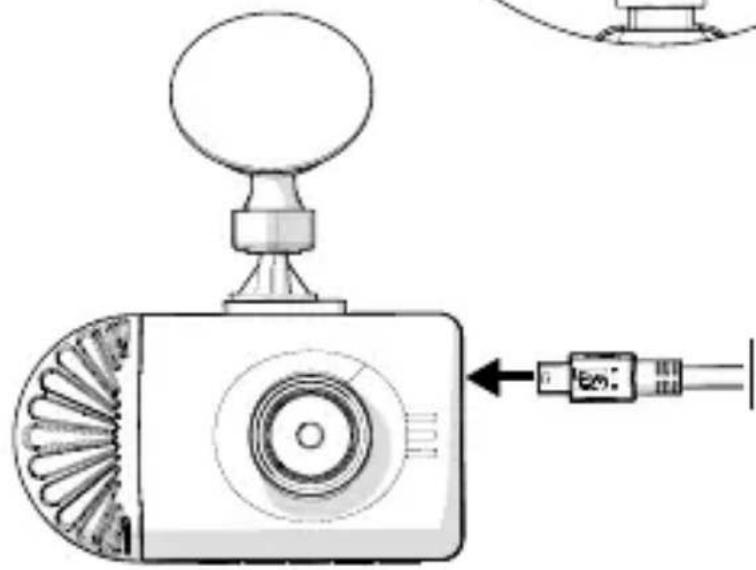

Connecting the product to a power source

Option 1:

1. Plug the other end of the auxiliary power plug A ⑨ into the micro USB port A ③.

2. Plug A ⑨ into an auxiliary power outlet.

Option 2:

1. Charge the product using the USB port A ②.

The product automatically switches on and starts recording when you switch on your car engine.

The recording time can be set in the menu with the range of 3, 5 or 10 minutes.

The camera switches off after the engine is off.

Using the product

1. Press power button A ⑭ for 3 seconds to switch the product on or off.

When switching off the product automatically saves the recordings.

Menu

1. Press menu / mode button A ⑮ to enter the menu.
2. Press A 15 again to select the desired option.
3. Press up A ⑯ or down A ⑰ to navigate through the menu.
4. Press OK A ^18 to confirm a selection.
5. Press A ⑮ to exit the menu.

In case of first use: set the correct time and date using the menu settings. While in standby mode:

Press A ^15 to toggle between video, photo, and playback mode and menu settings.

Camera switching mode

- Press A ⑯ to switch between camera views.

Options: front camera, cabin camera or both camera views.

Video mode

1. Press A ⑭ for 3 seconds to enter the video mode.

The film camera icon in the upper left lights up and starts blinking.

1. Press A ^18 to start or stop recording.

Short press A ^17 to switch audio recording on or off.

The product automatically saves recordings on the microSD card.

Emergency lock

In video mode, press and hold A ^15 for 3 seconds to save the recording as a read-only file.

This recording cannot be overwritten or deleted when not connected to a computer.
