Product Type	Food Processor
Model	SSM 180 A2
Brand	SilverCrest
Power Consumption	180 W
Rated Voltage	220-240 V ~ 50/60 Hz
Bowl Capacity	Approx. 1.5 L
Max. Operating Time	10 minutes continuous
Main Functions	Chopping, blending, mixing, whisking, kneading
Number of Speed Settings	2 speeds + pulse
Safety Features	Safety lock lid, non-slip base, overload protection
Cleaning	Removable parts dishwasher safe; wipe motor unit with damp cloth
Spare Parts Availability	Bowl, lid, blade assembly, whisk, kneading hook
Dimensions (W x D x H)	Approx. 20 x 18 x 25 cm
Weight	Approx. 1.5 kg
Material	Plastic housing, stainless steel blades
Cable Length	Approx. 80 cm
Colour	White/Silver

Frequently Asked Questions - SSM 180 A2 SILVERCREST

How do I assemble the SilverCrest SSM 180 A2 food processor?

Place the bowl on the motor base, insert the desired attachment (blade, whisk, or kneading hook), then secure the lid by aligning the arrows and turning clockwise until it clicks. Ensure the lid is locked before use.

Can I process hot ingredients in the food processor?

No, always allow hot ingredients to cool to room temperature before processing. The bowl is not designed for high temperatures and may warp or cause burns.

What is the maximum continuous operation time?

The device should not be operated continuously for more than 10 minutes. After that, allow it to cool down for at least 10 minutes before using again to prevent overheating.

How do I clean the food processor?

Disconnect the appliance. Wash the bowl, lid, and attachments in warm soapy water or place them on the top rack of a dishwasher. Wipe the motor base with a damp cloth. Never immerse the base in water.

Can I crush ice with the SSM 180 A2?

The standard blade is not designed for ice crushing. Using it to crush ice may damage the blade or motor. It is recommended for soft fruits, vegetables, and liquids only.

What should I do if the appliance stops working during use?

First, check if the lid is properly locked. If it is, the overload protection may have activated. Unplug the unit, let it cool for 15 minutes, then try again with a smaller load.

Can I replace the blade or other parts?

Yes, spare parts such as the bowl, lid, blade assembly, whisk, and kneading hook are available from SilverCrest service centers or authorized retailers. Only use genuine parts.

Is the food processor suitable for making dough?

Yes, the kneading hook can be used for mixing and kneading dough for bread, pizza, or pastries. However, do not exceed the maximum capacity of 500 g of flour.

How do I use the pulse function?

Press and hold the pulse button for short bursts to achieve precise chopping or mixing. Release to stop immediately. This prevents over-processing.

What does the safety lock do?

The safety lock prevents the appliance from starting unless the bowl and lid are correctly locked into place. This ensures safe operation and avoids accidents.

USER MANUAL SSM 180 A2 SILVERCREST

SMOOTHIE MAKER SSM 180 A2

GB

SMOOTHIE MAKER

Operating instructions

\$1

APARAT ZA PRIPRAVO SMOOTHIJEV

Navodila za uporabo

SK

MIXÉR SMOOTHIE

Návod na obsluhu

HU

SMOOTHIE-KÉSZÍTŐ

Használati utasítás

CZ

SMOOTHIE MIXÉR

Návod k obsluze

DE AT CH

SMOOTHIE-MAKER

Bedienungsanleitung

IAN 282314

HU SI

CZ SK

GB

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

HU

Contents

Introduction 2

Proper use 2

Package contents 2

Appliance description 2

Technical details 2

What is a smoothie? 2

Safety instructions ....3

Before first use ....5

Preparing ingredients ....5

Operating the appliance 5

Cleaning and care 6

Storage 7

Troubleshooting 8

Recipes 8

Pineapple-spinach smoothie 8

Romaine lettuce smoothie 8

Banana-kiwi smoothie 9

Carrot greens and spinach smoothie....9

Tropical smoothie 9

Berry-vanilla smoothie 9

Pineapple and berry smoothie 10

Disposal 10

Kompernass Handels GmbH warranty ....10

Service 11

Importer 11

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product.

The operating instructions are a constituent of this product. They contain important information about safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this product only as described and only for the specified areas of application. Please also pass these operating instructions on to any future owner(s).

Proper use

This appliance is intended exclusively for making smoothies in small quantities. This appliance is intended exclusively for use in domestic households. Not to be used for commercial purposes.

Package contents

Smoothie Maker

(2 lids, 2 blender jugs, 1 base, 1 blade holder with blade)

Operating instructions

NOTE

Check the contents for completeness and damage immediately after unpacking. Contact Customer Services if necessary.

Appliance description

1 Blender jug

2 Lid

3 Blade

4 Blade holder

5 Base

6 Startbutton

Technical details

Rated voltage: 220 - 240 V \~/50 Hz

Max.

power consumption: 180 W

Protection class: II /

CO time: 1 minute

All of the parts of this appliance that come into contact with food are food-safe.

CO time

The CO time (continuous operation time) is the amount of time an appliance can be operated without the motor overheating and becoming damaged. When the specified CO time has been reached, the appliance must be switched off until the motor has cooled down to room temperature.

What is a smoothie?

A smoothie is a so-called "whole-fruit drink".

Smoothies contain processed whole fruits without the peel and core. This gives rise to a creamy consistency. When preparing drinks there is no limit to the possibilities: you can add yoghurt, crushed ice, herbs or ice cream to your smoothies.

Safety instructions

⚠️ DANGER – ELECTRIC SHOCK!

The appliance must only be connected to correctly installed and earthed mains power sockets. Ensure that the rating of the local power supply corresponds with the details on the rating plate of the appliance.

- Ensure that the power cable does not become wet or moist during use. Route the cable in such a way that it cannot be crushed or damaged.

- Keep the power cable away from hot surfaces.

- Do not perform any repairs on the appliance. All repairs must be performed by our Customer Services or by qualified personnel.

Remove the plug from the mains power socket when the appliance is being cleaned or in the event of a fault. Switching the appliance off is insufficient, since the appliance receives power for as long as the plug is connected to the mains power socket.

▶ To avoid risks, have defective plugs and/or power cables replaced immediately by qualified technicians or our Customer Service Department.

The appliance and its connecting cable must be kept away from children.

Never submerge the appliance in water or other liquids.

⚠ WARNING! RISK OF INJURY!

▶ Always disconnect the appliance from the mains power supply when fitting or removing accessory parts. This will prevent unintentional activation of the appliance.
The appliance should always be disconnected from the mains when not supervised and before assembly, disassembly or cleaning.
- This appliance may not be used by children.
▶ Only use the original accessory parts for this appliance. Accessory parts from other manufacturers may not be suitable, and this may lead to risks!
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning safe use of the appliance, and if they are aware of the potential risks.
▶ Children must not play with the appliance.
▶ Warning – the blade is very sharp! For this reason, take care when cleaning.
▶ Warning – the blade is very sharp! For this reason, take care when removing the blender jug.
▶ Never use the appliance for purposes other than those described in these instructions. If you do, you run a risk of serious injury!
▶ Do not change accessories unless the drive is stationary and the mixer is unplugged from the power supply! The appliance will run on for a short time after being switched off!
▶ Never leave the appliance unattended!
Before changing accessories or additional parts that are in motion during operation, the appliance must be switched off and disconnected from mains power.

ATTENTION! PROPERTY DAMAGE!

▶ Never fill the appliance with hard ingredients such as nuts, stalks, large grains or seeds!
▶ Never fill the appliance with hot ingredients!
▶ Never use the appliance to crush ice cubes unless there is liquid in the blender jug!

Before first use

1) Remove all of the parts from the box and remove the packaging material and any protective film.
2) Clean all components as described in Chapter "Cleaning and care". Ensure that all parts are completely dry.

Preparing ingredients

■ Remove all peel, such as orange peel or kiwi skin, from the fruit.
■ Remove large pips and stones, such as found in peaches, from the fruits.
■ Cut the fruit into small pieces (approx. 1 - 2 cm).
■ Chop herbs or salads into small pieces.

HINWEIS

▶ You can also crush ice cubes with this appliance (max 50 g/approx. 2-4 ice cubes).
However, only add the whole ice cubes to the blender jug ① if other liquids are also to be processed in it. Press the start button ⏻ ⑥ in a pulsating manner when you process whole ice cubes. Generally, however, we recommend that you use already crushed ice in this device.

Operating the appliance

1) Place the base ⑤ on a clean and level surface.

2) Fill the prepared ingredients in the blender jug ①. Always add liquid ingredients first and then the more solid ingredients such as the fruit and/or crushed ice.

ATTENTION! DAMAGE TO PROPERTY!

▶ Never fill the blender jug ① with ingredients up to more than the MAX marking! The appliance will not be able to process the ingredients!
3) Place the blade holder ④ on the blender jug ① so that the blade ③ extends into the blender jug ①, and screw the blade holder ④ firmly in place.
4) Now place the blade holder ④ along with the attached blender jug ① onto the base ⑤ such that the arrow on the base ⑤ is pointing to the □ symbol on the blade holder ④.

ATTENTION! DAMAGE TO PROPERTY!

To turn the blade holder ④, only hold the blade holder ④ and never try to turn the blender jug ①! Otherwise the blender jug ① will detach and the ingredients will spill out!

5) Turn the blade holder ④ so that the arrow on the base ⑤ points to the 🔒 symbol on the blade holder ④. The blade holder ④ must audibly click into place so that it sits firmly on the base ⑤.

6) Insert the plug into a mains power socket.

7) Press and hold the start button ⏻ 6 until the smoothie has reached the desired consistency!

NOTE

If the ingredients do not mix properly, it may be necessary to lift up the appliance and shake it a little. When doing so, hold the blade holder ④ together with the blender jug ① and the base ⑤ so that they do not come apart.

ATTENTION! DAMAGE TO PROPERTY!

▶ Do not operate the appliance for longer than 1 minute in one session. The appliance will overheat! After using for 1 minute, allow the appliance to cool down completely.

8) When the smoothie is ready, turn the blade holder ④ until the arrow on the base ⑤ points to the symbol on the blade holder ④ and remove the blade holder ④ with the attached blender jug ①.
9) Turn the blender jug ① over and unscrew the blade holder ④.
10) Screw the lid ② off the blender jug ①. You can drink the smoothie through the drinking opening on the lid ②.

You can now prepare a second smoothie using the second blender jug ①.

Cleaning and care

DANGER - ELECTRIC SHOCK!

▶ Before cleaning the appliance, disconnect the plug from the mains power socket! Risk of electric shock!

NEVER submerse the base ⑤ in water or other fluids!

It is best to clean the appliance directly after use. This makes food residues easier to remove.

ATTENTION! DAMAGE TO PROPERTY!

▶ Do not use abrasive or aggressive cleaning materials. These could damage the surface of the appliance!

Wipe the base ⑤ with a moist cloth. For stubborn soiling use a mild detergent on the cloth. Wipe off any detergent residue with a cloth moistened with clean water.

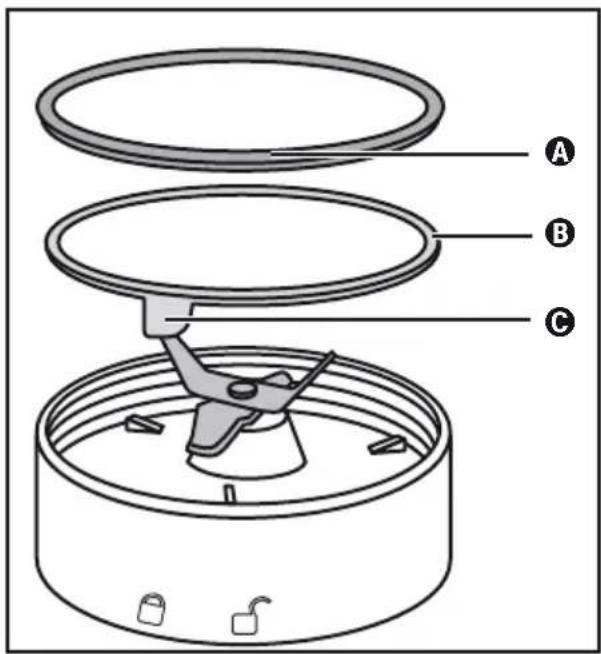

■ Dismantle the blade holder ④ in order to clean it thoroughly:

• Press on the underside of the blade holder 4 against the small grey plate C which protrudes through the blade holder 4.
• You can now remove the sealing ring Ⓐ and the plastic ring Ⓑ from the blade holder Ⓓ.

- Clean the blender jug ①, the blade holder ④ with blade ③, the sealing ring A and the plastic ring B and lid ② in warm with a mild washing-up liquid. Afterwards, rinse all parts with clean water so that no detergent residues remain.

NOTE

If you clean the appliance directly after use, you will usually achieve sufficiently hygienic cleaning results for the blender jug ① and the blade holder ④ by using the following alternatives:

▶ Fill the blender jug ① with 400 ml of water and add a few drops of mild detergent.
▶ Attach the blade holder ④ and screw both onto the base ⑤.
▶ Press the start button ⏻ 6 a few times so that the blade ③ ploughs through the water.
▶ Afterwards, rinse the blender jug ① and the blade holder ④ with plenty of clear water so that all detergent residues are removed.

■ After cleaning, dry all parts thoroughly.

■ Reassemble the blade holder ④:

- Place the plastic ring Ⓑ into the blade holder so that the grey plate Ⓞ protrudes through the slot in the blade holder ④.

- Place the sealing ring Ⓐ over it and press it firmly into place.

If the sealing ring A and the plastic ring B are not correctly fitted, the appliance will not start!

NOTE

▶ You can also clean the lid ②, the blender jug ① and the blade holder ④ with the sealing ring A and the plastic ring B in your dishwasher. If possible, place the parts in the upper basket and ensure that none of the parts can get stuck. Otherwise they might deform.

Storage

■ Store the cleaned appliance in a clean, dust-free and dry location.

Troubleshooting

Defect Cause	Solution
The appliance is not working.	The mains plug is not connected to the mains power.	Insert the plug into a mains power socket.
	The mains power socket is defective.	Use a different mains power socket.
	The appliance is defective. Contact Customer	Services.
	The appliance is not assembled correctly.	Check the assembly of the appliance and correct any errors.

If the malfunction cannot be corrected with the above suggestions, or if you have found some other kind of malfunction, please contact our Customer Service.

Recipes

Pineapple-spinach smoothie

Ingredients

100 g fresh baby spinach

75 ml water

2 pineapple rings

◆ Prepare the pineapple and spinach as described in the Chapter "Preparing ingredients".

Add the water followed by the pineapple and the spinach to the blender jug ① and close this with the blade holder ④.

◆ Blend everything until all of the ingredients are thoroughly pureed and mixed.

Romaine lettuce smoothie

Ingredients

3 leaves of romaine lettuce

75 ml water

1/2 banana

1/2 mango

1/2 orange

◆ Prepare the fruits as described in the Chapter "Preparing ingredients".
◆ Remove the stem from the romain lettuce leaves and chop up the leaves a little.
Add the water followed by the fruit and the lettuce to the blender jug ① and close this with the blade holder ④.
◆ Blend everything until all of the ingredients are thoroughly pureed and mixed.

Banana-kiwi smoothie

Ingredients

200 ml orange juice (freshly pressed)

1 kiwi

1/2 banana

◆ Prepare the fruits as described in the Chapter "Preparing ingredients".

Add the orange juice followed by the fruit to the blender jug ① and close this with the blade holder ④.

◆ Blend everything until all of the ingredients are thoroughly pureed and mixed.

Carrot greens and spinach smoothie

Ingredients

150 ml water

15 g fresh baby spinach

15 g carrot greens

1/2 orange

50 g mango flesh

1/2 banana

1 tablespoon of linseed oil

◆ Prepare the fruits as described in the Chapter "Preparing ingredients".

♦ Chop the carrot greens and the spinach.

- Add the water followed by the fruit, the spinach and the carrot greens to the blender jug ① and close this with the blade holder ④.

◆ Blend everything until all of the ingredients are thoroughly pureed and mixed.

Tropical smoothie

Ingredients

100 g coconut milk

2 pineapple rings

1 kiwi

1/2 banana

◆ Prepare the fruits as described in the Chapter "Preparing ingredients".

♦ Add the coconut milk followed by the fruit to the blender jug ① and close this with the blade holder ④.

◆ Blend everything until all of the ingredients are thoroughly pureed and mixed.

Berry-vanilla smoothie

Ingredients

100 ml apple juice

150 g berries (deep frozen, e.g. strawberries, raspberries, blueberries, etc.)

100 g vanilla yoghurt

- Add the apple juice and vanilla yoghurt followed by the berries to the blender jug ① and close this with the blade holder ④.

◆ Blend everything until all of the ingredients are thoroughly pureed and mixed.

Pineapple and berry smoothie

Ingredients

50 ml orange juice

50 ml pineapple juice

100 g berries (deep frozen, e.g. strawberries, raspberries, blueberries, etc.)

1 pineapple ring

100 g natural yoghurt

◆ Prepare the pineapple as described in the Chapter "Preparing ingredients".

- Add the orange juice, the pineapple juice and the natural yoghurt and then the berries and the pineapple to the blender jug ①.

◆ Close this with the blade holder 4.

◆ Blend everything until all of the ingredients are thoroughly pureed and mixed.

NOTE

These recipes are provided without any guarantees. All ingredients and preparation information are guidelines. Enhance or change these recipe suggestions in line with your own experience or tastes.

Disposal

circumstances should you dispose of the appliance in the normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance via an approved disposal company or your municipal waste facility. Please observe the currently applicable regulations. Please contact your waste disposal centre if you are in any doubt.

The packaging is made from environmentally-friendly material and can be disposed of at your local recycling plant.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 282314

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Tartalomjegyzék

Bevezető 14

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Kazalo

Uvod 26

Predvidena uporaba 26

Vsebina kompleta 26

Opis naprave ....26

Tehnični podatki 26

Kaj je smuti? 26

Varnostni napotki....27

Pred prvo uporabo 29

Priprava sestavin ....2

Uporaba naprave....29

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Pooblaščeni serviser

SI

Servis Slovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 282314

Garancijski list

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Obsah

Úvod 50

Smoothie Tropical 57

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 62

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com
