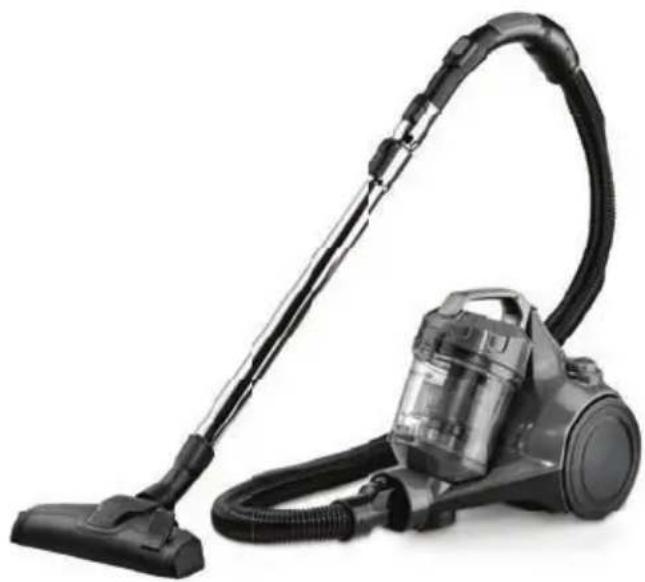

SBSB 750 A1 - Vacuum Cleaner SILVERCREST - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	SilverCrest
Model	SBSB 750 A1
Rated voltage	220-240 V~, 50-60 Hz
Power consumption	850 W
Protection class	II
Dust container capacity	0.6 L
Emissions sonores	≤ 78 dB(A)
Filter	HEPA
Accessories included	Floor nozzle, upholstery nozzle, crevice tool, furniture brush, telescopic tube, hose, holder for nozzle and crevice tool
Functions	On/off, suction power adjustment (secondary air button), cord rewind, adjustable telescopic tube, hard floor/carpet switch
Maintenance	Emptying the dust container, washing the HEPA filter and motor filter (recommended every 6 months)
Safety	Do not immerse, disconnect before cleaning, do not vacuum water or liquids
Spare parts	Motor filter (ref. 391635_2201), foam insert
Warranty	3 years
Use	Household use only
CE marking	Yes
Standards	EN 60312-1, EN 60704-2-1, EN 60335-2-2

Frequently Asked Questions - SBSB 750 A1 SILVERCREST

How to empty the dust container?

Press the dust container release (6) and remove the container by the handle (5). Hold it over a trash can, then press the bottom release (23) to open the bottom and empty the dust. Close until it clicks and reinsert the container into the appliance.

How to clean the HEPA filter?

Remove the dust container, then open the cover lock (3). Take out the two cartridges (grey and blue) and separate them by turning counterclockwise. Clean the filter holder and the foam insert (24) under running water. Let dry completely before reassembling.

Why is the suction weak?

Check that the dust container is not full, empty it if necessary. Inspect the nozzles, telescopic tube, hose and dust container for any blockage. Also clean the motor filter and the HEPA filter.

The motor is overheating, what to do?

A clogged filter is often the cause. Wash the motor filter and the HEPA filter (see the maintenance section). If the problem persists, contact customer service.

How to adjust the suction power?

Use the secondary air adjustment button (22) located on the hose. Opening the flap reduces suction power; closing it increases it.

Can I vacuum water with this vacuum cleaner?

No, never vacuum water or liquids. This could damage the appliance and cause an electric shock. Use only for dry dust.

How to rewind the power cord?

Press the cord rewind button (7) while guiding the cord with one hand to avoid tangling. Do not pull the cord beyond the red mark.

What accessories are included?

The package contains: a hose (1), a telescopic tube (2), a floor nozzle (15) with hard floor/carpet switch, an upholstery nozzle (16), a crevice tool (17), a furniture brush (18) and a holder for nozzle and crevice tool (19).

How to change the motor filter?

Unplug the appliance. Slide the grille lock (26) to the left to remove the air outlet grille (25). Push the filter holder lock downwards and remove the motor filter. Rinse it in warm water, let it dry completely, then reassemble in reverse order. The replacement motor filter is referenced as 391635_2201.

Where to find the IAN number for spare parts?

The IAN number (391635_2201) can be found on the rating plate of the appliance, at the bottom left of the title page of the manual, or on a sticker on the back or bottom of the product. It is required to order spare parts.

USER MANUAL SBSB 750 A1 SILVERCREST

Black vacuum cleaner with attached hose and handle, isolated on white background (no text or symbols)

BODENSTAUBSAUGER / VACUUM CLEANER / ASPIRATEUR SBZBK 850 A1

DE AT CH

BODENSTAUBSAUGER

Operation and safety notes

FR BE

ASPIRATEUR

Two mechanical components with numbered labels: a brush and a cup (no text or symbols on the objects themselves)

Technical line drawing of a mechanical device with two views: top shows a cylindrical component, bottom shows a flanged housing (no text or symbols)

Website: www.optimex-shop.com

Fehlerbehebung

Warnings and symbols used Page 18

Introduction Page 19

Intended use.... Page 19

Scope of delivery.... Page 19

Parts description.... Page 19

Technical data Page 20

Safety instructions.... Page 20

Before first use.... Page 23

Operation.... Page 23

Accessories Page 23

Attaching accessories ...... Page 23

Switching on/off Page 24

Increasing/decreasing suction power ...... Page 24

Emptying the dust container.... Page 24

Cleaning and care ...... Page 24

Ordering replacement accessories ...... Page 25

Troubleshooting...... Page 26

Storage Page 26

Disposal Page 26

Warranty Page 27

Warranty claim procedure.... Page 27

Service Page 27

Warnings and symbols usedThe following warnings are used in the instruction manual, short manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		NOTE: This symbol in combination with “Note” provides additional useful information.
			Read the manual.
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		Alternating current/voltage
			Hertz (supply frequency)
			Watts
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Use the product in dry indoor spaces only.
			Danger - risk of electric shock!
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.		Symbol for a Protection Class II product
			On/off
CE	CE mark indicates conformity with relevant EU directives applicable for this product.

VACUUM CLEANER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed for vacuuming dust. Do not use the product for any other purpose.

The product is only intended for private household use, not for commercial or other purposes.

The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1 Vacuum cleaner
1 Hose
1 Telescopic tube
1 Floor nozzle
1 Upholstery nozzle
1 Crevice nozzle
1 Furniture brush
1 Nozzle holder
1 Short manual

Parts description

(Fig. A, K, N, O)

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

1 Hose
2 Telescopic tube
3 Lid lock (top)
4 Dust container
5 Handle
6 Dust container release
7 Cable winder button
8 Floor nozzle holder
9 Power cord with power plug
10Motor filter
11 Wheel
12On/off switch ①
13Intake
14Switch for

- Hard floor

- Carpet

15 Floor nozzle
16 Upholstery nozzle
17 Crevice nozzle
18 Furniture brush
19 Nozzle holder
20Telescopic tube lock
21 Hose release
22 Secondary air regulator
23Bottom release
24Foam inlay
25Air outlet grille
26Grille lock

Technical data

Rated voltage: 220-240 V\~, 50-60 Hz

Power consumption: 850 W

Protection class: II

Dust container volume: 0.6 L

Noise emission: ≤ 78 dB(A)

Suction levels: 1

Filter: HEPA

The product complies with Ecodesign Directive 2009/125/EC and EU 666/2013 based on standards EN 60312-1, EN 60704-2-1 and EN 60335-2-2.

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with limitations

⚠ WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
■ Children shall not play with the product.
- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Intended use

⚠ WARNING! Risk of injury! Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

Electrical safety

⚠️ DANGER! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

⚠ WARNING! Risk of electric shock! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

⚠ WARNING! Risk of electric shock! Never use a damaged product. Disconnect the product from the socket outlet and contact your retailer if it is damaged.

⚠ WARNING! Risk of electric shock! Do not operate the product with wet hands or while standing on a wet floor.

⚠ WARNING! Risk of injury! Turn off the product and disconnect it from the power supply before cleaning and when the product is not in use.

• Do not use the product anymore if it has been dropped.
  Before connecting the power plug to the power supply: Check that the voltage and the current rating correspond with the power supply details shown on the product's rating label.

- Regularly check the power plug and the power cord for damages. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the power cord away from hot surfaces and open flames.

Operation

• Disconnect the power plug from the socket-outlet
• when a malfunction occurs,
• before attaching/changing accessories,
• before cleaning the product,
• if you will not use the product for a long time,
• during a thunderstorm and
• after each use.

■ Disconnect the product from the socket-outlet by pulling the power plug, but not by pulling on the power cord.

■ Defective components must always be replaced by original spare parts.
- Do not obstruct the ventilation slots during operation. Risk of overheating and damage to the product.
■ Never use the product to absorb water or other liquids, flammable substances or hot/burning objects.

Cleaning and storage

⚠ WARNING! Risk of

injury! Disconnect the product from the power supply before cleaning work and when not in use.

■ Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.
■ Store the product in a cool, dry place, protected from moisture and out of the reach of children.
■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.

Before first use

■ Remove all packaging material and lay out all separate components in front of you. After unpacking, check the product for visible damage.

Operation

Accessories

Part Application

Line drawing of a handheld device with handle and control knob (no text or symbols)

15

Carpets

Hard floors

Stairs

16

Carpets

Cushions

Upholstery

17

Hard-to-reach places

Corners

Skirting edges

Louvres

Chairs

Upholstery

18

Blinds

Louvres

Delicate surfaces

* Set the switch for hard floor/carpet according to the floor type: 14

Switch position Floor type

Hard floor

Carpet

- Attaching accessories

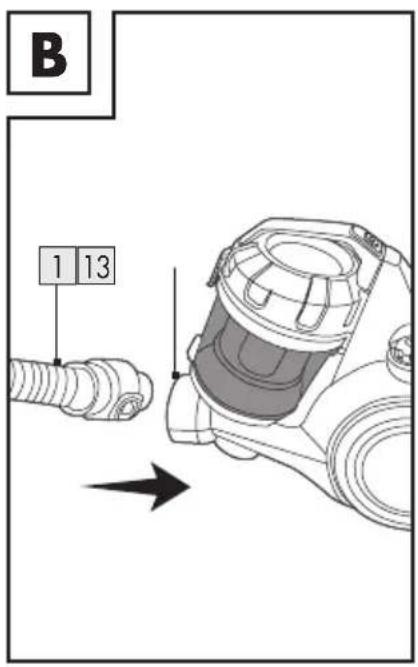

■ Connect the hose 1 with the intake 13. The hose must audibly lock in place (Fig. B).

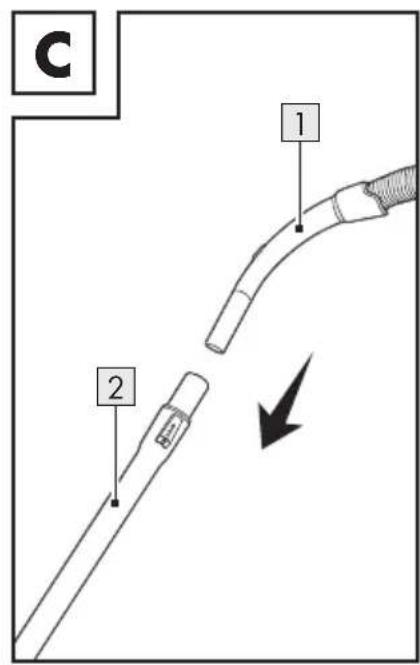

Insert the handle of the hose 1 into the wide opening of the telescopic tube 2 (Fig. C).

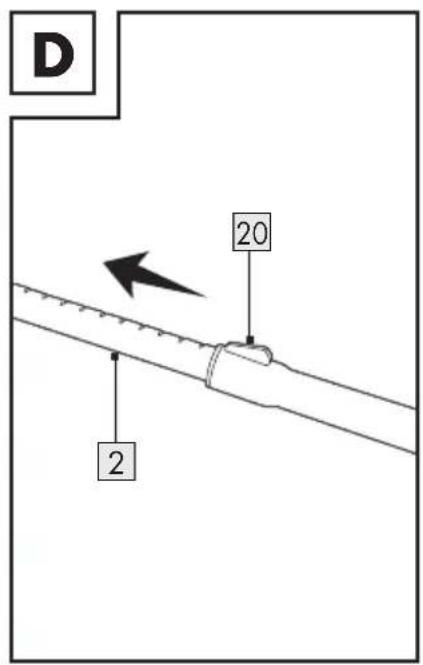

Set the telescopic tube 2 to the desired length:

• Slide the telescopic tube lock 20 forward and adjust the length of the telescopic tube 2 (Fig. D).
• Release the telescopic tube lock 20.
• If necessary, slightly adjust the length until the telescopic tube lock 20 locks in place.

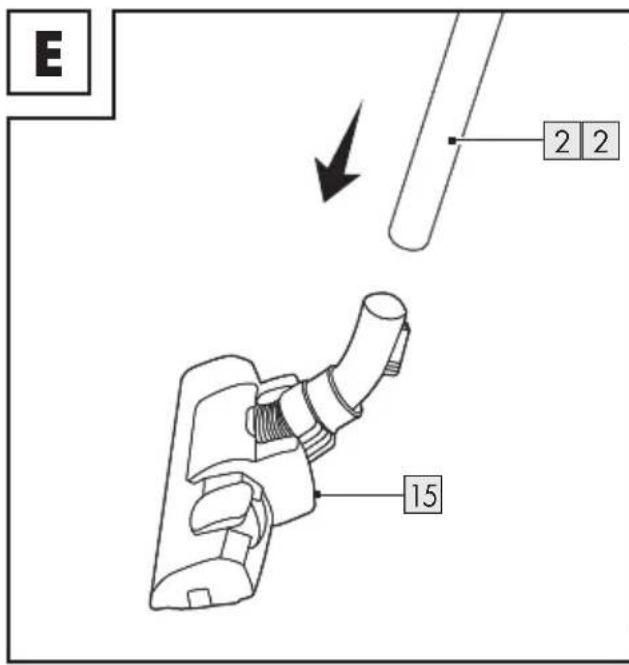

Insert the telescopic tube 2 into the intake of the nozzle 15 16 17 or furniture brush 18 (Fig. E).

i NOTES:

The nozzles 15 16 17 and the furniture brush 18 can be directly attached to the hose 1.
Prior to usage: Ensure all accessories are securely fastened.
The nozzle holder ^19 can be attached to the telescopic tube 2.

The following accessories can be attached to the nozzle holder 19 when not in use:

• 16 Upholstery nozzle
• 17 Crevice nozzle
• 18 Furniture brush

- Switching on/off

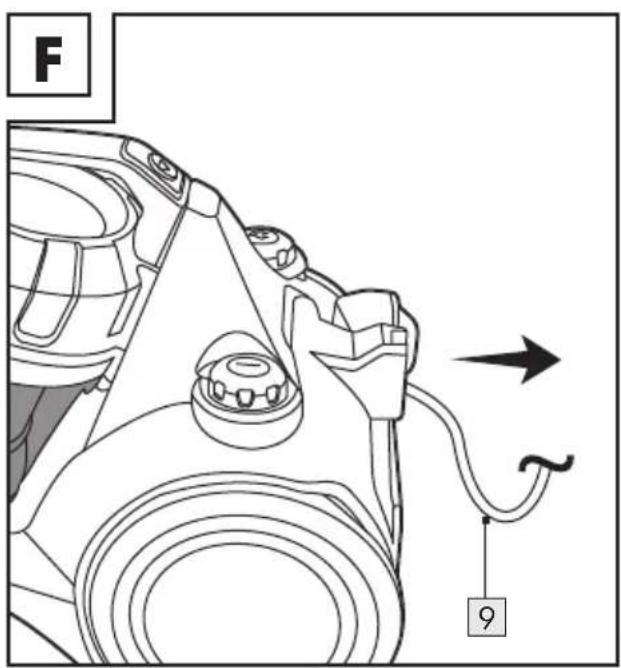

Pull the power plug 9 out of the housing, at least until the yellow marking. When the red marking appears, the end of the power cord has been reached. Do not pull out the power plug any further (Fig. F).
■ Connect the power plug 9 to a socket-outlet.

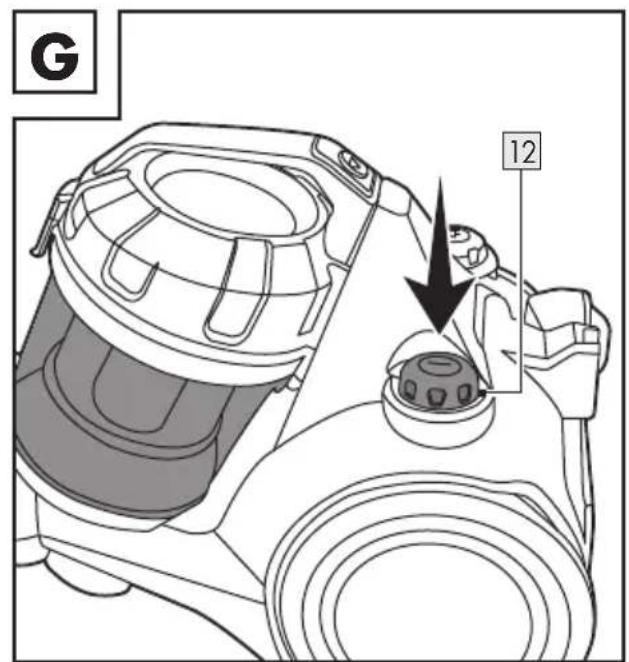

Switching on/off: Press the on/off switch ① 12 once (Fig. G).
- Disconnect the power plug 9 from the socket-outlet if you do not use the product.

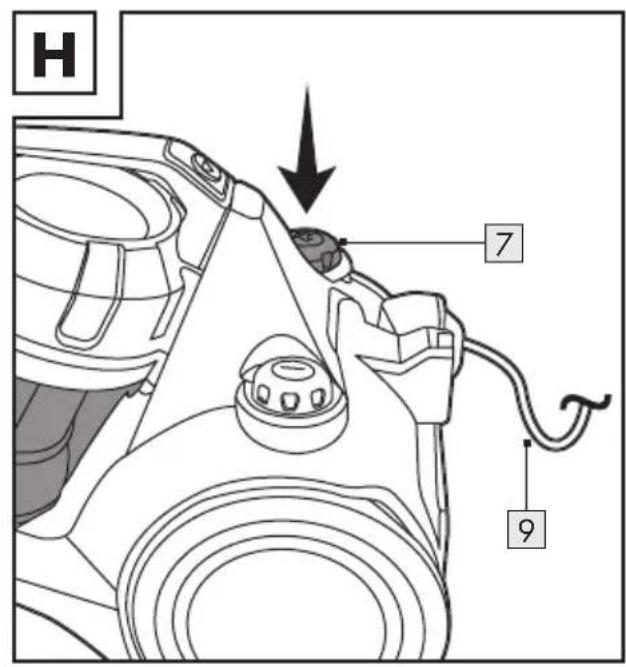

■ Winding up the power cord 9: Press the cable winder button 7 (Fig. H).

NOTE: Hold the power cord 9 with one hand. Guide the power cord while it is being wound up.

- Increasing/decreasing suction power

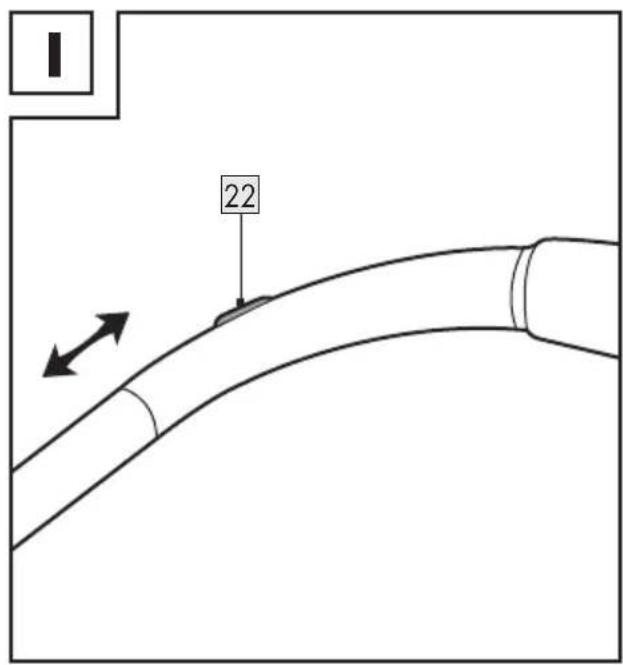

Adjust the suction power with the secondary air regulator 22 (Fig. I).

● Emptying the dust container

i NOTES:

■ Empty the dust container 4 outdoors if possible, since emptying can lead to a cloud of dust.
■ Empty the dust container 4 at regular intervals. Otherwise the product could be damaged.

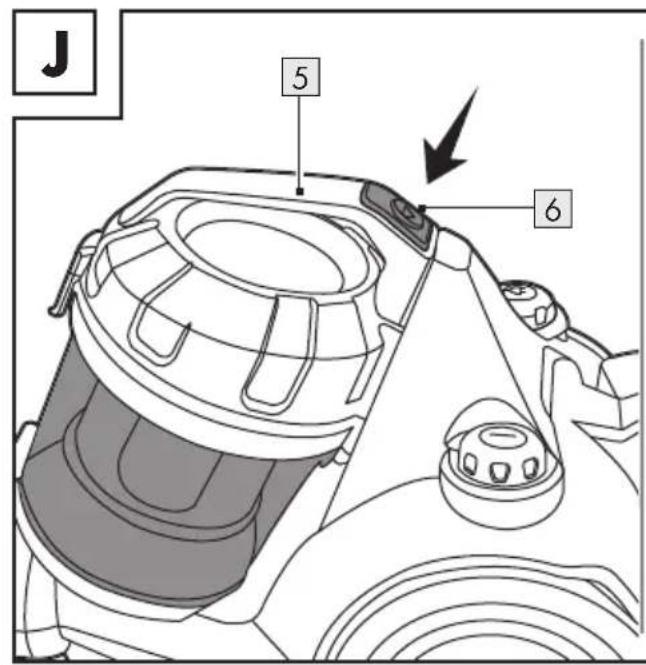

Press the dust container release 6. Lift the dust container 4 from the product using the handle 5 (Fig. J).
- Hold the dust container 4 over a waste bin.

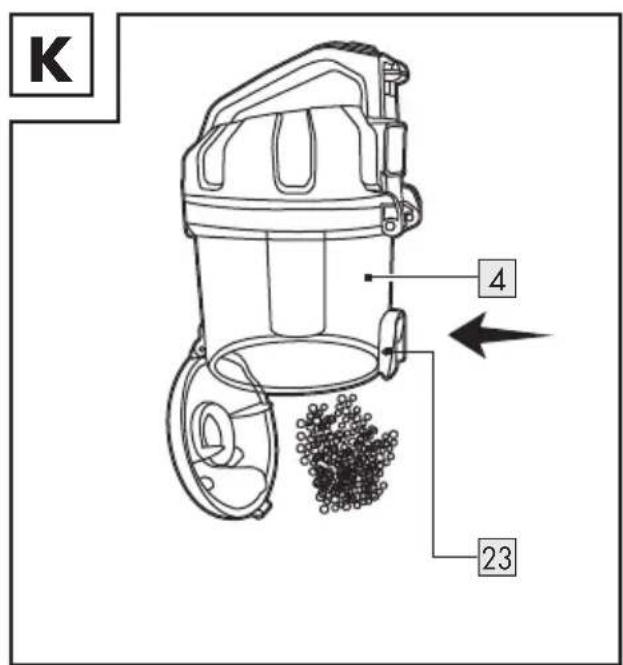

Press the bottom release ^23 on the side of the dust container ^4 to open the bottom and thus discharge the dust (Fig. K).
- Close the bottom. The bottom release 23 must audibly lock in place.

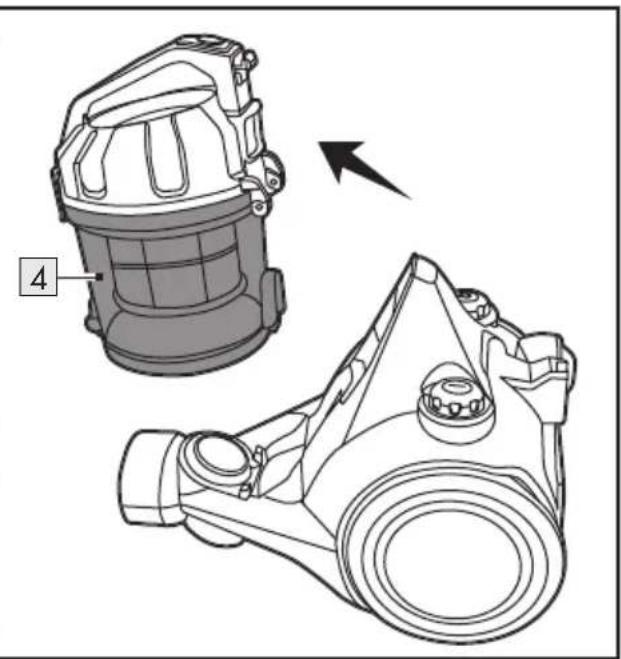

Insert the dust container 4 into the product. The dust container release 6 must audibly lock in place (Fig. L).

● Cleaning and care

⚠️ DANGER! Risk of electric shock!

Disconnect the power plug 9 from the socket-outlet before cleaning the product. Never touch the power plug with moist or wet hands.

Always keep the power plug and power cord dry.

⚠ WARNING! Risk of electric shock!

Never immerse the electric parts of the product in water or other liquids. Never hold the product under running water.

⚠️ ATTENTION! Do not use any tools to clean the filters. Otherwise the filters could be damaged.
⚠️ ATTENTION! Never use the product without the HEPA filter and motor filter 10. Otherwise the product could be damaged and the suction power could be decreased.

• Switch off the product and disconnect the power plug 9 from the socket-outlet.

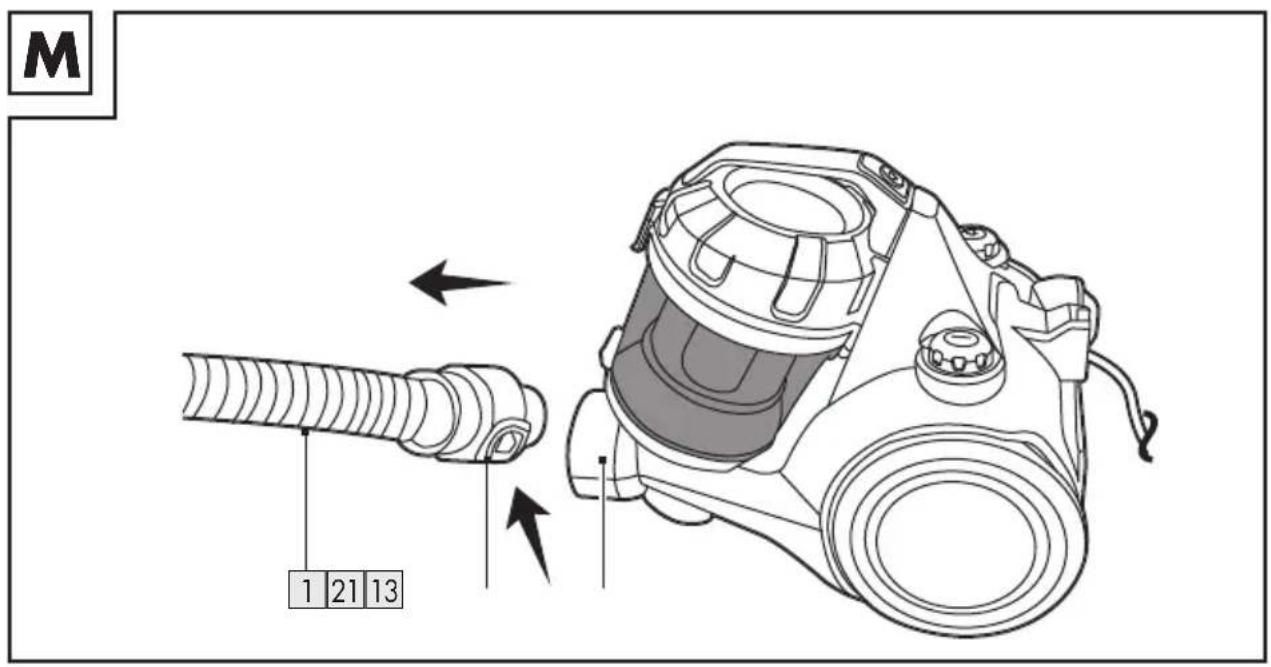

  Press the hose release 21 and pull the hose 1 out of the intake 13 (Fig. M).
• Do not use any corrosive or abrasive cleaning agents.
  ■ Remove coarse dirt by hand.
• Clean the product with a damp cloth. For stubborn dirt, use a damp cloth and a mild detergent and clean the product again.

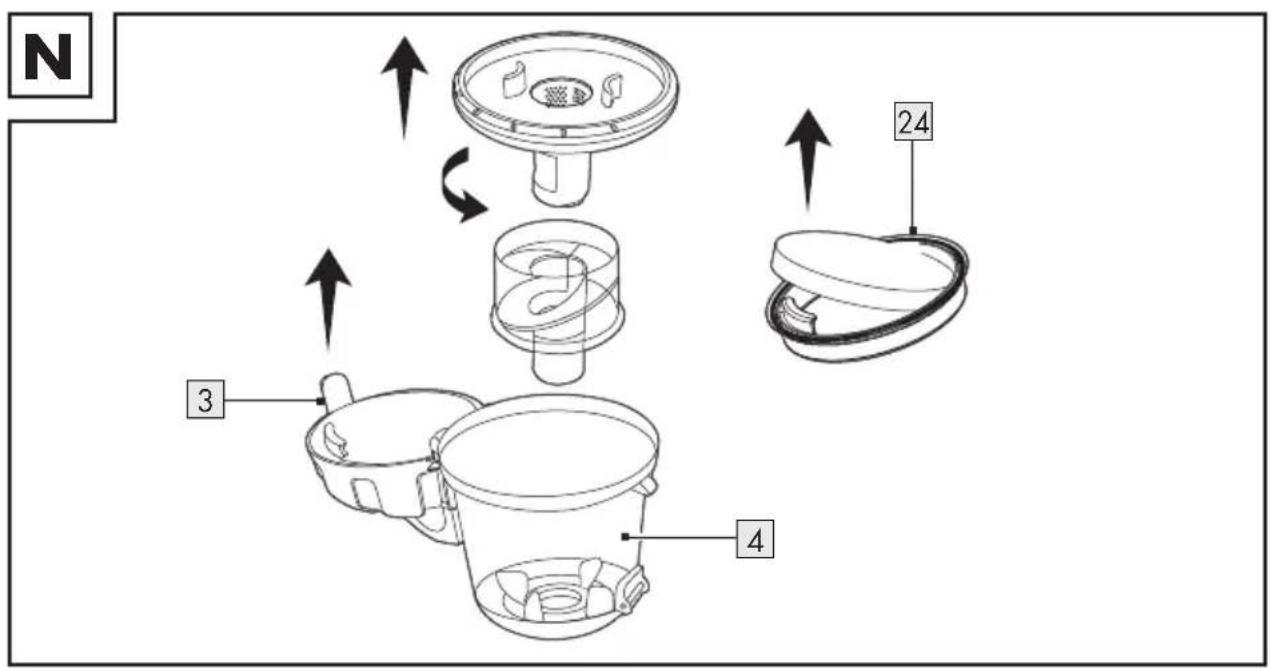

Dust container and HEPA filter

(Fig. N)

■ Remove the dust container 4 (see "Emptying the dust container").
Pull up the lid lock (top) 3. Open the top lid.
■ Pull out both cylinders (grey and blue).
Separate the cylinders from each other. To do this, turn one of the cylinders counterclockwise.
Use a damp cloth to clean the dust container 4 and the two cylinders. You can also rinse the dust container and cylinders under running water.
■ Pull the filter frame out of the lid.

■ Remove the foam inlay 24.
■ To remove dust, tap the filter frame.
If necessary, rinse the filter frame and the foam inlay 24 under running water. Let the parts dry completely at a location without direct sunlight.

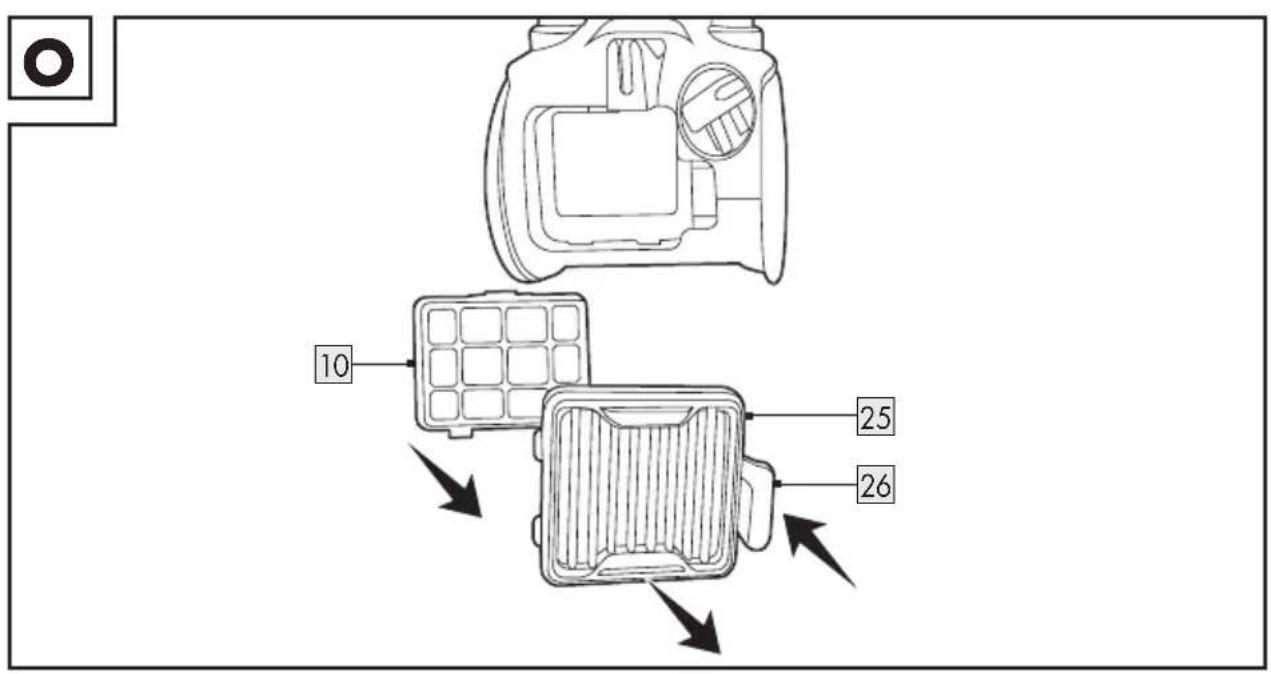

Motor filter

(Fig. O)

NOTE: Clean the motor filter 10 if it is dirty. With normal use, it is recommended to clean the motor filter every 6 months.

The motor filter ^10 is located behind the air outlet grille ^25 . Slide the grille lock ^26 to the left. At the same time pull out the air outlet grille.
- Carefully press down the lock on top of the filter frame. Pull out the filter frame.
- Rinse the motor filter ^10 under running warm water.
- Let the motor filter ^10 dry completely at a location without direct sunlight.
Insert the motor filter 10 and the air outlet grille 25 back into the product. Both parts must audibly lock in place.

- Ordering replacement accessories

■ Replacements for the following accessories can be ordered online:

- 10 Motor filter - 24 Foam inlay

Item number: 391635_2201

Website: www.optimex-shop.com

● Troubleshooting

Fault Possible cause Action

The product does not work.	The power plug 9 is not connected to the socket-outlet.	Connect the power plug 9 to a socket-outlet.
The suction power is reduced and the product does not vacuum any dirt.	Dust container 4 full.	Empty the dust container 4 (see “Emptying the dust container”).
	Suction path blocked.	Check the nozzle 15 16 17, the furniture brush 18, the telescopic tube 2, the hose 1 and the dust container 4 for blockages and remove them.
	Motor filter 10 or HEPA filter clogged.	Clean the motor filter 10 and the HEPA filter (see “Cleaning and care”).
The product overheats.	Motor filter 10 or HEPA filter clogged.	Clean the motor filter 10 and the HEPA filter (see “Cleaning and care”).
Dust escapes from the product.	The dust container 4 was not installed correctly.	Install the dust container 4 (see “Emptying the dust container”).
The air that escapes from the product smells unpleasant.	Deposits in the suction paths, the motor filter 10 or HEPA filter.	Clean the motor filter 10 and the HEPA filter (see “Cleaning and care”).
The motor is louder than usual.	Suction path blocked.	Check the nozzle 15 16 17, the furniture brush 18, the telescopic tube 2, the hose 1 and the dust container 4 for blockages and remove them.

The motor is defective. Contact customer service (see "Service").

Storage

• Store the product in the original packaging when it is not in use.
  ■ Clean the product before storage.
  ■ Store the product at a dry location out of the reach of children.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispose it separately, following the illustrated packaging symbols, for better waste treatment.

The Triman logo is valid in France only.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 391635_2201) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

CE

Site Web : www.optimex-shop.com

Dépannage

Erreur Cause possible Action

Line drawing of a handheld device with handle and control knob (no text or symbols)

15

Tapijten

Harde vloer

Trappen

16

Tapijten

Kussen

⚠ WAARSCHUWING! Kans op

Line drawing of a mechanical clamp or connector (no text or symbols)

15

Dywany

Twarde podłogi

Schody

16

Dywany

Poduszki

Meble tapicerowane

17

Line drawing of a handheld device with a handle and control knob (no text or symbols)

15 Koberce

Tvrdé podlahy

Schody

16 Koberce

Polštár

Čalouněný nábytek

Line drawing of a handheld device with handle and control knob (no text or symbols)

15 Koberce

Página web: www.optimex-shop.com

⚠ ADVARSEL! Fare for

Line drawing of a mechanical device with a handle and lever (no text or symbols)

15

Tæpper

Hårde gulve

Trapper

16

Tæpper

Puder

Polstrede møbler

17

Website: www.optimex-shop.com

Fejlafhjælpning

Sito web: www.optimex-shop.com

Line drawing of a handheld device with handle and control knob (no text or symbols)

15

Szönyegek

Kemény padló

Lépcsők

16

Szönyegek

Párnák

Kárpit

17

Line drawing of a handheld device with handle and control knob (no text or symbols)

15 Preproge

Trda tla

Stopnišča

16 Preproge

Blazine

Oblazinjeno pohištvo

17 Težko dostopna mesta

Vogali

Robovi robnikov

Zračne reže

Stoli

Oblazinjeno pohištvo

18 Žaluzije

Zračne reže

Občutljive površine

* Nastavite stikalo za trda tla/preprogo glede na vrsto tal. 14

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA
