SHS 12.0 B2 - Vacuum Cleaner SILVERCREST - Free user manual and instructions

Product Type	Handheld Vacuum Cleaner
Brand	SilverCrest
Model	SHS 12.0 B2
Dimensions (W x D x H)	40 x 15 x 20 cm
Weight	1.8 kg
Power Supply	Corded, 220-240 V ~ 50/60 Hz
Rated Power	600 W
Dust Container Volume	0.5 L
Filter Type	Washable microfiber filter
Noise Level	75 dB
Cable Length	5 m
Main Functions	Hard floor cleaning, crevice tool, brush tool
Maintenance	Clean filter regularly, empty dust container after each use
Safety Features	Overheating protection, automatic shut-off
Spare Parts	Filter, brush, crevice nozzle
Warranty	2 years

Frequently Asked Questions - SHS 12.0 B2 SILVERCREST

How do I clean the filter?

Turn off and unplug. Remove the dust container, take out the filter, and wash it with lukewarm water. Let it dry completely before reinserting. Do not use detergent.

What type of filter does the SHS 12.0 B2 use?

It uses a washable microfiber filter. It is recommended to clean it every 3 months.

Is the vacuum bagless?

Yes, it is a bagless cyclone vacuum with a transparent dust container.

How do I empty the dust container?

Press the release button to detach the container, then open the bottom flap over a trash bin.

What accessories are included?

A crevice nozzle, a brush nozzle, and an extension wand.

Can I use it on carpets?

It is primarily designed for hard floors, but it can be used on low-pile carpets with the brush attachment.

How long is the power cord?

The cord is 5 meters long, providing a good range.

What is the noise level?

The noise level is approximately 75 dB, which is typical for handheld vacuums.

How do I store the vacuum?

You can hang it on the included wall mount or store it standing on the flat base.

Does it have a warranty?

Yes, SilverCrest offers a 2-year warranty. Keep your receipt.

USER MANUAL SHS 12.0 B2 SILVERCREST

Operating instructions

SE

BILDAMMSUGARE

Bruksanvisning

LT

AUTOMOBILINIS DULKIŲ SIURBLYS

Naudojimo instrukcija

FI

RIKKAIMURI

Käyttöohje

PL

ODKURZACZ SAMOCHODOWY

Instrukcja obstugi

DE AT CH

AUTO-STAUBSAUGER

Bedienungsanleitung

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FI

GB/IE Operating instructions Page 1

FI	Käyttöohje		Sivu	7
SE	Bruksanvisning		Sidan	13
PL	Instrukcja	obstugi		Strona	19
LT	Naudojimo	instrukcija		Puslapis	25
DE/AT/CH Bedienungsanleitung Seite		31

Introduction

Introduction 2

Proper use 2

Included items 2

Parts list 2

Technical information 2

Safety 3

Safety advice 3

Operation 3

Before first use 3

Fitting and removing attachments 3

Switching On/Off 4

Servicing and cleaning 4

Disposal....5

Warranty....5

Service 5

Importer 5

The following icons / symbols are used in this instruction manual:
	Read instruction manual!		Watts (Effective power)
	Observe caution and safety notes!		Never leave children unsupervised with the packaging materials or the device.
	Direct current(Type of current and voltage)		Dispose packaging and appliance in an environmentally-friendly way!

CAR VACUUM CLEANER SHS 12.0 B2

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Proper use

The hand-held vacuum cleaner is intended for the vacuum cleaning of dry surfaces or for sucking up dry materials. This device is not to be used on people or animals. Other uses or modifications of the device shall be considered as improper use and may lead to dangers such as the risk of loss of life through injury or accident, as well as damage to property. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.

Included items

1 Car Vacuum Cleaner SHS 12.0 B2
1 Extension hose
1 Small brush
1 Crevice tool
1 Operating instructions

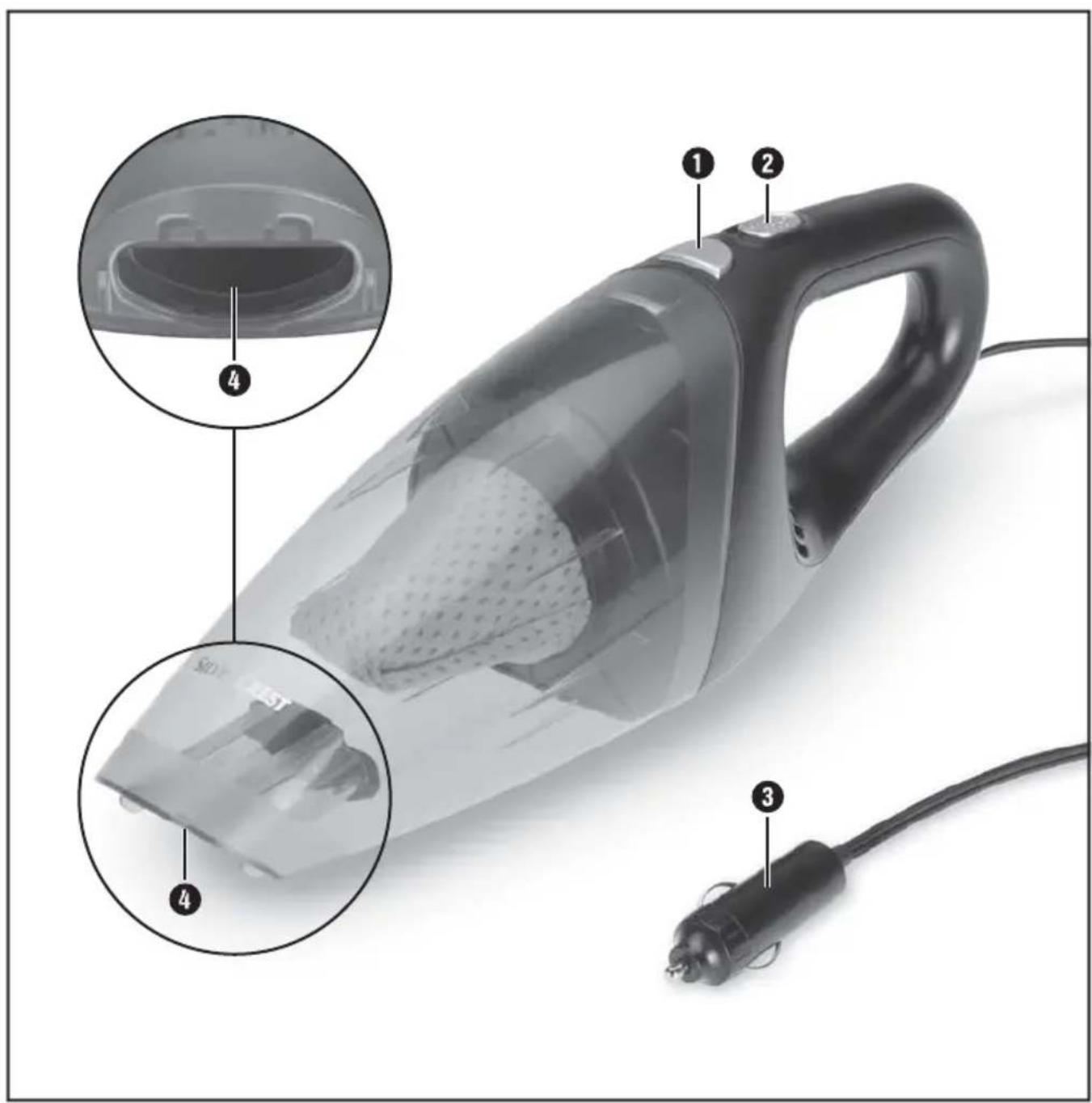

Parts list

① Unlocking button
② ON/OFF switch
③ 12 V plug
4 Front nozzle
⑤ Extension hose
6 Small brush
⑦ Crevice tool
8 Dust container
9 Dust filter
10 Housing

Technical information

Power supply: 12 V ---

Power: 120

Safety

Safety advice

This safety advice is an important part of these operating instructions and must be observed every time electrical devices are used. The advice and instructions will help you to avoid risk to life, accidents and damage to property. Therefore you must read carefully through the following information concerning safety and proper use.

RISK OF LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN! Never leave children

unsupervised with the packaging materials or the device. There is a risk of suffocation and loss of life from electric shock. Children often underestimate the dangers associated with electrical devices. Always keep children away from the device.

This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks. Children should not be allowed to play with the appliance. Cleaning and user maintenance should not be performed by children without supervision.

- Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.

Do not use the lead for any purpose for which it was not intended, e.g. to carry the device or to pull the plug out of the 12 V socket. Keep the lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled leads or plugs increase the risk of electric shock.

■ Damage to the device, mains lead or plug presents a risk of loss of life from electric shock. Frequently check the condition of the device, mains lead and plug.

- Do not use a device with damaged parts. If a dangerous situation arises pull out the plug from the socket immediately.

WARNING!

▶ Never open up the device. Always have any repairs carried out or replacement parts fitted at the service centre or by an electrical equipment repair specialist.

When not in use always ensure that electrical devices are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical devices are dangerous when they are used by inexperienced people.

Operation

Before first use

Take all the parts carefully out of the packaging and remove all the packaging material. Dispose of all the packaging material in an environmentally friendly manner.

◆ Fully unwind the lead attached to the 12 V plug.

NOTE

▶ Always make sure that the dust filter ⑨ is installed before you use the device.

Fitting and removing attachments Extension hose

◆ Insert the smaller end of the extension hose 5 snugly into the front nozzle 4.

◆ Insert the desired attachmen 6, 7 nugly into the extension hose 5.

Small brush ⑥:

This accessory has hard bristles and is very suitable for initially loosening and then vacuuming up stubborn dirt, e.g. from the upholstery or footwell.

◆ Insert the small brush 6 snugly into the front nozzle 4

Crevice tool 7

Use this attachment to get into narrow, difficult-to-access places.

♦ Insert the crevice too⑦ snugly into the front nozzle④.

Removing attachments:

- Simply pull the attachment off the front nozzle ④ or the extension hose ⑤

Switching On/Off

◆ Insert the 12 V plug into the 12 V socket / cigarette lighter socket of the vehicle.

To switch the device on, press the ON / OFF switch ② forwards into the I position.

To switch the device off, press the ON / OFF switch ② back into the 0 position.

◆ Pull the 12 V plug3 out of the 12 V socket after use.

NOTE

If you going to vacuum for a long period, we recommend that you carry out the cleaning with the engine running.

Servicing and cleaning

The device requires no maintenance.

CAUTION

Before you clean the device itself, pull the 12V plug ③ out of the 12 V socket, otherwise there is a risk of electric shock

- Clean all the housing with a soft, dry cloth. Never use liquids or cleaning agents, as they may damage the device.

For the best possible performance, you should empty the dust container 8 immediately after use and when the suction power drops.

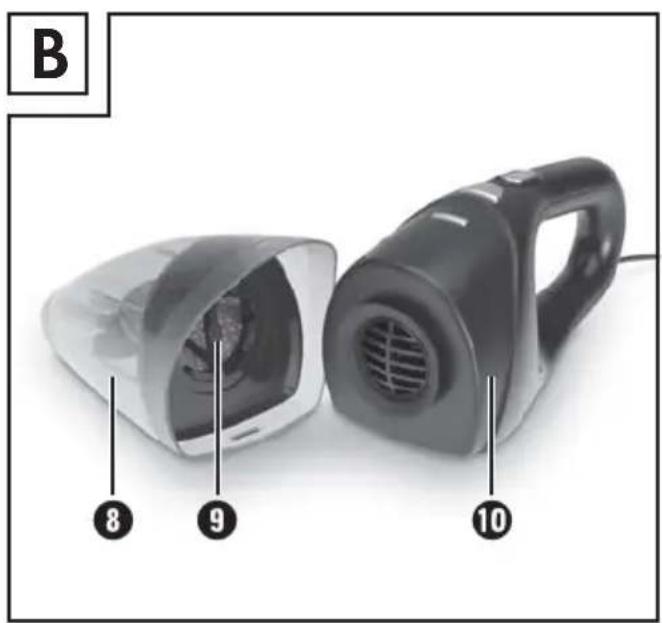

◆ Press the unlocking button and take the dust container out of the housing . 10

Take out the dust filter 9. You will be able to clean the dust filter better if you detach it from the end seal. To do this, hold the end seal firmly and twist the filter off carefully anticlockwise (bayonet fitting). Rinse out the dust filter 9 thoroughly in cold water and allow both parts (filter and end seal) to dry completely. Attach the filter back on to the end seal.

◆ Empty the dust containe8 completely.

- Carefully replace the dust filter back into the dust container 8. Never use the vacuum cleaner without the dust filter in place.

- Attach the dust containe ^8 carefully back on to the housing ^10 and ensure the two parts engage.

CAUTION

The front nozzle must be free and unobstructed at all times. Blockages can lead to overheating and damage to the motor.

Disposal

The packaging is composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical devices with the household rubbish!

In accordance with European Directive 2012 / 19 / EU, worn out electrical devices must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Department. Only in this way can a post-free despatch for your goods be assured.

NOTE

The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries.

This product is for domestic use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 275076

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 275076

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
