Product type	Sandwich toaster
Brand	SilverCrest
Model	SSMW 750 C3
Dimensions (L x W x H)	Approx. 25 x 15 x 10 cm
Weight	Approx. 1.2 kg
Power supply	220-240 V ~ 50/60 Hz
Power	750 W
Capacity	2 sandwiches
Housing material	Heat-resistant plastic
Cooking plates	Non-stick coating
Browning settings	Multiple levels (1 to 5)
Defrost function	Included
Automatic shut-off function	Yes
Power indicator light	Yes
Power cord	Approx. 70 cm, integrated storage
Cleaning	Removable plates for easy cleaning
Maintenance	Wipe with a damp cloth; do not immerse
Safety	Overheat protection
Spare parts available	Replacement non-stick plates
Repairability	Repairability index: 6.5/10
Included accessories	User manual, recipe book (for sandwiches)

Frequently Asked Questions - SSMW 750 C3 SILVERCREST

How to use the SilverCrest SSMW 750 C3 sandwich toaster?

Plug in the appliance, place the ingredients between two slices of bread, close the lid, and set the desired browning level. The appliance turns off automatically at the end of the cycle.

Are the plates removable and dishwasher safe?

Yes, the plates are removable for easy cleaning. They can be washed in the dishwasher or by hand with a soft sponge.

What type of coating do the plates have?

The plates are coated with a high-quality non-stick coating, allowing fat-free cooking and easy release.

What is the power of the appliance?

The sandwich toaster has a power of 750 watts, ensuring fast and even cooking.

Is there an automatic shut-off?

Yes, the appliance has an automatic shut-off function that activates once the cooking cycle is complete for added safety.

How to clean the exterior of the toaster?

Unplug the appliance and let it cool down. Wipe the exterior with a damp cloth. Do not use abrasive cleaners and never immerse the appliance in water.

Can I prepare something other than sandwiches?

Yes, you can also grill paninis, tortillas, or even vegetables thanks to the non-stick plates.

What to do if the appliance does not heat up?

Check that the appliance is properly plugged in and that the indicator light is on. If the problem persists, contact customer service.

Is it possible to buy replacement plates?

Yes, replacement non-stick plates are available from the manufacturer or on spare parts websites.

What is the warranty of the appliance?

The legal warranty is 2 years. Keep your receipt and user manual for any claims.

USER MANUAL SSMW 750 C3 SILVERCREST

Operating instructions

NL BE

SANDWICHMAKER

Gebruiksaanwijzing

CZ

SENDVIČOVAČ

Návod k obsluze

IAN 313476

DE BE NL

CZ PL

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 21

Inhaltsverzeichnis

Einführung 2

Urheberrecht 2

Technical line drawing of a mechanical component with no visible text or symbols

Abb. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Index

Introduction....22

Copyright....22

Limited liability 22

Intended use 22

Items supplied....23

Disposal of the packaging....23

Appliance description....24

Technical data 25

Safety instructions 25

Exchanging the removable plates....28

Placement of the removable plates 28

Extracting the removable plate 28

Commissioning 29

Operation 30

Toasting sandwiches 30

Baking waffles 30

Grilling....31

Cleaning....32

Storage 33

Troubleshooting 33

Recipes....34

Dutch Tomato Toast 34

Italian Toast 35

Hawaiian Toast 36

Waffles 36

Apple waffles....37

Shrimp skewer 37

Disposal....38

Kompernass Handels GmbH warranty....38

Service....40

Importer 40

Introduction

Congratulations on the purchase of your new appliance!

You have clearly decided in favour of a modern, high quality product. These operating instructions are a component of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use this appliance only as described and only for the purposes indicated. In addition, pass these documents on, together with the product, to any future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Limited liability

All technical information, data and instructions for the installation, connection and operation contained in these operating instructions correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.

Intended use

This appliance is intended exclusively for the toasting of filled sandwiches, baking waffles and the grilling of foodstuffs.

This appliance is intended exclusively for use in domestic households. Do not use the appliance for commercial applications!

Items supplied

The appliance is delivered with the following components as standard:

• Sandwich Toaster
  ● 2 Removable plates "Sandwich"
• 2 Removable plates "Waffles"
• 2 Removable plates "Grill"
• Operating instructions

1) Remove the appliance, the removable plates and the operating instructions from the carton.

2) Remove all packing material.

NOTICE

▶ Check the contents to ensure everything is present and for visible damage.
▶ If the delivery is not complete or has been damaged due to defective packaging or transportation, contact the Service Hotline (see section Service).

Disposal of the packaging

The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: Plastics,
20-22: Paper and cardboard,
80-98: Composites.

NOTICE

▶ If possible preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can pack the appliance ideally for its return.

Appliance description

Illustration A:

① Locking device
② Heating coil
③ Lower mountings
4 Heating coil
⑤ Locking devices
6 Rear mountings

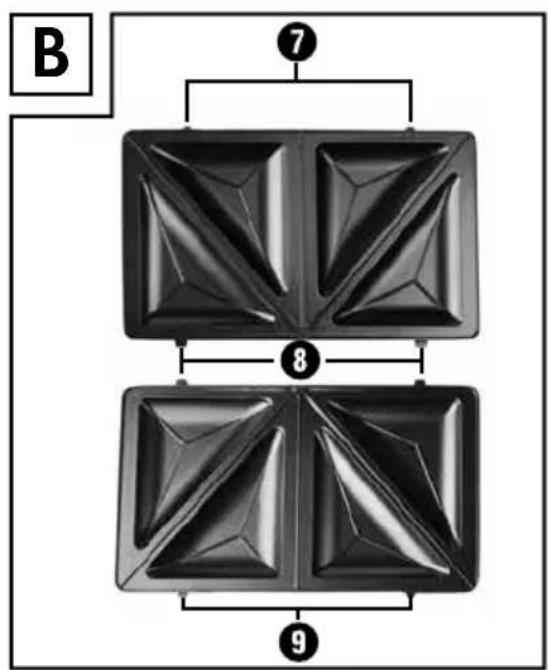

Illustration B (Sandwich plates):

⑦ Upper latches
8 Lower and rear latches
9 Front latches

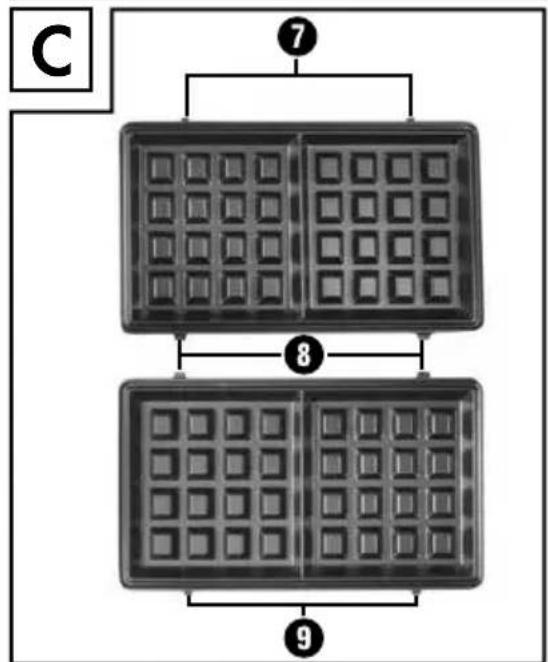

Illustration C (Waffle plates):

⑦ Upper latches
8 Lower and rear latches
9 Front latches

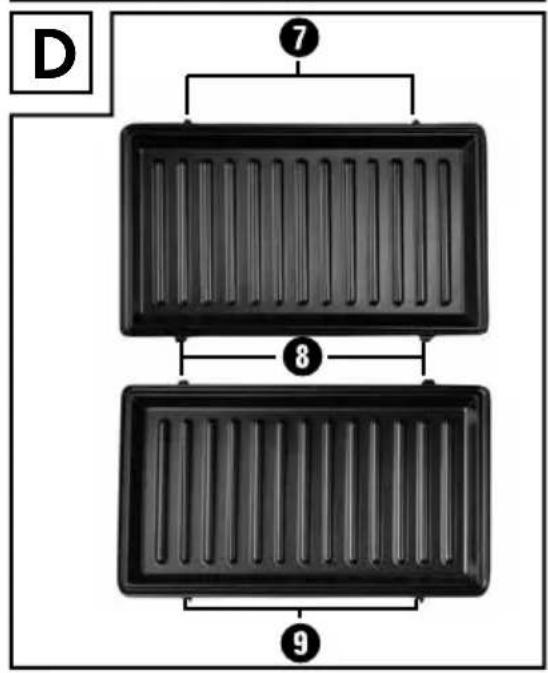

Illustration D (Grill plates):

⑦ Upper latches
8 Lower and rear latches
9 Front latches

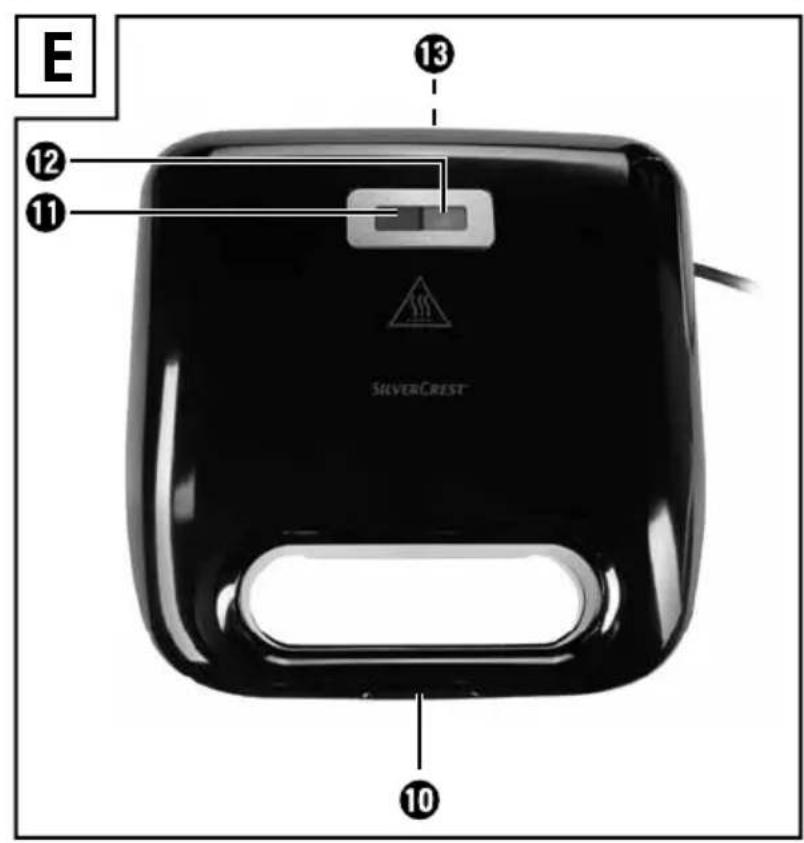

Illustration E:

10 Lid locking device
⑪ Control lamp "Power"
12 Control lamp "Ready"

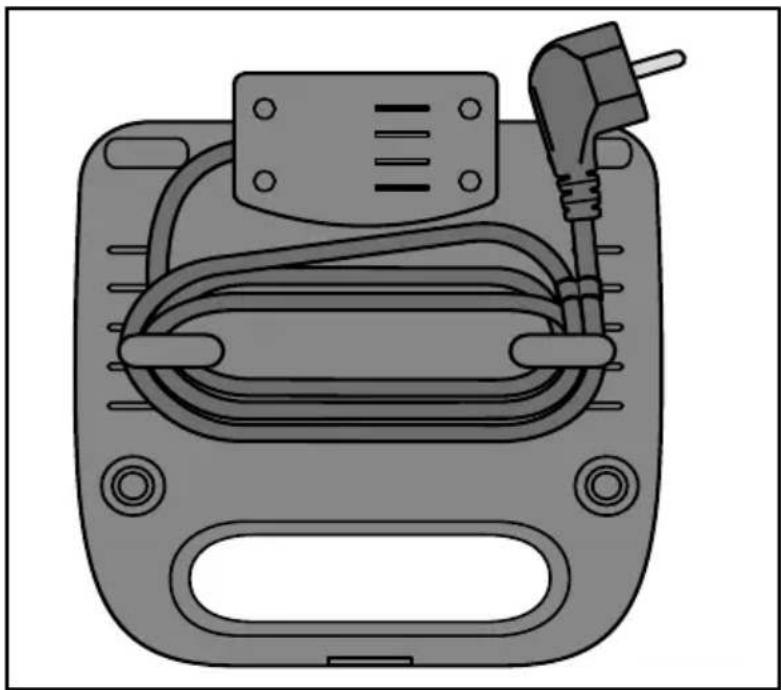

13 Cable retainer

Technical data

Voltage 220 - 240 V ~ AC, 50/60 Hz
Power consumption 750 W
	All of the parts of this appliance that come into contact with food are food-safe.

Safety instructions

WARNING! RISK OF ELECTRIC SHOCK!

• Arrange for damaged power cables and/or plugs to be replaced as soon as possible by a qualified specialist or by Customer Services.
  ▶ Use the appliance only in dry indoor areas, not outdoors.

NEVER submerse the appliance in water or other liquids! If you do, then you could receive a potentially fatal electricshock.

• When cleaning, ensure that water cannot permeate into the appliance. NEVER clean the appliance under running water.
  ▶ Ensure that the appliance can never come into contact with water. NEVER use the appliance adjacent to water or close to vessels containing liquids.
• Ensure that the power cable never gets wet or moist when the appliance is in use. Lay the cable such that it cannot be clamped or otherwise damaged.
  ▶ After use, disconnect the power cable from the mains power socket to turn off the unit.
  ▶ NEVER open the housing of the appliance.

⚠ WARNING! RISK OF INJURY!

This appliance may be used by children of at least 8 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used, and they have understood the potential risks.

▶ Children should not play with the appliance.

- Cleaning and user maintenance should not be performed by children, unless they are older than 8 years of age and are supervised. Children younger than 8 years of age are to be kept away from the appliance and the power cable.

The appliance can become hot when it is in use. Therefore, only touch the handles.

▶ Let the appliance cool down completely before cleaning it, exchanging the removable plates or putting it into storage.

▶ Use caution when removing the finished foods (sandwiches, waffles, etc.). The appliance, as well as the sandwiches, will be very hot.

▶ Use the appliance only on a stable, non-slippery and level surface.

- Do not use an external timing switch or a separate remote control system to operate the appliance.

Attention! Hot surfaces!

CAUTION! RISK OF FIRE!

• This appliance may not be used in close vicinity to flammable material.
• Do not leave the appliance unattended at any time when it is in use.
  ▶ Operate the appliance only on heat resistant surface.
  ▶ Do not operate the appliance unsupervised.

CAUTION! PROPERTY DAMAGE!

To avoid damaging the non-stick coating of the Sandwich Maker, remove your cooked foods only with a plastic or wooden spatula or some other suitable, non-metallic implement.
▶ Do not use abrasive cleansers or sharp objects for cleaning.

Exchanging the removable plates

You can choose between 3 different removable plates:

• Removable plates "Sandwich": for the preparation of filled sandwiches.
  -Removable plates "Waffles": for baking waffles.
  -Removable plates "Grill": for grilling meat, fish, etc.

WARNING! RISK OF ELECTRIC SHOCK

▶ Disconnect the plug from the mains power socket before exchanging the removable plates.

WARNING! RISK OF INJURY!

▶ Let the appliance cool down before exchanging the removable plates! Risk of Burns!

Placement of the removable plates

1) Open the sandwich maker by releasing the lid locking device ⑩ and lifting the lid.
2) Upper removable plate: First slide the lower latches ⑧ into the lower mountings ③.
3) Now press the upper latches ⑦ onto the locking devices ①, so that the upper latches ⑦ spring under the locking devices ① and the removable plate is firmly seated.
4) Lower removable plate: First slide the rear latches ⑧ into the rear mountings ⑥.
5) Now press the front latches ⑨ onto the locking devices ⑤ so that the latches ⑨ spring under the locking devices ⑤ and the removable plate is firmly seated.
6) Press firmly once in the centre of the lower removable plate to ensure that it is securely inserted.

Extracting the removable plate

1) Upper removable plate: Slide the locking devices ① upwards and simultaneously tilt the removable plate forward so that you can lift it out from underneath the lower mountings ③.

2) Lower removable plate: Pull the locking devices ⑤ forward and lift the removable plate so that you can pull it out from the rear mountings ⑥.

Commissioning

Carry out the following procedure with each of the 3 pairs of removable plates.

■ Smear the non-stick coating on the removable plates with oil suitable for cooking.

WARNING! RISK OF INJURY!

▶ Let the appliance cool down before exchanging the removable plates! Risk of Burns!

■ Install a pair of removable plates into the appliance.

■ Insert the plug into a mains power socket.

■ Close the appliance and lock it with the lid locking device ⑩.

■ Let the appliance heat up for about 10 minutes.

NOTICE

▶ With the first usage a slight smell can arise (minimal smoke development is also possible). This is normal and dissipates after a short time. Provide for sufficient ventilation. For example, open a window.

■ Disconnect the plug and allow the appliance to cool down.

■ Clean the removable plates and the appliance as described in the chapter "Cleaning".

The appliance is now ready for use.

Operation

Toasting sandwiches

1) Select the removable plates "sandwich" and install them.

CAUTION! PROPERTY DAMAGE!

▶ Never use two different removable plates at the same time.

2) Close the lid and lock it with the lid locking device ⑩.
3) Insert the plug into a mains power socket. The red control lamp "Power" ⑪ glows.
4) As soon as the appliance is heated up, the green control lamp "Ready" ⑫ glows.
5) Open the lid and insert two prepared sandwiches on the lower removable plate.
6) Close the lid and lock it with the lid locking device 10. You can choose from two locking positions. If the sandwich is still too thick, so that the lid locking device 10 cannot be closed, reduce the amount of filling.

CAUTION! PROPERTY DAMAGE!

▶ To avoid damaging the non-stick coating of the Sandwich Maker, remove your cooked foods only with a plastic or wooden spatula or some other suitable, non-metallic implement.

7) The sandwiches are ready after about 5 - 6 minutes. This time information can, depending on the type of filling and personal tastes, vary. Open the lid and take the sandwiches out.
8) When you no longer wish to prepare any more sandwiches, disconnect the plug from the mains power socket.

Baking waffles

1) Select the removable plates "waffles" and install them.

CAUTION! PROPERTY DAMAGE!

▶ Never use two different removable plates at the same time.

2) Close the lid and lock it with the lid locking device ⑩.
3) Insert the plug into a mains power socket. The red control lamp "Power" ⑪ glows.
4) As soon as the appliance is heated up, the green control lamp "Ready" 12 glows.

5) Open the lid and place about 2 - 3 large tablespoons of batter into each of the two waffle baking surfaces on the lower removable plate.

6) Now close the lid. Do not lock the lid!

CAUTION! PROPERTY DAMAGE!

▶ To avoid damaging the non-stick coating of the Sandwich Maker, remove your waffles only with a plastic or wooden spatula or some other suitable, non-metallic implement.

7) The waffles are ready after about 5 - 7 minutes. This time information can, depending on the type of batter used and personal tastes, vary. Open the lid and take the waffles out.

8) When you no longer wish to prepare any more waffles, disconnect the plug from the mains power socket.

Grilling

1) Select the removable plates "grill" and install them.

CAUTION! PROPERTY DAMAGE!

▶ Never use two different removable plates at the same time.

2) Close the lid and lock it with the lid locking device ⑩.

3) Insert the plug into a mains power socket. The red control lamp "Power" glows.

4) As soon as the appliance is heated up, the green control lamp "Ready" ⑫ glows.

5) Open the lid and place the food to be grilled on the lower removable plate.

6) Now close the lid. Do not lock the lid!

7) From time to time check the degree of browning by lifting the lid.

CAUTION! PROPERTY DAMAGE!

▶ To avoid damaging the non-stick coating of the Sandwich Maker, remove your cooked foods only with a plastic or wooden spatula or some other suitable, non-metallic implement.

8) When the food is cooked through, take it from the removable plate.

9) When the appliance is no longer needed, remove the plug from the mains power socket.

Cleaning

WARNING! RISK OF ELECTRIC SHOCK

▶ Disconnect the plug from the mains power socket before cleaning the appliance.

NEVER submerse the appliance in water or other liquids! If you do, then you could receive a potentially fatal electric shock.

WARNING! RISK OF INJURY!

▶ Let the appliance cool down before cleaning it. Risk of Burns!

CAUTION! PROPERTY DAMAGE!

▶ Do not use aggressive or abrasive cleaning agents. These can damage the upper surfaces of the appliance.

NOTICE

▶ Do not wait too long to start with the cleaning. Wait until the appliance has cooled down sufficiently that you can touch it without the risk of being burnt. Then the food particles can be removed more easily.

■ Clean the appliance housing only with a dry or lightly moistened cloth.

- Detach the removable plates and clean them in warm water with a little detergent added.

NOTICE

For gentle cleaning of the removable plates, we recommend that you wash them by hand, as described above. You can, however, also clean the removable plates in the dishwasher.

If fats or food should be under the removable plates and in the space in which the heating coils ② ④ are located, proceed as follows:

-Dab the fats or other liquids with a piece of kitchen paper.

- Remove stuck-on burnt residues with a wooden spatula or small wooden skewers.

■ Dry all parts well before re-use.

Storage

■ Store the Sandwich Maker at a dry location.

Wrap the power cable around the cable spool 13 of the cable retainer on the rear of the appliance. Fix the cable in place using the cable clip (see fig. 1):

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 1

- Clean the appliance as described in the chapter "Cleaning".

Troubleshooting

Problem Cause	Remedy
The appliance does not function.	The plug is not inserted into a mains power socket.	Connect the power cable into a mains power socket.
	The appliance is defective.	In this case, contact CustomerServices.
The sandwiches/ waffles/grilled food are too dark.	The sandwiches/waffles/ grilled food were in the Sand- wich Maker for too long.	Take the sandwiches/ waffles/grilled food out a little earlier.

Recipes

Dutch Tomato Toast

Ingredients

◆ 4 slices of toast bread
Water
♦ Spring onions
◆ 1 medium Tomato
Herb butter
◆ 2 slices of cooked Ham
Salt
♦ Freshly ground Pepper
◆ 2 slices of young Gouda cheese

1) Wash the spring onions and let them drip dry. Halve the onions lengthwise and then cut them into large pieces. Bring the water with salt to the boil in a pot. Add the spring onions and blanch them for about 1 minute. Then place the spring onions in a colander, douse them with cold water and let them drip dry.
2) Wash the tomatoes and dab them dry. Halve them and remove the stalks. Cut the tomatoes into slices.
3) Spread herb butter on one slice of toast and place a folded slice of ham on the smeared slice of toast bread. Distribute the pieces of spring onion and tomato slices on top. Season with salt and pepper.
4) Lay the cheese slices on the slice of toast bread.
5) Coat another slice of toast with some garlic butter and place it on your sandwich with the buttered side down.

Italian Toast

Ingredients

◆ 4 slices of Toast bread
◆ 4 tblsp. Tomato purée
◆ 2 tbsp. Salad mayonnaise
Salt
Herbs de Provence
♦ Freshly ground Pepper
◆ 1 medium Tomato
◆ 1 package Mozzarella cheese
◆ Freshly ground coloured Pepper

1) Stir the tomato paste, mayonnaise, salt, herbs de Provence and pepper together. Spread the slices of toast bread with it.
2) Wash the tomatoes and dab them dry. Halve them and remove the stalks. Cut the tomatoes into slices.
3) Let the Mozzarella cheese drain in a colander and then cut it into slices. Cut these in half.
4) Now lay the tomato and Mozzarella slices on the coated slice and season with pepper.
5) Cover your sandwich with another slice of toast bread.

Hawaiian Toast

Ingredients

◆ 4 slices of Toast bread
◆ 2 slices of pineapple (from the tin)
Butter
◆ 2 slices of cooked Ham
◆ 2 Cheese slices

1) Let the pineapples drain in a colander.
2) Now coat the toast slice with butter.
3) Garnish the toast bread with ham and pineapple.
4) Lay the cheese on the pineapple as the last ingredient.
5) Cover your sandwich with a slice of toast bread.

Waffles

Ingredients

◆ 250 g Margarine or butter
◆ ca. 200 g Sugar
◆ 2 Packets of Vanilla sugar
◆ 5 Eggs
◆ 500 g Flour
◆ 2 teaspoons Baking powder
◆ 350 - 400 ml Milk

1) Stir the eggs until foamy.
2) Add the sugar and vanilla sugar, then stir everything together.
3) Then add the melted butter or margarine.
4) Blend in the baking powder.
5) Under constant stirring, gradually add the milk and flour alternately.
6) Combine everything at the highest speed with a hand blender until a smooth batter mixture is achieved.

Apple waffles

Ingredients

◆ 250 g Margarine or butter
◆ 75 g Sugar
◆ 4 Eggs
◆ 250 g flour
◆ 1 tsp of Baking powder
◆ 125 ml lukewarm Milk
◆ 300 g Apples (peeled, cut into cubes.)
◆ 50 g grated Almonds or Nuts

1) Stir the eggs until foamy.
2) Add the sugar and stir everything.
3) Then add the melted butter or margarine.
4) Blend in the baking powder.
5) Under constant stirring, gradually add the milk and flour alternately.
6) Finally, blend in the almonds/nuts and the apple cubes.
7) Combine everything at the highest speed with a hand blender until a smooth batter mixture is achieved.

Shrimp skewer

Ingredients

◆ 250 g medium size, peeled Shrimps
◆ 2 Garlic cloves (finely chopped)
◆ 5 tbsp. Olive oil
◆ 12 small Tomatoes (cherry tomatoes)
◆ 1 tbsp. chopped parsley
Salt, pepper, paprika powder

1) Put the olive oil, garlic, a little paprika powder, salt, pepper and parsley in a bowl and mix everything.
2) Then add the shrimps and stir everything together, so that the shrimps are thoroughly moistened with the herb-spice mixture.
3) Let the shrimps marinade in the mixture for about 20 minutes.
4) Spike a tomato alternatively with a shrimp on a skewer.
5) Grill the skewers for about 5 minutes.

Disposal

Do not dispose of this appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 313476

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Sommaire

Introduction....42

Droits d'auteur 42

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding....62

Auteursrecht....62

WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

Technical line drawing of a mechanical component with no visible text or symbols

Afb. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Spis treści

Wprowadzenie....82

Prawo autorskie 82

Technical line drawing of a mechanical component with internal wiring and mounting holes (no text or symbols)

Rys. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....102

Technical line drawing of a mechanical component with internal wiring and mounting holes (no text or symbols)

Obr. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Obsah

Úvod....122

Technical line drawing of a mechanical component with internal wiring and mounting holes (no text or symbols)

Obr. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations
