PLC-804 - Iron FAGOR - Free user manual and instructions

Device type	Iron with separate boiler
Brand	FAGOR
Model	PLC-804
Power supply	Mains (see rating plate)
Functions	Dry ironing, steam ironing, vertical steaming
Indicator lights	Boiler filling indicator, steam ready indicator, heating indicator
Selectors	Steam level selector (5 positions), temperature selector (Min, 1 dot, 2 dots, 3 dots, Max)
Buttons	I/O switch, boiler switch, steam button, steam outlet lock
Boiler capacity	Not specified (fill to MAX level)
Soleplate material	Not specified
Cord length	Not specified (must be fully unwound)
Safety	Safety device (shuts down in case of malfunction), steam outlet lock, do not use without water
Cleaning	Clean the boiler externally with a damp cloth; soleplate: damp cloth on cold surface; do not use descaling, abrasive or detergent products
Maintenance	Drain the boiler after each use, fully unwind the cord, do not immerse
Usage precautions	Do not direct steam at people or animals, do not leave hot iron on its base, do not use below 0°C
Included accessories	Filling funnel, boiler cap, cord holders
Repairability	Contact an authorized after-sales service; do not repair yourself; use original spare parts
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - PLC-804 FAGOR

How to fill the boiler of the FAGOR PLC-804 iron?

Let the appliance cool completely, turn off the I/O switch and unplug it. Remove the boiler cap, fill to the MAX level using the provided funnel, then replace the cap.

What to do if the steam ready indicator does not light up?

If the steam level indicator (mark 4) does not light up after turning on the appliance, do not use the iron and contact an authorized after-sales service. Make sure the boiler switch is on and the steam level selector is set to maximum.

How to use the vertical steaming function?

Hold the iron vertically without touching the fabrics, then press the steam button. Do not spray on worn clothes or on animals. Avoid delicate fabrics such as silk or velvet.

How to clean the iron's soleplate?

Let the soleplate cool, then wipe with a damp cloth on the cold surface. Never use descaling, abrasive or detergent products. Avoid ironing over staples, zippers or metal buttons.

How to drain the boiler after use?

Turn off the switch, unplug the appliance and let it cool completely. Remove the boiler cap, then empty it by holding it from the bottom. Replace the cap.

Why is the iron not producing steam?

Check that the boiler is filled with water, the boiler switch is on, the steam level selector is set to maximum, and the iron has reached temperature (steam ready indicator on). If the problem persists, contact after-sales service.

Can I use demineralized water in the boiler?

The manual recommends using tap water. Demineralized water can be used, but avoid pure distilled water which could affect steam production. Consult the manufacturer's recommendations.

What to do if the iron leaks water?

Do not use the iron if it leaks. Unplug it, let it cool and drain the boiler. Check that the cap is properly closed. If the leak persists, contact an authorized after-sales service.

How to store the iron after use?

Turn off the I/O switch, unplug the appliance and let it cool completely. Drain the boiler, store the iron on its base in a safe place. Make sure the cord and steam tube are properly wound.

What to do in case of breakdown or malfunction?

Turn off the appliance and unplug it. Do not attempt to repair it yourself. Only contact a Technical Assistance Service authorized by the manufacturer and request original spare parts.

USER MANUAL PLC-804 FAGOR

The manufacturer reserves the right to modify the models described in this User's Manual.

PLANCHA CON CALDERA / FERRO DE ENGOMAR COM CALDEIRA /

IRON WITH BOILER / FER À REPASSER AVEC CHAUDIÈRE / BÜGELEISEN MIT

DAMPFERZEUGER / FERRO DA STIRO CON CALDAIA / ΣΙΔΕΡΟ ΜΕ ΒΡΑΣΤΗΡΑ

NEPOY / GÖZÁLLOMÁSOS VASALÓ / ŽEHLIČKA S PARNÍM GENERÁTOREM /

ŽEHLIČKA S PARNÝM GENERÁTOROM / ŽELAZKO Z BOJLEREM /

Fig. 4 Abb. 4 Eik. 4

1. Ábra Obr. 4 Rys 4

Фиг.4 Рис.4

Fig.1 1. Ábra Фиг.1 Abb.1 Obr.1 Рис.1 Eik.1 Rys 1

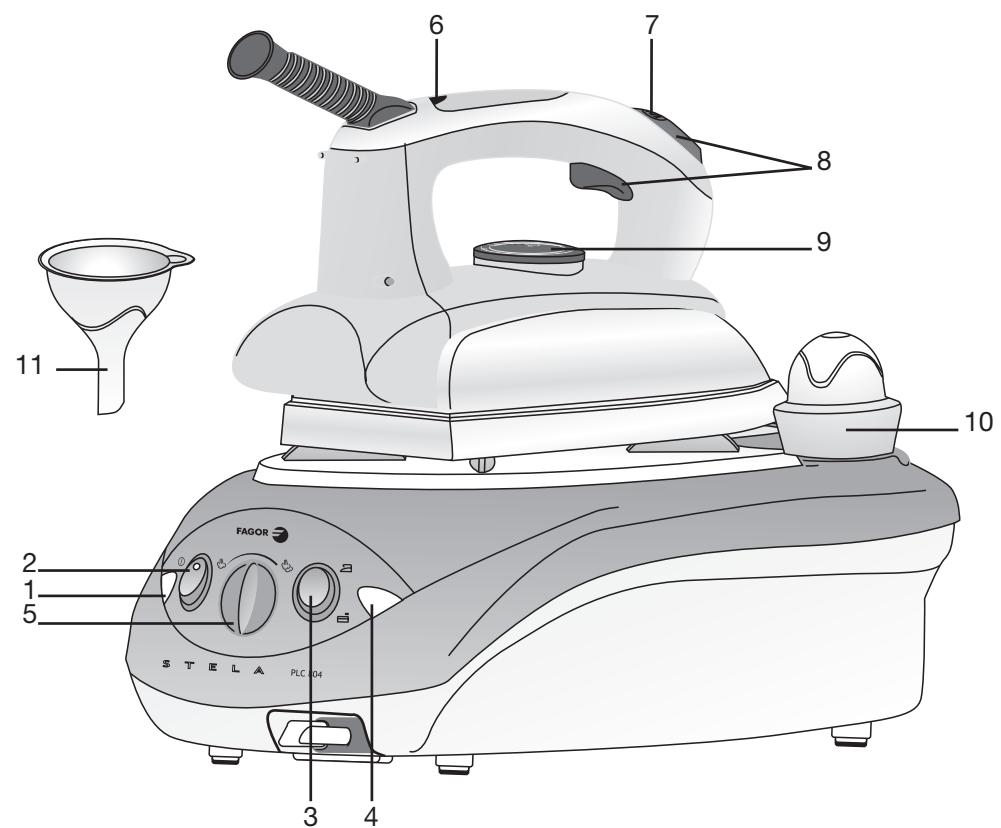

1. PRODUCT DESCRIPTION (Fig 1)

1. Fill-the-tank LED indicator
2. On/off switch
3. Boiler switch
4. "Steam ready" LED indicator
5. Steam level control
6. Pilot light
7. Button for locking the outflow of steam
8. Steam button
9. Temperature control
10. Boiler plug
11. Funnel

2. SAFETY WARNINGS

• Prior to using this appliance, read this instruction booklet carefully and keep it in a safe place for future reference. In this way alone will you get the best results and maximum level of safety during usage.
• Before using the appliance, check that the voltage of your home mains matches that given on the plate located on the base of the boiler.
• In the event of incompatibility between the power point and the appliance's plug, replace the socket with a suitable one using a qualified professional to do so.
• The appliance's electrical safety is guaranteed only when it is connected to a system with an efficient earth. The manufacturer cannot be held responsible for damages arising from the system lacking an earth connection. In the event of doubt, consult a qualified professional.
• After removing the packaging, check that the appliance is in perfect condition. In the event of doubt, consult the authorised Technical Support Services nearest to you.
• Items of packaging (plastic bags, polystyrene foam, etc.) must not be left within the reach of children because they are potential sources of danger.
• You are advised against using adaptors, multiple sockets and/or extensions. In

In the event that using these items was strictly necessary, only those complying with current safety standards must be used, and attention should be paid not to exceed the power limit indicated on the adaptor.

• This appliance must be used only in the home. Any other use will be considered inappropriate or dangerous.
• The manufacturer will not be responsible for damage that may arise from inappropriate, wrong, or unsuitable use, or from repairs carried out by unqualified staff.

Using any electrical appliance requires some basic rules to be observed. In particular:

• Do not touch the appliance with wet or damp hands or feet.
• Do not use the appliance in damp places or in places that are used as a bathroom.
• People with nervous disorders must not use the appliance unless accompanied by another person.
• Never pull on the cable to unplug the appliance.
• Do not leave the appliance switched on because it could be a source of danger.
• Unplug the appliance and turn off all switches when it is not being used and before doing any cleaning or maintenance work.
• Should the appliance fail to work and/or not work properly, switch it off and do not try to fix it. Should repairs be needed, consult only authorized Technical Support Services and request that original spare parts be used. If there is no compliance with the above, the appliance's safety will be put in danger.
• The user must not replace the cable. Should the cable get damaged or need replacing, contact only Technical Support Services authorized by the manufacturer. Do not use the appliance if the cable or plug is damaged.
• Prevent the cable from touching the hot parts of the appliance or hot surfaces.
• Using this appliance produces high temperatures and, therefore, there

exists a danger of burns when using it. For this reason, you must take hold of the appliance by the handle and avoid coming into contact with the metal parts and steam.

- Do not direct the jet of steam towards people or animals because it is dangerous.

- Do not keep the iron resting on its base while it is still hot. Wait until it cools down.

- Do not leave the appliance with water in a place where the temperature is equal to or less than 0°C.

- In the event that the heat safety limiter is triggered, the appliance will cease to work normally. To switch it back on, you must consult Technical Support Services authorised by the manufacturer.

- To avoid the danger of the appliance overheating, we recommend completely unwinding the electrical cable.

- Do not submerge the appliance in water or place it under a tap to add water.

- Avoid moving the appliance when it is being used.

- Do not block the ventilation/dissipation grooves. Keep them free of dust and do not insert any object into them.

- The boiler has to be set on a stable, flat, stiff surface which is resistant to high temperatures. The appliance's four feet must rest on the same surface.

- If you decide to not use the appliance ever again, it is advisable to make it unusable by cutting the power cable after unplugging it.

- The iron must be used and rested on a stable surface.

- When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

- The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

- Keep electrical appliances out of reach from children or infirm persons. Do not let them use the appliances without supervision.

- The user must not leave the iron unattended while it is connected to the supply.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
• The plug of the supply cord must be removed from the socket-outlet before the water reservoir is filled with water.
• The filling aperture must not be opened during use. Instructions for the safe refilling of the water reservoir shall be given.

WARNING:

For your own safety, when you want to iron using steam, before starting to iron, it is necessary to wait until the steam indicator (4) lights up. In the event that this indicator should not light up, do not use the product and contact an authorised after-sales service centre.

3. FILLING THE WATER TANK

1. Wait until the appliance cools down completely.
2. Turn off the on/off switch (2) and unplug the appliance.
3. Remove the plug from the boiler (10). (Fig. 2)
4. Fill the boiler up to the MAX level using the funnel (11).
5. Replace the plug.

4. FIRST-TIME USE

1. Remove all of the protective film or labels from the shoe and boiler if there are any.
2. Unwind and stretch out the steam tube and mains cable.
3. Fill the boiler with tap water. (refer to the "Filling the Boiler" section).
4. Plug the appliance into a suitable power point.
5. Press the LED on/off switch (2).
6. Turn on the boiler switch (3).
7. Adjust the "steam level" to the maximum level by turning the steam-level control (5).
8. Turn the iron's temperature control (9) in a clockwise direction until the maximum

position. The pilot light (6) will light up.

1. The “steam ready” LED indicator (4) will light up when it is ready for steam ironing.
2. The pilot light will turn off when the iron reaches the desired temperature.
3. The appliance is ready to use.
4. Press the steam button (8) for a minute to clean out the steam-generating system.
5. The first time, begin to iron using an old towel.

WARNING: To avoid burns or accidental falls caused by the tube, the appliance has some holders for hooking the cable. These holders are inserted into their respective holes, as shown in figure 3.

5. DRY IRONING

1. Unwind and stretch out the steam tube and mains cable.
2. Fill the boiler with tap water (refer to the "Filling the Boiler" section).
3. Plug the appliance into a suitable power point.
4. Press the LED on/off switch (2)
5. Turn on the boiler switch (3)
6. Turn the iron's temperature control (9) in a clockwise direction, select 1 point, 2 points or 3 points depending on the recommendation made on the garment's label.
7. The pilot light (6) will turn off when the iron has reached the desired temperature.
8. The appliance is ready to use.
9. Turn the iron's temperature control (9) in an anti-clockwise direction until "Min".
10. Turn off the LED on/off switch (2).
11. Unplug the mains cable from the power point.
12. When the appliance has completely cooled down, store it in a safe place.
13. Unplug the mains cable.
14. When the appliance has completely cooled down, store it in a safe place.

6. STEAM IRONING

1. Unwind and stretch out the steam tube and mains cable.
2. Fill the boiler with tap water (refer to the "Filling the Boiler" section).
3. Plug the appliance into a suitable power point.
4. Switch it on.
5. Turn on the boiler switch.
6. Adjust the "steam level" to the maximum level.
7. Turn the iron's temperature control in a clockwise direction. Select 1 point, 2 points or 3 points depending on the recommendation made on the garment's label.
8. The “steam ready” LED indicator will light up when it is ready for steam ironing.
9. The pilot light turns off when the iron has reached the desired temperature.
10. The appliance is ready to use.
11. Press the steam button for steam ironing. If you want to use a constant jet of steam, press the steam lock button (7).
12. Turn the iron's temperature control in an anti-clockwise direction until "Min".
13. Turn the main switch off.
14. When the appliance has completely cooled down, store it in a safe place.

IMPORTANT: When the fill-the-tank LED indicator lights up, the boiler is empty. If you wish to fill up the boiler, unplug the appliance and let it cool down completely.

VERTICAL STEAM IRONING

This function supplies steam to remove wrinkles from delicate garments, curtains or other fabrics when they are hung up.

Note:

1. Do not apply steam to any garment or fabric worn by a person or animal. The steam is at a very high temperature.
2. Keep a few centimetres away from delicate fabrics (manmade materials, silk, velvet, etc.), otherwise the fabric may get damaged.

7. EMPTYING OUT THE WATER

1. Turn the switch off.
2. Unplug the mains cable from the power point.
3. Wait until the appliance has cooled down completely.
4. Remove the plug from the boiler (10).

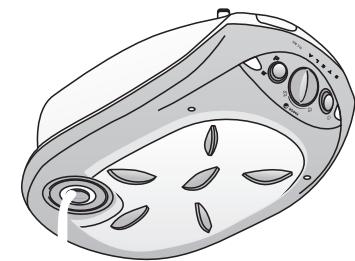

5. Empty the boiler by holding it upside down. (Fig. 4)
6. Replace the boiler's plug.

8. MAINTENANCE AND CLEANING

• Unplug the appliance and wait until it cools down before proceeding to clean it.
• Clean the outside of the boiler with a soft, slightly-dampened cloth.
• The surface of the shoe must always be clean. Cotton deposits and other impurities can attack the iron's shoe. To clean, simply rub the cold surface with a soft, slightly-dampened cloth. Do not use descaling agents.
• Do not use detergents or abrasive products to clean the appliance.
• With a view to preventing the shoe from getting scratched, you should avoid ironing zips, metal buttons, etc, and, similarly, you should not place the iron on metal or rough surfaces.
• After each use, empty the tank and let the iron cool down before putting it away.
• Do not submerge the appliance in water or place it under a tap to fill the water tank.

9. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a

dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.
