USER MANUAL L20PTC16E Logik

White LOGIK portable electric heater with mesh grille and control knobs (no visible text or symbols on body)

Safety Warnings....5

Unpacking....18

Product Overview....19

Heating Operation....19

Switching the Unit Off....20

Safety Protective Devices 20

Overheat Protection System....20

Tip-over Protective Switch....20

Cleaning 20

Hints and Tips....21

My heater does not work when I turn it on....21

If your heater's power is automatically cut off follow the steps below: 21

Specifications....21

Product Fiche 22

• For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• This appliance is intended for indoor household use and similar applications such as:
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
• Make sure your home voltage matches the voltage displayed on the appliance. If you are not sure, contact an electrician.
• Do not kink or wrap the mains cable and plug around the appliance, as this may cause the insulation to weaken and split, particularly where it enters the appliance.
• Ensure the mains cable is fully extended before use and arrange it so that it is not in

contact with any part of the appliance.

• Do not pull on the mains cable. Never move, carry or hang the appliance by the mains cable.
  • Always position the appliance with the mains plug in an accessible position and avoid the use of an extension cable as it may overheat and create a potential fire risk.
• The appliance must have a minimum 50 cm clearance around all sides of the appliance.
• Ensure that the unit is used on a stable and level surface. If the floor surface is uneven there is a risk that the appliance could tip over. Also, excessive vibration and noise may occur. If the appliance should be accidentally tipped over, please immediately disconnect from the power supply.
• Do not use the appliance in wardrobes or near fabrics or clothing. Do not stand the appliance on deep pile carpets.
• Do not use the appliance in areas where petrol, paints or other flammable substances are used or stored.
• Do not use in very dusty areas as dust may accumulate on the heating elements and cause overheating.

- Do not use if there are any visible signs of damage to the appliance.

- Do not operate the appliance in direct sunlight, near heat sources, humid environments or in places near water or other liquids such as bathrooms, showers or swimming pools.

- Do not operate with wet hands or spill water or other liquids on to the appliance, the mains cable or plug.

• Always unplug the appliance when not in use.

- Never leave the appliance unattended when in use.

- CAUTION: Some parts can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The heater must not be located immediately below a socket-outlet.

- Do not allow children to play with the appliance or sit, stand, or climb on it.

- Do not leave children alone or unattended in the area where the appliance is in use.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified

person in order to avoid a hazard.

• Children of less than 3 years old should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

• Do not block or restrict the airflow around the appliance. Position the unit so that the air inlet and exhaust grilles are not blocked or restricted in anyway.
• Do not push any objects in the air inlet and exhaust grilles.

WARNING

In order to avoid overheating, do not cover the appliance.

- Do not use the appliance with a programmer, timer or any other device that switches the appliance on automatically. A fire risk exists if the appliance is covered or positioned incorrectly.

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

NO Sikkerhetsadvarsler

-t.ex. bed and breakfast;

-bed and breakfast type miljøer;

Thank you for purchasing your new Logik product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

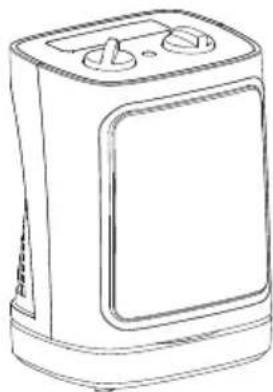

The following items are included:

Line drawing of a portable kitchen appliance with front panel and side door (no text or symbols)

The Main Unit Instruction Manual

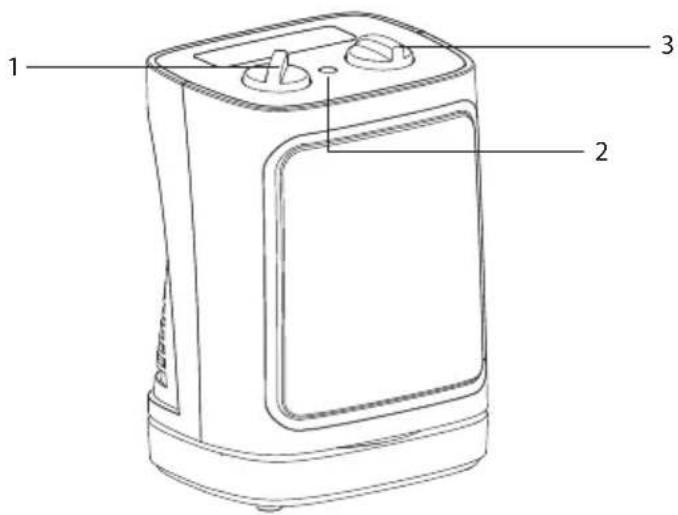

1. Thermostat Control

2. Power Control

3. Heating Light

Heating Operation

Position the heater upright on the floor away from curtains, furniture or wall coverings before plugging your heater into the mains socket.

This unit will not operate unless positioned on a flat stable surface or if the thermostat is set too low.

• Turn the Power Control to the "LO" (low heat), "HI" (high heat), "LO & OSC" (low heat & swing) or "HI & OSC" (high heat & swing) position.
• Turn the Thermostat Control to the desired position. It is recommended to select the "MAX" position to get the heater to pre-heat. It will take 5-10 minutes for the heater to fully heat up.
• When the room reaches the desired temperature, turn the Thermostat Control slowly anti-clockwise.

It is normal for the heater to emit some smell and fumes when it is turned on for the first time or when turned on after not being used for a long period of time. This smell will disappear when the heater has been turned on for a short while.

The heater will not operate by turning the Power Control when the thermostat setting is too low.

Switching the Unit Off

• Turn the Power Control to the "OFF" position.
• Turn the Thermostat Control to the "MIN" position.
  • Unplug from the mains supply.

Safety Protective Devices

Overheat Protection System

The power to the heater will automatically cut off if the temperature of the heater exceeds a certain limit. In the event of overheating, the heater will stop operating. Switch the heater off and allow it to completely cool. The heater will then resume operating as normal.

Tip-over Protective Switch

When you use the heater in an upright position on a flat and stable surface, the tip-over protective switch will be on. In the event the heater is knocked over, the heater will stop functioning automatically.

Do not override the tip-over protective switch as this may cause a hazard.

Using the unit on a deep pile carpet may activate the tip-over protective switch.

Cleaning

Your heater should be cleaned regularly to prevent dirt and dust from building up which will affect its performance. Ensure the air inlet and the air outlet are not blocked. This can be done with a vacuum cleaner, using the brush attachment.

Ensure you unplug your heater from the mains socket and wait for the heater to cool down completely before cleaning.

My heater does not work when I turn it on

• Check that your heater is plugged in and the power is turned on at the mains socket.
• Check that your heater is in an upright position.
  • Check if the thermostat setting is too low.
  • Try replacing the fuse in the plug.
• If the heater still doesn't work, do not try to repair the heater yourself.

If your heater's power is automatically cut off follow the steps below:

1. Unplug your heater and allow it to cool down.
2. Inspect your heater. Clean the air inlet and the air outlet with a vacuum cleaner if necessary. If there is any sign of physical damage (e.g. melting, or burning of the case), do not attempt to use your heater. Please leave all maintenance work to qualified personnel.
3. Plug-in the heater and switch it on again. If it cuts off again, move the heater to a better ventilated location.

Specifications

Model L20PTC16E
Supply voltage 220-240V, 50Hz
Power input 1200W (Low Heat) 2000W (High Heat)

Features and specifications are subject to change without prior notice.

Model L20PTC16E
Item Symbol	Value Unit	Item Unit
Heat output Type of heat input, for electric				storage local heaters only (select one)
Nominal heat output	P_nom	2.000 kW	Manual	heat charge control with integrated thermostat	no
Minimum heat output (indicative)	P_min	1.200 kW	Manual	heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	P_max,c	2.000 kW	Electronic	heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption Fan assisted heat output no
At nominal heat output	el_max	N/A kW	Type of	heat output/room temperature control (select one)
At minimum heat output	el_min	N/A kW	Single st	stage heat output and no room temperature control	no
In standby mode el	SB	N/A kW	Two or	more manual stages, no room temperature control	no
				With mechanic thermostat room temperature control	yes
				With electronic room temperature control	no
				Electronic room temperature control plus day timer	no
				Electronic room temperature control plus week timer	no
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	no
				Room temperature control, with open window detection	no
				With distance control option no
				With adaptive start control no
				With working time limitation no
				With black bulb sensor	no
Contact details	DSG Retail Ltd. (co. no. 504877)1 Portal Way, London, W3 6RS, UK

Takk for at du kjøpte ny Logik vifteovn.

Line drawing of a portable electric heater with front panel and side door (no text or symbols)

NO

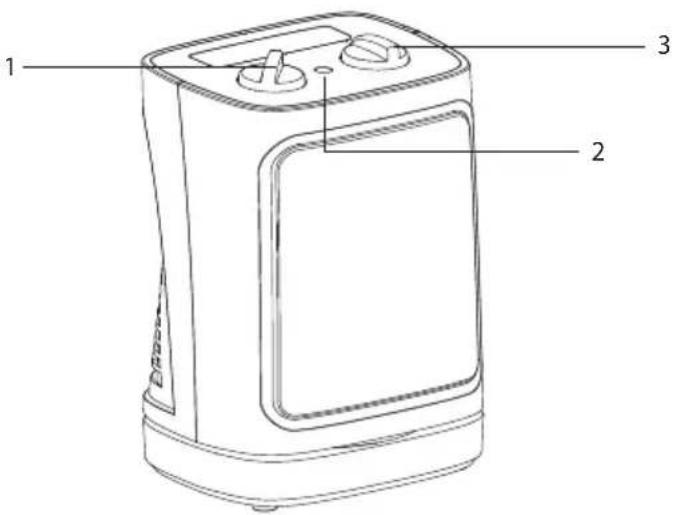

1. Termostatregulering
