Product type	Power file sander (orbital sander)
Brand	Meec Tools
Model	010-137
Rated voltage	230 VAC, 50 Hz
Nominal input power	260 W
No-load speed	330 – 550 /min
Sanding belt size	13 x 457 mm
Sound pressure level	81 dB(A), K=3 dB
Vibration level	4.3 m/s², K=1.5 m/s²
Weight (approx.)	1.5 kg
Safety class	Class II (double insulated)
Dust extraction port	Yes, 32 mm inner diameter
Adjustable arm angle	Yes, via locking screw
Speed control	Variable speed dial
Workbench mounting	Yes, with included clamp
Applications	Sanding, deburring, paint removal, rust removal, sharpening
Cleaning	Dry cloth; no solvents on plastic
Lubrication	Permanently lubricated bearings, no additional lubrication needed
Included accessories	One sanding belt, dust bag, clamp
Certification	CE, complies with EU directives

Frequently Asked Questions - 010-137 Meec Tools

How do I change the sanding belt on the Meec Tools 010-137?

First, ensure the tool is switched off and unplugged. Press the arm against a hard surface, then place the new sanding belt over the rollers. Ensure the arrow on the belt matches the arrow on the tool. Press the tension button to secure the belt. Avoid using worn or damaged belts.

What is the correct speed setting for different materials?

The speed control dial adjusts the no-load speed from 330 to 550 /min. For rough work like heavy paint removal, use higher speed. For fine finishing, reduce the speed. Test on a scrap piece to find the optimal setting for your material.

Can I use the sander on metal surfaces?

Yes, but do not use the same sanding belt for wood and metal. Metal particles can embed in the belt and damage wood. Always switch to a dedicated belt for metal. Avoid using the dust bag when sanding metal due to risk of fire from hot particles.

Is wet sanding possible with this tool?

No, the tool is not designed for wet sanding. Using it with water or other liquids can cause electric shock and damage the tool. Only use it for dry sanding.

How do I adjust the arm angle?

Disconnect the tool from power. Loosen the angle locking screw by turning it counterclockwise. Move the arm to the desired angle, then tighten the screw clockwise to lock it in place. Ensure the screw is secure before operation.

What safety equipment should I use when operating the sander?

Always wear safety glasses, ear protection, and a dust mask. Use a dust extractor or dust bag to minimize airborne particles. Avoid loose clothing and tie back long hair. Hold the tool by insulated grips to avoid electric shock if you cut into a live wire.

How do I clean and maintain the sander?

Unplug the tool before cleaning. Wipe off dust and debris with a dry cloth. Do not use solvents on plastic parts as they may cause damage. The bearings are permanently lubricated and do not require additional oiling. Periodically check the power cord for damage.

Can the sander be mounted on a workbench?

Yes, the tool includes a clamp for workbench mounting. Secure the clamp to the bench and attach the tool firmly. This allows hands-free operation, ideal for sharpening tools or detailed work.

What grit sanding belt should I use for rough vs. fine sanding?

For rough work (removing paint, shaping wood) use coarse grit up to 60. For smoothing raw wood, use 80-100 grit. Medium 120-150 grit smooths planed wood. Fine 180-220 grit is for between paint coats. Very fine 240+ is for final finishing. Always test on scrap first.

What does the variable speed control do?

The speed control dial adjusts the rotational speed of the sanding belt. Turning it clockwise increases speed, counterclockwise decreases. This lets you match the speed to the material and task, improving control and finish quality.

USER MANUAL 010-137 Meec Tools

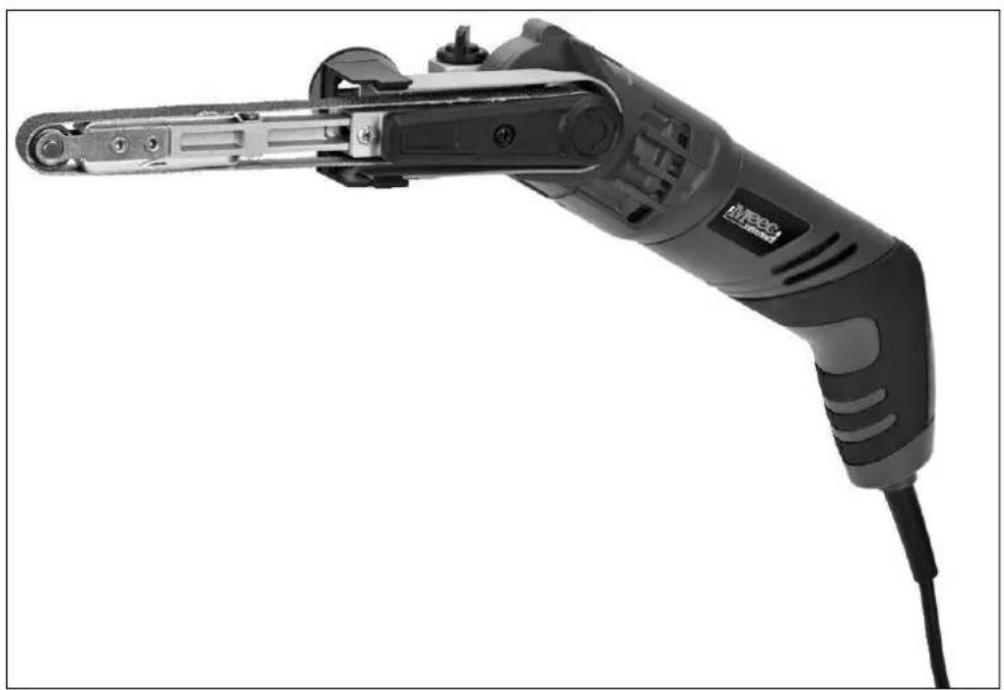

Operating Instructions for Power File Sander

010-137

Close-up of a black electric welding torch with attached metal bracket and cable (no visible text or symbols)

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer Jula AB, Box 363, 532 24 SKARA

Importör/ Importör/ Importer/ Importer

SAFETY INSTRUCTIONS....29

Work area 29

Electrical safety 29

Personal safety 29

Use and care....30

Service 30

Special safety instructions 30

Symbols 31

TECHNICAL DATA....31

DESCRIPTION 32

Parts....32

FITTING....33

Choosing sanding belts.... 33

Fitting sanding belts 33

Adjusting the arm angle. 34

Dust extraction 34

Installation on workbench 35

OPERATION....35

Applications....35

Starting/stopping 35

Adjusting the speed 35

MAINTENANCE 36

Cleaning 36

Lubrication 36

SÄKERHETSANVISNINGAR

Technical line drawing of a mechanical device with labeled component (8), no readable text or symbols present

Close-up of a mechanical clamp or clamping device with a numbered label (9) pointing to its end, no visible text or symbols on the device itself.

MONTERING

Val av slipband

Three technical line drawings of a mechanical tool or device, showing internal components and assembly (no text or symbols)

Technical line drawing of a robotic arm with directional arrows indicating motion (no text or symbols)

Dammuppsamling

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Line drawing of a mechanical device mounted on a workbench (no text or symbols)

HANDHAVANDE

Användningsområden

UNDERHÅLL

Technical line drawing of a mechanical device with labeled component (8), no readable text or symbols present

Three technical line drawings of a mechanical tool or device, showing internal components and assembly (no text or symbols present)

Mechanical device diagram showing internal components and directional arrows (no text or symbols)

Støvoppsamling

Technical line drawing of a mechanical assembly with three views (top, middle, bottom) showing internal components and connections without any text or symbols.

Line drawing of a mechanical device mounted on a workbench (no text or symbols)

BRUK

Bruksområder

VEDLIKEHOLD

Technical line drawing of a mechanical device with labeled component (8), no readable text or symbols present

Close-up of a mechanical clamp or clamping device with a numbered label (9) pointing to its end, no visible text or symbols on the device itself.

MONTAŻ

Technical line drawings of two types of welding torches (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a robotic arm with directional arrows indicating motion or movement (no text or symbols)

Gromadzenie pyłu

Technical line drawing of a mechanical assembly showing exploded and assembled views (no text or symbols)

Line drawing of a mechanical device mounted on a workbench (no text or symbols)

OBSŁUGA

Zakres użytkowania

KONSERWACJA

Read the Operating Instructions carefully before use.

Save these instructions for future reference.

WARNING: Read all warnings, safety instructions and other directives. Failure to follow all the instructions and safety instructions can result in the risk of electric shock, fire and/or serious personal injury.

The term "power tool" in all the warnings below refers to your mains-powered (corded) or battery-powered (cordless) power tool.

Work area

• Keep the work area clean and well lit. Dark and cluttered work areas increase the risk of accidents and injuries.
• Do not use power tools in explosive environments, such as in the vicinity of flammable liquids, gases or dust. Power tools produce sparks that can ignite dust and fumes.
• Keep children and onlookers at a safe distance when using power tools. You can easily lose control of the tool if you are distracted.

Electrical safety

• The mains plug on the power tool must match the mains outlet. Never modify the plug in any way. Never use an adapter with earthed power tools. Unmodified plugs and matching outlets reduce the risk of electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.
• Do not expose power tools to rain or moisture. There is a greater risk of electric shock if water gets into a power tool.
• Be careful with the power cord. Never use the power cord to carry or pull the tool, or to pull out the plug from the mains socket. Keep the power cord away from heat, oil, sharp edges and moving parts. Damaged or tangled power cords increase the risk of electric shock.
• If using the tool outdoors, only use an extension cord approved for outdoor use. Cords intended for outdoor use reduce the risk of electric shock.
• If it is absolutely necessary to use power tools in damp conditions, use a mains connection protected by a residual current device. Using an RCD reduces the risk of electric shock.

Personal safety

• Stay alert. Pay attention to what you are doing, and use your common sense when working with power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using a power tool can result in serious personal injury.
• Use personal safety equipment. Always wear safety glasses. Depending on the type of tool and how it is used, safety equipment such as dust masks, non-slip safety shoes, safety helmets and ear protection reduce the risk of personal injury.
• Avoid accidental starting. Check that the power switch is in the OFF position before plugging in the power cord and/or the battery, or lifting/carrying the tool. Carrying a power tool with your finger on the switch, or connecting a tool to the mains supply when the switch is in the ON position, increases the risk of accidents and injuries.
• Remove Allen keys/spanners etc. before starting the power tool. Spanners or the like that are left in a rotating part of the tool can cause personal injury.
• Do not overreach. Always maintain a firm footing and good balance. This will ensure you have better control over the tool in unexpected situations.
• Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery and long hair can get caught in moving parts.
• If dust extraction and dust collection equipment is available, this should be connected and used correctly. The use of such devices can reduce the risk of dust-related problems.

Use and care

• Do not force the power tool. Always use the correct tool for the job. The tool does the job better and safer when used at the rate for which it was designed.
• Do not use the tool if it cannot be switched on and off with the power switch. Power tools that cannot be controlled with the power switch are dangerous and must be repaired.
• Unplug the power cord and/or remove the battery before making any adjustments, changing accessories or putting the power tool away. These safety precautions reduce the risk of accidentally starting the power tool.
• Store power tools out of the reach of children when not in use. Never allow children, or anyone who is unfamiliar with the power tool and these instructions, to use the tool. Power tools are dangerous if used by inexperienced people.
• Keep the power tool properly maintained. Check that moving parts are properly adjusted and do not jam, and that no parts are incorrectly fitted or damaged. Check for other factors that could affect functionality. If the power tool is damaged, it must be repaired before being used again. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and bits etc., in accordance with these instructions, taking into account the actual working conditions and the work that is to be done. It can be dangerous to use power tools for purposes other than those they are intended to be used for.

Service

- The power tool must only be serviced by qualified personnel using identical spare parts. This will ensure that the power tool remains safe to use.

Special safety instructions

• Hold the power tool by the insulated grips when working in areas where it may come into contact with concealed electrical cables or its own power cord. Contact with a live cable will cause the metal parts on the tool to also become live – risk of electric shock.
• Dust from wood, metal and lead-based paint can be harmful to health.

- All persons in the work area must wear a filter mask to protect them from dust. Dust extraction equipment should be used and the work area should be well ventilated.

• Children and pregnant women must stay away from the work area.
• Avoid eating, drinking or smoking in the work area.

Older types of paint on metal or wood can be lead-based. Contact a professional if you suspect that the paint is lead-based.

• Dust from some types of wood and wood products, e.g. chipboards and fibreboards can be harmful to health. Wear a dust filter mask with replaceable filter and use a dust extractor.

• Stand firmly and make sure that the power cord does not touch the tool, or fasten and get in the way.

• The tool removes material by means of abrasion.

• Check that there are no nails or other foreign objects in the workpiece.
• Do not use the tool for wet sanding.
• Secure small workpieces so that they cannot move.
• Do not overload the tool. Let the tool do the work. Do not overload the tool and reduce the motor speed. Pressing harder will not speed up the work, but will put more strain on the tool and accessories.
• Do not use the dust bag when sanding metal. Hot metal particles could ignite the filter or residual wood dust.
• Do not use worn, damaged or clogged sanding belts.
• Do not touch the sanding belt when the tool is running.

WARNING: Vibration levels can deviate from the declared value during the actual use of the tool, depending on how the tool is used.

The following measures will reduce the risk of injury as a result of vibrations.

• Wear gloves.
• Do not work for very long periods or keep the power switch pressed continuously for a long time.

Symbols

The following symbols are used in the instructions and/or on the tool.

	Read the instructions.
	Complies with the safety requirements in the relevant EU directives.
	Tool class II: Double insulated, does not need to be earthed.
	Recycle products that have reached the end of their useful life according to local regulations.
	Indicates a risk of death, personal injury or material damage if the instructions are not followed.
	If the power cord gets damaged during the work, unplug it immediately. Unplug the power cord when the tool is not in use and before replacing accessories, or carrying out repairs, cleaning and adjustments.

TECHNICAL DATA

Rated voltage	230 VAC, 50 Hz
Nominal input power	260 W
Speed (no load)	330–550 /min
Sanding belt	13 x 457 mm
Sound pressure level, L_pA	81dB(A), K= 3 dB
Sound power level, L_wA	92dB(A), K= 3 dB
Vibration level	4,3m/s2, K= 1,5 m/s2

Always wear ear protection.

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING: The actual vibration level when using power tools may differ from the specified total value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

DESCRIPTION

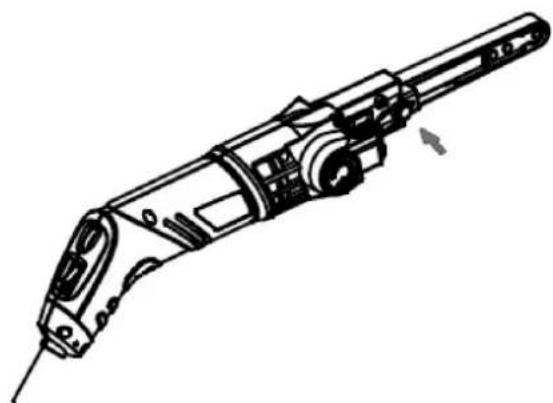

Parts

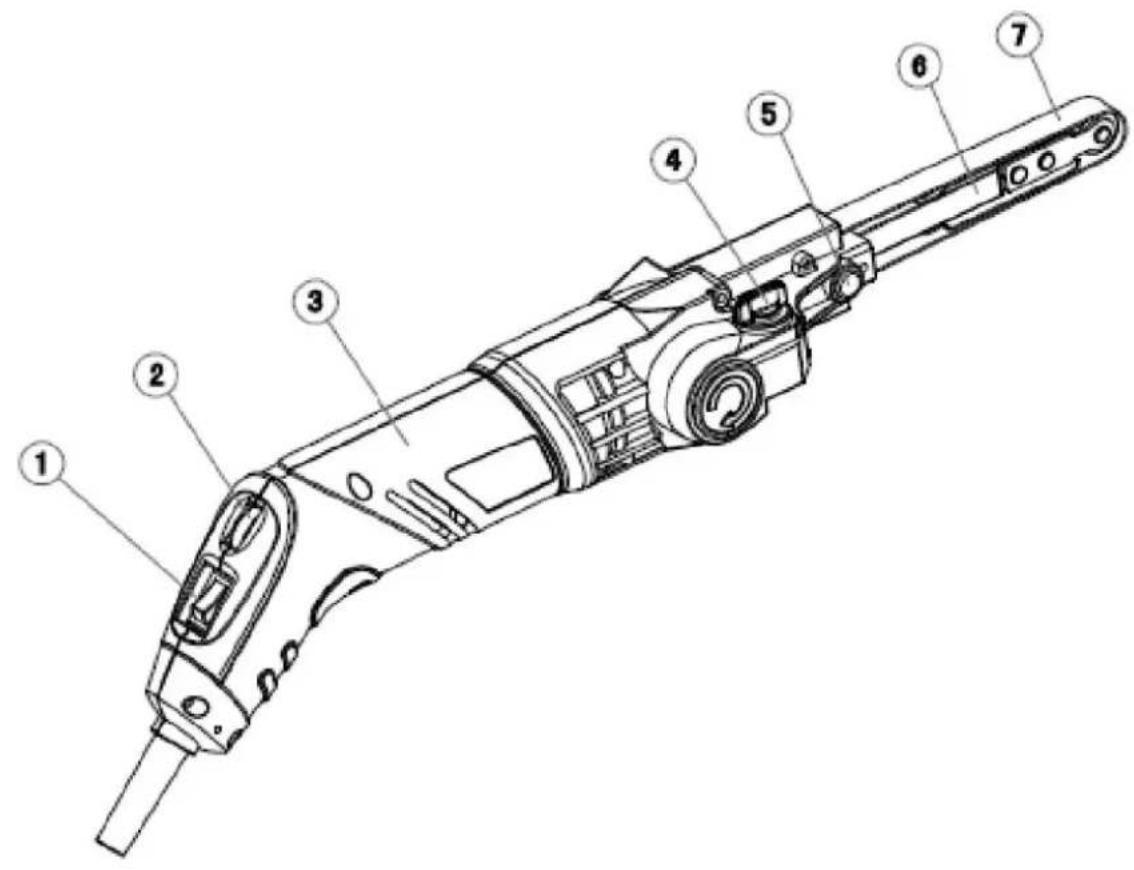

Technical line drawing of a mechanical device with labeled component (8), no readable text or symbols present

1. Power switch
2. Speed control
3. Handle
4. Angle locking screw
5. Lever to tension sanding belt
6. Arm
7. Sanding belt
8. Dust extraction port
9. Clamp

FITTING

Choosing sanding belts

Different grades of sanding belts (coarse, medium and fine) can be bought from your dealer.

Use coarse sanding belts for rough work, medium belts to smooth the workpiece, and fine sanding belts to finish off.

Try them out on a spare piece to see which grade is suitable for the job.

GRADES
Grade	Type	Applications
up to 60	Very coarse	Rough work, removing hard paint, shaping wood.
80–100	Coarse	Removing paint, smoothing rough surfaces (e.g. unplaned wood).
120–150	Medium coarse	Smoothing planed wood.
180–220	Fine	Sanding between coats of paint.
240 or higher	Very fine	Finishing off.

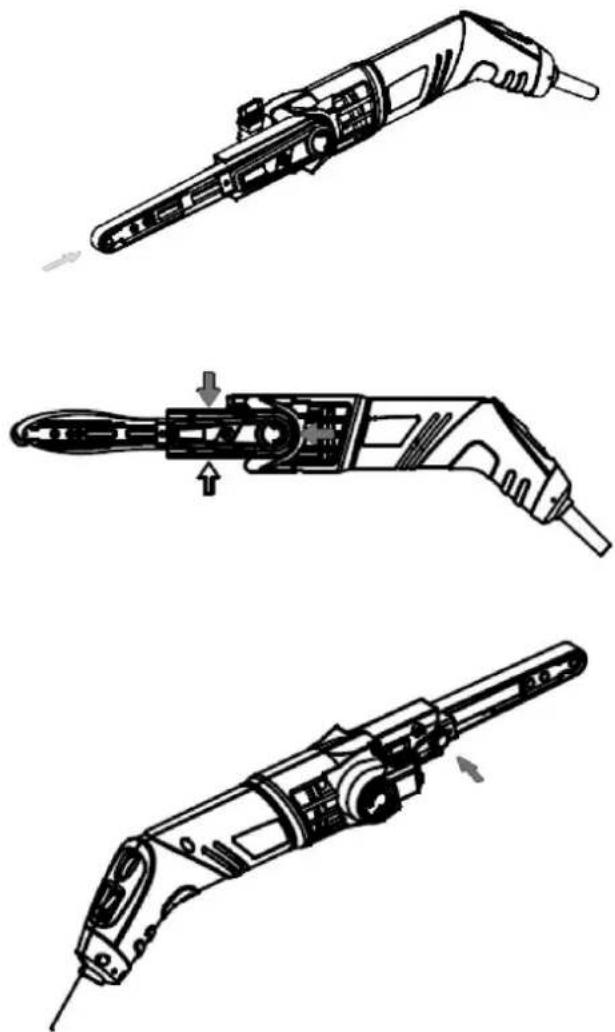

Fitting sanding belts

Switch off the tool and unplug the power cord before adjusting, replacing accessories, cleaning or maintenance.

1. Select a suitable grade of sanding belt.
2. Press the arm against a hard object, e.g. a spare piece.
3. Put the sanding belt on the rollers. Check that the arrow on the inside of the sanding belt points in the same direction as the arrow on the tool.
4. Press the button to tension the sanding belt.

WARNING: Do not use worn, damaged or clogged sanding belts.

WARNING: Do not use the same sanding belt for metal and wood. Metal particles embedded in the sanding belt will damage the surface of the wood.

Three technical line drawings of a mechanical tool or device, showing different assembly states (no text or symbols present)

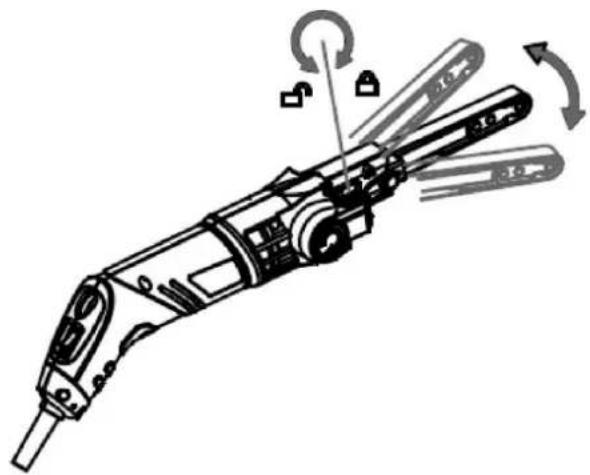

Adjusting the arm angle.

WARNING: Check that the power switch is in the OFF position before plugging in the power cord.

1. Switch off the tool and unplug the power cord.
2. Undo the angle locking screw anticlockwise.
3. Move the arm to the required angle.
4. Tighten the screw clockwise to the lock the arm in place.

Mechanical device diagram showing internal components and directional arrows (no text or symbols)

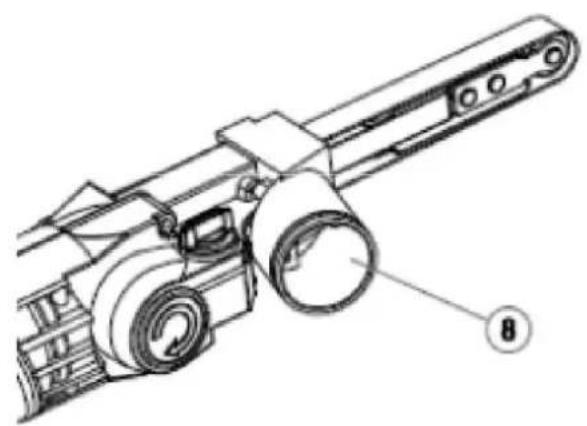

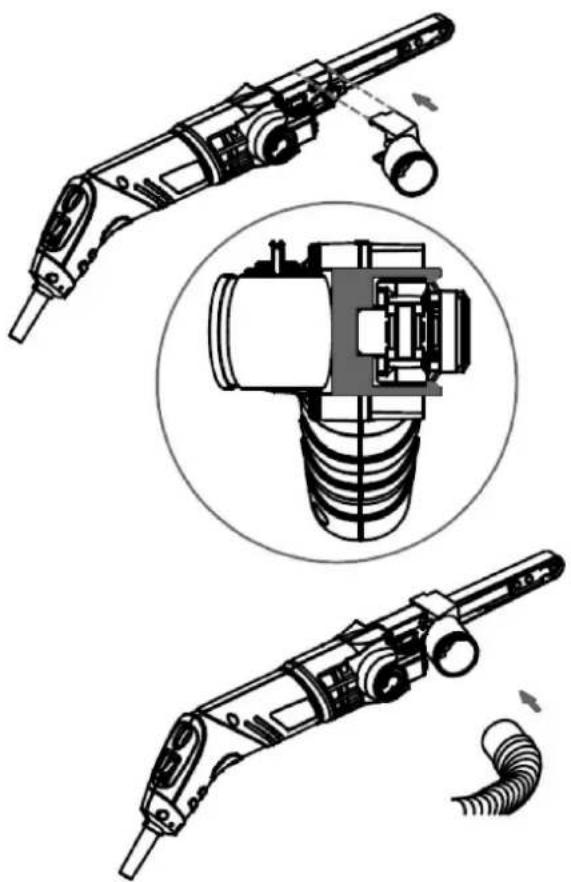

Dust extraction

We recommend that you always use a dust extractor. A dust extractor should be connected for prolonged use.

1. Fit the dust extractor port on the tool and check that it is secure.
2. Connect a dust extractor hose or dust bag with an inner diameter of 32 mm to the dust extractor port.

Technical line drawing of a mechanical assembly with three views (top, middle, bottom) showing internal components and connections without any text or symbols.

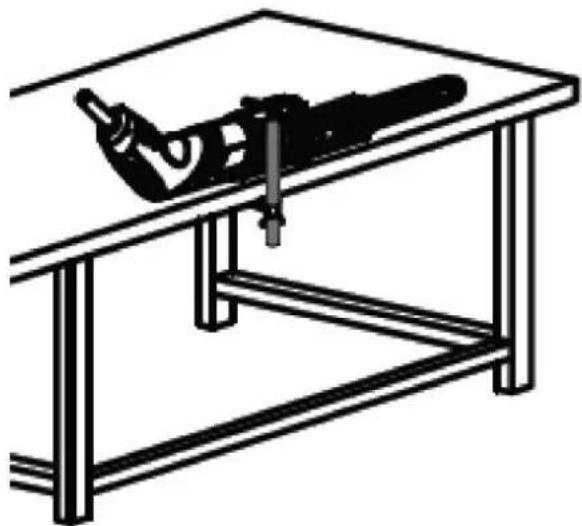

Installation on workbench

Secure the tool firmly to the workbench with the clamp.

Line drawing of a mechanical device mounted on a workbench (no text or symbols)

OPERATION

Applications

The tool is intended for sanding flat exterior and interior surfaces, rounding corners and edges, deburring, removing paint, welding spatter and rust, and for sharpening knives and sissors etc. All other applications are considered to be unsuitable. Do not use the tool for anything other than the purpose for which it is intended to be used for.

Starting/stopping

Start the tool by pressing down the part of the power switch marked 1. Switch off the tool by pressing down the part of the power switch marked O.

NOTE: Always lift the tool off the workpiece before starting/stopping the tool.

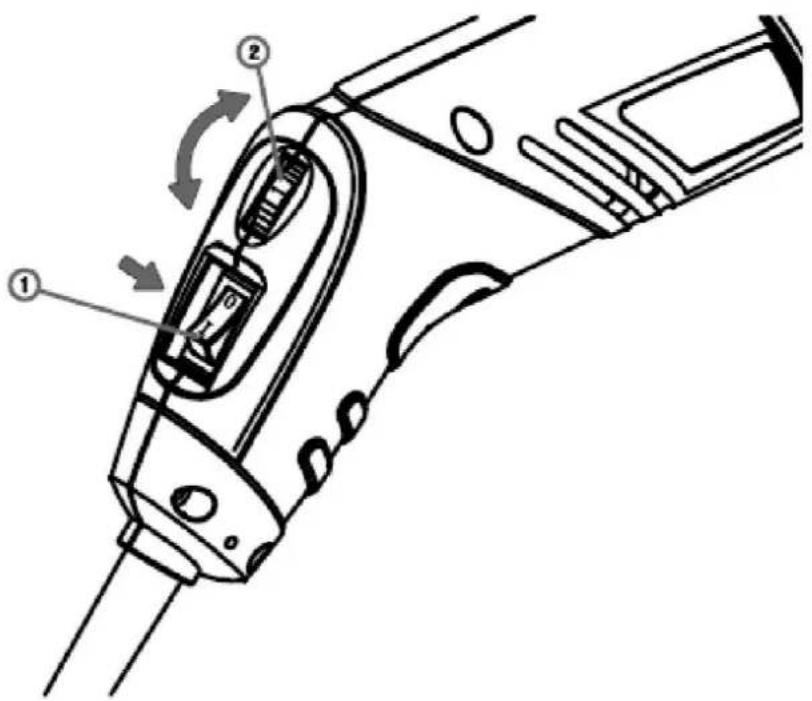

Adjusting the speed

Turn the speed control to the required speed (2).

MAINTENANCE

Always unplug the power cord before adjusting or maintaining the tool. A damaged power cord must be replaced by an authorised service centre or qualified person to ensure safe use.

Pull out the plug immediately if it is damaged.

Do not expose the tool to rain or damp conditions.

Cleaning

Do not use solvents on plastic parts, as this could damage the plastic. Remove any dirt and carbon dust etc. with a clean cloth.

Lubrication

All the bearings in the tool are permanently lubricated. No further lubrication is normally necessary.

C€

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

Machinery Directive 2006/42/EC

EN 60745-1:2009+A11, EN 60745-2-4:2009+A11

Electromagnetic Compatibility Directive 2014/30/EU

EN 55014:2006+A1+A2, EN 55014-2:1997+A1+A2

EN 61000-3-2:2014, EN 61000-3-3:2013

RoHS Directive 2011/65/EU

EN 62321:2009

This product was CE marked in year -13

Name and address of the person

authorised to compile the technical file:

Jonas Backstad

Box 363, SE-532 37 Skara, Sweden

Skara

2016-03-29

Tony Vester

PRODUCT MANAGER
