70B COPPER - Tablet ARCHOS - Free user manual and instructions

Product type	Tablet
Brand	ARCHOS
Model	70B COPPER
Screen	7 inches (estimated)
Operating system	Android
Connectivity	WiFi 802.11 b/g/n, Bluetooth 4.0 (estimated), 3G
Sensors	GPS, Accelerometer (estimated)
Camera	Front webcam
Battery	Rechargeable lithium-ion, charging via USB cable
Dimensions	Approximately 19 × 11 × 1 cm
Weight	Approximately 300 g
Materials	Plastic
Power supply	5V charger included
Main functions	Internet browsing, Android applications, phone calls (via 3G), multimedia
Care and cleaning	Clean with a soft cloth, avoid moisture
Security	Screen lock (pattern, PIN, password), SIM PIN
Spare parts	Contact ARCHOS customer service
Repairability	Reset via Reset button, software update at www.archos.com/support
General information	Manual available for PDF download at notice-facile.com

Frequently Asked Questions - 70B COPPER ARCHOS

How to recharge the battery of the ARCHOS 70B COPPER?

Plug in the included charger via the micro-USB port. The tablet begins charging. For first use, fully charge the battery. Use only the included charger.

How to insert a SIM card into the tablet?

Turn off the tablet. Remove the back cover using the notch. Insert the SIM card into the slot, magnetic side down. Close the cover.

How to connect to a WiFi network?

Swipe down the status bar. Enable WiFi by sliding the switch to 'ON'. Select your network from the list and enter the password if needed.

How to enable 3G mobile data?

In the status bar, pull down and enable the 'Mobile data' icon. If connection fails, configure the APN in Settings > Wireless & networks > More > Mobile networks > Access point names.

What to do if the tablet does not turn on?

Charge it for at least 10 minutes. Press and hold the ON/OFF button for 10 seconds or use the Reset button with a pointed object (paperclip).

How to lock the tablet screen?

Go to Settings > Security > Screen lock. Choose a pattern, PIN, or password. The screen will lock automatically.

How to uninstall an application?

Open the 'All apps' drawer. Press and hold the app icon, then drag it to the 'Uninstall' icon at the top of the screen.

How to reset the tablet in case of freeze?

Press the Reset button with a pointed object (paperclip) or press and hold the ON/OFF button for 10 seconds until restart.

What to do if the SIM card is blocked (wrong PIN)?

Contact your mobile network operator to get the PUK code. Enter it to unlock the SIM card.

How to update the tablet software?

Visit www.archos.com/support to download software updates. Follow the instructions provided.

USER MANUAL 70B COPPER ARCHOS

Package contents. 2 Getting started. 3 Description of the device. 4 Inserting SIM & Micro-SD cards. 5 3G & WiFi connection.. 6 The AndroidTM interface. 8 Getting familiar with AndroidTM 12 Troubleshooting. 14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Package Contents

ARCHOS 70b Copper

QSG booklet

Warranty, legal & safety booklet

USB cable

Charger

2

Getting Started

Charging

1. Charge your device by plugging your power cable into the micro-USB port. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.
3. You can use your ARCHOS whilst it charges.
4. Let your device charge completely the first time you use it.
5. Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

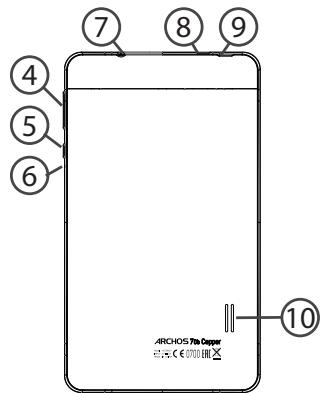

Description of the device

(5) ON/OFF button 6 Hardware reset ⑦ Headphone jack Micro-USB port

Notch

Loudspeaker

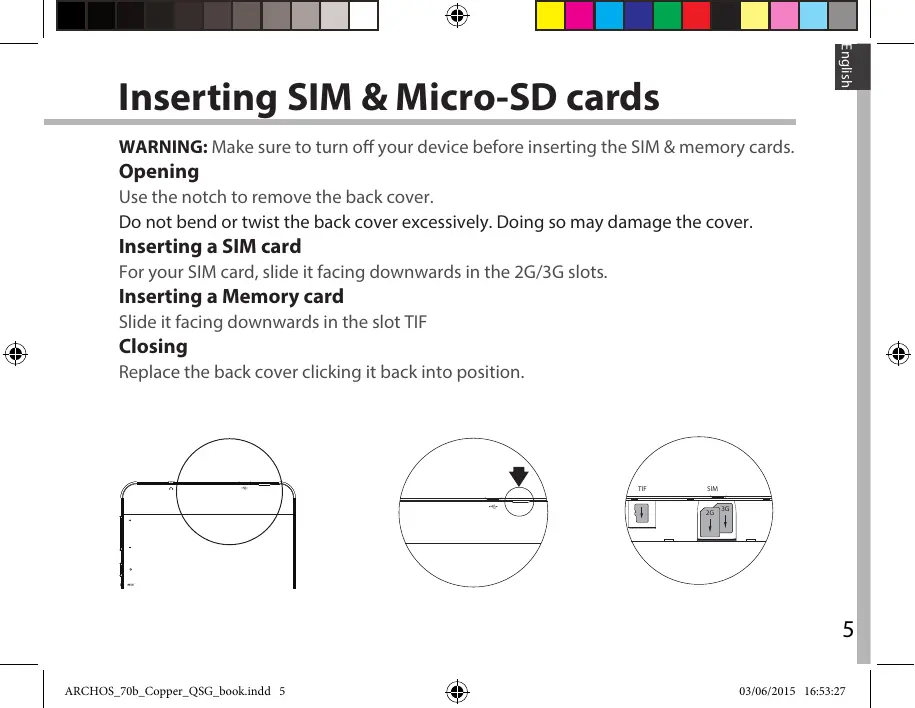

Inserting SIM & Micro-SD cards

WARNING: Make sure to turn off your device before inserting the SIM & memory cards.

Opening

Use the notch to remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Inserting a SIM card

For your SIM card, slide it facing downwards in the 2G/3G slots.

Inserting a Memory card

Slide it facing downwards in the slot TIF

Closing

Replace the back cover clicking it back into position.

3G & WiFi connection

3G connection

To be able to access Internet, the mobile data icon must be activated.

Activating the mobile data

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the white line down to display the status dashboard.
3. Touch the mobile data icon to activate it.

When the mobile data is activated, it turns blue.

If your device does not connect to your 3G provider's network: Contact your 3G provider to obtain the connection parameters. On your device, tap Settings.

Select Wireless & networks > More... > Mobile networks. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters.

TIP:

When you encounter connection problems, see the FAQs on www.archos.com or contact your 3G network connection provider.

WiFi connection

WARNING: Make sure that you are in a WiFi zone.

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the white line down to display the status dashboard.
3. Touch the "Settings" icon to open the settings menu.
4. In the "Wireless & networks" section, if the WiFi is off, slide the WiFi switch to the "ON" position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.
5. Touch "WiFi" to display available networks.
6. Touch the name of the network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

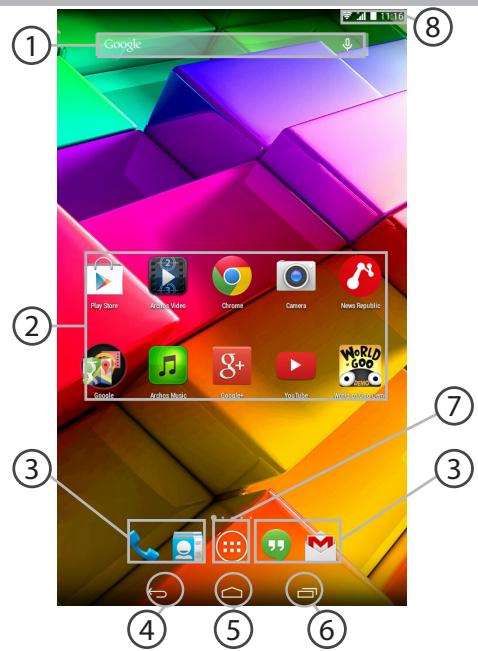

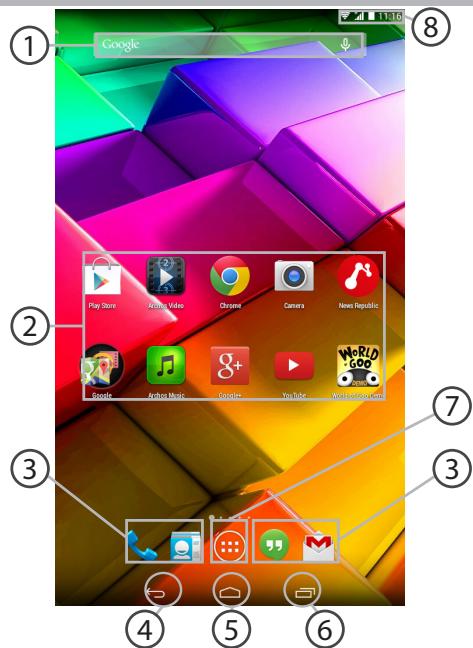

The Android™ Interface

Back button

Home button

Recent apps buttons

7 All Apps button

1 GoogleTM Search

Touch "Google" for text search or touch the microphone icon for voice search. 2 AndroidTM apps shortcuts Touch to start an application. 3 Permanent Android™ apps shortcuts Touch to start an application

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

The status bar

Displays notifications and quick settings

The Android™ Interface

(1)New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device. (2)You can share movies, YouTube videos, and anything that's on your screen on an HDTV. You need to connect a wireless

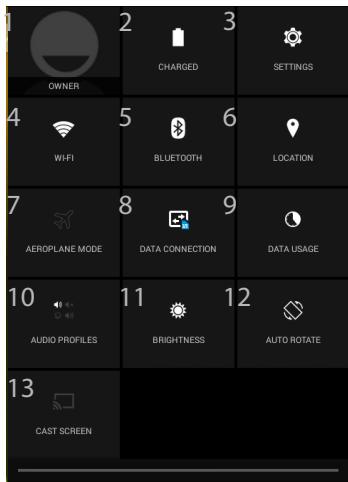

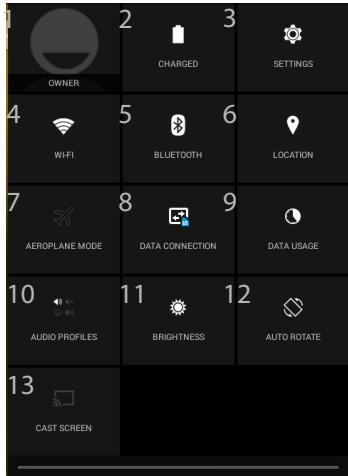

The Quick settings

1 Current user(1) 2 Percentage of battery remaining 3 To access all your settings. 4 To turn on/off your WiFi connection. 5 To turn on/off your Bluetooth connection. 6 To activate/deactivate your GPS location system. 7 To activate/deactivate all wireless connections, especially when flying. 8 To activate/deactivate the data connection. 9 To see how much data have been used. 10 To set an audio profile. 11 To adjust the screen brightness. 12 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 13 To enable wireless display(2)

display adapter to any HDMI-enabled TV to mirror what's on your screen quickly and easily.

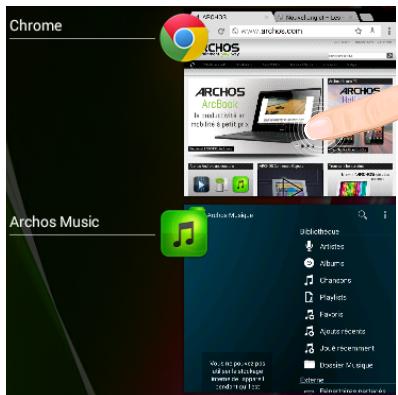

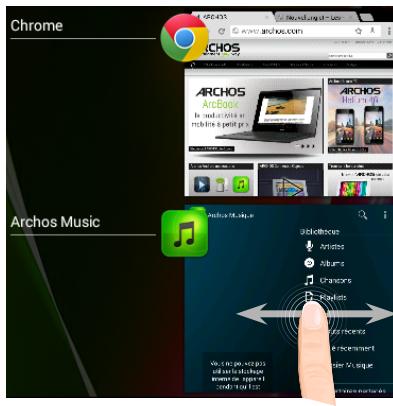

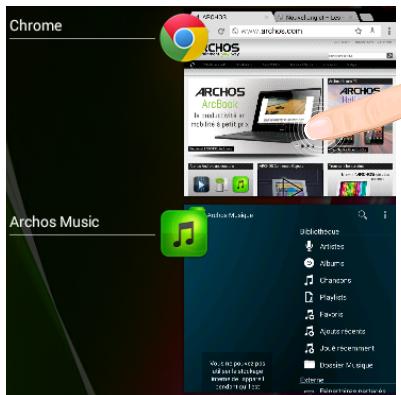

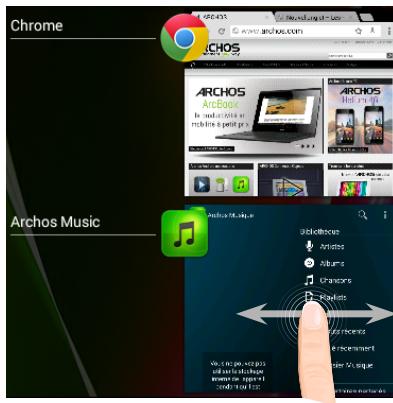

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Hold down: to display options

Swipe up or down: to close an app.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

My tablet cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

security	Choose screen host
None
Slide
Pattern
PN
Password

WiFi network connection

3G connection

06paTntecb K deKnapaun o COOTBeTCTBn Ha http://www.archos.com/products/declaration_conformity.html

CopeKmoe ynaKOBKn

ARCHOS 70b Copper

KpaTKoe pyKOBOdCTBO

TapaHTnN INHCTpyKcnn nO 6e3OpacHOCTn

Ka6eIb USB

3apndnoe yctpoctBO

Hauano pa60tbl

3apnka

1. 3apädnte Baale yctpoiCTBO, noqkIIOuNb Ka6ebnb nITaHnK npoty micro-USB. ARCHOS yctpoiCTBO haunet 3apjkaTbcra.
2. Haxmte KhoNkY nHTaHnY, yTOb6 bVKIOuHTb yCTpoiCTBO. BbMOxTe pIb3ObaTbCra yCTpoiCTBOM ARCHOS Bo Bpem 3apdKn.

-ПередпервимИСПОЛБЗОВАнUE yCTpoICTBOДОЛЖНО ПОЛHOCТьO 3apdntbC. -Pa3pe7aetcnaCnOJIb3OBAbT ToJIbKO 3apIdHoe yCTpoIcTBo n3 KOMPJIeKTA NOCTaBKN.

EcInBaWe yctpoiCTBO nonHocTbIO pa3pIaIIOcb, Heo6xOJIMo 3apIaNTb erO B TeueHne MmHmym 10 MNHyT, npexJe CEM CMOXeT OTO6pa3HTbC3HaOK 3apJXAIoUeROc aKKymyIaTopa.

COBET:

3apernctpnpynte CBOE n3dene, yTO6bI pONUaTb 6OJIyXINBaHne B 60Jee pONHOM o6beMe. Ppna pa6ote c KOMNbIePoPM nepeiDnTe no CcblKe www.archos.com/register.

Device description

① Web camera

(5) BKN/BWKN button

3 Speaker

② Loudspeaker

6 Reset button

10 Loudspeaker

③ Microphone

7 Headphone jack

(4) Volume buttons

8T Micro-USB

SIM card slot & memory card slot

WARNING: Disconnect the device before the procedure

Opening

1. Remove the back cover.

Do not bend or twist the card strongly. This may lead to damage.

SIM card insertion

To install the SIM card, insert it with the gold contacts facing down into the slot (2G/3G).

Memory card insertion

Insert the memory card into the slot.

Closing

Install the battery cover so that it clicks into place.

3G & Wi-Fi settings

3G

To have access to the Internet, it is necessary to activate the mobile data program.

Activating mobile data

1. Touch and hold the time display on the battery to open the status bar.
2. Swipe down from the top of the screen to display the monitoring panel. To activate, touch the mobile data icon.

If the device does not connect to your operator's 3G network

Contact your 3G operator for connection parameters. Tap on your device's settings.

Select the network operator and network > Mobile networks. In the list of network operators, select your operator. At the access point (APN), select the correct access point name and enter the exact network parameters.

TIP:

If you encounter connection problems, see the Frequently Asked Questions and Answers on the website www.archos.com or contact your 3G network service provider.

Wi-Fi

Make sure you are in a Wi-Fi zone.

1. Touch and hold the time and battery icons to open the status bar.
2. Swipe down from the top to display the notification panel.
3. Tap the settings icon to access settings.
4. If the Wi-Fi module is off, in the Wireless & networks section, move the Wi-Fi switch to the ON position. After enabling Wi-Fi, the ARCHOS device will scan for Wi-Fi networks within range.
5. Select Wi-Fi.
6. Select the network you want to connect to. Private networks are displayed with a lock icon, and a password is required for them.

TIP:

• When entering the password, it is recommended to select the "Show password" option so that the characters are visible. To obtain the Wi-Fi network password (or settings), contact your Wi-Fi network provider.
• To keep the Wi-Fi connection active when the device is in standby, on the Wi-Fi page select the menu icon. Then select Advanced > Keep Wi-Fi on during sleep > Always.

Android™ interface

1 Touch the Google icon to perform a text search, or the microphone icon to perform a voice search. 2 Android™ application icons Touch an icon to launch an application. 3 Android™ application widgets 4 "Recent applications" button 5 "Home" button 6 "Back" button 7 "All applications" button

Touch this icon to display all applications and widgets installed on your ARCHOS. All your downloaded applications are found here.

8 Status bar

Displays notifications and quick settings.

Android™ interface

(1) New multi-user support for tablets offers each user their own private, configurable space on a single device. Add users in Settings > Device. (2) You can watch films,

Quick settings

1 Current user (1) 2 Battery charge percentage indicator 3 Access to all settings. 4 Enable/Disable Wi-Fi connection. 5 Enable/Disable Bluetooth connection. 6 Enable/Disable GPS connection. 7 Activate/Deactivate all wireless connections, particularly during airplane mode. 8 Enable or disable internet connection via 3G 9 Amount of data that has been used 10 Sets audio profile 11 Screen brightness 12 Activate/Deactivate automatic screen orientation when rotating the ARCHOS device. 13 Screencast (2)

Video clips YouTube and everything that is on your screen, on a high-definition television. To quickly display what is on your screen, you need to connect an HDMI cable to a high-definition television with HDMI interface.

Recent applications

A list of application thumbnails you have recently worked with opens:

Touch: to open the application.

Swipe: display of parameters

Security - Single screen lock

None

Slide

Pattern

PIN

Password

If the device does not turn on:

1.3 Update the device software every 10 minutes. 2. Press the ON/OFF button and hold it for 10 seconds or use the reset button.

If you cannot connect the phone to the network, or if the message "No service" is displayed.

Make sure that the phone is connected to the network, that the signal is available and not overloaded.

Cannot receive incoming calls

Make sure that the phone is turned on and connected to the network (check that the signal is available and not overloaded).

SIM card PIN blocked

Contact your mobile operator to obtain the PUK code (Personal Unblocking Key).

If the Wi-Fi signal is weak:

Make sure you are not too far from the Wi-Fi access point.

Update the device's built-in firmware: http://www.archos.com/support.

Reset and re-enter the connection parameters.

112 Contact your Wi-Fi provider.

Therefore, 4b > 3a.

aJSLU 3G

aJUJ

dull lglssllk, a sllll aalil gbi jgill no ll

aJUbJUdJoo aSLUdA

.1

:aiyll aalil no aic jai

a aal kall llaa a aaa bga aai g aaiy

1.45

:aaill aaall no aic

aai 15gai aaiwll jcl iagayll cawl oalbdo gaiyll yol ay

:aaic a

aaii joojol aayll aaiwll 1kO Jbssally

security	Choose screen host
None
Slide
Pattern
PN
Password

The device is designed to be used in accordance with the instructions in this manual. It is important to read and understand all instructions before using the device. Keep the manual for future reference.

The device should be installed by a qualified technician.

The device is not intended for use by children.

10 10 a

The device should be used with the provided power adapter.

.12 10 10 10

aaii aai i 100000000000000000000000000000

The device should be kept away from water and moisture. Do not use the device near water.

The device should be cleaned with a dry cloth. Do not use any liquid cleaners.

www.archos.com/support

1000

ARCHOS

Entertainment your way

#

…

wos

Uni-Group

www.uni-grp.com

/ArchosEgypt

/ArchosEgypt

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian Federation	None	Only for indoor applications

Note: Frequency 2454-2483.5 MHz is restricted to indoor use in France.

Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC).

C€1313

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law. For the open source files contained herein, please access the "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of the Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of the GNU General Public License, Version 2 at the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

SAR

Due to the used enclosure material, the device shall only be connected to a USB interface of version 2.0 or higher. The connection to so-called power USB is prohibited.

The adapter shall be installed near the equipment and shall be easily accessible.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

The SAR limit of Europe is 2.0 W/kg. Device types ARCHOS 70b Copper has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.03 W/kg and when properly worn on the body is 0.767 W/kg. This device was tested for typical body-worn operations with the back of the handset kept 1.5 cm from the body. To maintain compliance with RF exposure requirements, use accessories that maintain a 1.5 cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements, and should be avoided.

Hereby, ARCHOS company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

SAR rate (Body): 1.875 W/kg SAR rate (Head): 0.324 W/kg
