Product Type	CD Stereo with Cassette
Brand / Model	Logik LCCSTR10E
Dimensions (W x D x H)	260 x 205 x 155 mm
Weight	1.73 kg
Power Supply	AC 230V, 50Hz or 6 x C (UM-2) batteries (not included)
Power Consumption	10 W
Radio Frequency Range	FM 88–108 MHz
Output Power (RMS)	2 x 1.2 W
Speakers Impedance	8 Ω
Disc Compatibility	CD, CD-R, CD-RW (audio only); MP3, CD-ROM, CD-I, CDV, VCD, DVD not supported
Cassette Type	Normal (IEC I) for recording; Chrome/Metal not suitable
Playback Functions	CD play/pause, skip, fast search, repeat (track/disc), program (up to 20 tracks)
Recording Sources	Radio, CD (to cassette)
Connections	3.5 mm earphones socket, AC power input
Maintenance	Clean with dry soft cloth; clean tape heads with alcohol-dampened cotton bud
Safety Features	Auto standby after 30 min idle, laser Class 1, electrical safety warnings
Included Accessories	Mains cable, instruction manual

Frequently Asked Questions - LCCSTR10E Logik

How can I power the unit without batteries?

Connect the mains cable to the ~AC IN socket and plug into a 230V AC outlet. The unit is then ready for use. For battery operation, insert 6 x C (UM-2) batteries with correct polarity.

Why is there no sound from the speakers?

Check that the VOLUME is not turned down. Ensure the FUNCTION selector is set to CD or FM Stereo (not TAPE OFF). If using earphones, the speakers are automatically disabled – unplug the earphones. Also verify the mains cable or batteries are properly connected.

How do I play a CD?

Set the FUNCTION selector to CD. Open the CD door, place a disc with the printed side up, and close the door. The total track number appears. Press PLAY/PAUSE to start. Use BACK/NEXT to skip tracks. Press STOP to stop.

Can I record from a CD to a cassette?

Yes. Insert the CD and a blank Normal (IEC I) cassette. Set FUNCTION to CD. Press RECORD (●) and PLAY (◀) simultaneously. Recording starts. Press PAUSE on cassette to pause, or STOP (■) to end.

How do I program tracks to play in a specific order?

In stop mode, press PROG./RESTART. The display shows '0' and 'PROGRAM'. Use BACK/NEXT to select a track, then press PROG. to store. Repeat for up to 20 tracks. Press PLAY/PAUSE to play the program. To erase, press STOP twice or open the CD door.

What types of batteries does the unit use?

It requires 6 x C (UM-2) cells (not included). Insert them with correct polarity as shown in the battery compartment. Do not mix old and new batteries or different types.

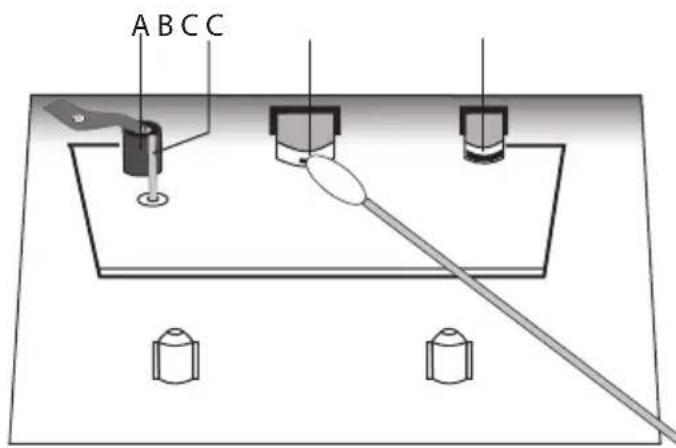

How do I clean the cassette tape heads?

Press STOP/EJECT to open the cassette door. Use a cotton bud slightly moistened with alcohol or head cleaning fluid to gently clean the rubber pressure rollers (A), magnetic heads (C), and capstan (B). Alternatively, play a cleaning cassette once.

Why does the CD skip tracks or not play?

Possible causes: dirty or scratched disc – clean or replace. The CD may contain non-audio files (MP3 not supported). Check that the disc is inserted correctly and the laser lens is not fogged. Also ensure the disc is not copy-protected.

How does the repeat function work?

During CD playback, press REPEAT once to repeat the current track (REPEAT indicator). Press twice to repeat the entire disc (REPEAT ALL). Press repeatedly until indicators disappear for normal playback.

What should I do if the unit does not respond to any controls?

Try unplugging the unit from the mains for a few seconds to reset (electrostatic discharge may cause this). Ensure a CD is inserted if in CD mode. Check that the FUNCTION selector is in the correct position. If the display shows 'n' or '00', there may be no disc or the door is open.

USER MANUAL LCCSTR10E Logik

CD Stereo with Cassette

Instruction Manual

LCCSTR10E / LCCSTR10PE

CD Stereo with Cassette

INSTRUCTION MANUAL

GB

Black LOGIK portable radio with analog dials and control knobs (no visible text or symbols on device body)

Gradient background transitioning from white to dark gray, no text or symbols present

Contents

GB

Unpacking 6

Product Overview....7

Top View 7

Front View....7

Control Panel (Cassette) 7

Control Panel (CD) 8

Rear View....8

Power Source 9

Batteries Power....9

Mains Power 10

Using Earphones 10

General Operation....11

Switching the unit On/Off and Selecting the Function .....11

Adjusting the Volume and Sound....11

Radio Reception....11

For Better Reception ....11

Compatible Disc Types ....11

Playing a CD....12

Selecting a Different Track....12

Finding a Passage within a Track....13

Programming Track Numbers....13

Erasing a Program....13

Repeat Mode....13

Cassette Recorder....14

Cassette Playback....14

Fast Forwarding/Rewinding....14

General Information on Cassette Recording 14

Recording from the Radio 15

Recording from a CD....15

Maintenance....15

Hints and Tips 17

Specifications....18

Safety Warnings....71

Innhold

NO

Utpakking....19

Produktoversikt 20

Sett ovenfra 20

Sett forfra 20

Kontrollpanel (kassett) 20

Kontrollpanel (CD)......21

Sett bakfra 21

Strømkilde....22

Batterier....22

Strømnett 23

Rask spoling/tilbakespoling....27

Ta bort program ....39

Upprepningsläge 39

Kassettbandspelare ....40

Kontrolpanel (CD)....60

Bagside....60

Strømkilde....61

Batteridrift....61

Strømforsyning....62

Congratulations on the purchase of your new Logik CD Stereo with Cassette.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

GB

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a portable radio with buttons and antenna (no text or symbols)

The Main Unit

Mains Cable x 1

Instruction Manual x 1

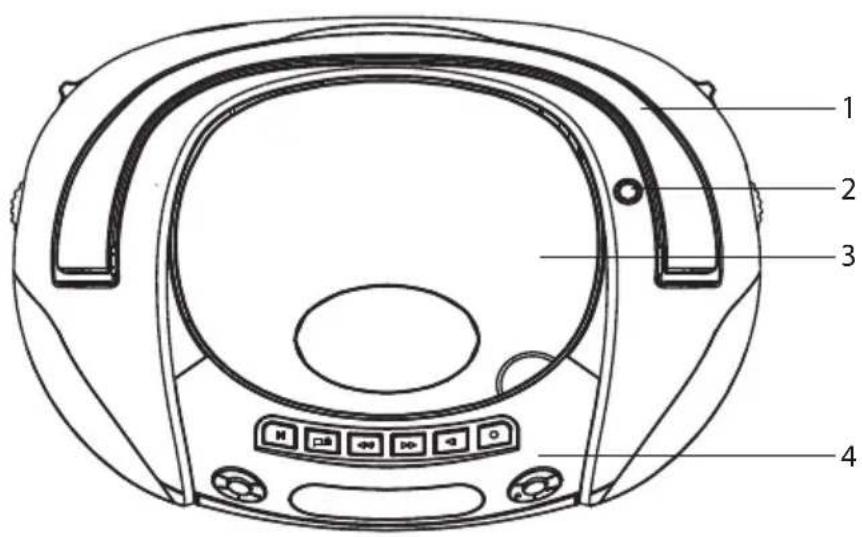

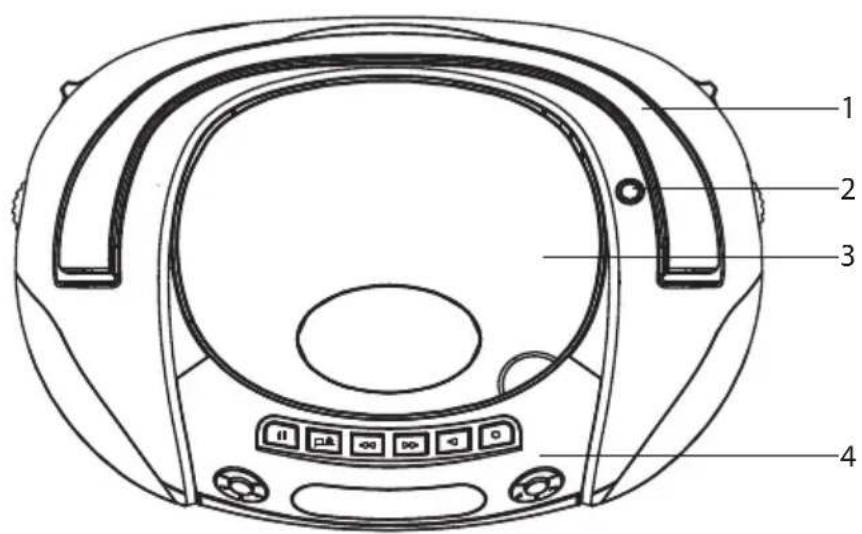

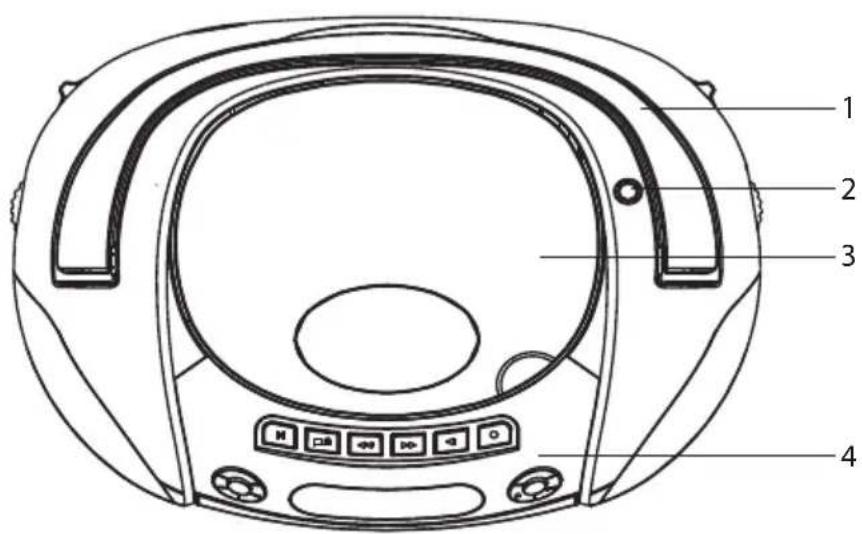

Top View

1. Handle
2. Telescopic FM Aerial
3. CD Door
4. Control Panel

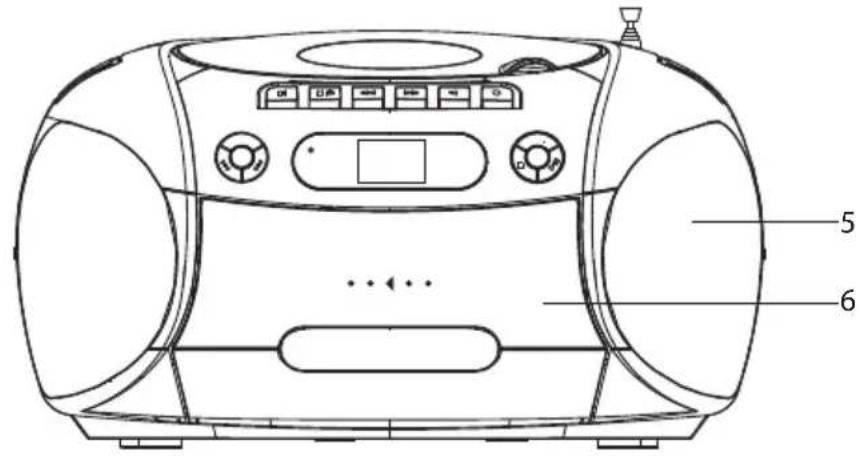

Front View

1. Speakers
2. Cassette Door

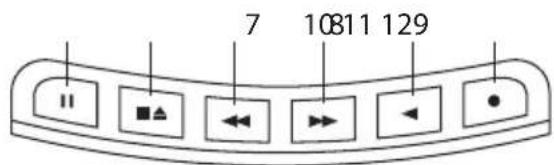

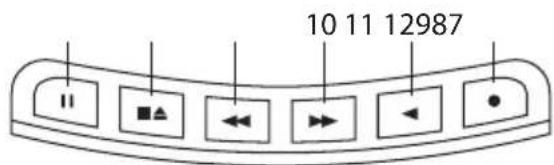

Control Panel (Cassette)

7. Button

• Pause a tape during playback

8. Button

- Stop a tape during playback or to open the cassette door

9. Button

- Press to perform fast forward playback

10. Button

- Press to perform fast backward playback.

11. Button

- Play a tape

12. Button

- Start recording

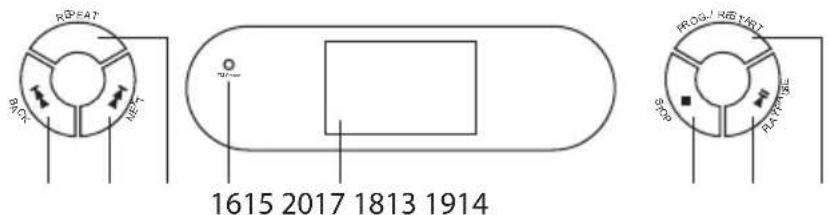

Control Panel (CD)

13. BACK Button

• Press and hold to perform fast reverse playback
• Press to skip backwards between tracks on a loaded CD

14. NEXT Button

• Press to perform fast forward playback.
• Press to skip forwards between tracks on a loaded CD

15. REPEAT Button

- Repeat a single track or entire tracks on a loaded CD

16. FM Stereo Indicator

17. CD Track Display Window

18. STOP Button

- Stop a loaded CD during playback

19. ▶||PLAY/PAUSE Button

• Play or pause a loaded CD

20. PROG. / RESTART Button

• Press to program a loaded CD to play tracks in a specified order
• Press to resume playback when unit enter STANDBY mode.

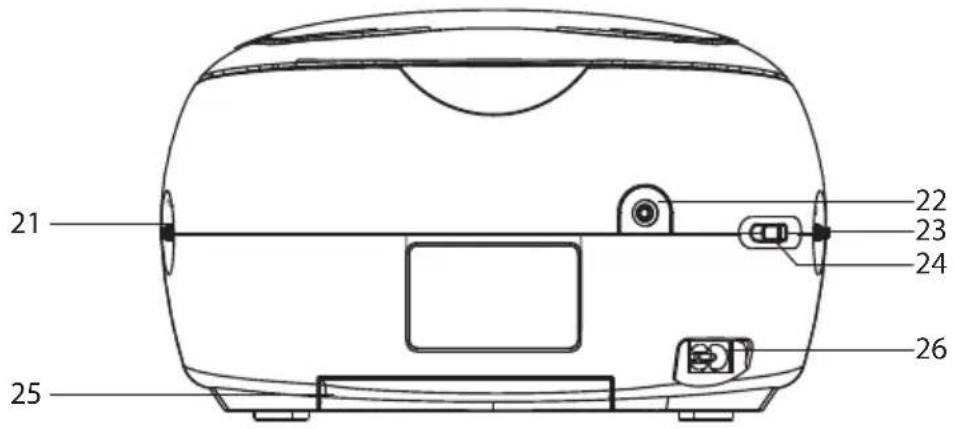

Rear View

21. TUNING Control

- Adjust the FM radio station

22. Earphones Socket

23. VOLUME Control

- Adjust the volume

24. FUNCTION Selector

• To switch between CD, TAPE (OFF) and FM Stereo mode

25. Battery Compartment

26. \~AC IN

- Connect the mains cable to the mains socket

• Visible and invisible laser radiation. If the cover is open, do not look at the beam.
• High voltage! Do not open. You run the risk of getting an electric shock.
• The machine does not contain any user-serviceable parts.
- Modification of the product could result in hazardous radiation of EMC or other unsafe operation.

Whenever convenient, use the mains cable if you want to conserve battery life. Make sure you remove the plug from the unit and mains socket before inserting batteries.

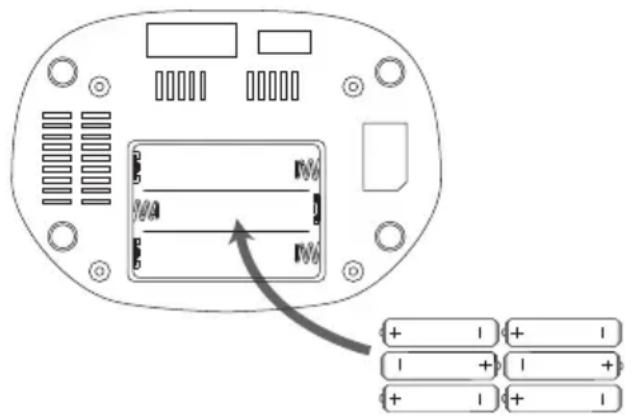

Batteries Power

1. Open the battery door and insert 6 batteries, type UM-2 or C-cells (not included) with the correct polarity as indicated by the "+" and "-" symbols inside the compartment.
2. Replace the battery door making sure the batteries are firmly and correctly in place. The unit is now ready to operate.

GB

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property.
• Install the batteries correctly by following the polarity (+ and −) indications in the battery compartment.
  • Use only the types of the batteries which are indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.

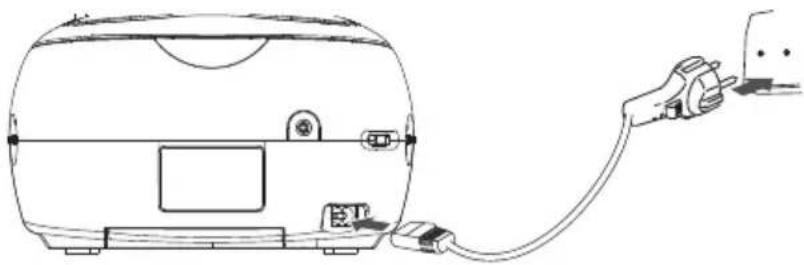

Mains Power

Always check you have completely switched off the unit, before you change or disconnect the power supply.

1. Check if the power voltage, as shown on the rating label located on the bottom of the unit, corresponds to your local power supply. If it does not, consult your dealer or service centre.
2. Connect the mains cable to the \~AC IN socket and the mains socket. The unit is now connected and ready for use.
3. To switch the unit off completely, withdraw the mains cable from the mains socket.
4. Install the unit near a mains socket where the mains plug can be easily reached.

Line drawing of a portable appliance with attached plug and cable (no text or symbols)

Disconnect the mains cable from the mains socket to protect your unit during heavy thunderstorms. Children could seriously injure themselves as the free end of the cable may still be live if only the connector is removed from the mains socket at the back of the unit.

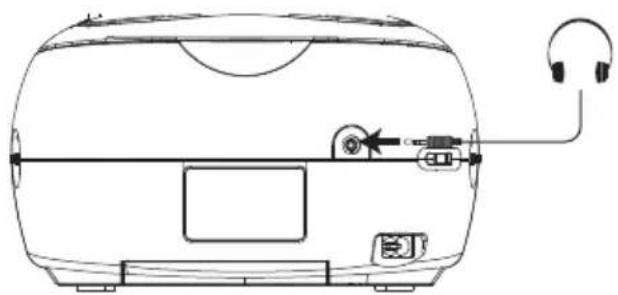

Using Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume. When earphones are connected, the speaker is automatically disabled.

Line drawing of a device casing with earphones and a switch, no text or symbols present

Avoid listening to sound at excessive levels which could be harmful to your ears. At full power, the prolonged listening can damage the ears of the user.

Switching the unit On/Off and Selecting the Function

1. To switch on and select your operation source, adjust the FUNCTION selector to CD or FM Stereo.
2. To switch off the unit, adjust the FUNCTION selector to TAPE (OFF) position.

• To avoid unnecessary energy consumption, always adjust the FUNCTION selector to TAPE (OFF) after using the unit.
• If the unit is idle for 30 minutes, it will automatically switch to STANDBY mode. Press the PROG. / RESTART button to resume.

GB

Adjusting the Volume and Sound

Adjust the sound with the VOLUME control.

Radio Reception

1. Adjust the FUNCTION selector to FM Stereo.
2. Turn the TUNING control to tune to a station.

For Better Reception

FM - This unit has a FM aerial located on the top of the main unit. This wire should be extended and rotated for better reception.

Compatible Disc Types

Disc Types Disc Logo Recorded Content
CD-R (CD Recordable) AUDIO
CD-RW (CD-Rewritable) AUDIO
AUDIO-CD (Compact Disc Digital Audio) AUDIO

Playing a CD

- This CD player plays Audio Discs including CD-Recordables (CD-R) and CD-Rewritables (CD-RW).

• MP3, CD-ROM, CD-I, CDV, VCD, DVD or computer CDs are not possible for playback.

CDs encoded with copyright protection technologies by some record companies may be unplayable by this unit.

1. Adjust the FUNCTION selector to CD.

2. Open the CD door, and insert a CD with the printed side facing up, then press the CD door gently to close. The total number of the tracks in the disc will display on the display window.

3. If the disc is loading, the display window will display “--”.

4. If there is no disc inside, the display window will display "n"
5. If the CD door is not closed, the display window will display "00

Two black oval shapes on a white background, no text or symbols present

1. Press the PLAY/PAUSE button to start playback, the first track will be played. The display window will also display the number of the currently playing track.

2. To pause playback, press the PLAY/PAUSE button. The "▶" will flash continuously on the display window. To resume, press the ▶PLAY/PAUSE button again.

1. To stop CD playback, press the STOP button.

Selecting a Different Track

- Press the ◀◀ BACK or ▶▶I NEXT button once or repeatedly until the desired track number appears in the display.

Finding a Passage within a Track

1. During playback, press and hold the I←BACK or ►→NEXT button. The CD is played at high speed and with reduced volume.
2. When you recognise the passage you want, release the ◀◄◄BACK or ►►INEXT button to resume normal playback.

Programming Track Numbers

You may store up to 20 tracks in the desired sequence. Be sure to press the ■STOP button before use to ensure no prior program has been set.

1. In stop mode, press the PROG. / RESTART button to activate programming. "0" and "PROGRAM" indicators will flash on the display.
2. Press the BACK or NEXT button to select your desired track number.
3. Press the PROG. / RESTART button to store the desired track number.
4. Repeat steps 2 and 3 to enter additional tracks into the program memory. When the memory is full, all programmed tracks will show on the display.
5. To play your program, press the PLAY/PAUSE button. The "PROGRAM" indicator will show on the display.

Erasing a Program

In stop mode, you can erase the contents of the memory by pressing the ■STOP button twice or by opening the CD door. The "PROGRAM" indicator will disappear.

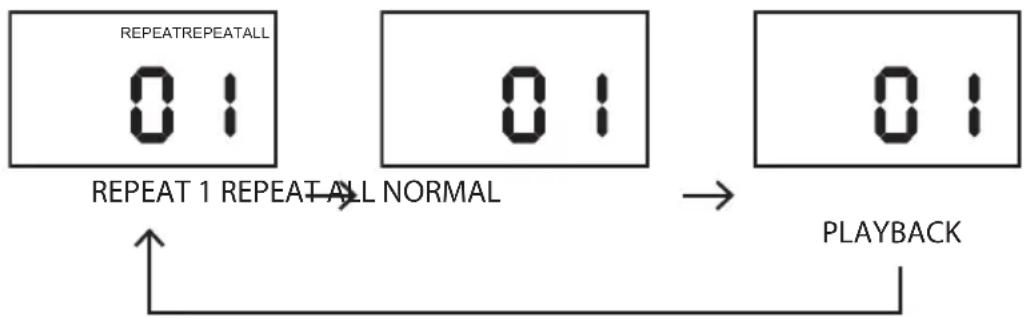

Repeat Mode

You can play the current track or the whole disc repeatedly with program mode.

• During the playback, press the REPEAT button once to repeat the single track. The "REPEAT" indicator will illuminate.
• Press the REPEAT button twice to repeat the whole disc. The "REPEAT ALL" indicator will illuminate.
• To return to normal playback, press the REPEAT button repeatedly until the "REPEAT" indicator disappears.

Cassette Playback

1. Adjust the FUNCTION selector to TAPE (OFF).
2. Press the ☐ton to open the cassette compartment; and insert a cassette and close the cassette compartment.
3. Press the button to start playback.
4. To pause playback, press the button. To resume, press the button again.
5. To stop the tape, press the 📄 button.

Fast Forwarding/Rewinding

1. Press the buttons until you reach your desired passage.
2. Press the □ button to stop fast forwarding/rewinding.

• The keys are automatically released at the end of a tape and the unit is switched of (unless the PAUSE mode has been activated.)
• During fast forwarding/rewinding, the key will not be released at the end of a tape. To switch off the set, make sure the cassette keys are also released.

General Information on Cassette Recording

• Recording is permissible in so far as copyright or other rights of third parties are not infringed.
• This deck is not suitable for recording on CHROME (IEC II) or METAL (IEC IV) type cassettes. For recording, use NORMAL type cassettes (IEC I) on which the tabs have not been broken.
• The best recording level is set automatically. Altering the VOLUME control will not affect the recording in progress.
  • No recording will take place on the first 7 seconds and last 7 seconds of the cassette tape.
• To protect a tape from accidental erasure, have the tape in front of you and break out the left lab.
• Recording on this side is no longer possible. To record over this side again, cover the tabs with a piece of adhesive tape.

Recording from the Radio

1. Tune to the desired radio station.
2. Press the ☐ button to open the cassette door.
3. Insert a suitable cassette into the cassette deck and close the cassette door.
4. Press the ● button and the ◀ button at the same time to start recording.
5. To pause the recording, press the button for cassette. To resume recording, press the II button again.
6. To stop recording, press the ▪aton for cassette.

Recording from a CD

1. Slide the FUNCTION selector to CD.
2. Insert the CD you want to record.
3. Insert a suitable cassette into the cassette deck and close the cassette door.
4. Press the ● button and the ◀ button at the same time to start recording.
5. To pause the recording, press the ▶IPLAY/PAUSE button for CD. The recording level is set automatically.
6. To stop recording, press the ☐aton for cassette.

Maintenance

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray an aerosol at or near the unit.

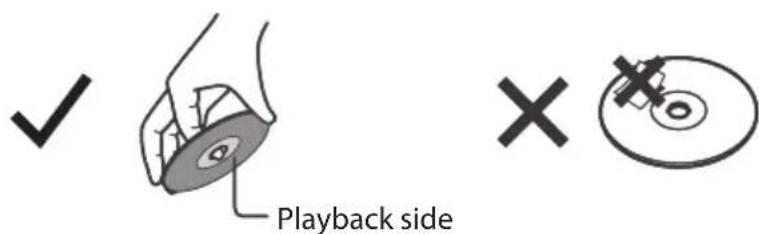

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

Cleaning Discs

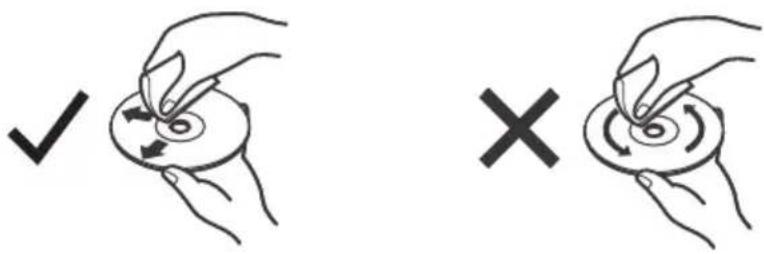

- Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
- Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
- Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

Clean the Tape Deck

Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean the deck.

1. Press the button to open the cassette compartment.
2. Press the button and clean the rubber pressure rollers (A).
3. Press the button and clean magnetic heads (C) and Capstan (B).
4. After cleaning, press the □aton.

Cleaning of the heads can also be done by playing a cleaning cassette through once.

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

PROBLEM CAUSE / SOLUTION
No sound / power •	Volume not adjusted. Adjust the volume.Mains cable not securely connected. Connect the mains cable properly.Batteries dead/incorrectly inserted. Insert (fresh) batteries correctly.CD contains non-audio files. Press the◀◀buttons once or more to skip to a CD audio track, instead of the data file.
Display does not function properly / No reaction to operation of any of the controls	Electrostatic discharge. Switch off and unplug the unit. Reconnect after a few seconds.No CD inserted. Insert a CD.CD badly scratched or dirty. Replace or clean the CD, see Maintenance.Laser lens steamed up. Wait until lens has cleared.CD-R / CD-RW is blank or not finalized. Use a finalized CD-R / CD-RW or a suitable CD Audio disc only.Make sure the CD is not encoded with Copyright protection technologies, as some do not conform to the Compact Disc standard.Switch the FUNCTION selector to the TAPE (OFF) position, then switch it back to either the CD or FM Stereo position again.
The CD skips tracks •	CD damaged or dirty. Replace or clean CD.Program is active. Quit program mode.A CD badly scratched or dirty may result in improper operation.
Poor Cassette Sound Quality	Dust and dirty on the heads, etc. Clean deck parts, see Maintenance.Use of incompatible cassette types (METAL or CHROME). Only use NORMAL (IECI) for recording.
Recording does not work	Cassette tab(s) may be broken. Apply adhesive tape over the missing tab space.

Specifications

Connectivity	3.5mm Earphones SocketPower Input Socket
Power Requirement	Mains: AC 230V, 50HzBattery: 9V (6 x “C” or “UM2” batteries, not included)
Power Consumption 10W
Frequency Range FM 88–108	MHz
Output Power (RMS) 2 x 1.2W
Speakers 8 Ohms
Dimensions (W x D x H) 260(L)	x 205(W) x 155(H) mm
Weight 1.73 kg

Features and specifications are subject to change without prior notice.

Line drawing of a portable electronic device with buttons and front panel (no text or symbols)

Hovedenhetent

Strømledning x 1

Bruksanvisning x 1

Sett ovenfra

1. Håndtak
2. Teleskopisk FM-antenne
3. CD-deksel
4. Kontrollpanel

Sett forfra

1. Høytallere
2. Kassettdeksel

Kontrollpanel (kassett)

7. knapp

• Pause tapen under avspilling

8. Inapp

Line drawing of a portable device with cable and plug, no text or symbols present

Line drawing of a portable device with earphones and control panel (no text or symbols)

Two simple black oval shapes on a white background, no text or symbols present.

Rask spoling/tilbakespoling

Line drawing of a portable radio with buttons and front panel (no text or symbols)

Huvudenhet

Huvudkabel x 1

Bruksanvisning x 1

Vy uppifrån

1. Handtag
2. Teleskopisk FM antenn
3. Dörr till CD-spelaren
4. Kontrollpanel

Vy framifrån

SE

Batterihantering

Line drawing of a portable appliance with a cable and plug inserted, showing no text or symbols

Line drawing of a portable device with earphones and a switch, no text or symbols present

Two simple black oval shapes on a white background, no text or symbols present.

Line drawing of a portable radio with buttons and dials (no text or symbols)

Soitin

Käyttöopas x 1

Yläosa

Line drawing of a portable device with attached cable and plug, no text or symbols present

Line drawing of a portable device with earphones and a switch, no text or symbols present

Two black oval shapes on a white background, no text or symbols present

Line drawing of a portable radio with buttons and front panel (no text or symbols)

Hovedenheden

Strømkabel x 1

1. Håndtag
2. FM antenne
3. CD-Dør
4. Kontrolpanel

Forside

• Tryk for at spole fremad

10. knap

• Tryk for at spole bagud

11. knap

Line drawing of a portable appliance with attached plug and cable (no text or symbols)

DK

Line drawing of a device rear view with earphones and a switch, no text or symbols present

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from
  heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

• Never place any type of candle or naked flame on the top of or near the unit.

Moisture

- To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.

- If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.

• Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your
hearing.
- Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Class 1 Laser Product

• This unit utilises a laser. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
  • Before moving the unit, ensure the disc tray is empty.
  • Always remove the disc when the unit is not in use.
  • Failure to do so will risk severely damaging the disc and the unit.

• Do not stack devices, heat from other devices may affect the performance of the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

Sikkerhetsadvarsler

NO

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO

Gradient background transitioning from white to dark gray, no text or symbols present
