LHFDAB11 - Hi-Fi System Logik - Free user manual and instructions

Product Type	Hi-Fi System with DAB Radio
Model	LHFDAB11
Brand	Logik
Dimensions (Main Unit)	135 mm (W) x 251.5 mm (D) x 170 mm (H)
Dimensions (Speaker)	130 mm (W) x 160 mm (D) x 170 mm (H)
Net Weight	3.5 kg
Power Supply	AC 230-240 V ~ 50 Hz
Power Consumption	25 W
Output Power	5 W x 2
Disc Compatibility	CD, CD-R, CD-RW
Radio Bands	DAB (174–240 MHz), FM (87.5–108 MHz)
Preset Memory	20 stations (DAB and FM)
Remote Control Battery	CR2032, 3V Lithium
Clock Setting	Auto via DAB or manual
Timer Functions	Daily Timer, Sleep Timer
Equalizer Modes	Flat, Classic, Rock, Pop, Jazz
Audio Inputs	AUX IN (3.5 mm), Earphones socket
Speaker Connection	Spring clip terminals
Included Accessories	Main unit, Remote control, 2 speakers, Instruction manual, Quick start guide

Frequently Asked Questions - LHFDAB11 Logik

How do I set the clock manually?

While in STANDBY mode, press the CLOCK button on the remote control. Use the SKIP/TUNE SEARCH buttons to adjust the hour and minute, then press CLOCK to confirm each step.

Why is there no power to the unit?

Ensure the mains plug is fully inserted and the ON/OFF switch at the rear is set to ON. Check that the mains socket is working.

How do I store radio stations?

Tune to the desired station, then press and hold the PRESET/MEMORY button. Use the PRESET UP/DOWN buttons to select a preset number (1-20) and press PRESET/MEMORY again to store.

The remote control is not working. What should I do?

First, remove the plastic insulating strip from the battery compartment. If still not working, replace the CR2032 battery. Ensure there are no obstacles and point the remote within 5 metres of the sensor.

Can I play MP3 CDs?

This unit supports CD, CD-R, and CD-RW discs with standard audio CD format. It does not play MP3 files.

How do I improve poor DAB/FM reception?

Fully extend the aerial wire. Move the unit away from electrical appliances that may cause interference. For DAB, try a manual tune or reposition the unit.

How do I set the sleep timer?

Press the SLEEP button on the remote control repeatedly to select a duration from 10 to 90 minutes. The unit will automatically turn off after the set time.

Why does the disc skip?

Ensure the unit is on a stable, level surface free from vibrations. Clean the disc with a soft cloth from the centre outward. Avoid scratched or damaged discs.

How do I connect an external device?

Use a 3.5 mm audio cable (not included) to connect the device to the AUX IN socket on the rear. Then press the FUNCTION button to select AUX mode.

How do I reset the unit to factory settings?

While the unit is on, press and hold the FUNCTION button until 'Press SELECT Key to Reset' appears, then press the SELECT/FM MONO/ST. button to confirm.

USER MANUAL LHFDAB11 Logik

Hi-Fi with DAB Radio

Instruction Manual

LHFDAB11

Black and white photo of a Logik audio amplifier with two speakers and a digital display (no visible text or symbols on the devices themselves)

Gradient gray background with no text, symbols, or identifiable objects

Unpacking......6

Product Overview....7

Front View....7

Rear View 8

Top View....8

Remote Control....9

Operating Your Remote Control....10

Battery Installation for the Remote Control....10

Remote Control Operation Range....11

Connections 12

Speaker Connections ....12

Playing music from an Audio Device....12

Using Earphones....13

Mains Power 13

Basic Operation 14

Powering ON/OFF....14

Selecting Modes....14

Adjusting the Volume....14

Mute Function....14

Auto Setting the Clock....14

Manual Setting the Clock....15

Settings the Daily Timer ....15

To Cancel the Daily Timer....16

Settings the Sleep Timer ....16

EQ Control....16

DAB Operation....17

Quick Scan....17

Full Scan....17

Manual Tuning....17

Secondary Services....18

Storing Stations....18

Recalling a Stored Station....18

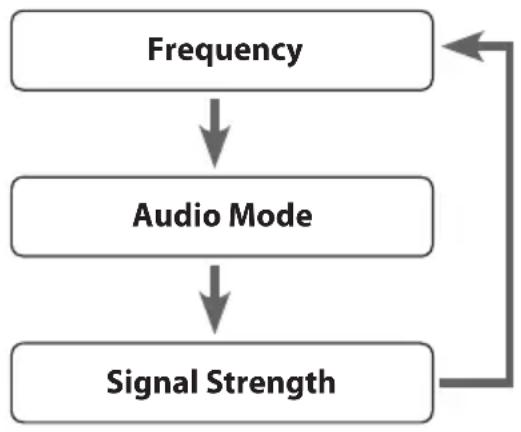

DAB Display Modes....19

FM Operation....20

Auto Scan....20

Manual Scan ....20

Audio Mode....20

Storing Stations....20

Recalling a Stored Station....21

FM Display Modes 21

Compatible Disc Types ....22

CD Operation 22

Playback....22

To Pause Playback....22

To Stop Playback....22

Skipping to Another Track....22

Repeat Playback....23

Programme Setting....23

Programme Play....23

Programme Cancel....23

Random Playback....23

Intro Playback....24

LINE IN Operation....24

Maintenance 25

Hints and Tips ......26

Specifications....27

Safety Warnings....28

Thank you for purchasing your new Logik Hi-Fi with DAB Radio.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

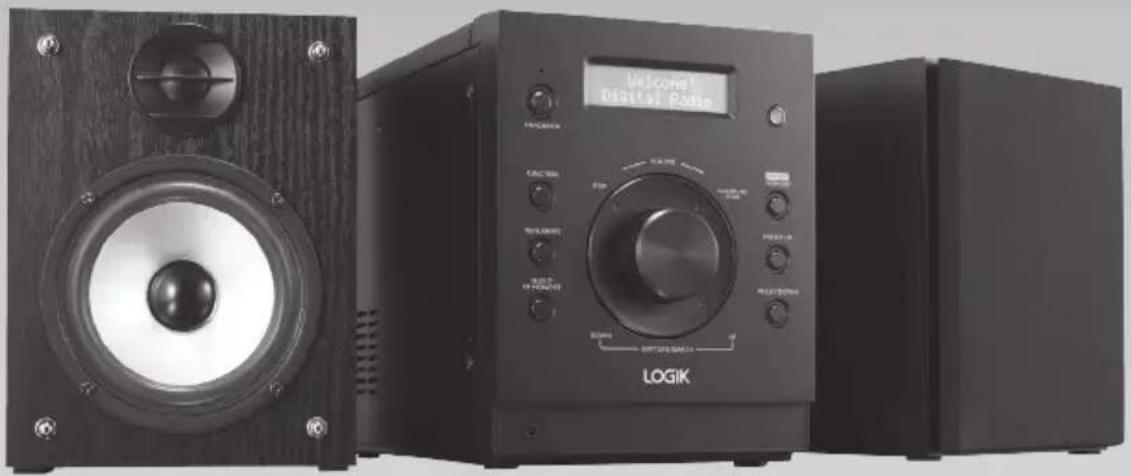

Front view of a white electronic device with control knobs and buttons (no visible text or symbols)

Main Unit x 1 Remote Control x 1

Simple diagram of two concentric circles inside a rectangular frame (no text or symbols)

Speakers x 2

P.N.: 070-0019DN-01K1

Instruction Manual x 1 P.N.: 227-8060DN-023

QSG x 1 P.N.: 227-8060DN-123

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

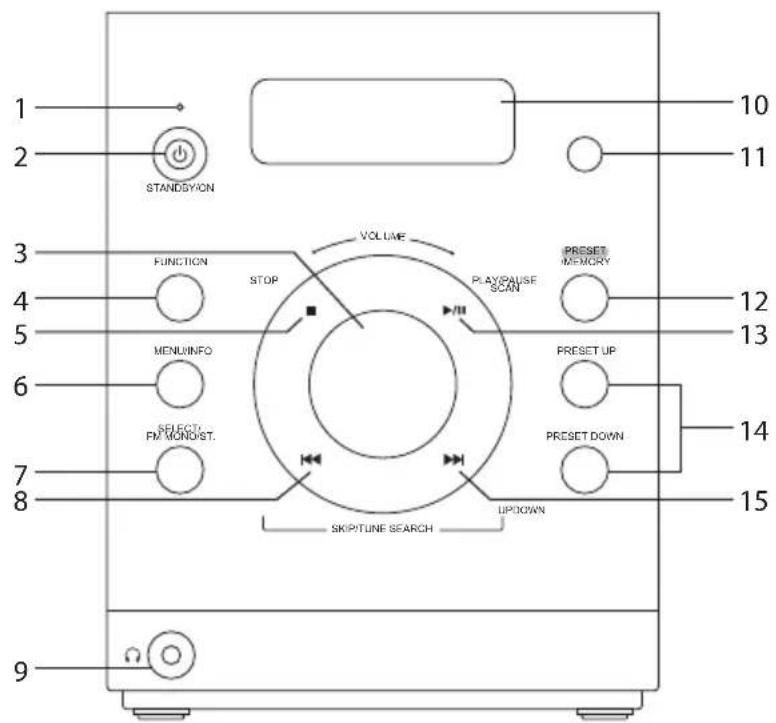

Front View

1. STANDBY LED Indicator
2. STANDBY/ON ⏻ Button
3. VOLUME +/- Control

Turn to adjust the volume.

1. FUNCTION Button

Press to switch between CD, DAB, FM and AUX mode.

1. STOP ■Button

Press to stop playing a disc.

1. MENU/INFO Button

Press to display menu/information.

1. SELECT/FM MONO/ST. Button

2. Press to confirm selections.

3. Press to switch between auto and mono mode in FM mode.

4. SKIP/TUNE SEARCH ◀◀ Button

5. Press to skip backwards to the beginning of the track or the previous track.

6. Press and hold to perform fast reverse playback.

7. Press to skip to previous station/ frequency in DAB/FM mode.

8. Earphones Socket

9. LCD Display
10. Remote Control Sensor

Receives signals from the remote control.

1. PRESET/MEMORY Button
2. PLAY/PAUSE/SCAN▶/II Button

- Press to start or resume playback of a disc.

- Press to start DAB/FM auto scanning.

1. PRESET UP/DOWN Buttons

Press to skip to previous/next preset DAB/FM stations.

1. SKIP/TUNE SEARCH ▶Button

2. Press to skip forwards to the next track.

3. Press and hold to perform fast forward playback.
4. Press to skip to next station/ frequency in DAB/FM mode.

Rear View

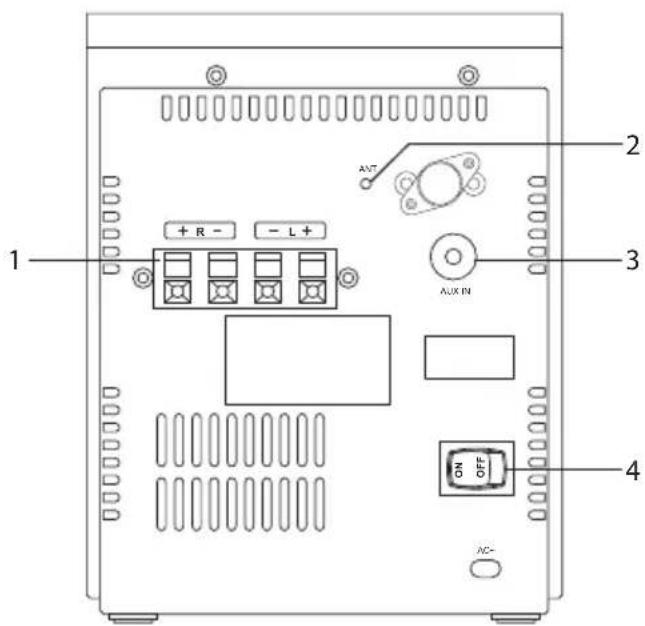

1. Speaker L/R Sockets
2. Radio Aerial
3. AUX IN Socket
4. ON/OFF Switch

To switch the unit ON/OFF

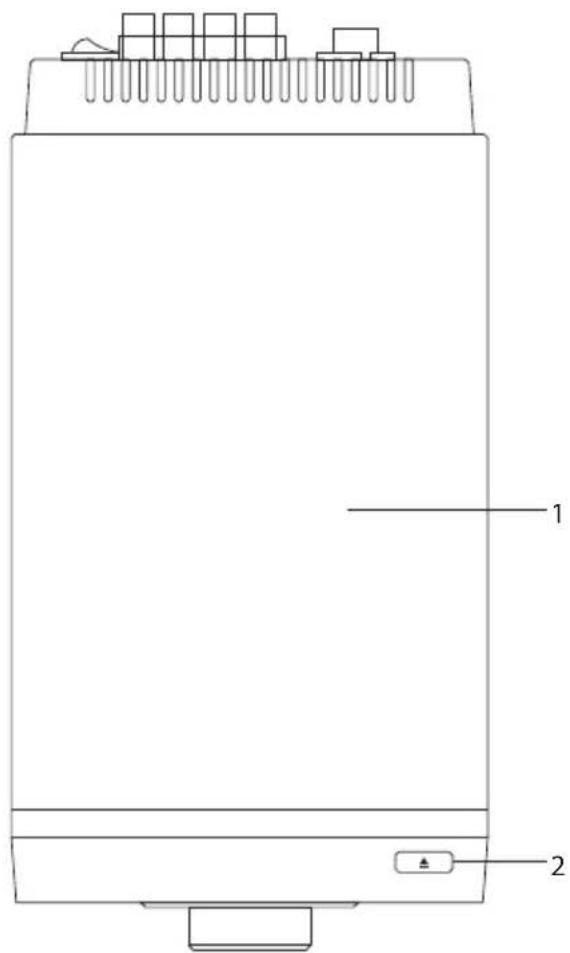

Top View

1. CD Compartment
2. ▲ button

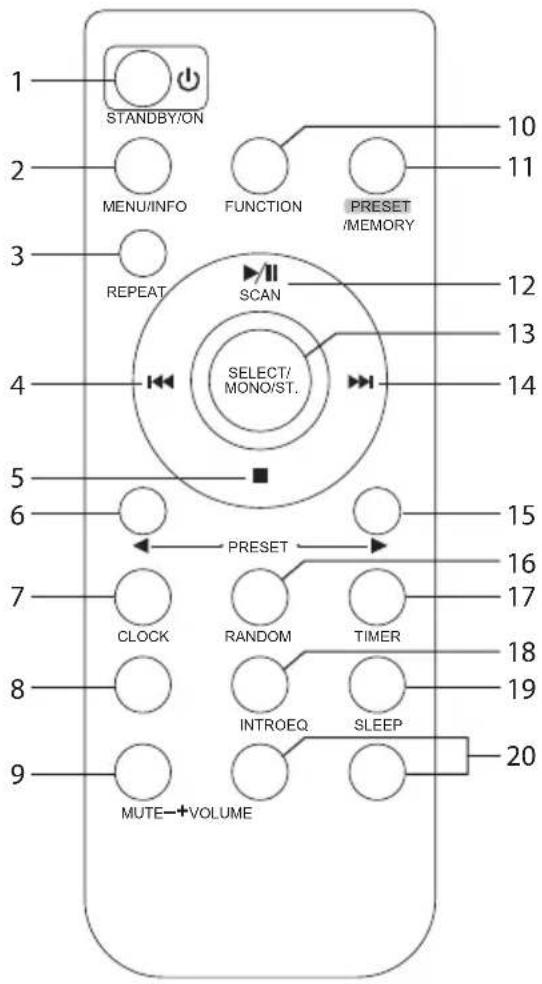

1. STANDBY/ON Button

2. MENU/INFO Button

Press to display menu/ information.

3. REPEAT Button

4. SKIP/TUNE SEARCH ◀Button

• Press to skip backwards to the beginning of the track or the previous track.
• Press and hold to perform fast reverse playback.
• Press to skip to previous station/ frequency in DAB/FM mode.

5. STOP ■ Button

Press to stop playing a disc.

6. PRESET ◀ Button

Press to skip to previous preset DAB/FM stations.

7. CLOCK Button

8. EQ Button

9. MUTE Button

10. FUNCTION Button

Press to switch between CD, DAB, FM and AUX mode.

11. PRESET/MEMORY Button

12. PLAY/PAUSE/SCAN▶/II Button

• Press to start or resume playback of a disc.
• Press to start DAB/FM auto scanning.

13. SELECT/FM MONO/ST. Button

• Press to confirm selections.
• Press to switch between auto and mono mode in FM mode.

14. SKIP/TUNE SEARCH ▶▶Button

• Press to skip forwards to the next track.
• Press and hold to perform fast forward playback.
• Press to skip to next station/ frequency in DAB/FM mode.

15. PRESET ▶ Button

Press to skip to next preset DAB/FM stations.

16. RANDOM Button

17. TIMER Button

18. INTRO Button

19. SLEEP Button

20. VOLUME +/- Button

Press to adjust the volume.

Operating Your Remote Control

Remove the insulating mylar strip from the remote control if the battery is being used for the first time. It is located at the bottom back side of the remote control.

Line drawing of a finger pressing down on a curved object with an arrow indicating motion (no text or symbols)

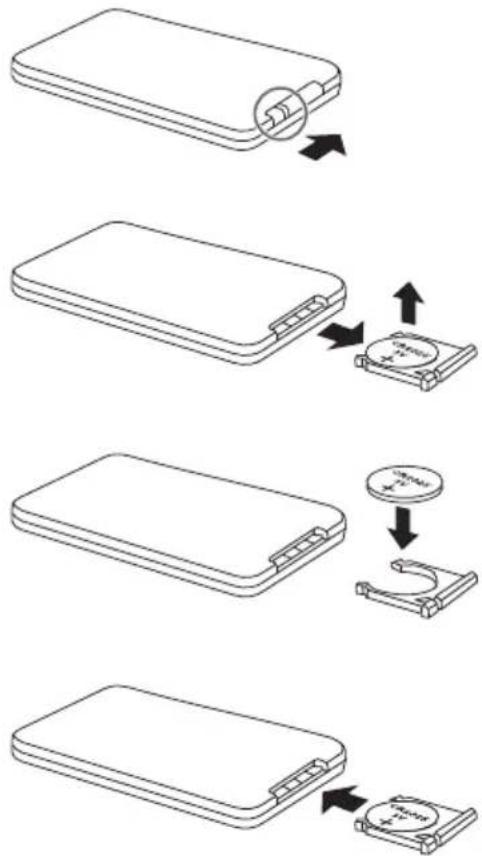

Battery Installation for the Remote Control

The remote control requires a CR2032, 3V Lithium battery.

1. Slide and hold the battery release tab in the direction of the arrow.

2. Pull out the battery holder and remove the old battery.

3. Replace with a new battery.

4. Insert the battery holder back into the remote control.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and −) indications in the battery compartment.
• When the battery is exhausted, the remote control will not function.
  • Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

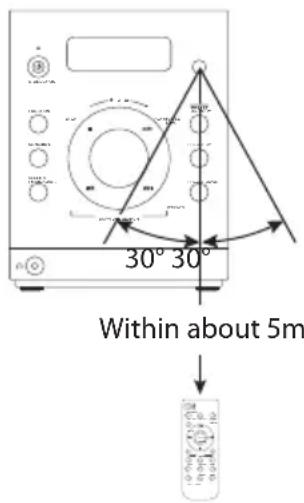

Remote Control Operation Range

Point the remote control at the unit no more than 5 metres from the remote control sensor and within 60^ of the front of the unit. The operating distance may vary depending on the brightness of the room.

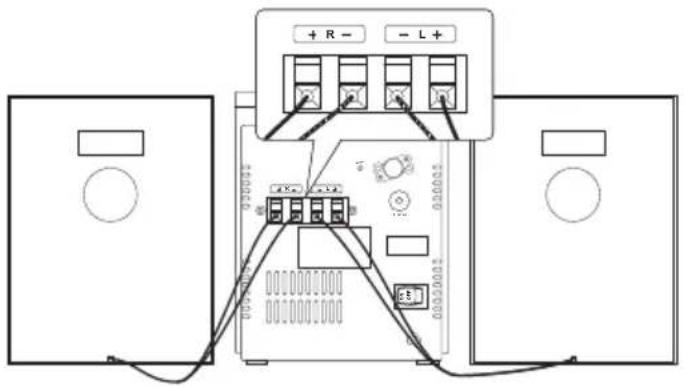

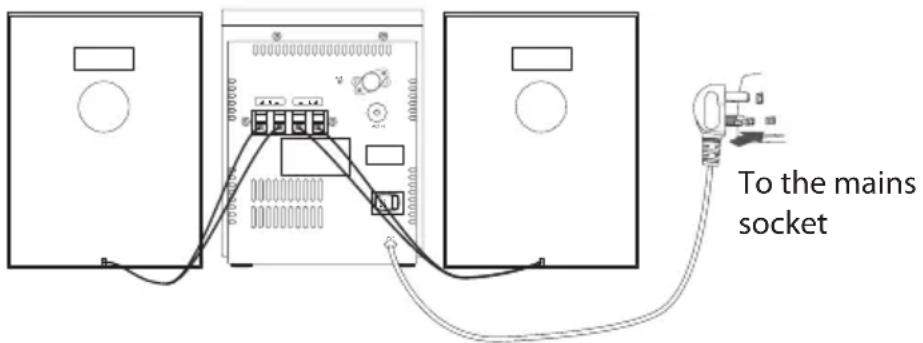

Speaker Connections

Connect the speaker cables at the back of the speakers to the Speaker L/R sockets at the rear of the unit. (+: Black wire; -: Black/White wire)

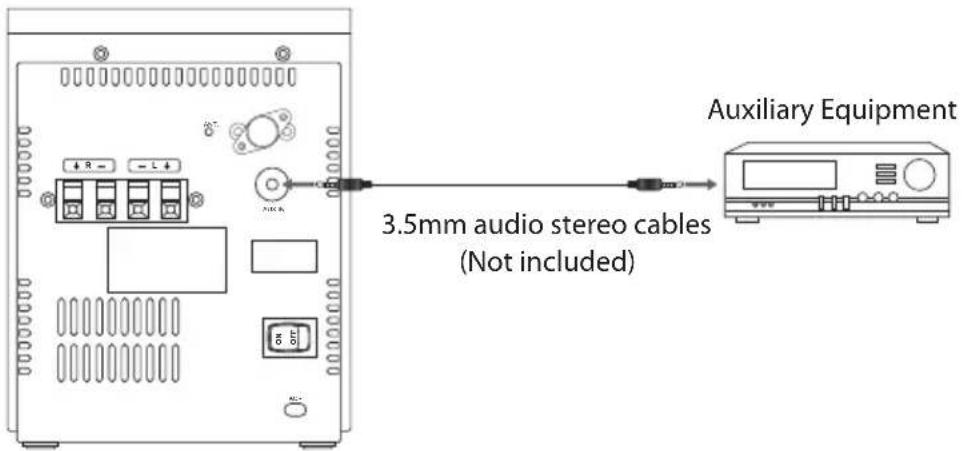

Playing music from an Audio Device

The AUX input is located on the rear side of the unit. Use a 3.5mm audio stereo cable (not included) to connect the audio device through the AUX IN socket.

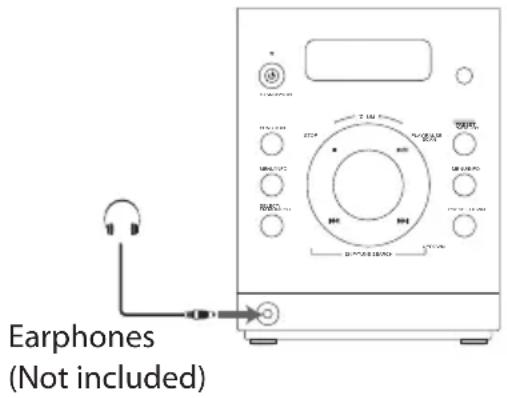

Using Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume. When earphones are connected, the speaker is automatically muted.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

Mains Power

• This unit was designed to operate with an AC 230-240V \~50Hz power supply.
• Connecting the unit to any other power source may cause damage to the unit. Unwind the mains cable to its full length. Connect the mains plug to a mains socket. Make sure the mains plug is fully inserted into the mains socket. The unit is now connected and ready to use.
• To switch the unit off completely, switch the ON/OFF button to the OFF position or withdraw the mains plug from the mains socket.

Powering ON/OFF

When you first connect the unit to the mains socket. Switch the ON/OFF switch at the rear of the unit to the ON position. The unit will be in STANDBY mode.

• Press the STANDBY/ON ⏻ button to switch the unit on.
• Press the STANDBY/ON ⏻ button again to switch the unit to STANDBY mode.
• Disconnect the mains plug from the mains socket if you want to switch the unit off completely.

Selecting Modes

• Press the FUNCTION button repeatedly to switch between DAB, FM, CD and AUX modes.
  • Selected mode will show on the display.

After the clock has been set, if there is no signal under the CD mode, the unit will automatically switch to STANDBY mode within 15 minutes.

Adjusting the Volume

Turn the VOLUME +/- control on the unit or press the VOLUME +/- on the remote control to increase/decrease the volume.

Mute Function

Press the MUTE button on the remote control to temporarily stop the speakers emitting sound. The display will show "MUTE". To cancel mute and restore the sound, turn the VOLUME +/- control on the unit or press the MUTE button again or press the VOLUME +/- buttons on the remote control.

Auto Setting the Clock

When you first turn on your radio it will automatically set the time by searching out the DAB signal. It will continue to search for the clock whilst in DAB mode until it has managed to set the time. If after 10 minutes the clock has not automatically set itself try repositioning the radio to get a better reception.

If you cannot receive any DAB stations you will need to manually set the clock.

Manual Setting the Clock

When you first connect the unit to the mains socket and the ON/OFF switch at the rear is switched to the ON position, the unit will be in STANDBY mode, and the display will show "-- : --".

1. While in STANDBY mode, press the CLOCK button on the remote control and the hour digits will flash on the display.
2. Press the SKIP/TUNE SEARCH ◀◀▶buttons to adjust the hour digits, and then press the CLOCK button on the remote control to confirm. The minute digits will flash on the display.
3. Press the SKIP/TUNE SEARCH ◀◀▶buttons to adjust the minute digits, and then press the CLOCK button on the remote control to confirm. The clock setting is now complete.

When the clock is set, during ON mode press the CLOCK button on the remote control, the current time will show on the display for 5 seconds.

Settings the Daily Timer

1. Press the TIMER button on the remote control repeatedly to select the Timer On mode. The "Timer On" and the "icon" icon will show on the display to indicate the timer is on.
2. While in Timer On mode, press and hold the TIMER button on the remote control until the display shows "On Timer", and the hour digits flash.
3. Press the SKIP/TUNE SEARCH ◀◀▶buttons to adjust the hour digits, and then press the TIMER button on the remote control to confirm. The minute digits will flash on the display.
4. Press the SKIP/TUNE SEARCH ◀◀▶buttons to adjust the minute digits, and then press the TIMER button on the remote control to confirm.
5. When On Timer Clock is set, the display will show "Off Timer" and the hour digits will flash.
6. Press the SKIP/TUNE SEARCH ◀◀▶buttons to adjust the hour digits, and then press the TIMER button on the remote control to confirm. The minute digits will flash on the display.
7. Press the SKIP/TUNE SEARCH ◀◀▶buttons to adjust the minute digits, and then press the TIMER button on the remote control to confirm.
8. Press the SKIP/TUNE SEARCH ◀◀▶▶ buttons to select DAB, FM or CD mode, then press the TIMER button on the remote control to confirm. The volume level will flash on the display. Press the SKIP/TUNE SEARCH ◀◀▶▶ buttons to adjust the volume, and then press the TIMER button on the remote control to confirm.
9. The Timer setting is now complete.

To Cancel the Daily Timer

In STANDBY mode, press the TIMER button on the remote control repeatedly to select Timer Off mode. "Timer Off" will show on the display and the "G" icon will disappear from the display.

Settings the Sleep Timer

Use the sleep timer to turn the system off after a certain number of minutes in play mode. By setting the sleep timer, you can fall asleep to music and know that your system will turn off by itself rather than play all night.

1. To set the sleep timer press the SLEEP button on the remote control repeatedly, it changes the number of minutes shown on the display in this sequence:

1. The system is now set to turn off after the number of minutes you have set. The display will show "S#". e.g. "S10 (SLEEP-10)" indicates 10 minutes sleep timer, "S20 (SLEEP-20)" indicates 20 minutes sleep timer and so on.
2. To cancel the sleep timer, press the SLEEP button on the remote control repeatedly until "SLEEP-OFF" shows on the display and "S#" will disappear from the display.

EQ Control

This system supports a variety of equalizers and sound effects.

During playback, press the EQ button on the remote control repeatedly to select a desired music mode. Each time the EQ button is pressed, the music mode will change to the next one as follows:

If the unit is connected to the mains power, the ON/OFF switch at the rear is switched to the ON position and then press the STANDBY/ON button to switch the unit on for the first time, the unit will automatically enter into the DAB mode and perform quick scan function. During the scan the display will show "Searching..." together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far.

Once the scan has finished, the unit will select the first alphanumerically found station. To explore the found stations, press the SKIP/TUNE SEARCH◀◀▶buttons.

Quick Scan

1. Press the PLAY/PAUSE/SCAN▶/II button to start quick scan for popular channels from 10A to 12D.
2. All the stations that have been found will be stored automatically. To explore and listen to the found stations, press the SKIP/TUNE SEARCH ◀◀▶buttons to select.

Full Scan

The full scan will search the entire DAB Band III channels. After the scan has finished, the first alphanumerically found station will be automatically selected.

1. To activate full scan, press and hold the PLAY/PAUSE/SCAN ▶/II button to enter Autotune Full scan mode, the display will show "Searching..." and a progressing slide bar.
2. All the stations that have been found will be stored automatically. To explore and listen to the found stations, press the SKIP/TUNE SEARCH ◀◀▶buttons to select.

Manual Tuning

As well as the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning.

1. Press the SELECT/FM MONO/ST. button to select Manual tune mode.
2. Press the SKIP/TUNE SEARCH ◀◀▶buttons to cycle through the DAB channels, which are numbered from 5A to 13F.
3. After your desired channel number is selected, the display will show the multiplex. Press the SELECT/FM MONO/ST. button to confirm.
4. Press the SELECT/FM MONO/ST. button to exit Manual tune mode.

Secondary Services

You may see a “>” symbol after the name of the station, this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. e.g. a sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station in the station list.

To select the secondary station, press the SELECT/FM MONO/ST. button when the “>” appears in the display before the station name. When the secondary service ends, the unit will automatically switch back to the primary station.

Storing Stations

You can store up to 20 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold the PRESET/MEMORY button. The preset station number will show on the display and flash.
2. Press the PRESET UP/DOWN buttons on the unit or the PRESET ▶▶buttons on the remote control repeatedly to select your desired preset station number. The "Preset Empty #" will show on the display and the preset number will flash, then press the PRESET/MEMORY button to confirm.
3. The station will be stored and the display will then show "Preset # Stored".

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESET/MEMORY button.
2. Press the PRESET UP/DOWN buttons on the unit or the PRESET ◀▶buttons on the remote control repeatedly to select your desired preset station number.
3. Press the PRESET/MEMORY button to confirm the selection.

• The stored stations will be saved into the memory and will not be erased STANDBY mode. Storing a new station into a preset location will erase the previously stored station in that location.
• To erase all preset memory and restore the unit to factory setting except the default settings, while in ON mode, press and hold the FUNCTION button to show "Press SELECT Key to Reset" on the display, and then press the SELECT/FM MONO/ST. button to confirm.

DAB Display Modes

Every time you press the MENU/INFO button, the display will cycle through the following display modes: Programme Type, Ensemble/Multiplex (Group name), Signal Strength, Time / Date, Channel no. / Frequency, Audio Mode / Audio Bit Rate, DLS.

The information is displayed on the lower segment of the display.

Programme Type

This describes the style of the programme that is being broadcast. If the information is not available, the display will show ""

Ensemble / Multiplex Name

A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

DAB – unlike normal radio, groups together several radio stations and transmits them on one frequency.

Signal Strength

The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

Time / Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information. If the information is not available, the display will show "".

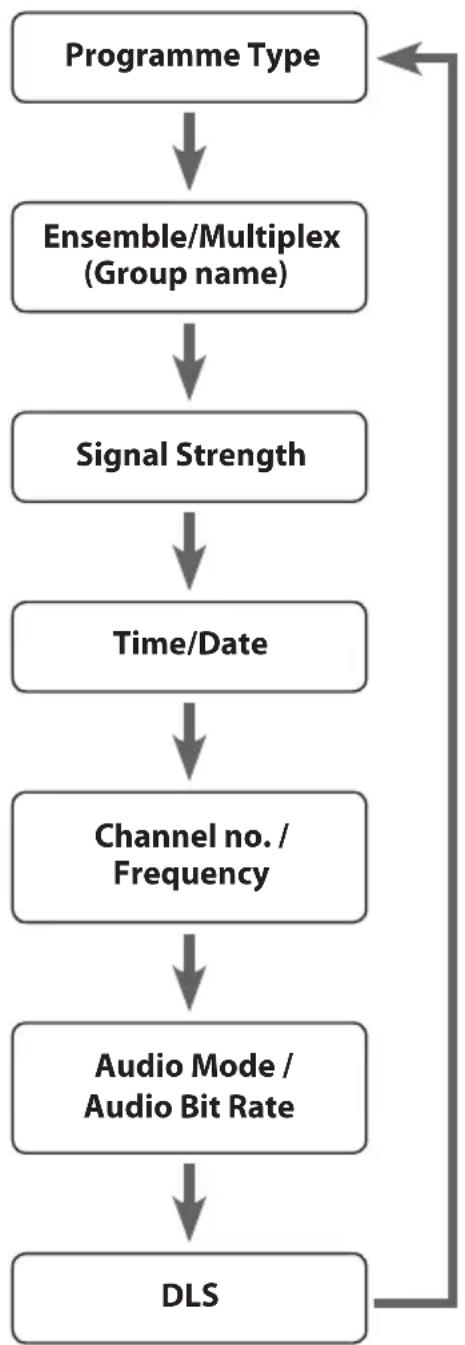

Channel no. / Frequency

The channel number and the frequency of the station will be displayed, e.g. 12D, 229.072MHz.

Audio mode / Audio Bit Rate

The display will show the audio mode (e.g. stereo, mono, etc.) and the digital audio bit rate being received.

DLS (Dynamic Label Segment)

Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as program details etc.

Press the FUNCTION button repeatedly to select FM mode. The display will show FM and the frequency.

Auto Scan

To search for an FM station, press the PLAY/PAUSE/SCAN▶/II button to start the auto scan. Once a station has been found, the scanning will stop automatically.

Manual Scan

To search for FM stations manually, press the SKIP/TUNE SEARCH buttons or press the SKIP/TUNE SEARCH buttons repeatedly until your desired frequency is reached.

With FM radio it may be necessary to fine tune each station by pressing the SKIP/TUNE SEARCH button repeatedly. Each press will adjust the frequency by 0.05MHz. If reception is still poor adjust the position of the aerial or try moving the radio to another location.

Audio Mode

Press the SELECT/FM MONO/ST. button to toggle between the Auto or Mono selection.

The unit will automatically switch between stereo and mono in auto mode, but you can override this and switch this function manually. This is helpful when receiving poor signal reception.

Storing Stations

You can store up to 20 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save, press and hold the PRESET/MEMORY button. The preset station number will show on the display and flash.
2. Press the PRESET UP/DOWN buttons on the unit or the PRESET ▶buttons on the remote control repeatedly to select your desired preset station number. The "Preset Empty #" will show on the display and the preset number will flash, then press the PRESET/MEMORY button to confirm.
3. The station will be stored and the display will then show "Preset # Stored".

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESET/MEMORY button.
2. Press the PRESET UP/DOWN buttons on the unit or the PRESET ▶buttons on the remote control repeatedly to select your desired preset station number.
3. Press the PRESET/MEMORY button to confirm the selection.

• The stored stations will be saved into the memory and will not be erased STANDBY mode. Storing a new station into a preset location will erase the previously stored station in that location.
• To erase all preset memory and restore the unit to factory setting except the default settings, while in ON mode, press and hold the FUNCTION button to show "Press SELECT Key to Reset" on the display, and then press the SELECT/FM MONO/ST. button to confirm.

FM Display Modes

Every time you press the MENU/INFO button, the display will cycle through the following display modes: Frequency, Audio Mode, Signal Strength.

Frequency

This shows the frequency of the current station.

Audio Mode

While in FM mode, the display will show if the station being received is in mono or stereo. The receiver will automatically switch between stereo and mono in Auto mode. You can however override this function, so that you can manually switch between Auto and Mono mode, which is helpful if you're listening to a poor FM signal.

Signal Strength

The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

Disc Types Disc Logo Recorded Content
CD-R (CD Recordable)		AUDIO
CD-RW (CD-Rewritable)		AUDIO
AUDIO-CD (Compact Disc Digital Audio)		AUDIO

CD Operation

Press the FUNCTION button repeatedly to select CD mode.

Playback

1. Press the Button on the unit and the disc tray will open automatically.
2. Place a disc with the label side up into the CD compartment, and then press the right bottom corner of the CD door to close the door.
3. The total number of tracks will show on the display, then press the PLAY/PAUSE/SCAN ▶/II button to play the first track of the disc.

• This unit can play CD, CD-R, CD-RW disc types.

- If no disc or the disc can't be read, "No Disc" will show on the display.

To Pause Playback

1. Press the PLAY/PAUSE/SCAN button to pause the playback.
2. To resume playback, press the PLAY/PAUSE/SCAN ▶/II button again.

To Stop Playback

Press the STOP button to stop playback.

Skipping to Another Track

• Press the SKIP/TUNE SEARCH ◀◀▶▶I buttons to skip backwards to the beginning of the track or previous track or skip forwards to the next track.
• Press and hold the SKIP/TUNE SEARCH ◀◀▶buttons to perform fast forward/ reverse playback.

Repeat Playback

1. Press the REPEAT button once on the remote control, "REP 1" will show on the display. The CD will play the current track repeatedly.
2. Press the REPEAT button twice, "REP ALL" will show on the display. The CD will play all the tracks repeatedly.
3. Press the REPEAT button once more again, the REPEAT function will turn off.

Programme Setting

You can program up to 20 tracks in CD mode in any desired order. Programme mode is activated while in STOP mode.

1. Press the PRESET/MEMORY button to select PROG mode. "PROG01" and "Track00" indicators will show on the display.
2. Press the SKIP/TUNE SEARCH ◀◀▶buttons to select the track that you want to preset.
3. Press the PRESET/MEMORY button to confirm the track number.
4. Repeat steps 2-3 for programming PROG02, PROG03, etc.

Programme Play

Press the PLAY/PAUSE/SCAN▶/II button. The unit will play the first track of the program. When all the tracks have been played, the display will show the number and the playing time of the tracks.

Programme Cancel

Press the STOP button twice, or open the CD tray door and close it again to erase the memory.

During Programme Mode

• Press the REPEAT button once on the remote control, "REP 1" will show on the display. The CD will play the current track repeatedly.
• Press the REPEAT button twice, "REP ALL" will show on the display. The CD will play all the tracks repeatedly.
• Press the REPEAT button once more again, the REPEAT function will turn off.

Random Playback

All tracks on the disc can be played in a random order.

• During STOP or PLAYBACK mode, press the RANDOM button on the remote control. The "RAND" indicator will show on the display. All tracks will be played randomly.
• Press the SKIP/TUNE SEARCH ◀◀▶buttons to playback the next random track.
  • After all the tracks have played once, the playback will stop automatically.
• To cancel random playback, press the RANDOM button on the remote control during RANDOM playback. Normal playback will resume.

Intro Playback

• Press the INTRO button on the remote control. The "INTRO" indicator will show on the display. The unit will play the first 10 seconds of each track.
• Press the INTRO button on the remote control again to resume normal playback.

LINE IN Operation

There is a AUX IN socket located on the rear of the unit. Analogue audio sound signals from other sources can be input to the unit.

1. Connect the input of another audio device via a 3.5mm audio stereo cable (not included) with the AUX IN socket at the rear of the unit.
2. Press the FUNCTION button repeatedly to select AUX mode until "AUX IN" shows on the display.
3. Turn the VOLUME +/- control on the unit or press the VOLUME +/- buttons on the remote control to adjust the volume control for your desired sound output level.
4. In AUX mode, operate your audio device directly for playback features.

Handling Discs

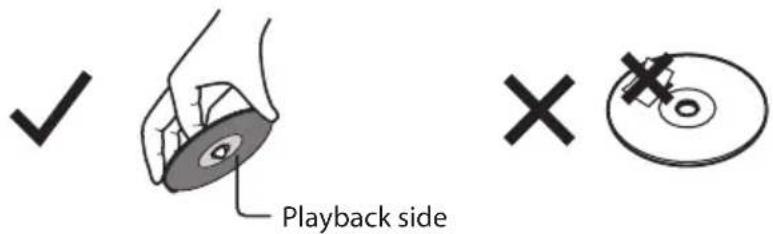

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

Cleaning Discs

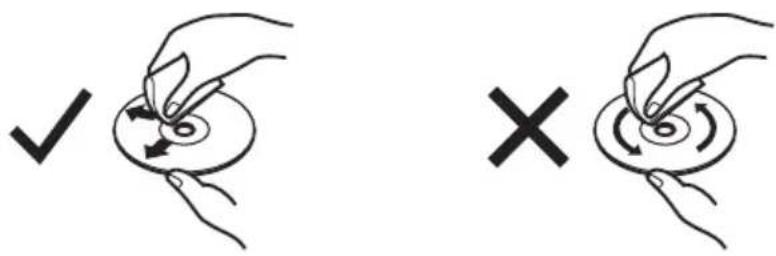

- Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
- Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
- Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

Cleaning the Unit

Ensure to unplug the unit from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray an aerosol at or near the unit.

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Menu Description
No power. • Ensure the mains plug is connected.• Make sure that the unit is turned on.
The remote control does not function.	• Use the remote control near the unit.• Point the remote control at the remote control sensor on the unit.• Replace the battery in the remote control with a new one.• Make sure the plastic sheet has been removed from the remote control.• Remove any obstacles between the remote control and the unit.
The unit does not respond when pressing any buttons	• The unit may freeze up during use. Switch the unit off and then on again to reset the unit.
CD
The disc does not play.	• There is no disc inside the unit ("No Disc" appears on the display).• Insert the disc correctly with the label side facing up.• Clean the disc.• PAUSE mode may be activated, deactivate it.• A non-valid disc has been inserted.• Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again.
Disc skips • Make sure the unit is on a secure spot. Vibrations or jarring can cause the disc to skip.
Radio
Poor DAB/FM reception.	• Make sure the DAB/FM aerial wire is fully extended.• Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).
Desired station not found.	• Weak signal. Use the manual tune function.
Model LHFDAB11
Disc Format CD, CD-R, CD-RW
Audio 2-Channel Analogue
Frequency Range DAB: 174 – 240 MHzFM: 87.5 – 108 MHz
Compact Disc Optical Pickup: 3 - Beam Laser
Power Adapter:Power SupplyPower Consumption	AC 230-240V ~50Hz25W
Output Power 5W x 2
Net Weight: 3.5kg
Dimensions:UnitSpeaker	135mm(W) x 251.5mm(D) x 170mm(H)130mm(W) x 160mm(D) x 170mm(H)

Features and specifications are subject to change without prior notice.

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/ disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Cable

- Make sure the unit is not resting on top of the mains cable, as the weight of the unit may damage the cable and create a safety hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
• Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the power supply before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:

Replacement Part Part Number

Remote Control 070-0019DN-01K1

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead

Herts • HP2 7TG • England

Gradient gray background with no text, symbols, or identifiable objects

Gradient gray background with no text, symbols, or identifiable objects
