USER MANUAL 101B XS 2 ARCHOS

Package Content 2
Getting started. 3
Description of the device. 4
Through the Wizard. 5
Connecting to a WiFi network.. 6
The AndroidTM interface. 8
Getting familiar with Android^TM 12
Using your keyboard. 14
Troubleshooting 16

For more information, please consult the FAQs and the User manual of your product on www.archos.com. Make sure to read them before considering any product return.

Your deal may be no big deal.

Package Content

ARCHOS 101 xs2

QSG booklet

Warranty, legal & safety booklet

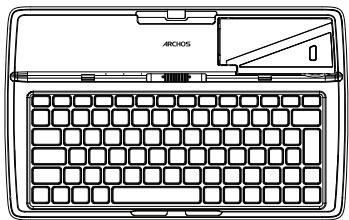

ARCHOS 101 XS 2 keyboard

USB cable

Charger

Getting Started

Charging

Charge your device by plugging your power cable into the microUSB port. The ARCHOS device will turn on and start charging. The charging indicator light is on when the battery is charging.

• You can use your ARCHOS whilst it charges.
• Let your device charge completely the first time you use it.
• Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIPS:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

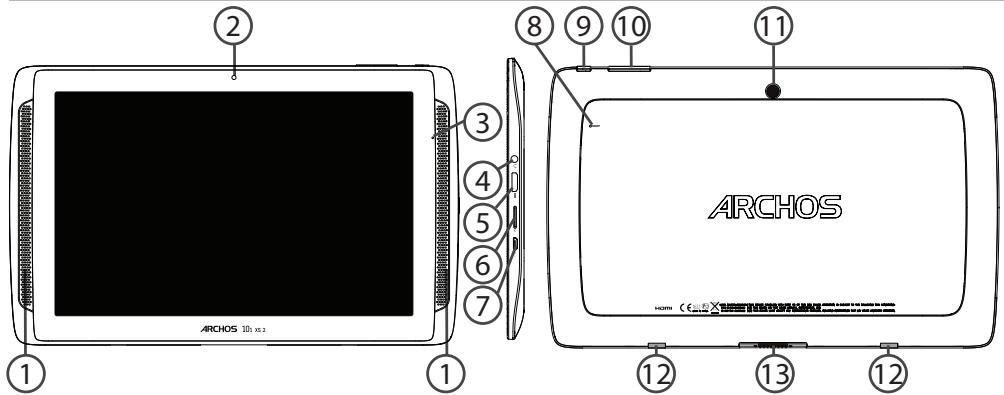

Description of the device

①Loudspeakers
②Webcam
③ Chargingindicator
④ Headphone jack

⑤ Mini-HDMI video output*
Micro-SD card slot
⑦ Micro-USB port
Reset button

ON/OFF button
Volume buttons
1 Camera
12 Holding magnets

① 3 Proprietary port

• With optional Micro-HDMI to HDMI cable.

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Touch-screen calibration
• Language
• Date & time
• WiFi connection
• Location service options
• 3rd party apps

TIPS:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connectivity to a WiFi Network

CAUTION: Make sure that you are in a WiFi zone.

① Touch and hold the time & battery icons to reveal the status bar. A blue line is displayed.

② Pull the blue line down to display the status dashboard.

③ Touch "WiFi off" in the status dashboard. The WiFi page will be displayed.

④ Slide the WiFi switch to "ON" positon.

The ARCHOS will scan for Wifi networks in range. Touch the name of network you want to connect to.

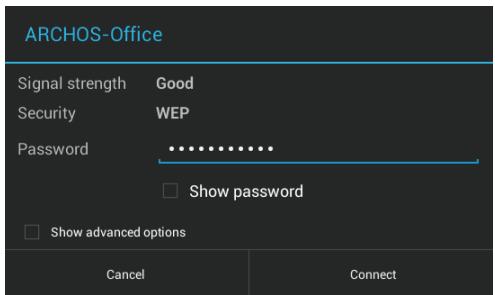

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

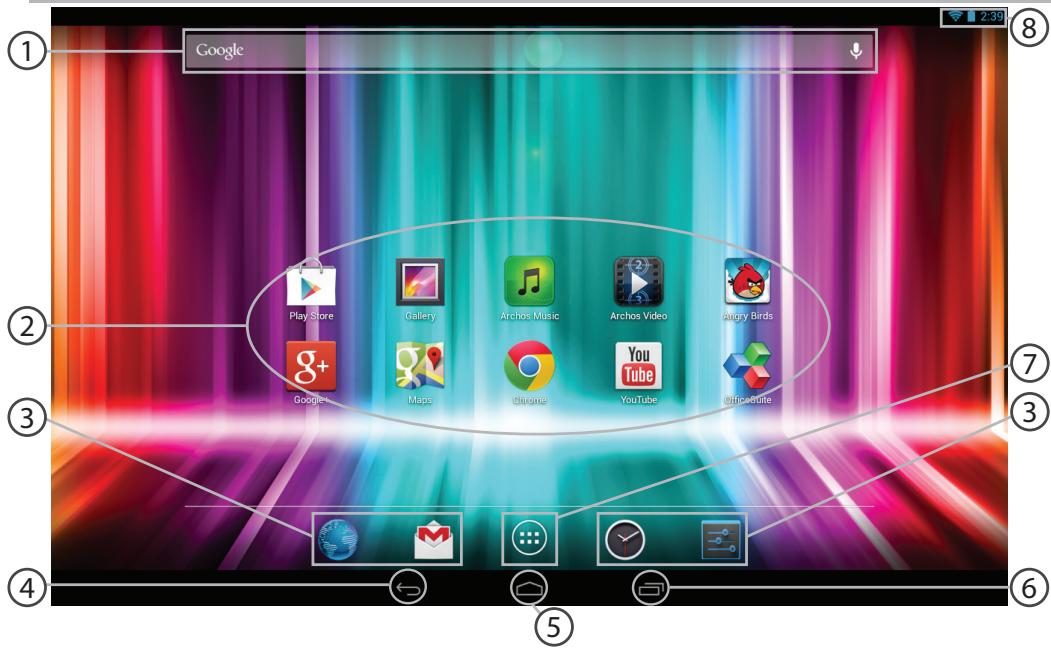

The Android™ Interface

GoogleTM Search >Touch "Google" for text search or touch the microphone icon for voice search.
② AndroidTM apps shortcuts > Touch to start an application.
3 Permanent Android™ apps shortcuts > Touch to start an application
Back button
Home button
Recent apps buttons
All Apps button > Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.
The status bar > Displays notifications and quick settings

The Android™ Interface

3:18

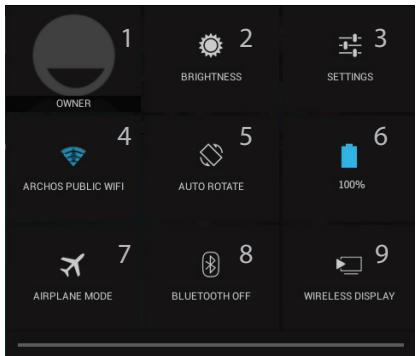

The Quick settings

1 Current user(1)
2 To adjust the screen brightness.
3 To access all your settings.
4 To turn on/off your WiFi connection.
5 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
6 Percentage of battery remaining
7 To activate/deactivate all wireless connections, especially when flying.
8 To turn on/off your Bluetooth connection.
9 To enable wireless display(2)

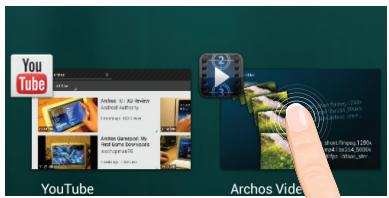

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Hold down: to display options

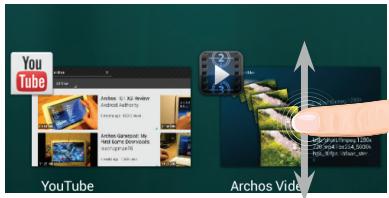

Swipe up or down: to close an app.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Touch the All Apps icon on your home screen. Touch Widgets at the top of the screen. From the main Widgets screen, you can move around widgets just as you do for app icons.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list.

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Using your keyboard

The ARCHOS 101 XS 2 is equipped with a Hall effect sensor. When you cover the tablet with its coverboard, the screen turns off automatically. The screen turns on when you lift the coverboard.

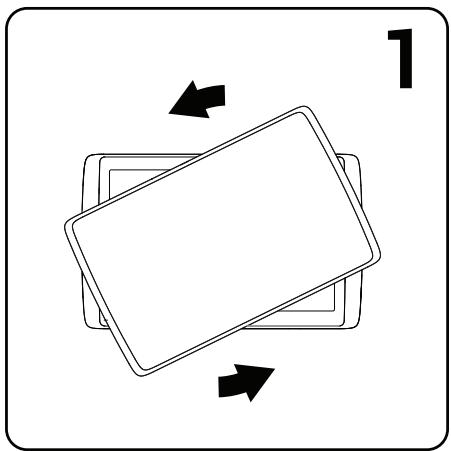

1. Twist and lift the tablet.

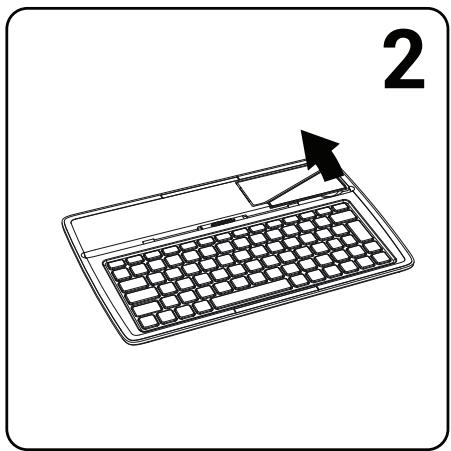

1. Lift and fold the tablet stand.

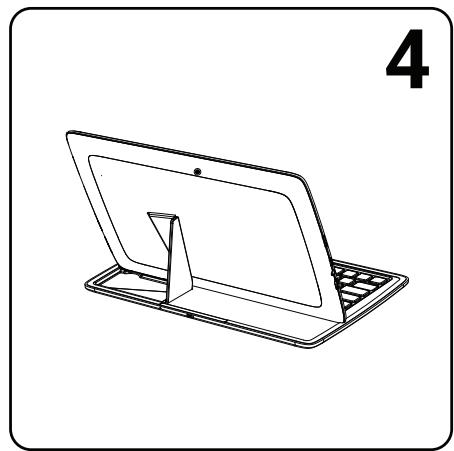

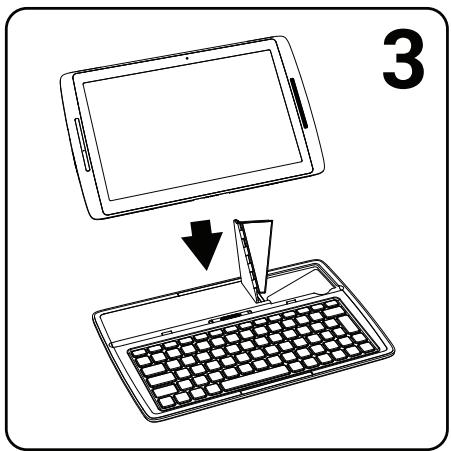

1. Place the tablet in the designated location. Rear view of the tablet

Troubleshooting

If your device is frozen:

Use the Hardware reset. To use the Hardware reset, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.
2. Use the Hardware reset.

If you want to extent the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used. Use the System Monitor app.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

If you want to restore your product (forgotten password? erase all your settings?) :

While holding Volume+, press the ON/OFF button to turn on the device.

Once the green robot ANDROID is displayed, release the volume+ button.

Press and hold the ON/OFF button and press once the volume+ button.

The Android system recovery is displayed.

Use the Volume buttons to scroll and the ON/OFF button to validate.

Select"Wipe data/ factory reset"and validate.

Select "Yes -- delete all user data" and validate.

Select "Reboot system now" and validate.

Table des matières

① Proprietary poort

WiFi-networkverbinding

Ecn yctpoCTBO He BkIouaetc:

1.3apndte yctpoiCTBO.

1. Haxmnte Ha KhoNkY BKJI/BblKJI u yedeXnBaIte B teueHne 10 ckyHd.

EcnB Bawe yctpojCTBO NOJHOCTbIO pa3pAANTcA

3apka yctpoicTBa BVteueHne no kpaHne Mepe 10 MNHyT, npexde yem OH BKIOUHTcra.

EcnBbXOTnTe npoDnTb cpoK cnyx6by 6aTapei:

UmeHbIHTeApKoCTb 3KpaHa N BbIKIOuHTe 6ecnpOBOHbIe CoeINHeN He IcNoJIb3yIOTcA.

Ecnn yctpoiCTBO fynKcnoHnpyET cniuKOM MeJleHNo:

3aKpOTe Bce npJIOXeHn, KOTOpBcE B daHHbIM MOMENT He NcNoJIb3yIOTcA.

Ecn npnHmaeBm cnrHaWi-Fi cnlukom cna6:

Y6eHNTecb, yTO He haoiTecb cIIshkOM daJIeKO oT y3na doCTyna Wi-Fi.

OboBnte BCTpoEHHyMQKpOnpoPamMy yCTpoiCTBa: http://www.archos.com/support.

C6pocbte nIOBTOPO BVEIte npaMeTpbl CoeINHeHn.

6paTntecb K npoBaHepy cTe Ni-Fi.

EcniXOTnTE BOCCTaHOBHT coCTOAHNue 3a6bIIN npoJI? CTepeTb BCE HAcTpOKn?:

1. yndeKJBaIte KhoNky yBeneHnraPOMKocTn + n PoiKJIouHnTe npiJaRaembI Ka6eNb NITaHnK yctpoJcTBy ARCHOS n K po3eTke.
2. OTo6paxaetc3eJenbIpo6oT Android. OTnyctnte KhoNky rPOMKocTn+.
   3.yndePKBaIe KHOIIy BKJI/BblKJI n HaxMNTe Ha KHOINy rpoMKOCTn+.
   OTo6paKaetcBocCTaHOBHeHne cntEmbl Android.
   4.Прokунваиме осиесьтся конламп ретуларовки Гомкови, постордени — KONКОВ BKЛЮЕНИИ И ВБКЛЮЕНИЯ.
3. Bыберпге пункт "Wipe data/factory reset" [Стенидддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徴. ]�нТВерДиTe.
4. BbI6epnte"Yes -- delete all user data" [Да, уддпь польбоватьскпе данны] и посторite.
5. BbI6epnte"Reboot system now"[Ipepe3arpy3ntb cncTeMy] n noTbepdnte.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian Federation	None	Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.
Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium. This offer is valid to anyone in receipt of this information.
