L1DA12E - Radio Logik - Free user manual and instructions

Product Type	Portable Radio
Brand	Logik
Model	L1DA12E
Dimensions (approx.)	200 x 120 x 60 mm
Weight (approx.)	500 g (including batteries)
Power Source	4 x AA batteries (not included) or AC adapter (DC 6V, not included)
Radio Bands	FM (88-108 MHz), AM (520-1710 kHz)
Tuning Type	Digital tuning with LCD display
Preset Stations	20 presets (10 FM, 10 AM)
Speaker Output	1 W RMS, 8 Ohm mono speaker
Headphone Jack	3.5 mm stereo jack
Antenna	Built-in ferrite for AM, telescopic for FM
Display	LCD with frequency, time, and preset number
Sleep Timer	Yes, adjustable (up to 60 minutes)
Alarm Function	Yes, wake to radio or buzzer
Maintenance and Cleaning	Wipe with dry soft cloth; do not use harsh chemicals; keep away from moisture.
Safety Precautions	Do not expose to rain or extreme temperatures; use only specified batteries; remove batteries if not used for long periods.
Spare Parts and Repairability	No official spare parts listed; contact Logik support for service options.
General Information	Intended for home use; not waterproof; suitable for indoor and outdoor use in dry conditions.

Frequently Asked Questions - L1DA12E Logik

How do I set the time on my Logik L1DA12E radio?

Press and hold the Time button until the hour flashes. Use the Tuning Up/Down buttons to adjust the hour, then press Time again to set the minutes. Adjust minutes similarly and press Time to confirm.

Why is my radio not turning on?

Check that batteries are installed correctly with correct polarity, or if using an AC adapter, ensure it is connected securely. Try fresh batteries if the display is dim or missing.

How do I store a radio station as a preset?

Tune to your desired station, then press and hold a Preset button (1-5) until you hear a beep or the display shows 'P' and the preset number. Repeat for other presets.

Can I use headphones with this radio?

Yes, insert a 3.5 mm stereo headphone plug into the jack on the side of the radio. The internal speaker will automatically mute.

How do I improve FM reception?

Extend the telescopic antenna fully and adjust its angle. Move the radio away from large metal objects or electronic devices. For AM, rotate the entire radio to orient the internal ferrite antenna.

What type of batteries does the L1DA12E require?

It requires 4 x AA alkaline batteries (not included). Rechargeable NiMH batteries can also be used but may have shorter runtime.

Is there a sleep timer function?

Yes, press the Sleep button repeatedly to set the sleep timer from 15 to 60 minutes (in 15-minute increments). The radio will turn off automatically after the set time.

How do I set the alarm?

Press and hold the Alarm button. The hour will flash. Use Tuning Up/Down to set the hour, press Alarm to confirm, then set minutes. Choose alarm mode (radio or buzzer) by pressing Alarm again. Ensure the alarm indicator is displayed.

What should I do if the radio makes crackling noises?

Check that the antenna is fully extended and not damaged. Try moving the radio to a different location. Avoid placing near fluorescent lights or motors. If using batteries, replace them as low power can cause noise.

Can I reset the radio to factory settings?

There is no dedicated reset button. To clear presets, you can manually delete each one or remove batteries for about 10 minutes. Time and alarm settings will need to be reconfigured.

USER MANUAL L1DA12E Logik

DAB+/DAB/FM Radio Adaptor

INSTRUCTION MANUAL

Radioadapter for DAB+/DAB/FM

BRUKSANVISNING

DAB+/DAB/FM-radioadapter

BRUKSANVISNING

DAB+/DAB/FM-radiosovitin

KÄYTTÖOPAS

DAB+/DAB/FM radio-adapter

BRUGERVEJLEDNING

Gradient background transitioning from white to dark gray, no text or symbols present

Contents

GB

Unpacking......6

Product Overview ....7

Front View 7

Rear View 7

Remote Control 8

Operating Your Remote Control 9

Handling the Battery....9

Remote Control Operation Range....10

Connections ......10

Using the Line IN Connection....10

Connecting the Aerial....11

Connecting to the Mains Supply....11

Basic Operation ....12

Powering ON/OFF 12

Selecting Modes....12

Adjusting the Volume....12

Automatically Setting the Date and Time 12

Manually Setting the Date and Time 12

Alarm Clock and Wake-up Mode Settings....13

Sleep Function....13

System Reset....14

Software Version 14

Display Backlight....14

DAB Operation....15

Auto Scan Modes....15

Secondary Services....16

Manual Tuning ....16

Presetting Stations....16

Recalling a Stored Station....16

DAB Display Modes....17

FM Operation....18

Switching from DAB to FM Mode....18

Auto Scan....18

Manual Scan....18

Audio Mode....18

Presetting Stations....18

Recalling a Stored Station....18

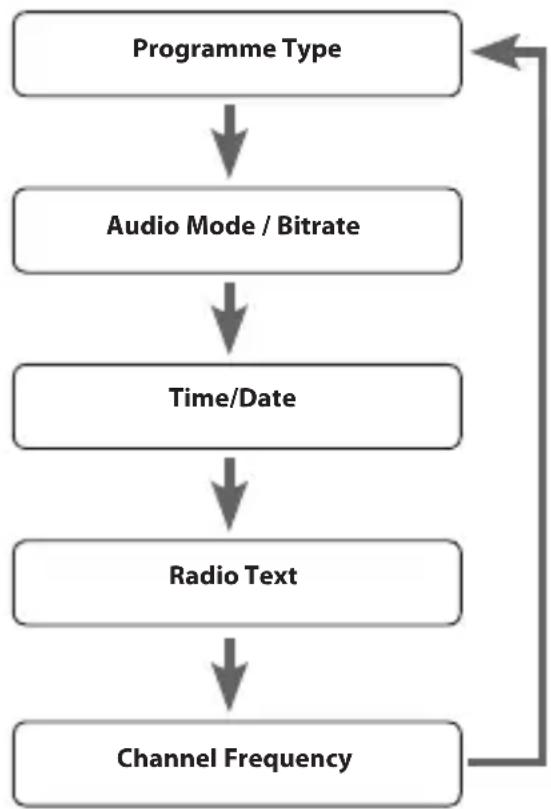

Display Modes....19

Maintenance 20

Cleaning the Unit 20

Hints and Tips....21

Specifications 22

Safety Warnings 91

Innhold

NO

Pakke opp 23

Produktoversikt....24

Sett forfra....24

Sett bakfra....24

Fjernkontroll 25

Thank you for purchasing your new Logik DAB+/DAB/FM

Radio Adaptor.

We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple diagram of a device panel with a rectangle and 'UDSK' label, no readable text or symbols beyond the label.

The Main Unit

Remote Control Mains Adapter

Illustration of a coiled cable with a plug and terminal block (no text or symbols)

FM Aerial Stereo Audio Cable Instruction Manual

If items are missing or damaged, please contact Partmaster (UK only).

Tel: [phone] for assistance.

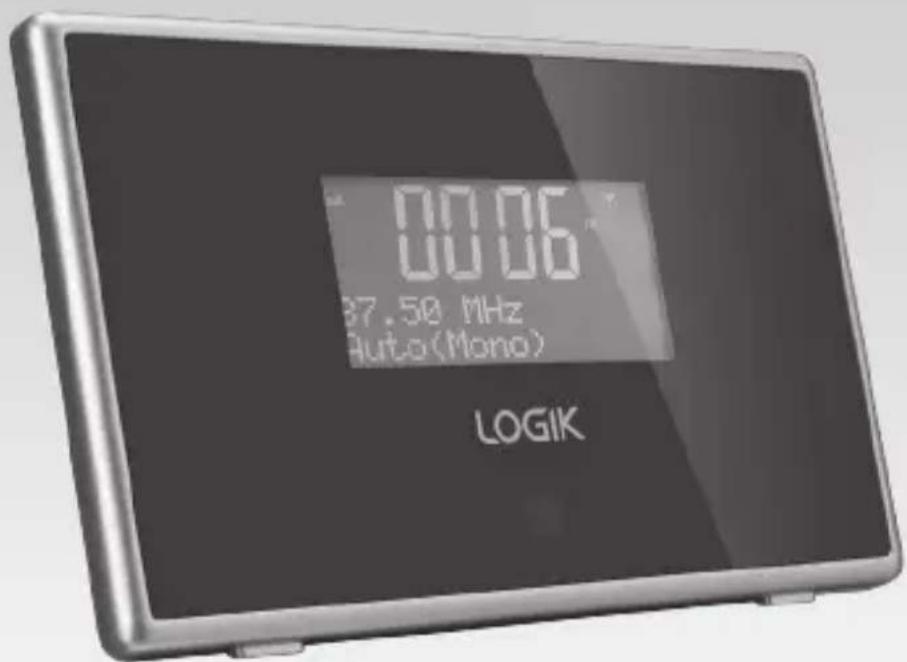

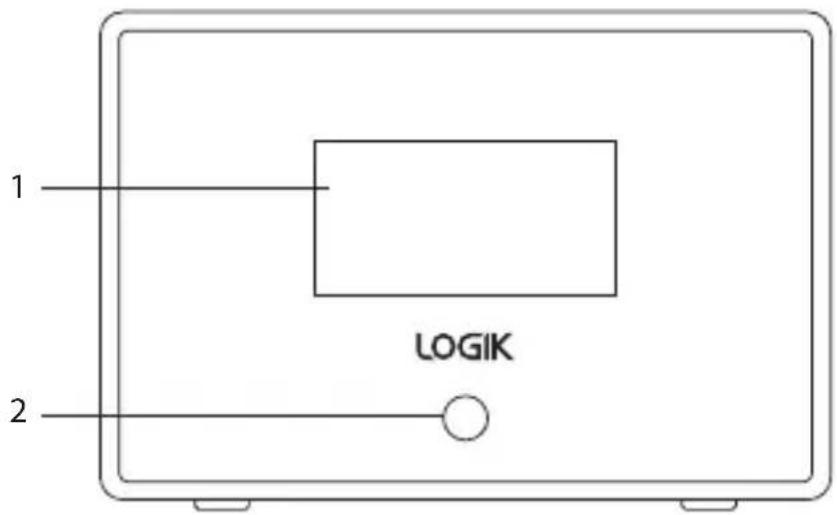

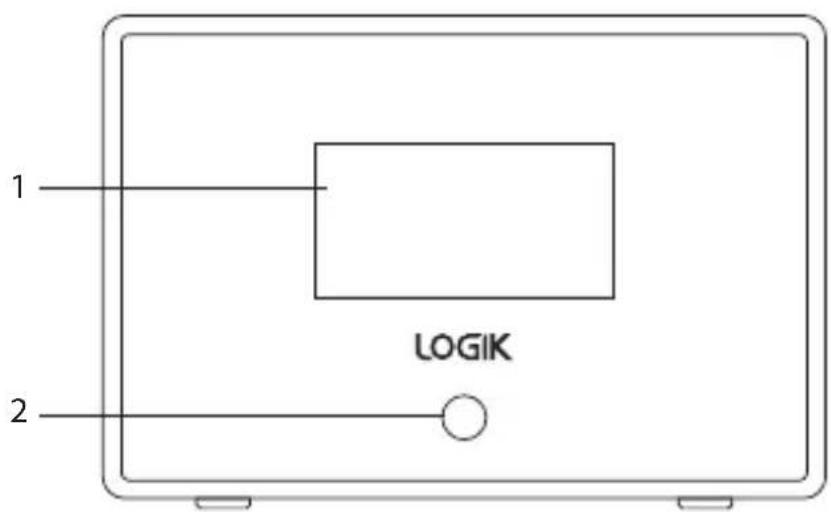

Front View

1. LCD Display

2. Remote Control Sensor

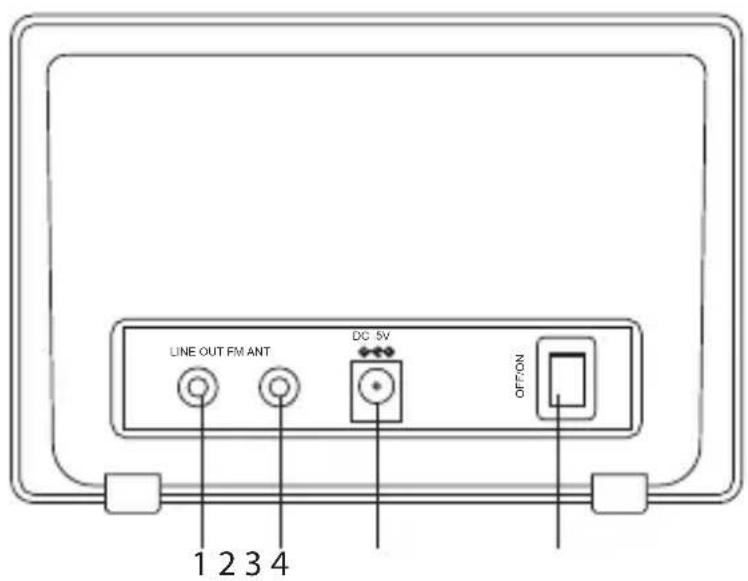

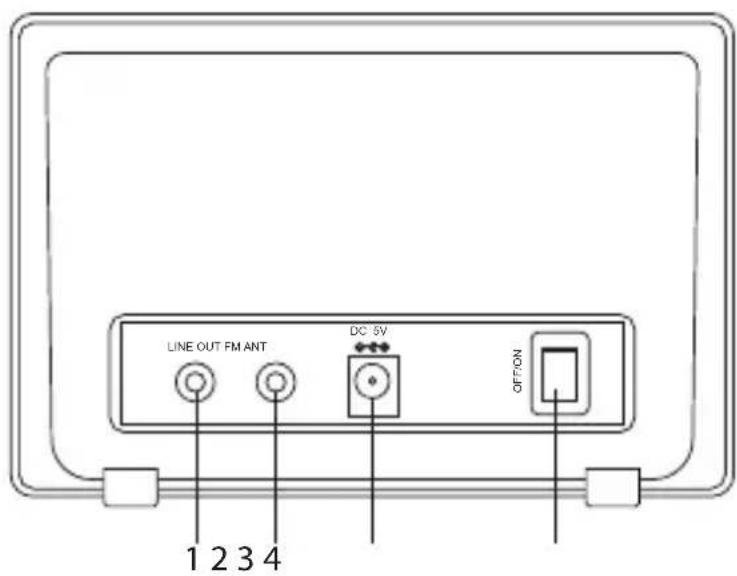

Rear View

1. LINE OUT Socket

2. DC IN Socket

3. FM Aerial

4. ON/OFF Switch

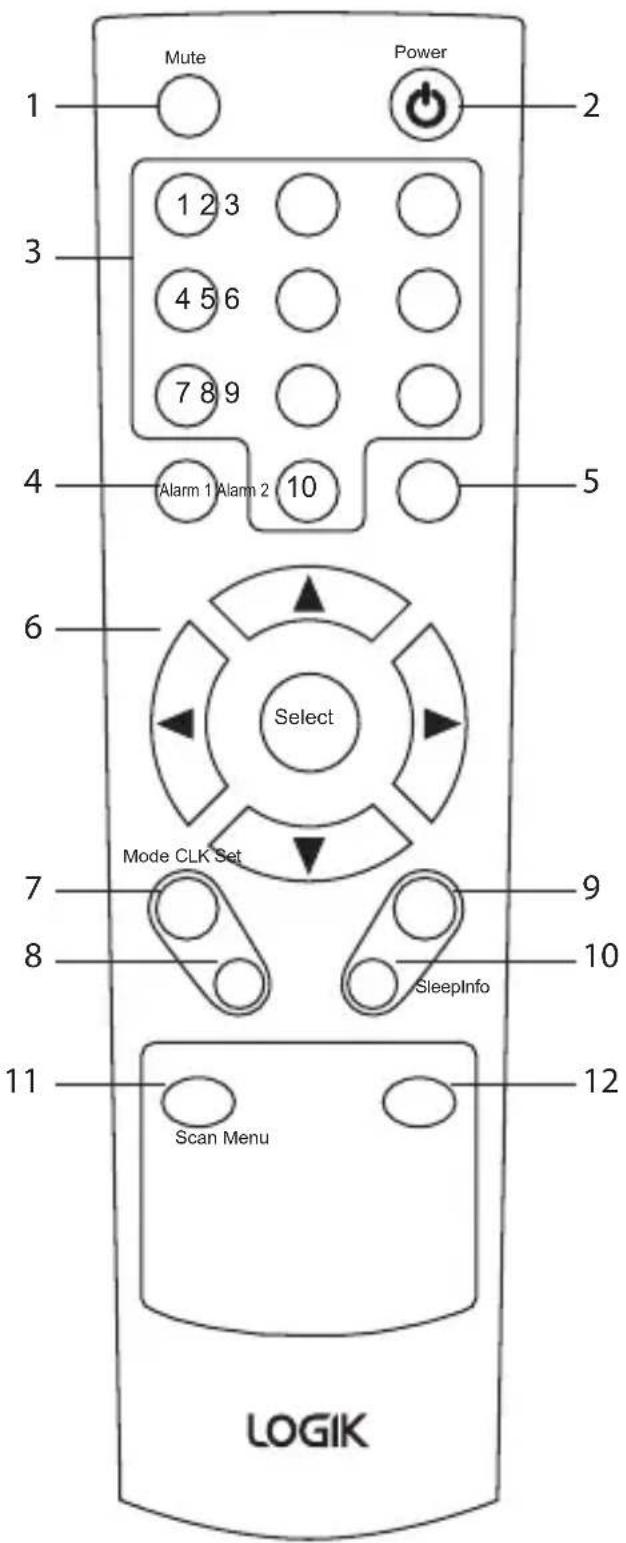

Remote Control

1. Mute Button

Silences the unit or restores the sound.

2. Power ⏻ Button

Switches the unit between the ON and STANDBY modes.

3. 0-10 Buttons

Presets or recalls a radio station.

4. Alarm 1 Button

Setup alarm 1

5. Alarm 2 Button

Setup alarm 2

6. ▲▼ Buttons

• Navigates up/down to select an item on a menu screen.
  • Adjusts the volume.

Buttons

• Navigates to select an item on a menu screen
  • Searches for a radio station going backwards/forwards through accessible radio frequencies.

Select Button

Confirms the selection on a menu screen.

7. Mode Button

Switches between the DAB and FM modes.

8. Info Button

9. CLK Set Button

Set up the time.

10. Sleep Button

11. Scan Button

Auto-scans in DAB and FM mode.

12. Menu Button

Displays menu screen.

Operating Your Remote Control

1. Press and slide the battery cover to open the battery compartment of the remote control.

2. Insert two AAA size batteries (not included). Ensure the polarity (+ and -) ends of the batteries match the (+) and (-) ends indicated in the battery compartment.

3. Close the battery compartment cover.

Top-down schematic of a device with an arrow pointing to a component (no text or symbols)

GB

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Install the batteries correctly by following the polarity (+ and -) indications in the battery compartment.
  • Use only the types of the batteries which are indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.

GB

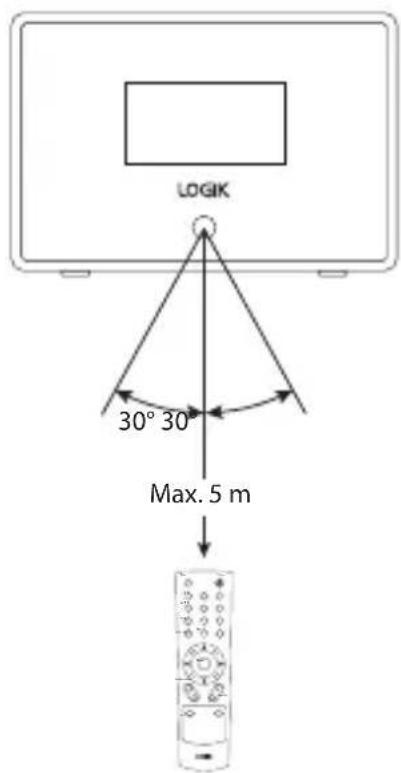

Remote Control Operation Range

• The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 5 metres away and within a maximum of a 60^ arc.
• Please note that the operating distance may vary depending on the brightness of the room.

Connections

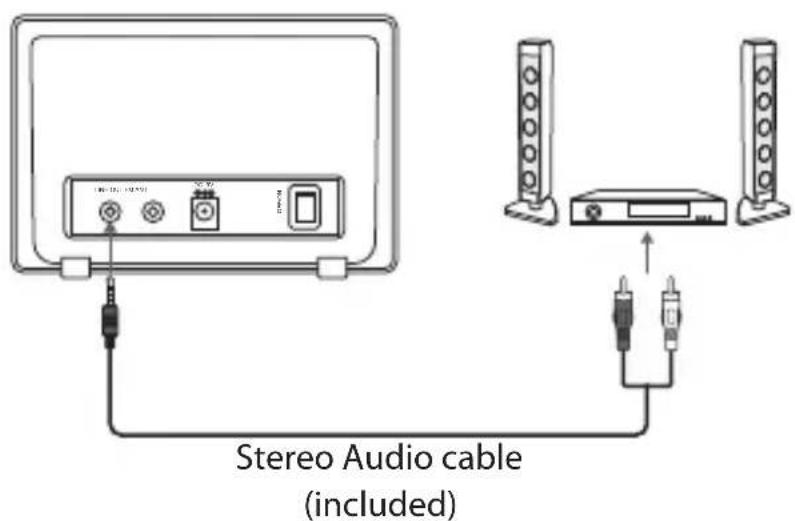

Using the Line IN Connection

Use a stereo audio cable to connect an auxiliary equipment to the main unit's LINE IN socket.

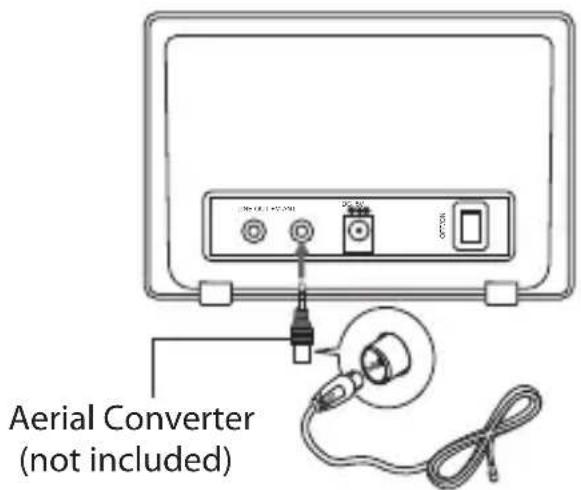

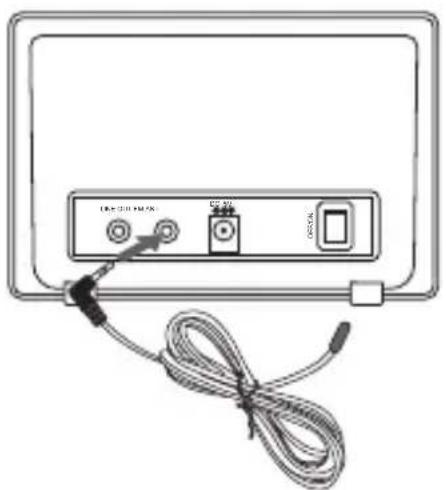

Connecting the Aerial

Connect the aerial cable (included) to the FM socket at the rear of the unit. Or connect the aerial converter to the FM socket, then connect the wall aerial to the aerial converter socket.

Aerial Cable (included)

Aerial Cable (not included)

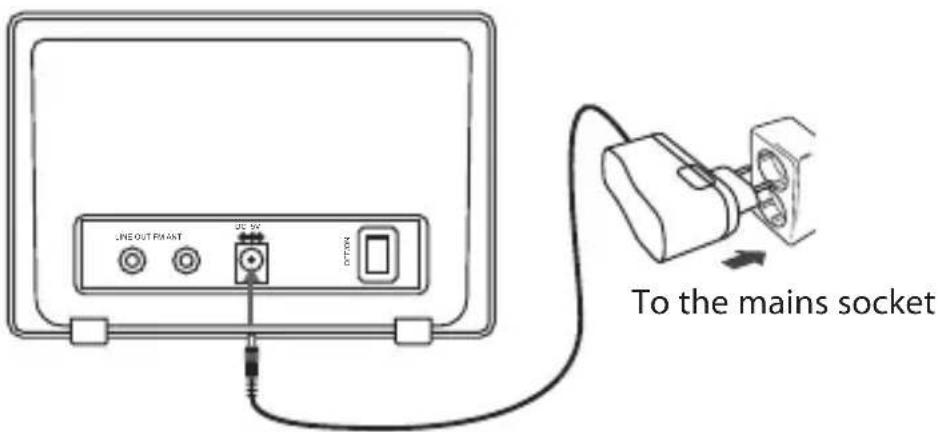

Connecting to the Mains Supply

• This unit is designed to operate with an AC 100-240V \~ 50/60Hz power supply.
• Unwind the mains cable to its full length. Connect the other end of the mains cable to the DC IN Socket at the rear of the unit then connect the mains adapter to the mains socket. Make sure the mains adapter is firmly inserted into the mains socket. The unit is now connected and ready to use.
• To switch the unit off completely, press the ON/OFF switch at the rear of the unit to the OFF position or remove the mains adapter from the mains socket.

Powering ON/OFF

When you first connect the unit to the mains socket, switch the ON/OFF switch at the rear of the unit to the ON position The unit will be in STANDBY mode.

• Press the Power ⏻ button to switch the unit on.
• Press the Power ⏻ button again to switch the unit back to standby mode.
• To switch the unit off completely, press the ON/OFF switch at the rear of the unit to the OFF position or remove the mains adapter from the mains socket.

Selecting Modes

Press the MODE button repeatedly to switch between DAB and FM mode.

Adjusting the Volume

• Press the ▲ buttons to adjust the volume.
• If you wish to turn the sound off, press the MUTE button. Press the MUTE button again or press the ▲▼ buttons to resume normal listening.

Automatically Setting the Date and Time

When you first turn on your radio it will automatically set the time by searching for the DAB signal. It will continue to search for the clock whilst in DAB mode until it has managed to set the time. If after 10 minutes the clock has not automatically set itself try repositioning the radio to get better reception.

If the radio cannot find a DAB frequency to set the clock, you can select "Update from air" by pressing and holding the CLK Set button, then press the <▶> buttons to select. Press the Select button to confirm.

Manually Setting the Date and Time

Setting the clock can only be done in STANDBY mode.

1. In STANDBY mode, press and hold the CLK Set button until "Update from air" flashes.
2. Press the ◀▶ buttons to select "MANUAL" mode, then press "SELECT" on the remote control to confirm.
3. Press the ▶buttons to adjust the Hour/Minute digits while flashing, then press the Select button to confirm.
4. Press the ◀buttons to adjust the Year/Month/Date digits while flashing, then press the Select button to confirm.
5. Each activated state will be cleared if any buttons are not pressed within 15 seconds.

Alarm Clock and Wake-up Mode Settings

This unit incorporates an identical Dual Alarm function. You can have two individual alarm wake-up time and wake-up mode settings to wake you with a buzzer tone or your favourite radio station.

Setting the alarm clock in STANDBY mode or ON mode.

1. Press and hold the ALARM 1 or ALARM 2 button, and then press the ◀▶ buttons to select alarm beep type (OFF/Beep/DAB/FM). Press the Select button to confirm.

2. If you have selected the beep, you can press the ◀buttons to select Beep type 1 or 2.

3. If you have selected DAB/FM, you can press the ◀▶buttons to select a preset station.

4. Press the ◀buttons to select alarm mode (Daily/Weekday/Weekend/Once). Press the Select button to confirm.

5. The hour digits will flash. Press the ▶buttons to adjust the hour digits. Press the Select button to confirm.
6. The minute digits will flash. Press the ▶buttons to adjust the minute digits. Press the Select button to confirm.
7. Adjust the volume by pressing the ◀buttons. Then press the Select button to confirm.

If DAB is selected and the signal is weak or unrecognized, it will beep instead.

Sleep Function

This function allows you to programme the unit to switch off by itself after a set period of time.

1. To activate the sleep function, press and hold the SLEEP button, and press the ◀▶ buttons. Press the Select button to confirm. The time will change in the below sequence on every press:

1. Stop pressing the button when the display shows your desired length of time. The sleep function will be activated in 2 seconds. "Will show on the display."
2. When the sleep time reaches zero, the unit will turn off. To turn the sleep function off while the sleep timer is still counting down, press and hold the SLEEP button, and press the ◀▶ buttons to select "OFF". Press the Select button to confirm and "○" disappear from the display.

GB

System Reset

There may be times when you need to reset your unit back to the factory settings especially when you have moved house. If you experience reception problems you may want to reset and try again. If you move to another part of the country and pick up the local and national DAB stations in that area, your previously tuned channels may no longer be available.

1. Switch on the unit and select DAB mode.
2. Press the MENU button to enter menu. Press the ◀buttons to select System reset.
3. Press and hold the Select button until the display shows "Restarting..." and then perform an auto-scan.
4. When the scan has finished, the radio will select and display the first alphanumerically found station.

All of your stored DAB & FM presets will be lost once the reset has taken place.

Software Version

• Press the MENU button to enter the menu. Press the ▲▼ buttons to select the software version. The display will show the information.
• Press the MENU button again to exit.

Display Backlight

Press the MENU button to enter the menu. Press the ▲buttons to select Contrast, and then press the ◀buttons to select 1 to 5 level contrast.

If the unit is connected to the mains power and then switched on from standby for the first time, the unit will automatically enter into DAB mode and perform the auto scan function. During the scan the LCD display will show "Scanning ..." together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far.

Once the scan has finished, the unit will select the last alphanumerically found station. To explore the found stations, press the ▶buttons. When you find a station that you would like to listen to, press the Select button.

If no stations are found after auto scan, "NO station available" will show on the LCD display.

Auto Scan Modes

There are two types of auto scan modes, one is Quick scan and the other is Full scan. Quick scan will only search part of the DAB Band III channels and Full scan will search the entire DAB Band III channels range. After the scan has finished, the first alphanumerically found station will be automatically selected.

Quick Scan

1. Press the Mode button repeatedly to select DAB mode.
2. Press the Scan button to start "Quick Scan". A progressing slide bar will show on the display. This takes 30 seconds to 1 minute, depending on the number of stations found.

Full Scan

1. Press the Mode button repeatedly to select DAB mode.
2. Press and hold the Scan button to start "Full Scan". A progressing slide bar will show on the display. This takes 1 to 3 minutes depending on the number of stations found.

All the stations that have been found will be stored automatically. To explore and select listen to the found stations, press the ◀buttons. Press the Select button to confirm the desired station.

Secondary Services

You may see a “>” symbol after the name of the station, this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. e.g. a sports station may add extra commentaries. The secondary services are inserted directly after the primary station in the station list.

To select the secondary station, press the Select button when the "<" appears in the display before the station name. When the secondary service ends, the unit will automatically switch back to the primary station.

Manual Tuning

As well as the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning.

1. Press the Info button and then press the Select button to select Manual tune, the display will now show Manual tune.
2. Press the the ◀buttons buttons to cycle through the DAB channels, which are numbered from 5A to 13F.
3. After your desired channel number is selected, press the Select button to enter the current multiplex, the top line will now display the first station in the multiplex.
4. Press the ◀▶ buttons and then the Select button to select a station that you would like to listen to.

Presetting Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold the 0-10 buttons to store a desired radio station.

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the 0-10 buttons.
2. If you choose a preset that hasn't been allocated a station, the "Empty preset #" will be displayed.

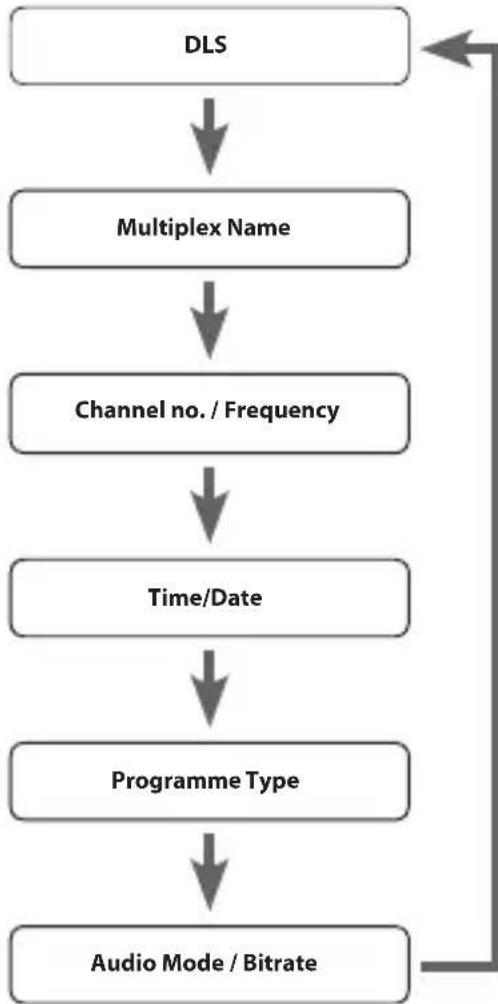

DAB Display Modes

Every time you press the Info button, the display will cycle through the following display modes: DLS, Multiplex Name, Channel no. / Frequency, Time/Date, Programme Type, Audio Mode / Rate.

The information is displayed on the lower segment of the LCD display.

DLS (Dynamic Label Segment)

Dynamic Label Segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as program details etc.

Multiplex Name

A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area e.g. BBC World.

Channel no. / Frequency

The Channel no. and frequency of the present station will be displayed, such as "11C 220.352MHz".

Time/Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information. In the unlikely event that the broadcaster does not transmit any clock information, the display will show the incorrect time and date.

Programme Type

This describes the "Style" or "Genre" of music that is being broadcast e.g. "Rock" or "Classical".

Audio Mode / Bitrate

The display will show the audio mode (Stereo or Mono) and the digital audio bit rate being received.

Switching from DAB to FM Mode

To switch the unit to FM mode, press the Mode button repeatedly to select FM. The LCD display will show "switch to FM", and show the frequency.

Auto Scan

To search for an FM station, you need to press the Scan button. This will start scanning up the frequency band. To scan down the frequency band, press and hold the Scan button. Once a station has been found, the scanning will stop automatically.

If no station is found, then the tuning will stop once it has cycled through the entire FM band (87.5-108MHz).

Manual Scan

To search FM stations manually, simply press the ◀buttons repeatedly or press and hold until your desired frequency is reached.

With FM radio it may be necessary to fine tune each station by pressing the ◀buttons repeatedly. Each press will adjust the frequency by 0.05MHz. If reception is still poor adjust the position of the aerial or try moving the radio to another location.

Audio Mode

Press the Select button to toggle between the Auto or Mono options.

Presetting Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold the 0-10 buttons to store a desired radio station.

Recalling a Stored Station

1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the 0-10 buttons.
2. If you choose a preset that hasn't been allocated a station, the "Empty preset #" will be displayed.

Display Modes

Every time you press the DISPLAY/INFO button, the display will cycle through the following display modes: Programme Type, Time/Date, Radio Text, Channel Frequency.

Programme Type

This describes the "Style" or "Genre" of music that is being broadcast e.g. "Rock" or "Classical".

Audio Mode / Bitrate

The display will show the audio mode (Stereo or Mono) and the digital audio bit rate being received.

Time/Date

The broadcaster (Radio station) provides clock and date information automatically so there's no need to manually set this information. In the unlikely event that the broadcaster does not transmit any clock information; the LCD display will show

.

Radio Text

The broadcaster can include a scrolling text that displays information about the current program. If Radio text information is not available, then the LCD display will show

.

Channel Frequency

This shows the frequency of the current station.

GB

Cleaning the Unit

GB

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray an aerosol at or near the unit.

Problem Solution
No power • Ensure the	mains cable is connected securely at both ends.Make sure that the ON mode is selected.
The remote control does not function	Use the remote control near the unit.Point the remote control at the remote sensor on the unit.Replace the battery in the remote control with a new one.Remove any obstacles between the remote control and the unit.
Poor FM reception • Make sure FM aerial wire is fully extended.Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).
Clock does not show the correct time	There has been an electrical power interruption.
Alarm does not come on at the preset time	To turn on the RADIO or BEEP alarm, check the following points:Is the current time correctly set on the time display?Is the alarm time correctly set?

If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again.

Specifications

Model L1DA12E
Frequency Range DAB: 174 – 240 MHz KHzFM: 87.5 – 108 MHz
Mains Supply AC 100-240v ~ 50-60Hz
Net Weight 0.37kg
Dimensions 166mm(W) x 64mm(D) x 82mm(H)

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte ny Logik radioadapter for DAB+/DAB/FM.

Illustration of a cable with a plug and connector, no text or symbols present

FM-antenne Stereolydkabel Bruksanvisning

Hvis det mangler elementer eller de er skadet, kontakt Partmaster (kun Storbritannia).

Tel: [phone] for assistance.

Sett forfra

NO

1. LCD-skjerm
2. Fjernkontrollsensor

Sett bakfra

Simple line drawing of a device with an arrow pointing to a rectangular component (no text or symbols)

Behandle batteriet

Forbindelser

DLS-tekst (DLS = Dynamic Label Segment)

Illustration of a cable with a plug and pointer, no text or symbols present

FM-antenn Stereoljudkabel Bruksanvisning

Simple line drawing of a device with an arrow pointing to a rectangular component (no text or symbols)

SE

Hantera batteriet

DLS (Dynamic Lable Segment)

Simple diagram of a device panel with a rectangle and 'LOGIK' label (no additional text or symbols)

Laite

Coiled cable with a plug and connector, no text or symbols visible

Simple line drawing of a device with an arrow pointing to a component (no text or symbols)

DLS (Dynamic Label Segment)

Front view of a rectangular electronic device labeled 'LOGK' with a small circular button at the bottom (no other text or symbols)

Hovedenheden

Illustration of a cord with a plug and cable, no text or symbols present

Simple line drawing of a device with an arrow pointing to a rectangular component (no text or symbols)

DK

DK

Tilslutninger

DLS (Dynamic Label Segment)

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

- Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.

- Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket before a lightning storm.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adaptor plugged in the mains socket while unattended for long periods of time. Disconnect the adaptor from the power supply.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment.

To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

All trademarks are the property of their respective owners and all rights are acknowledged.

NO

Gradient background transitioning from white to dark gray, no text or symbols present

Gradient background transitioning from white to dark gray, no text or symbols present
