USER MANUAL HELMET CAMCORDER GEN4 ARCHOS

Woman in a fashion outfit with collage of multiple images, no visible text or symbols

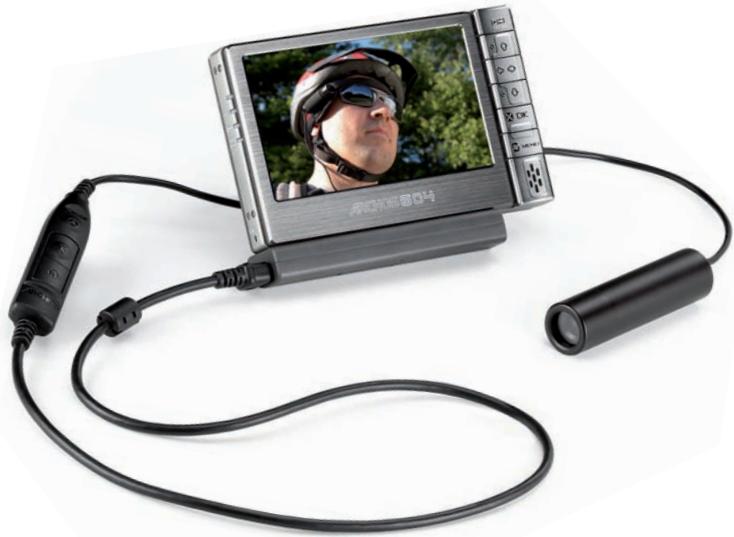

Digital camera module with attached cable and lens, showing a person in helmet and glasses (no visible text or symbols)

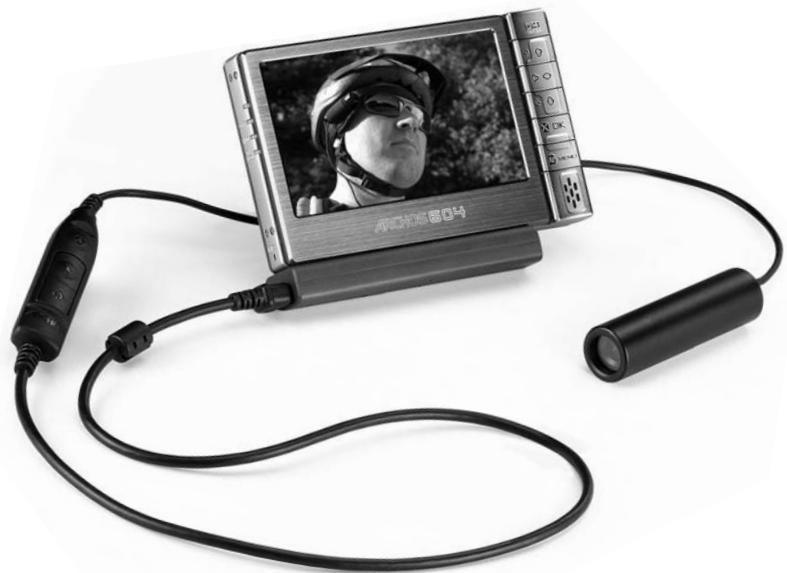

ARCHOS HELMET CAMCORDER

FOR ARCHOS 404, 504, 604 SERIES

ENGLISH USER GUIDE

Black-and-white photo of a portable electronic device with a camera and cable, featuring a person in a helmet (no visible text or symbols on the device body)

TABLE OF CONTENTS

Box Contents....3
Connections....3
Helmet CamCorder Description....4
Making Recordings....5
Precautions 8
Register Your Product!......9
Technical Specifications.... 10

? NEED HELP?

Here are some ways to find the information you may need:

On our Website

See the Frequently Asked Questions section on www.archos.com/faq.

Also visit www.archos.com/manuals for the most recent version of this manual.

Contact our Technical Support Team

Visit www.archos.com/support for e-mail support.

U.S. & Canada: Call 877-300-8879 (toll free)

Please note: actual box contents may vary and are subject to change without prior notice.

Black cylindrical object with a curved line extending from its tip, isolated on white background (no text or symbols)

Helmet CamCorder

Black textured fabric strap with rounded ends and a small protrusion at the end (no text or symbols visible)

Headband

Black rectangular object with attached tags and a small mark, resembling a battery or device (no visible text or symbols)

Protective Pouch

Black electronic device with ports and connectors (no visible text or symbols)

DVR Travel Adapter

This User Guide

Legal & Safety Notices

CONNECTIONS

You can make these connections before switching on the device or while it is running. Carefully connect/disconnect the adapter to/from your ARCHOS device.

Do not force: you could break the connectors!

Close-up of a black ARXOS 8043-branded electronic device with two connectors and a switch, no visible text or symbols on the device body.

Close-up of a black RJ48 connector with an attached cable, showing a play button and arrow (no text or symbols)

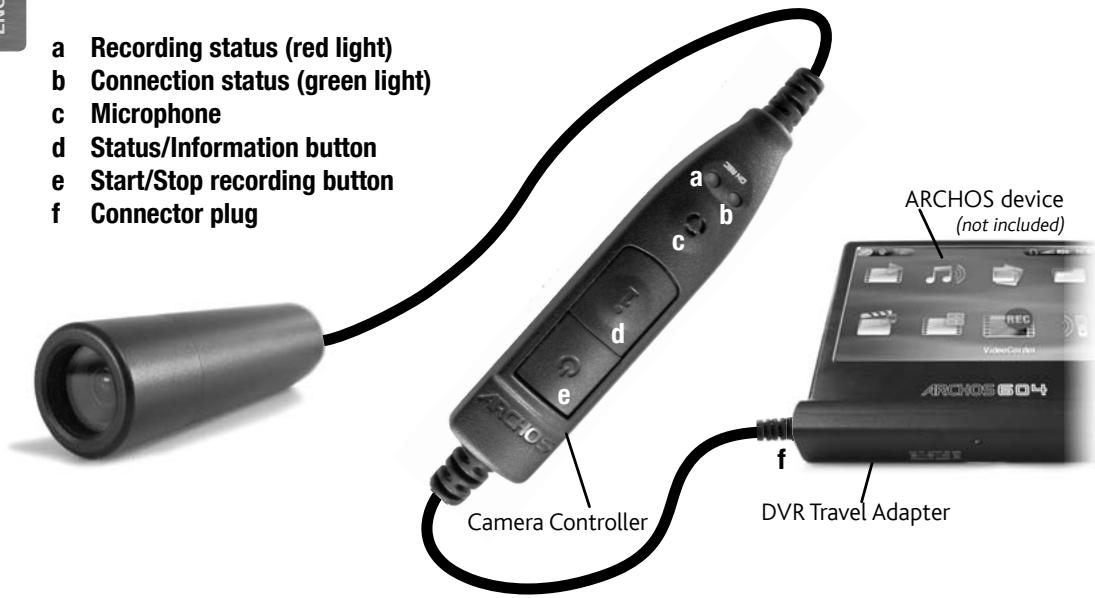

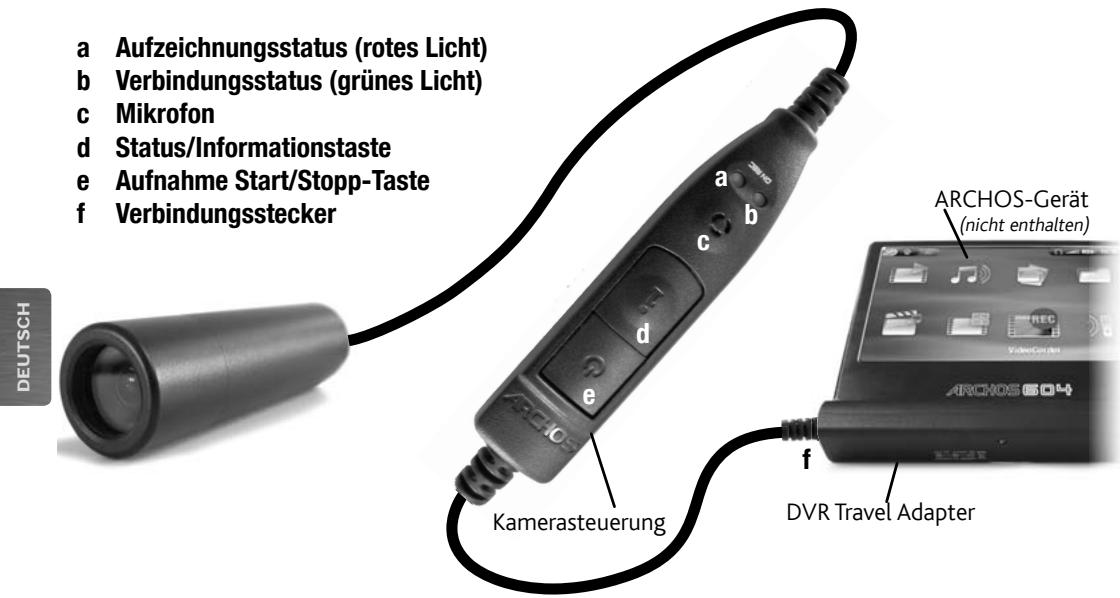

a Recording status (red light) b Connection status (green light) c Microphone d Status/Information button e Start/Stop recording button f Connector plug Camera Controller f DVR Travel Adapter ARCHOS device (not included)

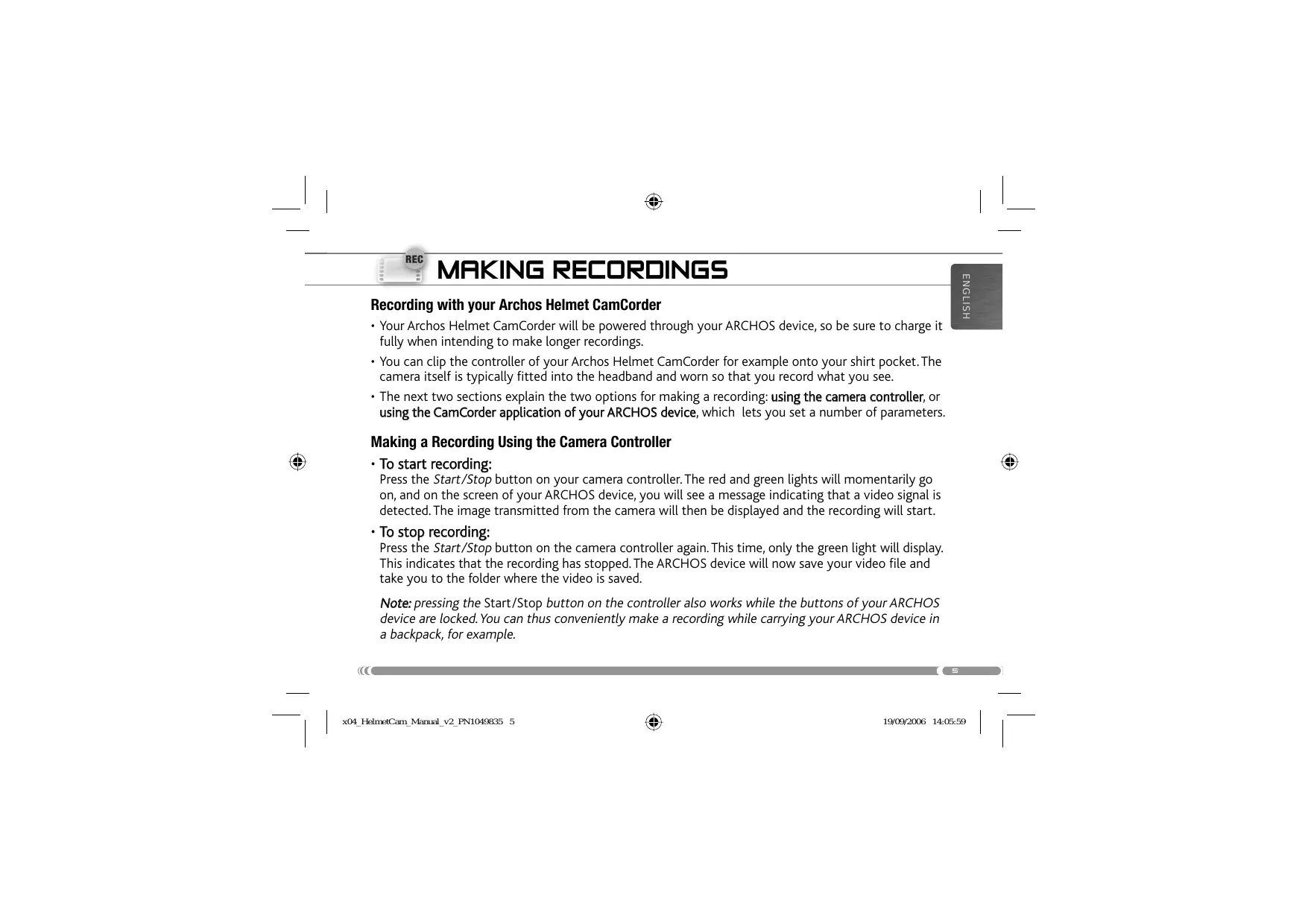

Recording with your Archos Helmet CamCorder

• Your Archos Helmet CamCorder will be powered through your ARCHOS device, so be sure to charge it fully when intending to make longer recordings.
• You can clip the controller of your Archos Helmet CamCorder for example onto your shirt pocket. The camera itself is typically fitted into the headband and worn so that you record what you see.
• The next two sections explain the two options for making a recording: using the camera controller, or using the CamCorder application of your ARCHOS device, which lets you set a number of parameters.

Making a Recording Using the Camera Controller

• To start recording:

Press the Start/Stop button on your camera controller. The red and green lights will momentarily go on, and on the screen of your ARCHOS device, you will see a message indicating that a video signal is detected. The image transmitted from the camera will then be displayed and the recording will start.

• To stop recording:

Press the Start/Stop button on the camera controller again. This time, only the green light will display. This indicates that the recording has stopped. The ARCHOS device will now save your video file and take you to the folder where the video is saved.

Note: pressing the Start/Stop button on the controller also works while the buttons of your ARCHOS device are locked. You can thus conveniently make a recording while carrying your ARCHOS device in a backpack, for example.

Making a Recording Using the CamCorder Application of your ARCHOS Device

• On the Home Screen, select the CamCorder icon and press OK to open the CamCorder application.
• Your ARCHOS device now powers the camera. On the screen, you see the image the camera is currently seeing. This preview screen thus permits you to adjust the position or direction of the camera before you start your recording.

Settings

• A number of settings such as resolution and bitrate can be adjusted. Normally you need not change these settings.
• To access these recording parameters, press MENU and select the Settings → menu item.
• To return to the pre-recording screen, press the ARCHOS device's ✗ button.
• Setting the Time Stamp parameter to 'ON' will show the date and time on the recorded image.

Note: For information on the other settings, please refer to the section on making a video recording in the user manual of your ARCHOS device. Please note that the parameter Format does not exist as the setting is pre-determined by the camera. For the same reason, the parameter Source can only be set to 'Composite' or 'Black & White'.

• To start recording, press the OK button or select the Start recording ● menu item.
• To pause and restart your recording, press the OK button or select the Pause 📄 or Resume 🔒 menu item.
• To stop and save your recording, press the ✗ button.

Note: alternatively, you can press the Start/Stop button on your camera controller to start and stop the recording.

Checking the Status of the Archos Helmet CamCorder

In order to find out whether the Helmet CamCorder is idle or recording, press the Status Button. The lights will indicate the status of the ARCHOS device as shown below:

• Red and green: the ARCHOS device is presently making a recording.
• Green: the Helmet CamCorder is connected correctly to the ARCHOS device and a recording can be started.
• No light: the Helmet CamCorder is not connected properly to the ARCHOS device or the device is off.

Notes on the Archos Helmet CamCorder

• Do not be concerned if the controller's lights are not lit while your Helmet CamCorder is in use. This is normal.
• The loudspeaker of your ARCHOS device will be disabled during the recording as this could result in audio feedback. The microphone integrated into the camera controller will record the sound. Therefore make sure that it is not covered in order to obtain the best possible sound for your recording.
• If images look distorted, you might be too close to the object you are filming. This effect is also referred to as “fish eye effect”. The range for obtaining undistorted images is between 1.5 and 10 meters.
• While the camera is connected to your ARCHOS device, the VideoCorder icon in the Home Screen will be replaced by the CamCorder icon.

Please note the following points in order to avoid damage to your Archos Helmet CamCorder:

• Do not attempt to take the camera apart. There are no customer-serviceable parts inside, and you could receive an electric shock.
• Handle the camera with care. A violent shock, for example through a fall, could damage it.
• Use the camera in moderate conditions. Avoid cold or hot temperatures, humidity over 85% , and dust or sand.
• The same precautions apply to the controller.
• Please be aware that the camera and controller are not water-proof and should be kept away from water.
• To clean the camera only use products specifically designed to clean optical lenses.
• NEVER direct the camera at the sun!

www.archos.com/register

Once you unpack your ARCHOS product, we ask that you take a few minutes to register it. This will ensure that you have access to our help line and that we will be able to answer your inquiries, either by telephone or e-mail in the quickest and timeliest manner. This will also allow us to keep you informed about software updates or special late-breaking information about your device. Please use your Internet connection and connect to the above shown web page to register your product.

Technical Specifications: Archos Helmet CamCorder

Resolution 420 TV Lines
CCD....1/4-inch SONY Super HAD color CCD
Lens......Fixed Pinhole 3.6mm
Field Of View 72.5 degrees
Depth of Field 1.5 to 10 meters
White balance....Automatic
Light Sensitivity....1.0 Lux / F 1.2
Power Supply ......Powered by ARCHOS device
Recording resolution with ARCHOS device 512 x 384 (Optimal) or 640 x 480 (VGA)
Weight......approx. 100 g – 3.5 oz with DVR Travel Adapter
Dimensions 20.5 mm (∅) × 72 mm (L)
CCD resolution....Model NTSC: 512 x 492 - Model PAL: 582 x 500
Operating temperature .... approx. 5°C to 35°C / approx. 41°F to 95°F
System requirements......ARCHOS 404, 504 or 604 series device

All brands and product names are registered trademarks and the property of their respective owners.

Specifications are subject to change without notice. Errors or omissions excepted. Images and illustrations may not always match contents.

All the information contained in this guide was correct at the time of publication.

COPYRIGHT ARCHOS™ © 2006. All rights reserved.

ARCHOS HELMET CAMCORDER

POUR ARCHOS 404, 504, 604

FRANÇAIS GUIDE D'UTILISATION

Black-and-white photo of a portable electronic device with a camera and cable, no visible text or symbols on the device body.

TABLE DES MATIÈRES

Black cylindrical object with a curved line extending from its tip, isolated on white background (no text or symbols)

Helmet CamCorder

Black-and-white photo of a strapless cable or harness (no text or symbols visible)

Bandeau

Black rectangular object with attached wires, no visible text or symbols

Étui de protection

Black electronic device with ports and connectors (no visible text or symbols)

DVR Travel Adapter

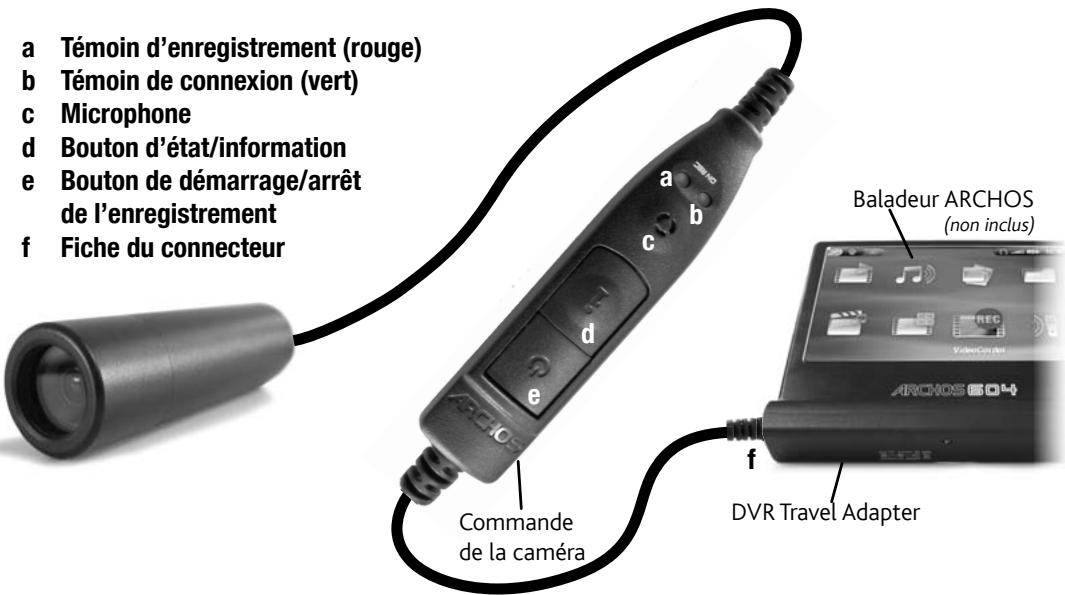

Close-up of a black ARXOS 800 smartphone with two USB port connectors and a disassembled base (no visible text or symbols)

Close-up of a black RJ48 connector with an attached black cable, showing a play button and arrow (no text or symbols)

Black-and-white photo of a portable electronic device with a camera and cable, featuring a person in a helmet (no visible text or symbols on the device body)

Black cylindrical object with a curved line extending from its end, isolated on white background (no text or symbols)

Helmet CamCorder

Black textured fabric strap with a small protrusion (no text or symbols visible)

Cinta para cabeza

Black rectangular object with attached tags and a small white mark on the side (no visible text or symbols)

Estuche protector

Black electronic device with ports and connectors (no visible text or symbols)

DVR Travel Adapter

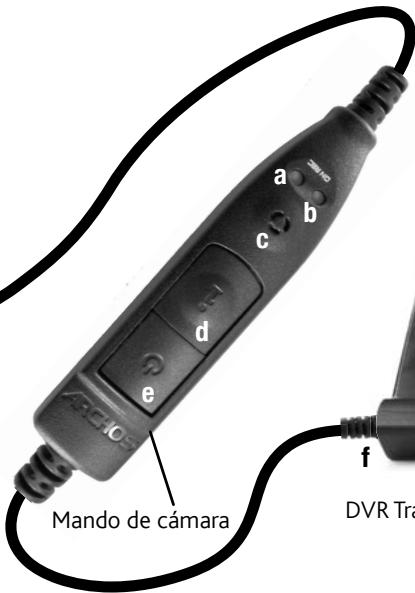

Close-up of a black ARXOS 800 smartphone with two USB port connectors and a disassembled base (no visible text or symbols)

Diagram showing a device with a play button and an attached plug labeled 'RV IN' (no text or symbols on the device itself)

Black cylindrical object with a lens, shown against a white background (no text or symbols visible)

Black-and-white photo of a portable electronic device with a camera and cable, featuring a person in a helmet (no visible text or symbols on the device body)

Lieferumfang 33

Verbindungen....33

Black cylindrical object with a curved line extending from its tip, isolated on white background (no text or symbols)

Helmet CamCorder

Black textured fabric strap with rounded ends and a small protrusion at the end (no text or symbols visible)

Stirnband

Black rectangular object with attached tags and a small mark, resembling a battery or device (no visible text or symbols)

Schutztasche

Black electronic device with ports and connectors (no visible text or symbols)

DVR Travel Adapter

Close-up of a black ARXOS 800 smartphone with two USB port connectors and a disassembled base (no visible text or symbols)

Close-up of a black cable connector with an attached audio jack, showing a play button and arrow (no text or symbols)

Black-and-white photo of a portable electronic device with a camera and cable, no visible text or symbols on the device body.

Black cylindrical object with a curved line extending from its tip, isolated on white background (no text or symbols)

Helmet CamCorder

Black textured fabric strap with rounded ends and a small protrusion at the end (no text or symbols visible)

Fascia

Black rectangular object with attached tags and a small mark, resembling a battery or device (no visible text or symbols)

Custodia protettiva

Black electronic device with ports and connectors (no visible text or symbols)

DVR Travel Adapter

Guida dell'utente

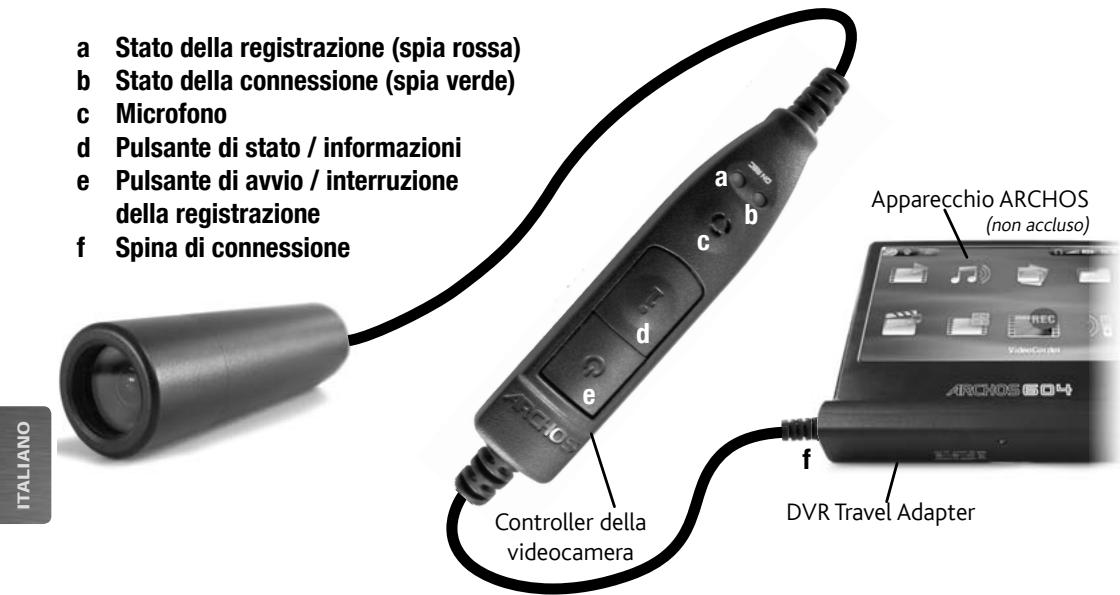

Close-up of a black ARXOS 800 smartphone with two USB port connectors and a disassembled base (no visible text or symbols)

Close-up of a black audio adapter with an attached RJ48 connector, showing a play button and cable insertion (no text or symbols visible)

Black-and-white photo of a portable electronic device with a camera and cable, featuring a person in a helmet (no visible text or symbols on the device body)

Black cylindrical object with a curved line extending from its tip, isolated on white background (no text or symbols)

Helmet CamCorder

Black textured strap with a looped end, no visible text or symbols

Hoofdband

Black rectangular object with attached wires, no visible text or symbols

Beschermtas

Black electronic device with ports and connectors (no visible text or symbols)

DVR Travel Adapter

Close-up of a black ARXOS 800 smartphone with two USB port connectors and a disassembled base (no visible text or symbols)

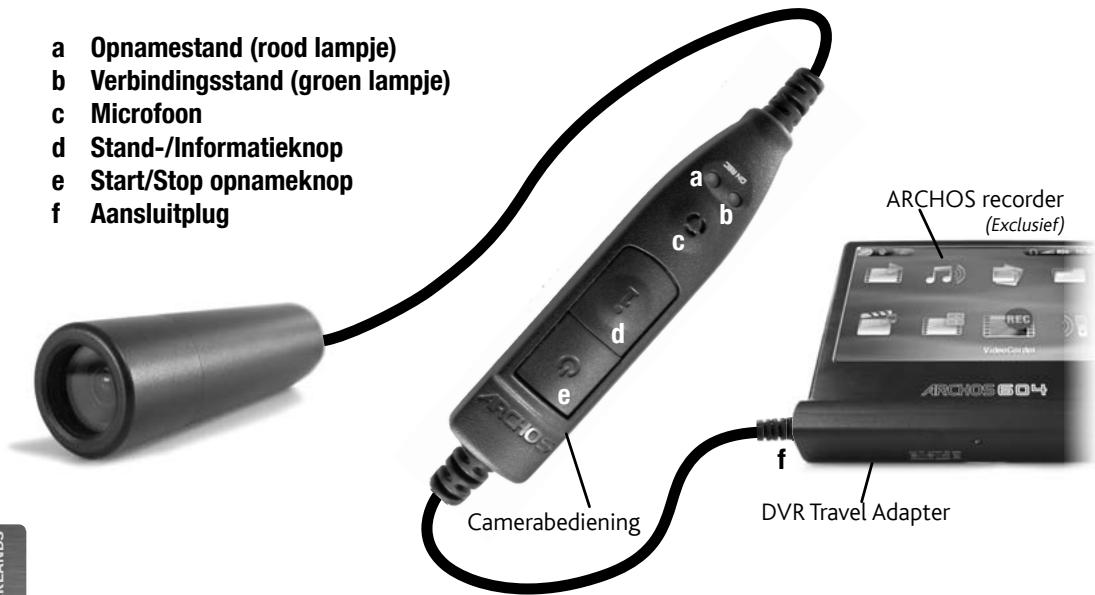

Diagram showing a device with an arrow pointing to a plug inserted into a network (no text or symbols present)

Electronic device with a fan and cord, no visible text or symbols

register your product: www.archos.com/register

frequently asked questions: www.archos.com/faq

download the latest manual: www.archos.com/manuals

technical support: www.archos.com/support

All brands and product names are registered trademarks and the property of their respective owners.

Specifications are subject to change without notice. Errors or omissions excepted. Images and illustrations may not always match contents.

All the information contained in this guide was correct at the time of publication.

COPYRIGHT ARCHOS™ © 2006. All rights reserved.
