AVVISO IMPORTANTE

IMPORTANTE: PRIMA DELL'USO LEGGERE ATTENTAMENTE QUESTO LIBRETTO D'ISTRUZIONI PER EVITARE PERICOLI NELL'UTILIZZO E CONSERVARLO PER OGNI FUTURO RIFERIMENTO. LA SICUREZZA DEL VOSTRO BAMBINO PUO' ESSERE IN PERICOLO SE NON SEGUITE ATTENTAMENTE QUESTE ISTRUZIONI.

ATTENZIONE: PRIMA DELL'USO RIMUOVERE ED ELIMINARE EVENTUALI SACCHETTI DI PLASTICA E TUTTI GLI ELEMENTI FACENTI PARTE DELLA CONFEZIONE DEL PRODOTTO O COMUNQUE TENERLI LONTANI DALLA PORTATA DEI BABBINI.

AVVERTENZE

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE.

YOUR CHILD'S SAFETY MAY BE AFFECT IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

WARNINGS

• WARNING: A CHILD'S SAFETY IS YOUR RESPONSABILITY!
• WARNING: keep children away from all moving parts whilst you adjust the stroller.
• WARNING: It may be dangerous to leave your child unattended.
• WARNING: Children should be harnessed in at all times and should never be left unattended.
• WARNING: The child should be clear of moving parts while making adjustments.
• This vehicle requires regular maintenance by the user.
• WARNING: Before assembly, check that the product and all of its components have not been damaged during transportation. Should any part be damaged do not use, and keep out of reach of children.
• WARNING: Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. It may be unsafe to use accessories, e.g. bag hooks, rain covers, etc. other than those approved by the manufacturer or distributor.
• WARNING: It may be unsafe to use replacement parts other than those supplied or approved by the manufacturer or distributor.
• WARNING: This stroller is intended for use for children aged between birth and 36 months of age, up to 15kg of weight.
• It is recommended that the backrest should be used in its most reclined position for children from birth to 6 months of age.
• WARNING: With children younger than 6 months of age, always use the shoulder straps in the low-

est position.

- WARNING: Ensure that all the locking devices are engaged before use. In particular, ensure that the stroller is locked in the open position, by checking that the two sides are effectively locked.

- Do not overload the storage basket. Maximum weight 3 kg.

- Do not let your child climb onto the storage basket: it could break the basket, injure the child and overturn the stroller.

- Do not carry more than one child at a time.

- Do not use accessories, spare parts, or any component not supplied or approved by the manufacturer, as they may make the stroller unsafe.

- WARNING: Any load attached to the handle affects the stability of the stroller.

- WARNING: Always use the crotch strap in combination with the waist belt. The use of the crotch strap and safety harness is necessary to guarantee the safety of your child.

- Ensure that the person using the stroller knows how to use it safely.

- WARNING: When opening or closing the stroller, ensure that your child is at a safe distance. Do not attempt to open or close the stroller with a child on board. Ensure that during these operations, the movable parts of the stroller do not come into contact with your child.

- Always apply the brakes whenever the stroller is stationary.

- WARNING: Never leave the stroller on a sloped surface with a child on board, even with the brakes applied.

- Do not let other children play unattended close to the stroller or climb on it.

- To prevent the risk of choking, do not give to your child, or place near it, any objects with strings.

- Do not use the stroller on stairs or elevators: it could cause the loss of control of the stroller.

- Pay special attention when manoeuvring the stroller up or down pavements or a step.

- If the stroller is left exposed to direct sunlight for a long time, allow it to cool before placing your child in it. Prolonged exposure to direct sunlight may cause the materials and fabric to fade.

- Do not use the product if some of its parts are broken, torn or missing.

- WARNING: When it is not used, the stroller must be kept away from the reach of children.

• WARNING: This product is not suitable for running or skating.
• Prevent the stroller from coming into contact with salt water. It may cause the formation of rust.
• Do not use the stroller on the beach.
• WARNING: This product must only be pushed by an adult.
• Do not use the stroller on stairs or elevators: it could cause the loss of control of the stroller. Pay special attention when manoeuvring the stroller up or down pavements or a step.

CLEANING AND MAINTENANCE

The cleaning and maintenance of this product must be carried out on a regular basis by the user. The cleaning and maintenance of the stroller must only be carried out by an adult.

Cleaning

The cover is not removable. Clean the fabric parts with a damp sponge and neutral detergent. Please refer to the care label. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.

Wash by hand in cold water

Do not bleach.

Do not tumble dry

Do not iron.

Do not dry clean.

Maintenance

Lubricate the moving parts only if necessary, with a light application of a silicone based lubricant. Regularly check the condition of the wheels and, keep them clean of dust and sand. To avoid friction that may prevent the correct operation of the stroller, ensure that all the movable plastic parts placed along the metal frame are clean of dust, dirt or sand. Keep the stroller in a dry place.

GENERAL INSTRUCTIONS

HOW TO ASSEMBLE THE FRONT WHEELS

1. Fit the front wheel unit to the stroller and lock it into position (see diag. 1). A "click" will be heard indicating that the front wheel unit is fitted correctly into position. Repeat this operation with the other wheel unit.

WARNING: Before use, ensure that the wheel units are safely locked into position.

WARNING: When opening the stroller, ensure that your child, or other children, are at a safe distance. Ensure that during these operations the movable parts of the stroller do not come into contact with your child.

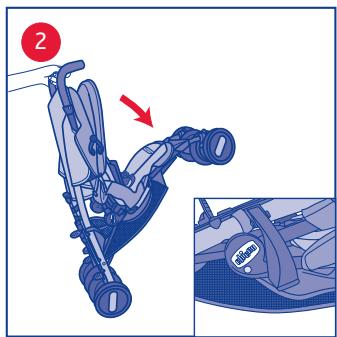

1. Release the closing device and push the front part of the stroller forward (diag. 2).

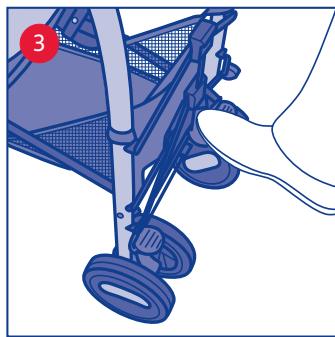

2. Push the rear locking mechanism downward with your foot (diag. 3).

Ensure that the stroller is correctly locked in the open position.

WARNING: Before use, ensure that the stroller is locked in the open position, by checking that the locking mechanism, at the rear of the stroller, is effectively secured.

MOUNTING THE REAR WHEELS

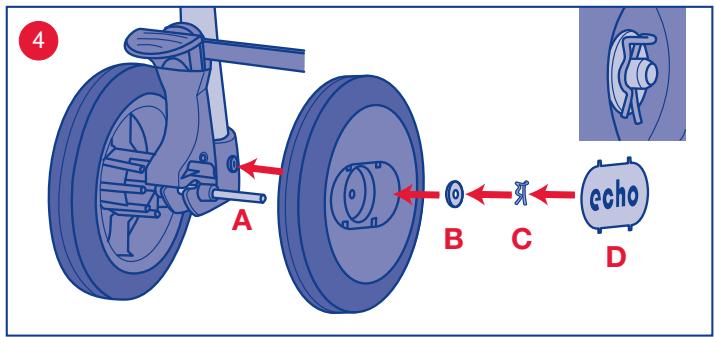

1. As shown in figure 4, insert pin A in the wheel. Insert the pin together with the wheel in the hole located at the lower end of the rear leg tube. Then insert the second wheel and washer B. Secure everything using clip C (fig. 4A). Cover both wheels with wheel cover D. Repeat the procedure on the other side.

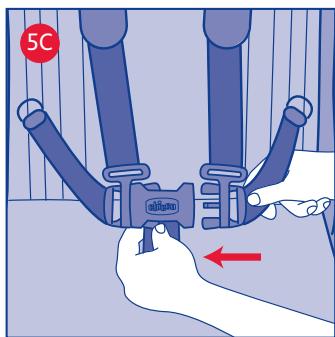

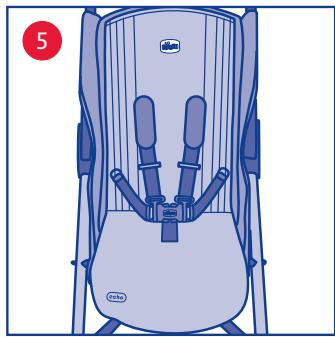

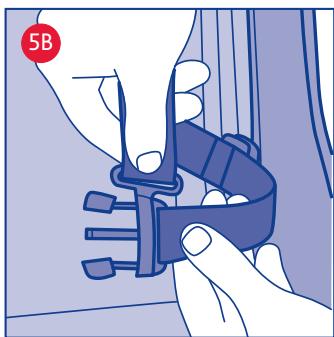

HOW TO USE THE SAFETY HARNESS

This stroller has a 5-point safety harness that features two shoulder straps, two adjustment holes, a waist strap and a crotch strap with buckle

WARNING: When using the safety harness with children from birth up to approximately 6 months of age, it is necessary to fit the shoulder straps. Carry out this operation by inserting them first through the two adjustment holes.

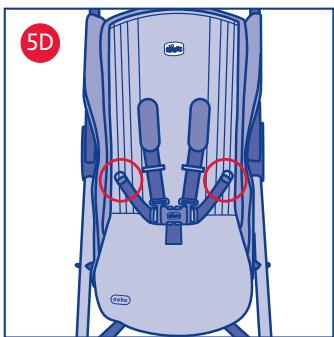

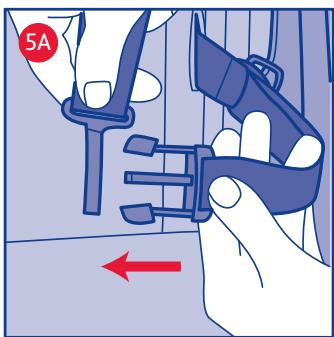

1. If necessary, adjust the height of the shoulder straps, inserting them into the adjustment hole, as shown in diagram 5. After sitting your child in the stroller, fasten the safety harness, first inserting the two prongs into the hole located on the shoulder straps (diag. 5A and 5B) and then into the buckle of the crotch strap (diag. 5C). Adjust the length of the straps, ensuring that they adhere to the child's shoulders and body correctly. To unfasten the waist strap, press and pull the side prongs.

WARNING: Children should be harnessed in at all times. To ensure your child's safety, it is necessary to always use the safety harness. For extra safety, "D" rings are provided for the attachment of a separate safety harness approved to BS6684. They are located inside the seat on the left and right, see diagram 5D above.

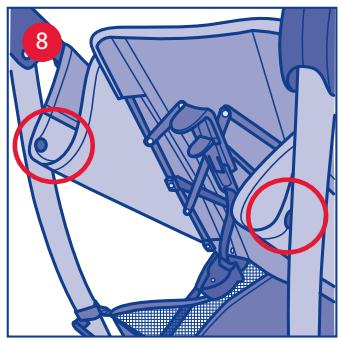

HOW TO ADJUST THE BACKREST

The backrest can be adjusted to various positions.

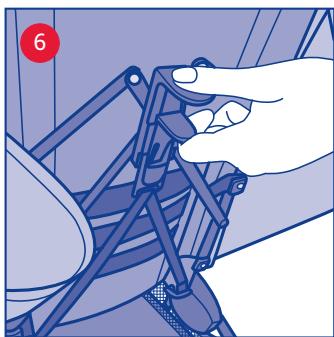

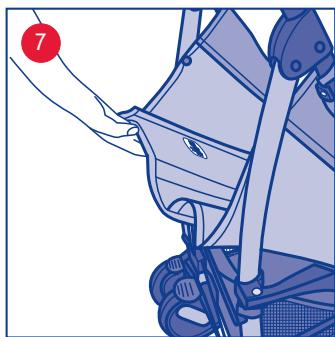

1. To adjust the inclination of the backrest, press the button located on the backrest. Release the button to lock the backrest in the nearest position (diag. 6).
2. To raise the backrest to the desired position, simply push it in an upward direction (diag. 7).
3. For maximum comfort, fasten the two side fabric flaps to the rear tube with the press studs, as shown in diagram 8.
   WARNING: The child's weight can make these operations difficult.

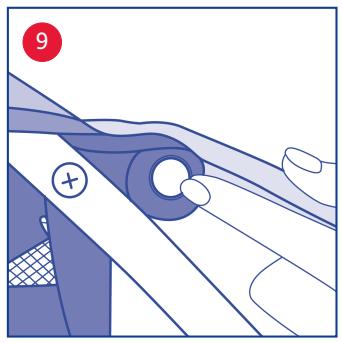

ADJUSTING THE LEG REST

The stroller's leg rest can be adjusted to two positions to offer extra comfort to your child.

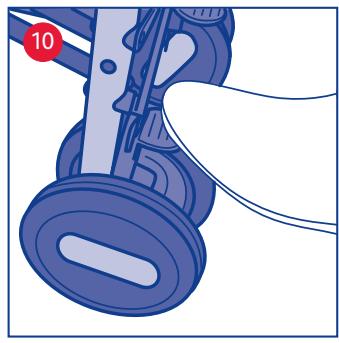

1. Press simultaneously the two side buttons, as shown in diagram 9, to adjust the leg rest to the desired position.

REAR BRAKES

The rear wheels have linked brakes, which can be applied simultaneously to the two double rear wheels by using only one pedal.

1. To apply the brakes, push one of the two levers located at the centre of the rear wheels in a downward direction, as shown in diagram 10.

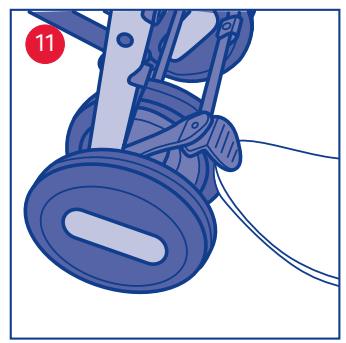

2. To unlock the braking system, push one of the two levers located at the centre of the rear wheels in an upward direction, as shown in diagram 11.

WARNING: Always apply the brakes whenever the stroller is stationary. Never leave your child unattended.

WARNING: Never leave the stroller on a sloped surface, with a child onboard, even with the brakes applied.

WARNING: After operating the brake lever, ensure that the brakes have been correctly applied to all the rear wheel units.

SWIVEL WHEELS

The stroller has front swivel wheels.

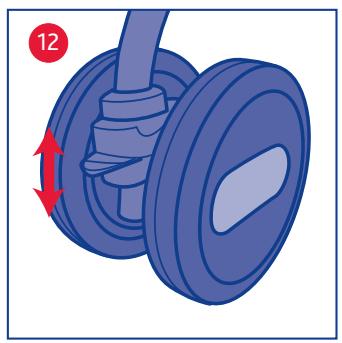

1. To unlock the swivel wheels, lower the lever located between the two wheels. Use the swivel wheels on smooth surfaces. To lock the wheels, push the lever in an upward direction (diag. 12).

WARNING: the swivel wheels make the stroller easier to manoeuvre; on uneven surfaces it is recommended to use locked front wheels to guarantee the safe use of the stroller (on gravel, unpaved

roads, etc.).

WARNING: Both wheels must always be locked or unlocked at the same time.

ACCESSORIES:

WARNING: The accessories described below may not be available for some versions of this product. Please read carefully the instructions on the accessories available for the model purchased.

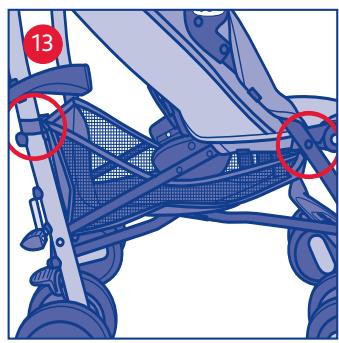

STORAGE BASKET

The stroller may be equipped with a storage basket.

1. Fit the storage basket by fastening the straps around the stroller's frame, in the positions shown in diagram 13.

WARNING: Do not load the storage basket with weights over 3 Kg.

HOOD

The stroller can be fitted with summer / winter hood.

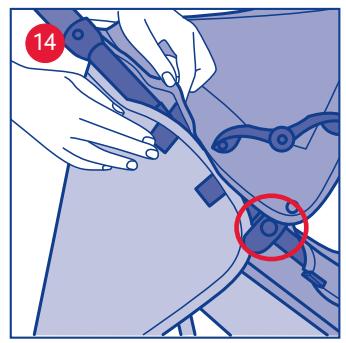

1. To fit the hood, fasten the plastic clips and the Velcro straps in the specific positions, as shown in diagram 14.

WARNING: the hood must be fixed on both sides of the stroller. Ensure that the hood is correctly secured into position.

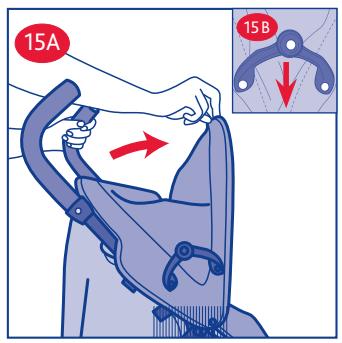

1. Open the hood as shown in diagram 15A, and lock it by pressing the two side calliper shaped mechanisms (diag. 15B). WARNING: If you wish to close the hood, always unlock the two side calliper shaped mechanisms first.

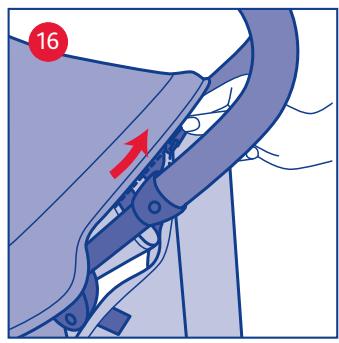

2. The hood can become a summer sun-canopy. The rear panel may be removed by unfastening the zip and Velcro straps on the sides, as shown in diagram 16.

RAIN COVER

The stroller may come with a rain cover.

WARNING: The rain cover must always be used under adult supervision.

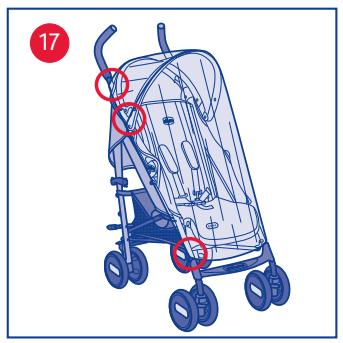

1. To fit the rain cover, use the Velcro straps, in the positions shown in diagram 17. If the rain cover is wet after use, let it dry out before folding it.

WARNING: do not use the rain cover if the stroller is not fitted with hood or sun-canopy to prevent the risk of suffocation.

WARNING: if the rain cover is fitted to the stroller, never leave the stroller with the child onboard to prevent the risk of the child overheating.

Important Note: The pictures and instructions contained in the booklet refer to the complete stroller model. Some of the components and functions described here may vary according to the model purchased.

WARNING: When closing the stroller, ensure that your child, or other children, are kept at a safe distance. Ensure that during these operations the moveable parts of the stroller do not come into contact with your child. Before closing the stroller, also ensure that the storage basket is empty.

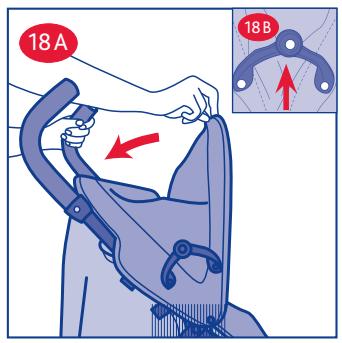

1. If it is open, close the hood, raising the two side calliper shaped mechanisms (diagram 18B) and pulling the front part of the hood towards you, as shown in diagram 18A.

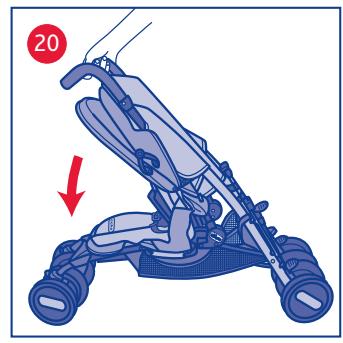

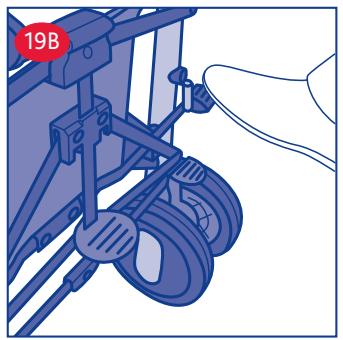

2. To close the stroller, pull the rear locking mechanism in an upward direction (diag. 19A), and unlock the pedal, located on the right side of the stroller, with your foot (see diag. 19B).

3. To close the stroller completely, push the handles forward.

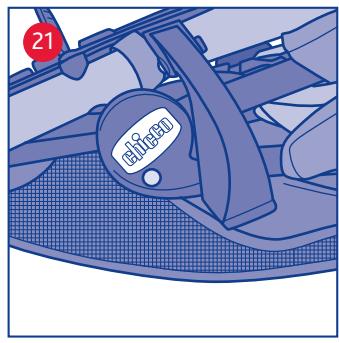

4. Lock the stroller in the closed position with the locking device located on the side (see diag. 21). This operation prevents the accidental opening of the stroller.

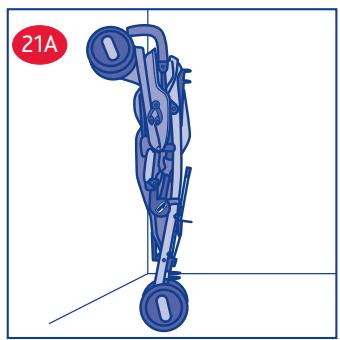

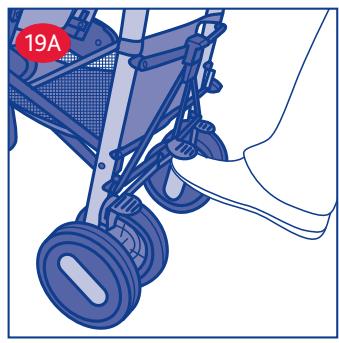

The rear wheels can be locked in place so the stroller can be simply stood up, rested against a vertical surface, on its own (diag. 21A).

FOR FURTHER INFORMATION, PLEASE CONTACT:

ARTSANA UK Ltd

Prospect Close

Lowmoor Road

Kirkby in Ashfield

Nottinghamshire NG17/7 LF

England

Customer Services Helpline Tel: [phone]

(office hours only)
