USER MANUAL Taormina CHICCO

Line drawing of a baby stroller with four wheels and a canopy (no text or symbols)

chicco®

Illustration of a hand using a bicycle pedal device with a red arrow indicating motion (no text or symbols present)

Line drawing of a chair with legs and seat, no text or symbols present

Illustration of a hand using a tool to lift a car wheel, with a red arrow indicating the motion (no text or symbols present)

2A 1 2

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

3A 1 2

Technical diagram showing mechanical assembly with numbered callouts highlighting specific components

4A 2

Diagram of a car seatbelt with two vertical bars and two highlighted circular features, no text or symbols present.

66 B A C

Line drawing of a person adjusting a seatbelt with a red circular marker (no text or symbols)

Line drawing of a hand holding a small object with a red circular mark, no text or symbols present

Line drawing of a hand holding a seatbelt inside a vehicle seat frame (no text or symbols)

Line drawing of a hand using a tool to adjust a car seatbelt (no text or symbols present)

Illustration of a hand operating a stroller with a red arrow indicating motion (no text or symbols)

Line drawing of a person using a canopy cover device, with no text or symbols present

Top-down line drawing of a car backrest with red circular markers indicating points of interest (no text or symbols present)

9B

10

11 A B

11A

Line drawing of a stroller with wheels and a handle, no text or symbols present

Line drawing of a hand using a clamp to adjust or install a car seatbelt (no text or symbols present)

Top-down line drawing of a car interior with no visible text or symbols

IT ISTRUZIONI D'USO

IMPORTANTE - LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFE-RIMENTO.

ATTENZIONE: PRIMA DELL'USO RI-MUOVERE ED ELIMINARE EVENTUALI SACCHETTI DI PLASTICA E TUTTI GLI ELEMENTI FACENTI PARTE DELLA CONFEZIONE DEL PRODOTTO O COMUNQUE TENERLI LONTANI DALLA PORTATA DEI BAMBINI.

AVVERTENZE

EN INSTRUCTIONS FOR USE IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

WARNINGS

• WARNING: Never leave the child unattended.
• WARNING: Ensure that all the locking devices are engaged before use.
• WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.
• WARNING: Do not let the child play with this product.
• WARNING: Always use the restraint system.
• The use of the crotch strap and safety harness is essential to ensure the safety of the child. Always use the safety harness together with the crotch strap.
• WARNING: This product is not suitable for running or skating.
• The vehicle is suitable for children up to 22 kg or 4 years, or whichever limit is reached first.
• The backrest should be used in its most reclined position for children from birth to 6 months of age.
  • The parking brake must always be

engaged when positioning or re- moving the child.

• Use the brake every time you stop.
- Never leave the stroller on a sloped surface, with a child on board, even when the brakes are on.
- Do not overload the storage basket. Maximum weight 5 kg.
- Any weight attached to the handles and/or backrest and/or on the sides of the stroller may effect the stability of the stroller.

- Do not transport more than one child at a time.

- Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer / distributor.

- Do not use this product if any part is broken, torn or missing.

- Before assembling, ensure that the product and its components have not been damaged during transportation. In this case, do not use and keep out of reach of children.

- During adjustment operations, ensure that the moving parts of the stroller do not come into contact with your child.

• Make sure that the person using the stroller knows how to operate it in the safest way.

- This product must only be used by an adult.

• The product must only be assembled by an adult.

- To avoid all strangulation hazards, never give children objects with cords or strings attached, or leave them close to such objects.

- Never use the stroller on staircases or escalators: you could suddenly

lose control of it.

• Always pay attention when going up and down steps or pavements.
- If the stroller is left exposed to direct sunlight for an extended period of time, allow it to cool down before placing your child inside. Prolonged exposure to direct sunlight may cause the colour of the materials and fabric to fade.
- Prevent the stroller from coming into contact with salt water. It may cause rusting.
- Do not use the stroller on the beach.
- When not in use, the stroller should be kept out of reach of children.

TIPS FOR CLEANING AND MAINTENANCE

This product requires periodical maintenance. Cleaning and maintenance should only be carried out by an adult.

CLEANING

The cover cannot be removed. Clean the fabric parts using a wet terycloth and neutral soap. Periodically wipe the plastic parts clean with a soft damp cloth. To prevent the formation of rust, always dry metal parts if they have come into contact with water.

The washing symbols and relative meanings are indicated below:

Do not wash with water

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

MAINTENANCE

If necessary, lubricate the moving parts with dry silicone lubricant. Regularly check the condition of the wheels and clean off all dust and sand. Keep the stroller in a dry place.

GENERAL INSTRUCTIONS

OPENING THE STROLLER AND FIRST ASSEMBLY

WARNING: When opening the stroller, make sure that your child or other children are at a safety distance.

WARNING: Make sure that during these operations the moving parts of the stroller do not come into contact with your child.

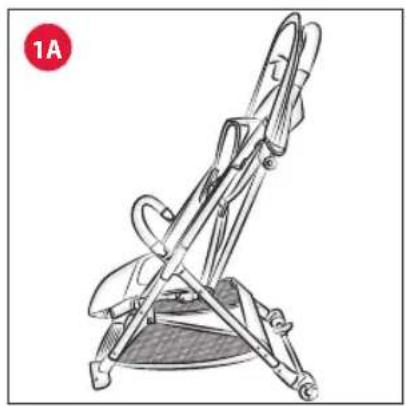

1. Take hold of the handle (Fig. 1) and pull the stroller upwards until the structure is fully open (Fig. 1A).

WARNING: Before use, ensure that the stroller is locked in the open position, checking that the mechanism is effectively locked.

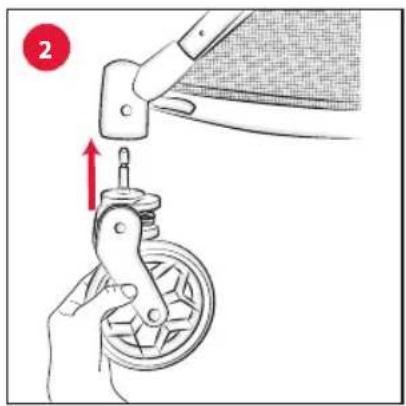

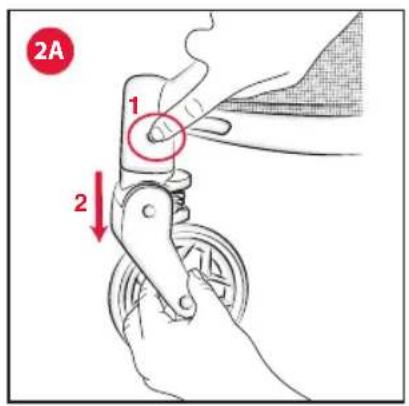

1. Mount the front wheels on the stroller and push until they are locked in position (Fig. 2). To remove the front wheels, press the button shown and pull down on the wheel (Fig. 2A).

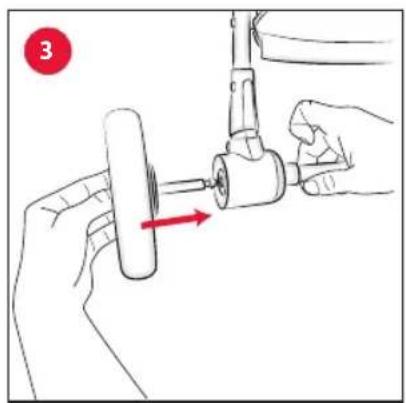

2. Fit the rear wheels by inserting the wheel pin into the appropriate

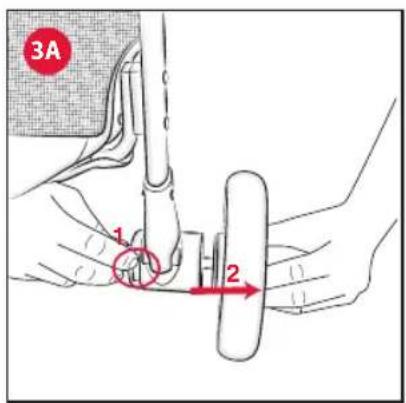

hole on the rear tube (Fig. 1). 3). To remove them, press the button indicated and pull outwards (Fig. 3A).

WARNING: Before use, ensure that the wheels have locked correctly.

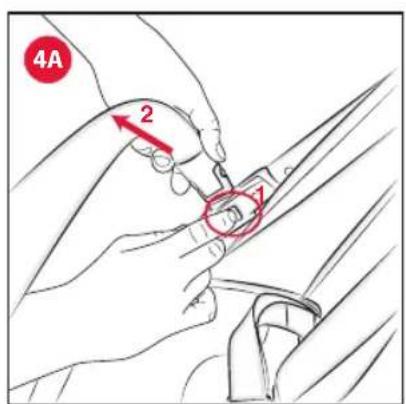

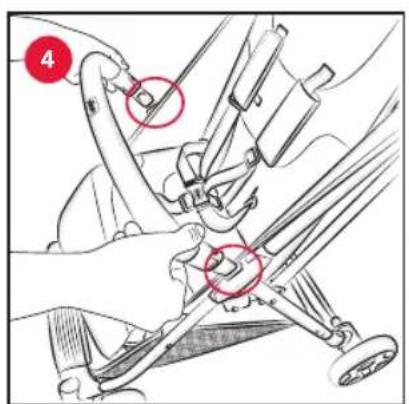

1. Install the bumper bar by inserting it into the appropriate slots located on the joints of the stroller (Fig. 4). If it needs to be removed, press on the buttons located on the inside of the joints (Fig. A). 4A).

WARNING: Never use the bumper bar to lift the product with your child sitting in it.

HOW TO USE THE SAFETY HARNESS

The stroller has a five-point safety harness featuring two shoulder straps, two adjuster slots, a waist strap and a crotch strap with buckle.

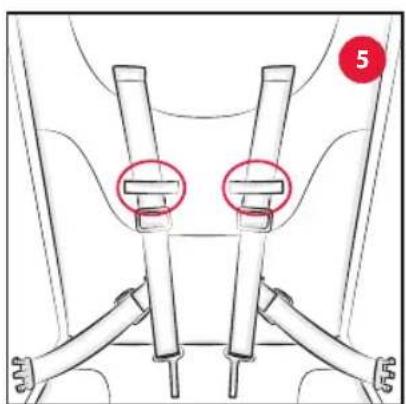

1. WARNING: When using with children up to 6 months of age, the shoulder straps must be passed through the 2 adjuster slots (Fig. 5).

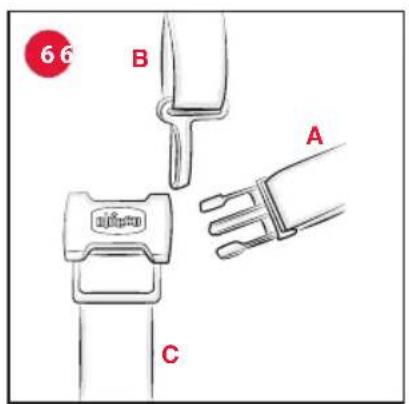

2. After having placed the child in the stroller, fasten the belts (Fig. 6) passing the two prongs (A) through the shoulder strap buckle (B) and then through the crotch strap (C); adjust the height of the shoulder straps so that they correctly fit your child's shoulders (Fig. 6A). Always make sure that the straps are fastened correctly. To unfasten the strap, press and pull the side clips. If the lap belts are removed, they can be reassembled by passing the plastic buckles through the slots on the backrest (diag. 6B) until fully engaged at the back. Pull firmly to check correct installation.

WARNING: To ensure the safety of your child, the safety harness must be fastened at all times. To make sure the harness straps are fitted correctly, place your child inside the stroller and pull the ends of the straps firmly.

The backrest can be adjusted to several positions.

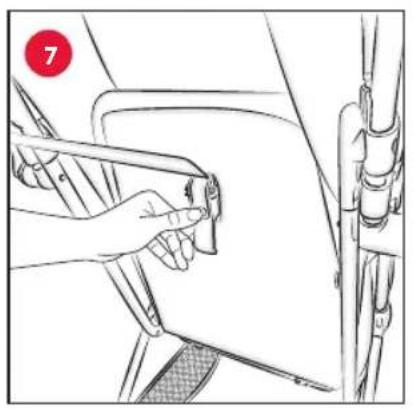

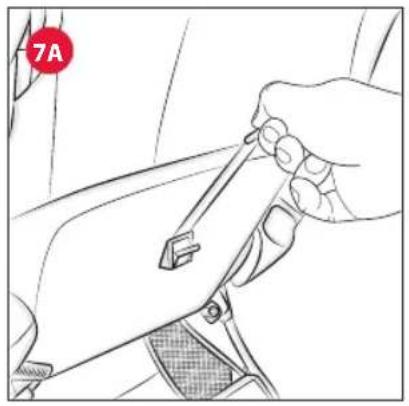

1. To recline the backrest, use the rear adjustment system, pressing the button and pulling the backrest downwards (Fig. 7) until the desired position is reached. Meanwhile, to raise the backrest, pull the strap upwards (Fig. 7A).

WARNING: The child's weight can make these operations more difficult.

REAR BRAKES

The rear wheels have linked brakes, which can be applied simultaneously on both rear wheels using the pedal located between them.

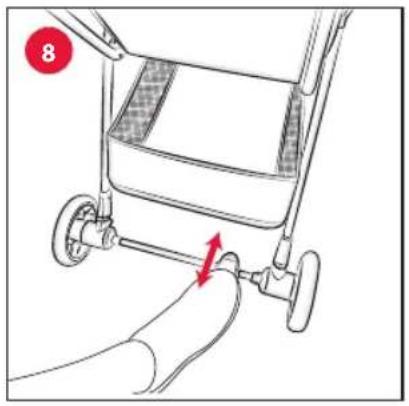

1. To activate the brakes, press down on the pedal (Fig. 8). To release the brakes, press the pedal in the opposite direction.

SUN CANOPY

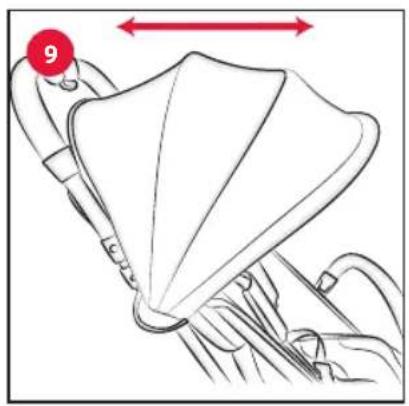

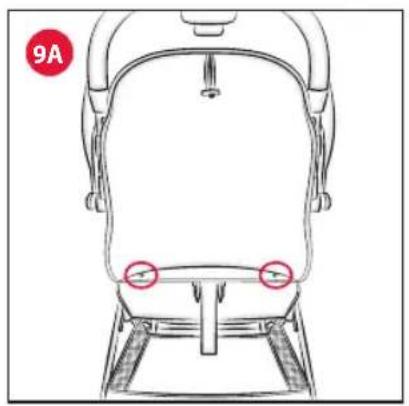

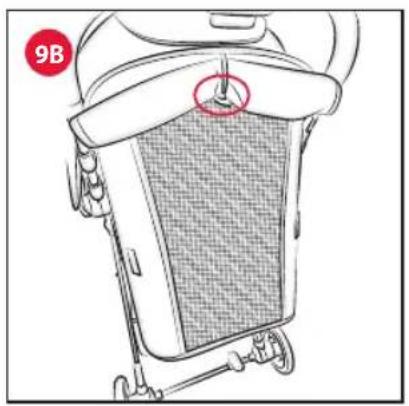

1. The canopy is already installed on the stroller. To open or close it, use the front metal arch (Fig.9). The hood can be extended by opening the zip fastener and is fitted with a window for observing the child. The rear flap can be lifted by undoing the buttons at the base, and securing it at the top with a buttonhole and button (Fig. 9A-9B).

ADJUSTABLE LEGREST

The legrest can be used in 2 positions.

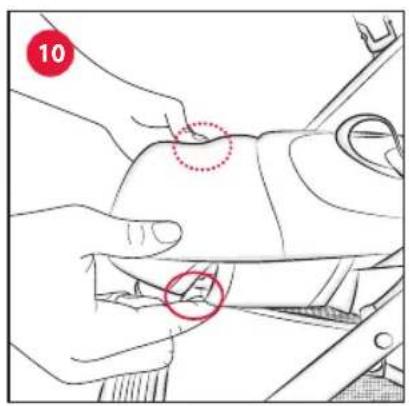

1. To use the legrest in the horizontal position, simply push it upwards. To lower it, press the levers under the legrest on both sides and push down. (Fig. 10).

WARNING: When opening or closing the stroller, make sure that your child or other children are at a safe distance.

Before closing the stroller, ensure that the storage basket is empty. The stroller has a closing device that can be operated with one hand.

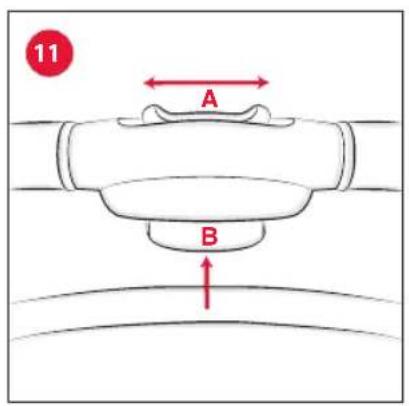

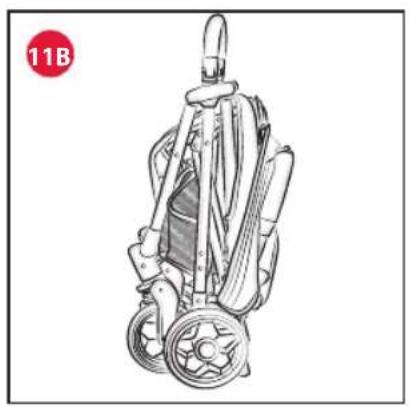

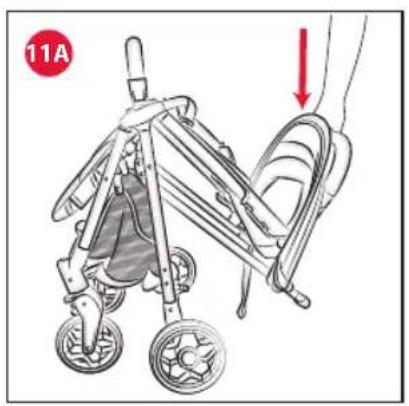

1. To close the stroller, push arrow "A" to the left or right whilst simultaneously pressing button "B" (Fig. 11); push the handle down until the stroller is fully closed (Fig. 11A). When closed, the stroller stands on its own (Fig. 11B).

ACCESSORIES

WARNING: The accessories described below may not be included in some product versions. Carefully read the instructions for the accessories that came with the model you have purchased.

SHOULDER STRAP KIT

The stroller is equipped with padded shoulder and crotch straps.

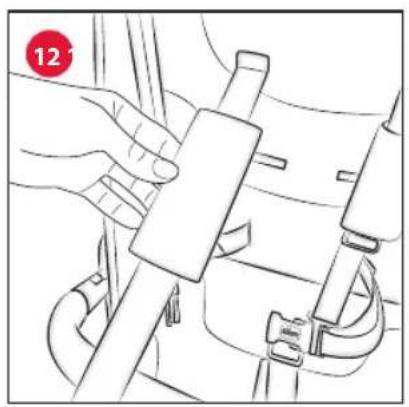

1. Slide the straps into the padding (Fig. 12) before closing the buckle.

WARNING: Adjust the waist belt if necessary by pressing on the buckles.

WARNING: To ensure the safety of your child, the safety harness must be fastened at all times.

EXTRA COMFORT CUSHION

1. Attach the cushion to the seat by threading the straps through the slots and then close the buckle (Fig. 13A).

WARRANTY

The product is guaranteed against any conformity defect in normal conditions of use as provided for by the instructions. The warranty shall not therefore apply in the case of damage caused by improper use, wear or accidental events. For the duration of the warranty on conformity defects please refer to the specific provisions of applicable national laws in the country of purchase, where appropriate.
