L5DAB13E - Radio Logik - Free user manual and instructions

Product Type	DAB+/FM Radio
Model	L5DAB13E
Brand	Logik
Dimensions (approx.)	200 x 130 x 80 mm
Weight (approx.)	0.6 kg
Power Supply	AC 230V ~ 50Hz or 6 x AA batteries (not included)
Radio Bands	DAB+ (Band III) and FM (87.5-108 MHz)
Preset Stations	10 DAB+ and 10 FM presets
Display	LCD screen with backlight
Audio Output	Built-in mono speaker, 3.5mm headphone jack
Antenna	Retractable telescopic antenna for DAB/FM
Clock Function	Auto-update via DAB/FM, alarm and sleep timer
Additional Features	Scan, manual tune, info display (signal, time, text)
Maintenance	Clean with a soft, dry cloth. Do not use liquids.
Safety	Keep away from moisture, heat sources. Use specified batteries.
Spare Parts / Repairability	Contact Logik support for spare parts. Not user-serviceable.
General Information	User manual available at notice-facile.com. Operating temperature: 5-35°C.

Frequently Asked Questions - L5DAB13E Logik

How do I set up the radio for the first time?

Plug in the power adapter or insert 6 AA batteries (not included). Extend the antenna. Turn on the radio using the power button. The radio will automatically scan for DAB stations. Follow on-screen instructions.

Why is my radio not receiving any DAB stations?

Ensure the antenna is fully extended. Move the radio near a window or higher location. Perform a full scan: press the 'Scan' button. If still no stations, try a factory reset.

How can I store preset stations?

Tune to the desired station. Press and hold one of the preset buttons (1-10) until you hear a beep. The station is saved. Repeat for other presets. You can store up to 10 DAB and 10 FM presets.

Can I use the radio on batteries?

Yes, the radio can be powered by 6 x AA batteries (not included). Battery life depends on usage; typically up to 20 hours with moderate volume. When using batteries, AC power should be disconnected.

How do I set the alarm?

Press the 'Alarm' button. Use the up/down buttons to set the hour, then press 'Select'. Set the minutes similarly. Choose alarm source: buzzer, DAB, or FM. Confirm with 'Select'. The alarm will sound at the set time.

What does the 'Info' button do?

The 'Info' button cycles through available information about the current station, such as signal strength, time, date, and dynamic label text. It only works when receiving a DAB or FM signal.

Why is the sound distorted?

Check the volume level; it may be too high. If using batteries, they may be low. Ensure the antenna is properly positioned for good reception. Sometimes interference from other electronics can cause distortion.

How do I clean the radio?

Turn off and unplug the radio. Use a soft, slightly damp cloth (water only) to wipe the exterior. Do not use abrasive cleaners or liquids. Avoid moisture entering the device. Dry thoroughly before use.

Can I connect headphones?

Yes, there is a 3.5mm headphone jack on the side or back of the radio. Insert headphones, and the built-in speaker will mute. Be careful with volume levels to protect your hearing.

How do I perform a factory reset?

With the radio turned on, press and hold the 'Menu' button until 'Factory Reset' appears. Use the up/down to select 'Yes' and press 'Select'. This will erase all presets and settings, restoring default values.

USER MANUAL L5DAB13E Logik

DAB+ / DAB / FM and Internet Radio

GB

Instruksjonsmanual

Safety Warnings....5

Unpacking....7

Product Overview 8

Front View 8

Rear View....9

Connections 9

Mains Power....9

Connecting to Internet....10

Wireless network....10

Connecting to Computer....10

Initial Setup....11

Date/Time 11

Auto update....11

Basic Operation....12

Switching ON/OFF 12

Selecting Modes....12

Adjusting the Volume....12

Activating the Alarm Function....12

Automatic Alarm Repeat....13

Snooze Function 13

Sleep Function 13

Connecting to Network 14

Settings 14

Equaliser....14

Network....15

Time/Date....15

Language 15

Factory reset 15

Software update....16

Setup wizard....16

Info 16

Backlight 16

Internet Radio Operation....16

Last Listened....16

Station List....17

Presetting Stations 17

Recalling a Preset Station....18

Music Player Operation....18

Shared Media....18

Repeat Play Mode....18

Shuffle Mode 18

Prune servers....18

DAB Operation....19

Presetting Stations 19

Recalling a Preset Station....19

FM Operation 20

Auto Scan....20

Manual Tune 20

Scan Setting....20

Audio Setting 20

Presetting Stations 20

Recalling a Preset Station....21

Maintenance 21

Hints and Tips....21

Specifications....22

Lydinnstilling....36

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

- Please inspect the unit for damage after unpacking.

- Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and not subjected to vibrations.
- Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
- The mains socket must be located near the unit and should be easily accessible. - This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

- To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.

• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted sound.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

Thank you for purchasing your new Logik DAB+ / DAB / FM and Internet Radio.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Front view of a vintage analog radio with front panel, buttons, and display (no visible text or symbols)

Main Unit Mains Adapter

Instruction Manual

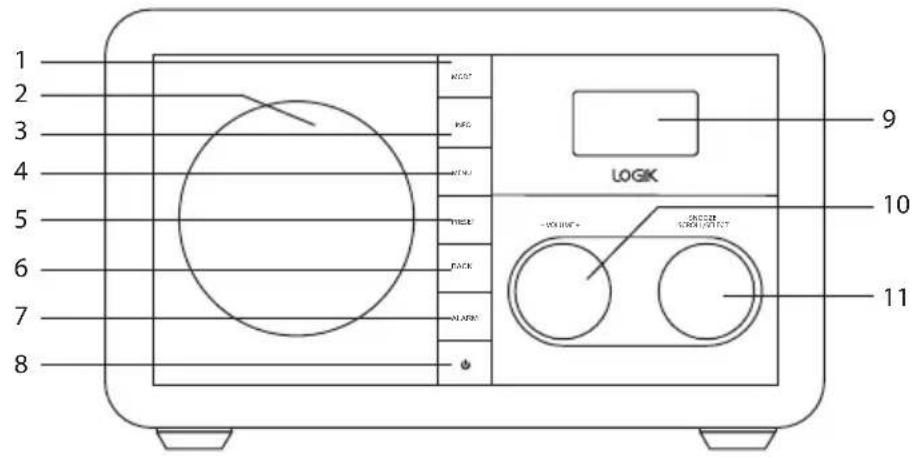

Front View

1. MODE Button

Selects between the Internet radio, Music player, DAB radio and FM radio modes.

1. Speaker

2. INFO Button

Displays information on the LCD display.

1. MENU Button

• Displays the main menu.

- Exits the main menu.

1. PRESET Button

• Presets a radio station.

• Recall a preset station.

1. BACK Button

Returns to the previous option.

1. ALARM Button

2. Button

Switches the unit between ON and STANDBY modes.

1. LCD Display

2. • VOLUME + Dial

Increases and decreases the volume.

1. SNOOZE/SCROLL/SELECT Dial

- Navigates the screen and adjusts certain settings.

• Confirms selection.

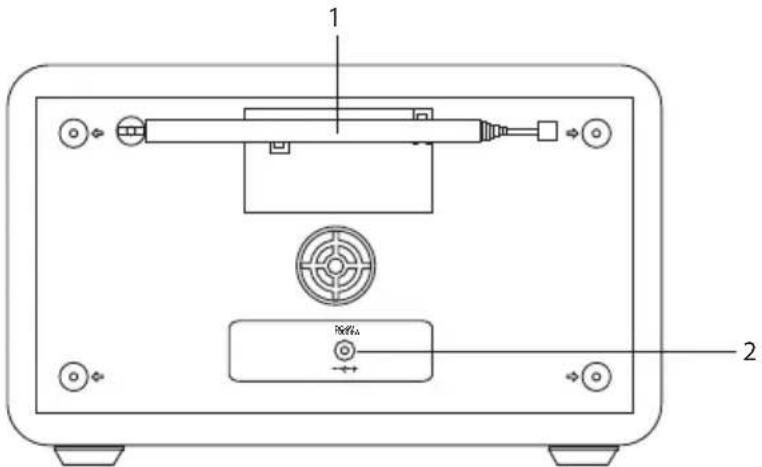

Rear View

GB

1. FM Aerial 2. DC Socket

Connections

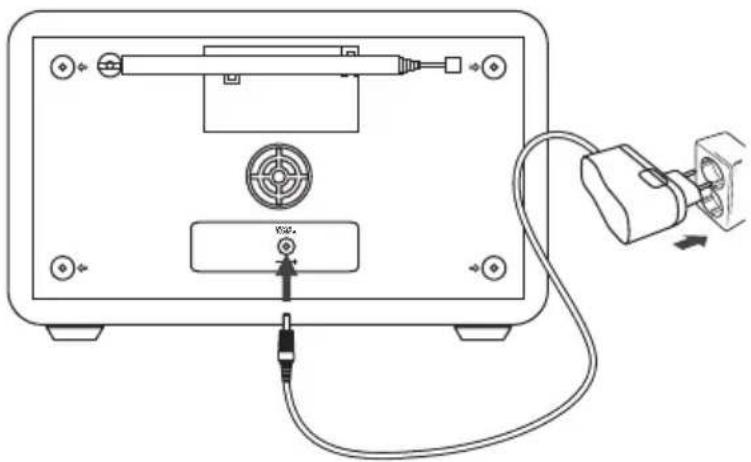

Mains Power

- This unit is designed to operate with the provided mains adapter. - Connecting the unit to any other power source may damage the unit. Unwind the mains adapter cable to its full length. Connect the end of the cable to the DC Socket at the rear of the unit then connect the mains adapter to the mains socket. Make sure the mains adapter is firmly inserted into the mains socket. The unit is now connected and ready to use.

Line drawing of a device rear panel connected to a cable with a plug, showing ports and wiring (no text or symbols)

To switch the unit off completely, unplug the mains adapter from the mains socket.

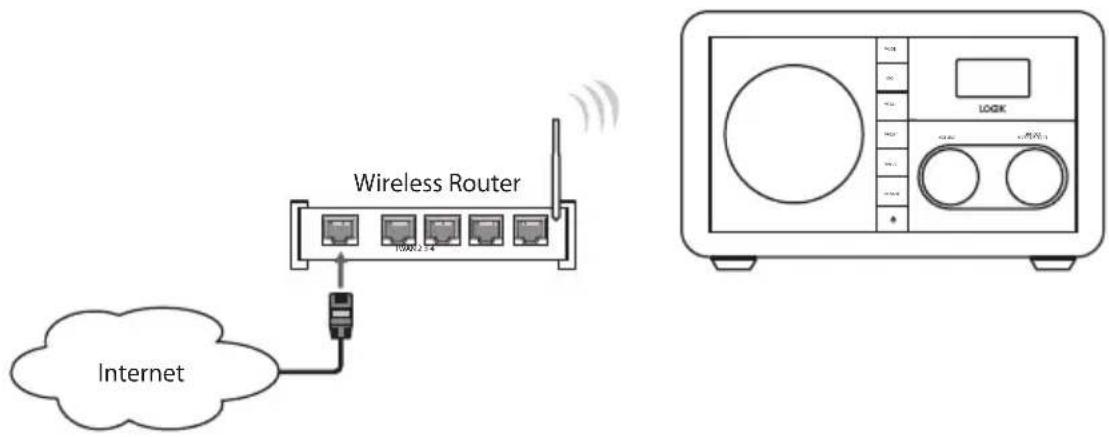

Wireless network

You can connect wirelessly to the Internet via a wireless router. In the example configuration for a wireless connection below, the unit would be able to access content from your computer connected to the same wireless network.

The network configuration and connection method may vary depending on the equipment in use and the network environment. The unit is equipped with a wireless module, which supports 802.11b/g standards.

• This unit cannot be connected to the standalone modem directly. A router or a modem incorporated with a router has to be used.
• Since there are various connection configurations, please follow the specifications and instructions of your telecommunication carrier, Internet service provider, and router setting guidebook.

Connecting to Computer

This radio can be connected to a computer via a wireless router. To playback music files from a computer, make sure the unit and computer are in the same network.

When you first connect the unit to the mains socket, the unit will display the Setup wizard screen.

Turn SNOOZE / SCROLL / SELECT to select YES to start setup or NO to skip setup then press to confirm.

When NO is selected, the unit will display the Main menu.

To start setup, turn SNOOZE / SCROLL / SELECT to select the options, then press to confirm. Options in the setup wizard include the following:

Date/Time

Set 12 or 24 hour format

Auto update

• Update from DAB
• Update from FM
• Update from Network Select your time zone and daylight savings.
  • No update Set the date and time.

You have to select your SSID and input the password after setting the above to connect to the network. To input the password, turn SNOOZE / SCROLL / SELECT then press to confirm each selected alphanumeric character. Select OK after inputting the password. Select BKSP to edit the previous character. Select CANCEL to cancel the password input.

Switching ON/OFF

• Press ⏻ to switch the unit to Standby mode or On mode.
• Disconnect the mains adapter from the mains socket if you want to switch the unit off completely.

Selecting Modes

Press MODE to switch between Internet radio, Music player, DAB radio and FM radio.

Adjusting the Volume

Turn - VOLUME + to increase/decrease the volume.

Activating the Alarm Function

Ensure the time and date is set before you can activate the alarm function.

1. Ensure the unit is turned ON (not in STANDBY mode), then press ALARM. Turn SNOOZE/SCROLL/SELECT to select Alarm 1 or Alarm 2 then press to confirm.
2. Turn SNOOZE/SCROLL/SELECT to select the options, then press to confirm.

Enable Alarm	frequency:Off – alarm will be off.Daily– alarm will be active every day.Once– alarm will be active only once.Weekends– alarm will be active on Saturday and Sunday.Weekdays– alarm will be active from Monday to Friday.
Time Alarm time: HH:MM.
Mode	Alarm mode:Buzz, Internet radio, DAB, FM.
Preset	Alarm preset:Last listened or Saved preset station. (not available for Buzz mode)
Volume Alarm volume.
Save Save the alarm.

1. ① or ② will show on the display.

If the wake-up mode is DAB and the DAB signal strength is low, the buzz alarm will be triggered.

Automatic Alarm Repeat

The alarm will automatically repeat at the selected time as long as the alarm icon is displayed.

1. To cancel this function, press ALARM and turn SNOOZE/SCROLL/SELECT to select Alarm 1 or Alarm 2, then press to confirm.
2. Turn SNOOZE/SCROLL/SELECT to select the options, then press to confirm.

① or ② icon will disappear from the display.

Snooze Function

- When the alarm sounds, press SNOOZE/SCROLL/SELECT to temporarily switch off the alarm. The alarm switch off time will vary according to the selected alarm duration. Press SNOOZE/SCROLL/SELECT repeatedly to select the alarm switch off time.

Alarm Duration Alarm Switch Off Time
15 minutes 5 or 10 minutes
30 minutes 5, 10 or 15 minutes
45 / 60 /90 minutes 5, 10, 15 or 30 minutes

• Turn off the alarm by pressing

Sleep Function

This function allows you to programme the unit to switch to standby mode by itself after a set sleep time.

1. To activate the sleep function, ensure the unit is ON (not in STANDBY mode) then press MENU.
2. Turn SNOOZE/SCROLL/SELECT to select the options, then press to confirm.

1. When the "Set Sleep Time" shows on the display, turn SNOOZE/SCROLL/SELECT to select your desired sleep time.

1. Press SNOOZE/SCROLL/SELECT to confirm. "☐" will show on the display.
2. When the sleep timer counts down to zero, the unit will switch to standby mode. To turn the sleep function off while the sleep timer is still counting down, press ⏻."♂" will disappear from the display.

Connecting to Network

When you first listen to Internet Radio, you must connect to the Internet via a wireless network. Setup the Internet network as follows:

1. Ensure the unit in ON (not in STANDBY mode) then press MENU.

2. Turn SNOOZE / SCROLL / SELECT and press to select Internet radio. The display will show SSID (Service Set Identifier) of all the available Internet networks after scanning.

3. Turn SNOOZE / SCROLL / SELECT and press to select SSID / [Rescan] / [Manual config].

SSID Select wireless network.

Rescan Scan for available networks.

Manual config Select wireless network with DHCP enable/disable.

1. After a successful connection to the network, the Internet radio menu will show on the display.

When the wireless network selected is WEP/WPA secured, a password has to be input for a successful connection. Turn SNOOZE / SCROLL / SELECT then press to confirm each selected alphanumeric character. Select OK after inputting the password. Select BKSP to edit the previous character. Select CANCEL to cancel the password input.

Settings

Press MENU. Turn SNOOZE / SCROLL / SELECT to select the options then press to confirm.

Main menu System settings

In the System settings screen, turn SNOOZE / SCROLL / SELECT to scroll through the options then press to confirm.

Equaliser Network Time / Date Language Factory reset Software update → Setup wizard Info Backlight.

Equaliser

In the Equaliser screen, turn SNOOZE / SCROLL / SELECT to scroll through the options then press to confirm.

Network

In the Network screen, turn SNOOZE / SCROLL / SELECT to scroll through the options then press to confirm.

Network wizard •	SSID – select the wireless network.• Rescan – scan for available networks.• Manual config – select wireless network with DHCP enable/disable.
WPS setup	• Push Button – press the WPS button on the device you wish to connect with.• Pin – enter the PIN code of the device you wish to connect with.
View settings Display the setting on the unit.
Manual settings Select wireless network with DHCP enable/disable.
Network profile View the connected network.

Time/Date

The clock can be set and updated automatically if you can receive DAB/ FM signals in your location. In order for the clock to synchronise to the current local time you must leave it on one DAB/FM station for a short period of time.

You can also set the time and date manually. In the Time/Date screen, turn SNOOZE / SCROLL / SELECT to scroll through the options then press to confirm.

Set Time/Date DD:MM:YYHH:MM

Auto update Update from DAB / Network / No update.

Set format 12 or 24 hour format.

Set time zone Select a time zone.(Only available when Auto update from Network is on.)

Daylight savings Select daylight savings.(Only available when Auto update from Network is on.)

Language

In the Language screen, turn SNOOZE / SCROLL / SELECT to scroll through the options then press to confirm.

Factory reset

In the Factory screen, turn SNOOZE / SCROLL / SELECT to select YES or NO then press to confirm.

After factory reset, all tuned stations, preset stations and alarm settings will be erased.

Software update

In the Software Update screen, turn SNOOZE / SCROLL / SELECT to scroll through the options then press to confirm.

Do not switch off radio during software update.

Setup wizard

In the Setup Wizard screen, turn SNOOZE / SCROLL / SELECT to select YES or NO then press to confirm.

Info

In the Info screen, you can view the software version of this unit.

Backlight

In the Backlight screen, turn SNOOZE / SCROLL / SELECT to scroll through the options then press to confirm.

Power -On level •	High• Low
Standby level •	High• Low

Internet Radio Operation

1. Press MODE repeatedly to select Internet radio mode.
2. The unit will display a list of stations. Turn SNOOZE / SCROLL / SELECT to select a station you want to listen then press to confirm.
3. In Internet Radio mode, press MENU and turn SNOOZE / SCROLL / SELECT to scroll between Last listened and Station list then press to confirm.

Last Listened

Turn SNOOZE / SCROLL / SELECT to select a station that you have listened to before then press to confirm.

Station List

1. Turn SNOOZE / SCROLL / SELECT to select the following options then press to confirm.

My Favourites	·Favourites are stored in the Internet radio portal and are available to all Internet radios that are registered with the same account. You must register the radio in the Internet radio portal before making use of the favourites.·To register your radio with the portal (www.wifiradio-frontier.com), access code can be found from “Station list > Help > Get access code”.·You can add your favourite stations via the portal (www.wifiradio-frontier.com). These added stations are accessible by selecting “Station list > My Favourites > [Station]”
Local “Country”	·Display local programmes of your current location.·“Country” will change according to your current location.
Stations	·Select the stations from various categories in the menu: Location, Genre, Popular Stations, New Stations.·You can also search stations using various keywords.·The name and a description of your selected station will show on the display.·Press INFO repeatedly to view further information for the station. Information displayed scroll through name/description, genre/location, reliability, bitrate/codec/sampling rate, playback buffer and current date.
Podcasts	·Select podcasts from the categories in the menu: Location, Genre.·You can also select a particular episode by entering keywords to search podcasts.
My added stations Even though the Internet radio portal contains thousands of stations, you may want to listen to stations not listed. You can add your own stations via the portal (www.wifiradio-frontier.com). These added stations are accessible by selecting “Station list > My added stations > [Station]”
Help	·To get access code fro registering your radio with the portal.·To listen to radio FAQ solutions.

Presetting Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save.
2. Press and hold PRESET. "Save to Preset" menu will display.
3. Turn SNOOZE / SCROLL / SELECT to select a preset number then press to confirm.
4. The station will be stored and the station name will show on the display.

GB

Recalling a Preset Station

1. Once you have saved a station, you can recall a preset station by pressing PRESET. "Recall from Preset" menu will show on the display.
2. Turn SNOOZE / SCROLL / SELECT to select a preset station you wish to listen then press to confirm.
3. "P#" will show on the display to indicate the preset station you are listening to.

Music Player Operation

This function is for more advanced users.

The built-in Music Player allows you to play unprotected audio files (AAC, MP3, WMA) stored on a networked computer. To play music from a computer, you must set up a share file or media library on a computer.

Press MODE repeatedly to select Music player mode. Turn SNOOZE / SCROLL / SELECT to scroll through the options then press to confirm.

Shared Media

Please ensure that your computer is available on the network, and that your computer is set up to allow sharing your media folders or files. Check how to set up a folder for sharing from your computer's instruction manual.

1. Press SNOOZE / SCROLL / SELECT to scan for all the available share media folders or files.
2. The display will show all found media folders from the network. Turn SNOOZE / SCROLL / SELECT to select the computer that you wish to connect to then press to confirm.
3. The unit will search for all shared media from the computer.
4. Turn SNOOZE / SCROLL / SELECT to select your shared media then press to confirm.

This unit cannot access your computer until your computer allows it to.

Repeat Play Mode

Press SNOOZE / SCROLL / SELECT repeatedly to turn repeat play on or off.

Shuffle Mode

Press SNOOZE / SCROLL / SELECT repeatedly to turn shuffle play on or off.

Prune servers

You may remove those servers no longer used.

Turn SNOOZE / SCROLL / SELECT to select YES to remove servers that are no longer available or NO, then press to confirm.

1. Press MODE repeatedly to select DAB radio.
2. The unit will automatically perform auto scan function. During the scan, the display will show "Scanning..." that indicates the progress of the scan and the amount of stations that have been found so far.
3. Once the scan has finished, the unit will display a list of the found stations. Explore the found stations by turning SNOOZE / SCROLL / SELECT then press to confirm selected station. All stations that have been found will be automatically stored.

In DAB mode, turn SNOOZE / SCROLL / SELECT to scroll through the options then press to confirm.

Station List Select from a list of DAB stations.
Scan Perform auto scan.
Prune Invalid Select YES or NO to remove all invalid stations.
DRC (Dynamic Range Compression)	If you are listening to music with high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. Select DRC high, low or off.
Station order Select to arrange the station listing in Alphanumeric, Ensemble or Valid order.

Presetting Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save.
2. Press and hold PRESET. "Save to Preset" menu will show on the display.
3. Turn SNOOZE / SCROLL / SELECT to select a preset number then press to confirm.
4. The station will be stored and the station name will show on the display.

Recalling a Preset Station

1. Once you have saved a station, you can recall a preset menu by pressing PRESET. "Recall from Preset" menu will show on the display.
2. Turn SNOOZE / SCROLL / SELECT to select a preset number then press to confirm.
3. "P#" will show on the display to indicate the preset station you are listening to.

Press MODE repeatedly to select FM radio. The unit will automatically perform auto scan function. Once a station has been found, the scanning will stop automatically.

Auto Scan

While listening to an FM station, press SNOOZE / SCROLL / SELECT to perform auto scan. Once a station has been found, the scanning will stop automatically.

Manual Tune

To tune FM frequency manually, turn SNOOZE / SCROLL / SELECT until your desired frequency is reached.

With FM radio it may be necessary to fine tune each station by turning SNOOZE / SCROLL / SELECT. Each turn will adjust the frequency by 0.05MHz. If reception is still poor, adjust the position of the FM aerial or try moving the radio to another location.

Scan Setting

1. In FM mode, press MENU.
2. Turn SNOOZE / SCROLL / SELECT to select Scan setting then press to confirm.
3. Turn SNOOZE / SCROLL / SELECT to select YES to receive strong station only or No then press to confirm.

Audio Setting

1. In FM mode, press MENU.
2. Turn SNOOZE / SCROLL / SELECT to select Audio Setting then press to confirm.
3. Turn SNOOZE / SCROLL / SELECT to select YES to listen to mono only, or NO to let the unit select Stereo or Mono automatically.
4. Press SNOOZE / SCROLL / SELECT to confirm.

Presetting Stations

You can store up to 10 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save.
2. Press and hold PRESET. "Save to Preset" menu will show on the display.
3. Turn SNOOZE / SCROLL / SELECT to select a preset number then press to confirm.
4. The station will be stored and the station name will show on the display.

Recalling a Preset Station

1. Once you have saved a station, you can recall a preset menu by pressing PRESET. "Recall from Preset" menu will show on the display.
2. Turn SNOOZE / SCROLL / SELECT to select a preset number then press to confirm.
3. "P#" will show on the display to indicate the preset station you are listening to.

Maintenance

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray aerosol at or near the unit.

Hints and Tips

If a problem occurs, it may often be due to something very minor. The following table contains various tips.

Problem Solution
No Power. • Ensure the mains adapter is properly connected.• Make sure that the unit is turned on.
The unit does not respond when pressing any buttons.	• The unit may freeze up during use. Switch the unit off and then on again to reset it.
Radio
Poor FM reception. • Make sure the FM aerial is fully extended.• Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).
Desired station not found. •	Weak signal. Use the Manual Tune function.

If any anomaly is encountered, unplug the mains adapter and reconnect it again.

Model L5DAB13E
Mains Adapter Input AC 100-240V ~50/60Hz 0.35AOutput DC 9V 1000 mA
Power Consumption 9W
Wi-Fi Connectivity 802.11b/g Standards
Radio Frequency DAB Band III 174.928 – 239.200 MHzFM 87.5 – 108 MHz
Speaker output power 4W
Dimension 212mm (L) x 131mm (W) x 129mm (H)
Weight 1.056kg

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte den nye Logik DAB+/- DAB- / FM- og Internett-radio.

1. MODUS-knapp

Velg om du vil lytte til Internett-radio, musikkspiller, DAB-radio eller FM-radio.

1. Høyttaler

2. INFO-knapp

Line drawing of a device with cable, connector, and power outlet (no text or symbols)

Hovedmeny Systeminnstillinger

Front view of a vintage analog radio with front panel, buttons, and display (no visible text or symbols)

Diagram of a device with cable, connector, and power outlet (no text or symbols)

SE

Front view of a vintage portable radio with front panel, buttons, and display (no visible text or symbols)

Line drawing of a device with cable, connector, and power outlet (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines, no text or numbers present

GB

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO
