Type	Dehumidifier / Air Purifier
Model	KA ADH 7
Brand	Kalorik
Dehumidification Capacity	10 liters per day
Water Tank Capacity	3.6 liters
Power Supply	230-240V ~ 50Hz
Power Consumption	250W / 1.32A
Compressor Type	Reciprocating
Refrigerant	R314a
Working Temperature Range	5°C to 35°C
Dimensions (W x D x H)	34.2 x 24.5 x 49.2 cm
Net Weight	11.8 kg
Control Type	Rotary knob (ON/OFF & Humidity)
Modes	Continuous dehumidification (MAX) and adjustable humidity levels
Filter	Washable air filter (clean every 2 weeks)
Indicator Lights	Power light, full water tank light
Water Drainage	Removable tank (3.6L) or continuous drainage via hose (∅ 12mm)
Mobility	Wheels and side handles
Safety Features	Auto shut-off when tank full, built-in protective device for extreme temperatures
Housing Material	Plastic
Included Accessories	Water tank cap, continuous drainage cap

Frequently Asked Questions - KA ADH 7 KALORIK

Why is my dehumidifier not turning on?

Check if the power cord is properly plugged in. Also, if the water tank is full or not correctly positioned, the unit will not operate. Empty the tank and ensure it is securely in place. Additionally, the ambient temperature must be between 5°C and 35°C; outside this range, the built-in protective device prevents operation.

How often should I clean the air filter?

The air filter should be cleaned every two weeks for optimal performance. Use a vacuum cleaner to remove dust, or wash with lukewarm water and mild detergent if heavily soiled. Ensure the filter is completely dry before reinstalling.

What does the 'full water tank' light mean?

When this light flashes, it indicates the water tank is either full or not installed correctly. Empty the tank and reinstall it firmly. If the light remains on, check the buoy and sensor inside the tank for proper positioning.

Can I use an extension cord with this dehumidifier?

No, never use an extension cord with this appliance. It may cause a fire hazard or damage the unit. Plug the unit directly into a wall outlet.

How do I set up continuous drainage?

Turn off and unplug the unit. Remove the cap from the drain hole on the back. Insert a water tube (internal diameter 12mm) into the opening and push firmly. Replace the cap on the tank as shown in the manual. Then reinsert the tank.

What should I do if the dehumidifier is leaking water?

Check if the drain hole cap is properly closed if not using continuous drainage. Ensure the water tank is correctly installed. Also, verify that the unit is on a level surface and not tilted.

Why is the dehumidification performance poor?

Ensure all windows and doors are closed. Check if the air filter is clogged; clean it if necessary. Also, verify that the air inlet and outlet are not blocked. If the room has high humidity sources, relocate the unit away from them.

Can I tilt the unit when moving it?

Avoid tilting the unit. Use the wheels or side handles to slide it gently on a flat surface. If the floor is uneven or carpeted, lift the unit to prevent damage. Always wait 1 hour after tilting before plugging in.

How do I store the dehumidifier when not in use?

Unplug the unit, empty and dry the water tank, clean the air filter, and store it in an upright position in a cool, dry place. Use the original packaging to prevent dust accumulation.

What is the refrigerant used in this model?

This dehumidifier uses R314a refrigerant. For repairs involving the cooling system, contact a qualified technician.

USER MANUAL KA ADH 7 KALORIK

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified service ^[1] . All repairs should be made by a competent qualified service ^[2] .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
□ Never immerse the appliance in water or any other liquid for any reason whatsoever.
☐ Never use the appliance near hot surfaces.
☐ Do not place the power cord under a carpet.
☐ Never lay the unit down when it is working, always keep the appliance in upright position.
☐ Never unplug the unit while it is working, this could damage the electronic circuit of the unit.
□ Never use an extension cord.
☐ Never use the plug to start and stop the unit. Always use the switch on the control panel.
Before moving the unit, first switch it off, empty the water tank and unplug the appliance.
Leave the unit to stand for one hour before connecting to the mains supply after transport or when it has been tilted (e.g. during cleaning).
Before cleaning and when you do not use the appliance, always unplug the appliance from the power supply. Do not attempt to remove the plug from the wall socket with wet hands.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Do not place the appliance directly under a power socket.
□ Always position the appliance in such a way that inflammable materials such as curtains cannot be ignited. Do not place the appliance against a wall.
☐ Make sure that the air inlet and outlet openings are not obstructed. To avoid any risk of fire, DO NOT COVER THE APPLIANCE (e.g. with clothes).
☐ Warning: Do not operate the appliance near baths, showers, washbasins, swimming pools or any other water container. It must be impossible to reach the commands of your appliance when you are in contact with water.
☐ Do not insert any objects through the grille or into the interior of the appliance.
☐ Never sit or place objects on the appliance.
☐ When cleaning the appliance, refer to the instructions in the paragraph "Maintenance and Cleaning" because water penetration through the openings can be very dangerous for your appliance.
□ Never use the appliance without filter.

(1) Competent qualified service: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this service.

TECHNICAL SPECIFICATIONS

MODEL	KA ADH 7
Power	230-240V/50Hz
Dehumidification capacity	10 l/day
Power / Ampere consumption	250W/1.32A
Compressor	Reciprocating
Refrigerant	R314a
Working range	5~35°C
Water tank capacity	3.6 l
Dimensions (W x D x H)	34.2 x 24.5 x 49.2 cm
Net weight	11.8 kg

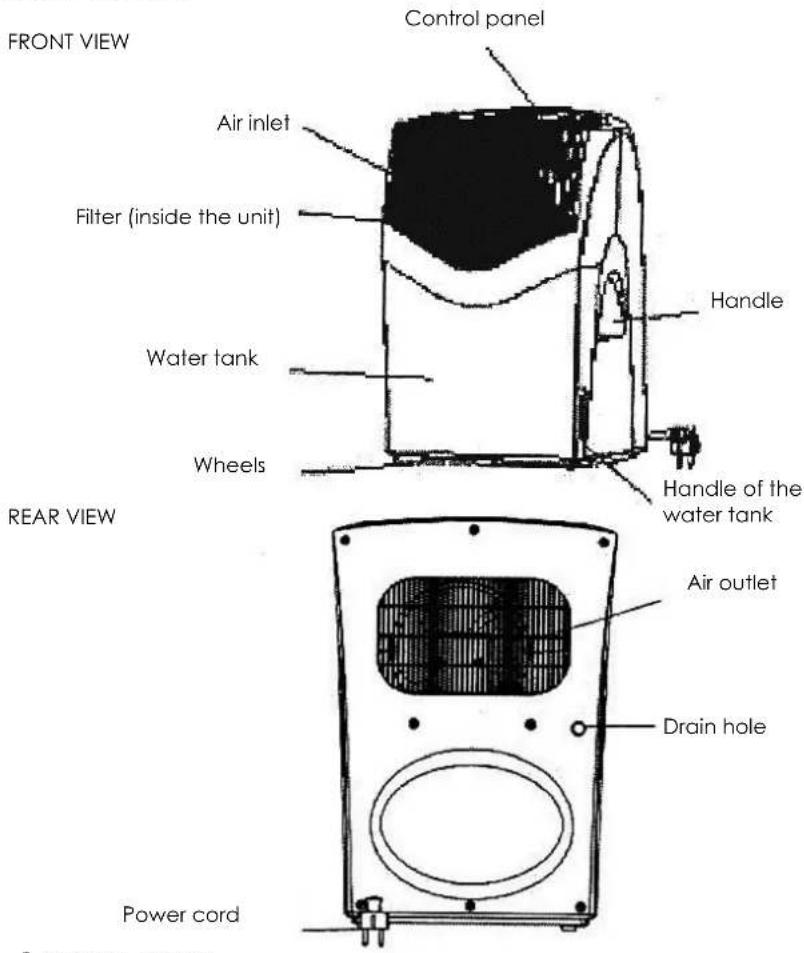

PART DESCRIPTION

3 KA ADH 7-101118

CONTROL PANEL

Close-up of a control panel with three buttons: water drop, droplet, and OFF/MAX labels (no readable text beyond labels)

Full water tank

When this light flashes, it indicates that the water tank is full with water or that the installation position of the water tank is not correct. In this case, the water in the tank should be emptied or the water tank should be re-installed to a correct position.

Power light

When the power of the unit is turned on, this indication light will be on.

ON/OFF & HUMIDITY knob:

Turn this knob clockwise to switch on the appliance and to set the humidity level. MAX position sets the mode of continuous dehumidifying.

The unit will automatically switch off when the water tank is full or when the power is turned off.

OPERATION

1. Connect the power

• Firmly plug into the socket to ensure no hazard of electric shock or fire.
- Do not damage the power cord.
- When the power is properly connected, the power indication light ⚪ will be on.

2. Select the dehumidifying level

Turn the ON/OFF & HUMIDITY button to switch on the appliance and to set the dehumidifying level.

3. Stop operating

During the operational process of the unit, turn the knob to OFF position. The dehumidifier will stop operating.

Do not try to switch off the unit by pulling out the power plug.

WATER DRAINAGE

A. Emptying the water tank

If the water tank is full (about 3.5 liter), the indication light will be on and the unit will automatically stop operating.

When the water tank is full, please empty the tank.

1. Take out the water tank.

Gently pull the tank out using its handles.

Caution: Do not take off the buoy or the sensor in the water tank, because the buoy or the sensor is used to monitor whether the water tank is full or not. Damage to the buoy or the sensor will make the water in the tank overflow to wet the furniture or to cause electric shocks or short circuit hazard.

Simple line drawing of a mechanical device with no text or symbols

2. Empty the water tank.

Caution: When the water tank is re-installed, push it with force to its original position manually. If the water tank fails to be re-installed to its original position, the indication light for full water will be on and the unit will not operate properly.

3. Re-install the water tank

Caution: If the water tank is taken out during operation, or when the unit has just stopped operating, the condensed water might drop to the base. It is recommended to take out the water tank for emptying when the unit has stopped operating for 30 minutes. (If the water has dropped out already, you may wipe it off).

Simple line drawing of a mechanical device with no text or symbols

B. Continuous drainage of water

This unit is equipped with a water outlet for continuous drainage. Use a water tube (bore size 11.5 mm) available in the markets, you can make continuous drainage of the condensed water. When you fit the tube for continuous drainage, make sure that the unit is switched off and the power plug is pulled out.

1. Remove the cap of the drain hole located on the back of the appliance.

1. Insert a water tube into the water outlet opening. Pass the water tube (∅ 12mm) through the water outlet opening and firmly push it to the water outlet of the main unit. Do not block the tube so that the condensed water can be drained smoothly.

2. Pull out the water tank. Put the cap you took out from the drain hole into the hole as indicated in the figure.

3. Put the water tank back into position.

Moving the dehumidifier (by means of the wheels)

Do not tilt the unit to move it. Use one of the handles located on the sides of the appliance to slide it.

N.B.:

1. If the floor is made of material that can be scratched easily, or if the floor is not leveled enough, please lift the unit when it is to be moved. Besides, if the floor is covered with thick carpet, please do not use the wheels so as to avoid damages to the carpet.

2. Take care not to press the power cable under the unit.

MAINTENANCE AND CLEANING

Cleaning of the main unit

Please use a soft and dry cloth to do the cleaning. Do not use gasoline, benzene, diluents, mops treated with chemicals, detergents etc. to clean the unit; that might cause damages to the unit.

Cleaning the filter

The air filter should be cleaned once every two weeks.

Take off the air filter.

Pull out the water tank and take off the filter by pulling it down.

Close-up of a white industrial air conditioner unit with ventilation grilles and cooling fins (no visible text or symbols)

Clean the air filter.

Use a vacuum cleaner to clean off the dust on the surface of the air filter. If the filter is too dirty, you may use lukewarm water or neutral detergent solution to clean it. After cleaning, thoroughly mop the filter dry.

Re-install the air filter.

Replace the filter in its original position. Push it up until you hear a click.

Cleaning the water tank

If the water tank is dirty, please clean it with cold or lukewarm water. Do not use detergents or scrapers or mopping cloth treated with chemicals. Do not clean the water tank with gasoline, benzene, diluents or other solutions so as to avoid scratches or damages to the water tank that will result in leakage.

Storage

When you do not use the unit for a long time, please store it according to the following procedures:

1. Unplug the power cord.
2. Empty the remaining water in the drainage tank, and use a dry cloth to mop the remaining water drops.
3. Clean the air filter.
4. Store the unit. Place the unit into the package case to prevent dust accumulation. Keep the unit in a vertical position, and store it in a cool and dry place.

TROUBLESHOOTING

PROBLEM	CAUSE	POSSIBLE SOLUTION
The unit cannot be operated	Is the power cable disconnected?	Plug in the power cable properly.
	Is the indication light on?(The water tank is full, or the water tank is not placed in a proper position).	Empty the water tank and place it back to its original position, or replace it to a proper position.
	Is the ambient temperature above 35°C or below 5°C?	The built-in protective device is in action, making the unit unable to be switched on to avoid operations of the unit under a seriously unfavorable condition. Do not use the dehumidifier under such circumstances.
The dehumidification is not functioning	Is the air filter blocked?	Clean the air filter in the manner described in the Maintenance and Cleaning section.
	Is the air inlet or air outlet blocked?	Remove the blocking substance from the air inlet or air outlet.
The dehumidification is not sufficient	Are there many windows or doors open?	Close the windows or doors.
	Is there something in the room producing a lot of humidity?	Do not use the appliance next to something producing a lot of humidity.
The operating noise level is very high	Is the unit properly installed? Is it tilted or unstable?	Place the unit on a firm and stable surface.
The unit is leaking	The cap of the drain hole is removed.	If you are not using the continuous draining system, shut the drain hole on the back of the appliance with its cap.

If the above-stated phenomena remain after the corresponding troubleshooting has been made, or if there are some other defects or malfunctions of the unit, please contact a qualified technician.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
