12230009 - Citrus juicers Exido - Free user manual and instructions

Product Type	Slow Juicer
Brand	Exido
Model	12230009
Voltage	230 V ~ 50 Hz
Power	Not specified (typical slow juicer ~150-200 W)
Juicing Mechanism	Auger press (slow squeezing)
Reverse Function	Yes, to clear blockages
Safety Lock	Prevents operation if not correctly assembled
Main Components	Motor base, bowl, filter, filter holder, auger, hopper, tamper, cap, juice and pulp containers
Material	Plastic (BPA-free assumed) and stainless steel filter
Dishwasher Safe	No (hand wash only)
Cleaning Instructions	Clean filter under running water with soft brush; other parts with warm water and mild detergent; motor base with damp cloth only
Intended Use	Household juicing of fresh fruits and vegetables
Suitable for Citrus	Yes, but peel must be removed
Suitable for Frozen Fruit	No
Warranty	Standard warranty, exclusions apply (see manual)
Disposal	Do not dispose with household waste; recycle as WEEE

Frequently Asked Questions - 12230009 Exido

How do I assemble the slow juicer before first use?

Ensure the appliance is unplugged. Place the motor section on a flat surface. Place the bowl on the motor section, aligning holes and pins, and turn to lock. Insert the filter into the filter holder, then place into the bowl with arrows aligned. Insert the auger and press down until it engages. Insert the tamper into the hopper, then place the hopper on the bowl with arrows aligned. Turn the hopper clockwise to lock. Place the cap on the juice outlet if needed, and position containers under the outlets.

Can I juice frozen fruits or vegetables with this juicer?

No, never try to squeeze frozen fruit or vegetables as it may damage the appliance.

What fruits and vegetables are not suitable for juicing?

Fruits like bananas, mangoes, papayas, and avocados are not suitable as they produce mashed fruit instead of juice. Also, fruits with thick peels (e.g., oranges, lemons) must be peeled, and large stones (e.g., plum, apricot) must be removed.

How should I clean the juicer after use?

Unplug the appliance. Clean the filter under running water with a soft brush, ensuring holes are not blocked. All other parts except the motor base should be washed in warm water with mild detergent. The motor base should only be wiped with a damp cloth. None of the parts are dishwasher safe. Dry thoroughly before reassembling or storing.

What is the reverse function used for?

If the appliance struggles to process fruit pieces or becomes blocked, push the on/off button to the REVERSE position temporarily. This runs the auger backwards to clear the blockage. You can also use reverse to loosen the auger if it is difficult to remove.

Why does my apple juice turn brown quickly?

Pure apple juice turns brown when exposed to air. To prevent discolouration, serve immediately after juicing or add a little lemon juice.

Is it safe to use the juicer if the filter mesh is broken?

No, never use the appliance if the filter mesh is broken as it may cause personal injury.

Can I use the pulp from juicing for anything?

Yes, the pulp can be used as an ingredient in baked goods, added to meat sauces or meatballs for vitamins, or used as a topping (e.g., tomato pulp on bruschetta, cucumber in tzatziki).

What is the warranty coverage?

The warranty does not apply if instructions are not followed, the appliance has been interfered with, mishandled, or damaged due to faults in the electricity supply. For full details, refer to the manual or contact the retailer.

How should I dispose of the juicer when it is no longer usable?

This product must not be disposed of with ordinary household waste. It should be taken to a recycling station for electrical and electronic waste (WEEE). Contact your retailer or local authorities for proper disposal.

USER MANUAL 12230009 Exido

Line drawing of a hairdryer with warning symbols (no text or labels)

OPLYSNINGER OM BORT- SKAFFELSE OG GENBRUG AF DETTE PRODUKT

NO

Line drawing of a hairdryer with warning symbols (no text or labels)

NO

INFORMASJON OM KASSERING OG RESIRKULERING AV DETTE PRODUKTET

SE

FÖRBEREDA FRUKT OCH GRÖNSAKER

Line drawing of a showerhead with warning symbol and triangular warning triangle (no text or labels)

SE

INFORMATION OM KASSERING OCH ÅTERVINNING AV DENNA PRODUKT

FI

Line drawing of a milk carton with warning symbols (no text or labels)

TIETOJA TUOTTEEN HÄVIT-TÄMISESTÄ JA KIERRÄT-TÄMISESTÄ

To get the best out of your new slow juicer, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference.

GENERAL SAFETY INSTRUCTIONS

• This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.
• Keep the appliance under constant supervision while in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.
• Incorrect use of this appliance may cause personal injury and damage the appliance.
• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).

• For domestic use only. Not for out - door or commercial use.

• Remove all packaging and transport materials from the inside and outside of the appliance.

• Check that the appliance has no visible damage and that no parts are missing.
• Do not use with any cords other than that supplied.
• Check that it is not possible to pull or trip over the cord or any extension cord.
• Turn off the appliance and remove the plug from the socket before cleaning, or when the appliance is not in use.
• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Ensure that the cord is fully extended.
• The cord must not be twisted or wound around the appliance.
• Check regularly that neither the cord nor plug is damaged and do not use the appliance if there is any damage, or if it has been dropped on the floor, dropped in water or damaged in any other way.
• If the appliance, cord or plug has been damaged, have the appliance inspected and if necessary repaired by an authorised repairer.

UK

• Connect to 230 V, 50 Hz only. The warranty is not valid if the appliance is connected to incorrect voltage.
• Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under warranty.
• Unauthorised repairs or modifications will invalidate the warranty.

SPECIAL SAFETY INSTRUCTIONS

• The appliance may only be switched on once all parts are correctly fitted.
• NEVER use your fingers, kitchen utensils or similar to push fruit or vegetables down into the hopper! Use the accompanying tamper.
• Never try to squeeze frozen fruit or vegetables!
• NEVER stick fingers or other objects into the spout for juice or fruit pulp.
• NEVER touch the moving parts of the appliance until it has come to a complete stop.
• Please note that the auger may still rotate for a while after you switch the appliance off.
• Never use the appliance if the filter mesh is broken! This may cause personal injury.

PRIOR TO FIRST USE

• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.
• Before using for the first time (or after prolonged storage without use), wash any parts that will come into contact with fruit or vegetables. See “Cleaning”.

UK

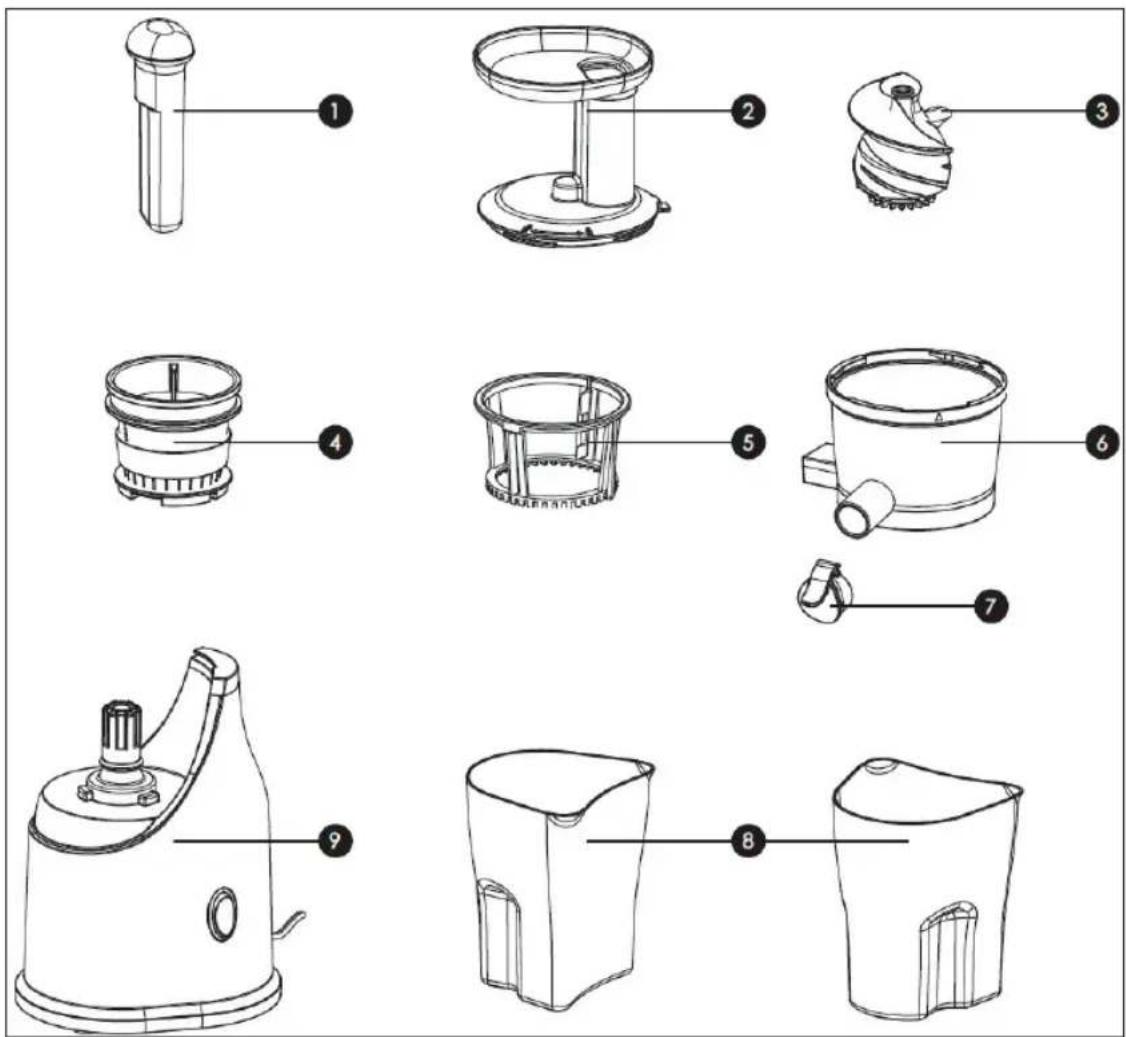

MAIN COMPONENTS

1. Tamper
2. Hopper
3. Auger
4. Filter
5. Filter holder
6. Bowl
7. Cap
8. Containers for juice and pulp

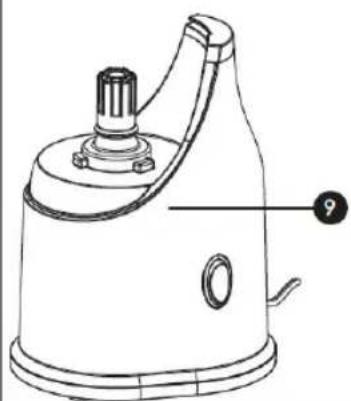

9. Motor section

USING THE APPLIANCE

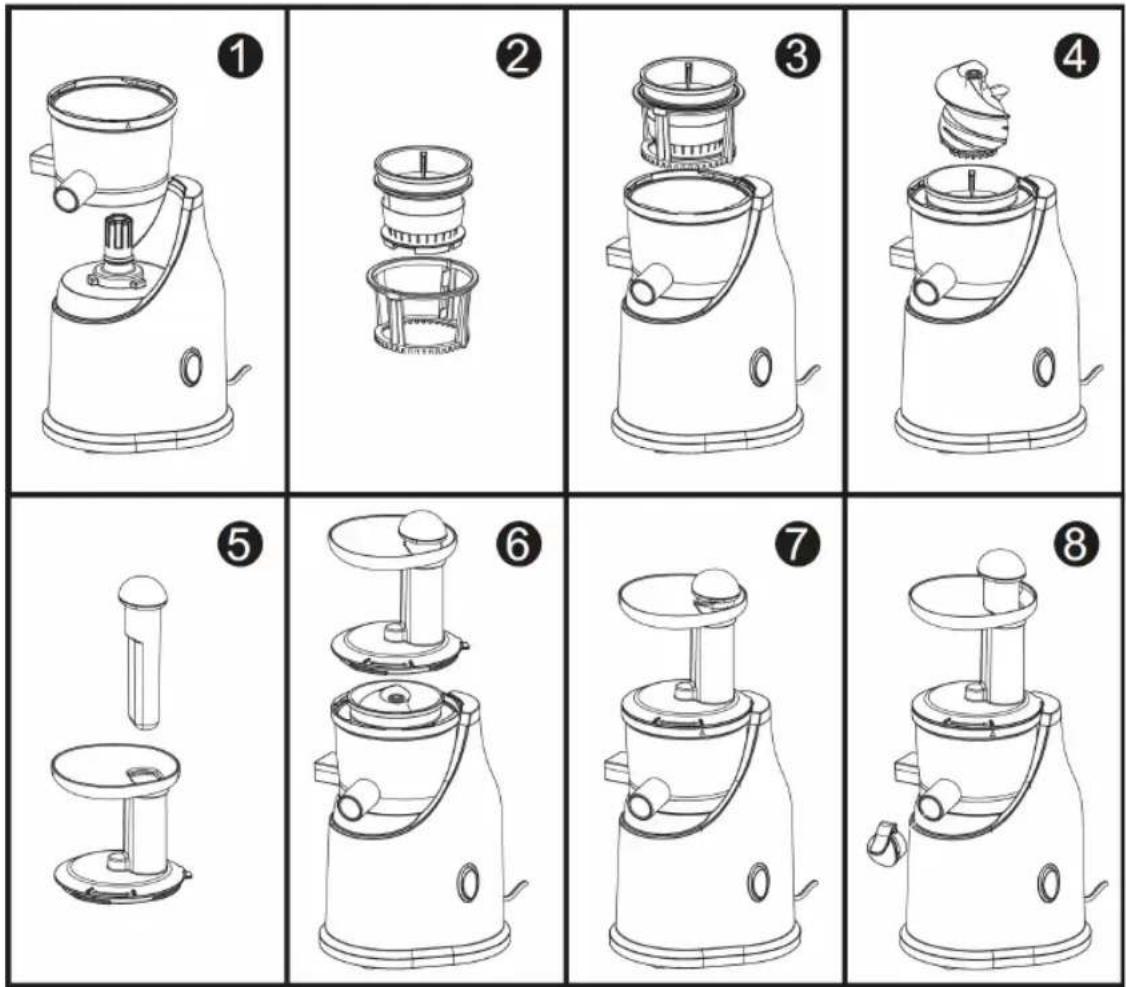

Assembly before use

1. Check that the appliance is un-plugged from the mains.
2. Place the motor section (9) on a flat surface, e.g. a kitchen counter, and make sure it is stable.
3. Place the bowl (6) on the motor section so that the holes and pins match up and turn the bowl until it locks in place. See figure 1.

UK

1. Insert the filter (4) into the filter holder (5). See figure 2.
2. Insert the filter holder into the bowl (6) so that the arrows line up. See figure 3.
3. Insert the auger (3) in the middle of the filter (4). Turn and press it down until it engages. See figure 4.
4. Insert the tamper (1) into the hopper (2). The tamper can only be fitted one way. See figure 5.

5. Place the hopper (2) on the bowl (6) so that the arrows on the hopper and the bowl line up with each other. See figure 6.

6. Turn the hopper slightly clockwise towards the symbol of the closed pad-lock, so the parts are locked together. See figure 7.

7. If necessary, place the cap (7) on the juice outlet. See figure 8.
8. Place the containers (8) under the outlets for juice and pulp.

If the parts are not correctly assembled, a safety mechanism prevents the appliance from being turned on.

UK

PREPARING FRUITS AND VEGETABLES

• Always wash fruits and vegetables thoroughly before juicing.
- It is not necessary to remove small seeds, pits or thin peels before using the appliance.
- Cut the fruit into small pieces so that they can get through the hopper.
- Fruits with thick peels such as or -anges and lemons must be peeled before juicing. It is particularly important to remove all the peel from citrus fruits (including the pith), as even small amounts of peel can impart an unpleasant taste to the juice.
- It is also necessary to remove large stones such as plum and apricot stones before juicing to avoid damaging the appliance.

JUICING

1. Switch on the appliance by pushing the on/off button to the ON position.
2. Feed the selected fruit and/or veg - etables into the appliance through the hopper a little at a time, pushing them down using the tamper.
3. Long vegetables such as carrots should be fed into the hopper pointy end first.
4. Press the fruits and/or vegetables gently with the hopper. Too much pressure reduces the amount of juice extracted and can damage the appliance.

5. Stop the appliance before removing the tamper to add more fruit/vegetables in order to avoid to avoid splashes.

6. The juice runs out through the round spout, while the fruit pulp comes out through the flat spout.

7. If the appliance struggles to process the fruit or vegetable pieces or becomes blocked, you can run the auger backwards by pushing the on/off button to the REVERSE position temporarily.
8. Turn off the appliance by pushing the on/off button to the OFF position when you have finished using it.
9. Take the appliance apart. First remove the tamper and then the hopper, the auger, the filter, the filter holder and finally the bowl. If the auger is difficult to remove, you can push the on/off button to the RE-VERSE position a few times to loosen it.

TIP!

• Only use fresh fruits and vegetables.
• Good candidates for juicing include pineapple, apples, cucumbers, celery, carrots, spinach, melons, tomatoes and most citrus fruits.
• The various varieties of apple yield juice with different flavours and consistency. Experiment with different combinations to find your own favourite.
• Leafy green vegetables such as cab - bage and spinach can also be juiced. Roll the leaves into cylinders of an appropriate size before feeding them into the hopper.
• Fruits such as bananas, mangoes, papayas and avocados are not suitable for juicing, as the result is often mashed fruit instead of juice.

UK

• All types of juice should be consumed right after juicing, as fresh juice quickly loses important nutrients as well as taste when exposed to the oxygen in the air.
• Pure apple juice turns brown quickly when exposed to air. To prevent discolouration, serve apple juice immediately after juicing or add a little lemon juice.

RECIPES

The slow juicer can squeeze many different types of fruit and vegetables, offering many different juice options.

Popular combinations:

• Apple, carrot, ginger
- Carrot, pear, fresh chilli
- Beetroot, apple, celery
• Apple, cucumber, lemon

For optimal use of the slow juicer, it is advisable to look for information and inspiration regarding the various fruits and vegetables on the internet or the many books written about juice and its positive effects on the body.

Tip!

In addition to fresh, nutritious juice, the pulp produced by the slow juicer also has other uses:

• The pulp is excellent as an ingredient in baked goods. Try using the pulp from vegetables such as cauliflower, broccoli and fennel.
  • Get vitamins by adding vegetable pulp to meat sauces or meatballs.
• Tomato pulp is an excellent topping on bruschetta.
  • Cucumber can be used directly in tzaziki.

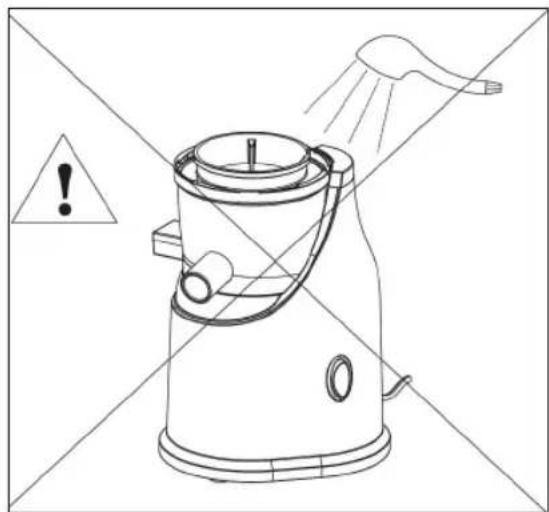

CLEANING

• Always switch the appliance off at the wall socket and unplug before cleaning.
- Unless clearly specified in the cleaning instructions below, please note that none of the parts of this appliance are dishwasher safe.
- The appliance must be cleaned immediately after use so fruit pulp and juice does not get stuck in the parts of the appliance.
- Clean the filter under running water with a soft brush. Make sure that the filter holes are not blocked. Make sure you do not damage the filter!
- Clean the motor section using a damp cloth and, if necessary, a little detergent. Never use abrasive detergents or solvents. The motor section must not be submerged in any form of liquid.
- All parts other than the motor section must be cleaned in warm water with a little washing-up liquid. These parts are not dishwasher-safe.
- Dry the parts thoroughly before they are replaced and before storing the appliance.

Line drawing of a mechanical device with warning symbols (no text or labels)

UK

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

In accordance with the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge.

In some member states you can in certain cases return used equipment to the retailer from whom you purchased it, if you are purchasing new equipment.

Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

WARRANTY TERMS

The warranty does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUES-TIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

IMPORTER

Adexi A/S

Grenåvej 635A

DK-8541 Skødstrup

Denmark

www.adexi.eu

We cannot be held responsible for any printing errors.

DE

EINLEITUNG

Line drawing of a mechanical component with a circular top and labeled point 1 (no text or symbols beyond label)

Technical line drawing of a mechanical device with a circular base and handle (no text or symbols)

Line drawing of a spiral-shaped object with a labeled point '3' (no text or symbols on the object itself)

Technical line drawing of a mechanical component with a labeled part (4), no text or symbols present.

Technical line drawing of a cylindrical mechanical component with internal ribs and a labeled point (no text or symbols on the diagram itself)

Line drawing of a kettle with handle and spout, labeled with number 9 (no text or symbols on the device itself)

Line drawing of a container with a handle and label pointing to the side (no text or symbols present)

Simple line drawing of a container with a lid and side panel (no text or symbols)

DE

Line drawing of a showerhead with warning symbol and triangular warning triangle (no text or labels)

PL

Line drawing of a portable air purifier with warning symbols (no text or labels)

PL
