Product Type	LCD Television
Brand	Sony
Model	Bravia KDL-40V4000K
Screen Size	40 inches (101.6 cm)
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Panel Type	VA LCD
Backlight	CCFL
Refresh Rate	50/60 Hz
Dimensions (with stand)	Approx. 100.5 x 68.7 x 26.5 cm (W x H x D)
Weight (with stand)	Approx. 25 kg
Power Consumption (Standby)	0.3 W
Power Consumption (Typical)	220 W
Voltage	220-240 V AC, 50/60 Hz
HDMI Inputs	3 x HDMI (1.3)
Component Video Inputs	1 x YUV
Composite Video Inputs	1 x AV
PC Input (VGA)	1 x D-sub 15 pin
USB Port	1 x USB (for service only)
Headphone Jack	1 x 3.5 mm
Tuner	DVB-T / DVB-C / Analog
VESA Mount Pattern	400 x 200 mm
Speakers	2 x 10 W (S-Force Front Surround)
Energy Class	A (according to old EU label)
Manual Languages	DA, EN, FI, NO, PL, RU, SV

Frequently Asked Questions - Bravia KDL-40V4000K SONY

How do I connect my external devices to the TV?

The Sony Bravia KDL-40V4000K has multiple inputs including 3 HDMI ports, 1 component video input, 1 composite AV input, and a VGA PC input. Simply connect your device using the appropriate cable and select the corresponding input source using the 'Input' button on the remote.

What is the VESA mount pattern for this TV?

The VESA mount pattern is 400 x 200 mm. Use a compatible wall mount bracket and ensure it supports the TV's weight (approx. 25 kg with stand).

How do I perform a factory reset?

Press the HOME button on the remote, go to Settings > System Settings > Factory Reset. Confirm the reset. All settings will be restored to defaults.

The remote control is not working. What should I do?

First, check the batteries. If they are fine, ensure there are no obstacles between the remote and the TV's IR sensor. Try resetting the remote by removing batteries and pressing any button for 5 seconds. If still not working, replace with a universal remote compatible with Sony TVs.

How do I clean the TV screen?

Use a soft, dry microfiber cloth to gently wipe the screen. Do not use any liquids, chemicals, or abrasive materials. For stubborn smudges, slightly dampen the cloth with distilled water and wipe immediately.

Why is there no picture but sound is working?

Check if the input source is correct. Press the Input button to cycle through sources. Also ensure the connected device is powered on and outputting video. If problem persists, try a different cable or input.

Can I connect a Bluetooth device?

No, this TV model does not have built-in Bluetooth. You can use external Bluetooth adapters via USB (if supported) or connect devices via HDMI or analog audio outputs.

How do I enable subtitles during DTV?

Press the SUBTITLE button on the remote (if available) or go to Settings > Digital Setup > Subtitle Settings and select your preferred language.

What is the power consumption in standby?

The standby power consumption is 0.3 W to comply with energy saving regulations. For typical use, it consumes about 220 W.

How to update the firmware?

Visit the Sony support website for your region and search for KDL-40V4000K firmware updates. Download the update onto a USB stick formatted to FAT32, insert into the USB port, then go to Settings > System Settings > Software Update and follow on-screen instructions.

USER MANUAL Bravia KDL-40V4000K SONY

LCD Digital Colour TV

KDL-52V4000/52V42xx

KDL-46V4000/46V42xx

KDL-40V4000/40V42xx

KDL-40S40xx/40U40xx

KDL-40L4000

Operating Instructions ____ GB

http://support.sony-europe.com/TV/DVBC/

DV3 is a registered trademark of the DVB Project

Diagram showing a mechanical assembly process: before and after a step, with no visible text or symbols.

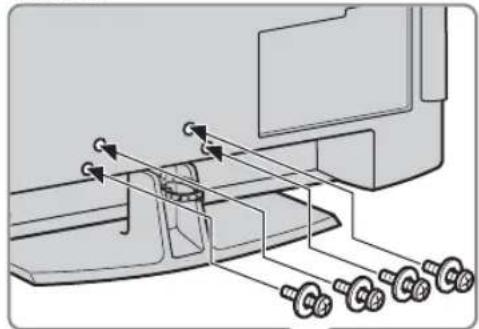

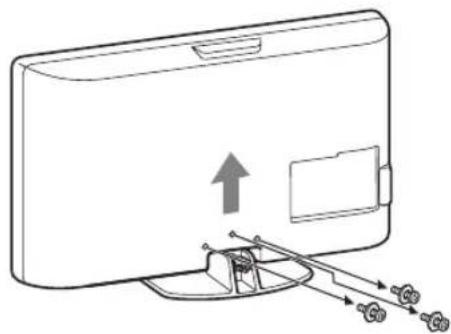

2: Montering af standeren (undtagen for KDL-52V4000/52V42xx)

1

Illustration of a monitor with a cable attachment, showing a downward arrow and base mount (no text or symbols)

2
KDL-46V4000/46V42xx/40V4000/40V42xx/40L4000

Mechanical assembly diagram showing a component with gears and directional arrows (no text or labels)

Mechanical assembly diagram showing a component with bolts and connecting rods (no text or labels)

3

4

5

http://support.sony-europe.com/TV/DVBC/

Line drawing of a computer monitor with an upward arrow and connector ports (no text or symbols)

KDL-40S40xx/40U40xx

Line drawing of a device with an upward arrow and mechanical components (no text or symbols)

KDL-40S40xx/40U40xx/40L4000

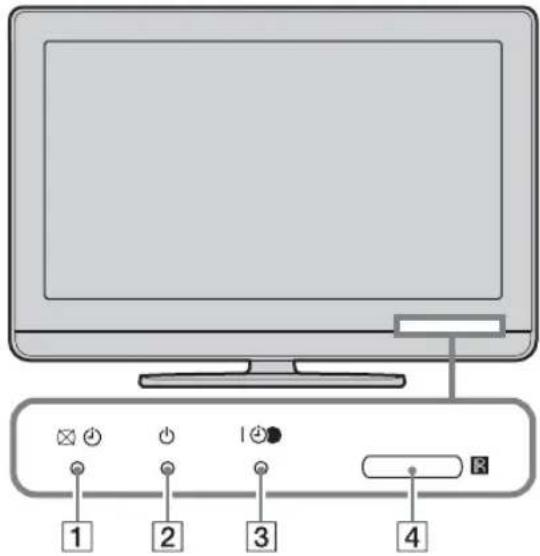

Indikator Beskrivelse

Front view line drawing of a modern sports car (no text or symbols)

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Viser traditionelle 4:3-udsendelser (f.eks. ikke-widescreen) med de korrekte proportioner.

Bred

Black and white illustration of a classic 19th-century sports car (no text or symbols visible)

Black-and-white line drawing of a classic 19th-century sports car (no text or symbols)

Front view of a classic black sports car with white highlights (no text or symbols visible)

Digital elektronisk programguide (EPG)

DV3 is a registered trademark of the DVB Project

Diagram showing a mechanical assembly process: before and after a step, with no visible text or symbols.

Diagram of a monitor with a cable attachment, showing a cable being inserted into a stand (no text or symbols present)

2
KDL-46V4000/46V42xx/40V4000/40V42xx/40L4000

Technical diagram of a mechanical assembly with gears and adjustment arrows (no text or symbols)

Diagram of a vehicle's rearview suspension system with pulleys and sensors (no text or labels)

Digisovitin/tallennin (esim. DVD-tallennin)

3

4

5

Line drawing of a computer monitor with an upward arrow indicating motion or change, showing internal components and connectors (no text or symbols)

KDL-40S40xx/40U40xx

Line drawing of a device with an upward arrow and mechanical components (no text or symbols)

Koukun kiinnike television takana

KDL-40S40xx/40U40xx/40L4000

Merkkivalo Kuvaus

Front view line drawing of a modern sports car (no text or symbols)

Front view of a classic PGA Tour car (no visible text or symbols)

Line drawing of a classic 19th-century sports car (no text or symbols)

Line drawing of a classic 19th-century sports car (no text or symbols)

Front view of a modern sports car with distinctive round headlights and front grille (no visible text or symbols)

http://support.sony-europe.com/TV/DVBC/

DV3 is a registered trademark of the DVB Project

Diagram showing a mechanical assembly with a lever and a separate view of a lever mechanism (no text or symbols present)

2: Feste stativet (unntatt for KDL-52V4000/52V42xx)

1

Diagram of a monitor with a cable attachment, showing the cable being inserted into a stand (no text or symbols present)

2
KDL-46V4000/46V42xx/40V4000/40V42xx/40L4000

Technical diagram of a mechanical assembly with gears and adjustment arrows (no text or symbols)

Line drawing of a flat-screen TV with a cable, showing front panel and side cover (no text or symbols on the device itself)

Mechanical assembly diagram showing a component with pulleys and rotating parts (no text or labels)

- Hvis du bruker en elektrisk skrutrekker, må du stille inn dreiemomentet på ca. 1,5 N·m (15 kgf·cm).

6: Foreta grunninnstillingene

3

4

5

Justere visningsvinkelen for TV-en (unntatt for KDL-40U40xx/40L4000)

Denne TV-en kan justeres innenfor de vinklene som er vist nedenfor.

Line drawing of a computer monitor with an upward arrow indicating orientation, showing internal components and connectors (no text or symbols)

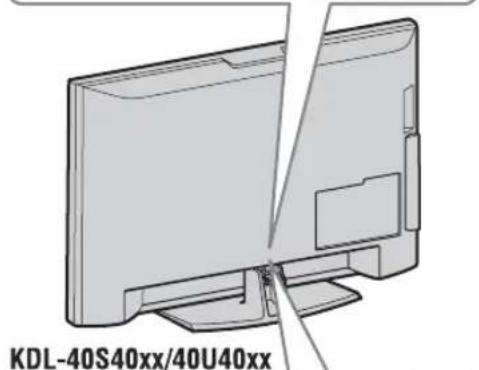

KDL-40S40xx/40U40xx

Line drawing of a monitor with an upward arrow and a small boat below, showing motion lines (no text or symbols)

Pass på at du holder på undersiden av TV-en, ikke på forsiden. Ikke ta tak i fordypningen. Ikke ta tak i den transparente bunnen.

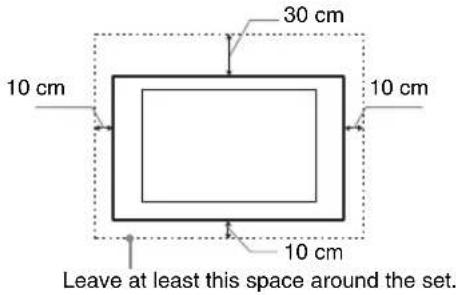

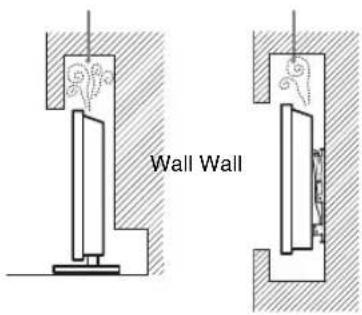

Ventilasjon

KDL-40S40xx/40U40xx/40L4000

Indikator Beskrivelse

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Front view line drawing of a classic 19th-century PGA Tour car (no text or symbols)

Line drawing of a classic 19th-century sports car (no text or symbols)

Front view illustration of a classic 19th-century PGA Tour car (no text or symbols visible)

Front view of a classic 19th-century sports car (no visible text or symbols)

EPG (Digital Electronic Programme Guide, eller digital elektronisk programoversikten)

Digital innstilling DV3

http://support.sony-europe.com/TV/DVBC/

Varumärkesinformation

DV3 is a registered trademark of the DVB Project

Diagram showing a mechanical assembly with a lever and a separate view of a lever mechanism (no text or symbols present)

Diagram of a monitor with a cable attachment, showing the cable being inserted into a stand (no text or symbols present)

2
KDL-46V4000/46V42xx/40V4000/40V42xx/40L4000

Technical diagram of a mechanical assembly with gears and adjustment arrows (no text or symbols)

Line drawing of a flat-screen TV with a cable, showing front panel and side cover (no text or symbols on the device itself)

Mechanical assembly diagram showing a component with pulleys and rotating parts (no text or labels)

3

4

5

http://support.sony-europe.com/TV/DVBC/

Line drawing of a computer monitor with an upward arrow indicating motion or change, showing internal components and cable routing (no text or symbols)

KDL-40S40xx/40U40xx

Line drawing of a device with an upward arrow and mechanical components, no text or symbols present

Säkerhets- information

Installation

KDL-40S40xx/40U40xx/40L4000

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Front view line drawing of a classic 19th-century PGA Tour car (no text or symbols)

Line drawing of a classic 19th-century sports car (no text or symbols)

Black-and-white line drawing of a classic 19th-century sports car (no text or symbols)

Program i cinemascope- format (brevlådeformat) visas med rätt proportioner.

14:9*

Front view of a classic 19th-century sports car (no visible text or symbols)

Digital elektronisk programguide (EPG)

Digital favoritlista

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Notes on Digital TV function

☐Functions related to Digital TV ( ) DVB will work only in countries or areas where a compatible DVB-C (MPEG2) cable service is available. Confirm with your local dealer whether the area you are in receives DVB-T signals, or ask your cable provider whether its DVB-C cable service is compatible with this TV.

□Your cable provider may charge a fee for their services, or require you to agree to its terms and conditions of business.

☐This TV set complies with DVB-T and DVB-C specifications, but compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts are not guaranteed.

☐ Some Digital TV functions may not be available in some countries/areas and DVB-C cable may not operate correctly with some providers.

For a list of compatible cable providers, refer to the support web site:

http://support.sony-europe.com/TV/DVBC/

Trademark information

DVB is a registered trademark of the DVB Project

Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

"BRAVIA" and BRAVIA trademarks of Sony Corporation.

BBE.ViVA

HD3D Sound

☐The illustrations used in this manual are of the KDL-40V4000 unless otherwise stated.

☐The “xx” that appears on the model name, corresponds to two numeric digits related to design or colour variation.

Table of Contents

Start-up Guide 4

Safety Information....9

Precautions.... 10

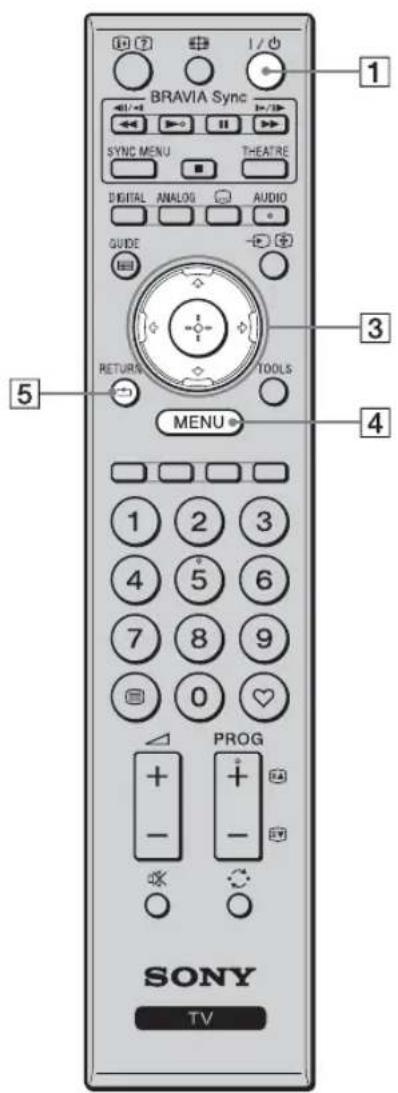

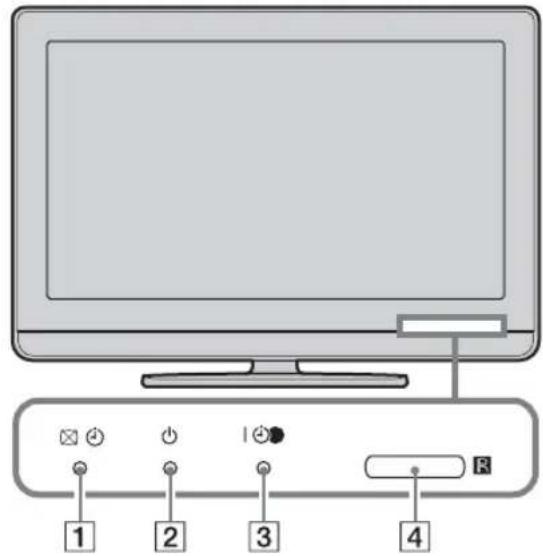

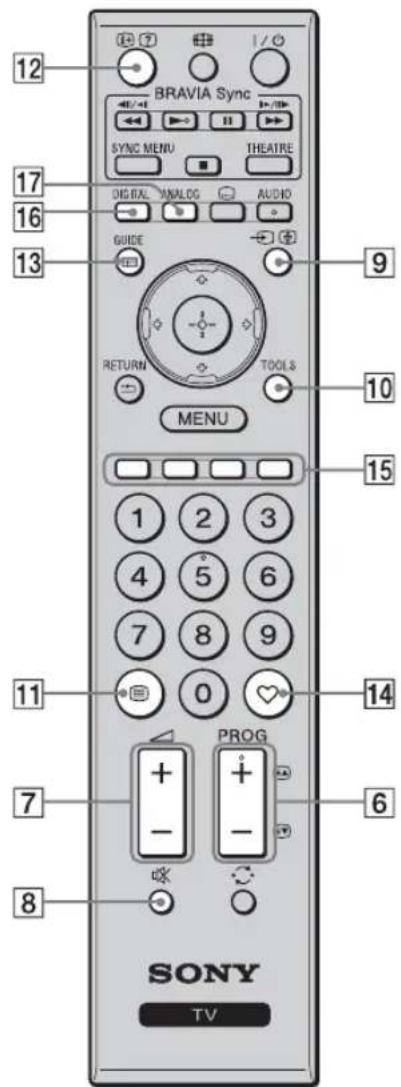

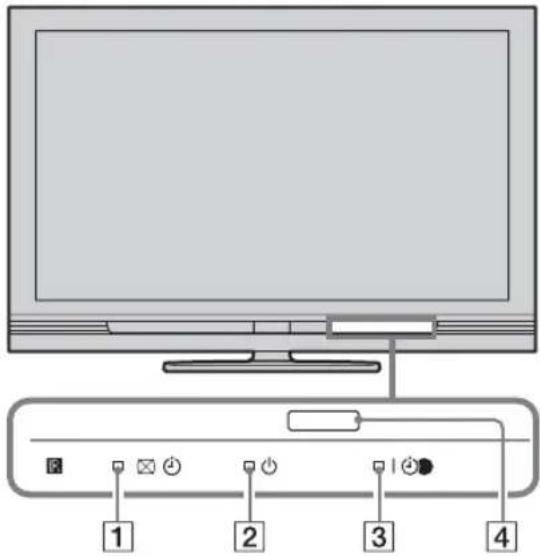

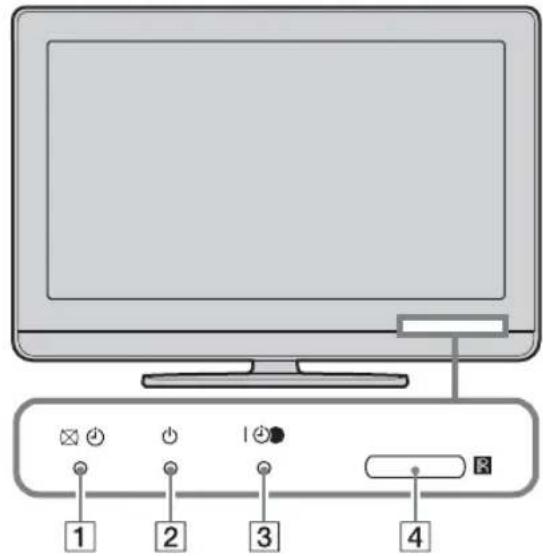

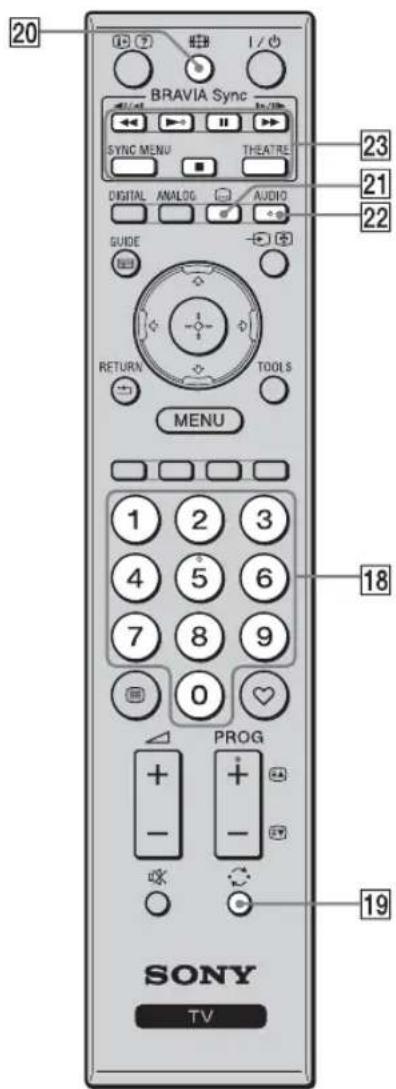

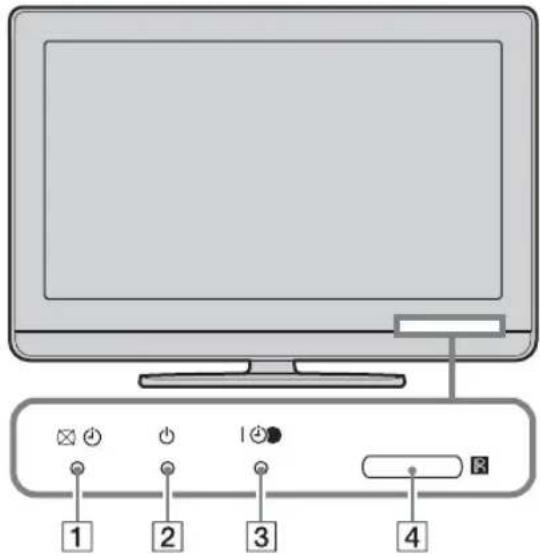

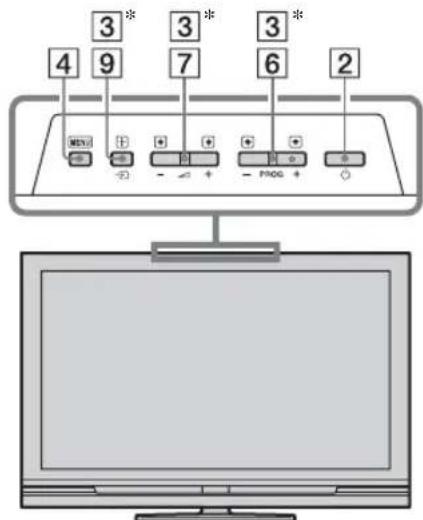

Remote Control and TV Controls/Indicators.... 12

Watching TV

Watching TV.... 16

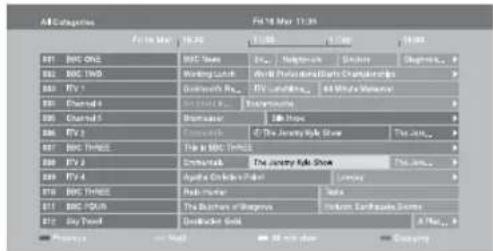

Using the Digital Electronic Programme Guide (EPG) DVB 18

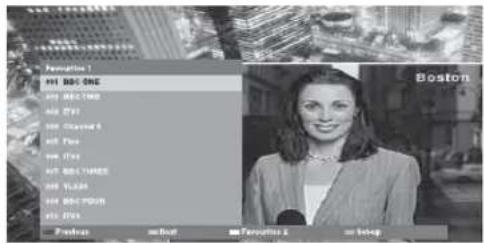

Using the Digital Favourite List DV3 20

Using Optional Equipment

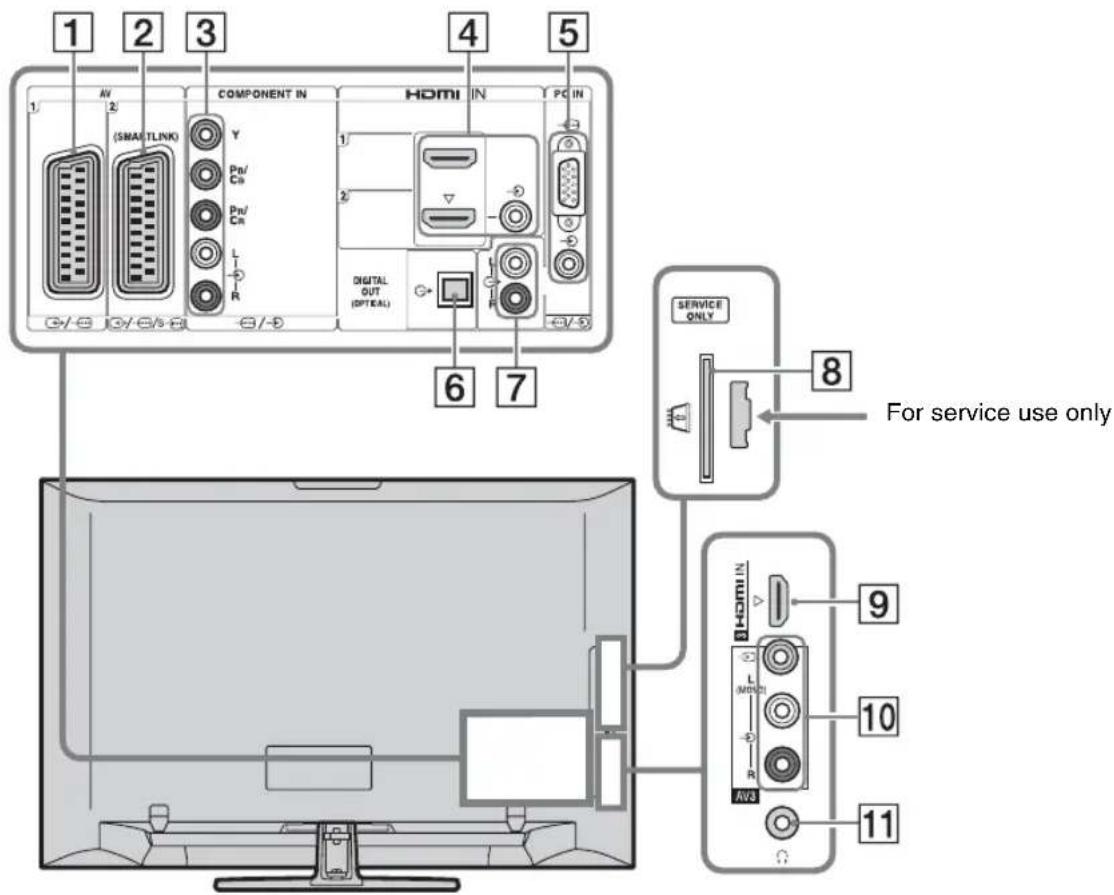

Connecting Optional Equipment.... 21

Viewing Pictures from Connected Equipment.... 23

Using BRAVIA Sync (Control for HDMI).... 24

Using Menu Functions

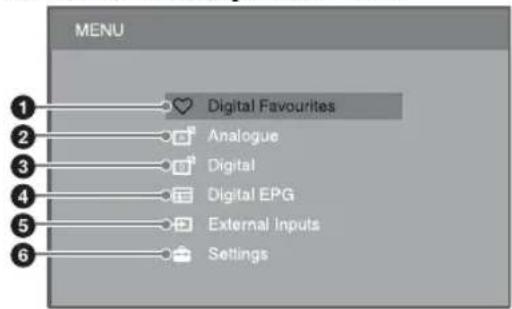

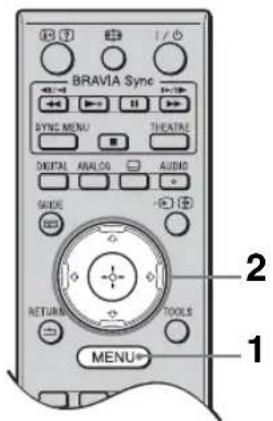

Navigating through menus.... 25

TV Settings Menu 26

Additional Information

Specifications 35

Troubleshooting 37

DV3 : for digital channels only

Before operating the TV, please read "Safety Information" (page 9). Retain this manual for future reference.

1: Checking the accessories

Mains lead (Type C-6) (1)

Stand (1) and screws (4) (except for KDL-52V4000/52V42xx)

Remote RM-ED013 (1)

Size AA batteries (R6 type) (2)

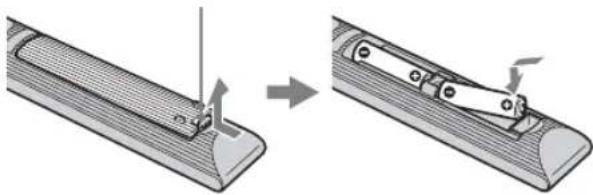

To insert batteries into the remote

Push and lift the cover to open.

Diagram showing a mechanical assembly before and after, with no visible text or symbols

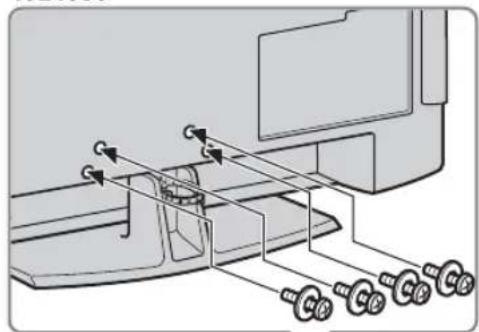

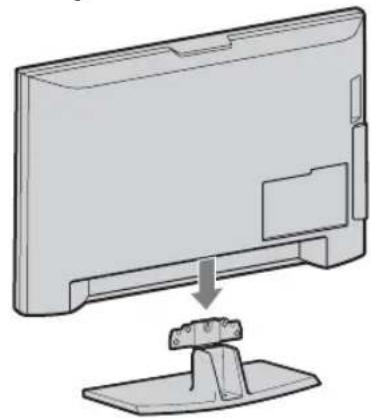

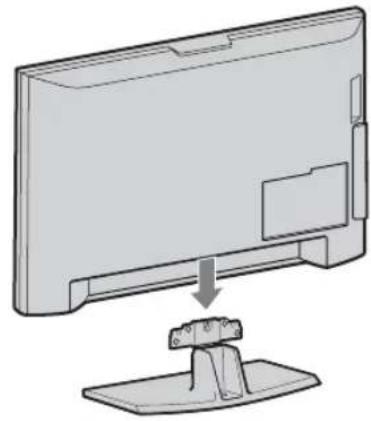

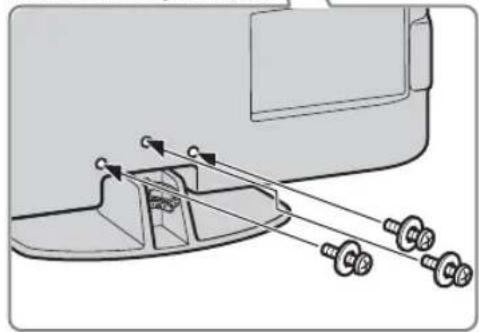

2: Attaching the stand (except for KDL-52V4000/52V42xx)

1

Illustration of a monitor with a cable attachment, showing a downward arrow and base mount (no text or symbols)

2 KDL-46V4000/46V42xx/40V4000/40V42xx/40L4000

Technical diagram of a mechanical assembly with gears and adjustment arrows (no text or symbols)

Technical line drawing of a flat-screen monitor with front panel and side panel (no text or symbols on the device itself)

Technical diagram of a mechanical assembly with gears and shafts, no visible text or symbols

- If using an electric screwdriver, set the tightening torque at approximately 1.5 N·m (15 kgf·cm).

3: Connecting an aerial/Set Top Box/recorder (e.g. DVD recorder)

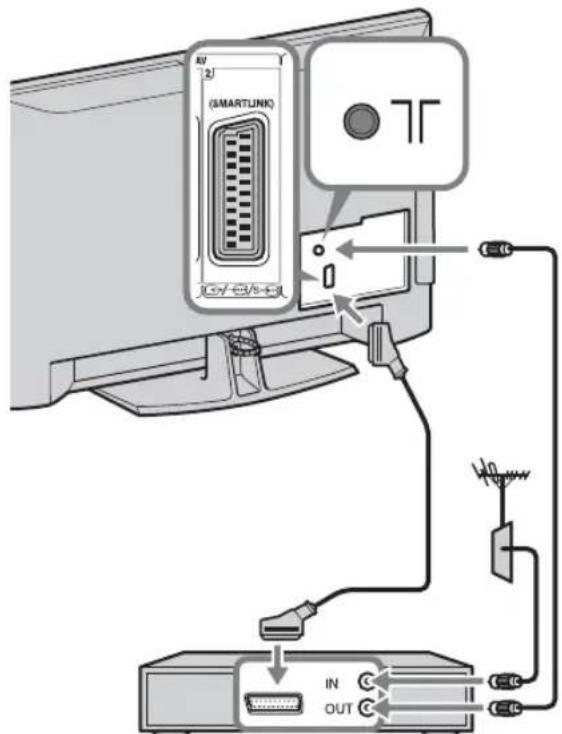

Connecting a Set Top Box/recorder (e.g. DVD recorder) with SCART

Set Top Box/recorder (e.g. DVD recorder)

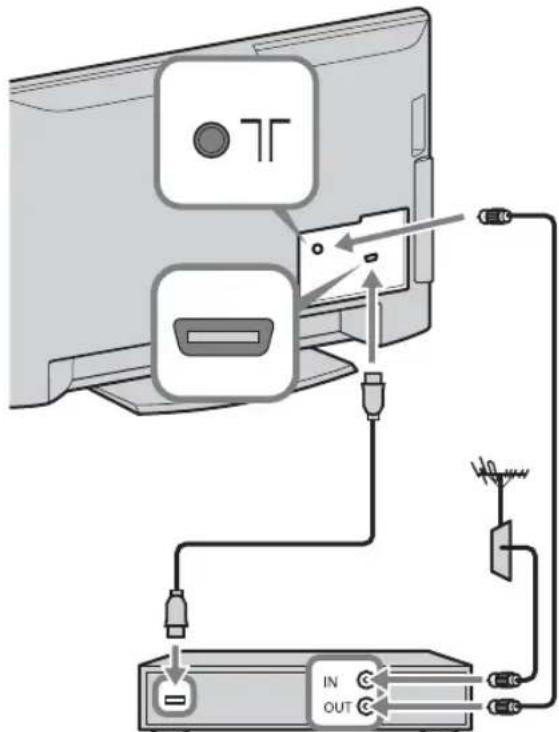

Connecting a Set Top Box/recorder (e.g. DVD recorder) with HDMI

Set Top Box/recorder (e.g. DVD recorder)

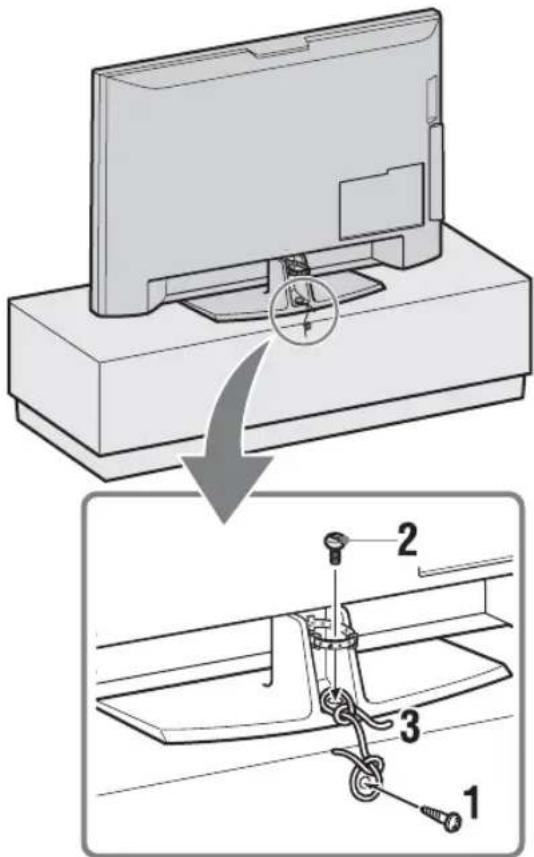

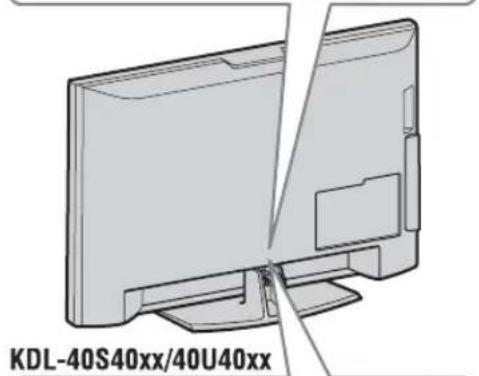

4: Preventing the TV from toppling over

1 Install a wood screw (4 mm in diameter, not supplied) in the TV stand.
2Install a machine screw (M6 × 12, not supplied) into the screw hole of the TV.
3Tie the wood screw and the machine screw with a strong cord.

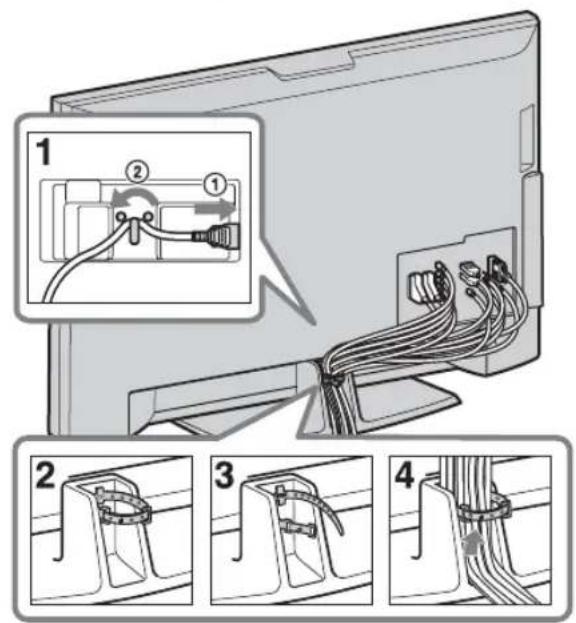

5: Bundling the cables

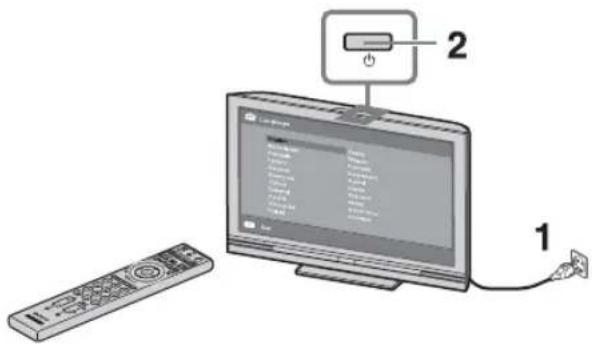

6: Performing the initial set-up

3

4

5

Select "Home" for the best TV settings to use the TV in the home.

6

Make sure that the aerial is connected.

7

When you select “Cable”, we recommend that you select “Quick Scan” for quick tuning. Set “Frequency” and “Network ID” according to the information supplied from your cable provider. If no channel is found using “Quick Scan”, try “Full Scan”(though it may take some time). For a list of compatible cable providers, refer to the support web site: http://support.sony-europe.com/TV/DVBC/

- Do not press any buttons on the TV or remote while searching for available channels.

8

If you want to change the order of analogue channels, follow the steps in "Programme Sorting" on page 31. If your TV cannot receive digital broadcasts, the "Clock Set" menu appears on the screen (page 28).

9

10

11

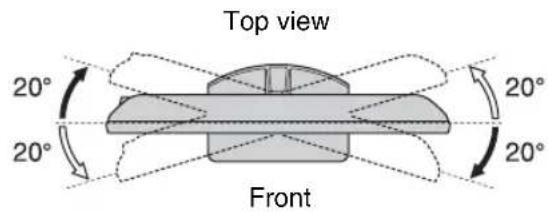

Adjusting the viewing angle of the TV (except for KDL-40U40xx/40L4000)

This TV can be adjusted within the angles shown below.

Adjust the angle left and right (swivel)

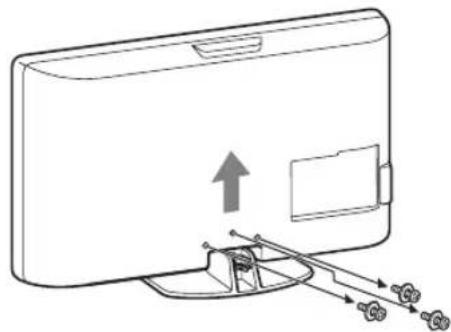

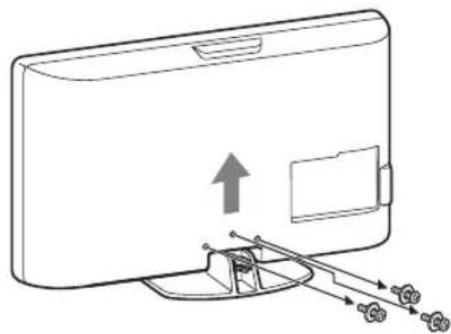

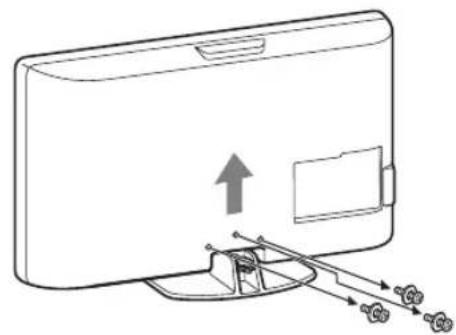

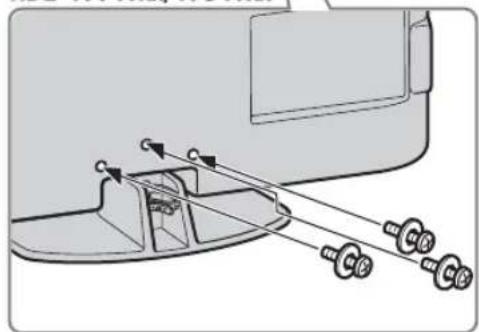

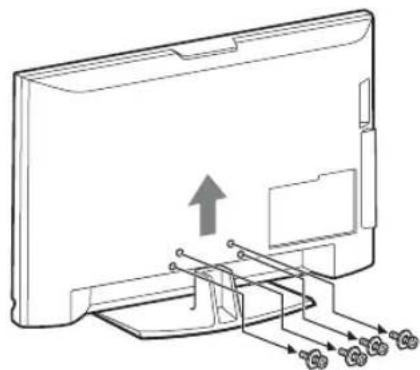

Detaching the Table-Top Stand from the TV

• Remove the screws guided by the arrow marks of the TV.
• Do not remove the Table-Top Stand for any reason other than to wall-mount the TV.

KDL-52V4000/52V42xx/46V4000/46V42xx/40V4000/40V42xx/40L4000

Line drawing of a computer monitor with an upward arrow indicating orientation, showing internal components and connectors (no text or symbols)

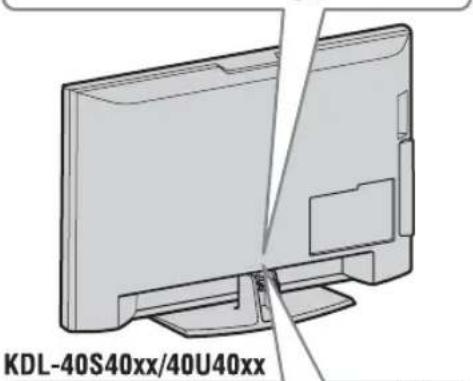

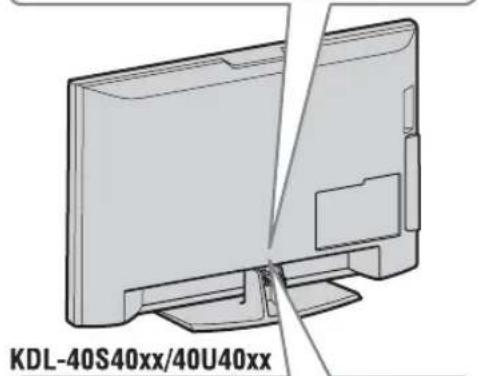

KDL-40S40xx/40U40xx

Line drawing of a monitor with an upward arrow and a small boat, showing no text or symbols

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

☐The TV set should be installed near an easily accessible mains socket.
□Place the TV set on a stable, level surface.
□Only qualified service personnel should carry out wall installations.
☐For safety reasons, it is strongly recommended that you use Sony accessories, including:

KDL-52V4000/52V42xx:

- Wall-mount bracket SU-WL500

KDL-46V4000/46V42xx/40V4000/40V42xx/40S40xx/

40U40xx/40L4000:

- Wall-mount bracket SU-WL500

TV stand SU-FL300M

□Be sure to use the screws supplied with the Wall-mount bracket when attaching the mounting hooks to the TV set. The supplied screws are designed so that they are 8 mm to 12 mm in length when measured from the attaching surface of the mounting hook.

The diameter and length of the screws differ depending on the Wall-mount bracket model.

Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8 mm - 12 mm

Screw (supplied with the Wall-mount bracket)

Mounting Hook

Hook attachment on rear of TV set

Transporting

□Before transporting the TV set, disconnect all cables.
□Two or three people are needed to transport a large TV set.
□When transporting the TV set by hand, hold it as shown on the right. Do not put stress on the LCD panel.
□When lifting or moving the TV set, hold it firmly from the bottom.
□When transporting the TV set, do not subject it to jolts or excessive vibration.
□When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Be sure to hold the bottom of the panel, not the front part. Do not handle with dent area.

Do not handle with the transparent bottom part.

Ventilation

□Never cover the ventilation holes or insert anything in the cabinet.

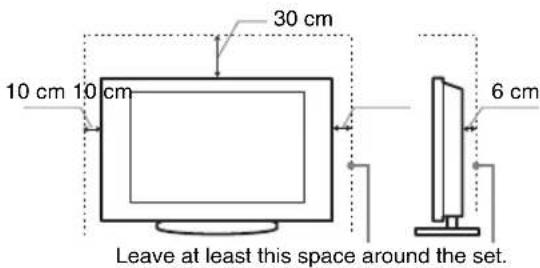

□Leave space around the TV set as shown below.
□It is strongly recommended that you use a Sony wall-mount bracket in order to provide adequate air-circulation.

Installed on the wall

Installed with stand

☐To ensure proper ventilation and prevent the collection of dirt or dust:

• Do not lay the TV set flat, install upside down, backwards, or sideways.
• Do not place the TV set on a shelf, rug, bed or in a closet.
• Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.
• Do not install the TV set as shown below.

Air circulation is blocked.

Mains lead

Handle the mains lead and socket as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

• Use only mains leads supplied by Sony, not other suppliers.
• Insert the plug fully into the mains socket.
• Operate the TV set on a 220–240 V AC supply only.
• When wiring cables, be sure to unplug the mains lead for your safety and take care not to catch your feet on the cables.
• Disconnect the mains lead from the mains socket before working on or moving the TV set.
• Keep the mains lead away from heat sources.
• Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Notes

☐Do not use the supplied mains lead on any other equipment.
☐Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.

□Do not modify the mains lead.
□Do not put anything heavy on the mains lead.
☐Do not pull on the mains lead itself when disconnecting the mains lead.
□Do not connect too many appliances to the same mains socket.
□Do not use a poor fitting mains socket.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environment:

Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situation:

Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer.

Disconnect the TV set from mains socket and aerial during lightning storms.

Broken pieces:

☐Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

☐If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise electric shock may result.

When not in use

□If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons.

☐ As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from the mains to disconnect the TV set completely.

□However, some TV sets may have features that require the TV set to be left in standby to work correctly.

For children

□Do not allow children to climb on the TV set.

□ Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the mains lead immediately if any of the following problems occur.

Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

• Mains lead is damaged.
  – Poor fitting of mains socket.
• TV set is damaged by being dropped, hit or having something thrown at it.
  – Any liquid or solid object falls through openings in the cabinet.

Precautions

Viewing the TV

□View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.
□When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

LCD Screen

□Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
☐Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.
□If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
□Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
☐The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
☐The LCD screen contains a small amount of liquid crystal. Some fluorescent tubes used in this TV set also contain mercury. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

☐To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
□Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
□When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Batteries

□Observe the correct polarity when inserting batteries.
☐Do not use different types of batteries together or mix old and new batteries.
☐ Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.
□Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.
☐Do not place the remote in a location near a heat source, a place subject to direct sunlight, or a damp room.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Remote Control and TV Controls/Indicators

Remote control and TV controls

Buttons on the TV will work the same as those on the remote control.

* In TV menu, these buttons will work as ↩/↙/↙/↙/⊕

- The number 5, ▶, PROG + and AUDIO buttons have a tactile dot. Use the tactile dots as a reference when operating the TV.

Button Description
1 I/⏻ (TV standby)	Press to turn the TV on and off from standby mode.
2 ⏻ (Power)	Press to turn the TV on or off.To disconnect the TV completely, turn off the TV, then unplug the mains lead from the mains.
3 ⇧/⇨/⇨/⇨/⊕	Press ⇧/⇨/⇨ to move the on-screen cursor. Press ⓣ to select/confirm the highlighted item.
4 MENU	Press to display the TV menu (page 25).
5 RETURN / ⇌	Press to return to the previous screen of the displayed menu.

6PROG +/-/EA/EV	In TV mode: Press to select the next (+) or previous (−) channel.In Text mode: Press to select the next (▲) or previous (▲)page.
7△+/-(Volume)	Press to adjust the volume.
8※(Mute)	Press to mute the sound. Press again to restore the sound.💡• In standby mode, if you want to turn on the TV without sound, press this button.
9/(Input select/Text hold)	In TV mode: Press to display a list of equipment connected to the TV (page 23).In Text mode: Press to hold the current page.
10TOOLS Press to display a list that contains “PAP” (page 23), “PIP” (page 23), “Device Control”, or shortcuts to some setting menus (page 26). Use the “Device Control” menu to operate equipment that is compatible with control for HDMI.The listed options vary depending on the input source.
11 ≡(Text)	Press to display text information (page 16).
12/⊕(?I n f Text reveal)	on digital mode: Displays details of the programme currently being viewed.In analogue mode: Displays information such as current channel number and screen format.In Text mode (page 16): Reveals hidden information (e.g. answers to a quiz).
13GUIDE / ≡(EPG)	Press to display the Digital Electronic Programme Guide (EPG) (page 18).
14 ♥(Favourite)	Press to display the Digital Favourite List that you have specified (page 20).
15Coloured buttons	When the coloured buttons are available, an operation guide appears on the screen. Follow the operation guide to perform a selected operation (page 17, 18, 20).
16 DIGITAL	Press to display the digital channel that was last viewed.
17 ANALOG	Press to display the analogue channel that was last viewed.

18 Number buttons	In TV mode: Press to select channels. For channel numbers 10 and above, press the second and third digits in quick succession.In Text mode: Press to enter a page number.
19 (Previous channel)	Press to return to the channel that was last viewed (for more than five seconds).
20 (Screen mode)	Press to change the screen format (page 17).
21 (Subtitle setting)	Press to display the “Subtitle Setting” menu (page 33) (in digital mode only).
22 AUDIO	In analogue mode: Press to change the dual sound mode (page 27).In digital mode: Press to display the “Audio Language” menu (page 33).
23 BRAVIA Sync	◀◀/▶-/■/▶▶/■: You can operate the BRAVIA Sync-compatible equipment that is connected to the TV.SYNC MENU: Displays the menu of connected HDMI equipment. While viewing other input screens or TV programmes, “HDMI Device Selection” is displayed when the button is pressed.THEATRE: You can set Theatre Mode on or off.When Theatre Mode is set to on, the optimum audio output (if the TV is connected with an audio system using an HDMI cable) and picture quality for film-based contents are automatically set.💡If you turn the TV off, Theatre Mode is also turned off.💡Control for HDMI (BRAVIA Sync) is only available with the connected Sony equipment that has the BRAVIA Sync logo or is compatible with control for HDMI.

Indicators

KDL-52V4000/52V42xx/46V4000/46V42xx/40V4000/40V42xx

KDL-40S40xx/40U40xx/40L4000

Indicator Description

1☒ ⊙ Picture Off / Timer	Lights up in green when you select “Picture Off” (page 28). Lights up in orange when you set the timer (page 28).
2 ⏻ — Standby	Lights up in red when the TV is in standby mode.
3I ⚙ ● — Power/ Lights up in green when the TV is on. Timer REC	Lights up in orange when you have set the timer recording (page 18). Lights up in red during timer recording.
4 Remote control sensor	Receives IR signals from the remote. Do not put anything over the sensor. The sensor may not operate properly.

- Make sure that the TV is completely turned off before unplugging the mains lead. Unplugging the mains lead while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

About the operation guide on the TV screen

Operation Guide
Example: Press ⊕ or RETURN (see 3 or 5 on page 12).

The operation guide provides help on how to operate the TV using the remote, and is displayed at the bottom of the screen. Use the remote buttons shown on the operation guide.

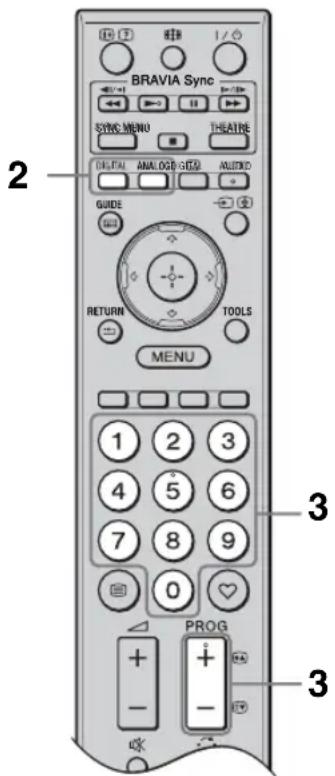

Watching TV

1 Press ⏻ on the TV to turn on the TV.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV front panel is red), press ⌊/♡ on the remote to turn on the TV.

2 Press DIGITAL to switch to digital mode, or press ANALOG to switch to analogue mode.

The available channels vary depending on the mode.

3 Press the number buttons or PROG +/- to select a TV channel.

To select channel numbers 10 and above using the number buttons, enter the second and third digits in quick succession.

To select a digital programme using the Digital Electronic Programme Guide (EPG), see page 18.

In digital mode

An information banner appears briefly. The following icons may be indicated on the banner.

: Radio service
: Scrambled/Subscription service
: Multiple audio languages available
: Subtitles available
7: Subtitles available for the hearing impaired
18: Recommended minimum age for current programme (ages from 4 to 18)
: Parental lock
( in red ):

Current programme is being recorded

Additional operations

To	Do this
Access the Programme index table (in analogue mode only)	Press ⊕. To select an analogue channel, press ♠/▽, then press ⊕.
Access the Digital Favourites (in digital mode only)	Press ♥. For details, see page 20.

To access Text

Press ☐. Each time you press ☐, the display changes cyclically as follows:

Text → Text and TV picture → No Text (exit the Text service)

To select a page, press the number buttons or 📐/♥.

To hold a page, press

To reveal hidden information, press ?

- When four coloured items appear at the bottom of the Text page, you can access pages quickly and easily (Fast Text). Press the corresponding coloured button to access the page.

To change the screen format manually

Press repeatedly to select the desired screen format.

Smart*

Front view line drawing of a 19th-century PGA Tour car (no text or symbols)

Displays conventional 4:3 broadcasts with an imitation wide screen effect. The 4:3 picture is stretched to fill the screen.

4:3

Front view line drawing of a classic PGA Tour car (no text or symbols)

Displays conventional 4:3 broadcasts (e.g. non-wide screen TV) in the correct proportion.

Wide

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Displays wide screen (16:9) broadcasts in the correct proportion.

Zoom*

Black-and-white line drawing of a classic 19th-century sports car (no text or symbols)

Displays cinemascopic (letter box format) broadcasts in the correct proportion.

14:9*

Front view of a classic black sports car with headlights and grille (no visible text or symbols)

Displays 14:9 broadcasts in the correct proportion. As a result, black border areas are visible on the screen.

* Parts of the top and bottom of the picture may be cut off. You can adjust the vertical position of the picture. Press / to move the picture up or down (e.g. to read subtitles).

- When you select "Smart", some characters and/or letters at the top and the bottom of the picture may not be visible. In such a case, adjust "Vertical Size" in the "Screen Settings" menu (page 29). - You cannot select "4:3" or "14:9" for HD signal source pictures.

- When “Auto Format” (page 29) is set to “On”, the TV automatically selects the best mode to suit the broadcast. - If 720p, 1080i or 1080p source pictures are displayed with black borders on the screen edges, select “Smart” or “Zoom” to adjust the pictures.

Using the Digital Electronic Programme Guide (EPG) DVB

Digital Electronic Programme Guide (EPG)

1 In digital mode, press GUIDE.

2 Perform the desired operation as shown in the following table or displayed on the screen.

* This function may not be available in some countries/areas.

To Do this
View a programme	Press ⇧/ ⇧/ ⇧/ to select a programme, then press ⊕.
Turn off the EPG Press GUIDE.
Sort programme information by category– Category list	1 Press the blue button.2 Press ⇧/ ⇧/ ⇧/ to select a category, then press ⊕. The categories available include: “All Categories”: Contains all available channels. Category name (e.g. “News”): Contains all channels corresponding to the selected category.
Set a programme to be recorded– Timer REC	1 Press ⇧/ ⇧/ ⇧/ to select the programme you want to record, then press ⊕.2 Press ⇧/ ⇧ to select “Timer REC”.3 Press to set the timers on the TV and recorder. A ⊕ symbol (in red) appears next to the programme’s information. The indicator on the TV front panel lights up in orange.💡You can perform the above procedure even if the programme you want to record has already started.
Set a programme to be displayed automatically on the screen when it starts– Reminder	1 Press ⇧/ ⇧/ ⇧/ to select a future programme you want to display, then press ⊕2 Press ⇧/ ⇧ to select “Reminder”, then press ⊕. A ⊕ symbol appears next to the programme’s information. The indicator on the TV front panel lights up in orange.💡If you switch the TV to standby mode, the TV will automatically turn on when the programme starts.
Set the time and date of a programme you want to record– Manual timer REC	1 Press ⊕2 Press ⇧/ ⇧ to select “Manual timer REC”, then press ⊕.3 Press ⇧/ ⇧ to select the date, then press ⇒.4 Set the start and stop time in the same way as in step 3.5 Press ⇧/ ⇧ to select the programme, then press ⊕.6 Press to set the timers on the TV and recorder.The indicator on the TV front panel lights up in orange.

To Do this

Cancel a recording/reminder – Timer list

1 Press

2 Press ↩/▽ to select "Timer list", then press ⊕.

3 Press ♠/▽ to select the programme you want to cancel, then press ⊕.

4 Press ↗/▽ to select “Cancel Timer”, then press ⊕.

A display appears to confirm that you want to cancel the programme.

5 Press ⇔/⇒ to select "Yes", then press ⊕.

[Non-Text]

• You can set recorder timer recordings on the TV only when the connected recorder is compatible with SmartLink. However, depending on the connected recorder type, this setting may not be available even though the recorder is SmartLink-compatible. For details, refer to the instruction manual supplied with your recorder.
• Once a recording has begun, you can switch the TV to standby mode, but do not turn off the TV completely, or the recording will be cancelled.
• If an age restriction has been set to programmes, a message asking for a PIN code appears on the screen. For details, see “Parental Lock” on page 34.

Using the Digital Favourite List DV3

Digital Favourite List

You can specify up to four of your favourite channel lists.

1 In digital mode, press . ♥
2 Perform the desired operation as shown in the following table or displayed on the screen.

* This function may not be available in some countries/areas.

To Do this
Create a Favourite list for the first time	1 Press to select “Yes”.2 Press the yellow button to select the Favourite list.3 Press ♠/⇨ to select the channel you want to add, then press ⊕.A ♥ symbol appears next to channels that you have stored in the Favourite list.
Watch a channel	1 Press the yellow button to select a Favourite list.2 Press ♠/⇨ to select a channel, then press ⊕.
Add or remove channels in a Favourite list	1 Press the blue button.2 Press the yellow button to select the Favourite list to edit.3 Press ♠/⇨ to select the channel to add or remove, then press ⊕.
Remove all channels from a Favourite list	1 Press the blue button.2 Press the yellow button to select the Favourite list to edit.3 Press the blue button.4 Press ♠/⇨ to select “Yes”, then press ⊕.

Connecting Optional Equipment

You can connect a wide range of optional equipment to your TV.

Connect to Input symbol on screen		Description
1	AV1	When you connect a decoder, the TV tuner outputs scrambled signals to the decoder, and the decoder unscrambles the signals before outputting them.
2	AV2	SmartLink provides a direct link between the TV and a recorder (e.g. DVD recorder).
3	COMPONENT IN	The component video sockets support the following video inputs only: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p.
Connect to	Input symbol on screen	Description
4 HDMI IN 1 or 2 HDMI 1 or HDMI 29 HDMI IN 3 (except for KDL-40L4000)	HDMI 1 or HDMI 2HDMI 3	Digital video and audio signals are input from the connected equipment.In addition, when you connect the equipment that is compatible with control for HDMI, communication with the connected equipment is supported. Refer to page 30 to set up this communication.If the equipment has a DVI socket, connect the DVI socket to the HDMI IN 2 socket through a DVI - HDMI adaptor interface (not supplied), and connect the equipment's audio out sockets to the audio in sockets in the HDMI IN 2 sockets.The HDMI sockets support the following video inputs only: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 1080/24p.For PC video inputs, see page 36.Be sure to use only an authorized HDMI cable bearing the HDMI logo. We recommend that you use a Sony HDMI cable (high speed type).When connecting an audio system that is compatible with control for HDMI, be sure to also connect it to the DIGITAL AUDIO (PCM) OUT (OPTICAL) socket.
5PC IN	PC	It is recommended to use a PC cable with ferrites like the “Connector, D-sub 15” (ref. 1-793-504-11, available in Sony Service Centre), or equivalent.
6 DIGITAL AUDIO (PCM) OUT (OPTICAL)(except for KDL-40S40xx/40U40xx/40L4000)		Use an optical audio cable.
7 You can listen to TV sound on the connected Hi-Fi audio equipment.
8 CAM (Conditional Access Module)		Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.To use the CAM, remove the “dummy” card from the CAM slot, then turn off the TV and insert your CAM card into the slot. When you are not using the CAM, we recommend that you keep the “dummy” card in the CAM slot.CAM is not supported in some countries/areas. Check with your authorised dealer.
10 AV3, and AV3 when connecting mono equipment, connect to the AV3 L socket.
11 Headphones		You can listen to TV sound through headphones.

Viewing Pictures from Connected Equipment

Turn on the connected equipment, and perform one of the following operations.

For equipment connected to the scart sockets using a fully-wired 21-pin scart lead

Start playback on the connected equipment. The picture from the connected equipment appears on the screen.

For an auto-tuned recorder

In analogue mode, press PROG +/- or the number buttons, to select the video channel.

For other connected equipment

Press to display a list of connected equipment. Press ♠/▽ to select the desired input source, then press ⊕

The highlighted item is automatically selected if you do not perform any operation for two seconds after pressing ♣/♀.

If you have set an input source to “Skip” in the “AV Preset” menu (page 30), that input source does not appear in the list.

- To return to normal TV mode, press DIGITAL or ANALOG.

To view two pictures simultaneously – PAP (Picture and Picture)

You can view two pictures (external input and TV programme) on the screen simultaneously. Connect an optional equipment (page 21), and make sure that images from the equipment appear on the screen (page 23).

• This function is not available for a PC input source.
• You cannot change the size of the pictures.
• The analogue TV video in the TV programme picture will not appear while displaying AV1, AV2 or AV3 in the external input picture. However, you can hear the analogue video's sound.

1 Press TOOLS.

2 Press ♠/▽ to select “PAP”, then press ⊕.

The picture from the connected equipment is displayed on the left, and the TV programme is displayed on the right.

3 Press the number buttons or PROG +/- to select the TV channel.

To return to single picture mode Press ⊕ or RETURN.

- The picture framed in green is audible. You can switch the audible picture by pressing / .

To view two pictures simultaneously – PIP (Picture in Picture)

You can view two pictures (PC input and TV programme) on the screen simultaneously. Connect a PC (page 21), and make sure that images from the PC appear on the screen.

- “Power Management” (page 29) is not available in PIP mode.

1 Press TOOLS.

2 Press ♠/▽ to select “PIP”, then press ⊕.
The picture from the connected PC is displayed in full size, and the TV programme is displayed in the small screen.
You can use // to change the position of the TV programme screen.

3 Press the number buttons or PROG +/- to select a TV channel.

To return to single picture mode Press RETURN.

- You can switch the audible picture by selecting "Audio Swap" from the Tools menu.

Using BRAVIA Sync (Control for HDMI)

The control for HDMI function enables the TV to communicate with the connected equipment that is compatible with the function, using HDMI CEC (Consumer Electronics Control). For example, by connecting Sony equipment that is compatible with control for HDMI (with HDMI cables), you can control them together. Be sure to connect the equipment correctly, and make the necessary settings.

Control for HDMI

• Automatically turns the connected equipment off when you switch the TV to standby mode using the remote.
• Automatically turns the TV on and switches the input to the connected equipment when the equipment starts to play.
• If you turn on a connected audio system while the TV is on, the sound output switches from the TV speaker to the audio system.
• Adjusts the volume ( + / - ) and mutes the sound ( ) of a connected audio system.
• You can operate the connected Sony equipment that has the BRAVIA Sync logo by the TV remote by pressing:

- ▶/■/■/◄◄/►► to operate the connected equipment directly.

- SYNC MENU to display the menu of the connected HDMI equipment on the screen. After displaying the menu, you can operate the menu screen by using // and .

- TOOLS to display "Device Control", then select options from "Menu", "Options", and "Content List" to operate the equipment.

– Refer to the instruction manual of the equipment for available control.

To connect the equipment that is compatible with control for HDMI

Connect the compatible equipment and the TV with an HDMI cable. When connecting an audio system, be sure to also connect the DIGITAL AUDIO (PCM) OUT (OPTICAL) socket of the TV and the audio system using an optical audio cable (except for KDL-40S40xx/40U40xx/40L4000). For details, see page 21.

To make the control for HDMI settings

The control for HDMI settings must be set on both the TV side and connected equipment side. See “HDMI Set-up” on page 30 for the TV side settings. For settings on the connected equipment, refer to the operating instructions for that equipment.

Using Menu Functions

Navigating through menus

Menu functions allow you to enjoy various convenient features of this TV. You can easily select channels or input sources, and change the settings for your TV.

1 Press MENU.

2 Press ♠/▽ to select an option, then press ⊕.

To exit the menu, press MENU.

①Digital Favourites\*

Displays the Favourite list (page 20).

②Analogue

Returns to the last viewed analogue channel.

③Digital\*

Returns to the last viewed digital channel.

④Digital EPG\*

Displays the Digital Electronic Programme Guide (EPG) (page 18).

⑤External Inputs

Displays a list of equipment connected to the TV.

- To view pictures from an external input, select the input source, then press ⊕.

- To select the equipment that is compatible with control for HDMI, select "HDMI Device Selection".

⑥Settings

Displays the “Settings” menu where most of the advanced settings and adjustments are performed.

1 Press ⇧/⇨ to select a menu item, then press ⊕.
2 Press /// to select an option or adjust a setting, then press ⊕

For details about settings, see pages 26 to 34.

• The options you can adjust vary depending on the situation. Unavailable options are greyed out or not displayed.

*This function may not be available in some countries/areas.

TV Settings Menu


Picture Mode	Sets a picture mode when displaying an input other than a PC. The options for “Picture Mode” may differ depending on the “Video/Photo” setting (page 28). When you select “Shop” (or “Home”) in step 5 of the initial set-up (page 7), “Picture Mode” is set to “Vivid” (or “Standard”).
	Vivid (“Shop”, see Enhances picture contrast and sharpness. page 7)
	Standard (“Home”, see For standard pictures. Recommended for home entertainment.
	Cinema For viewing film-based content. Most suitable when viewing the TV in a theatre-like environment.
	Photo Sets the optimum picture quality for photographs.
Display Mode Sets a display mode when displaying a PC input.
Reset	Resets all the “Picture” settings to the factory settings excluding “Picture Mode” and “Display Mode”.
Backlight Adjusts the brightness of the backlight.
Contrast Increases or decreases picture contrast.
Brightness Brightens or darkens the picture.
Colour Increases or decreases colour intensity.
Hue Increases or decreases the green tones and red tones.
Colour Temperature	Adjusts the whiteness of the picture.
	Cool Gives white colours a blue tint.
	Neutral Gives white colours a neutral tint.
	Warm 1/Warm 2 Gives white colours a red tint. “Warm 2” gives a redder tint than “Warm 1”.
	“Warm 1” and “Warm 2” are not available when “Picture Mode” is set to “Vivid”.
Sharpness	Sharpens or softens the picture.
Noise Reduction	Reduces the noise level of pictures (snowy pictures) when the broadcast signal is weak.
	Auto Automatically reduces picture noise (in analogue TV mode only).
	High/Medium/Low Modifies the effect of the noise reduction.
	Off Turns off the “Noise Reduction”.
MPEG Noise Reduction	Reduces picture noise in MPEG-compressed videos.
Advanced Settings	Allows you to set “Picture” settings in more detail. These settings are not available when “Picture Mode” is set to “Vivid”.
	Adv. Contrast Enhancer	Automatically adjusts “Backlight” and “Contrast” to the most suitable settings judging from the brightness of the screen. This setting is especially effective for dark images scenes, and will increase the contrast distinction of the darker picture scenes.
	Live Colour Makes colours more vivid.

Sound

Sound Effect Sets the sound mode.

Dynamic Intensifies clarity and sound presence for better intelligibility and musical realism by using the “BBE High definition Sound System”.

Standard Enhances clarity, detail, and sound presence by using “BBE High definition Sound System”.

Clear Voice Makes voice sound clearer.

Dolby Virtual Uses the TV speakers to simulate the surround effect produced by a multi channel system.

BBE ViVA BBE ViVA Sound provides musically accurate natural 3D image with Hi-Fi sound. The clarity of the sound is improved by BBE while the width depth and height of sound image are expanded by BBE's proprietary 3D sound process. BBE ViVA Sound is compatible with all TV programs including news, music, dramas, movies, sports and electronic games.

- If “Auto Volume” is set to “On”, “Dolby Virtual” is automatically changed to “Standard”.

Reset Resets all the "Sound" settings to the factory settings excluding "Dual Sound".

Treble Adjusts higher-pitched sounds.

Bass	Adjusts lower-pitched sounds.
Balance	Emphasises the left or right speaker.
Auto Volume	Keeps volume level constant across all programmes and adverts (e.g. adverts tend to be louder than programmes).
Volume Offset	Sets an independent volume level to each equipment connected to the TV.
Dual Sound	Sets the sound from the speaker for a stereo or bilingual broadcast.
	Stereo/Mono	For stereo broadcasts.
	A/B/Mono	For bilingual broadcasts, select “A” for sound channel 1, “B” for sound channel 2, or “Mono” for mono channel, if available.

• For other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A”, or “B”.
• When you connect an external equipment to the HDMI socket, “Dual Sound” is automatically set to “Stereo” (except when using the audio in sockets).

Features

Quick Start	The TV turns on faster than usual within two hours after switching to standby mode. However, power consumption in standby mode is higher than usual.
Power Saving Reduces power consumption of the TV by adjusting the backlight.When you select “Picture Off”, the picture is switched off, and the Picture Off) indicator on the TV front panel lights up in green. The sound remains unchanged.
Film Mode Provides improved picture movement when playing DVD or VCR images taken on film, reducing picture blur and graininess.
	Auto Provides smoother picture movement than the original film-based content. Use this setting for standard use.
	Off Turns off the “Film Mode”.If the image contains irregular signals or too much noise, “Film Mode” is automatically turned off even if “Auto” is selected.
Video/Photo	Sets the image quality setting most suited to the input source (video or photograph data).
	Video-A Sets suitable image quality, depending on the input source, video data or photograph data when directly connecting Sony HDMI output-capable equipment that supports “Video-A” mode.
	Video Produces suitable image quality for moving pictures.
	Photo Produces suitable image quality for still images.If the connected equipment does not support Video-A mode, the setting is automatically set to “Video”, even if you select “Video-A”.“Video/Photo” is available only for HDMI or component input source (1080p and 1080i).
Timer Settings	Sleep Timer	Sets the TV to automatically switch to standby mode after a certain amount of time.When “Sleep Timer” is activated, the (Timer) indicator on the TV front panel lights up in orange.When you turn off the TV and turn it on again, “Sleep Timer” is reset to “Off”.A notification message appears on the screen one minute before the TV switches to standby mode.
	On Timer Settings	On Timer Sets the TV to automatically turn on from standby mode.
		Timer Mode Sets the day(s) of the week you want the timer to turn on the TV.
		Time Sets the time you want the timer to turn on the TV.
		Duration Sets how long you want the TV to stay on before switching to standby mode again.
	Clock Set	Allows you to adjust the clock manually. When the TV is receiving digital channels, you cannot adjust the clock manually, because the clock automatically receives the time code from the broadcast signal.

Set-up

Auto Start-up	You can run the initial set-up that appeared when you first connected the TV (page 6), and select the language, country/area and tune in all available channels again.Even if you have made the settings when you first connected the TV, you may need to change the settings after moving house, or to search for newly launched channels.
Language Sets the language displayed on the menu screens.
Screen Settings Screen Format See “To change the screen format manually” on page 17.
	Auto Format Automatically changes the screen format to match the broadcast signal. If you want to use the setting that you specified in “Screen Format”, select “Off”.
	Display Area Adjusts the picture display area in 1080i/p and 720p sources when “Screen Format” is set to “Wide”.
		Auto During digital broadcasts, displays pictures in accordance with the settings recommended by the broadcast station.
		Full Pixel Displays the original picture area.
		Normal Displays pictures in their recommended size.
	Horizontal Shift Adjusts the horizontal position of the picture.
	Vertical Shift Adjusts the vertical position of the picture when “Screen Format” is set to “Smart”, “Zoom” or “14:9”.
		“Vertical Shift” is not available when “Display Area” is set to “Full Pixel”.
	Vertical Size	Adjusts the vertical size of the picture when “Screen Format” is set to “Smart”, “Zoom” or “14:9”.
PC Settings	Screen Format	Sets a screen format for displaying pictures from your PC.
		Full 1 Enlarges the picture to fill the vertical display area, while maintaining its original proportion.
		Full 2 Enlarges the picture to fill the display area.
	Reset	Resets all PC screen settings to factory settings.
	Auto Adjustment	Automatically adjusts the display position and phase of the picture when the TV receives an input signal from the connected PC.
		“Auto Adjustment” may not work well with certain input signals. In such cases, manually adjust “Phase” and “Horizontal Shift”.
	Phase	Adjusts the phase when the screen flickers.
	Pitch	Adjusts the pitch when the picture has unwanted vertical stripes.
	Horizontal Shift Adjusts the horizontal position of the picture.
	Power Management	Switches the TV to standby mode if no signal is received for 30 seconds.
AV Set-up AV Preset Assigns a name to equipment connected to the side and rear sockets. The name appears briefly on the screen when you select the equipment. You can skip input sources from connected equipment that you do not want displayed on the screen.1 Press ⇔/⇨ to select the desired input source, then press⊕.2 Press ⇔/⇨ to select the desired option, then press ⊕.
	Equipment labels	Uses preset labels to assign a name to connected equipment.
	Edit: Allows you to create your own label.Press ⇔/⇨ to select the desired letter or number, then press⇨. Repeat this step until you complete the name, then select “OK” and press ⊕
	Skip Skips unnecessary input sources.
AV2 Input Sets a signal to be input from the // AV2 socket.Usually, set to “Auto”.However, depending on the connected equipment, the signal may not be correctly detected even though “Auto” is selected.If the video from the equipment connected to the⇨-⇨ s-⇨AV2 socket is not displayed correctly, select “Composite”, “S Video”, or “RGB” for the signal of the connected equipment.
AV2 Output	Sets a signal to be output to the⇨/-⇨/s-⇨AV2 socket. If you connect a recorder or other recording equipment to the⇨/-⇨AV2 socket, you can record the output signal from other equipment connected to the TV.
	TV	Outputs TV broadcasts.
	Auto Outputs whatever is being viewed on the screen (except signals from the⇨COMPONENT IN, HDMI IN 1, HDMI IN 2, HDMI IN 3, and⇨PO IN sockets).⇨HDMI IN 3 is not available in KDL-40L4000.
Speaker	TV Speaker	Turns on and outputs the TV’s sound from the TV speakers.
	Audio System	Turns off the TV speakers and outputs the TV’s sound from external audio equipment connected to the audio output sockets on the TV.You can also turn on the connected equipment that is compatible with control for HDMI, after making the appropriate settings of control for HDMI.
Audio Out	Variable	Allows you to use the TV’s remote to control audio output from an audio system connected to the TV.
	Fixed	The audio output of the TV is fixed. Use your audio receiver’s volume control to adjust the volume (and other audio settings) through your audio system.
HDMI Set-up	Allows the TV to communicate with equipment that is compatible with the control for HDMI function, and connected to the HDMI sockets of the TV. Note that communication settings must also be made on the connected equipment.
	Control for HDMI Sets whether or not to link the operations of the TV and the connected equipment that is compatible with control for HDMI. When set to “On”, the following menu items can be performed. However, power consumption in standby mode is higher than usual.If the specific Sony equipment that is compatible with control for HDMI is connected, this setting is applied to the connected equipment automatically when the “Control for HDMI” is set to “On” using the TV.
	Auto Devices Off When this is set to “On”, the connected equipment that is compatible with control for HDMI turns off when you switch the TV to standby mode using the remote.
	Auto TV On When this is set to “On”, the TV turns on when you turn on the connected equipment that is compatible with control for HDMI.
	Device List Update Creates or updates the “HDMI Device List”. Up to 11 compatible equipment items can be connected, and up to 5 equipment items can be connected to a single socket. Be sure to update the “HDMI Device List” when you change the connections or settings. If the specific Sony equipment that is compatible with control for HDMI is connected, “Control for HDMI” is applied to the connected equipment automatically when the “Device List Update” is executed on the TV.
	HDMI Device List Displays a list of connected equipment that is compatible with control for HDMI.You cannot use “Control for HDMI” if the TV operations are linked to the operations of an audio system that is compatible with control for HDMI.
Product Information Displays product information of the TV.
All Reset	Resets all settings to factory settings and displays the initial set-up screen.Do not turn off the TV or press any buttons during “All Reset” (takes about 30 seconds).Settings for the Digital Favourites lists, country/area, language, and auto tuned channels will also be reset to factory settings.

Analogue Set-up

Auto Tuning Tunes in all the available analogue channels. You can retune the TV after moving house, or to search for newly launched channels.

Programme Sorting Changes the order of analogue channels stored in the TV. 1 Press ♂/♀ to select the channel you want to move to a new position, then press . 2 Press ♂/♀ to select the new position for the channel, then press .

Manual Programme Preset

Press ⌘/▽ to select the programme number you want to manually tune (if tuning a recorder, select channel 00), then press ⊕

System/Channel

1 Press ♠/▽ to select "System", then press ⊕.

2 Press / to select one of the following TV broadcast systems, then press RETURN.

B/G: For western European countries/areas

I: For the United Kingdom

D/K: For eastern European countries/areas

L: For France

3 Press ♠/▽ to select “Channel”, then press ⊕.

4 Press ⇧/⇨ to select “S” (for cable channels) or “C” (for terrestrial channels), then press ⇧.

5 Tune the channels as follows:

If you do not know the channel number (frequency)

Press ♠/▽ to search for the next available channel. The search stops when a channel is found. To continue searching, press ♠/▽.

If you know the channel number (frequency)

Press the number buttons to enter the channel number of the broadcast you want to tune, or the channel number of your recorder.

6 Press to jump to "Confirm", then press.

Repeat the above procedure to preset other channels manually.

Label Assigns a name of your choice, up to five letters or numbers, to the selected channel. This name appears briefly on the screen when you select the channel.

AFT Allows you to fine-tune the selected channel manually if you feel that a slight tuning adjustment may improve picture quality.

You can adjust the fine tuning over a range of -15 to +15. When “On” is selected, fine tuning adjustments are made automatically.

Audio Filter Improves the sound of individual channels when distortion occurs in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting in mono programmes.

If you do not experience any sound distortion, we recommend that you leave this option to “Off” (factory setting).

- You cannot receive stereo or dual sound when “Low” or “High” is selected.

- “Audio Filter” is not available when “System” is set to “L”.

LNA Improves the picture quality of the channel (noisy picture) when the broadcast signal is very weak. If you cannot see any improvement in the picture quality even if you set to “On”, set this option to “Off” (factory setting).

Skip Skips unused analogue channels when you press PROG +/- to select channels. To select channels you have programmed to skip, use the corresponding number buttons.

Decoder Allows you to view and record the scrambled channel when using a decoder connected directly to scart connector AV1, or AV2 via a recorder.

- Depending on the country/area selected for “Country”, this option may not be available.

Confirm Saves changes you have made to the “Manual Programme Preset” settings.

Digital Set-up DV3

Digital Tuning Digital Auto Tuning		Tunes in the available digital channels.You can retune the TV after moving house, or to search for newly launched channels.
		Programme List Edit	Allows you to remove or change the order of digital channels stored in the TV.1 Press ⇔/⇨ to select the channel you want to remove or move to a new position.You can also select a channel by pressing the number buttons to enter its three-digit channel number.2 Remove or change the order of the digital channels as follows:To remove the digital channelPress ⊕After a confirmation message appears, press ⇔ to select “Yes”, then press ⊕To change the order of the digital channelsPress ⇒, then press ⇔/⇨ or number buttons to select the new position for the channel and press ⇔.3 Press RETURN.
		Digital Manual Tuning	Tunes the digital channels manually. This feature is available when “Digital Auto Tuning” is set to “Antenna”.1 Press the number buttons to enter the channel number you want to tune, then press ⇔/⇨.2 When the available channels are found, press ⇔/⇨ to select the channel you want to store, then press ⊕3 Press ⇔/⇨ to select the channel number where you want to store the new channel, then press ⊕Repeat the above procedure to tune other channels.
Digital Set-up	Subtitle Set-up		Subtitle Setting When set to “For Hard Of Hearing”, visual aids for the hearing impaired are displayed with the subtitles (when such visual aids are available).
			Subtitle Language Allows you to select the language of the subtitles.
	Audio Set-up		Audio Type Switches to broadcast for the hearing impaired when you select “For Hard Of Hearing”.
			Audio Language Sets the language to be used for a programme. Some digital channels may broadcast several audio languages for a programme.

	Audio Description	Provides audio description (narration) of visual information, when such information is available.
	Mixing Level	Adjusts the TV main audio and Audio Description output levels.
Radio Display	Displays the screen wallpaper when you listen to a radio broadcast. You can select the screen wallpaper colour, or display a random colour. To cancel the screen wallpaper display temporarily, press any button.
Parental Lock	Sets an age restriction to viewing or recording programmes. To view or record any programme rated for ages above the age you specify, enter the correct PIN code.1 Press the number buttons to enter your PIN code.If you have not already set a PIN code, a PIN code entry screen appears. Follow the instructions in “PIN Code” below.2 Press // to select an age restriction or “None” (for unrestricted watching), then press ⊕3 Press RETURN.
PIN Code To set a PIN for the first time1 Press the number buttons to enter a PIN code.2 Press RETURN.To change your PIN1 Press the number buttons to enter your PIN code.2 Press the number buttons to enter a new PIN code.3 Press RETURN.💡• PIN code 9999 is always accepted.
Technical Set-up	Auto Service Update	Enables the TV to detect and store new digital services as they become available.
	Software Download	Enables the TV to automatically receive free software updates through your existing aerial/cable (when issued). We recommend that you leave the setting to “On” at all times.
	System Information	Displays the current software version and the signal level.
	Time Zone	Allows you to manually select the time zone you are in, if it is not the same as the default time zone setting for your country/area.
	Auto DST Sets whether or not to automatically switch between summer time and winter time.Off: Displays the time according to the time difference set in “Time Zone”.On: Automatically switches between summer time and winter time according to the calendar.
CA Module Setup	Provides access to a pay TV service after you obtain a Conditional Access Module (CAM) and a view card. See page 22 for the location of the (PCMCIA) socket.

Specifications

Model name KDL-40S40xx		/40U40xx/40L4000	KDL-40V4000/40V42xx	KDL-46V4000/46V42xx	KDL-52V4000/52V42xx
System
Panel system		LCD (Liquid Crystal Display) Panel
TV system		Analogue: Depending on your country/area selection: B/G/H, D/K, L, IDigital: DVB-T/DVB-C
Colour/video system		Analogue: PAL, SECAM, NTSC 3.58, 4.43 (only video input)Digital: MPEG-2 MP@ML/HL
Channel coverage		Analogue: VHF: E2-E12/UHF: E21-E69/CATV: S1-S20/HYPER: S21-S41D/K: R1-R12, R21-R69/L: F2-F10, B-Q, F21-F69/I: UHF B21-B69Digital: VHIF/UHF
Sound output		10 W + 10 W
Input/Output jacks
Aerial/cable		75 ohm external terminal for VHF/UHF
		21-pin scart connector (CENELEC standard) including audio/video input, RGB input, and TV audio/video output.
		21pin scart connector (CENELEC standard) including audio/video input, RGB input, S video input, selectable audio/video output, and SmartLink interface.
		Supported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480iY: 1 Vp-p, 75 ohms, 0.3V negative sync/Pb/Cb: 0.7 Vp-p, 75 ohms/Pr/Cr: 0.7 Vp-p, 75 ohms
		Audio input (phono jacks)
HDMI IN 1, 2, 3(HDMI IN 3 is not available in KDL-40L4000.)		Video: 1080/24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480iAudio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bitsAnalogue audio input (minijack) (HDMI IN 2 only)PC Input (see page 36)
		Video input (phono jack)
		Audio input (phono jacks)
		Digital optical jack
		Audio output (phono jacks)
		PC Input (D-sub 15-pin) (see page 36)G: 0.7 Vp-p, 75 ohms, non Sync on Green/B: 0.7 Vp-p, 75 ohms/R: 0.7 Vp-p, 75 ohms/HD: 1-5 Vp-p/VD: 1-5 Vp-pPC audio input (minijack)
		Headphones jack
		CAM (Conditional Access Module) slot
Power and others
Power requirements		220 V - 240 V AC, 50 Hz
Screen size (measured diagonally)		40 inches (Approx. 101.6 cm) 40 inches (Approx. 101.6 cm)	46 inches (Approx. 116.8 cm)	52 inches (Approx. 132.2 cm)
Display resolution		1,920 dots (horizontal) × 1,080 lines (vertical)
Power consumption	in “Home”/“Standard” mode	175 W 175 W 215 W 222 W
	in “Shop”/“Vivid” mode	197 W 197 W 238 W 249 W
Standby power consumption*		0.19 W
Model name		KDL-40S40xx/40U40xx/40L4000	KDL-40V4000/40V42xx	KDL-46V4000/46V42xx	KDL-52V4000/52V42xx
Dimensions (Approx.) (w × h × d)	with Table-Top Stand	99.7 × 69.1 × 27.9 cm (KDL-40S40xx/40U40xx)99.5 × 68.8 × 27.6 cm (KDL-40L4000)	98.6 × 68.4 × 27.9 cm	112.0 × 78.2 × 30.7 cm	126.2 × 87.1 × 34.7 cm
	without Table-Top Stand	99.7 × 64.4 × 11.0 cm (KDL-40S40xx/40U40xx)99.5 × 65.1 × 11.1 cm (KDL-40L4000)	98.6 × 64.6 × 11.0 cm	112.0 × 74.2 × 11.5 cm	126.2 × 82.9 × 11.9 cm
Mass (Approx.)	with Table-Top Stand	23.0 kg (KDL-40S40xx/40U40xx)21.5 kg (KDL-40L4000)	21.5 kg 29.0 kg 38.0 kg
	without Table-Top Stand	20.0 kg (KDL-40S40xx/40U40xx)18.5 kg (KDL-40L4000)	18.5 kg 25.0 kg 32.0 kg
Supplied accessories		See “1: Checking the accessories” on page 4.
Optional accessories		SU-WL500 Wall-Mount Bracket/SU-FL300M TV stand SU-WL500 Wall-			Mount Bracket

* Specified standby power is reached after the TV finishes necessary internal processes.
When "Control for HDMI" is activated, standby power consumption is 0.6 W.
When “Quick Start” is activated, standby power consumption will remain at 16 W for two hours after switching to standby mode.

Design and specifications are subject to change without notice.

PC input signal reference chart for PC

Resolution			Horizontal frequency (kHz)	Vertical frequency (Hz)	Standard
Signals Horizontal (Pixel)	× Vertical (Line)
VGA	640 × 480 31.5 60 VESA
	640 × 480 37.5 75 VESA
	720 × 400 31.5 70	VGA-T
SVGA	800 × 600 37.9 60	VESA Guidelines
	800 × 600 46.9 75 VESA
XGA	1024	× 768 48.4 60	VESA Guidelines
	1024	× 768 56.5 70 VESA
	1024	× 768 60.0 75 VESA
WXGA	1280	× 768 47.4 60 VESA
	1280	× 768 47.8 60 VESA
	1280	× 768 60.3 75
	1360	× 768 47.7 60 VESA
SXGA	1280	× 1024	64.0	60	VESA

• This TV's PC input does not support Sync on Green or Composite Sync.
• This TV's PC input does not support interlaced signals.
• This TV's PC input supports signals in the above chart with a 60 Hz vertical frequency. For other signals, you will see the message "NO SYNC".

PC input signal reference chart for HDMI IN 1, 2, 3*

Resolution			Horizontal frequency (kHz)	Vertical frequency (Hz)	Standard
Signals Horizontal (Pixel)	× Vertical (Line)
VGA	640 × 480 31.5 60 VESA
SVGA	800 × 600 37.9 60 VESA Guidelines
XGA	1024	× 768 48.4 60 VESA Guidelines
WXGA	1280	× 768 47.4 60 VESA
WXGA	1280	× 768 47.8 60 VESA
SXGA	1280	× 1024	64.0	60	VESA

* HDMI IN 3 is not available in KDL-40L4000.

Troubleshooting

Check whether the ⏻ (standby) indicator is flashing in red.

When the ⏻ (standby) indicator is flashing

The self-diagnosis function is activated.

1 Count how many times the ⏻ (standby) indicator flashes between each two second break.
For example, the indicator may flash three times, go off for two seconds, then flash again three times.
2 Press ⏻ on the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When the ⏻ (standby) indicator is not flashing

1 Check the items in the tables below.
2 If the problem persists, have your TV serviced by qualified service personnel.

Condition Explanation/Solution
There is no picture (screen is dark) and no sound.	Check the aerial/cable connection.Connect the TV to the mains, and press ⏻ on the TV.If the ⏻ (standby) indicator lights up in red, press ⏻/ ⏻.
No picture or menu information from equipment connected to the scart connector appears on the screen.	Press ⏻ display the list of connected equipment, then select the desired input.Check the connection between the optional equipment and the TV.
Ghosting occurs, or double images appear.	Check the aerial/cable connection.Check the aerial location and direction.
Only snow and noise appear on the screen.	Check if the aerial is broken or bent.Check if the aerial has reached the end of its serviceable life (three to five years for normal use, one to two years when used at the seaside).
The picture is distorted (dotted lines or stripes appear).	Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers, or optical equipment.When installing optional equipment, leave some space between the optional equipment and the TV.Check the aerial/cable connection.Keep the aerial/cable TV cable away from other connecting cables.
There is picture or sound noise when viewing a TV channel.	Adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception (page 32).
Tiny black points and/or bright points appear on the screen.	The screen is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.
The picture contours are distorted.	Select “Auto” in “Film Mode” (page 28).
The picture is not displayed in colour.	Select “Reset” (page 26).
The picture from equipment connected to theCOMPONENT IN sockets is not displayed in colour, or is displayed in irregular colours.	Check the connection of theCOMPONENT IN sockets and check if the sockets are firmly seated in their respective sockets.
Sound
The picture is good, but there is no sound.	Press + / - or ※ (Mute).Check if the “Speaker” is set to “TV Speaker” (page 30).When using HDMI input with Super Audio CD or DVD-Audio,DIGITAL AUDIO (PCM) OUT (OPTICAL) may not output audio signals.
Channels
You cannot select your desired channel.	Switch between digital and analogue mode, and select the desired digital/analogue channel.
Some channels are blank. • The channel is for scrambled/subscription service only. Subscribe to a pay TV service.The channel is used only for data (no picture or sound).Contact the broadcaster for transmission details.
You cannot view digital channels.	Contact a local installer to find out if digital transmissions are provided in your area.Upgrade to a higher gain aerial.
General
The TV turns off automatically (the TV enters standby mode).	Check if the “Sleep Timer” is activated, or confirm the “Duration” setting of “On Timer Settings” (page 28).If no signal is received and no operation is performed in the TV mode for 10 minutes, the TV automatically switches to standby mode.
The TV turns on automatically.	Check if the “On Timer Settings” is activated (page 28).
Some input sources cannot be selected.	Select “AV Preset” and cancel the “Skip” setting for the input source (page 30).
The remote does not function.	Replace the batteries.
You cannot add a channel to the Favourite list.	Up to 999 channels can be stored in the Favourite list.
HDMI equipment does not appear on “HDMI Device List”.	Check that your equipment is compatible with control for HDMI.
You cannot select “Off” in “Control for HDMI”.	If you have connected any audio system that is compatible with control for HDMI, you cannot select “Off” in this menu. If you want to change the audio output to the TV speaker, select “TV Speaker” in the “Speaker” menu (page 30).
Not all channels are tuned for cable.	Check the support website for cable provide information.http://support.sony-europe.com/TV/DVBC/

Wprowadzenie

http://support.sony-europe.com/TV/DVBC/

DV3 is a registered trademark of the DVB Project

Diagram showing a mechanical assembly with a lever and a separate lever mechanism (no text or symbols present)

Diagram of a monitor with a cable attachment, showing a cable being inserted into a stand (no text or symbols present)

2 KDL-46V4000/46V42xx/40V4000/40V42xx/40L4000

Technical diagram of a mechanical assembly with gears and a housing (no text or symbols)

Mechanical assembly diagram showing a boat with pulleys and a connecting rod (no text or labels)

3

4

5

Line drawing of a computer monitor with an upward arrow indicating orientation, showing internal components and connectors (no text or symbols)

KDL-40S40xx/40U40xx

Line drawing of a device with an upward arrow and mechanical components, no text or symbols present

KDL-40S40xx/40U40xx/40L4000

Wskaźnik Opis

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Black and white illustration of a classic 19th-century sports car (no text or symbols visible)

Black and white illustration of a classic 19th-century sports car (no text or symbols)

Front view of a classic 19th-century sports car (no visible text or symbols)

DV3 is a registered trademark of the DVB Project

Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo Japan

Assembled in Spain, Slovakia, Russia

Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo Japan

Diagram showing a mechanical component being inserted into a slide, with no visible text or symbols

Illustration of a computer monitor with a stand and a downward arrow indicating a download or release (no text or symbols present)

2
KDL-46V4000/46V42xx/40V4000/40V42xx/40L4000

Technical diagram of a mechanical assembly with gears and a container (no text or symbols)

Technical line drawing of a flat-screen monitor with a cable, showing front and side views (no text or symbols on the device itself)

Mechanical assembly diagram showing a component with pulleys and a handle, no text or symbols present

Телеприставка/рекордер (например, DVD-рекордер)

3

4

5

Line drawing of a computer monitor with an upward arrow indicating motion or change, showing internal components and connectors (no text or symbols)

KDL-40S40xx/40U40xx

Line drawing of a device with an upward arrow and mechanical components, no text or symbols present

KDL-40S40xx/40U40xx/40L4000

Индикатор Описание

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Front view illustration of a classic 19th-century sports car (no text or symbols visible)

Front view line drawing of a classic 19th-century sports car (no text or symbols)

For useful information about Sony products
