Product Type	Drink Cooler (Wine/Beverage/Cigar Cooler)
Model	Guzzanti GZ-56
Temperature Control	Electronic control with LED display, adjustable temperature range 5°C to 20°C
Display	2-digit LED display showing set or actual internal temperature
Temperature Units	Switchable between Celsius and Fahrenheit
Power Switch	Touch and hold 5 seconds to turn on/off
Interior Light	LED light with on/off button
Shelves	Adjustable sliding shelves with notch to prevent bottle drop
Door Lock	Optional key lock (key provided)
Refrigerant	Combustible refrigerant (do not damage cooling pipes)
Installation	Freestanding, avoid direct sunlight and heat sources, allow 2 hours upright before powering on
Climate Class	SN, N, ST, T (ambient temperature ranges from 10°C to 43°C based on class)
Power Supply	Proprietary wall outlet with grounding, voltage unspecified (standard household)
Cleaning	Interior: warm water and mild detergent; exterior: warm water and mild liquid detergent
Defrosting	Manual (do not use mechanical devices or accelerate defrosting)
Storage Capacity	Not specified (designed for wine bottles, beverages, or cigars)
Noise Level	Normal refrigerant flow sounds, some creaking from expansion/contraction
Safety	Do not damage refrigerant circuit; keep ventilation unobstructed; no appliances inside except recommended

Frequently Asked Questions - GZ-56 Guzzanti

How do I set the temperature on my Guzzanti GZ-56 drink cooler?

Press the temperature setting button until the display flashes. Then press the up or down arrow to adjust the desired temperature between 5°C and 20°C. After 5 seconds, the display shows the actual internal temperature.

Why is my wine cooler not cooling sufficiently?

Check that the temperature setting is correct. Ensure the door is fully closed and not opened frequently. Verify that the cooler is not overloaded and that the room temperature is within the specified climate class. Also check door seal for proper sealing.

The cooler makes a lot of noise. Is this normal?

Some noise is normal, such as refrigerant flow (gurgling) or expansion/contraction of materials (cracking). If the cooler is not level, it may cause vibrations. Ensure it is on a sturdy, level surface.

How do I clean the interior of the drink cooler?

First, unplug the unit and remove all contents and shelves. Wash the interior with a soft cloth dipped in warm water and mild detergent. Do not use abrasive cleaners. Rinse and dry thoroughly before placing items back.

Can I change the temperature display from Celsius to Fahrenheit?

Yes, press the °C/°F button to toggle between Celsius and Fahrenheit. The display will update accordingly.

What should I do if the door does not close properly?

Check that the cooler is level. Ensure the door was installed correctly and the gasket is clean. If the gasket is dirty, clean it with mild soapy water. Also verify that shelves are not protruding.

How long should I wait before restarting after a power outage?

Wait at least 3 to 5 minutes before turning the cooler back on. If you try to start it sooner, the compressor may not engage. After a long power outage, the internal temperature may take time to stabilize.

The interior light does not turn on. What can I do?

First, check that the unit is plugged in and the circuit breaker hasn't tripped. Press the light button to ensure it's not set to 'Off'. If still not working, the LED bulb may need replacement.

Is the GZ-56 suitable for storing both red and white wine?

Yes, the temperature range of 5°C to 20°C covers both white and red wine serving temperatures. Adjust the setting based on your preference.

What should I do if the cooler is not starting?

Ensure the power cord is plugged into a working outlet. Check if the circuit breaker or fuse has tripped. Confirm that the unit is not in standby mode (press and hold power button for 5 seconds). If still not starting, contact service.

USER MANUAL GZ-56 Guzzanti

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Thank you for purchasing our Wine Cooler & Beverage Cooler & Cigar Cooler and hope that our advanced products will bring a happy taste for your collection, please read and follow all safety rules and operating instructions before use.

Remove the exterior and internal packaging.

Let the wine cooler stand upright for about 2 hours before connecting the wine to the power supply. This will reduce the possibility of handling cooling system failures during transportation.

Use a soft cloth to clean the inner surface with warm water.

This product is suitable for home use and similar applications, such as

• Staff kitchen areas in stores, offices and other work environments;
• Farm houses and homes in hotels, motels and other residential type environments;
• Bed-and-breakfast-type environment;
• Catering and similar non-retail applications.

When processing the equipment, please select the authorized processing site.

Place your Wine cooler

This product is designed for stand-alone installation, do not cause performance problems.

This product is specialized for storing wine or beverages or cigar.

Place your wine cooler on a floor strong enough to support it at full load. To adjust the height of your wine cooler, please adjust the box foot at the bottom of the wine cooler / beverage cooler / cigar cooler.

The device uses a combustible refrigerant. Therefore, do not damage the cooling pipes during transportation. wine cooler must away from direct sunlight and heat sources (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating, and the heat source may increase the power consumption. Extreme cold ambient temperatures may also cause the device to fail to function properly.

Avoid placing the machine in a wet place.

Insert the wine cooler into proprietary, well-installed wall outlets. Never cut or unplug the third (ground) pin on the power cord. For any questions about power and / or grounding, consult a certified electrician or authorized product service center.

Matters need attention

Store the wine in sealed bottles;

Do not overload the cabinet;

Do not open the door unless necessary;

Do not cover shelves with aluminum foil or any other shelf material that may hinder air circulation;

If the wine cooler is stored for a long time, it is recommended that the door be half open and the air circulate in the cabinet to avoid condensation, mold or odor.

If the power cord is damaged or seriously worn, it must be replaced by the manufacturer or the professional maintenance department, and shall not be replaced by itself.

1) Warning: there are no obstacles around the appliance or in the embedded knot, and keep the ventilation unobstructed;
2) Warning: Do not use mechanical equipment or other methods to accelerate the defrosting process except as recommended by the manufacturer;
3) Warning: Do not damage the refrigeration circuit;
4) Warning: Do not use appliances in the pantry of appliances except for the type recommended by the manufacturer.

Ambient temperature

This product is designed to operate at the ambient temperature specified in the temperature grade indicated on the nameplate.

Rank Climate type	Ambient temperature (°C)
Sub-temperate type SN +10	to+32
The temperate type N +16 to+32
Subtropical type ST +16 to+38
Tropical type T +16 to+43

Product model description

JC/A/B/C

JC compressor wine cabinet

A Single temperature zone

B double temperature zone

C Single-temperature beverage cabinet

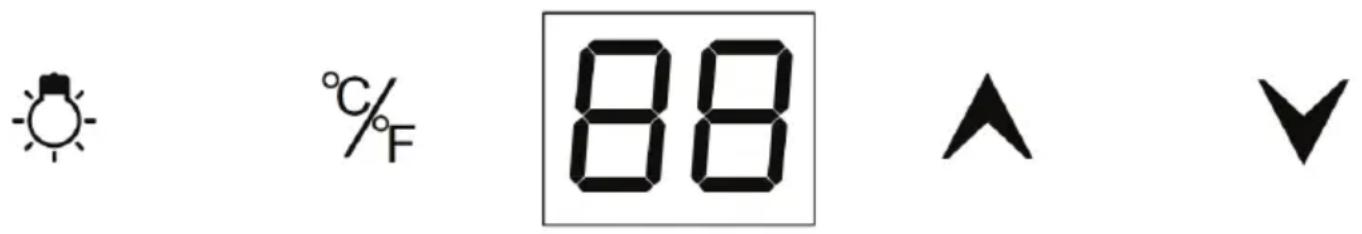

FOR Single zone wine cooler

Control panel operation

Power switch: After the device is powered on, hold down 5 seconds to turn the device on or off.

°C/°F Switch: Press °C/°F to change the temperature display between Celsius and Fahrenheit.

Temperature setting button: Press before adjusting the temperature. On the first press, the display screen flashes and displays the set temperature. After 5 seconds, the measured internal temperature is displayed. Press to raise the set temperature, press to lower the set temperature.

Display window: a 2-bit LED display, showing the set temperature or the actual internal temperature.

Light button: Press this button to turn it on or off.

Single zone wine cooler temperature setting range:

The temperature setting can be adjusted between 5 °C and 20 °C.

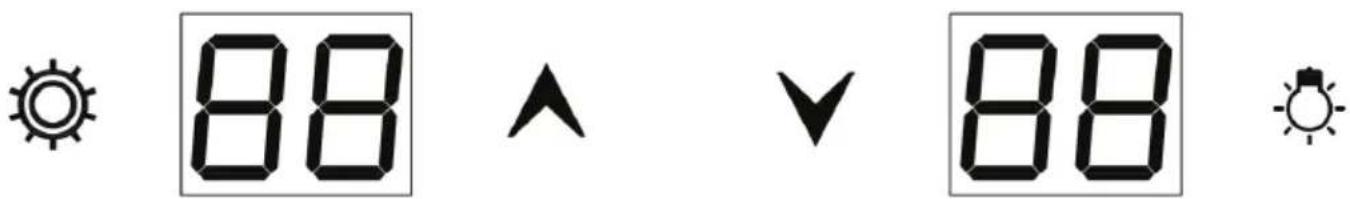

FOR Dual zone wine cooler

Control panel operation

Power switch: After the device is powered on, hold down 5 seconds to turn the device on or off.

°C/°F Switch: Press ▲ + √ to change the temperature between Celsius and Fahrenheit for 3 seconds.

Temperature setting button: the key temperature screen flashes and displays the set temperature, then press an key to raise or lower the set temperature.

Display window: two 2-bit LED displays, with set temperature or actual internal temperature for upper zone displayed on the left, and set temperature or actual internal temperature for lower zone displayed on the right.

Light button: Press this button to turn it on or off.

Dual zone wine cooler temperature setting range:

The temperature of upper zone setting can be adjusted between 5°C and 12°C. The temperature of upper zone setting can be adjusted between 12°C and 20°C.

Matters need attention

If the device is pulled off, power off or off, you must wait 3 to 5 minutes to restart the device. If you need to try to restart before this delay, the cabinet / cabinet will not be started. If first used or not used for a long time, the temperature will create a difference between the setting and the LED display temperature. After a period of time, the temperature will recover.

Shelf

To prevent damage to the door pad, ensure sure the door is fully open when pulling the shelf from the guide chamber.

To facilitate access to the storage content, you have to pull the shelf out of the track compartment, but the unit is designed to have a notch on each side of the shelf track to prevent the shelf from completely pulling out and making the bottle drop.

If you need to change the number of shelves or move the position of the shelves, please remove the wine or drink above the shelves, and then directly pull out of the shelves. Then put it in the slot you need.

Open and clean the Wine cooler

• Remove the external and internal packaging material.
• Keeping the device upright for about 2 hours before connecting the device to the power supply helps to reduce the possibility of handling cooling system failures during transportation.
  • Clean the inner surface with a soft cloth and with warm water.

Door body safety lock (optional)

• The lock is an optional feature. If your wine cabinet has this function, a key should be attached to the packaging of this manual.
• Insert the key into the lock and turn counterclockwise to unlock the door. Please lock it in.
  • Do the opposite thing.
• Please keep the key.

CLEANING AND MAINTENANCE

Clean your Wine cooler

• Turn off the power supply, unplug the power supply, and then remove all items, including the shelf.
• Wash the inner surface with warm water and a gentle solution.
• Wash the shelves with a mild detergent solution.
• When cleaning the controller area or any electrical component, wrout excess water from the sponge or cloth.
• Wash the enclosure with warm water and a mild liquid detergent. Rinse clean and then dry with a clean soft cloth.

Power failure

Most power failures are corrected within a few hours, and if you minimize the door opening, it should not affect the temperature of the device. If the power is off for a long time, you need to take appropriate steps to protect your content

Vacation mode

Short vacation: Run the wine cabinet during the holiday of less than three weeks. If the device will not be used for a few months, remove all items and turn down the device. Thoroughly clean and dry the interior. To prevent odors and mold growth, open the door slightly: open it if necessary.

Move your Wine cooler:

• Remove everything.
• Remove loose items in the wine cooler (such as shelf) or fix loose items with foam.
  • Turn the adjustable legs up to the seat to avoid damage.
• Shut the door.
• Ensure that the equipment remains in an upright position during transportation. Blankets or similar items can also be used to protect the outside of the device.

Power saving tips

Red wine should be located in the coldest area of the room, away from production appliances and avoid direct sunlight.

COMMON FAULTS OF WINE COOLER

You can easily solve many of the common wine cabinet problems, thus saving you on possible service costs. Try the following suggestions to see if the problem is resolved before calling the service provider.

Troubleshooting Guide

Hitch The possible causes of this condition
Wine cooler did not respond	Not plugged in.The device is closed.Circuit breaker trip or fuse.
Insufficient cooling of the wine cooler	Check the temperature control settings.The external environment may require higher settingsThe door is often opened.The door is not completely closed.The door pad is not seal properly.
Frequent switch machine	Room temperature is higher than the normal temperature.The cabinet is overloaded.The door is often opened.The door is not completely closed.Temperature control settings are not correct.The door pad is not seal properly.
LED lamp does not working	No plug-in.Circuit breaker trip or fuse.The bulb burned out.The light push button is "OFF"
Shake · Check the wine cooler / beverage cooler / cigar cooler for level.
The noise is too big · The creaking noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear the grunts.The traction and expansion of the inner wall may cause bursts and crackles.Wine cooler / beverage cooler / cigar cooler are not horizontal.
The door cannot be closed normally	Wine cooler / beverage cooler / cigar cooler are not horizontal.The door was reversed and not properly installed.The gasket is dirty.The frame is not appropriate.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
