DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

VAROVANIE

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazardous status.

Technical line drawing of an open refrigerator with internal rack and door (no text or labels)

Prvá polička

Druhá polička

Tretia polička

Štvrtá polička

Piata polička

Výstavná polička

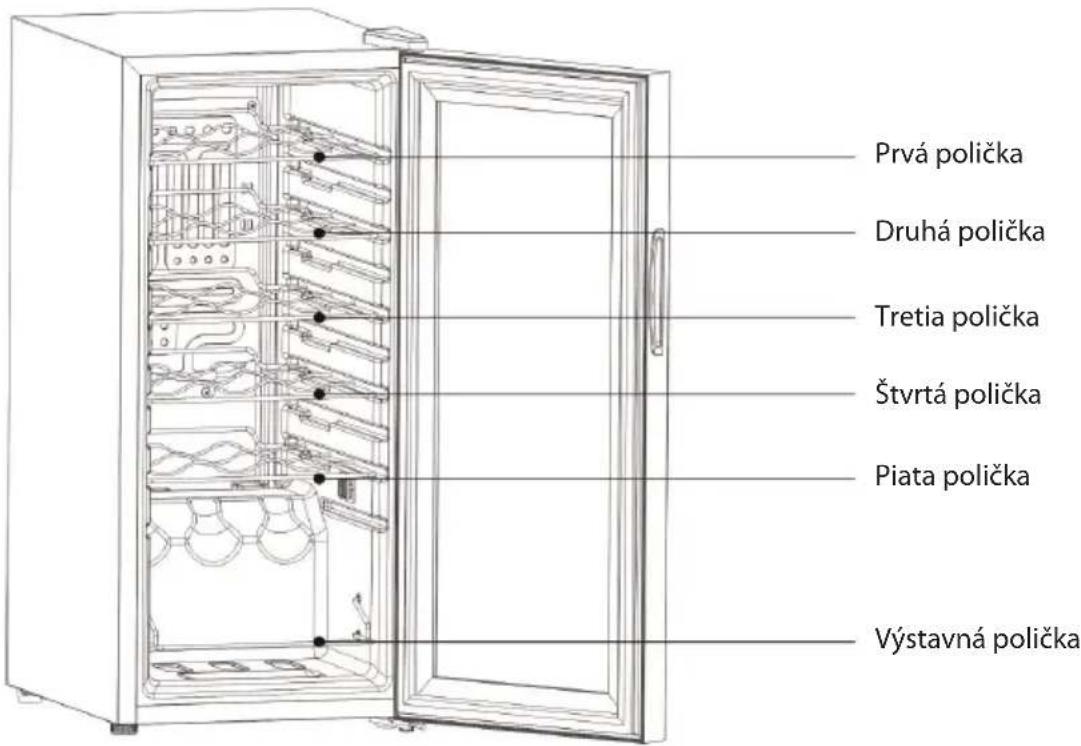

CELKOM JE K DISPOZÍCII PÄT POLIČIEK A JEDNA VÝSTAVNÁ POLIČKA (GZ-1836)

Prvá polička Druhá polička Tretia polička Štvrtá polička Piata polička Výstavná polička

Simple line drawing of a hand pressing down on a rectangular object (no text or symbols)

Simple line drawing of a cylindrical container with a smiling face and smoke trail (no text or symbols)

Simple line drawing of a refrigerator with a side table and a sad face, no text or symbols present

Simple line drawing of a refrigerator with two apples flying around it (no text or symbols)

Simple line drawing of a refrigerator emitting steam and a portable stove with a sun in the background (no text or symbols)

Cartoon illustration of a steaming refrigerator with a sad face and a torn paper sheet (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazardous materials or hazard zones.

CZEŚCI I WYPOSAŻENIE (GZ-1527)

1 2 3 4 5 6 7

Simple line drawing of a hand using a power tool to press or clean a rectangular block (no text or symbols)

Simple line drawing of a cylindrical container with a smiling face and smoke trail (no text or symbols)

Simple line drawing of an electric refrigerator and a small table with steam lines (no text or symbols)

Simple line drawing of a refrigerator with smoke and two leafy items (no text or symbols)

Simple line drawing of a refrigerator with steam rising and a stove nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam rising, next to a sheet of paper (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

Simple line drawing of a hand using a tool to press or clean a rectangular object (no text or symbols)

Simple line drawing of a smiling rectangular container with a spiral top (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a small table, no text or symbols present.

Simple line drawing of a refrigerator with smoke and steam, no text or symbols present

Simple line drawing of a refrigerator with steam rising and a stove with flames nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam rising, next to a sheet of paper (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Warning sign depicting a flame symbol in a triangular shape

Simple line drawing of a hand using a power tool to press or clean a surface (no text or symbols)

Ali je naprava priključena na omrežje? Zelo nizka napetost v omrežju?

0 220

Aparat je glasen.

Simple line drawing of a rectangular container with a smiling face and smoke trail (no text or symbols)

Preverite, ali so tla ravna in ali je naprava nameščena stabilno.

Simple line drawing of a refrigerator next to a small table with steam lines indicating heat or vibration (no text or symbols)

Prepričajte se, da naprava ni v stiku s stenami ali drugim predmeti.

Notranja temperatura aparata je zelo visoka.

Nepravilno nastavljena temperatura, nastavite ustrezno temperaturo.

Simple line drawing of a refrigerator with two exhaust smoke bubbles (no text or symbols)

Simple line drawing of a refrigerator with steam rising and a stove nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam rising, next to a sheet of paper (no text or symbols)

Slabo odvajanje toplote, preverite, ali je okoli izdelka dovolj prostora za hlajenje.

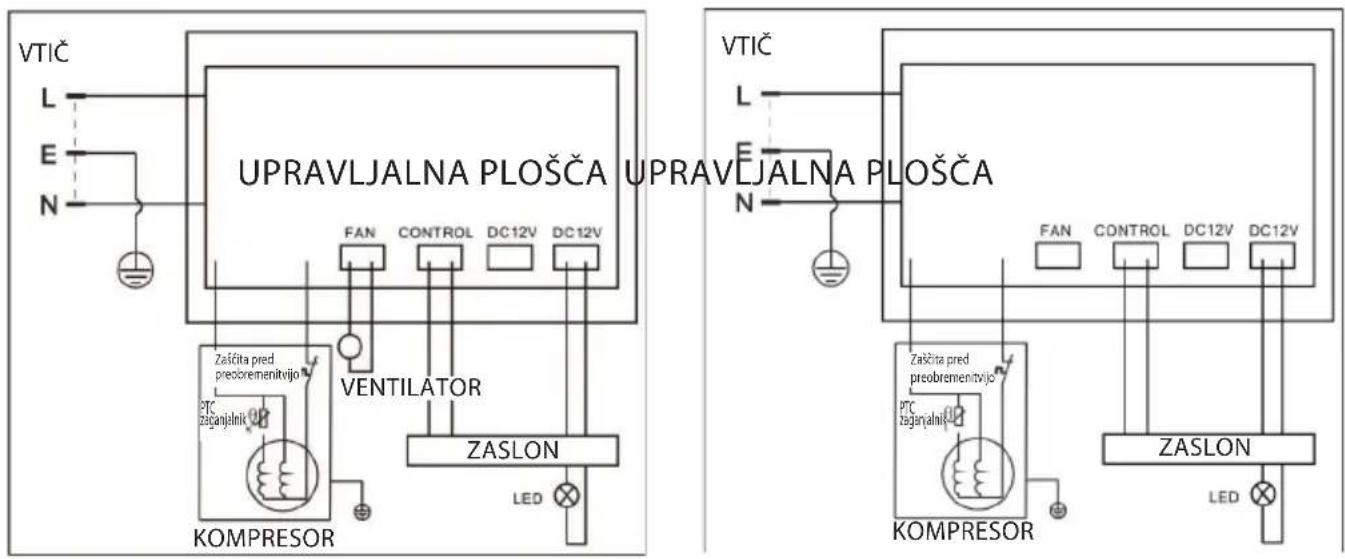

SHEMA PRIKLJUČITVE

GZ-1527

GZ-1836

VTIČ L E N UPRAVLJALNA PLOŠČA UPRAVLJALNA PLOŠČA FAN CONTROL DC12V DC12V VENTILATOR ZASLON LED KOMPRESOR Začita pred preobremenitvijo Začita pred preobremenitvijo Začita pred preobremenitvijo Zaslon LED VTIČ L E N FAN CONTROL DC12V DC12V ZASLON

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

Line drawing of a hand using a power tool to press or install a component (no text or symbols)

Simple line drawing of a cartoon-style rectangular container with a smiling face and smoke (no text or symbols)

Simple line drawing of an electric refrigerator and a small stool with sound waves, no text or symbols present.

Simple line drawing of a refrigerator with exhaust smoke and two leafy items on the side (no text or symbols)

Illustration of a refrigerator emitting heat and a stovetop (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam rising, next to a sheet of paper (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Before using the appliance, please read this user manual to ensure that you gain the maximum benefit from it.

1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2) Children should be supervised to ensure that they do not play with the appliance.

3) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5) To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

6) When positioning the appliance, ensure the supply cord is not trapped or damaged.

7) Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

8) Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

9) Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

10) Do not damage the refrigerant circuit.

11) Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

12) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

13) This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments:

- bed and breakfast type environments;

- catering and similar non-retail applications.

14) Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
15) To avoid contamination of drink, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note

This appliance contains flammable refrigerant R600a and foaming agent cyclopentane. Please avoid contact fire when you transport and use it.

Please ask professional for servicing when the machine broke down. Please send it to your local appointed disposal station when you discard it.

- Save these instructions -

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

INSTALLATION INSTRUCTIONS

• This appliance is designed to be free standing only, and should not be recessed or built-in.
- Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the leveling legs at the bottom of the appliance.
- Allow 10 cm of space between the top, the back and sides of the appliance, which allows the proper air circulation to cool the compressor and condenser.
- Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
- Avoid locating the appliance in moist areas.
- Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.
• After plugging the appliance into a wall outlet, allow the appliance to cool down for 2-3 hours before placing any items in the compartment.

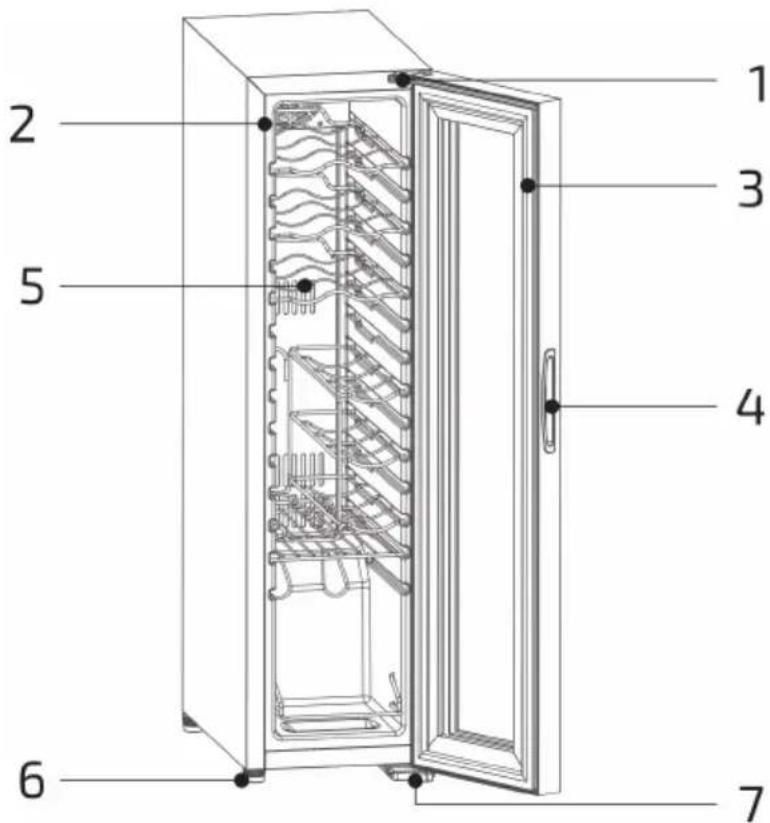

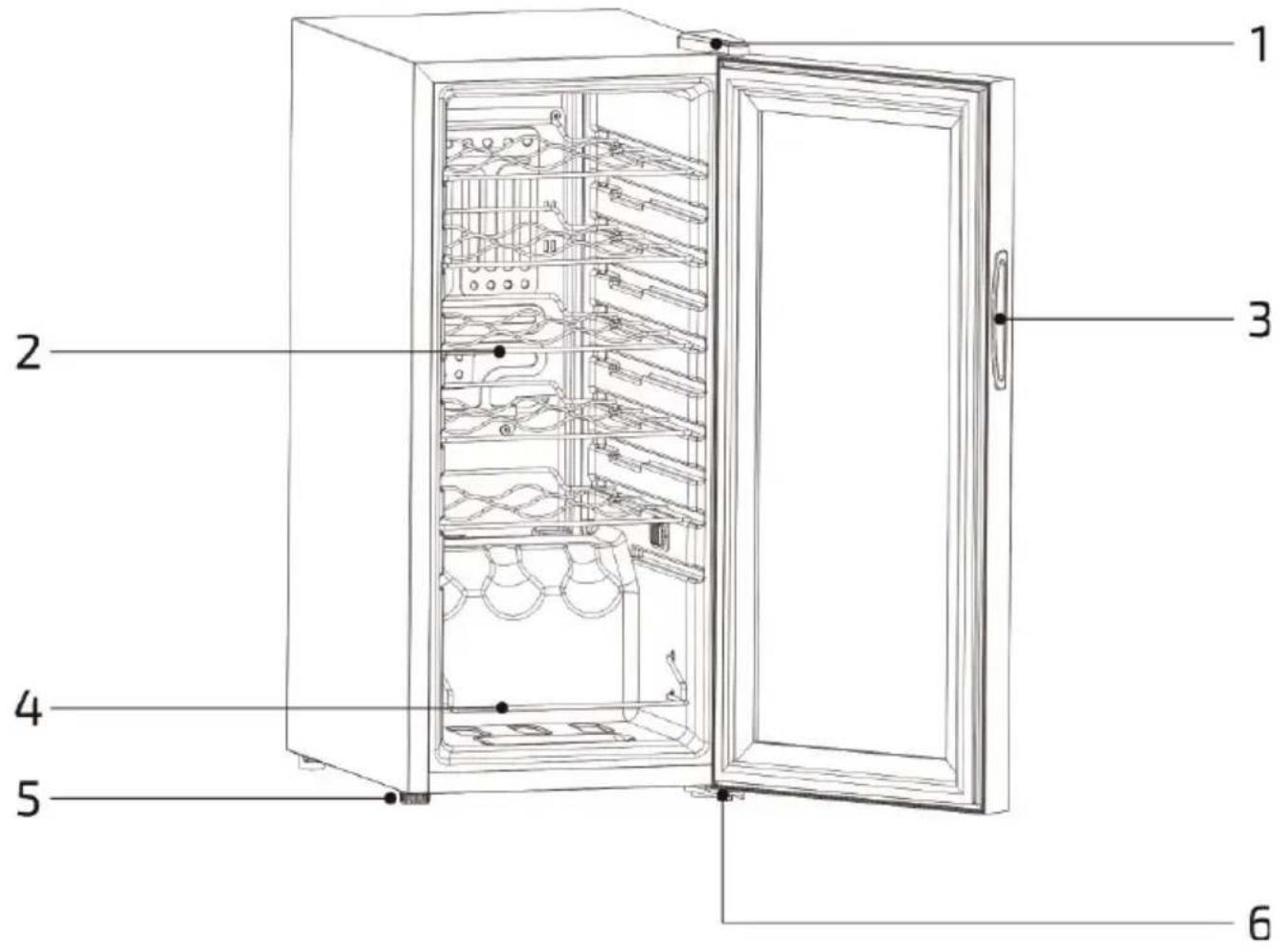

PARTS AND FEATURES (GZ-1527)

1 2 3 4 5 6 7

1. Upper Hinge 5. Shelves

2.

1. Adjust Foot

2. Door Gasket 7. Bottom Hinge

3. Door Handle:

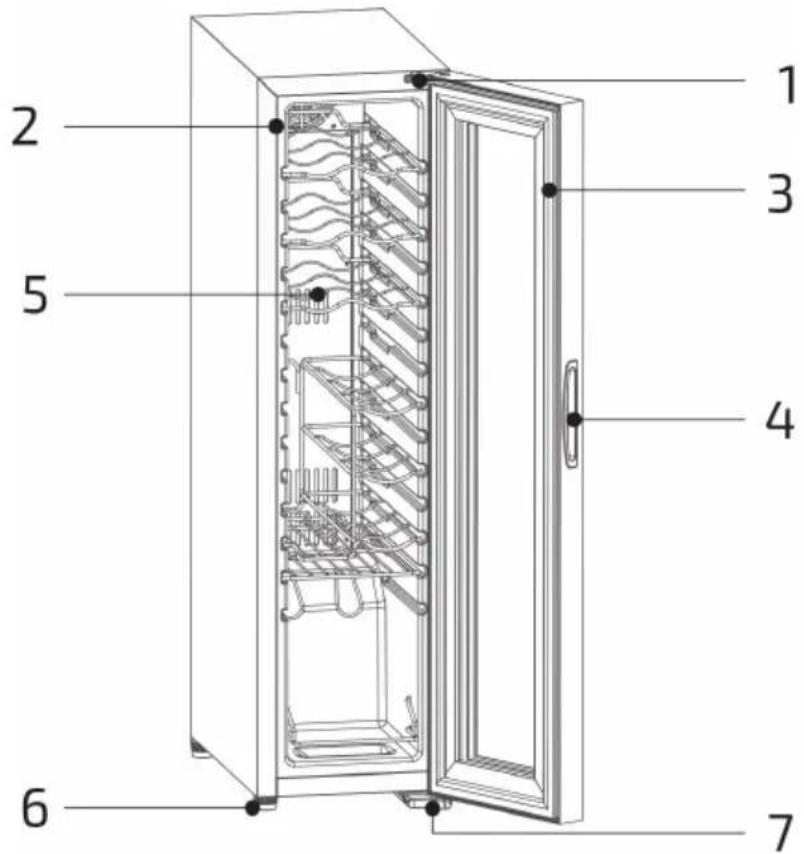

PARTS AND FEATURES (GZ-1836)

1 2 3 4 5 6

1. Upper Hinge 5. Display Shelves
2. Shelves 6. Foot
3. Door Handle 7. Bottom Hinge

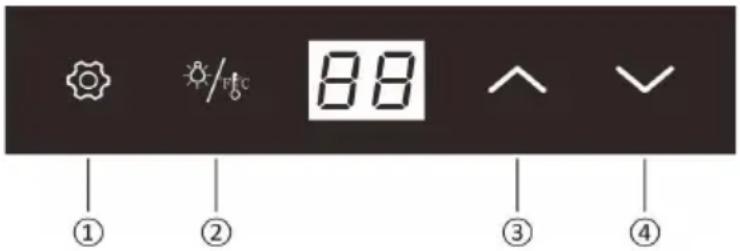

Setting the Temperature Control

① ② 88 ③ ④

Key Function

① Unlock key: long press for 2 seconds to unlock
② Light/CF key: short press to turn on or off the light; long press to switch between Fahrenheit and Celsius
③ Add key: temperature setting
④ Minus key: temperature setting

Automatic locking function

When all the key no operation for 20 seconds, the key will be locked automatically. After locking, the plus and minus keys cannot be operated. The unlock key and light / CF key operate normally.

Auto light off function

When all the key no operation for 10 minutes, the lamp will turn off automatically.

Adjustable range

Minimum value: 5 °C / 41 °F

Maximum value: 18 °C / 64 °F

Display range

Temperature display range of control panel: 0 \~ 37 °C / 32 \~ 99 °F.

Display stability

• In the Celsius state: When the temperature measured by the temperature probe is within ± 1^ of the set temperature, the temperature display will display the set temperature value.
• In the Fahrenheit state: When the temperature measured by the temperature probe is within ± 2^ of the set temperature, the temperature display will display the set temperature value.

Error code

• LL: When the temperature measured by the temperature probe is lower than 0 degrees Celsius, "LL" is displayed, flashing, and the cooling is stopped.
• When the temperature probe is short-circuited or disconnected, the setting temperature value is displayed, the compressor will work for 15 minutes and stop for 18 minutes.
• When the temperature measured by the temperature probe is higher than 37 degrees Celsius, the setting temperature value is displayed, the compressor will work for 15 minutes and stop for 18 minutes. Forced defrosting function.
• When the compressor works for 12 hours, the compressor will stop working for 40 minutes.

Memory function

The control board is re-energized after each power-off, the temperature setting value, Fahrenheit/Celsius state will be the same as before the power-off, and the length of power-off time is not limited.

Tips

• It is intended to be used exclusively for the storage of wine.
  • This refrigerating appliance is not suitable for the freezing foodstuffs.
  • The wine cooler is recommended to be designed at 12°C.
• The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.
• The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

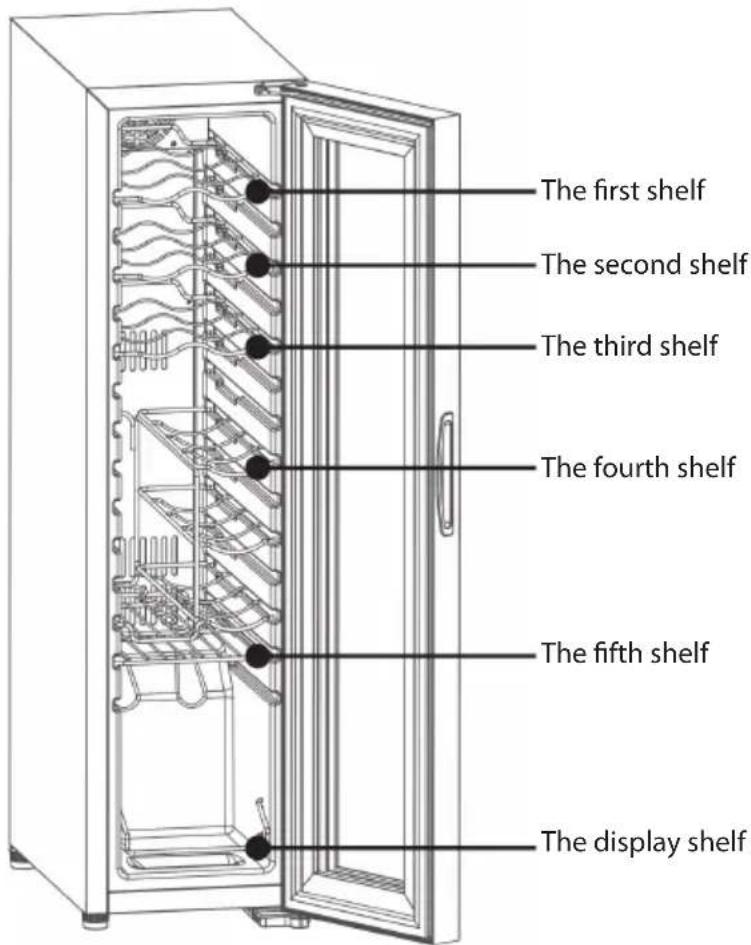

THERE ARE FIVE SHELVES AND ONE DISPLAY SHELF IN TOTAL (GZ-1527)

The first shelf The second shelf The third shelf The fourth shelf The fifth shelf The display shelf

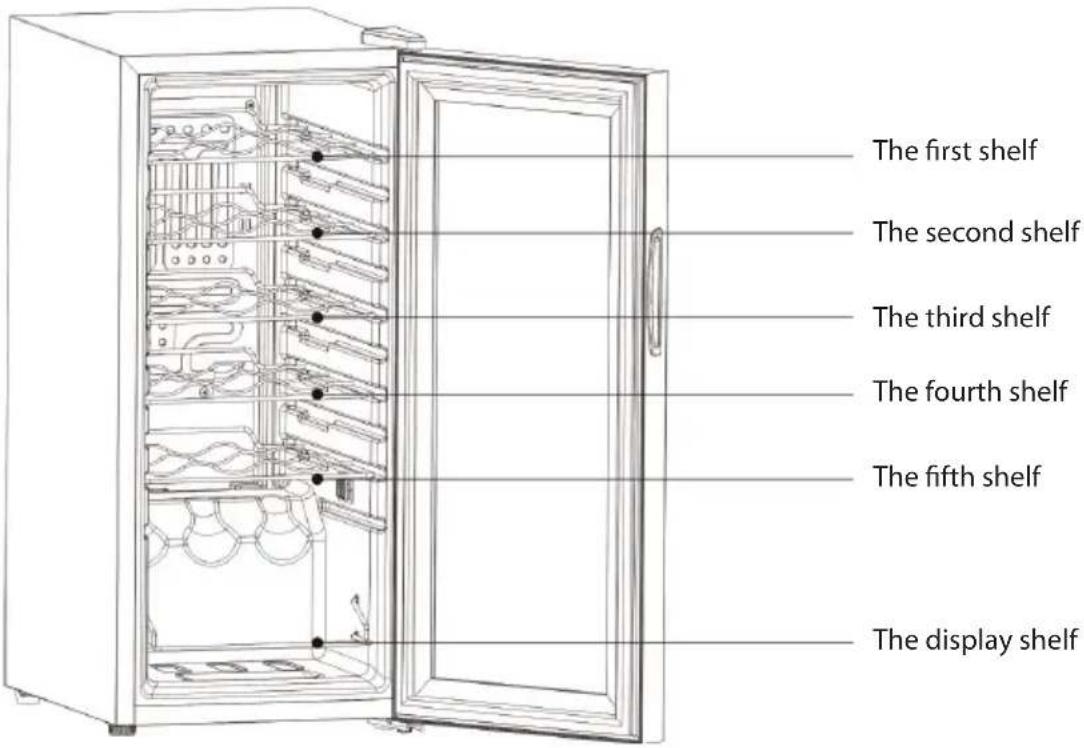

THERE ARE FIVE SHELVES AND ONE DISPLAY SHELF IN TOTAL (GZ-1836)

The first shelf The second shelf The third shelf The fourth shelf The fifth shelf The display shelf

• When the surrounding temperature is 25 °C and the wine cooler has no bottle loaded, it will take around 30 minutes to increase the wine cooler's temperature from 5 °C to 12 °C. Under the same circumstance, it will take around one hour to decrease the wine cooler's temperature from 12 °C to 5 °C. The less the temperature span is, the less time it will take.
• The wine cooler is recommended to be designed at 12 °C. The energy consumption is 0.4 kWh / 24h (GZ-1527) or 0.329 kWh / 24h (GZ-1836). If the setting temperature is higher than 12 °C, the energy consumption will be lower. If the setting temperature is lower than 12 °C, the energy consumption will be higher.
• When the compressor works for 12 hours, the compressor will stop and defrost for 40 minutes.

GENERAL FAULT DESCRIPTION

If the product is not working properly, please check and handle according to the following methods. If the situation can not be changed, please contact the local after-sales service center in time, and be sure to provide the model name and product number in detail.

The refrigerator doesn't work

Simple line drawing of a hand pressing a button on a rectangular object (no text or symbols)

Is the power on? Is the power supply voltage too low?

0 220

It's noisy

Simple line drawing of a cartoon-style refrigerator with a smiling face and smoke (no text or symbols)

Is the power on? Is the power supply voltage too low?

Simple line drawing of a refrigerator and a small table with steam lines (no text or symbols)

The internal temperature is not low

Improper setting temperature, please select the appropriate temperature

Simple line drawing of a refrigerator with two exhaust smoke bubbles (no text or symbols)

The door is not closed tightly or opened frequently, and the opening time is too long

Simple line drawing of a refrigerator emitting steam and a portable stove with a sun in the background (no text or symbols)

Is the location exposed to direct sunlight or too close to the furnace and other heat sources

Cartoon illustration of a smiling refrigerator with steam rising, next to a folded sheet of paper (no text or symbols)

Poor heat dissipation, please check whether there is enough cooling space around the product

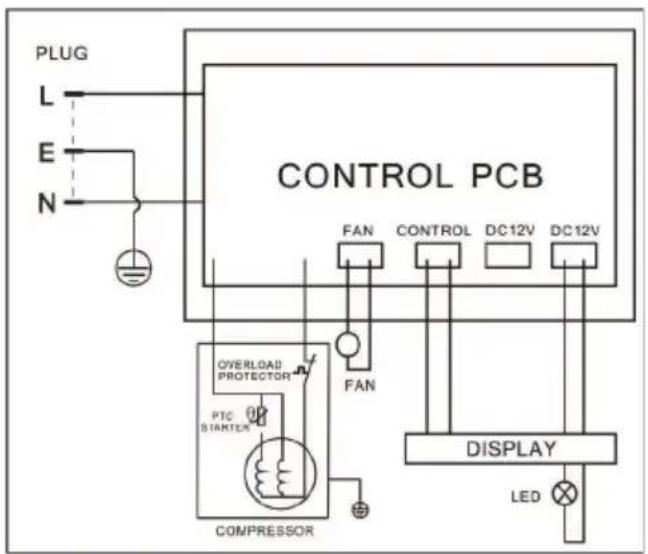

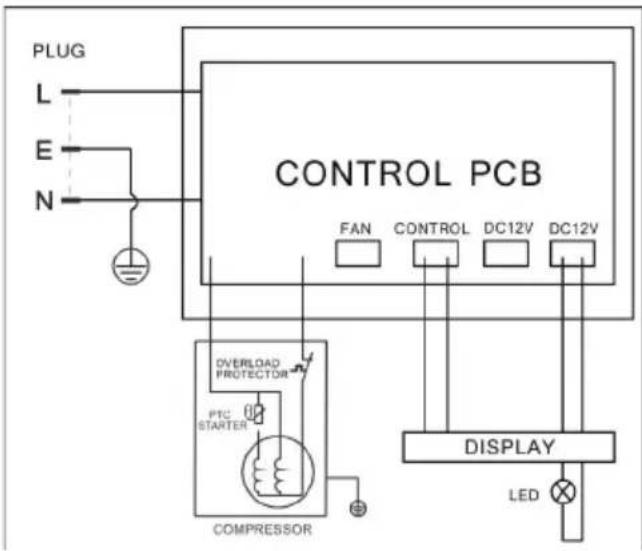

WIRING DIAGRAM

GZ-1527

GZ-1836

PLUG L E N CONTROL PCB FAN CONTROL DC12V DC12V OVERLOAD PROTECTOR PTC STARTER COMPRESSOR FAN DISPLAY LED

PLUG L E N CONTROL PCB FAN CONTROL DC12V DC12V OVERLOAD PROTECTOR PTC STARTER COMPRESSOR DISPLAY LED

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased the product.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
