Product Type	Drink Cooler (Refrigerating Appliance)
Brand	Guzzanti
Model	GZ-49G
Installation Type	Free-standing
Dimensions (approximate)	Height: 49 cm, Width: 44 cm, Depth: 48 cm
Net Weight (approximate)	18 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	0.180 kWh/24h at 17°C ambient temperature
Refrigerant	R600a (flammable)
Temperature Control	Rotary dial (0 to 5), recommended setting 3-4
Number of Shelves	4 shelves
Recommended Temperature	17°C for pantry use
Clearance Required	10 cm on top, back, and sides
Anti-Frost Function	Defrost manually; no automatic defrost
Door Reversibility	Yes (reverse installation possible)
Noise Level (approximate)	42 dB
Climate Class	N (16°C to 32°C)
Safety Features	Grounded plug, child safety (supervision required), flammable refrigerant warning
Cleaning	Regular cleaning of surfaces and drainage system; defrost and dry if left unused
Spare Parts Availability	Contact manufacturer or service agent for replacement parts
Repairability	Professional servicing recommended; do not DIY on refrigerant circuit
Energy Efficiency	Most efficient shelf configuration used from factory
Warranty	Standard warranty period (refer to purchase documents)

Frequently Asked Questions - GZ-49G Guzzanti

Can I control the temperature of the Guzzanti GZ-49G drink cooler?

Yes, the temperature is controlled by a rotary dial located in the lower left corner of the rear compressor bin. The settings range from 0 (off) to 5 (coldest). For normal use, we recommend setting it to 3 or 4. The recommended interior temperature is 17°C for pantry storage.

How much energy does the GZ-49G consume?

The energy consumption is 0.180 kWh per 24 hours at an ambient temperature of 25°C when set to the recommended 17°C. If you set a higher temperature, consumption will be lower; a lower temperature increases consumption.

What is the recommended clearance around the cooler?

You must allow at least 10 cm of space on the top, back, and sides of the unit for proper air circulation to cool the compressor and condenser. Insufficient clearance can cause poor performance or damage.

Can I install the drink cooler inside a cabinet?

No, this appliance is designed for free-standing use only and should not be recessed, built-in, or placed inside a cabinet where the front is covered by a door.

How do I clean and maintain the Guzzanti GZ-49G?

Clean surfaces that come into contact with drinks and accessible drainage systems regularly. If the unit is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mould. Do not use mechanical devices to accelerate defrosting.

What type of refrigerant does the GZ-49G use?

It uses R600a, which is a flammable hydrocarbon refrigerant. Take care during transport and use to avoid fire. Only qualified professionals should service the refrigerant circuit.

Why does the unit turn on and off frequently?

Frequent cycling can be caused by a hot room, adding a large amount of product, opening the door too often, or incorrect temperature setting. Also check that the door is closed properly and the gasket seals well. Ensure the unit has proper clearance.

What should I do if the unit is vibrating or making noise?

First, ensure the unit is level by adjusting the leveling legs. Rattling or gurgling sounds are normal due to refrigerant flow. Popping noises may come from contraction/expansion of materials. If noise persists, check that shelves and bins are properly positioned.

Can children use the drink cooler?

Children aged from 3 to 8 years are allowed to load and unload the appliance. However, cleaning and user maintenance should not be done by children without supervision. For children 8 years old and above, they may use the appliance if supervised and instructed safely.

How do I dispose of the Guzzanti GZ-49G at the end of its life?

Do not dispose of it as ordinary municipal waste. This product contains flammable refrigerant and must be taken to a designated collection point for proper recycling and recovery of valuable resources. Contact local authorities for details.

USER MANUAL GZ-49G Guzzanti

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

UPOZORNENIE

POKYNY NA INŠTALÁCIU

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Before using the appliance, please read this user manual to ensure that you gain the maximum benefit from it.

WARNING:

1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2) Children should be supervised to ensure that they do not play with the appliance.

3) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5) To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

6) When positioning the appliance, ensure the supply cord is not trapped or damaged.

7) Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

8) Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

9) Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

10) Do not damage the refrigerant circuit.

11) Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

12) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

13) This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

14) Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

15) To avoid contamination of drink, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with drink and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note: This appliance contains flammable refrigerant R600a and foaming agent cyclopentane. Please avoid contact fire when you transport and use it. Please ask professional for servicing when the machine broke down. Please send it to your local appointed disposal station when you discard it.

Save these instructions

INSTALLATION INSTRUCTIONS

• This appliance is designed to be free standing only, and should not be recessed or built-in.
• Place your unit on a floor that is strong enough to support the unit when it is fully loaded. To level your unit, adjust the leveling legs at the bottom of the unit.
• This appliance is NOT designed to be installed inside of a cabinet where the front is covered by any type of door.
• Allow 10cm of space between the top, back and sides of the unit, which allows the proper air circulation to cool the compressor and condenser.
• Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• Avoid locating the unit in moist areas.
• Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
• After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before placing food in the APPLIANCE compartment.

OPERATING YOUR UNIT

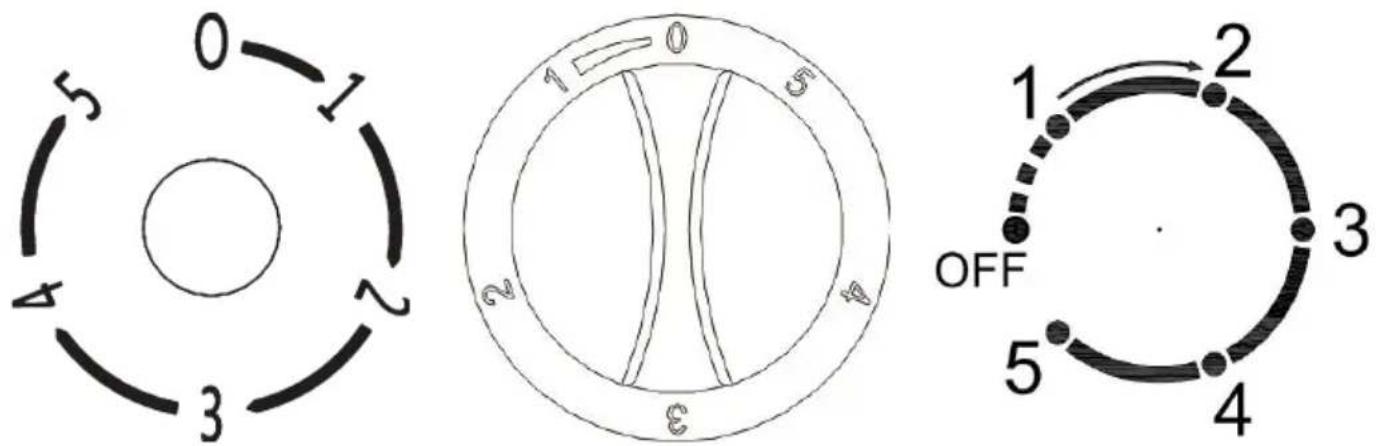

Setting the Temperature Control

• Your unit has only one control for regulating the temperature in the compartment. GZ-85 and GZ-70G The temperature control is located at the lower right hand side of the compartment. GZ-49 The temperature control is located in the lower left corner of the rear compressor bin.
• The first time you turn the unit on, set the temperature control to "5".
• The range of the temperature control is from position „0“ to “5”. After 24 to 48 hours, adjust the temperature control to the setting that best suites your needs. The setting of “3” or “4” should be appropriate for home or office use.
• To turn the appliance off, turn the temperature control to "0".

NOTE:

• Turning the temperature control to "0" position stops the cooling cycle but does not shut off the power to the unit.
• If the unit is unplugged, has lost power, or is turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the unit will not start.

Energy Saving Tips

• The unit should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the compressor to run longer.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts down on frost build-up inside the unit.
• Unit storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the unit less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Tips

• It is intended to be used exclusively for the pantry.
• This refrigerating appliance is not suitable for the freezing foodstuffs.
  • The pantry is recommended to be designed at 17°C.
• The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.

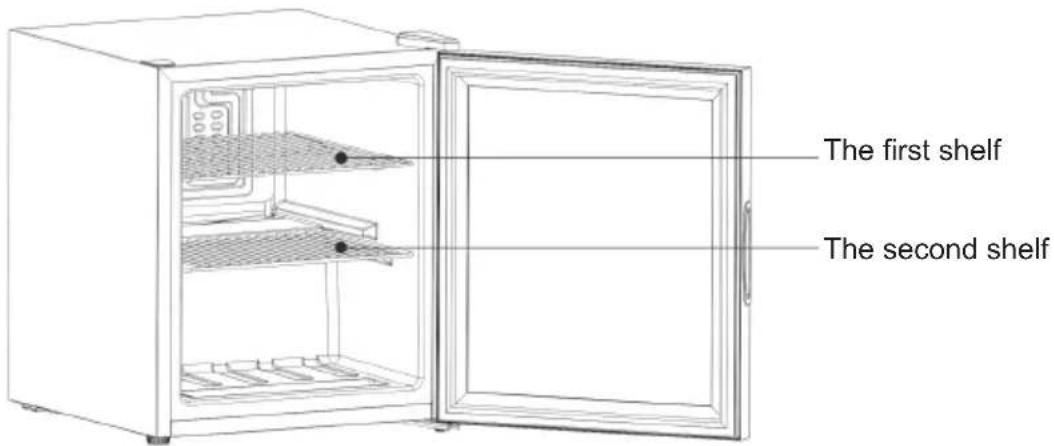

• The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

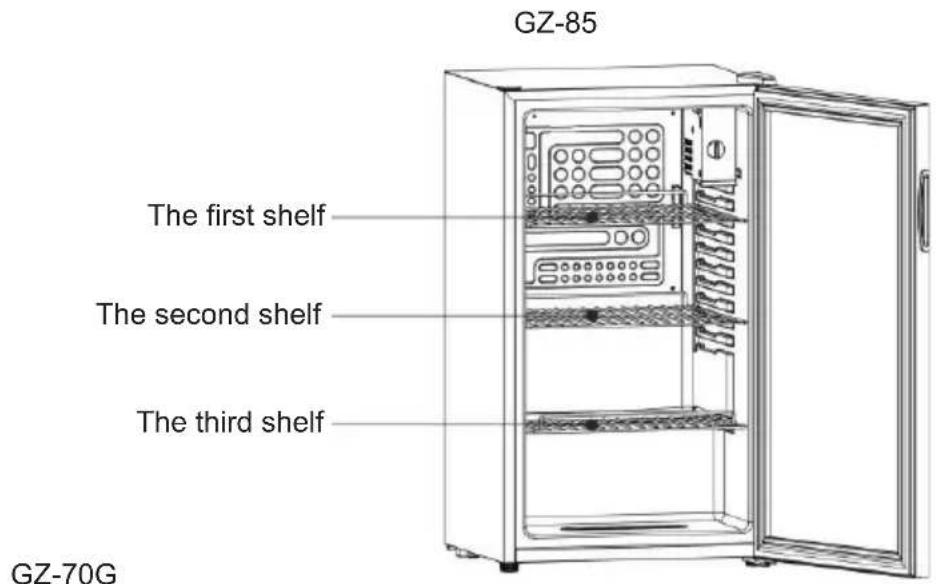

BG-85 and GZ-70G THERE ARE THREE SHELVES IN TOTAL

GZ-70G

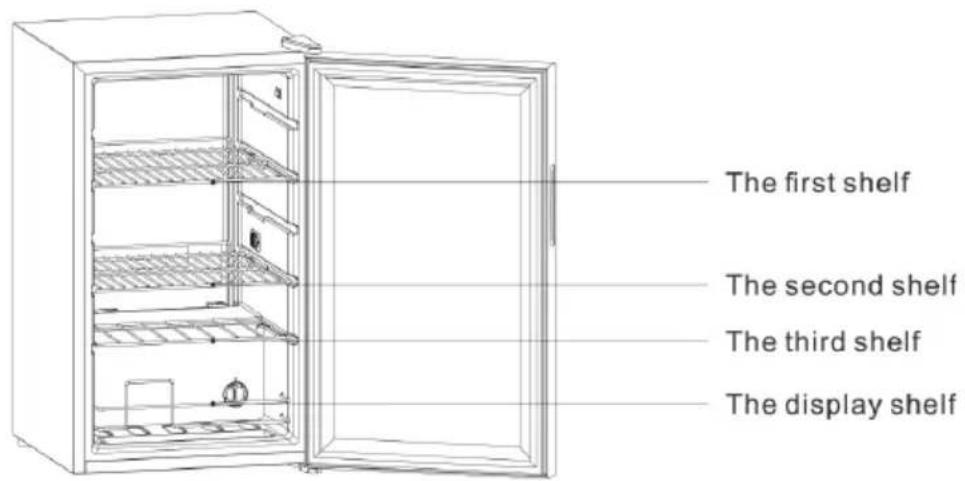

BG-49G THERE ARE FOUR SHELVES IN TOTAL

• When the surrounding temperature is 25^ and the pantry has no load, it will take around 30 minutes to decrease the pantry's temperature from 25^ to 17^
• The pantry is recommended to be designed at 17°C. GZ-85 The energy consumption is 0.192kWh/24h. GZ-70G The energy consumption is 0.211kWh/24h. GZ-49G The energy consumption is 0.180 kWh/24h. If the setting temperature is higher than 17°C, the energy consumption will be lower. If the setting temperature is lower than 17°C, the energy consumption will be higher.

PROBLEMS WITH YOUR APPLIANCE?

You can solve many common unit problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE CAUSE
Unit does not operate. Not plugged in.	The circuit breaker tripped or a blown fuse.The unit temperature control is set at “0” position.
Turns on and off frequently. The room temperature is hotter than normal.A large amount of food has been added to the unit.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The unit does not have the correct clearances.
Vibrations. Check to assure that the unit is level.
The unit seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your unit.Contraction and expansion of the inside walls may cause popping and crackling noises.The unit is not level.
The door will not close properly. The unit is not level.The door was reversed and not properly installed.The gasket is dirty or bent.The shelves, bins, or baskets are out of position.

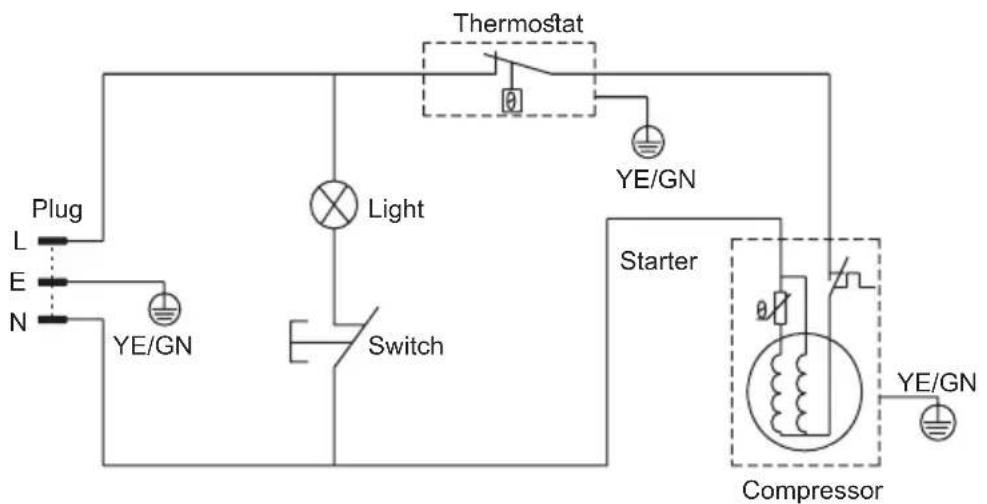

WIRING DIAGRAM

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
