Product Type	Dehumidifier
Brand	Eldom
Model	ColumbiaVac OPC1100
Dehumidification Capacity (30°C, 80% RH)	12 L/24h
Dehumidification Capacity (27°C, 60% RH)	6.5 L/24h
Rated Voltage	AC 220-240 V, ~50 Hz
Rated Power (27°C, 60% RH)	180 W
Max Power (30°C, 80% RH)	225 W
Rated Current (27°C, 60% RH)	0.94 A
Max Current (30°C, 80% RH)	1.14 A
Water Tank Capacity	2 L
Noise Level	≤36 dB(A)
Refrigerant	R134A (0.09 kg)
GWP	1430
CO2 Equivalent	0.1287 T
Device Weight	12 kg
Operating Temperature Range	5°C to 35°C
Air Filter Cleaning Interval	Every 2 weeks
Continuous Drainage	Yes (tube included)
Preset Programs	3 (humidity levels: 60%, 40%, 20%)
Ionizer Function	Yes (PURIFY button)
Timer	Delayed start/auto shut-off (1-24 h)
Sleep Mode	Yes (low fan speed, no sound)
Child Lock	Yes (button lock)

Frequently Asked Questions - ColumbiaVac OPC1100 Eldom

How do I set the desired humidity level on the Eldom ColumbiaVac OPC1100?

Press the 'MODE' button to select one of the three preset programs (I: 60%, II: 40%, III: 20%). To manually set a humidity level between 20% and 80%, first select program I or II, then press the 'HUM' button until the desired value appears on the display.

What does the colored ring around the power button indicate?

The color indicates room humidity: blue below 40%, green between 40% and 60%, red above 60%. Red also appears when the water tank is full or a malfunction occurs.

How do I set the continuous drainage function?

Remove the water tank, detach the tank housing component, connect the included hose to the water outlet valve in the upper section of the tank bay, reinsert the tank leading the hose out through the cut-out, and place the other end in a container (e.g., bucket). Ensure the hose is below the outlet and not bent.

Why is the dehumidifier not working?

Possible causes: no power (check connection), water tank is full or not correctly installed (indicator flashes), room temperature below 5°C or above 35°C (protection activated), or the timer function is active. Refer to troubleshooting in the manual.

How often should I clean the air filter and how?

Clean the air filter every 2 weeks. Remove it, wash in warm water (approx. 40°C) with neutral detergent, rinse, dry thoroughly, and reinstall. Do not operate without a properly installed filter.

What do the error codes E2, LO, HI, CL, CH mean?

E2: Problem with humidity sensor (contact service). LO: Humidity below 20% (automatic protection). HI: Humidity above 95%. CL: Low temperature protection (<5°C). CH: High temperature protection (>35°C).

Can I use an extension cord with this dehumidifier?

It is recommended not to use an extension cord unless it has been checked and tested by a qualified electrician. The cord length is designed to reduce injury risk.

How does the auto defrost function work?

When ambient temperature is between 5°C and 16°C, the compressor automatically defrosts at specified intervals. During defrosting, the compressor stops but the fan continues to run.

What is the purpose of the ionizer (PURIFY) function?

Press the 'PURIFY' button to switch on/off the ionizer, which helps purify the air by releasing negative ions.

How do I enable the child lock?

Press and hold the 'SPEED/LOCK' button for a few seconds. The lock icon will illuminate, preventing any changes to settings or turning off the device. To unlock, hold the same button again.

USER MANUAL ColumbiaVac OPC1100 Eldom

OPC1100

OSUSZACZ POWIETRZA PL

AIR DEHUMIDIFIER EN

SUŠIČ VZDUCHU CZ

LUFTENTFEUCHTER DE

Two black upward arrows on a white background within a rounded square border (no text or symbols)

1

2

3

4

Technical line drawing of a mechanical housing component with an upward arrow indicating motion (no text or symbols)

5

Line drawing of a portable air purifier with a side panel and wheels, showing internal grid structure (no text or symbols)

Line drawing of a portable air purifier with wheels and a grid-patterned vent (no text or symbols)

6

Line drawing of a portable electronic device with wheels and a coiled cable (no text or symbols)

Line drawing of a portable air purifier with a coiled cable extending from its side (no text or symbols)

WSKAZÓWKI BEZPIECZEŃSTWA

CIĄGŁY ODPŁYW WODY (RYS. 6)

Please read all these instructions carefully before using this appliance.

1. Only use this appliance for domestic purposes and in the way indicated in these instructions. Never use for any other purposes.
2. Do not use the appliance outside and always place it in a dry environment.
3. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are theresponsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
4. From time to time, check the cord. Never use the cord, the plug or the appliance when they show any sign of damage. The cord length of this product has been selected to reduce the possibility of being injured. Do not use your appliance with an extension cord unless it has been checked and tested by a qualified electrician or electrical supplier.
5. Keep the appliance away from hot sources and direct sunlight.
6. Always switch off the appliance before unplugging it.
7. Unplug the appliance before cleaning or changing any parts of the appliance or when it's not in use.
8. Clean the appliance accord to manual.
9. Make sure that the voltage rating on the type plate corresponds to your main voltage. Any error in connecting the appliance invalidates the guarantee.
10. Prevent your children from this danger.
11. Never leave the appliance unsupervised when in use. Switch off the appliance if you have to go away for even a short time.

12. Never pull the cord to unplug or move the appliance.

13. Never immerse the appliance in water or any other liquid for any reason.

14. Keep the appliance away from water or oil splashes.
15. Respect the instructions for cleaning.
16. Do not insert sharp metallic objects or fingers in the air swinging fins of the appliance.
17. Never repair the appliance yourself. All interventions made by a non-qualified person can be dangerous. As well any changing of the cord must be done by a qualified electrician.
18. Never use accessories non-delivered by the supplier. This could be dangerous and could damage the appliance.

SPECIAL RECOMMENDATIONS

• Ambient temperature range for the device is 5^ C -35 ^ C
• Install the portable air dryer on a flat location with a large space, without obstacles. Leave a 20cm minimum space between the unit and the wall.
• The device must be installed in accordance with national installation regulations.
• The plug shall be always accessible after its installation.
• Always place the appliance in a vertical position, in order to maintain the compressor in good working condition.
• Do not tilt the device in any direction as spilled water can damage the device.
• Do not use the appliance near gas or other inflammable liquids.
• Do not block the air outlet and inlet ventilation. Do not place heavy objects on the device.
• Do not use spray (insecticides, painting) or any other inflammable products near the appliance as the plastic case may be deformed. The unit may sustain electrical damage.

POWER SOURCES

• The plug has to be well fixed and should not be damaged.
• Do not plug in the appliance with an adaptor.
• Plug into the wall socket before switching on the appliance then press on the ON/OFF button.

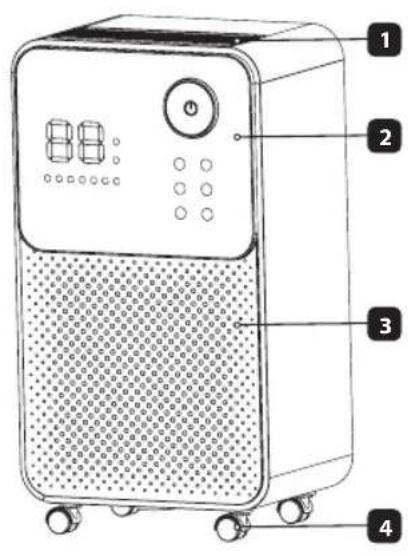

GENERAL DESCRIPTION (fig. 1)

FRONT1. Air outlet2. Control panel3. Housing4. Wheels

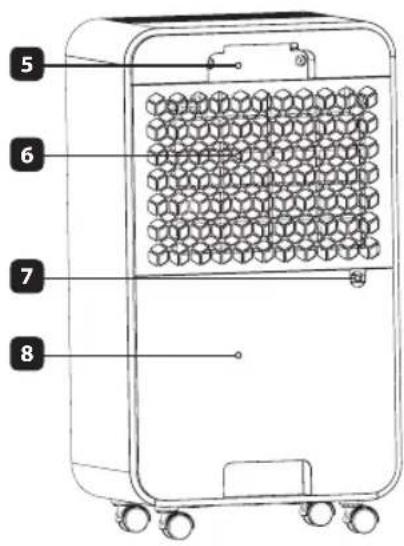

BACK5. Handle6. Inlet filter7. Continuous discharge of water8. Water tankADDITIONAL ACCESSORIES9. Tube

TECHNICAL DATA

Dehumidification capacity	12l/24h (30°C, RH80%)6,5l/24h (27°C, RH60%)
Rated voltage AC220-240V, ~ 50Hz
Rated power 180W (27°C, RH60%)
Maximum power 225W (30°C, RH80%)
Rated current 0,94A (27°C, RH60%)
Maximum Rated current 1,14A (30°C, RH80%)
Water tank 2l
Noisiness ≤36dB(A)
Maximum working pressure on the suction/outlet side	1,0MPa/2,5MPa
Maximum allowable pressure on the high/low pressure side	2,5MPa
Device weight 12kg
The product or device contains fluorinated greenhouse gases
Chemical name R134A
Gas GWP 1430
CO2 equivalent 0,1287T
Device hermetically sealed YES
Factory added agent amount 0,09 kg

INSTALLATION

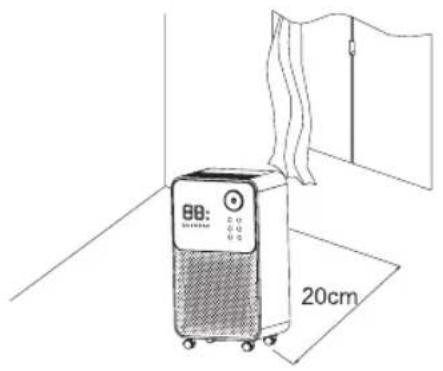

Choosing the place for installation (fig. 3).

The device must be placed vertically on a flat surface, in a dry and spacious location. The room should be ventilated. At least 20 cm of clearance should be left around the device. Water accumulates in the tank (8). An attached hose (9) can be used for water discharge. The method of installation is described in "CONTINUOUS WATER DISCHARGE" section.

Any changes in settings are signalled by a sound.

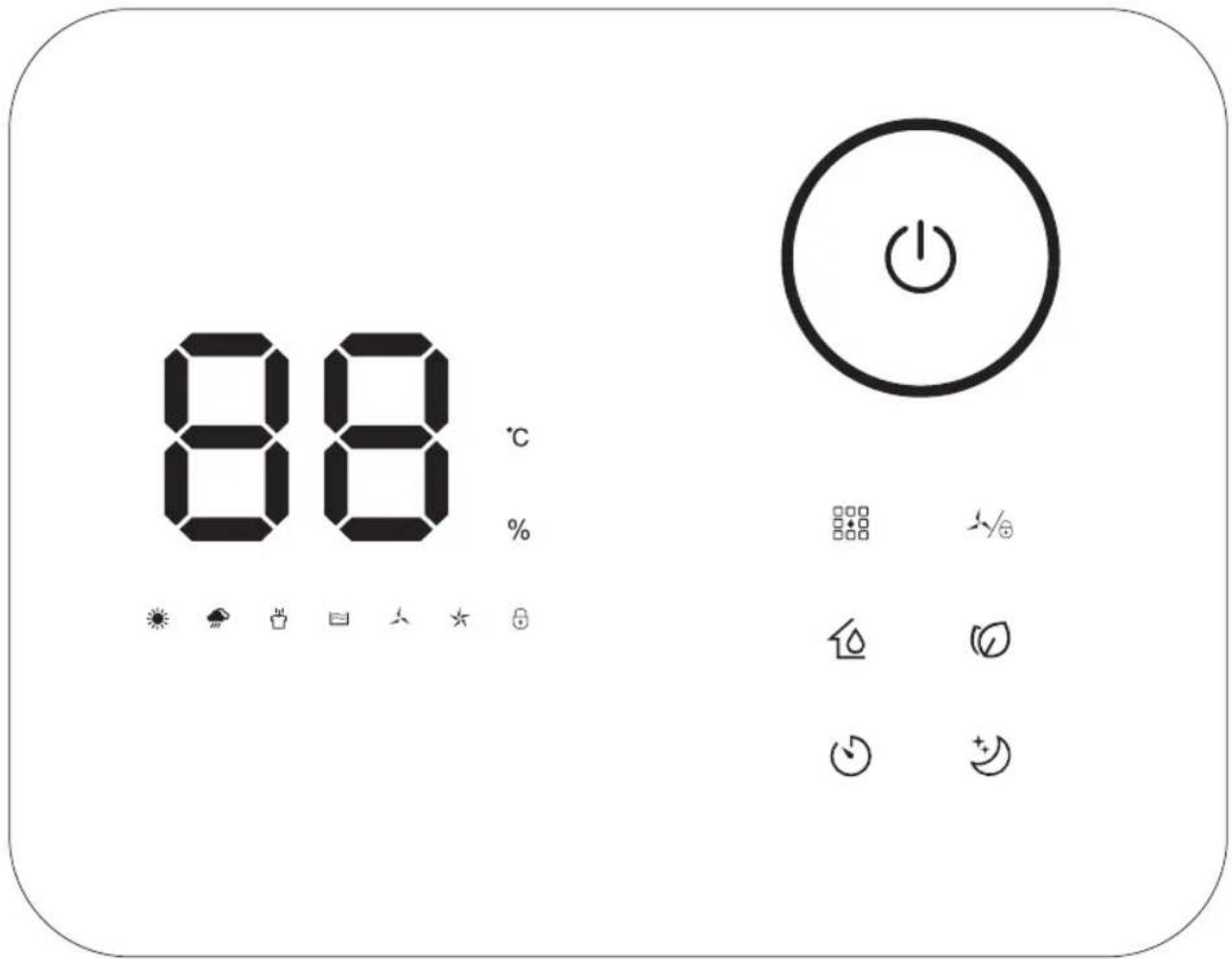

CONTROL PANEL (fig. 2).

DISPLAY 88 - this indicator has 4 functions:

• when the power is on, it displays the humidity in the room,
• when setting the humidity, it displays the value in the '20-80' range,
• when setting the 'TIMER' function, it displays values in the '00-24' range,
• if there is a problem with the device's operation, it shows error codes.

Button ⏻ - is used to switch the device on/off.

After switching off with the button ⏻ the device stores the set parameters.

After disconnecting from the power supply, the device returns to its factory settings.

Do not remove the power cord plug straight from the outlet to force the device to stop directly.

The color of the circumference around the button indicates the humidity of the air:

• blue – humidity below 40%,
• green – humidity between 40 and 60%,
• red – humidity above 60%.

Red also appears in case of overfilling of the water tank and in case of a problem with the device.

'MODE' button - selection of a saved program:

• program I – the device maintains humidity at the level of 60%, fan speed can be selected. Selecting another humidity level turns off the program.
• program II – the device maintains humidity at the level of 40%, fan speed can be selected. Selecting another humidity level turns off the program.
• program III – the device maintains humidity at the level of 20%, fan speed can be selected, no other humidity level can be set.

'SPEED/LOCK' button

• selection of fan speed – single press of the button ⏻ determines the fan speed which is indicated by the controls: ✦ - quickly, ✦ slowly. Speed selection is not possible when program III is active, the buttons are locked and in night mode.
• button lock – press and hold the button ⏻ for a few seconds.
  Activation of the function is signaled by the control 🔊 and deactivation by the button

illumination ⏻. When the lock is on, the device settings cannot be changed or the device cannot be switched off.

To disable the lock, hold down the extinguished button ⏻ for a few seconds.

'HUM' button 10- is used to set the humidity level.

Manual setting of humidity level is possible when program I or II is active. When program III is enabled, the humidity level cannot be changed.

In order to set the humidity level, select program I or II and then press the butto ⏻, until the display shows the desired value in the range of 20-80%.

If the humidity in the room is lower than the set humidity, the dehumidification function will stop automatically – the fan will continue to operate.

The current humidity level is shown on the display.

Selecting any of the stored programs changes the humidity level settings.

'PURIFY' button Ⓤ - switching on/off the ionizer.

'TIMER' button ⏻ - is used to automatically switch on (delayed start) and switch off the device.

- Delayed start - this function allows you to set the time after which the humidifier will start automatically.

The function can only be activated when the device is switched off, but connected to the power supply.

The delayed start can be set between 1 and 24 hours by pressing the button ⏻ until the desired value appears in the display.

Only full hours can be set.

Setting value '00' means that the settings are canceled.

Activation of the function is indicated by the button illumination ⏻ and digits on the display.

After switching on the device with the button ⏻ the time setting will be deleted.

- Automatic shutdown - this function allows you to set the time after which the humidifier will be shut down automatically.

The function can only be enabled when the device is turned on.

The automatic shutdown can be set between 1 and 24 hours by pressing the button until the desired value appears in the display.

Only full hours can be set.

Setting value '00' means that the settings are canceled.

Activation of the function is indicated by the button illumination ⏻.

After switching off the device with the button ⏻ the time setting will be deleted.

'SLEEP' button 😊 - enable/disable night mode.

In this mode, the sound signaling is off and the fan operates only at low revolutions. Other buttons are active.

Indicator ≈ - indicates that the water tank is full.

The indicator lights up red when the 2 liter capacity is reached.

The device will also indicate this with a sound, and then turn off.

Press any button to disable the sound alarm.

Then empty the water tank and put it back in the correct position.

● EMPTYING THE TANK

ATTENTION

Water collected in the dehumidifier tank is not suitable for drinking and must not be allowed to come into contact with food.

Do not put the floater out of water; otherwise the device will not stop working when the water tank fills up. Then, water will overflow, which may cause damage to the floor.

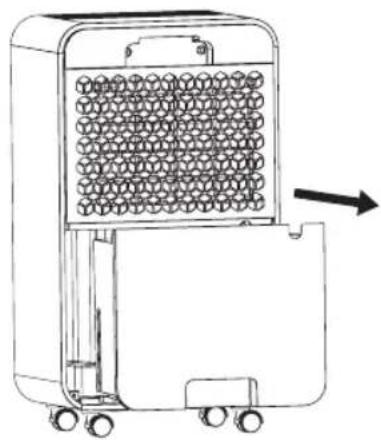

Pull the tank gently at the back of the device; the tank will slide out.

Pour the water out of the tank.

If the water tank is dirty, clean it with water. Do not use any acrid cleaning agents. Do not use chemical solvent (such as benzene, alcohol, gasoline). The surface may be damaged or even the whole case may be deformed. Do not sprinkle water

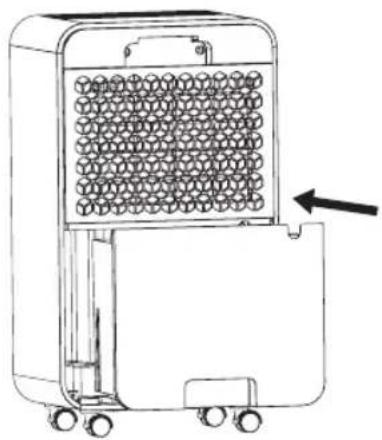

Place the tank in the right position in the device. Otherwise, the full tank indicator will still light up red and the device will not be able to work.

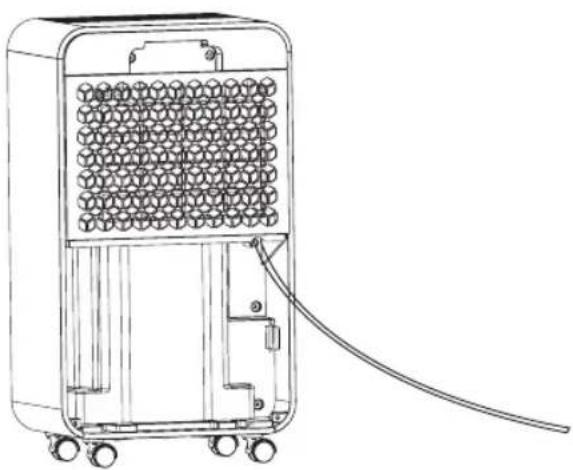

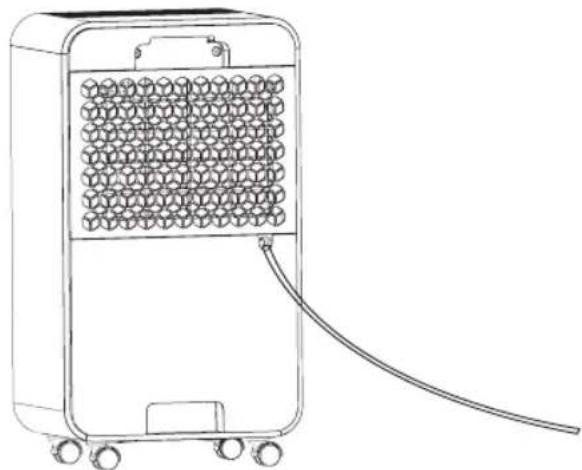

CONTINUOUS WATER OUTLET (fig. 6).

In order to use the device with the continuous water outlet connected, you should:

• Remove the water tank.
• Remove the tank housing component.
• Slide a pipe to the water outlet valve located in the upper section of the tank bay.
• Slide the tank in and lead the pipe out through the cut-out.
• Place the other end of the pipe into a container, e.g. a bucket.

ATTENTION

Never bend the drain tube. The tube outlet must always be below the water outlet from the device. Never block the water outlet from the device or the tube.

MAINTENANCE

Note:

Turn off the unit and unplug it before any maintenance or repair begins to avoid electric shock.

CLEANING

Unplug the unit before any cleaning. Clean the housing with a soft moisture cloth. Do not use chemical solvent (such as benzene, alcohol, gasoline). The surface may be damaged or even the whole case may be deformed. Do not sprinkle water on the unit.

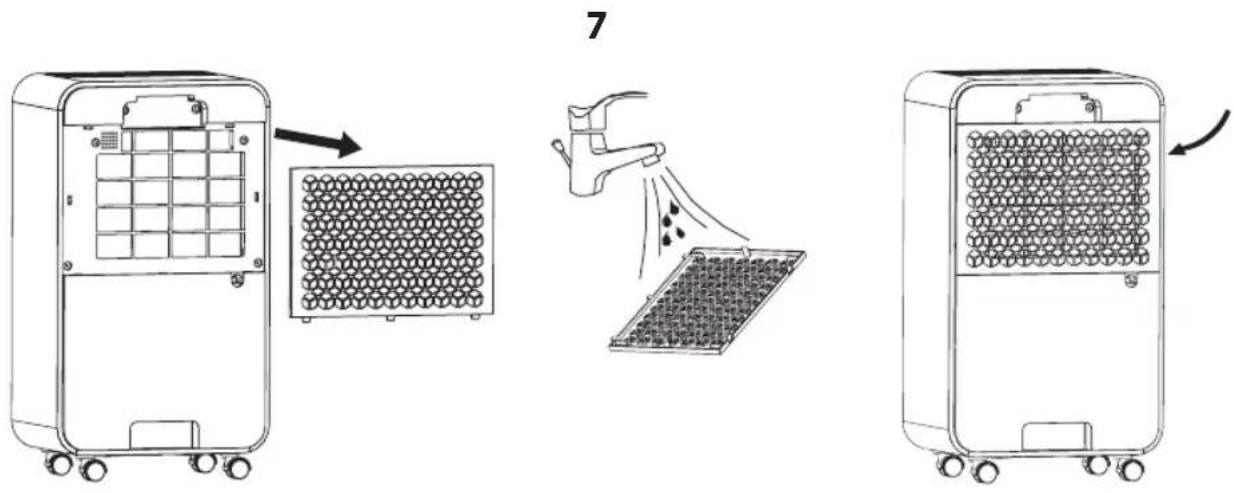

AIR FILTER

Clean the air filter every 2 weeks. If the air filter is blocked with dust, the efficiency will reduce.

Filters must be pulled out of the housing, dismantled, then washed in warm water (about 40 °C) using a neutral detergent. Rinse, dry thoroughly, and then install.

Note: Do not operate the device without a properly installed filter.

• STORING THE DEVICE

If the dehumidifier is not used for a longer period of time:

• Unplug the power cord from the socket and roll it.
• Empty the tank entirely of water and make sure that there is no water inside.
• Remove and clean the air filter, dry it completely and reinstall it.
• Store the dehumidifier in a cool, dry place, inaccessible to sun rays, high temperature or excessive dust.

TROUBLE SHOOTING

Before contacting the service centre, you should compare the symptoms given by the device with those listed below. The list includes normal situations which are not caused by a manufacturing defect or defective material.

Problem Possible cause	Solution
The device won't work.	No power. Connect to the power socket and switch on.
	Water fill indicator is flashing.	Check whether the water tank is correctly installed and empty the water tank.
	The temperature in the room is below 5°C or above 35°C.	Zadziałało zabezpieczenie zaprojektowane do°Chrony urządzenia. Urządzenie nie może działać w tych temperaturach.
	The "TIMER" function is active. Disable the "TIMER" function.
The dehumidifier function does not work or the device switches on/off frequently.	Air filter is clogged.	Clean the air filter according to the instructions.
	Door or window is open. Close the door / window.
	The device is near a heat source. Place the device in the cooler location.
	Inlet or outlet channel is obstructed.	Remove the obstruction from the inlet or outlet channel.
The device makes excessive noise.	The device is tilted or unstable.	Place on an even, hard surface (with no vibrations).
	Air filter is clogged.	Clean the air filter according to the instructions.
E2 A problem	with the humidity sensor. Contact the authorized service center.
LO The ambient humidity is less than 20%.		The automatic device protection function enabled. Ensure that the device is in proper working conditions.
HI The ambient humidity is above 95%.
CL	Low temperature protection, ambient temperature <5°C.
CH	High temperature protection, ambient temperature >35°C

When the ambient temperature is below 5°C or above 35°C, the dehumidifier stops.

AUTOMATIC DEFROSTING

When the ambient temperature is between 5^ C and 16^ C, the compressor automatically defrosts at specified intervals.

During defrosting, the compressor stops and the fan continues to run.

ENVIRONMENTAL PROTECTION

The appliance is made of materials which can be recycled.

It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

This appliance is designed for domestic use only.

It cannot be used for professional purposes or for other than the intended use.

Improper use will nullify the guarantee.

BEZPEČNOSTNÍ PODMÍNKY
