Product Type	Child Car Seat
Brand	Caretero
Model	Commo i-Size
Category	i-Size Child Car Seat
Height Range (Overall)	40–150 cm
Height Range (Rearward-Facing)	40–105 cm
Height Range (Forward-Facing)	76–150 cm
Weight Range	Not specified; i-Size height-based (approx. up to 18 kg rearward, up to 36 kg forward)
Orientation	Rearward-facing, Forward-facing, Lateral (convenience only, not for driving)
Installation Methods	Rearward: ISOFIX + Top Tether; Forward (harness mode): ISOFIX + Top Tether; Forward (booster mode): Vehicle 3-point belt only or Vehicle 3-point belt + ISOFIX
Harness Type	5-point harness (for children up to 105 cm; removable for booster mode)
Recline Positions	5 positions; rearward only most reclined, forward all five (except most upright may not fit all vehicles)
Side Protection	Integrated side protection; optional side impact shield can be added on door side
Rotation	360° rotation via button (for convenience, not for driving while lateral)
Top Tether	With quick release mechanism; used in ISOFIX installation
ISOFIX	Two connectors with green engagement indicators; compatible with ISOFIX anchor points
Headrest Adjustment	Height adjustable via regulator
Shoulder Pads	Included; adjustable via velcro
Cover Removal	Removable; hand wash or machine wash at 30°C (delicate cycle); do not tumble dry or iron
Safety Standard	ECE R129 (i-Size) approved
Airbag Warning	Do not use rearward-facing on front seat with active airbag
Distributor	IKS 2, 9 Rybnicka Street, 43-190 Mikolow, Poland
Customer Support	[e-mail], www.caretero.pl

Frequently Asked Questions - Commo i-Size Caretero

What is the height range for the Caretero Commo i-Size?

The seat is designed for children with a height from 40 to 150 cm. It can be used rearward-facing from 40 to 105 cm and forward-facing from 76 to 150 cm.

Can I use the seat rearward-facing?

Yes, for children from 40 to 105 cm (approximately up to 15 months). The seat must be installed using ISOFIX and top tether, and the 5-point harness should be used. Do not use rearward-facing on a front seat with an active airbag.

What installation methods are available?

For rearward-facing (40-105 cm) and forward-facing harness mode (76-105 cm): ISOFIX + Top Tether. For forward-facing booster mode (100-150 cm): you can use either the vehicle 3-point belt only or the vehicle 3-point belt with ISOFIX connectors (no support leg). The seat does not use a support leg.

How do I install the seat using ISOFIX?

Attach the ISOFIX insert guides to your vehicle's ISOFIX anchor points. Extend the ISOFIX connectors on the seat, push them into the guides until they click. Ensure both ISOFIX buttons turn green. For forward-facing, also attach the top tether to the vehicle's top tether anchor point and tighten until the tension indicator is green.

When should I switch from rearward to forward-facing?

Switch to forward-facing when your child is at least 15 months old (as required by i-Size) and their height exceeds 76 cm. However, it is safest to keep your child rearward-facing for as long as possible up to 105 cm.

Can I use the seat without ISOFIX?

Yes, for forward-facing booster mode (100-150 cm), you can install the seat using only the vehicle 3-point belt. Follow the instructions for routing the diagonal and lap belt through the guides. The seat has been tested and approved for this use.

How do I clean the seat cover?

The cover is removable. Hand wash or machine wash on a delicate cycle at max 30°C using mild detergent. Do not tumble dry, iron, or use bleach. Let it air dry. The plastic parts can be wiped with a damp cloth and mild soap.

Is the seat compatible with my car?

The seat is suitable for vehicles with approved 3-point seat belts complying with ECE Regulation No. 16 or equivalent. It also requires ISOFIX anchor points and a top tether anchor for certain installations. Always check your vehicle manual and the seat's compatibility list. Some positions may not fit all vehicles; test the seat before use.

What is the top tether for?

The top tether is an additional strap that secures the top of the seat to a designated anchor point in your vehicle. It reduces forward movement in a crash. It must be used when installing with ISOFIX. The top tether on this model includes a quick release for convenience.

Can I use the side impact shield?

Yes, an optional side impact shield can be added for extra side protection. It should be installed on the side closest to the vehicle door. Insert it from the top into the slots on the upper belt guide until fully engaged. Note that when used, it may not fit in all approved vehicles.

USER MANUAL Commo i-Size Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Line drawing of a car comfort seat with seatbelt and seat rack (no text or symbols)

COMMO

CARETERO

COMMO

Thank you for choosing the Caretero COMMO car seat.

You purchased a modern and high-quality product.

We are sure that it will provide your child with safety and will ensure hir or her proper, harmonous growth.

We encourage you to learn about our full offer by visiting our website www.caretero.pl.

We are also eager to hear your opinions on our products. Should you have any remarks, feel free to share them with us.

Caretero brand Team.

1. Regulator wysokości zagłówka / headrest height adjuster / Kopfstützenhöhenverstellung
2. Zagłówek / headrest /Kopfstütze
3. Uchwyt na pasek / belt holder / Gürtelhalterung
4. Górna prowadnica paska / Upper belt guide / Obere Riemenführung
5. Naramienniki/ shoulder pad / Schulterpolster
6. Schowek na instrukcję obsługi / instruction manual compartment / Fach für Betriebsanleitung
7. Pasek naramienny / shoulder strap / Schultergurt
8. Klamra/ buckle / Schnalle
9. Środkowy regulator / centre adjuster / Zentrumseinsteller
10. Dolna prowadnica paska / lower belt guide / Untergurtführung
11. Pasek regulacyjny / adjuster strap / Verstellrie- men
12. Przycisk obrotu / rotation button / Drehknopf
13. Złącze ISOFIX / ISOFIX connect / ISOFIX-Anschluss
14. Prowadnica wkładki ISOFIX / ISOFIX insert guide / Führung des ISOFIX-Einsatzes
15. Boczna osłona ochronna / side protection shield / Seitenschutzschild
16. Poduszka dla niemowląt / infant cushion / Kleinkind-Kissen
    17.1. Top tether z możliwością szybkiego odpięcia / Top tether with quick release / Oberer Haltegurt mit Schnellverschluss
    17.2. Top tether

2

INSTALACJA / INSTALLATION / MONTAGE

EN: Notice: The infant cushion protects your child. It needs to be used up to size of 75 cm.

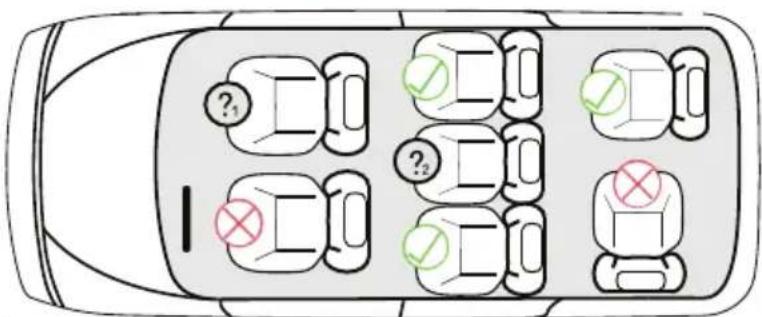

EN: DO NOT place reat facing child seat on front seat with active airbag, DEATH OR SERIOUS INJURY can occur

Line drawing of a car seat with a blue circular motion indicator (no text or symbols)

Line drawing of a car seat with no text or symbols

Line drawing of a car seatbelt with a blue mark indicating the seat area (no text or symbols)

EN: Rotate seat to rearward facing, adjust seat in most reclined position. Place seat in the direction facing opposite to the travel.

EN: Guide top tether along one sides and insert upper belt guide, then attach top tether hook to anchorage point.

Illustration of a baby car seat with blue arrows indicating pressure or stress (no text or symbols)

EN: Have your child sit down in the child seat. Adjust headrest in proper height, adjust harness and lock buckle and tighten harness.

EN: IMPORTANT - DO NOT use a forward-facing seat before your child is 15 months old.

Diagram of a device with two blades and a base, showing a circular motion around it (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

Line drawing of a whale-shaped object sitting in a car seat, with no visible text or symbols

EN: Rotate seat to forward facing. Place seat in the direction facing to the travel. Install ISOFIX connectors.

Illustration of a child seated in a car seat with blue arrows indicating direction (no text or symbols)

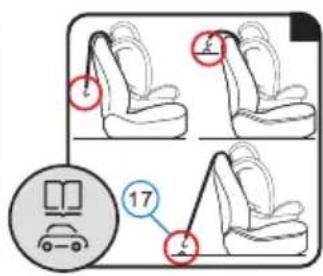

EN: Attach top tether hook to anchorage point.

Have your child sit down in the child seat. Adjust headrest in proper height, adjust harness and lock buckle and tighten harness.

EN: Remove harness when use for child stature 100-150cm.

Line drawing of a mechanical device with two blades and a base, no text or symbols present

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Illustration of a whale-shaped object sitting in a chair with a card partially visible (no text or symbols)

EN: Rotate seat to forward facing. Place seat in the direction facing to the travel.

EN: There are two option to install:

• Only use vehicle 3 point belt or
• Use vehicle 3 point belt + ISOFIX connectors.

CAUTION! Both option do not use support leg.

Illustration of a person using a car seatbelt with a 'click' button (no text or symbols on the diagram itself)

Illustration of a person sitting in a car seat with a green belt and earband (no text or symbols)

Illustration of a person seated with hands wearing a green bandage (no text or symbols)

EN: Have your child sit down in the child seat. Adjust headrest in proper height. Pull out the vehicle seat belt and guide it in front of your child to the vehicle seat buckle. Engage the buckle tongue in the vehicle seat buckle.

Caution! The vehicle seat belt buckle must not be positioned in the lower belt guide.

Place the diagonal seat belt section and lap belt section on the side of the vehicle seat belt buckle in the lower belt guide.

Place the lap belt section on the other side of the childseat in the lower belt guide.

Caution! The lap belt section must be lie as low as possible over your child's hips on both sides.

Simple line drawing of a mechanical component with a green tool inserted (no text or symbols)

EN: For the child stature 100-150cm installation, this seat also can use vehicle belt only. It has been tested and homologated also. If you want only use vehicle belt installation, just skip the ISOFIX connector relative content.

EN: Guide the diagonal seat belt section into the belt holder and it is not twisted.

Press red button until buckle latches comes out from the buckle.

Lock buckle

Guide the two buckle latches together, putting them into the harness buckle house. Buckle locked when sounds click.

Notice: buckle can not lock only by putting one latch.

DE:

Schnalle öffnen

Pull the adjuster strap until the harness lies flat and is close against your child's body.

Notice: Make sure the space between the child and the shoulder harness is about the thickness of one hand.

Loosen harness

Press the center adjuster and at the same time pull both shoulder belts forwards. Do not pull on the shoulder pads

DE:

Gurtzeug festziehen

EN: When installed by 5-point harness, the headrest must be adjusted so that the shoulder belts are at the same level as your child's shoulders.

CAUTION! The shoulder belts must not run behind the back of the child or at ear height or above the ears.

EN: When installed by 3-point vehicle belt, the headrest must be adjusted so that there is a space two fingers wide between the headrest and your child's shoulders. Make sure the diagonal seat belt section is on child's shoulder but not on neck.

Line drawing of a hand holding a tool above a mechanical component (no text or symbols)

EN: First loosen harness. Pull up the headrest height adjuster at the same time move headrest to shoulder height in accordance with the size of the child.

Line drawing of a car seat with a blue arrow indicating motion or direction (no text or symbols)

EN: Seat has five recline positions. For rearward facing, only use most reclined position. For forward facing can use all five positions. Except most upright position, other positions may not fit in all approved vehicles.

Pull recline lever at the same time incline seat to intend position.

Line drawing of a car seat assembly (no text or symbols)

40-105 cm 76-150 cm

Line drawing of a car seat with a seatbelt and seat, no text or symbols present

Line drawing of a car seat assembly (no text or symbols)

Skierowany w bok/Lateral facing /Seitliche Ausrichtung Dla wygody siedzenia dziecka. Nie wolno używać podczas jazdy /For child sit convenience. Forbidden to use when driving / Zum bequemen Sitzen für Kinder. Die Benutzung während der Fahrt ist verboten.

Illustration of a hand pressing down on a curved surface with a blue arrow indicating the direction (no text or symbols present)

Line drawing of a car seat assembly with blue motion arrows indicating rotation (no text or symbols)

EN: Pull rotation button at the same time rotate seat to intend direction.

Line drawing of a car comfort seat with directional arrows indicating rotation (no text or symbols)

Simple diagram with a checkmark, blue left-pointing arrow, and a stylized object (no text or symbols)

EN: If your vehicle is not equipped with the ISOFIX insert guides as standard, clip the two insert guides which are included with the seat with the cut-out facing upwards onto the two ISOFIX attachment points of your vehicle.

Illustration of a hand holding a tool with blue star symbols, no text or symbols present

Line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

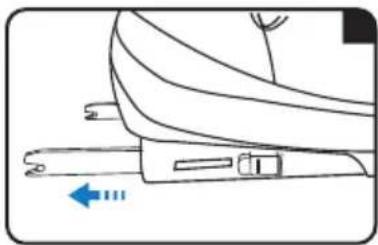

EN: On both sides of the seat squeeze the ISOFIX button and pull out ISOFIX connectors in longest position.

Line drawing of a car seat with blue arrows indicating movement or force direction (no text or symbols)

EN: Slide the two ISOFIX connectors firmly into the insert guides until the ISOFIX connectors engage with a clicking noise on both sides. The ISOFIX button must turn green on both sides.

CAUTION! The ISOFIX connectors are only correctly engaged if both of the ISOFIX buttons are green.

Push the child seat towards the backrest applying firm, even pressure on both sides. Shake the child safety seat to make sure it is safely attached and re-check the green safety buttons to make sure that both of them are completely green.

Line drawing of a car seat with arrows indicating left and right motion (no text or symbols)

Line drawing of a car seat with blue directional arrows indicating movement or force (no text or symbols)

EN: Push the child seat towards the backrest applying firm. At the same time squeeze ISOFIX button and pull back ISOFIX connectors.

Illustration of a hand holding a medical device with blue arrows indicating airflow or movement (no text or symbols)

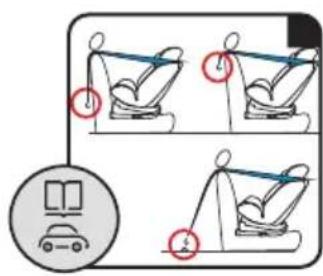

EN: Take the top tether and if required, lengthen the belt by pressing the top tether brake button to release the strap, pulling to adjust as necessary. Attach the top tether hook to the top tether anchorage point wich is recommended in the owner's manual of your car. Look for this symbol in your vehicle.

Car seatbelt buckle diagram showing blue belt and magnified inset of a device (no text or symbols)

EN: To tension the top tether, remove any slack by pulling on the free end of strap until it is suitably tightened. The top tether will be properly tightened when the tension indicator turns completely green.

Illustration of a belt buckle being inserted into a seatbelt, showing blue arrow indicating direction (no text or symbols)

EN: Version 1: top tether with quick release.

Pressing the top tether quick release button to release top tether when rotating forward facing installation to lateral.

CAUTION! Make sure the top tether quick release locked again after rotating back to forward facing.

Version 2: top tether

Ignore this step.

Anatomical illustration of pelvic bones and spinal cord (no text or labels)

Diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

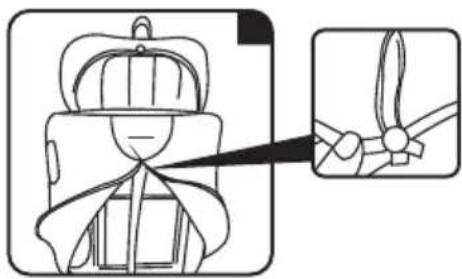

EN: Loosen the press studs on the backrest and fold the upper half of the cover upwards and the lower half downwards. Loosen the 5-point harness on the child seat as far as possible. Then open the buckle.

Diagram of a mechanical device with attached clamps and a blue directional arrow (no text or symbols)

EN: Open the two shoulder pads by the velcro fasteners on the side. Push the velcro strip of the two opened shoulder pads under the backrest cover and attach it to the fleece strip provided.

Line drawing of a person's seatbelt being adjusted for a piece, showing no text or symbols

EN: Insert the buckle tongues in the recess provided on the inside of the backrest.

Diagram showing mechanical assembly with a magnified inset highlighting a specific component (no text or symbols present)

EN: Open seat cover and fold the cover forwards, pull the harnessbuckle out of the cover.

Line drawing of a car front bumper with handle and seat (no text or symbols)

EN: Stow the harness buckle in the recess provided.

Illustration of a car seat with a magnified inset showing a person's head and seat (no text or symbols)

EN: Close the two press studs and recovery seat cover.

EN: Re-fitting the harness: Simply follow the steps in the opposite order. Make sure the belt is not twisted

EN: This seat has been tested and approved to offer optimum side procection without side impact shield. The side impact shield is optional for extra side protection, when used may not fit in all approved vehicles.

The side impact shield should install at the side which close to vehicle door.

Diagram of a car seatbelt mechanism with a blue arrow indicating downward motion (no text or symbols)

Line drawing of a car seat with seatbelt and seat, no text or symbols present

EN:Install: Insert side impact shield from top along the slots on upper belts guide until full engaged.

Remove: pull up side impact shield along the slots on the upper belt guide.

Simple line drawing of a curved object with a blue arrow pointing to a circular feature (no text or symbols)

Line drawing of a historical figure wearing a crown and holding a bow, with an inset showing the bow being adjusted (no text or symbols)

PLEASE READ THESE INSTRUCTION CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. THE SAFETY OF YOUR CHILD MAY BE IN DANGER IF THESE INSTRUCTIONS WILL NOT BE COMPLIED WITH.

WARNING!

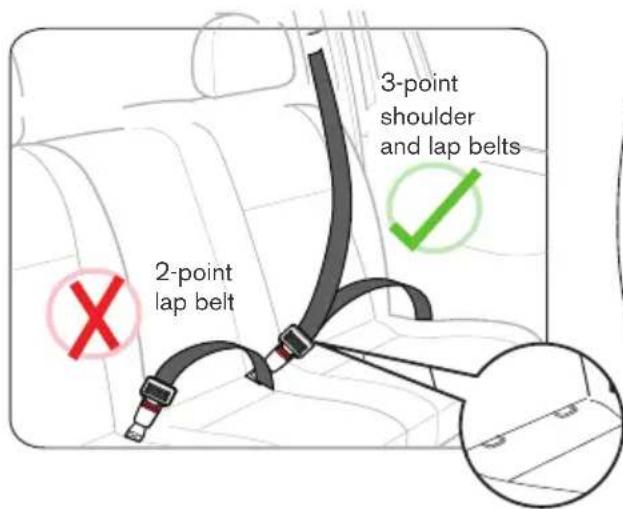

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No. 16 or comparable standards.

This is a seat for children of height from 40 up to 150 cm.

These Assembly and Usage Instructions must be given to the client.

Subject to printing errors, mistakes and technical changes.

WARNING! For the safety of the person installing the car seat:

- The shoulder belt pads are important in keeping the child safe. Please use them at all times.

- While installing or uninstalling the seat no object may be able to slide between the car seat and the child seat base. It could trap the person's fingers.

- In ordered to avoid damage, take care not to jam the seat between solid elements of the car (doors, seat guides etc.).

- Store the car seat in a safe place when not in use. Avoid putting heavy objects on the seat and do not store near heat sources or in direct sunlight.

WARNING! For the safety of the car:

- Some car seat covers are made of delicate fabrics (velour, leather etc.) and may become worn-out due to the child seat use. In order to protect the upholstery, we recommend using car seat covers available as accessories.

DANGER! For the safety of your child:

• Please use the Caretero Commo seat only to secure your child in the car.
• The seat is to be installed forward-facing with a 3-point car safety belt or with a 3-point car safety belts and ISOFIX anchors only.
• It is forbidden to use the car seat as a chair or a toy.
• During a car crash at speed higher than 10km / h the car seat may become damaged without clear visual marks. In such case the car seat should be scrapped and replaced with a new one.
• Please remember to recycle the seat properly when it won't be used anymore.
• Commission a full check of the car seat after a possible damaging (eg. when the seat falls to the ground).
• Regularly check all vital elements of the car seat for signs of damage. Make sure all mechanical parts of the seat are functioning properly.
• It is forbidden to lubricate any parts of the seat.
• Check if the car seat is installed properly before each trip.
• Do not use or transport the car seat when it is not properly installed in the car.
• Do not use other fixing points other than those described in this manual and marked on the car seat itself.
• Regularly check the seat belts, especially the fixing points, stitchings and adjustment devices.
• Never leave the child in the car seat unattended.
• Make sure that the child enters and exits the car on the sidewalk side of the street.
• Protect the car seat against sunlight while it's not in use.
• The car seat may become very hot while under direct sunlight. The child's skin is very delicate and may become easily damaged during contact with a hot car seat.
• The closer the car seat belts are to the child's body, the higher the safety level. Therefore do not put thick clothes on the child.
• Make regular stops during longer trips, so the child may play and rest after removing it from the car seat.
• When using the car seat in the rear passenger seats: slide the front passenger seat to the front, so the child will not reach the backrest with its feet (this will prevent from damaging the legs during an accident).
• Not complying with these instruction may cause danger.

DANGER! For the safety of car passengers.

In case of an accident or emergency braking, persons or objects that are not secured properly, may damage other users of the car. Therefore it is important to ensure the following:

• The backrests of the seats are fixed (make sure the foldable rear seat backrests have been locked properly).
• All heavy objects or objects with sharp edges have been secured (eg. objects on the rear window shelf are not loose).
• All persons in the car have fastened their seat belts.
• The child seat is always secured, even when there is no child in the seat.

DANGER!

In case of any modifications done to the car seat, the warranty will become void. Only the manufacturer may apply any changes to the car seat.

DANGER!

Please comply with safety regulations present in your car manual.

The child seat may be installed in the following configurations:

Forward-facing Yes
Rearward-facing No
On car seats equipped with ISOFIX(found between the seating and backrest ofa car seat) and 3-point car safety belts	Yes ^1)

Regulations obligatory in the territory of a given country must be obeyed.

^1) In case of presence of a frontal airbag - move the passenger car seat as far back as possible.

Proper placement

Forbidden placement

Installation of the child seat is not recommended if the passenger seat airbag is active.

Installation of the child seat is FORBIDDEN if the passenger seat is equipped with a 2-point seat belt only.

5

CLEANING AND MAINTENANCE

Remember to ONLY use the original upholstery for the Caretero COMMO seat, as it is an integral part of the seat and plays an important role in its proper functioning.

The upholstery may be removed for washing (hand wash or machine wash - delicate fabrics programme, max 30°C).

Do not tumble dry. Use only mild detergents.

Plastic parts of the seat may be cleaned with a damp cloth with addition of soap.

Never use strong detergenst such as bleaches etc.

Never iron the upholstery.

The cover can be removed and washed. Please observe the instruction on the washing label of the cover.

Simple line drawing of a curved object with a blue arrow pointing to its top surface (no text or symbols)

Loosen the press studs at the back of the headrest and remove the cover of headrest.

Line drawing of a person wearing a crown and holding a tool, with an inset showing the same object (no text or symbols)

Loosen the press studs and unzip at the back of seat cover. Pull forward and remove seat cover.

Re-fitting simply follow the steps in the opposite order.

Simple line drawing of a curved object with a blue arrow pointing to a circular feature (no text or symbols)

Line drawing of a figure with a crown and bow, alongside a magnified inset showing a small object (no text or symbols)

Learn more about brand Caretero. Scan the code QR.

DISTRIBUTOR:

IKS 2 - Children's Goods Distribution Centre 9 Rybnicka Street, 43-190 Mikolow, Poland [phone] e-mail: [e-mail], www.caretero.pl
