Product type	Fabric shaver / lint remover
Brand	Eldom
Model	TURO GDS5
Power supply	Mains (230V~50Hz) or rechargeable battery
Battery type	Ni-Cd 600 mAh
Charging time	Approximately 8 hours
Power consumption	3W
On/off switch	Slide switch (positions 0 and 1)
Charge indicator	Control light (lamp) – stays on while charging, does not turn off when fully charged
Blade	Removable, sharp – handle with care
Shield	Removable by twisting counterclockwise; includes metallic foil
Height adjuster	Available (adjusts cutting height)
Container	For collecting cut lint; clean when approx. 80% full
Cleaning brush	Included for cleaning blade and shield
Use	For shaving lint/pills from clothes (flat surface, not on body)
Safety precautions	Do not immerse in water; use only genuine accessories; keep away from children under 8
Maintenance	Unplug before cleaning; wipe casing with damp cloth; clean blade and shield with brush
Repair	Only by manufacturer's authorized service center
Environmental disposal	Recycle at designated collection points for electronic appliances

Frequently Asked Questions - TURO GDS5 Eldom

How long does it take to fully charge the Eldom TURO GDS5 shaver?

The charging time is approximately 8 hours. For best battery life, charge in one uninterrupted cycle after full discharge.

Can I use the shaver while it is plugged into the mains?

Yes, the appliance can be used either after charging the battery or directly from the mains by connecting the power cable to the socket.

How do I clean the blade and shield?

Unplug the unit and switch it off. Remove the shield by twisting it counterclockwise, then remove the blade. Use the little brush to clean the shield, blade, and drive mechanism. Empty the container when about 80% full. Be careful as the blade is sharp.

What should I do if the shaver does not start?

Check that the shield is properly fixed. The appliance does not operate if the shield is loose or incorrectly attached. Also ensure the switch is slid to the '1' position and the battery is charged or the unit is connected to mains.

Can I use this shaver on clothes that are being worn?

No, do not shave clothes while they are on the body. This may cause wounds. Always lay the garment on a flat surface.

How do I know when the battery is fully charged?

The control light (lamp) indicates charging, but it does not turn off when the battery is fully charged. It is recommended to charge for about 8 hours and then disconnect.

What types of fabric can I use the shaver on?

The shaver is designed for removing pills and lint from various fabrics. Always test on a hidden part first. Pay attention to buttons, zips, seams, and delicate parts.

Is the blade replaceable?

Yes, the blade is removable and can be replaced if damaged. Use only genuine accessories from the manufacturer.

Can children use this appliance?

Children aged 8 and older can use it under supervision. Children under 8 must be kept away from the appliance and its cord. Cleaning and maintenance should not be done by children without supervision.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer's authorized service center to avoid hazards. Do not use the appliance until repaired.

USER MANUAL TURO GDS5 Eldom

Close-up of a white disposable hair dryer with hexagonal grille and 'eldom' branding (no additional text or symbols visible)

WSKAZÓWKI BEZPIECZEŃSTWA

UŻYTKOWANIE URZĄDZENIA

Before first use familiarize with the entire content of this manual

1. the unit must be plugged into network with parameters of the current the same as the parameters on the casing
2. the appliance must be unplugged by pulling the plug instead of the supply cord
3. do not merge the unit in water when cleaning it
4. the unit is designed to operate at a household, do not use the unit for purposes other than those enumerated in the manual

5. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

6. use only genuine accessories

7. the unit may be repaired by a manufacturer's authorized service center only. All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous

8. regularly check whether the unit or part of it is damaged in any manner. Do not switch the unit if any damages are found.

9. in case the power cord is damaged it must be replaced by the manufacturer's authorized service center.

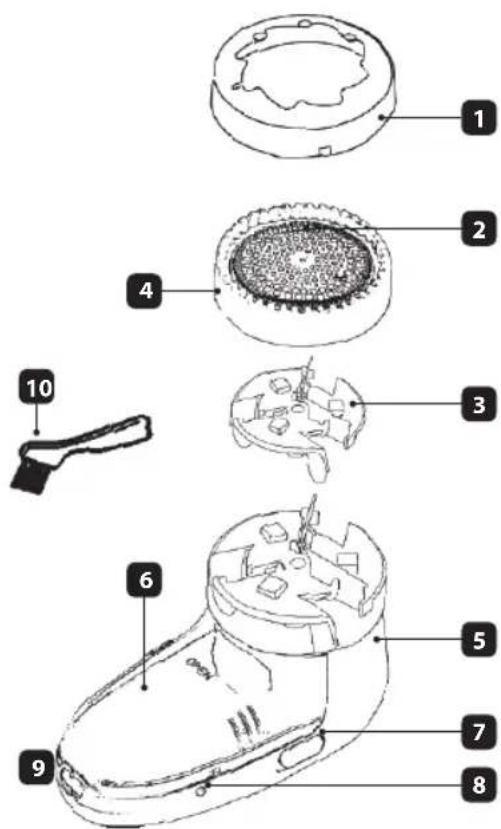

GENERAL DESCRIPTION

1. Protective cover
2. Shield
3. Blade
4. Height adjuster
5. Body
6. Container
7. ON/OFF switch
8. Lamp
9. Supply socket
10. Little brush

TECHNICAL DATA

• power: 3W
• voltage supply: 230V \~ 50Hz
• mains and rechargeable
• battery: Ni-Cd 600 mAh
• loading time: 8 godzin

HOW TO USE THE APPLIANCE

• The appliance can be used after charging the battery or by connecting to the mains
• Power cable should be properly connected to the socket (9).
• The appliance is equipped with an internal battery. Charging time is about 8 hours.
• In order to increase the battery life-span charging should be done in one uninterrupted cycle after full discharging
• Charge is indicated by a control light (8). The indicator light does not turn off when the battery is charged.
• After charging, the appliance should be disconnected from the mains and the power cord should be unplugged from the socket (9).

HANDLING

- before start-up fix a shield (2).

Do not switch on the shaver when the shield is loose.

Note. The appliance does not operate in case the shield is fixed in an improper manner.

• The shaver starts the operation after the switch has been slid into the „1" position.
• move the shaver along clothes laying on a flat surface
• In order to switch a unit off slide the switch (7) into „0“ positio

GUIDELINES

1. Do not shave clothes in case clothes are at a body. It may cause wounds on a body.

2. When shaving clothes pay special attention to:

3. areas around buttons and zips

4. protruding parts
5. connections - sews
6. object glued to clothes

7. delicate parts

8. Before use try the unit on a hidden part of a cloth.

9. Move the unit acc. to a pattern on a cloth.
10. If required move the unit alongside - vertically and horizontally
11. In case of 'flat materials lay two layers of a cloth and shave them on an iron board.
12. Do not switch the unit on when it is unnecessary, it may result in reduced life of the shield and the blade.

MAINTENANCE AND CLEANING

When the container is approx. 80% full clean it and internal blades as well. Before cleaning unplug the unit and switch it off.

• do not merge the unit in water
• to not use abrasive or other damaging cleaning agents

• clean the casing with a wet cloth

• remove the casing (2) twisting it counterclockwise

• remove the blade (3), fig. 2
• using a little brush (10) clean the casing, blade and the drive mechanism fig. 3, 4, 5
• empty the container (6), fig. 6

Be careful then removing and cleaning the blade (3) since it is sharp

Be gentle when cleaning the metallic foil of the casing (2). Do not press it.

ENVIRONMENT PROTECTION

• the unit is made of materials which may be reused or re-cycled
• it must be provided to a relevant point specializing in collecting and recycling of electric and electronic appliances
