HIIS G53 - Shaver Eldom - Free user manual and instructions

Product Type	Electric Shaver
Brand	Eldom
Model	HIIS G53
Shaving System	3-blade rotary shaving head
Trimmer	Pop-up trimmer for detailed grooming
Power Source	Rechargeable battery or mains operation (230V ~50Hz)
Battery Type	2.4V Ni-MH (2 x 1/2AA 600mAh)
Charging Time	Approximately 8 hours
Power Consumption	3W
Indicators	Charging indicator light
Cord Length	Not specified (approx. 1.5m typical)
Dimensions (approx.)	15 x 5 x 4 cm
Weight (approx.)	200 g
Water Resistance	Not waterproof; do not immerse. Washable blades chamber only.
Cleaning Method	Remove shaving head, rinse chamber under water, use brush for housing
Blade Replacement	Replaceable knives and strainers (not covered by warranty)
Safety Features	Automatic shut-off? Not specified; disconnect after use near water
Intended Use	Domestic use only
Warranty	Standard warranty; excludes blades and damage from misuse

Frequently Asked Questions - HIIS G53 Eldom

How long does the battery take to charge?

The charging time is approximately 8 hours. For best battery life, charge after full discharge.

Can I use the shaver while it is charging?

Yes, you can use the shaver connected to the mains via the power cable for direct operation.

How do I clean the shaver?

Turn off and unplug. Press the opening button to remove the shaving head, then wash the blades chamber under running water. Use the included brush to clean the housing. Do not immerse the whole appliance.

How often should I replace the blades?

Replace the knives and strainers regularly as they wear out. They are not covered by warranty. Follow the disassembly steps in 'Cleaning and Maintenance' section.

What type of battery does the shaver use?

It uses a 2.4V Ni-MH battery consisting of two 1/2AA 600mAh cells.

Is the shaver waterproof?

No, the appliance must not be submerged in water. Only the blades chamber can be rinsed under running water. Keep the main body dry.

How do I use the trimmer?

Slide up the trimmer switch (7) to extend the trimmer, then use it for precise trimming of beard or sideburns.

What does the indicator light mean?

The indicator light (4) turns on during charging and stays on even when fully charged. It does not turn off.

Can children use the shaver?

Children aged 8 and above can use it under supervision. Persons with reduced capabilities should also be supervised or instructed.

Is the shaver covered by warranty?

Yes, for domestic use. The warranty does not cover blades, strainers, or damage from improper handling. See detailed warranty provisions.

USER MANUAL HIIS G53 Eldom

Close-up of a silver electric shaver with three circular brushes and a brand mark (no visible text or symbols on the device body)

OSTRZEŻENIE.

Close-up of a white and black handheld device with labeled parts (6 and 7), no visible text or symbols on the device itself.

DANE TECHNICZNE

Close-up of a mechanical gear assembly with visible gears and shafts, no text or symbols present

Exploded view of a mechanical device showing internal components and a crane-like structure (no text or symbols visible)

• Before using the appliance for the first time please read carefully this operating manual
• The appliance should be connected to sockets compliant with current parameters given on the housing
• The appliance should be disconnected by pulling on the plug, not on the power cable
• When used in the bathroom, the appliance must be disconnected after use because water proximity is dangerous even if the appliance is switched off
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• The appliance is intended only for domestic use

SAFETY INSTRUCTIONS

• The appliance must not be submersed in water and other liquids
• Children must not be left unsupervised near the appliance
• The appliance must not be used outdoors
• The power cable and the whole appliance should be regularly checked for damages; the appliance cannot be switched on if any damages have been found
• In event of power cable defects it must be replaced in the service centre to avoid risk

REPLACEMENT OF STRAINERS AND KNIVES

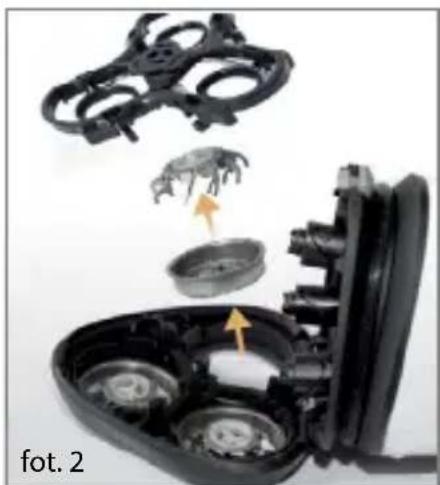

To replace the knives and strainers, follow the step-by-step disassembly instructions as described in "CLEANING AND MAINTENANCE" point.

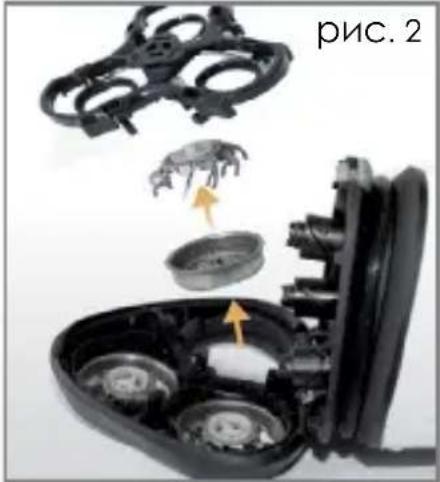

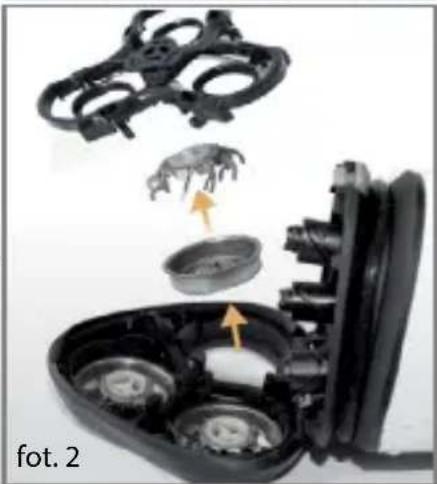

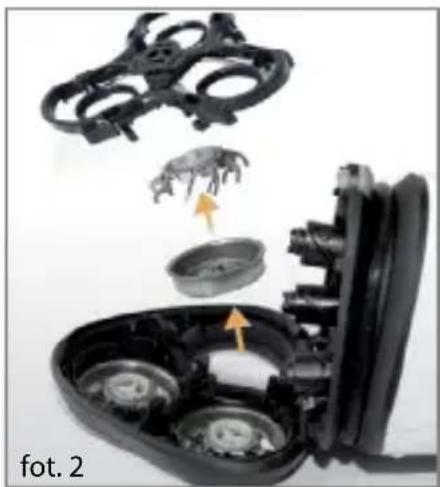

Disassembly steps are illustrated in fig. 2.

ENVIRONMENATL PROTECTION

- The appliance consists of materials which can be reprocessed or recycled

- The appliance should be disposed of only in approved disposal centres dealing with electrical and electronic appliances recycling

WARRANTY

• The appliance is intended for domestic use only
• The appliance cannot be used for commercial purposes
• The blade and the blade strainer are subject to wear and tear and are not covered by warranty
• The warranty is considered void in event of inappropriate handling. Detailed warranty provisions are attached

The knives and strainers are working components and should be replaced systematically. They are not covered by warranty.

Two-panel image showing internal mechanical components, one with orange rotation arrow and label 'fig. 1', the other with broken views and a small inset showing a device (no text or symbols on main objects)

CAUTION: Do not use the appliance near bathtubs, showers, swimming pools and similar water reservoirs.

OPERATING MANUAL

ELECTRIC SHAVER G53

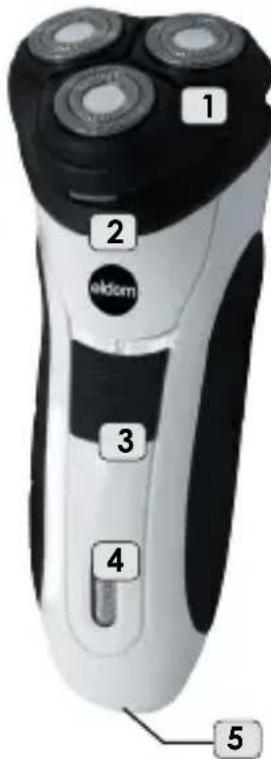

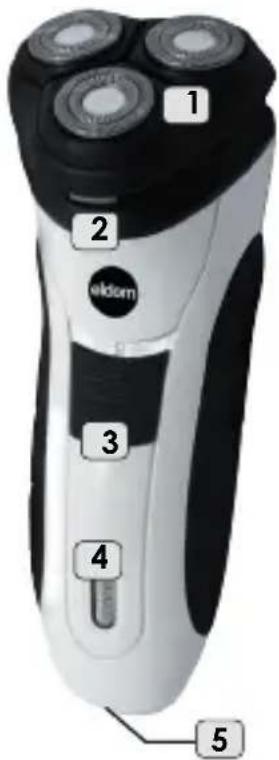

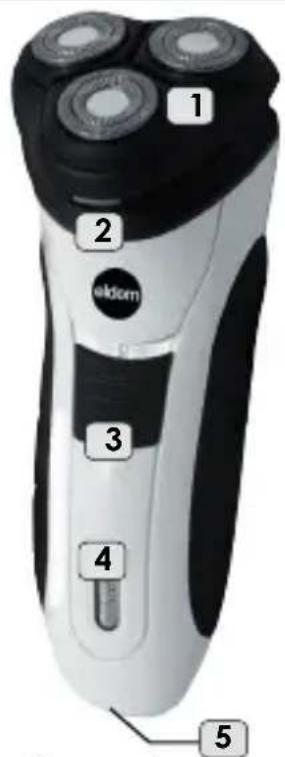

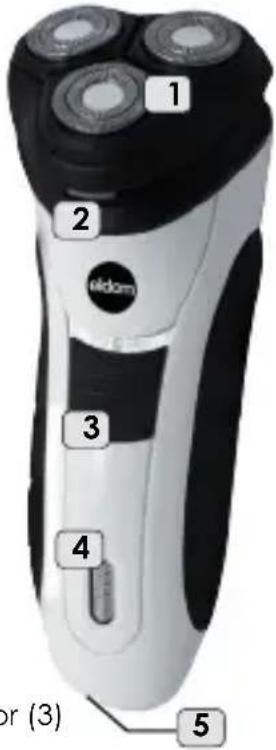

GENERAL DESCRIPTION

1. Shaving head with three blades
2. Opening button for the shaving head housing
3. On/off switch
4. Indicator
5. Socket for the power cable
6. Trimmer
7. Trimmer opening button

TECHNICAL DATA

• power: 3W
• mains voltage: 230V \~50Hz
• charging time: about 8h
• battery: 2.4V, 2 x 1/2AA 600mAh Ni-MH

Close-up of a white and black handheld device with labeled parts (6 and 7), no visible text or symbols on the device itself.

HOW TO USE THE APPLIANCE

• The appliance can be used after charging the battery or by connecting to the mains
• power cable should be properly connected to the socket (5).
• The shaver starts working after switching the switch (3)
• In order to turn off the appliance, the switch (3) should be pressed again
• The appliance is equipped with an internal battery. Charging time is about 8 hours.
• In order to increase the battery life-span charging should be done in one uninterrupted cycle after full discharging
• Charge is indicated by a control light (4). The indicator light does not turn off when the battery is charged.
• After charging, the appliance should be disconnected from the mains and the power cord should be unplugged from the socket (5).

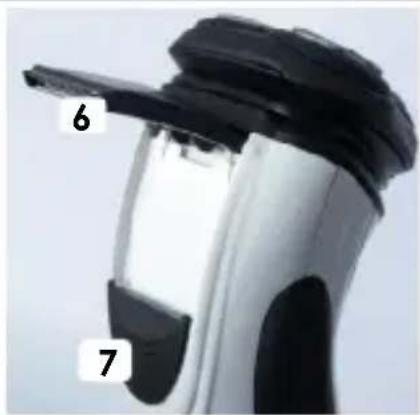

• The appliance is equipped with a trimmer (6) to cut beard, which is activated by the switch (7).

CLEANING AND PRESERVATION

• Before cleaning turn off the appliance and remove the power cable from the socket

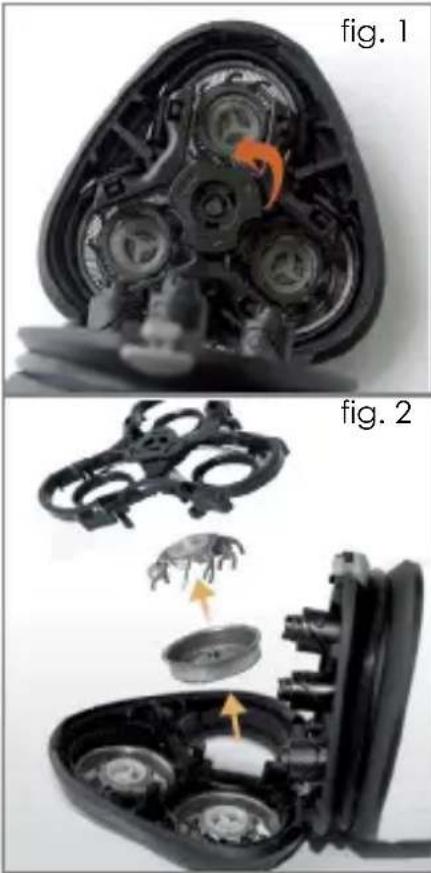

• After each shaving the blades chamber should be empty. In order to do it you must open the shaving head housing by pressing button (2) and remove the blades fastening by gently turning the knob (photo 1). In order to clean the appliance the attached brush should be used.
• Chamber blades can be washed under running water
• The whole appliance cannot be submersed in water and other liquids
• Do not use any cleansing agents which are strong and damage the surface
• Wipe the housing with a moistened cloth

In case of cleaning under the water the appliance must be entirely dry before next use.

BEZPEČNOSTNÍ DOPORUČENÍ

Close-up of a mechanical component with internal gears and a highlighted orange arrow (no text or symbols)

Exploded view of a mechanical device showing internal components and a crane-like object (no text or symbols visible)

OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

Close-up of a white and black handheld device with a black cap and labeled parts (6 and 7), no readable text or symbols beyond labels.

TECHNICKÉ ÚDAJE

Close-up of a white and black handheld device with a black cap, labeled parts 6 and 7 (no text or symbols on the device itself)

TECHNISCHE DATEN

Internal view of a mechanical component with internal gears and a highlighted orange arrow (no text or symbols)

Exploded view of a mechanical assembly showing internal components and a labeled section 'Bild 2' (no text or symbols on the diagram itself)

UMWELTSCHUTZ

Close-up of a hand gripping a white and black device with a black lid, labeled with parts 6 and 7 (no text or symbols on the device itself)

Internal view of a mechanical component with internal gears and a highlighted orange arrow (no text or symbols)

Exploded view of a mechanical device showing internal components and a crane component (no text or symbols)

Close-up of a mechanical component with internal gears and a highlighted orange arrow (no text or symbols)

Exploded view of a mechanical device showing internal components and a crane-like structure (no text or symbols visible)

Close-up of a hand holding a black plastic object, labeled with parts 6 and 7 (no text or symbols on the object itself)

Technické parametre

• výkon 3W
• nabíjanie s napätím 230V \~ 50Hz
• batéria: 2.4V, 2 x 1/2AA 600mAh Ni-MH
• doba nabíjania: 8 hodín

OBSLUHA ZARIADENIA

Close-up of a white and black handheld device with a black lid, labeled parts 6 and 7 (no text or symbols on the device itself)

MÜSZAKI ADATOK

Internal view of a mechanical component with internal gears and a highlighted orange arrow (no text or symbols)

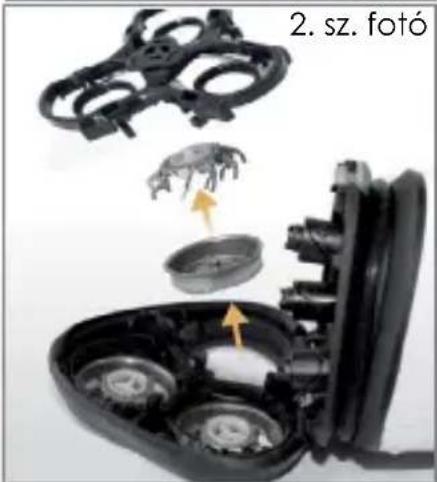

Exploded view of a mechanical device showing internal components and a labeled section 'sz. fotó' (no text or symbols on the diagram itself)

GARANCIA

ADVERTENCIA

Close-up of a white and black object with a black cap, labeled with numbers 6 and 7 (no text or symbols on the object itself)

DATOS TÉCNICOS

Close-up of a mechanical component with internal gears and a highlighted orange arrow (no text or symbols)

Exploded view of a mechanical device showing internal components and a crane-like structure (no text or symbols visible)
