YAGA GDS6 - Shaver Eldom - Free user manual and instructions

Product Type	Cloth Shaver (Fabric Shaver)
Brand	Eldom
Model	YAGA GDS6
Power Supply	100-240V ~ 50Hz, 3W
Battery Type	2 x Ni-MH 600mAh
Charging Time	8 hours
Operation Modes	Battery or mains powered
Adjustable Cutting Height	Yes, via spacer attachment and height adjuster
Shield	Removable shield for cleaning
Blade	Removable, sharp metal foil
Container Capacity	Not specified, clean when 80% full
Cleaning Method	Remove shield and blade, use brush; do not immerse in water
Safety Features	Unit only operates with shield properly fixed
Accessories Included	Spacer attachment, cleaning brush, power cord
Repairability	Repair only by authorized service center; use genuine parts
Environmental Protection	Recyclable materials; dispose at WEEE collection points
Warranty	Not specified
Dimensions	Approx. 15 cm length, 7 cm width, 5 cm height (estimated)
Weight	Approx. 200 g (estimated)

Frequently Asked Questions - YAGA GDS6 Eldom

How long does it take to fully charge the Eldom YAGA GDS6?

The charging time is approximately 8 hours. The indicator light stays on when the battery is fully charged; it does not turn off.

Can I use the shaver while it is charging?

Yes, the appliance can be used both on battery and while connected to the mains via the power cord.

How do I replace the battery?

Open the battery case on the back, remove the old battery, and install a new one (2 x Ni-MH 600mAh). Dispose of used batteries at designated collection points.

How do I clean the cloth shaver?

Unplug the unit and switch it off. Remove the shield by twisting counterclockwise, then remove the blade. Use the included little brush to clean the shield, blade, and drive mechanism. Empty the container. Do not immerse in water or use abrasive cleaners.

What fabrics can I use the shaver on?

The shaver is designed for clothes, curtains, blankets, and upholstered furniture. For delicate or long-hair fabrics, use the spacer attachment with adjustable height to avoid damage.

Why does my shaver not start?

The shaver will not operate if the shield is not properly fixed. Ensure the shield is securely attached. Also check that the ON/OFF switch is slid to the '1' position.

How do I adjust the cutting height?

Use the spacer attachment over the shield. The distance between the attachment and the shield can be adjusted (see Fig. 2 in the manual). This allows for different fabric thicknesses.

Can I use the shaver on clothes while they are being worn?

No, never use the shaver on clothes while they are on a person. This can cause injury. Always place clothing on a flat surface before shaving.

What should I avoid when using the shaver?

Avoid shaving over buttons, zips, seams, protruding parts, glued objects, and delicate areas. Test on a hidden area first.

What should I do if the power cord is damaged?

The power cord must be replaced by the manufacturer's authorized service center to avoid hazards. Do not use the appliance with a damaged cord.

USER MANUAL YAGA GDS6 Eldom

WSKAZÓWKI BEZPIECZEŃSTWA

PRZEZNACZENIE

Close-up of a white plastic showerhead showing internal structure and side profile (no text or symbols)

rys.2

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols visible)

CZYSZCZENIE I KONSERWACJA

Before first use familiarize with the entire content of this manual

1. the unit must be plugged into network with parameters of the current the same as the parameters on the casing
2. the appliance must be unplugged by pulling the plug instead of the supply cord
3. do not merge the unit in water when cleaning it
4. the unit is designed to operate at a household, do not use the unit for purposes other than those enumerated in the manual
5. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
6. use only genuine accessories
7. the unit may be repaired by a manufacturer's authorized service center only. All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous
8. regularly check whether the unit or part of it is damaged in any manner. Do not switch the unit if any damages are found.
9. in case the power cord is damaged it must be replaced by the manufacturer's authorized service center.

EN

INSTRUCTION MANUAL

CLOTH SHAVER GDS6

eldom

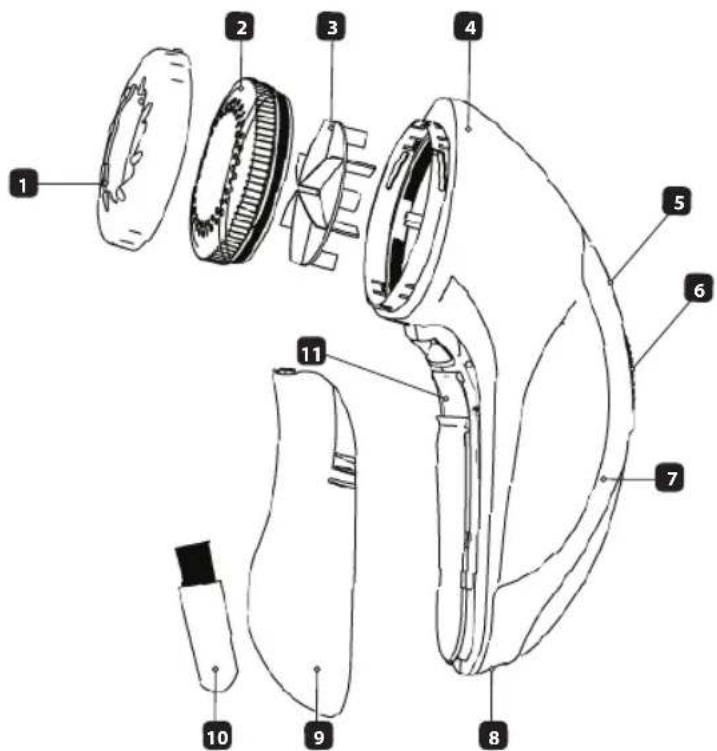

GENERAL DESCRIPTION

1. Height adjuster
2. Shield
3. Blade
4. Body
5. Lamp
6. ON/OFF switch
7. Handle
8. Supply socket
9. Container
10. Little brush
11. Battery cover

TECHNICAL DATA

• power: 3W
• voltage supply: 100-240V \~ 50Hz
• battery: 2 x Ni-MH 600mAh
• loading time: 8 hours

INTENDED USE

The GDS6 shaver is designed to refresh various types of clothing and fabrics. Removing so called flocs or fuzz from the material makes it look fresh again.

The device can be used not only on clothes, but also on curtains, blankets or upholstered furniture. The distance pad with adjustable cutting length allows you to safely remove flocs without worrying that the refreshed material will be damaged.

HOW TO USE THE APPLIANCE

• The appliance can be used after charging the battery or by connecting to the mains
• Power cable should be properly connected to the socket (8).
• The appliance is equipped with an internal battery. Charging time is about 8 hours.
• In order to increase the battery life-span charging should be done in one uninterrupted cycle after full discharging
• Charge is indicated by a control light (5). The indicator light does not turn off when the battery is charged.
• After charging, the appliance should be disconnected from the mains and the power cord should be unplugged from the socket (8).

BATTERY REPLACEMENT

1. Open the battery case.
2. Take out the used battery
3. Install new baterry by putting one side of the battery bebeath the battery baffle and then pressing down the other side. Used batteries should be thrown away the containers specially designed for this purpose

HANDLING

- before start-up fix a shield (2).

Do not switch on the shaver when the shield is loose.

Note. The appliance does not operate in case the shield is fixed in an improper manner.

• The shaver starts the operation after the switch (6) has been slid into the „1" position.
• move the shaver along clothes laying on a flat surface
• In order to switch a unit off slide the switch (6) into „0" positio

SPACER ATTACHMENT

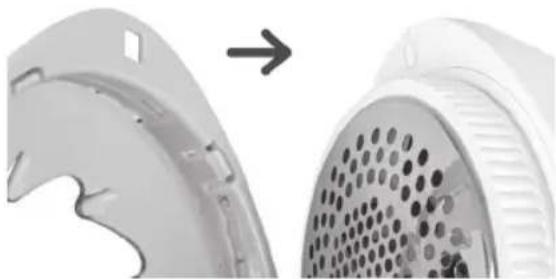

For delicate fabrics or long-hair fabrics, put the spacer attachment over the cover (2) – Fig. 1.

The distance between the attachment and the cover can be adjusted - Fig. 2.

GUIDELINES

1. Do not shave clothes in case clothes are at a body. It may cause wounds on a body.

2. When shaving clothes pay special attention to:

3. areas around buttons and zips

4. protruding parts
5. connections - sews
6. object glued to clothes

7. delicate parts

8. Before use try the unit on a hidden part of a cloth.

9. Move the unit acc. to a pattern on a cloth.
10. If required move the unit alongside - vertically and horizontally
11. In case of 'flat materials lay two layers of a cloth and shave them on an iron board.
12. Do not switch the unit on when it is unnecessary, it may result in reduced life of the shield and the blade.

Fig.1

Close-up of a white plastic showerhead with a circular perforated grille, showing a change from an open blade to a closed edge (no text or symbols visible)

Fig.2

Close-up of a transparent electronic device with a double-headed arrow pointing to a component (no visible text or symbols)

MAINTENANCE AND CLEANING

When the container is approx. 80% full clean it and internal blades as well. Before cleaning unplug the unit and switch it off.

• do not merge the unit in water
• to not use abrasive or other damaging cleaning agents
• clean the casing with a wet cloth
• remove the casing (2) twisting it counterclockwise
• remove the blade (3)
• using a little brush (10) clean the casing, blade and the drive mechanism
• empty the container (9)

Be careful then removing and cleaning the blade (3) since it is sharp Be gentle when cleaning the metallic foil of the casing (2). Do not press it.

ENVIRONMENT PROTECTION

• the unit is made of materials which may be reused or re-cycled
• it must be provided to a relevant point specializing in collecting and recycling of electric and electronic appliances

BEZPEČNOSTNÍ POKYNY

URČENÍ

Close-up of a white plastic door with a circular perforated grille and an arrow indicating transformation (no text or symbols)

obr.2

Close-up of a transparent mechanical component with two black arrows pointing to internal features (no text or symbols visible)

ÚDRŽBA A ČISTĚNÍ

Close-up of a white plastic showerhead with a circular perforated grille, showing a cutaway view (no text or symbols)

Abb.2

Close-up of a transparent plastic device with internal components and directional arrows (no text or symbols)

МЕРЫ БЕЗОПАСНОСТИ

НАЗНАЧЕНИЕ

Close-up of a white plastic door handle and its interior panel with circular holes, showing a change in size (no text or symbols visible)

рис.2

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols visible)

BEZPEČNOSTNÉ ÚDAJE

OBSLUHA ZARIADENIA

Close-up of a white plastic showerhead with a circular perforated grille, showing a curved blade and mounting bracket (no text or symbols visible)

obr.2

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols)

ČISTENIE A ÚDRŽBA

RENDELTETÉS

Close-up of a mechanical component before and after transformation, showing a curved edge and a perforated interior (no text or symbols)

1. rajz

Close-up of a transparent cylindrical object with directional arrows indicating movement or flow (no text or symbols visible)

USO DEL APARATO

Close-up of a white plastic showerhead showing internal structure and side profile (no text or symbols)

Fig.2

Close-up of a transparent electronic device with a double-headed arrow indicating left and right motion (no text or symbols visible)

MANTENIMIENTO Y LIMPIEZA
