Product Type	Meat Slicer
Model	Alicja ZFS1017
Brand	Zelmer
Adjustable Thickness	0 to 15 mm
Blade Type	Round, replaceable (2 blades included for ZFS1017)
Blade Lock	Yes, for safe removal and installation
Safety Features	Safety button, blade lock, non-slip base
Sliding Platform	Removable, with food pusher
Food Pusher	Included for safe operation
Continuous Use Limit	3 minutes, then 10 min rest; after 5 cycles, 30 min rest
Cleaning Method	Wipe with damp cloth; do not immerse in water or dishwasher
Blade Cleaning	Remove via blade lock, clean carefully (blade is sharp)
Power Cord	Detachable? Not specified; do not wind around appliance
Intended Use	Domestic, slicing soft foods (meat, cheese, bread, vegetables)
Not for	Frozen food, bones, or hard items
Warranty	2 years (EU) - covers repairs or replacement

Frequently Asked Questions - Alicja ZFS1017 Zelmer

How do I adjust the slice thickness on my Zelmer Alicja ZFS1017?

Turn the thickness adjustment knob (7) clockwise for thicker slices (up to 15 mm) and counter-clockwise for thinner slices. The thickness guide (9) helps you set the desired thickness.

Can I slice frozen food with this meat slicer?

No. The Alicja ZFS1017 is designed for soft foods only. Do not cut frozen foods, bones, or other hard items as this may damage the blade or motor.

How long can I use the slicer continuously?

You can use it for up to 3 minutes continuously. After that, it must rest for 10 minutes. After 5 such cycles, it needs a half-hour rest. This helps prevent motor damage.

How do I clean the blade safely?

First, unplug the slicer. Rotate the blade lock (10) clockwise to unlock, then remove the blade (8) carefully (it is very sharp). Clean the blade with a damp cloth, dry it, and reattach by aligning notches with the small gear (11) and turning the lock counter-clockwise.

Is the Zelmer Alicja ZFS1017 dishwasher safe?

No. Never immerse any part of the slicer in water or the dishwasher. Clean it by wiping with a damp cloth or paper towel. Dry all parts thoroughly before storage.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the appliance if the cord is damaged.

Can children use this slicer?

No. This appliance shall not be used by children. Keep it and its cord out of reach of children. Persons with reduced capabilities may use it only under supervision.

How do I replace the blade on the ZFS1017?

Ensure the appliance is unplugged. Rotate the blade lock (10) clockwise to unlock, remove the old blade. Insert the new blade (8) by aligning its notches with the holes in the small gear (11) inside the device. Then rotate the blade lock counter-clockwise to lock.

What foods can I slice with this model?

You can slice soft foods like cooked meat, cheese, bread, and vegetables (e.g., carrots or potatoes for chips). For wafer-thin meat slices, chill the meat in the freezer for 2-4 hours before slicing.

Why is there a safety button?

The safety button (6) must be pressed and held while pressing the On/Off button (5) to start the blade. This prevents accidental start-up, especially when cleaning or handling the blade.

USER MANUAL Alicja ZFS1017 Zelmer

White JOLA portable radio with a circular lens and control knob (no visible text or symbols on body)

White Alicia Alicja portable radio device with a circular lens and control knob (no visible text or symbols on body)

PL INSTRUKCJE UŻYTKOWANIA

Krajalnica

EN USER MANUAL

Meat slicer

DE BENUTZERHANDBUCH

White Zeimer portable device with a circular control knob and labeled dial (no text or symbols beyond branding)

DZIEKUJEMY ZA WYBÓR MARKI ZELMER. DOKŁADAMY STARAŃ, ABY PRODUKT DZIAŁAŁ W SPOSÓB ZADOWALAJĄCY I PRZYJEMNY.

OSTRZEŻENIE

PRZED UŻYCIEM PRODUKTU NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ UŻYTKOWANIA. PRZECHOWUJ JĄ W BEZPIECZNYM MIEJSCU DO WYKORZYSTANIA W PRZYSZŁOŚCI.

OPIS

Diagram of a computer monitor with a circular dial and an arrow indicating the blade (no text or symbols present)

Rys. 1

Technical line drawing of a mechanical device with no visible text or symbols

Rys. 2

Rys. 3

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Main Body
2. Base
3. Sliding Platform
4. Food pusher
5. On/Off Button
6. Safety Button
7. Thickness adjustment knob
8. Blade
9. Thickness Guide
10. Blade blokade
11. Small gear

SAFETY INSTRUCTIONS

Check that your mains voltage corresponds to that stated on the appliance.

From time to time check the cord for damages. Never used the appliance if cord or appliance shows any signs of damage.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

All repairs should be made by a competent qualified electrician.

Never use the appliance outside and always place it in a dry environment.

Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Mark sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Mark sure the appliance is set on a flat surface. Unplug the appliance when not in use.

Only use this slicer for cooking applications. Only cut articles such as cheese, meat, bread and preparations. Never cut frozen food with this slicer.

Never cut food only by using your hands, always use the slide and its food guide unless it is impossible because of the size of the article. Make sure never to touch the knife. This kind of appliance cannot function continuously; it is not a professional type of appliance. It is necessary to make temporary stops.

The blade of the appliance is extremely sharp, always be careful when cleaning the appliance.

It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.

Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

The device must not be used by children. Keep the device and power cord out of children's reach. Children shall not play with the appliance.

This device is designed for use at a maximum altitude up to 2000m above sea level.

IMPORTANT WARNINGS

Any other servicing should be performed by an authorized service representative.

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

B&B Trends S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

BEFORE USE

Clean all parts that come into contact with food before using the appliance before the first time (or after prolonged storage).

USE

IMPORTANT: After 3 minutes of continuous use it needs to rest for 10 minutes. After 5 cycles, it needs to rest for half an hour.

NOTE: Only use this appliance to cut soft foods. Do not use to cut frozen foods, bones or other solid food types.

Place the appliance on a flat and dry surface. The person using the appliance should operate the buttons with the left hand and the food pusher with the right hand.

Plug the appliance into the mains.

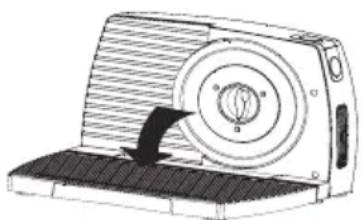

To unfold the slicer, pull the base (2) from the body (1) and place it on a dry and stable surface with good grip.

Diagram of a mechanical device with a circular component and a black arrow indicating rotation or movement (no text or symbols)

Diag. 1

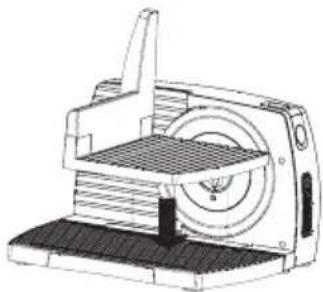

Insert the sliding platform (3) into the base (2).

Technical line drawing of a mechanical device with a base and top component (no text or symbols)

Diag. 2

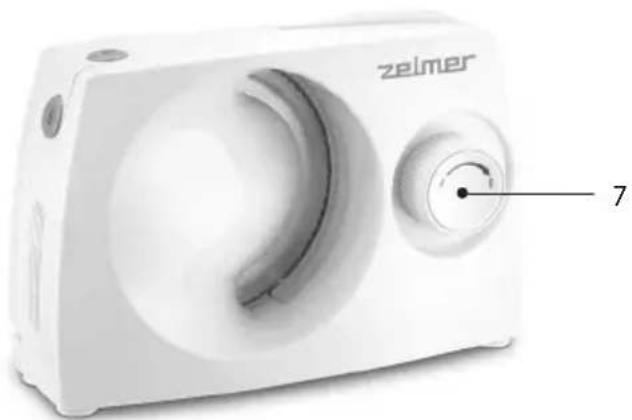

Select the required slice thickness from 0-15mm. Turn the thickness adjustment knob

(7) clockwise for thicker slices or counter-clockwise for thinner slices.

Place the food to be sliced on the sliding platform (3), and press it lightly against the thickness guide (9) using the food pusher (4).

Press and hold the safety button (6), and press the on/off button (5). The blade starts rotating.

Move the sliding platform back and forth to slice the food. Always keep your right hand's fingers to the right of the food pusher.

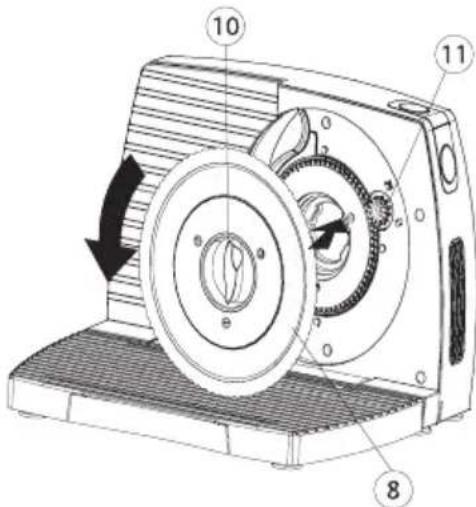

BLADE CLEANING OR BLADE REPLACEMENT in ZFS1017 Model

Note: Only the ZFS1017 model features 2 replaceable blades.

Keep extreme caution when removing or replacing the blade; it is very sharp!

Ensure that the slicer is TURNED OFF and DISCONNECTED from the power source. Rotate the blade lock (10) clockwise to unlock it. Remove the blade (8).

To reattach the blade (8), align the notches on the blade with the holes in the small gear (11) located inside the device, as shown in the diagram (3). Once the blade (8) is properly placed in the small gear (11), rotate the blade lock (10) anti-clockwise to lock it in the ready-to-use position.

Diag. 3

By following these instructions, you can safely remove the blade for cleaning or replacement.

TIPS

To slice meats wafer thin, chill thoroughly for 2-4 hours in freezer before slicing.

When slicing warm boneless roasts, remove from oven and let set 15 to 20 minutes before slicing. Cold cuts keep longer and retain flavor if sliced as needed.

Foods with an uneven texture-like fish and thin steaks- are often difficult to slice. Partially freeze before slicing.

The appliance can also slice e.g. carrots or potatoes in thin slices for chips.

MAINTENANCE AND CLEANING

Before cleaning, always unplug the appliance.

Wipe the inside and outside of the appliance with a paper towel or a soft cloth. It should not be washed in a dishwasher.

Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.

Do not immerse in water or any other liquid.

The blade can be taken off by turning the blade-locking knob like it is said on diagram 3.

Caution: the blade is very sharp. After having cleaned the blade, turn the knob anti-clockwise to lock the blade.

Dry all parts well before storage.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

WIR MÖCHTEN UNS BEI IHNEN BEDANKEN, DASS SIE SICH FÜR ZELMER ENTSCHIEDEN HABEN. WIR HOFFEN, DASS DAS PRODUKT ZU IHRER ZUFRIEDENHEIT FUNKTIONIERT.

ACHTUNG

Line drawing of a computer monitor with a circular dial and a black arrow pointing to the screen (no text or symbols)

Bild 1

Technical line drawing of a mechanical device with a base and top component (no text or symbols)

Bild 2

Bild 3

Diagram of a computer monitor with a circular dial and an arrow indicating the blade (no text or symbols present)

Obr.1

Technical line drawing of a mechanical device with a base and top component (no text or symbols)

Obr. 2

Diagram of a computer monitor with a circular dial and an arrow indicating the blade (no text or symbols present)

Obr. 1

Technical line drawing of a mechanical device with no visible text or symbols

Obr. 2

Nasad'te tlmič (4) na posuvnú platformu (3).

Diagram of a computer monitor with a scroll wheel and a black arrow indicating the scroll (no text or symbols present)

Ábra 1

Technical line drawing of a mechanical device with no visible text or symbols

Ábra 2

Ábra 3

Diagram of a computer monitor with a circular dial and a black arrow indicating the blade (no text or symbols present)

Technical line drawing of a mechanical device with a circular component and base plate (no text or symbols)

Fig. 2

ELIMINAREA PRODUSULUI

Diagram of a computer monitor with a circular button and a black arrow indicating the blade (no text or symbols present)

Рис. 1

Technical line drawing of a mechanical device with no visible text or symbols

Рис. 2

Рис. 2

СОВЕТЫ

Diagram of a computer monitor with a circular dial and a black arrow pointing to the screen (no text or symbols present)

Снимка 1

Technical line drawing of a mechanical device with a central component and base plate (no text or symbols)

Снимка 2

Снимка 2

Technical line drawing of a mechanical device with a circular component and a black arrow indicating a motion or force (no text or symbols)

Мал. 1

Technical line drawing of a mechanical device with no visible text or symbols

Мал. 2

B&B TRENDS, S.L. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, S.L. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, S.L. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, S.L., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
