TWO130C - Scale Eldom - Free user manual and instructions

Product Type	Digital Bathroom Scale
Brand	Eldom
Model	TWO130C
Weight Capacity	150 kg (330 lb)
Resolution	100 g (0.2 lb)
Accuracy	±1 kg
Power Source	1 x CR2032 battery (3V)
Measurement Functions	Weight, Body Fat %, Hydration %, Muscle %, Bone Mass, BMI, Calorie Unit
Display Type	Digital LCD
Personal Memory	Up to 10 users (P0-P9)
Auto-Off	Yes
Electrodes	Yes (for body composition)
Units	kg / lb selectable
User Settings	Gender, Age (10-80), Height (100-240 cm)
Safety Warnings	Not for pregnant women, pacemaker users, dialysis patients; not for medical use
Battery Replacement	Open bottom cover, replace with CR2032, observe polarity
Cleaning	Wipe with damp cloth; do not immerse in water
Storage	Keep in dark, dry place; do not press with other objects
Repairs	Only by authorized service center
Environmental	Recyclable; dispose at collection points

Frequently Asked Questions - TWO130C Eldom

How do I set up my personal profile on the TWO130C scale?

Press SET to turn on the scale. When "0.0 kg" appears, press ▲ or ▼ to select a personal code from P0 to P9. Press SET to confirm. Then select gender (Male or Female), enter age (10-80), and height (100-240 cm) using ▲ and ▼, confirming each with SET. The data is stored automatically.

Why does the scale show "ERR2" or "FATH"/"FATL"?

ERR2 indicates a measurement error, often from improper foot contact or movement. FATH appears if body fat percentage exceeds 50%, and FATL if it is below 5%. These are normal extremes; re-measure with clean, bare feet and stand still.

Can I use this scale if I have a pacemaker?

No. The scale uses a weak electrical current for body composition analysis. People with pacemakers or other implanted medical devices should not use the body fat measurement function. Weight-only mode is safe but not recommended without consulting a doctor.

How do I replace the battery?

Open the battery cover on the bottom of the scale. Carefully lever out the old battery. Insert a new CR2032 battery, ensuring the + side faces up. Press gently until the clip snaps. Close the cover securely.

How accurate is the body fat measurement?

The body fat percentage is calculated based on Bioelectrical Impedance Analysis (BIA). Accuracy depends on factors like hydration, exercise, and skin contact. It is intended for reference only and not for medical diagnosis. For most users, results are consistent over time.

What is the maximum weight capacity?

The scale can measure weights up to 150 kg (330 lb). Exceeding this limit will display an overload indication and could damage the scale.

Why does the scale show "8888" when turned on?

The "8888" display is a self-test sequence that occurs when the scale is powered on. It checks the display segments and then returns to 0.0 kg, indicating the scale is ready for use.

How do I switch between kg and lb?

Press SET to turn on the scale. After the self-test, when "0.0 kg" appears, press ▲ or ▼ to toggle between kg and lb. The setting is saved automatically.

How should I clean and maintain the scale?

Clean the surface with a soft, damp cloth. Do not use abrasive cleaners or immerse the scale in water. Store in a dark, dry place and avoid placing heavy objects on top during storage.

What does the "Lo" indication mean?

Lo indicates low battery power. Replace the CR2032 battery as soon as possible to ensure accurate measurements. The scale may still function temporarily but results may become unreliable.

USER MANUAL TWO130C Eldom

Digital kitchen scale with two digital dials showing 26.3 seconds, placed on a black and white surface (no text or symbols visible)

Eldom Sp. z o.o.

SKALA OCENY MIĘŚNI I KOŚCI

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

• For home use only
• Keep the scale in dark and dry place
• While storing do not press with other objects
• The precision of the scales measurements depends on the way of its maintenance
• Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

INSTRUCTION MANUAL

DIGITAL BATHROOM SCALE TWO130

EN

TECHNICAL DETAILS

• weight capacity 150kg (330lb)
• resolution 100g (0,2lb)
• accuracy of measurement: 1kg
• power: CR2032

This product is specially designed to test body fat/ hydration, help keep a close eye on the daily change of your body fat, hydration and weight, providing information for your reference. Base on the analysis of your height, weight and age etc., it tells your body fat status and gives you an idea of your body condition. Please read this instruction carefully before use.

During Measuring

1. Always remove your shoes and socks, wipe clean your feet before using.
2. It is advisable to take measurement at the same time of the day.
3. Measured result could be misleading after intensive exercise, excessive dieting or under extreme dehydration condition.
4. Always weigh/use the scale on a hard and flat surface. When you are measuring, please keep still.
5. The body fat/hydration measured data of the following people may have deviation:
6. Children under 10 or adult over 70 (can only use the device under normal weighing mode)
7. Body building athletes or other occupational athletes.
8. People with the following conditions should not use the device:
9. Pregnant women
10. Those on dialysis treatment
11. Those who use heart pacemaker or with other implanted medical device.

Safety Warning

The Fat% Hydration% Muscle% content evaluated by this device is only for reference (not for medical purpose). If your Fat% Hydration% content is over/below normal level, please consult your doctor for more advice.

BATTERY

Used batteries should be discarded in special collection bins.

Please remove the isolation sheet from the battery contact before use.

BATTERY REPLACEMENT:

1. Open the battery cover at the bottom of the device.
2. Carefully lever the battery and take it out.
3. Insert a new battery and press it gently until the retaining clip snaps in place.
   Please pay attention to the polarization.
4. Close the lid.

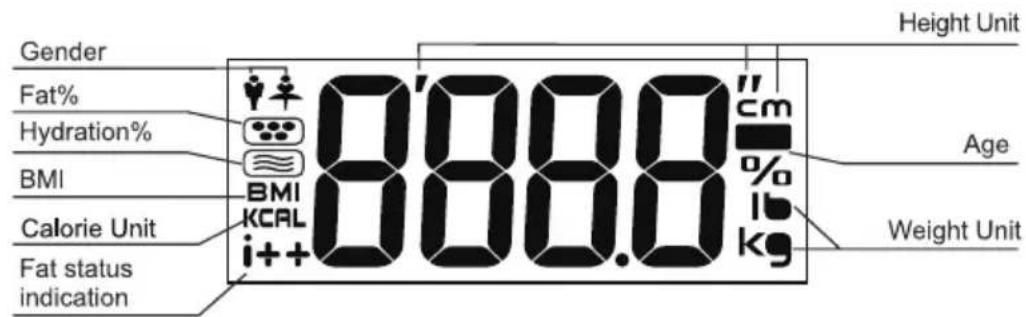

Key Illustration (Touch button)

SET Turn on the scale and prompt to next parameter. (Please refer to the Setting Personal Parameter overleaf)

Advance the value by one interval each press. Continuous pressing will speed up the advance of value.

Decrease the value by one interval each press. Continuous pressing will speed up the decrease of value.

TO SET WEIGHT UNIT

- press "SET" and it will get ready for use when screen shows

"0,0kg" after "8888" and you can press ▲ and ▼ to switch within different units (kg/lb)

FOR WEIGHT ONLY

• Press "SET"
• Step on the scale gently, position your feet evenly near the center and keep ypour body still until the scale stabilizes your weight.
• The scale will be auto off if no further using.

Press ▲ or ▼ key to select a number from P0 to P9 as your personal code.

Please press "SET" to confirm

Press ▲ or ▼ key to choose ▼ Male or ⚡ Female.

Please press "SET" to confirm

Press ▲ or ▼ key to reach your target age (10-80).

Please press "SET" to confirm.

Press ▲ or ▼ key to reach your target height (100-240 cm).

Please press "SET" to confirm.

Body fat and hydration ranges table.

Age	Female Male				Display
	Fat %	Hydration %	Fat %	Hydration %
<=30	4.0-20.5	66.0-54.7	4.0-15.5	66.0-58.1	Underfat
	20.6-25.0	54.6-51.6	15.6-20.0	58.0-55.0	Healthy
	25.1-30.5	51.5-47.8	20.1-24.5	54.9-51.9	Overfat
	30.6-80.0	47.7-13.8	24.6-80.0	51.8-13.8	Obese
>30	4.0-25.0	66.0-51.6	4.0-19.5	66.0-55.4	Underfat
	25.1-30.0	51.5-48.1	19.6-24.0	55.3-52.3	Healthy
	30.1-35.0	48.0-44.7	24.1-28.5	52.2-49.2	Overfat
	35.1-80.0	44.6-13.8	28.6-80.0	49.1-13.8	Obese

Step on the scale gently and keep your bare feet in touch with the electrodes. Stand still and erect to get your weight measured and your body fat, hydration, muscle and bone percentage will be displayed respectively on the screen within seconds. These results will be repeated for two times and the scale will be auto off no further using.

The personal data will be stored once you set. Just confirm your code when you use scale again and your other information will be showed so there is no need to program them again.

Body muscle and bone ranges table

Age	Female		Male
	Muscle %	Bone %	Muscle %	Bone %
16-50	>31	>8	>38	>10

BMI parameter

Low Normal		Overweight	Fat
<18.5	18.5~25	25~30	>30

Warning Indications

Low Battery Indication.

The battery power is running low, please replace with a new battery.

Over-load Indication

The weighing subject on the platform exceeds the maximum

capability of scale. Please step off to avoid damage.

Rate too low level of fat.

Too high a level of fat.

Message redo the measurements.

If body percentage is less than 5%, then screen will show "FATL". If more than 50% it will display "FATH" and "ERR2" indicates that the measuring makes an error.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

BEZPEČNOSTNÍ DOPORUČENÍ

STUPNICE HODNOCENÍ SVALŮ A KOSTÍ

Věk	Žena		Muž
	Svaly % Svaly Kosti %			Kosti %
16-50	>31	>8	>38	>10

PARAMETR BMI

SKALA OCENY MIĘŚNI I KOŚCI

vek	žena		muž
	Pohlavie %	Kosti % Kosti %Pohlavie %
16-50	>31	>8	>38	>10

PARAMETR BMI

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/CZ/
