XS-E213 - Pregnant JVC - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Bluetooth Version	5.3
Bluetooth Profiles	A2DP 1.2, AVRCP 1.4, HFP 1.6, HSP 1.2
Bluetooth Range	10 meters
Frequency Band	2402 - 2480 MHz
EIRP	6.33 dBm
Charging Input	5V / 1A (via USB-C)
Battery Type	Lithium-ion (3.7V, 1200mAh)
Charging Time	Approx. 2.5 hours
Playback Time	8 hours at 50% volume
Signal-to-Noise Ratio	> 70 dB
Frequency Response	70 Hz - 18 kHz
Rated Power	8 W (RMS)
IP Code	IPX6 (waterproof)
Dimensions (W x D x H)	75 x 74 x 111 mm
Weight	265 ± 10 g
Package Contents	Portable Bluetooth speaker, Charging cable, User manual
Charging Port	USB-C
True Wireless Stereo (TWS)	Yes (pair two speakers)
Hands-Free Function	Yes (answer/reject/hang up calls)
Key Features	Waterproof IPX6, Bluetooth 5.3, TWS, 8-hour battery
Cleaning Instructions	Use a soft cloth; no harsh abrasives or chemicals
Safety Precautions	Keep away from excessive heat; supervise children; avoid sharp objects; do not expose to water while charging
Warranty Note	Battery capacity decreases over time under normal use

Frequently Asked Questions - XS-E213 JVC

How do I pair the speaker with my phone?

Long press the power button to turn on the speaker. The LED will flash blue, indicating pairing mode. On your phone, enable Bluetooth and select "XS-E213B" or "XS-E213G". When connected, the LED becomes solid blue.

How do I charge the speaker?

Use a standard 5V / 1~2A charger or a PC via the USB-C port. The LED glows red during charging and turns off when fully charged. Charging takes approximately 2.5 hours.

How long does the battery last on a full charge?

At 50% volume, the battery lasts up to 8 hours.

Is the speaker waterproof?

Yes, it has an IPX6 rating, meaning it can withstand powerful water jets. However, do not expose it to water while charging, and ensure the cap is tightly closed.

How do I use True Wireless Stereo (TWS) with two speakers?

Turn on both speakers and ensure they are not connected to any device. Double press the power button on one speaker. The second speaker will connect automatically. Then pair your phone with the first speaker.

How do I disconnect my phone from the speaker?

Press the power button three times. The LED will flash blue, and the speaker will enter pairing mode, disconnecting the current device.

Can I answer calls with this speaker?

Yes, it has a hands-free function. Press the power button to answer a call, press twice to reject, and during a call, press the button again to hang up.

What does it mean when the LED flashes quickly?

Quick flashing indicates low battery. Please charge the speaker soon.

Can I use the speaker while it is charging?

It is not recommended to use the speaker while charging. Never expose it to water during charging to avoid damage.

How should I clean the speaker?

Use a soft, dry cloth. Do not use harsh abrasives or chemicals that could damage the surface.

USER MANUAL XS-E213 JVC

Black cylindrical outdoor speaker with textured body and attached strap (no visible text or symbols)

BLUETOOTH SPEAKER

XS-E213B / XS-E213G

INTRODUCTION

Thank you for buying our product. Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

IMPORTANT SAFETY PRECAUTIONS

When using your Speaker, basic safety precautions should always be followed, including the following:

• Children should be supervised to ensure that they do not play with the device.
• Keep this Speaker and its accessories away from excessive heat.
• No sharp object should be subjected to the speaker/speaker-drivers as it may damage the speakers.
• Only use a soft cloth, no harsh abrasives or chemicals to clean, as it may damage the surface finishing.
• Keep away from dripping or splashed fluids.
• Ensure the speaker is waterproof by removing all the connected cables and the cap is tightly closed before exposing the speaker to liquid.
• NEVER expose the speaker to water while charging, as doing so may result in damage to the speaker or the power source.
• NEVER operate this speaker with a damaged cable or after it has malfunctioned or has been damaged in any manner.
• NEVER leave the speaker unattended while charging. If the speaker becomes hot, smokes, or gives off an odor during charging, terminate charging immediately.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

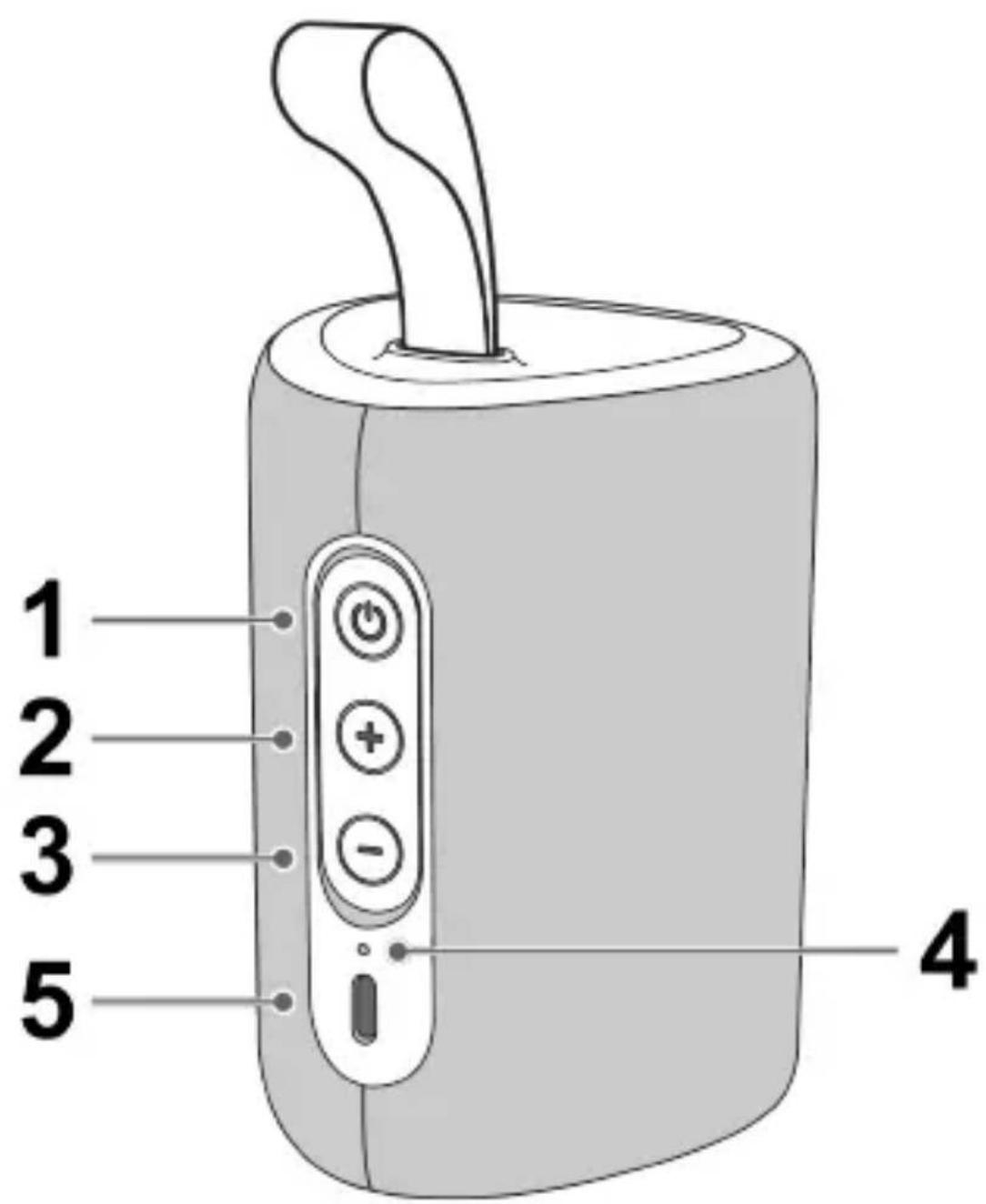

PRODUCT OVERVIEW AND CONTROL BUTTONS

1. button

Long press to turn on/off the speaker.

Press to start/pause playback in Bluetooth mode.

2. button

Press to increase the volume.

Long press to skip to the next track.

3. button

Press to decrease the volume.

Long press to skip to the previous track.

4. LED indicator

5. USB-C ^TM charging port

USB Type- C^TM and USB- C^TM are trademarks of USB Implementers Forum.

CHARGING

Before first-time use, fully charge the built-in battery. The charger is not included in the package, please charge the speaker via a standard 5 V / 1 \~ 2 A charger or via a PC. The LED indicator will glow red during charging. The LED indicator turns off when the speaker is fully charged.

NOTE: The LED indicator will flash quickly when the battery is low.

IMPORTANT: Please make a complete charge every three months to avoid shortening the battery lifespan.

BLUETOOTH

• Long press the button to turn on the speaker. The LED indicator will flash blue and hear a tone. The speaker is in pairing mode.
• Activate Bluetooth of mobile phone and search for device name "XS-E213B" / "XS-E213G" then connect it. If the pairing is successful, the LED indicator will be solid blue.

NOTE: The speaker will automatically shut down after 10 minutes in pairing mode if no devices are paired. When the volume reaches the maximum level, you will hear a "Beep" voice prompt.

Disconnecting the paired mobile phone

- Press the ⏻ button three times to disconnect the current device. The LED indicator will flash blue and the speaker will be in pairing mode.

HANDS-FREE FUNCTION

When phone or other smartphone is connected to your speaker, follow the steps below to take calls hands-free.

• Press the ⏻ button to pick up the call.
• Press the ⏻ button twice to reject the call.
• During a call, press the button to hang up the call.

TWS (TRUE WIRELESS STEREO)

The TWS technology enables you to use two speakers pairing via Bluetooth to create a wireless dual-channel system to deliver true stereo sound effect.

• Turn on both speakers. Make sure both speakers are without any Bluetooth connection.
• Double press the button on one of the speakers, the second speaker will connect automatically.
• The first speaker LED indicator flashes blue and the LED indicator of the second one keeps solid blue, which means both speakers are connected successfully.
• Pair your mobile phone with the first speaker, the LED indicator of both speakers will be solid blue.

Disconnect the TWS connection

Double press the button on one of the speakers to disconnect the TWS pairing.

SPECIFICATION

BT Version 5.3

BT profiles A2DP1.2 / AVRCP1.4

HFP1.6 / HSP1.2

BT connecting range 10 meters

BT Frequency 2402 - 2480 MHz

EIRP 6,33 dBm

DC input voltage/current 5V / 1A

Battery type Lithium-ion (3,7V / 1200mAh)

Battery Charging Time approx. 2,5 hours

Battery Playback Time 8 hours (50 % Volume)

Signal-to-noise ratio > 70 dB

Frequency response 70 Hz - 18 kHz

Rated Power 8 W (RMS)

IP code IPX6

Dimensions 75 x 74 x 111 mm

Weight 265 ± 10 g

Package Contents: Portable Bluetooth speaker, Charging cable, User manual

We reserve the right to change technical specifications.

WARRANTY

The capacity of the product battery decreases over time.

Decreasing of battery capacity occurs during normal use of the appliance and is considered usual wear and tear of the appliance.

Decreasing battery capacity is not a defect of the appliance.

Disposal of old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

Simple line drawing of a trash bin with crossed lines and a solid black bar below (no text or symbols)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type XS-E213B / XS-E213G is in compliance with

Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.JVCAUDIO.cz/doc

The Bluetooth ^® word mark and logo are registered trademark owned by Bluetooth SIG, Inc. and any use of such marks Shenzhen Trendwoo Tech. Co., Ltd., is under license. Other trademarks and trade names are those of their respective owners.

ÚVOD

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Symbol of a trash bin with no text or numbers present

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines and a solid black rectangle below (no text or symbols)

This product is manufactured and distributed exclusively by ETA a.s., serviced and warranted by its designated partner.

“JVC” is the trademark of JVCKENWOOD Corporation, used by such company under license.
