TH-W513BK - Loudspeaker JVC - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	JVC
Model	TH-W513BK
Color	Black
Dimensions (W x H x D)	200 x 100 x 100 mm
Weight	600 g
Power Supply	Built-in rechargeable Li-ion battery (5V USB charging)
Battery Life	Up to 8 hours
Output Power	5W RMS
Bluetooth Version	5.0
Connectivity	Bluetooth, 3.5mm Aux input, MicroSD card slot, USB charging port
Supported Audio Formats	MP3, WMA, WAV (via MicroSD)
Hands-Free Calling	Yes (built-in microphone)
FM Radio	Yes
Package Contents	Speaker, USB charging cable, Audio cable, User manual
Maintenance & Cleaning	Clean with a soft, dry cloth. Avoid moisture and cleaning agents.
Safety	Do not expose to water, heat, or attempt to disassemble. Keep away from children.
Spare Parts & Repairability	Not available as spare parts. Contact JVC support for service.

Frequently Asked Questions - TH-W513BK JVC

How do I pair the JVC TH-W513BK with my phone via Bluetooth?

Turn on the speaker by pressing the power button. Press the Bluetooth button to enter pairing mode (LED flashes). On your phone, enable Bluetooth and select 'JVC TH-W513BK' from the list. Once connected, the LED will stay solid.

How long does it take to charge the speaker?

Charging time is approximately 3-4 hours using a standard 5V USB charger. Use the included USB cable.

Can I use the speaker while charging?

Yes, you can use the speaker while it is charging. However, it is recommended to fully charge before first use for optimal battery life.

How do I reset the speaker?

To reset, press and hold the power button for about 10 seconds until the LED turns off and on again. Alternatively, you can reset by pressing the Bluetooth and volume up buttons simultaneously for 5 seconds.

What does the LED indicator mean?

Solid blue: connected via Bluetooth. Flashing blue: pairing mode. Red: charging (solid), low battery (flashing). See manual for full indicator guide.

Can I play music from a MicroSD card?

Yes, insert a MicroSD card (up to 32GB, FAT32 format) into the slot. The speaker will automatically switch to MicroSD mode and play MP3/WMA/WAV files.

How do I use the FM radio?

Press the mode button until FM radio is selected. Then press and hold the play/pause button to auto-scan and save available stations. Use the volume up/down to adjust frequency manually.

Why is there no sound from the speaker?

Check that the speaker is powered on and volume is turned up. Ensure the audio source (Bluetooth, Aux, etc.) is correctly connected. If using Bluetooth, verify the device is paired. Try resetting the speaker.

Is the speaker waterproof?

No, the JVC TH-W513BK is not waterproof. It is designed for indoor or dry outdoor use. Do not expose to rain, splashes, or submersion in water.

What is the warranty period?

Typically, JVC provides a 1-year limited warranty from the date of purchase. Keep your receipt for warranty service. For exact terms, contact JVC support.

USER MANUAL TH-W513BK JVC

Black cylindrical electronic device with a digital display showing 'JVD' and '100 MHz' (no visible text or symbols on body)

Contents

Safety Warnings....4

Unpacking......6

Product Overview ....7

Main Unit....7

Remote Control 8

Preparation....8

Remove the Plastic Strip from the Remote Control....8

Battery Replacement for the Remote Control....9

Remote Control Operation Range.... 10

Speakers Placement....10

Wall Mounting....11

Connections....12

Connecting to the TV 12

Connecting to an External Audio Device ....13

Connecting to the Mains Supply 14

Basic Operating....14

Standby / ON 14

Setting Time in Standby mode....15

Automatic Power Off Function....15

Selecting Modes....15

Adjust the Speaker Level Settings and Effects 15

AUX / LINE IN / OPTICAL / COAXIAL Operation....16

Bluetooth® Operation 16

Maintenance....17

Hints and Tips....17

Product Fiche and Specifications....18

Others Information and Licences....19

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor, domestic use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.
• Attention should be drawn to the use of apparatus in moderate climates.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. Do not operate the unit with wet hands, near water or other liquid.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5 cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Use only power supplies listed in the user instructions.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.
• Do not ingest the battery, Chemical Burn Hazard.
• The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used battery away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Attention should be drawn to the environmental aspects of battery disposal.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.
• this equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
  is equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Main Unit Remote Control

(battery included)

Line drawing of a rectangular electronic device with a coiled cable and connector (no text or symbols)

Adapter for Main Unit

Mains Cable 3.5mm to 3.5mm

Stereo Audio Cable

Coaxial Cable

Wall Mount x 2 Instruction Manual

• To get the most from this product, you may need to buy an Optical cable.
- If you require additional assistance, please visit www.kotsovolos.gr or call our Support Centre on 210 289 9999.

Main Unit

Front View

1. EQ Button

Select a preset sound effect.

2. SOURCE Button

Select the Input source.

3. Button

Switch the unit between ON and STANDBY mode.

4. /PAIR Button

• Play / pause / resume playback in Bluetooth® mode.
• Press and hold to activate the pairing function in Bluetooth® mode or to disconnect the existing paired Bluetooth® device in Bluetooth® mode.

5. VOL+/VOL- Button

Increase/decrease the volume level.

6. Display

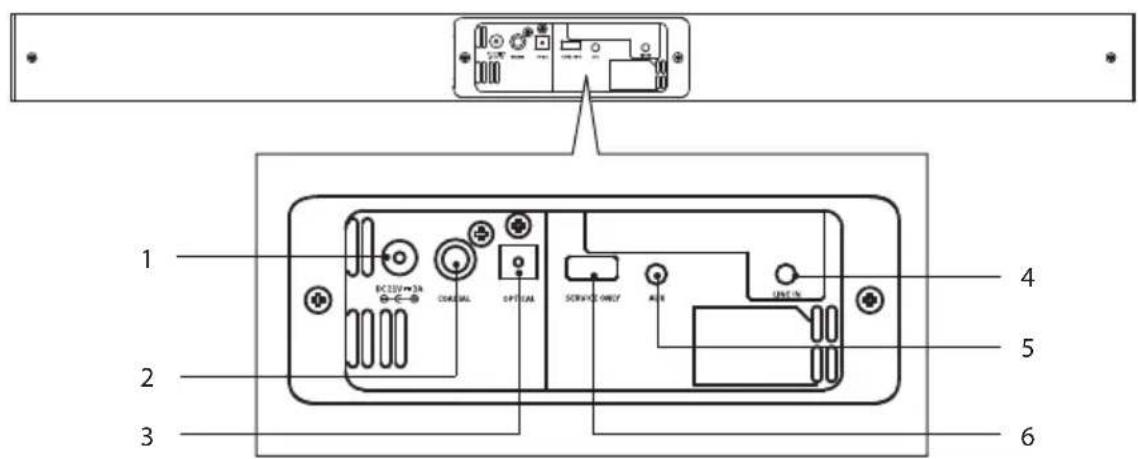

Rear View and Sockets

1. DC 21V 3A Socket

2. COAXIAL Socket

3. OPTICAL Socket

4. LINE IN Socket

5. AUX Socket

6. SERVICE ONLY Socket

The USB socket is for service only. It is not designed to charge smartphones, tablets or similar devices.

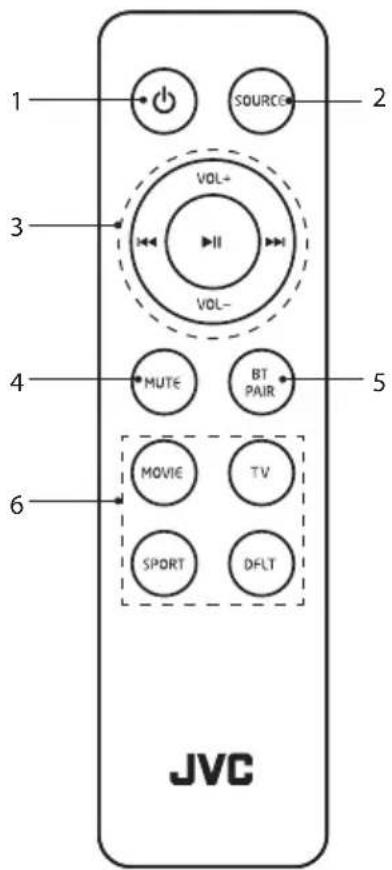

Remote Control

1. Button

Switch the unit between ON and STANDBY mode.

2. SOURCE Button

Select the Input source.

3. VOL + / - Button

Adjust the volume.

/ Button!

Skip backwards to the beginning of the track or to the previous track or skip forwards to the next track in Bluetooth® mode.

Button

Play / pause / resume playback in Bluetooth® mode.

4. MUTE Button

Mute the unit or resume the sound.

5. BT PAIR Button

Activate the pairing function in Bluetooth® mode or disconnect the existing paired Bluetooth® device.

6. EQ Buttons (MOVIE / TV / SPORT / DFLT)

Select the preset sound effect.

Preparation

Remove the Plastic Strip from the Remote Control

Loosen the screw with a screwdriver (not included), and slide the back cover to open the battery compartment of the remote control. Remove the plastic strip from the battery if the battery is being used for the first time.

Battery Replacement for the Remote Control

The remote control requires a CR2032, 3V Lithium battery.

1. Loosen the screw with a screwdriver (not included) and slide the back cover to open the battery compartment of the remote control.
2. Remove the old battery.
3. Replace with a new battery.
4. Close the battery compartment cover. Tighten the screw with a screwdriver (not included).

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Install the battery correctly in the battery compartment. Normally the battery's positive polarity (+) will face up.
  • Only use the battery type indicated in this manual.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery is secure in the remote control. Seek medical advice if you believe a battery cell has been swallowed.

Handling the Remote Control

• Take care of your fingernails when you slide and pull the battery release tab.
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
- Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and / or property damage, and / or fire.
- When the battery is exhausted, the remote control will not function.

GB

Remote Control Operation Range

• The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 6 metres away and within a maximum of a 60^irc arc.
• Please note that the operating distance may vary depending on the brightness of the room.

Soundbar Placement

Isometric line drawing of a sound barrier setup with a TV and two furniture blocks on a tiled floor (no text or symbols)

Soundbar

Soundbar carries most of the dialog as well as music and effects.

• If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen.
• If your TV is attached to a wall, you can mount the soundbar on the wall directly below the TV screen.

Wall Mounting

GB

• Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer's responsibility to verify that the wall will safely support the total load of the Soundbar and wall brackets.
  • Additional tools (not included) are required for the installation.
  • Do not overtighten screws.

• Keep this instruction manual for future reference.
  • Use an electronic stud finder to check the wall type before drilling and mounting.

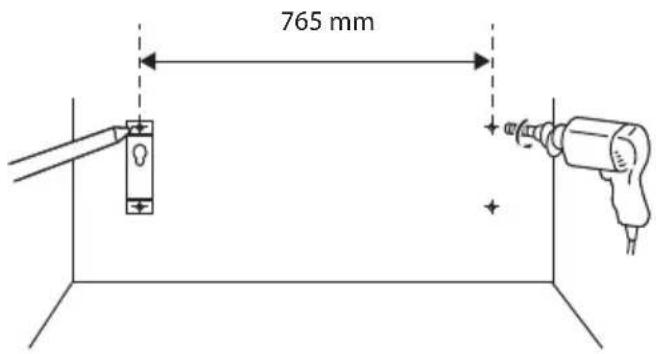

• Drill 4 parallel holes ( 3-8 mm each according to wall type) in the wall. The distance between the holes should be 765 mm.

1. Firmly fix 1 dowel into each hole in the wall if necessary.

Dowel

Solid wall (i.e., Solid brick, Solid concrete, Solid wood, Solid wooden battens)

Drywall, Plaster wall, Lath wall, etc.

1. Tighten the wall mount brackets on the wall with screws and screwdriver (not included). Make sure that they are securely installed.

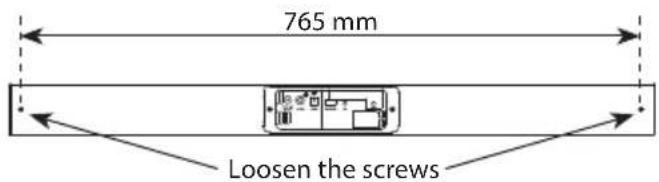

1. Loosen the screws at the back of the unit for 2 mm. Lift the unit onto the wall mount brackets and slot into place.

Technical line drawing of a mechanical component with alignment arrows and dashed lines indicating measurement (no text or symbols)

2 mm

Ensure the unit is disconnected from the mains socket before connecting it to other devices.

Connecting to the TV

Method 1: Optical / Coaxial Connection

Use an optical cable (not included) / coaxial cable (included) to connect the soundbar's OPTICAL / COAXIAL socket to the OPTICAL OUT / COAXIAL OUT socket of the external device. The simplest option is to connect your soundbar directly to your TV. If you connect the soundbar to another external device (e.g. Blu-Ray player), you will hear the sound from that device through the soundbar.

Press ⏻ on the unit or remote control and then press SOURCE repeatedly to select Optical or Coaxial mode.

• If there is no sound output, the display will show "PLEASE CHANGE YOUR SOURCE DEVICE TO PCM MODE UNDER AUDIO OUTPUT SETTING". Ensure the audio setting of the input source (e.g. TV, games console, DVD player, etc) is set to PCM (Refer to the user manual of the input source device for its audio setting details) with optical / coaxial output.
• Before connecting the optical cable, remove the protective cap of the OPTICAL socket.

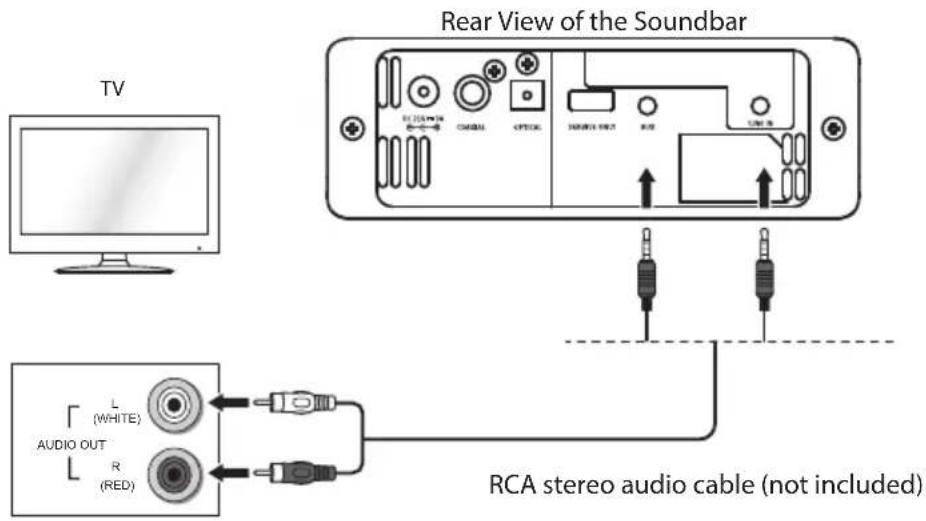

Method 2: AUX Connection

This is a basic connection for connecting your TV to your soundbar.

Connect a RCA to 3.5mm stereo audio cable (not included) to AUX / LINE IN socket on your soundbar and the AUDIO OUT L / R (white / red) sockets on your TV.

Press ⏻ on the unit or remote control and then press SOURCE repeatedly to select AUX / LINE IN mode.

• Some TVs will have more than one AUDIO L / R sockets, ensure you use the sockets marked OUT. If you don't have an AUDIO OUT socket, this connection won't allow sound to your soundbar.
• Ensure to match the colours on the cable plugs to the colours on the output sockets.

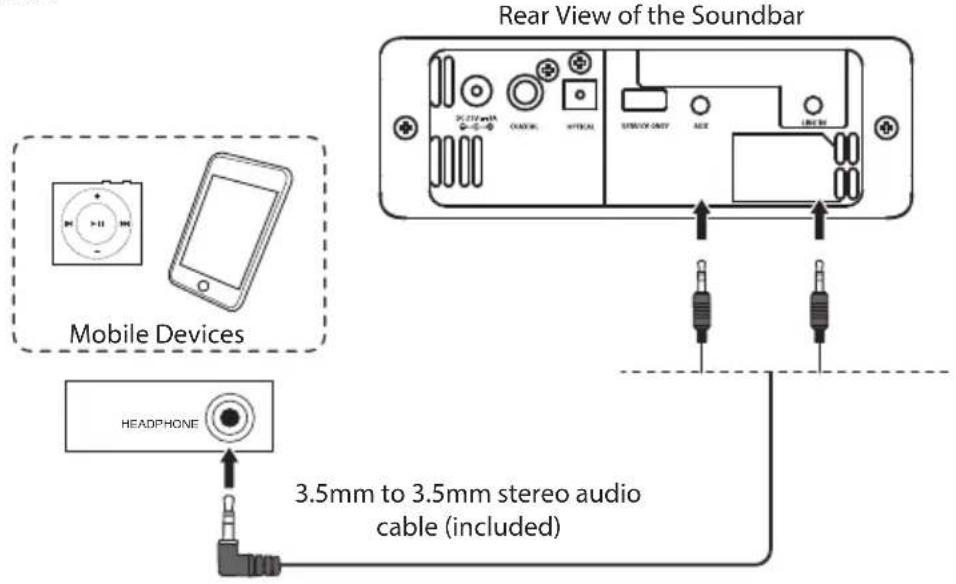

Connecting to an External Audio Device

Use a 3.5mm to 3.5mm stereo audio cable (included) to connect the soundbar's AUX / LINE IN socket to the headphone socket of the external devices.

Press ⏻ on the unit or remote control and then press SOURCE repeatedly to select AUX / LINE IN mode.

Connecting to the Mains Supply

The soundbar is designed to operate with the supplied mains adapter and mains cables.

• The mains adapter and mains cable are designed for this JVC soundbar only. DO NOT use the mains adapter and mains cable for other purposes. Connecting the unit to any other power source may damage the unit.
• Ensure all audio connections of the unit are connected before connecting to the mains power socket.
  • Make sure the mains plug is firmly inserted into the mains socket.
  • To switch the unit off completely, remove the mains plug from the mains socket.
• Please turn the unit off completely to save energy when not in use.

Soundbar

Unwind the mains adapter cable to its full length. Connect the mains cable to the mains adapter, and then connect the other end of the mains adapter to the DC 21V-3A ⊙-⊕-④ socket at the rear of the soundbar. Connect the mains plug to the mains socket.

This instruction manual explains the basic instructions for operating this unit. Unless otherwise stated, all operations described are based on remote control use.

Basic Operating

Standby / ON

When you first connect the unit to the mains socket, the unit will be in STANDBY mode.

• Press the ⏻ Button on the unit or remote control to switch the main unit ON.
• Press the Button on the unit or remote control again to switch the main unit back to STANDBY mode.
• Disconnect the mains plug from the mains socket if you want to switch the unit off completely.

- If a TV or an external device is connected to AUX / LINE IN socket, the main unit will switch on automatically when the TV or the external device is switched on. BUT in the following case, the unit will not switch on automatically in AUX / LINE IN mode: - after automatic power off function is activated. For details, please refer to the section "Automatic Power Off Function" below.

Setting Time in Standby mode

In STANDBY mode, the display will show "--:--", and then "PRESS AND HOLD PAIR BUTTON". Press and hold▶II / PAIR on the unit or▶II on the remote control to set the time.

1. Press VOL+/VOL- Button on the unit or remote control to set the hours, then press▶II / PAIR on the unit or ▶in the remote control to confirm.
2. Press VOL+/VOL- Button on the unit or remote control to set the minutes, then ▶II / PAIR on the unit or ▶on the remote control to confirm.
3. The time is now set. When you switch the unit to STANDBY mode, the unit will show STANDBY and then the time clock.

Automatic Power Off Function

The unit automatically turns to STANDBY mode after 15 minutes if the TV or the external unit is disconnected or switched off in OPTICAL or COAXIAL mode or the volume is too close to mute in AUX, LINE IN or BT mode.

• To switch the unit off completely, remove the mains plug from the mains socket.
- Please turn the unit off completely to save energy when not in use.

Selecting Modes

Press SOURCE repeatedly on the main unit or remote control to switch between BT, Optical, Coaxial, AUX and LINE IN mode.

Adjust the Speaker Level Settings and Effects

Adjusting Volume

• Press VOL + / - on the unit or remote control to adjust the volume.
• If you wish to turn the sound off, press MUTE. The display will show "MUTE". Press MUTE again, or press VOL + / - to resume normal listening.

Press MOVIE / SPORT / TV / DFLT button on the remote control to select the preset equalisers.

• While the unit is in COAXIAL or OPITCAL mode, it will automatically switch into MOVIE EQ effect.
• While the unit is in BT, AUX or LINE IN mode, it will automatically switch into DFLT EQ effect.

There are AUX / LINE IN / OPTICAL / COAXIAL socket located at the rear of the unit. Audio sound signals from other sources can be connected to the unit through these sockets.

1. Before connecting to the mains socket, ensure all the connections are completed.
2. While in the ON mode, press SOURCE repeatedly to select AUX / LINE IN / OPTICAL / COAXIAL mode.
3. Operate your audio device directly for playback features.

While using COAXIAL / OPTICAL mode, ensure the audio setting of the input source (e.g. TV, games console, DVD player, etc.) is set to PCM (Refer to the user manual of the input source device for its audio setting details) with optical / coaxial output.

Bluetooth® Operation

The first time you connect your Bluetooth ^® device to this soundbar, you need to pair the unit with a Bluetooth ^® device to listen to music:

1. During ON mode, press SOURCE on the unit or remote control repeatedly to select BT mode. The screen will show BT READY.
2. Activate your Bluetooth ^® device and select the search mode. "TH-W513BK" will appear on your Bluetooth ^® device list.

- If you cannot find the soundbar, press and hold ▶II / PAIR on the unit or BT PAIR on the remote control. The system has entered pairing mode. The unit will show PAIR and prompt "Pairing".

1. Select "TH-W513BK" and enter "0000" for the password if necessary. The unit will voice "Paired" and the screen will show PAIRED.

2. To disconnect the Bluetooth ^® function, you can:

3. Switch to another function on the unit;

4. Disable the function from your Bluetooth device. The Bluetooth device will be disconnected from the soundbar after the "Disconnected" voice prompt.
5. Press and hold ▶II / PAIR on the unit or BT PAIR on the remote control. The Bluetooth® device will be disconnected from the soundbar after the "Pairing" voice prompt.

If your Bluetooth ^® device supports A2DP, play music via your device.

If your Bluetooth ^® device supports AVRCP, use the supplied remote control to control play.

• To pause / resume playback, press ▶II
• To skip to a track, press ◀◀ ▶▶

• The operational range between the unit and the device is approximately 6 metres.
- Before connecting a Bluetooth device to the unit, ensure you know the device's capabilities.
- Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between the device and the unit can reduce operational range.
- Keep this player away from other electronic devices that may cause interference.
- If no other Bluetooth devices pair with this unit within 2 minutes, the unit will recover to its previous connection.
• The player will also be disconnected when your device is moved beyond the operational range.

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the units, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance If you require additional assistance, please visit www.kotsovolos.gr or call our Support Centre on 210 289 9999.

General

Problem Solution
No power. • Ensure the mains plug is connected.• Make sure that you select the ON mode.
The remote control is not function.	• Use the remote control near the unit.• Point the remote control at the remote sensor on the unit.• Replace the battery in the remote control with a new one.• Remove any obstacles between the remote control and the unit.
Loud hum or noise is heard.	• The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with alcohol.
The unit does not respond when pressing any buttons.	• The unit may freeze up during use. Switch the unit off and then on again at the mains socket to reset the unit.

Bluetooth®

Problem Solution
I cannot find “TH-W513BK” on my Bluetooth® device.		· Ensure the Bluetooth® function is activated on your Bluetooth® device.· Ensure you have paired your unit with the Bluetooth® device.
Brand JVC
Model TH-W513BK
Power Adapter (Use only power adapter listed below)
Power Adapter Manufacturer Zhong Shan City Rich sound Electronic Industrial Ltd.
Power Adapter Model RAD2103
Input AC 220 - 240 V~ 50/60 Hz, 1,8A
Output DC 21 V 3,0 A		--- ⊖-⊕
Main Unit
Power Supply DC 21 V 3,0 A		--- ⊖-⊕
USB 5 V 500 mA (for service use only)		--- Do NOT use for other purpose
Ecodesign Information
Information on Power Consumption	Power Consumption of Standby Mode	<1,0 W
	Network Standby Power Consumption	2 W (max.)
Time interval for power management function switches the unit automatically into standby		Switch to standby mode within 15 minutes after intended use
Power consumption in network standby if all wireless network ports are activated		3,0 W
How to activate wireless network port:Connect the unit with powerSwitch to wireless mode (e.g. Bluetooth, wifi, etc)How to deactivate wireless network port:Press the Standby button
Speaker Output Power 50 W rms x 2
Net Weight 2,2 kg
Dimension 800 mm (w) x 62 mm (h) x 93 mm		(d)

Features and specifications are subject to change without prior notice.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Notes for Battery Disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by DSG Retail Limited is under license. Other trademarks and trade names are those of their respective owners and all rights are acknowledged.

All trademarks are the property of their respective owners and all rights are acknowledged.

Dear Customer,

This apparatus is in conformance with the valid European directives compatibility and electrical safety.

European representative of the manufacturer is:

DSG Retail Ltd. (co. no. 504877)

1 Portal Way, London, W3 6RS, UK

For Help and Support Call

210 289 9999

www.kotsovolos.gr

Line drawing of a rectangular electronic device with a coiled cable and connector (no text or symbols)

GK

Προετοιμασία

GK

Line drawing of a hand holding a small object with a pointer above (no text or symbols)

Technical line drawing of a mechanical component with alignment arrows and dashed lines indicating measurement (no text or symbols)

2 mm

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
