Product Type	Bookshelf Speaker
Brand	JVC
Model	CS-V6948
Speaker Configuration	2-way
Power Output	50 W RMS
Frequency Response	40 Hz – 20 kHz
Impedance	8 ohms
Dimensions (W x H x D)	200 x 300 x 250 mm
Weight	3.5 kg
Power Supply	AC 100-240 V, 50/60 Hz
Connectivity	Wired input (RCA), Speaker terminals
Functions	On/Off switch, Volume control, Bass/Treble adjustment
Care and Cleaning	Wipe with dry cloth; avoid liquids
Safety	Do not expose to moisture; keep away from heat sources
Spare Parts and Repairability	Contact JVC support or authorized service center
General Information	Certified by CE, RoHS

Frequently Asked Questions - CS-V6948 JVC

How do I connect the speaker to an amplifier?

Use standard speaker cables with banana plugs or bare wire to the speaker terminals on the back.

What is the recommended placement for best sound?

Place speakers at ear level, away from walls, and at equal distance from the listening position for optimal stereo imaging.

Can I use this speaker with a subwoofer?

This is a passive bookshelf speaker; you can connect it to an amplifier with a subwoofer output and add a powered subwoofer.

What is the power handling capacity?

The speaker handles up to 50 W RMS (100 W peak). Avoid overdriving to prevent damage.

How to clean the speaker?

Use a soft, dry cloth to wipe the cabinet. Do not use chemical cleaners or water.

Are there any safety precautions?

Do not expose to rain or moisture. Keep away from heat sources. Ensure proper ventilation.

What is the impedance of this speaker?

It has an impedance of 8 ohms, compatible with most home amplifiers.

Does it come with a warranty?

Warranty details are provided in the user manual. Typically, JVC offers a 1-year limited warranty.

How to troubleshoot no sound?

Check cable connections, amplifier settings, and ensure the speaker is properly connected to the amp. Test with another source.

Can I bi-wire this speaker?

This model has a single set of terminals; bi-wiring is not supported. Use standard single-wire connection.

USER MANUAL CS-V6948 JVC

CS-VS608

6-1/2" 2-Way Component Speakers

300W Peak

60W RMS

CS-V628

6-1/2" 2-Way Coaxial Speakers

250W Peak

40W RMS

CS-V618

6-1/2" Dual Cone Speakers

230W Peak

30W RMS

CS-V6948

6" x 9" 4-Way Coaxial Speakers

400W Peak

60W RMS

CS-V528

5-1/4" 2-Way Coaxial Speakers

220W Peak

27W RMS

CS-V518

5-1/4" Dual Cone Speakers

200W Peak

25W RMS

CS-V6938

6" x 9" 3-Way Coaxial Speakers

400W Peak

60W RMS

CS-V428

4" 2-Way Coaxial Speakers

200W Peak

20W RMS

CS-V418

4" Dual Cone Speakers

180W Peak

20W RMS

Sound Dynamics

Design

Various

Sizes

Hybrid

Surround

Carbon

Mica Cone

CS-V6837

6" x 8" 3-Way Coaxial Speakers

250W Peak

30W RMS

CS-V4627

4" x 6" 2-Way Coaxial Speakers

140W Peak

20W RMS

Key Benefits

The woofer's lighter and more flexible Carbon Mica cone and Hybrid Surround with improved shape allow smoother movements for superior bass delivery. As for the tweeter, the improved PEI diaphragm and the ornament design provide better sound quality for the vocal frequency range as well as enhanced spreading of sound. The aggressive-design grille with wider openings offers improved mid-/low-range sound delivery.

drvn Series Speakers

\*Carbon Mica Cone (Strong Bass)

The speaker cone was successfully made lighter and more flexible than previous models, enabling it to be more responsive to the low frequency range. Produces quality sound even with the volume cranked up.

\*Hybrid Surround (Strong Bass)

Redesigned with a shallower edge structure compared to conventional surrounds, providing smoother oscillation at low frequency ranges than before.

\*PEI (Poly-Ether Imide) Tweeter Diaphragm (Vocal Presence)

Structure of tweeter diaphragm was made shallower compared to conventional structure, thereby improving response for middle frequency range reproduction.

Improved Sound Frequency Response

drvn Series Speakers

\* DYNAMICS Design Grille

The grille was redesigned to offer a sharper and more aggressive look. However the benefits are not only cosmetic, as this new design offers better acoustic structuring with wider grille ports that minimize sound loss.

CS-VS608

Separate Speaker for More Powerful Sound

Product assembly of JVC driver motors showing speaker, decal, and audio components (no text or symbols visible)

3-Way Mount Separate Tweeter

The PEI diaphragm tweeter can be mounted in three-ways – surface, angled, or flush – using the included 3-way adapter and installation parts to best fit your listening position.

Box-Type Network

The in-line box-type crossover network with LC circuit of 5 kHz, 12 dB/oct crossover creates natural transition between the woofer and the separate tweeter, with extending high notes.

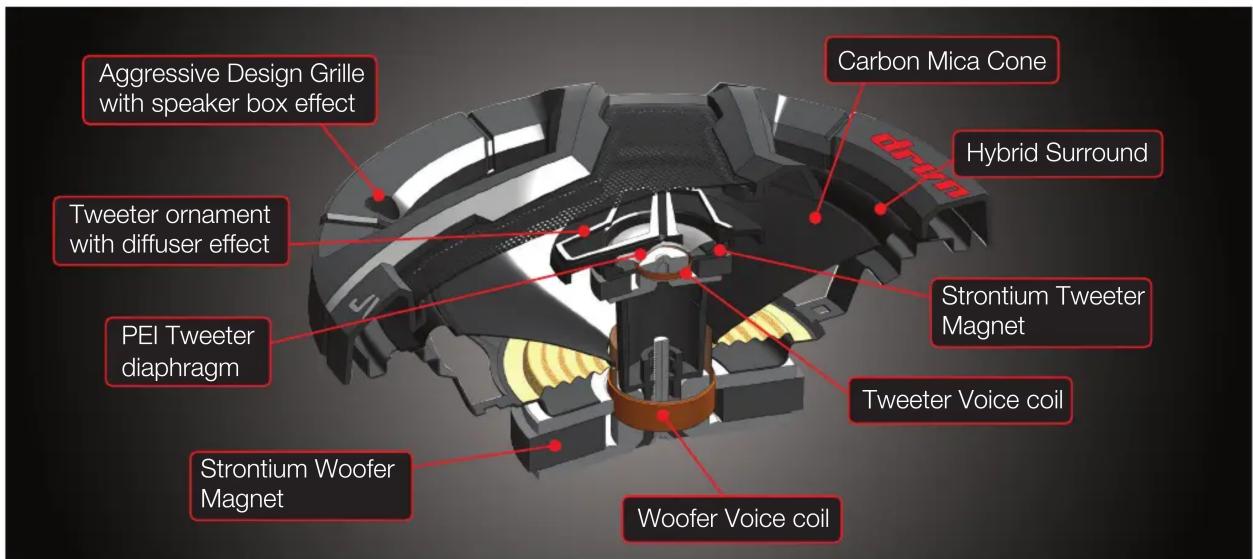

Cutaway View

* Note: CS-V4627/CS-V6837 differ from these specifications.

drvn Series Speakers

Key Specifications

	CS-VS608	CS-V6948	CS-V6938	CS-V628	CS-V528	CS-V428	CS-V618	CS-V518	CS-V418	CS-V6837	CS-V4627
Woofer
Type	2-Way Component	4-Way Coaxial	3-Way Coaxial	2-Way Coaxial	2-Way Coaxial	2-Way Coaxial	Dual Cone	Dual Cone	Dual Cone	3-Way Coaxial	2-Way Coaxial
Size 6	1/2" (16 cm)	6" × 9" (15 x 23 cm)	6" × 9" (15 x 23 cm)	6 1/2" (16 cm) 5	1/4" (13 cm)	4" (10 cm) 6	1/2" (16 cm)	5\ 1/4" (13 cm)	4" (10 cm)	6" × 8" (15 x 20 cm)	4" × 6" (10 x 15 cm)
Woofer Cone	Carbon Mica Cone	Carbon Mica Cone	Carbon Mica Cone	Carbon Mica Cone	Carbon Mica Cone	Carbon Mica Cone	Carbon Mica Cone	Carbon Mica Cone	Carbon Mica Cone	Carbon Mica Cone	Carbon Mica Cone
Hybrid Surround(Rubber & Cloth)	√	√	√	√	√	√	√	√	√	√	√
Magnet	Ferrite(10 oz)	Ferrite(15.7 oz)	Ferrite(10 oz)	Ferrite(6.4 oz)	Ferrite(5.4 oz)	Ferrite(4.5 oz)	Ferrite(5.4 oz)	Ferrite(4.5 oz)	Ferrite(3.6 oz)	Ferrite(8 oz)	Ferrite(5.4 oz)
Midrange
Size		2\ 5/8" (6.6 cm)	2\ 5/8" (6.6 cm)							1" (2.5 cm)
Poly-Ether Imide Cone		√	√
Poly-Ether Imide Balanced										√
Ferrite Magnet		√	√							√
Tweeter
Separate	√
Size	1" (2.5 cm)	1" (2.5 cm)	19/32" (1.5 cm)	1" (2.5 cm)	1" (2.5 cm)	1" (2.5 cm)				1/2" (1.2 cm)	1" (2.5 cm)
Poly-Ether Imide Balanced	√			√	√	√					√
Poly-Ether Imide Dome		√	√							√
Neodymium Magnet	√										√
Super Tweeter
Size		19/32" (1.5 cm)
Poly-Ether Imide Dome		√
General
Frequency Response	35 - 28,000Hz	33 - 25,000Hz	31 - 24,000Hz	45 - 26,000Hz	49 - 27,000Hz	70 - 27,000Hz	42 - 20,000Hz	52 - 20,000Hz	70 - 20,000Hz	50 - 25,000Hz	55 - 25,000Hz
Power Handling Capacity (Peak)	300W	400W	400W	250W		220W	200W	230W	200W	180W	250W
Power Handling Capacity (RMS)	60W	60W	60W	40W		27W	20W	30W	25W	20W	30W
Impedance	4Ω	4Ω	4Ω	4Ω	4Ω	4Ω	4Ω	4Ω	4Ω	4Ω	4Ω
Sound Pressure Level	88dB/W.m	89dB/W.m	89dB/W.m	91dB/W.m	90dB/W.m	89dB/W.m	90dB/W.m	90dB/W.m	89dB/W.m	87dB/W.m	85dB/W.m
Mounting Depth	2\ 1/4" (56.5mm)	3\ 3/32" (78.5 mm)	3\ 3/32" (78.5 mm)	1\ 23/32" (43.5 mm)	1\ 3/4" (44 mm)	1\ 25/32" (45 mm)	1\ 23/32" (43.5 mm)	1\ 3/4" (44 mm)	1\ 25/32" (45 mm)	2\ 5/16" (58 mm)	1\ 25/32" (44.8 mm)
Weight (NET)	0.8kg (1.8 lbs.)	1.43kg (3.2 lbs.)	1.07kg (2.4 lbs.)	0.66kg (1.5 lbs.)	0.55kg (1.3 lbs.)	0.44kg (0.98 lbs.)	0.55kg (1.3 lbs.)	0.45kg (1.0 lbs.)	0.35kg (0.78 lbs.)	0.79kg (1.8 lbs.)	0.45kg (1.0 lbs.)

Dimensions

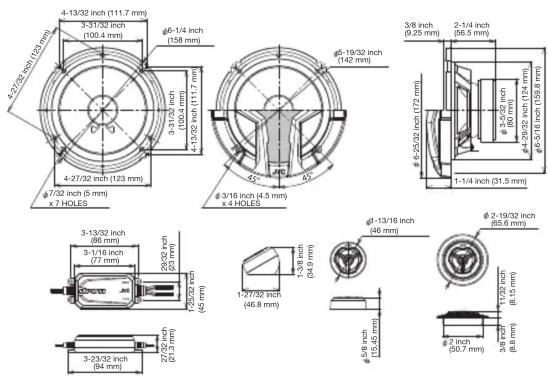

CS-VS608

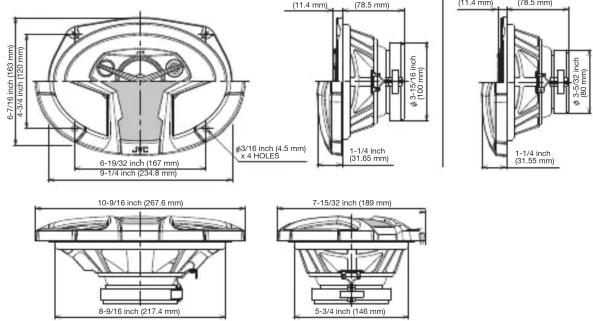

CS-V6948/V6938

CS-V528/V518

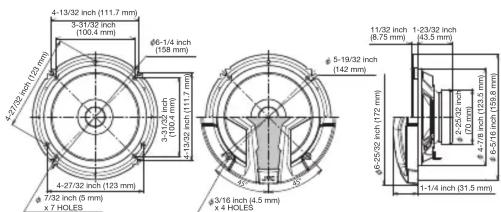

CS-V628

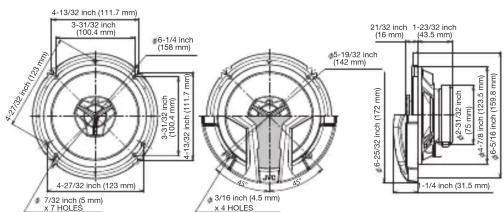

CS-V618

CS-V6837

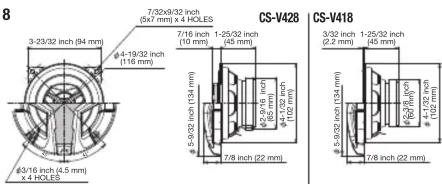

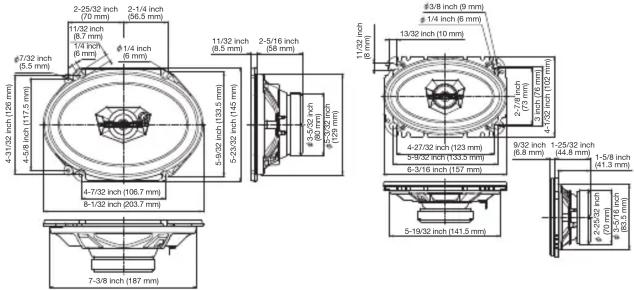

CS-V428/V418
