Product Type	Portable Bluetooth Speaker
Model	XS-E322B
Brand	JVC
Dimensions	180 × 68 × 70 mm
Weight	490 ± 10 g
Rated Power	24 W
Battery Type	Lithium-ion (7.4 V / 3000 mAh)
Battery Charging Time	Approx. 3 hours
Battery Playback Time	20 hours (at 50% volume)
DC Input Voltage/Current	5 V / 2 A
Charging Port	USB-C
Bluetooth Version	5.0
Bluetooth Range	10 meters
Bluetooth Profiles	A2DP V1.2 / AVRCP V1.4 / HPV V1.6 / HSP V1.2
Frequency Response	100 Hz – 18 kHz
Signal-to-Noise Ratio	> 80 dB
IP Code	IPX6
Supported Modes	Bluetooth, AUX IN, TWS (True Wireless Stereo)
Hands-Free Function	Yes
Reset Hole	Yes
Included Accessories	Portable Bluetooth speaker, Charging cable, Audio cable, User manual

Frequently Asked Questions - XS-E322B JVC

How do I turn on the JVC XS-E322B speaker?

Long press the Ⓤ button to turn on the speaker. The LED indicator will flash blue and you will hear a tone.

How do I pair the speaker with my phone via Bluetooth?

Ensure the speaker is on and in pairing mode (LED flashes blue). On your phone, enable Bluetooth and select "XS-E322B" from the list. The LED will turn solid blue when connected.

What is the battery life of the XS-E322B?

The built-in 3000 mAh battery provides up to 20 hours of playback at 50% volume. Charging time is approximately 3 hours via a 5V/2A USB-C charger.

Is the speaker waterproof?

Yes, it has an IPX6 rating, meaning it is protected against powerful water jets. However, do not expose it to water while charging.

Can I use two XS-E322B speakers together for stereo sound?

Yes, using TWS (True Wireless Stereo). Turn on both speakers, double press the play button on one, and they will pair automatically. Then connect your phone to the first speaker.

How do I reset the speaker if it freezes?

Use a small pin to short-press the RESET hole located near the ports. This will restart the speaker.

Can I use the speaker while it is charging?

It is not recommended to use the speaker while charging. Never expose it to water during charging to avoid damage.

How do I disconnect a paired phone?

Press the + and - buttons simultaneously to disconnect the current device. The speaker will enter pairing mode again.

What cables are included with the speaker?

The package includes a USB-C charging cable and an audio cable for AUX IN connection. A charger is not included.

How do I clean the speaker?

Use a soft, dry cloth to clean the surface. Do not use harsh abrasives or chemicals, as they may damage the finish.

USER MANUAL XS-E322B JVC

Black cylindrical electronic device with visible branding and buttons, no readable text or symbols beyond the logo design

BLUETOOTH SPEAKER

XS-E322B

INTRODUCTION

Thank you for buying our product. Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

IMPORTANT SAFETY PRECAUTIONS

When using your Speaker, basic safety precautions should always be followed, including the following:

• Children should be supervised to ensure that they do not play with the device.
• Keep this Speaker and its accessories away from excessive heat.
• No sharp object should be subjected to the speaker/speaker-drivers as it may damage the speakers.
• Only use a soft cloth, no harsh abrasives or chemicals to clean, as it may damage the surface finishing.
• Keep away from dripping or splashed fluids.
• Ensure the speaker is waterproof by removing all the connected cables and the cap is tightly closed before exposing the speaker to liquid.
• NEVER expose the speaker to water while charging, as doing so may result in damage to the speaker or the power source.
• NEVER operate this speaker with a damaged cable or after it has malfunctioned or has been damaged in any manner.
• NEVER leave the speaker unattended while charging. If the speaker becomes hot, smokes, or gives off an odor during charging, terminate charging immediately.

To avoid danger of suffocation, keep the plastic bag away from babies and children. Do not use this bag in cribs, beds, carriages or playpens. This bag is not a toy.

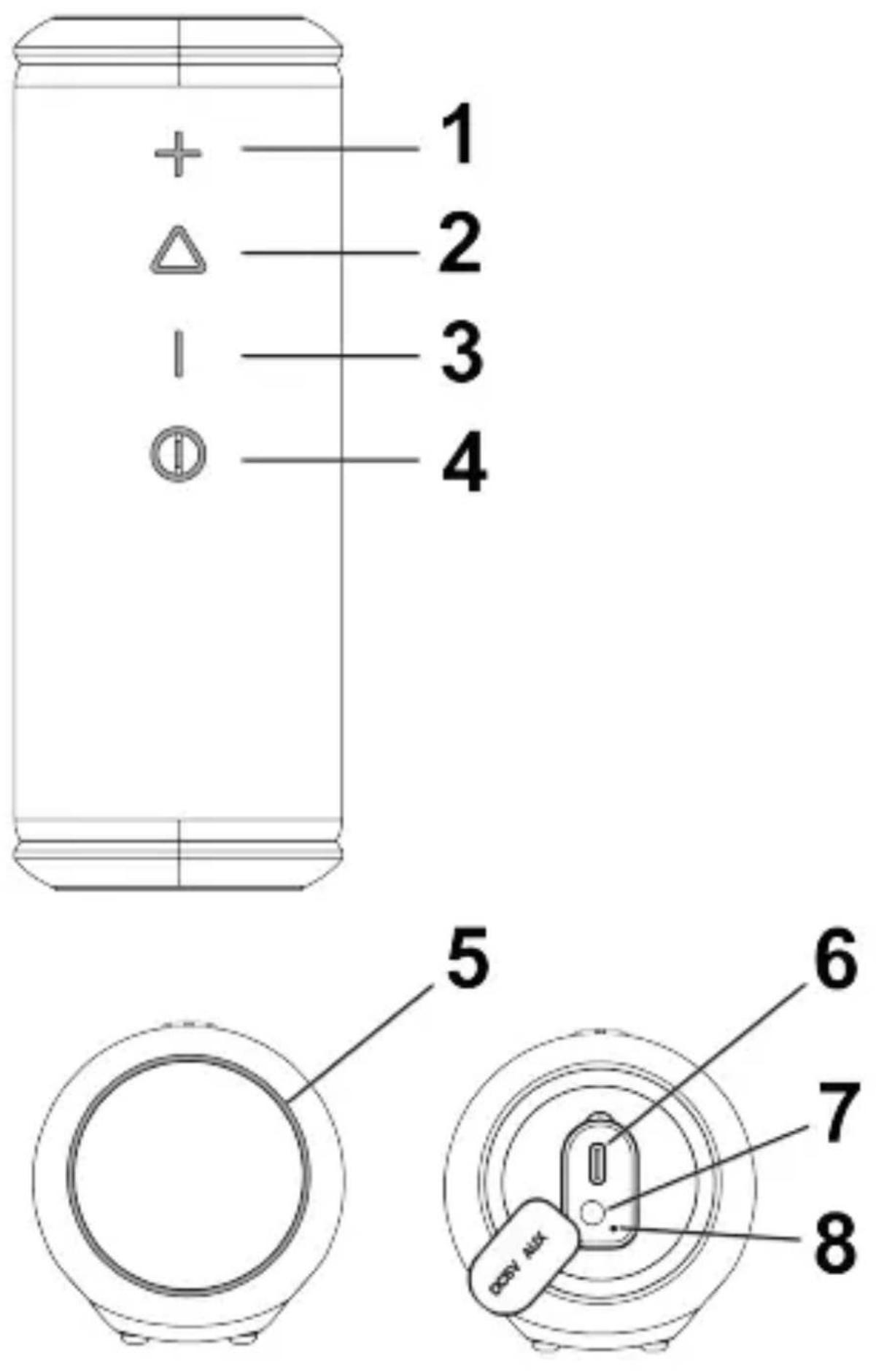

PRODUCT OVERVIEW AND CONTROL BUTTONS

1. button

Press to increase the volume.

Long press to skip to the next track.

2. button

Press to start/pause playback in Bluetooth mode.

Press to mute or resume the sound in AUX IN mode.

3. button

Press to decrease the volume.

Long press to skip to the previous track.

4. button

Long press to turn on/off the speaker.

Press to change mode (Bluetooth / AUX IN).

5. LED indicator

6. USB-C charging port

7. AUX IN input

8. RESET hole

If the speaker does not turn off or respond, short-press the

RESET button with a small round pin to reset the speaker.

CHARGING

Before first-time use, fully charge the built-in battery. The charger is not included in the package, please charge the speaker via a standard 5 V / 2 A charger or via a PC.

LED Indicator Battery Status

Flash Blue & Green Low battery (< 10%)

Solid Red Charging

Solid Green Fully charged

NOTE: When the battery charge < 3% the speaker will power off automatically.

IMPORTANT: Please make a complete charge every three months to avoid shortening the battery lifespan.

BLUETOOTH

• Long press the Ⓤ button to turn on the speaker. The LED indicator will flash blue and hear a tone. The speaker is in pairing mode.
• Activate Bluetooth of mobile phone and search for device name "XS-E322B" then connect it. If the pairing is successful, the LED indicator will be solid blue.

NOTE: The speaker will automatically shut down after 10 minutes in pairing mode if no devices are paired.

Disconnecting the paired mobile phone

- Press the + and - buttons simultaneously to disconnect the current device. The LED indicator will flash blue and the speaker will be in pairing mode.

HANDS-FREE FUNCTION

When phone or other smartphone is connected to your speaker, follow the steps below to take calls hands-free.

• Press the ▶ button to pick up the call.
• Long press the ▶button to reject the call.
• During a call, press the ▶ button to hang up the call.

TWS (TRUE WIRELESS STEREO)

The TWS technology enables you to use two speakers pairing via Bluetooth to create a wireless dual-channel system to deliver true stereo sound effect.

• Turn on both speakers. Make sure both speakers are without any Bluetooth connection.
• Double press the button on one of the speakers and the LED indicator will flash blue and green, the second speaker will connect automatically.
• The first speaker LED indicator flashes blue and the LED indicator of the second one keeps solid blue, which means both speakers are connected successfully.
• Pair your mobile phone with the first speaker, the LED indicator of both speakers will be solid blue.

Disconnect the TWS connection

Press the + and - buttons simultaneously to disconnect the TWS connection. The LED indicator will flash blue and the speakers will be in pairing mode.

AUX IN

The speaker automatically switches to AUX IN mode when you connect your device with the audio cable (included). When using an external device, all functions can only be controlled by the external device.

NOTE: The LED indicator will be solid green after connection and during playback.

SPECIFICATION

BT Version 5.0

BT profiles A2DPV1.2 / AVRCPV1.4

HPV1.6 / HSPV1.2

BT connecting range 10 meters

BT Frequency 2402 - 2480 MHz

EIRP 2,18 dBm

DC input voltage/current 5V / 2A

Battery type Lithium-ion (7,4V / 3000mAh)

Battery Charging Time approx. 3 hours

Battery Playback Time 20 hours (50 % Volume)

Signal-to-noise ratio > 80 dB

Frequency response 100 Hz - 18 kHz

Rated Power 24 W

IP code IPX6

Dimensions 180 x 68 x 70 mm

Weight 490 ± 10 g

Package Contents: Portable Bluetooth speaker, Charging cable, Audio cable, User manual

We reserve the right to change technical specifications.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type JVCXSE322B is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.JVCAUDIO.cz/doc

The Bluetooth ^® word mark and logo are registered trademark owned by Bluetooth SIG, Inc. and any use of such marks Shenzhen Weiking Technology Co., Ltd, is under license. Other trademarks and trade names are those of their respective owners.

ÚVOD

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines and a solid black bar below (no text or symbols)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Simple line drawing of a trash bin with crossed lines and a solid black rectangle below (no text or symbols)

Simple line drawing of a trash bin with crossed lines and a solid black rectangle below (no text or symbols)

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

This product is manufactured and distributed exclusively by ETA a.s., serviced and warranted by its designated partner.

“JVC” is the trademark of JVCKENWOOD Corporation, used by such company under license.
