Product Type	Portable Video Recorder (Dash Cam)
Brand	Navitel
Model	AR202 NV
Processor	JL5601
Display	2-inch, 320×240 IPS
Camera Sensor	GC2053 (night vision)
Video Resolution	1920×1080 (Full HD)
Recording Format	MOV (H.264)
Image Format	JPG
Viewing Angle	140°
Lens	4-layer glass
Storage	MicroSD card (8–64 GB, U3 or above)
G-Sensor	Yes
Microphone / Speaker	Yes
Battery	Li-Pol 100 mAh, 3.7 V
Power Supply	5 V, 1 A (via USB-C)
Charging Port	USB-C
Dimensions	65 × 57 × 38 mm
Weight	Approx. 80 g (est.)
Operating Temperature	0 to +35 °C
Storage Temperature	+5 to +45 °C
Languages	Czech, English, Estonian, German, Hungarian, Latvian, Lithuanian, Polish, Romanian, Russian, Slovak, Ukrainian
Frequency	50/60 Hz

Frequently Asked Questions - AR202 NV Navitel

What type of memory card does the Navitel AR202 NV use?

The dash cam uses a MicroSD card with a capacity of 8 to 64 GB. A high-speed card (U3 or above) is recommended.

How do I format the MicroSD card for the AR202 NV?

Insert the card into the device, go to Menu mode, select Format SD-card and confirm. Formatting inside the DVR helps avoid data errors.

Can I use the dash cam without constant power?

The built-in 100 mAh battery is only for emergency recording in parking mode and for proper shutdown. For full operation, a constant power connection via the car charger is required.

What video resolution does the AR202 NV record?

It records in 1920×1080 Full HD at 30 fps, using the MOV (H.264) format.

Does the Navitel AR202 NV have night vision?

Yes, it is equipped with a GC2053 camera sensor that supports night vision for improved recording in low-light conditions.

How do I lock a recording to prevent deletion?

During recording (REC mode), press the Menu/Up button to protect the current file. Protected files cannot be deleted or overwritten.

What is the viewing angle of the camera?

The camera has a 140° wide viewing angle, covering a broad area in front of the vehicle.

How do I clean the lens?

Keep the lens clean. Do not use chemicals or detergents. Always turn off the device before cleaning, and use a soft, dry cloth.

Is the G-sensor function adjustable?

The G-sensor automatically detects sudden impacts and locks the current recording. The sensitivity may be adjustable in the menu (refer to the manual for details).

What are the dimensions of the Navitel AR202 NV?

The device dimensions are 65 × 57 × 38 mm. It is compact and lightweight.

USER MANUAL AR202 NV Navitel

Black NAVITEL camera with lens and aperture (no text or symbols on body)

NAVITEL AR202 NV

Portable Video Recorder

Úvod

Vážený zákazníku!

cz Tlačítka

Tasten

Nupud

Thank you for purchasing this NAVITEL® product.

NAVITEL AR202 NV is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

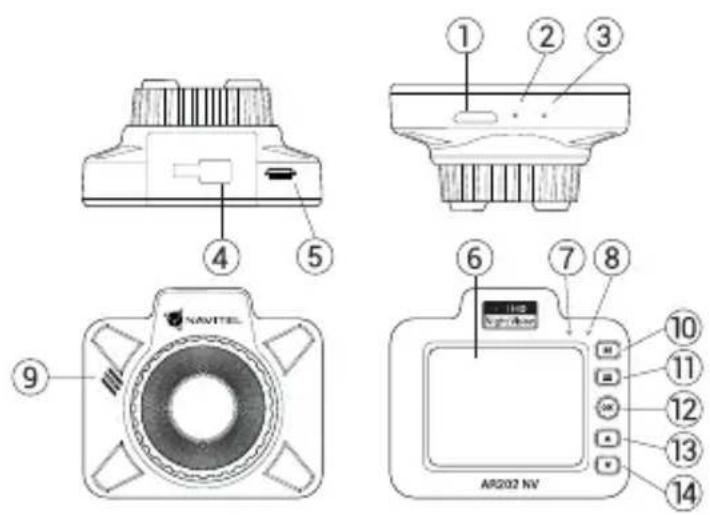

Device layout

1. MicroSD slot
2. Reset
3. Microphone
4. Mount
5. USB-C port
6. Display
7. LED indicator (record)
8. LED indicator (charge)
9. Speaker
10. Mode
11. Menu
12. OK
13. Up
14. Down

Specifications

Processor JL5601
Display 2", 320×240, IPS
Camera GC2053 (night vision)
Recording format MOV (H.264)
Video resolution 1920×1080
Image format JPG
View angle 140°
Lens 4-layer glass
Storage MicroSD card
MicroSD card volume up to 64 Gb
Charging port USB-C
G-sensor Yes

Battery Li-Pol 100 mAh, 3,7 V
Power 5 V, 1 A
Frequency	50/60 Hz
Microphone/speaker	Yes
Dimensions 65 × 57 × 38 mm
Languages	Czech, English, Estonian, German, Hungarian, Latvian, Lithuanian, Polish, Romanian, Russian, Slovak, Ukrainian

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.

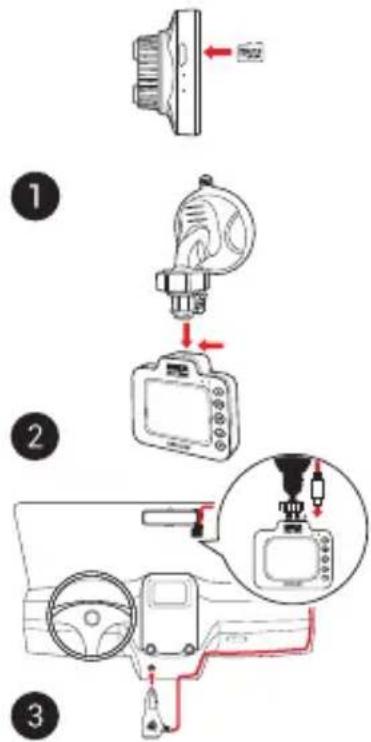

Installation

1. Put the microSD card into the DVR. Use a high-speed SD card (U3 or above); capacity should be within 8-64 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Secure the device on the windshield with the holder.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the DVR (USB-C).
• Adjust the camera position.
• Turn the power on; check whether the device is installed correctly. If the device is installed correctly, the indicator will glow red; the device will start up and begin recording (indicated by flashing blue light).

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
• Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

Buttons

Button Functions
	In Record mode (STBY), press to switch between Record, Capture and Playback modes.In Record mode (REC), press to lock a file (protected file cannot be deleted or overwritten).In Menu press to choose the next menu section.
	Press to enter Menu mode.In Menu press to choose the next menu section.
	In Record mode (STBY), press to start recording; press again to stop recording.In Capture mode, press to take a picture.In Playback mode, press to select a file, or pause / resume video.In Menu, press to select a menu item.
	In Record mode, press Down to turn the microphone on / off.In Playback mode, press to select the previous / next file.In Menu, press to select the previous / next menu item.
Reset If the device is not responding, press to reset.

Note: the built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off; for the full operation of the device in any mode, a constant power connection is required.

NAVITEL s.r.o. hereby declares that the device NAVITEL AR202 NV is compatible with the European directive EMC 2014/30/EU.

The full text of Declaration of conformity is available at the following internet address:

www.navitel.cz/en/declaration_of_conformity/ar202nv
