LKK-120RB - Refrigerator Ravanson - Free user manual and instructions

Product Type	Compact Refrigerator
Model	LKK-120RB
Brand	Ravanson
Capacity	120 Liters
Dimensions (W x D x H)	50 x 55 x 85 cm
Weight	25 kg
Power Supply	220-240 V ~ 50 Hz
Energy Consumption	0.35 kWh/24h
Climate Class	N-ST
Refrigerant	R600a
Temperature Range	0°C to 8°C (refrigerator) / -18°C (freezer)
Defrosting	Manual defrost (freezer) / Auto defrost (fridge)
Shelves	3 adjustable glass shelves
Door Storage	3 bottle racks, 1 dairy compartment
Freezer Compartment	1 with ice cube tray
Lighting	Interior LED light
Control Type	Mechanical thermostat dial
Noise Level	40 dB
Cleaning	Unplug and clean with mild detergent
Safety Features	Child lock (if applicable) or none specified
Spare Parts	Thermostat, shelves, door gasket available
Installation	Free-standing, allow 10cm clearance around

Frequently Asked Questions - LKK-120RB Ravanson

What is the capacity of the Ravanson LKK-120RB fridge?

The Ravanson LKK-120RB has a total capacity of 120 liters, suitable for small households or office use.

How do I adjust the temperature?

Turn the mechanical thermostat dial located inside the fridge. Higher numbers mean colder temperatures. Set to 3-4 for normal use.

Does the freezer compartment require defrosting?

Yes, the freezer compartment requires manual defrosting when ice buildup exceeds 5 mm. Turn off, remove food, and let ice melt.

How to clean the fridge?

Unplug the appliance. Remove all food and shelves. Clean with a soft cloth and mild detergent in water. Avoid abrasive cleaners. Dry thoroughly before reuse.

What should I do if the fridge is not cooling?

Check if the power cord is plugged in and the thermostat is set correctly. Ensure the door is fully closed. If problem persists, contact service.

Is the fridge noisy?

The noise level is about 40 dB, similar to a quiet conversation. Some sounds from the compressor and refrigerant flow are normal.

Can I install the fridge in a garage?

The climate class is N-ST, meaning it operates between 16°C and 38°C. For garages with extreme temperatures, performance may be affected.

Where can I find spare parts?

Spare parts like shelves, door gasket, thermostat can be ordered from Ravanson authorized service centers or online retailers.

Does the fridge have a reversible door?

Yes, the door can be reversed to open from the left or right. Refer to the manual for step-by-step instructions.

What type of refrigerant is used?

The fridge uses R600a isobutane, an environmentally friendly refrigerant. It is flammable, so avoid damaging the cooling circuit.

USER MANUAL LKK-120RB Ravanson

Line drawing of a simple refrigerator with a handle and top panel (no text or symbols)

MODEL:

LKK-120RP; LKK-120RB; LKK-120RC

Producent:

Ravanson

Ravanson Ltd Sp. z o.o. ul. Mazowiecka 6, 09-100 Płońsk, Polska

tel.: [phone], fax: [phone]

PL

Pure technical diagram of a mechanical device with no text, numbers, or symbols

ROZWIĄZYWANIE PROBLEMÓW

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries.

Keep safety instructions and warnings at hand for future reference.

GENERAL SAFETY GUIDELINES

This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must not play with the device. Cleaning and maintenance must not be performed by unsupervised children.

Children are not aware of dangers that may arise during the use of electric devices.

Never use a damaged machine. Do not operate the appliance with a damaged cord.

Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

Do not allow the power cord to touch sharp edges or hot surfaces.

The plug must fit the socket.

The plug must not be modified in any way.

The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors. Avoid rain or moisture when using the appliance.

To clean use soft damp (not wet) cloth with mild detergent.

Do not use solvents, petrol or other and other measures that would damage the device.

Transport and store the device in the vertical position, in the original packaging, protecting against mechanical damage, moisture and dirt.

The appliance must be repaired by a qualified person using only original spare parts.

The vent openings in the housing or in the compartments surrounding thereof must be completely unobstructed and free of

any obstacles.

Make sure there is at least 10 cm of free space on the sides of the device and 10 cm at the back when positioning it. This will provide adequate ventilation.

Do not use mechanical devices or other means to accelerate defrosting process, other than those recommended by the manufacturer.

Take care not to damage the cooling circuit.

Do not use electrical appliances inside the food storage compartments if they are not of the type recommended by the manufacturer.

Do not operate the device with wet hands standing on a wet surface to avoid electric shock or electrocution.

It is advisable to connect the device to mains via an RCD with the maximum sensitivity of 30 mA.

CAUTION! The device is not designed to be used with a timer or an independent remote control system

Do not store hot food or beverages in the refrigerator until they reach room temperature.

Close the door immediately after putting items into the refrigerator to prevent a rapid increase in temperature inside.

Keep the device away from heat sources or direct sunlight.

Position the device on a flat and stable surface. Do not put it on any soft material.

Do not put any devices on the refrigerator.

Do not store substances that can readily evaporate, ignite, or explode, such as a ether, methanol, or gasoline.

Extremely flammable gas. Keep out of reach of children. Protect from sunlight. Store in a well-ventilated place.

CAUTION! Flammable material – the risk of fire! Keep the device away from ignition sources

The refrigerator contains flammable but environmentally friendly natural gas isobutane (R600a).

Gas (R600 a) is flammable. Before connecting, make sure that the refrigerant circuit is not damaged.

If damaged:

- avoid open flames

- immediately ventilate the room where the refrigerator is located.

PLEASE NOTE!

Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

PURPOSE AND CONSTRUCTION

The device is intended for use in domestic or similar environments, such as:

- kitchens in shops, offices and other working environments

- households and by clients in hotels, motels and other residential environments

Refrigerator-freezer is designed for storing and freezing food.

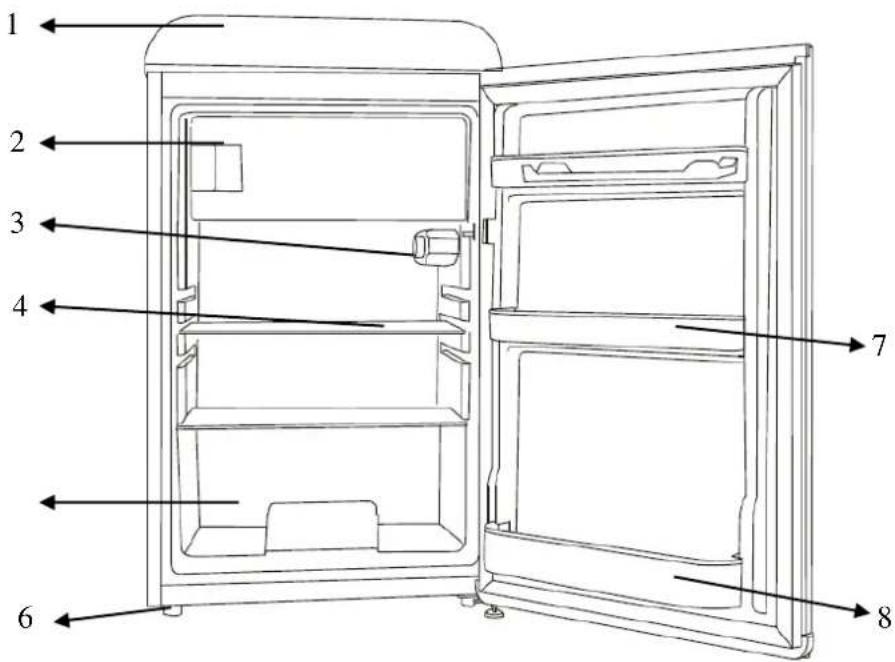

1. Upper cover
2. Freezer compartment
3. Thermostat
4. Refrigerator compartment
5. Crisper drawer
6. Legs
7. Small bottle compartment
8. Large bottle compartment

TECHNICAL PARAMETERS

Nominal voltage: 220-240 V

Nominal frequency: 50 Hz

LED rated power: 1 W

Rated current 0,8 A

Protection rating: I

Climate class: N, ST

Coolant/ mass: R600a/ 26 g

Insulation gas: C 5H10

Energy class: F

CHARACTERISTICS OF CLIMATE CLASSES

Climate class Air temperature

SN (extended - moderate) from +10°C to +32°C

N (moderate) from +16°C to +32°C

ST (sub -tropical) from +18°C to +38°C

T (tropical) from +18°C to +43°C

PREPARATION FOR WORK

1. Remove all safety elements.
2. Refrigerator should be set on a level surface. Whenever required, adjust the level using adjustable feet.
3. To ensure appropriate ventilation, position the fridge ensuring the following distance from the walls and other objects: back and sides of the fridge at least 10 cm, the top at least 20 cm. Leave enough space to open the fridge door to the angle of 160^ .
4. The fridge should be placed far from any heat sources (cooker, radiator, stove) and it should not be exposed to direct sunlight.
5. The fridge cannot be located near flammable or explosive materials such as gas, petrol, alcohol etc. Do not store the above-mentioned materials in the fridge.
6. Do not place the fridge in areas with high moisture.
7. After setting the refrigerator in a suitable place, wait at least 2h before connecting it to the power supply.
8. Make sure that the power source to which you want to connect the device meets the specifications given on the nameplate. This device is equipped with a grounded type plug and must be plugged into a grounded type outlet. If any power flickers take place, connect a special device to the fridge, controlling the power automatically.
9. The power cord should not be extended or wound when the device is on. Moreover, take care the power cord is not placed too close to the compressor at the fridge back. The operating compressor generates high temperature and can damage the power cord.
10. In case of accidental disconnection from the power supply wait at least 5 minutes before restarting.

First use

After connecting the refrigerator to a power source switch the thermostat knob to the position between 1 and 5. The refrigerator will start working. Close the door, after about 30 minutes the housing of the refrigerator on the right or left side should be warm, and the temperature in the cooling chamber should decrease. This means proper operation of the compressor.

Thermostat

Refrigerator is controlled by thermostat. In "0" position refrigerator stops working. For positions "1 to 5", the lower setting, the higher cooling temperature. The refrigerator should be set at a higher level for the user. The level "5" is suitable for fast freezing. After rapid freezing it is recommended to bring the thermostat to its normal operating position.

Preparation of ice

Pour drinking water to the ice container and put it in the freezer. Set the thermostat knob in position 4/5.

Cooling chamber

The temperature of the cooling chamber is about 0^ C - 10^ C. It is suitable for storage of vegetables, fruit, drinks for a short time.

Freezer

The freezer temperature is about -18^ . It is suitable for storage of frozen fish, meat and other products, which require longer storage time.

FOOD STORAGE

It is recommended to keep food in sealed containers intended for contact with food, in order to prevent influence of other odours.

Food should not be placed too closely to allow free air flow.

Do not put hot food in the refrigerator. Cool to room temperature beforehand.

Minimize the frequency and time of opening the refrigerator door and keeping it opened.

If the food be cleaned before putting into the refrigerator, wash it, dry it and then put to the refrigerator.

DEFROSTING AND CLEANING

If the ice layer inside the fridge and freezer chambers gets about 3-5 cm thick, the device should be defrosted.

The device requires manual defrosting. To defrost you should:

√ Set the thermostat to "0" and unplug the device.
√ Remove food from the fridge and freezer chambers.
√ Open the door to let the ice melt. To speed up the defrosting process, you can place a bowl with hot water on the shelf and close the door of the fridge and freezer.

Do not use metal tools or electric heaters to accelerate the defrosting process.

Remove water from the fridge and freezer with a soft cloth. Clean the device inside and outside using a soft, wet cloth with a neutral washing agent. Dry the chambers.

Do not pour water over the outer part of the refrigerator. This can damage the insulation layer. It is forbidden to wash with hot water, acid, alkalis, gasoline, benzene, caustic means, alcohol or abrasives.

√ Place food in the fridge and freezer, set the thermostat to the desired position and plug the device.

To ensure hygiene, clean the fridge interior with sufficient frequency. To do this:

√ unplug the power cord from the electrical outlet
√ wash with a soft damp cloth with a neutral detergent
√ dry afterwards.

Pay special attention to keep the rubber seals at the door in the appropriate condition. They should always be clean.

If the device is not used for an extended period of time, remove clothes, clean the fridge and freezer chamber and dry them. The door should remain open.

REPLACING THE BULB

Before replacing the light bulb set the thermostat knob to the "0" position and disconnect the refrigerator from the power supply. Remove the food from the top shelf and pull shelf forward. A bulb is located at the rear of the thermostat housing. Open light cover. Twist off a burnt bulb, twist in a new one and replace the bulb cover.

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

TROUBLESHOOTING

Laudable sound of running water is normal for working compressor.

Laudable tapping is a reaction to sudden changes of temperature.

Hot compressor – during operation, the compressor's temperature can reach 90°C

Hot side wall of the refrigerator - during operation, both sides of the refrigerator can achieve an average temperature of 55^ .

Brumous deposit appears on the outer part of the refrigerator. This is normal due to the high humidity. A freezer should be dried.

Check before calling for service:

Refrigerator stopped working

• thermostat knob is not set to "0".
• a plug is well inserted to the socket
• power supply is on
• the device starts working within 5 minutes after the last power off.

Refrigerator's work is not effective

• too much food in the fridge or food arranged too tightly which prevents air flow
• the device is set in the sun an ambient temperature is too high
• fridge located near a radiator or other heat-emitting devices
• food in the refrigerator/freezer is too warm
• not closed door of the refrigerator/freezer
• frequent opening of the door of the refrigerator/freezer
• fridge ventilation is insufficient. There can be an insufficient distance between the fridge and the surrounding walls/furniture/other devices.

Food in the refrigerator chamber is too much chilled

• position of thermostat is too high
• food with high water content was placed directly over the cold air inlets. This is not a symptom of incorrect device operation.

Refrigerator-freezer is too noisy

• the device is not level
• the device touches the wall.

If the above-mentioned advice does not solve the problem, contact the repair service. Don't repair on your own.

WARNING! If, despite compliance with the specified rules, a refrigerator-freezer is not working properly, inform the manufacturer's authorized service centre.

WARNING! If an electric shock (tingling) is sensed after touch a refrigerator-freezer housing, immediately turn it off and ask a certified electrician to check the protective circuit in the socket

TRANSPORTATION

Transport (carry) only in vertical position. A tilt should not exceed 45^

Transport in a package protecting from humidity, dust and mechanical damages.

NOTE!

The illustrations and descriptions may differ from reality depending on the product model.

Manufacturer reserves the right to change the technical parameters of the device without notice.

The producer reserves the right to mistakes and misprints.

The symbol presented below indicates that the used equipment cannot be placed together with other household waste.

The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative consequences for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have been

limited in this device.

Product Information Sheet

Supplier's name or trademark:			RAVANSON LTD Sp. z o.o.
Supplier's address:			Mazowiecka 6, 09-100 Płońsk
Model identifier:			LKK-120RB, LKK-120RC, LKK-120RP
Type of refrigerating appliance:
Low-noise appliance:			No	Design type:	Wolnostojąca
Wine storage appliance:			No	Other refrigerating appliance:	Yes
General product parameters:
Parameter			Value	Parameter	Value
Overal dimensions (millimetre)		Height	860	Total volume (dm3 or l)	118
		Width	545
		Depth	585
EEI			125	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)			41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)			170	Climate class:	umiarkowana, subtropikalna
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable			16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting			No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	YES	106	4	-	M
Chill	No	-	-	-	-
0-star or icemaking	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	12	-18	-	M
4-star	YES	-	-	-	-
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source		Lighting technology used: LED; Non-directional or directional: -; Mains or non-mains: -; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: -
Energy efficiency class		-
Minimum duration of the guarantee offered by the manufacturer:		24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.ravanson.pl

COMMISSION DELEGATED REGULATION (EU) No 2019/2016

*Energy consumption "XYZ" kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located'

DE

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

PROBLEMLÖSUNG

Diagram of a mechanical device with rotating shaft and gear mechanism (no text or symbols)

РЕШЕНИЕ ПРОБЛЕМ

Pure technical diagram of a mechanical device with no text, numbers, or symbols

ŘEŠENÍ PROBLÉMŮ

Pure technical diagram of a mechanical device with no text, numbers, or symbols

RIEŠENIE PROBLÉMOV

NAMEMBNOST IN SESTAVA

Simple line drawing of a mechanical device with no text or symbols

REŠEVANJE PROBLEMOV

Slišni zvok tekoče vode je normalen pojav, kadar kompresor deluje.

Simple line drawing of a mechanical device with no text or symbols

PROBLEEMIDE LAHENDAMINE

Pure technical diagram of a mechanical device with no text, numbers, or symbols

PROBLÉMAMEGOLDÁS

Pure mechanical diagram showing a lever and gear mechanism without any text or symbols

PRODUKTA INFORMĀCIJAS LAPA
