ZM-180 - Fridge Ravanson - Free user manual and instructions

Product Type	Compact Refrigerator with Freezer Compartment
Brand	Ravanson
Model	ZM-180
Total Capacity	Approximately 180 liters
Dimensions (H x W x D)	85 x 50 x 55 cm
Weight	Approximately 25 kg
Power Supply	220-240 V ~ 50 Hz
Energy Consumption	Approximately 0.5 kWh/24h (A+ energy class)
Refrigerant	R600a (isobutane)
Climate Class	N-ST (16°C to 38°C)
Temperature Control	Thermostat dial (1-7 settings)
Freezer Capability	Freezer compartment (star rating: 3 stars)
Defrosting	Manual defrost for freezer section
Interior Light	Yes, LED light
Shelves	2 adjustable glass shelves
Door Storage	2 door shelves (for bottles, cans)
Noise Level	Up to 42 dB(A)
Maintenance	Clean with mild detergent; avoid abrasive cleaners
Safety Features	Stable base, child lock (if applicable)
Spare Parts	Shelves, door bins, thermostat (available from Ravanson service)
Repairability	Modular design; replaceable compressor, fan, and control board
General Information	Designed for household use; suitable for food and beverage storage

Frequently Asked Questions - ZM-180 Ravanson

What is the total capacity of the Ravanson ZM-180 fridge?

The Ravanson ZM-180 has a total capacity of approximately 180 liters, consisting of a main refrigerator compartment and a small freezer compartment.

How do I adjust the temperature?

The temperature is controlled by a thermostat dial inside the fridge. Settings range from 1 (warmest) to 7 (coldest). A medium setting (3-4) is recommended for normal use.

Does the ZM-180 have a freezer?

Yes, it includes a separate freezer compartment with a 3-star rating, suitable for storing frozen food and making ice cubes.

How do I defrost the freezer?

The freezer requires manual defrosting when ice builds up. Unplug the fridge, remove food, and let the ice melt. Do not use sharp tools to chip ice.

What is the energy consumption?

The Ravanson ZM-180 consumes about 0.5 kWh per day, making it energy-efficient with an A+ energy class rating.

What is the noise level?

The noise level is up to 42 dB(A), which is comparable to a quiet conversation and typical for compact refrigerators.

Can I reverse the door opening direction?

No, the door is not reversible on this model. It is designed to open from the right side.

How do I clean the refrigerator?

Clean the interior and exterior with a soft cloth and mild soapy water. Avoid abrasive cleaners. The condenser coils at the back should be vacuumed occasionally.

What should I do if the fridge is not cooling?

First, check that the thermostat is not set to 0 (off). Ensure the power cord is plugged in and the socket is working. Clean the condenser coils and allow 24 hours for temperature to stabilize.

Where can I find spare parts?

Spare parts such as shelves, door bins, and thermostats can be ordered from Ravanson authorized service centers or online through their official parts distributor.

USER MANUAL ZM-180 Ravanson

Line drawing of two rectangular storage cabinets, one upright and one tilted (no text or symbols)

MODEL:

ZM-80B; ZM-180

Ravanson®

Producent:

Ravanson Ltd Sp. z o.o. ul. Mazowiecka 6, 09-100 Płońsk, Polska

tel.: [phone], fax: [phone]

PL

INFORMACJE DODATKOWE:

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries.

Keep safety instructions and warnings at hand for future reference.

GENERAL SAFETY GUIDELINES

Please read this manual carefully, and make sure to keep this manual in the place accessible by a user at any time.

To ensure proper use. Please thoroughly study these SAFETY PRECAUTIONS before operating the Unit.

The purpose of the safety precautions In this manual is to ensure safe and correct use of the unit to minimize risks that could cause serious damage and injury to you or other persons. The safety precautions are divided into WARNINGS and CAUTIONS.

WARNING!

Improper handling of the unit could lead to death or serious injury.

CAUTION!

Improper handling of the unit could lead to serious results depending on the circumstances.

Text set off by the exclamation mark contains information that should be strictly adhered to.

PRECAUTIONS

RISK OF ELECTRIC SHOCK

Never splash water directly onto the product or wash with water as short-Circuit and electrical leakage could result.

Do not damage, modify, excessively bend, strain, twist or bundle up the power cord.

Also, placing heavy objects the power cord or squeezing it in a tight place could damage it, possible resulting in electrical shock or fire.

Use a dedicated wall outlet. Do not use extension cords or convenience receptacles as this could result in electrical shock, overheating and a fire.

This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must not play with the device.

Should the unit need temporary storage, make sure not to store the unit in a location where children play and take precautions so that the door cannot be completely closed.

This will minimize the risk that a child becomes trapped inside the compartment.

Cleaning and maintenance must not be performed by unsupervised children.

Children are not aware of dangers that may arise during the use of electric devices.

Never use a damaged machine. Do not operate the appliance with a damaged cord.

Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

Do not allow the power cord to touch sharp edges or hot surfaces.

The plug must fit the socket.

The plug must not be modified in any way.

The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors. Avoid rain or moisture when using the appliance.

Away from hot air sources Cooling performance is reduced if the unit is placed near heat sources such as hot plates and stoves and if it is exposed to direct sunlight.

To clean use soft damp (not wet) cloth with mild detergent.

Do not use solvents, petrol or other and other measures that would damage the device.

Transport and store the device in the vertical position, in the original packaging, protecting against mechanical damage, moisture and dirt.

Disconnect the power cord plug from the wall outlet before moving the unit and make sure that the power cord is not damaged during transport.

A damaged power cord could result in electrical shock and/or fire.

Make sure that the unit does not tip over or fall when it is moved.

A falling unit could cause serious injury.

When disconnecting the power cord plug from the wall outlet, hold at the plug main body close to the outlet. Pulling the cord could cause wire breakage, possible resulting in overheating and fire.

The appliance must be repaired by a qualified person using only original spare parts.

Leave disassembly and disposal of the unit to qualified experts

The vent openings in the housing or in the compartments surrounding thereof must be completely unobstructed and free of any obstacles.

Make sure there is at least 10 cm of free space on the sides of the device and 10 cm at the back when positioning it. This will provide adequate ventilation.

Do not use mechanical devices or other means to accelerate defrosting process, other than those recommended by the manufacturer.

Take care not to damage the cooling circuit.

Do not use electrical appliances inside the food storage compartments if they are not of the type recommended by the manufacturer.

Do not operate the device with wet hands standing on a wet surface to avoid electric shock or electrocution.

CAUTION! The device is not designed to be used with a timer or an independent remote control system

Do not store hot food or beverages in the until they reach room temperature.

Close the door immediately after putting items into the freezer to prevent a rapid increase in temperature inside.

Keep the device away from heat sources or direct sunlight.

Position the device on a flat and stable surface. Do not put it on any soft material.

Do not put any devices on the freezer.

Do not store substances that can readily evaporate, ignite, or explode, such as a ether, methanol, or gasoline.

Do not store battles and cans in the unit. The contents could freeze and the containers break and cause injury.

The unit is intended for storage of ice-cream and frozen foods.

Storage of other items than the intended could have an adverse effect on the items stored it the unit.

Never place heavy objects or items containing water on top of the unit. Objects could fall down and cause injury and spilled water could deteriorate the insulation of electrical components and result in electrical leakage.

Install the unit in a location where the floor is sturdy enough to support the load of the unit. If the floor is not sturdy enough or installation is incorrectly performed, the unit could tip over and falling shelves and products could cause personal injury.

Never hang from the door or climb onto the unit.

The unit could tip over or fall and cause material damage or injury.

Extremely flammable gas. Keep out of reach of children. Protect from sunlight. Store in a well-ventilated place.

CAUTION! Flammable material – the risk of fire! Keep the device away from ignition sources

The freezer contains flammable but environmentally friendly natural gas isobutane (R600a).

Gas (R600a) is flammable. Before connecting, make sure that the refrigerant circuit is not damaged.

If damaged:

• avoid open flames
• immediately ventilate the room where the refrigerator is located.

Never put flammable or volatile substances into the unit as explosion and fire could result.

If you find gas leakage please don't touch the chest freezer, and close gas and open the door for ventilation,

Gas leakage cause explosion, fire, and fire injury.

Never use flammable spray cans or leave flammable substances near the unit. Sparks from electrical switches could result in explosion and fire.

PLEASE NOTE!

Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

PURPOSE AND CONSTRUCTION

The device is intended for use in domestic or similar environments, such as:

• kitchens in shops, offices and other working environments
• households and by clients in hotels, motels and other residential environments

Freezer is designed for storing and freezing food.

This refrigerating appliance is not intended to be used as a built-in appliance.

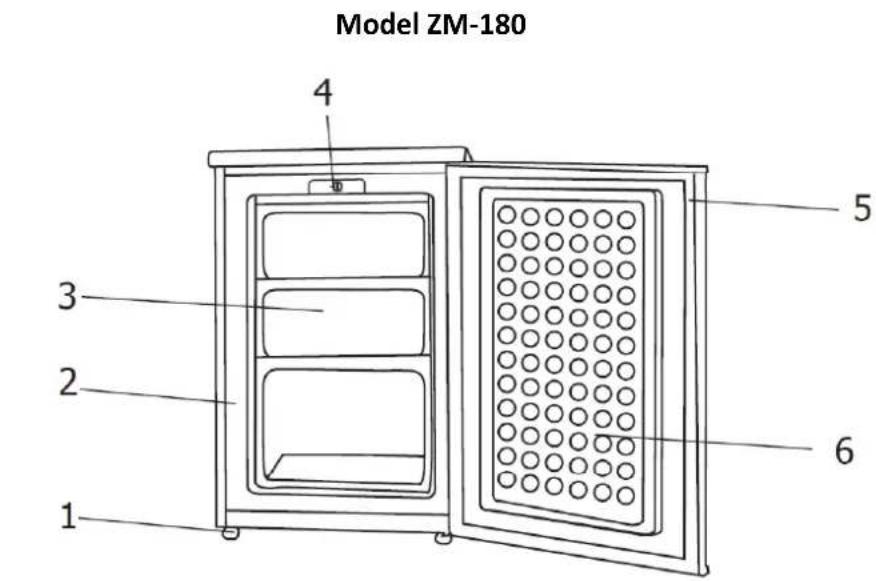

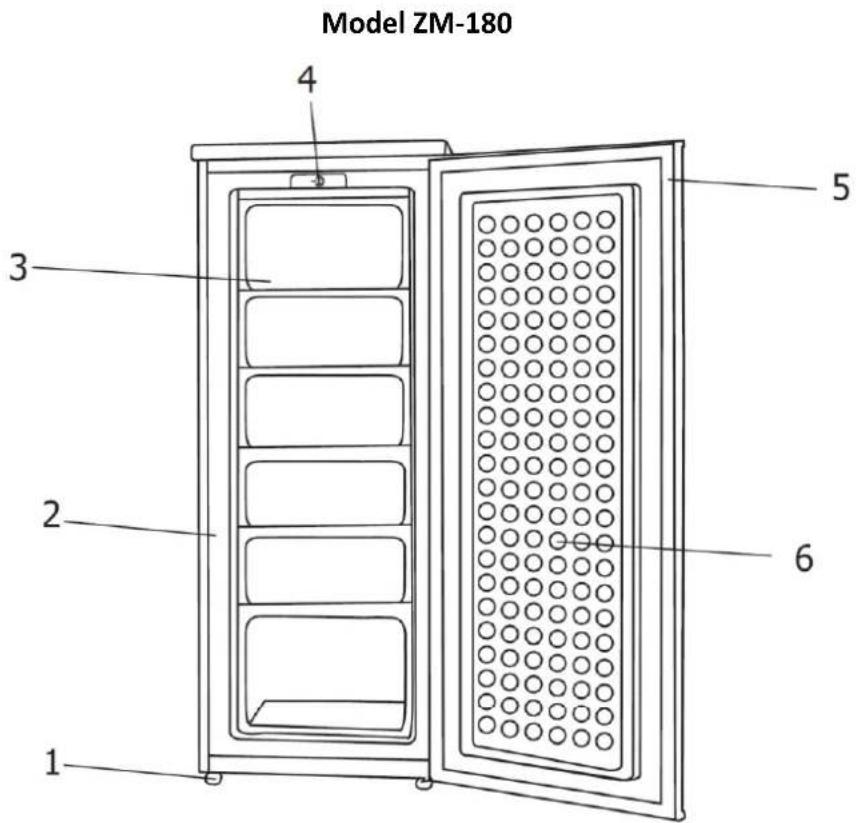

Construction

1. Adjustable Feet
2. Case
3. Drawer
4. Thermostat knob
5. Door seal gasket
6. Door

TECHNICAL PARAMETERS ZM-80 ZM-180

Nominal voltage: 220-240 V 220-240 V

Nominal frequency: 50 Hz 50 Hz

Rated current 0,95 A 0,95 A

Protection rating: I I

Climate class: SN,ST, N SN,ST, N

Coolant/ mass: R600a/43 g R600a/82 g

Insulation gas: C_5H_10 C_5H_10

Energy class: E E

CHARACTERISTICS OF CLIMATE CLASSES

Climate class Air temperature

SN (extended - moderate) from +10°C to +32°C

N (moderate) from +16°C to +32°C

ST (sub -tropical) from +18°C to +38°C

T (tropical) from +18°C to +43°C

PREPARATION FOR WORK

1. Remove all safety elements. Remove shipping packaging, tape, etc, and leave door open for ventilation for a while.

The unit is cleaned before shipment. However, clean the compartment interior once after delivery.

1. Freezer should be set on a level surface. Whenever required, adjust the level using adjustable feet.

2. To ensure appropriate ventilation, position the device ensuring the following distance from the walls and other objects: back and sides of the fridge at least 10 cm, the top at least 20 cm. Leave enough space to open the fridge door to the angle of 160^ .

3. The freezer should be placed far from any heat sources (cooker, radiator, stove) and it should not be exposed to direct sunlight.

4. The freezer cannot be located near flammable or explosive materials such as gas, petrol, alcohol etc. Do not store the above-mentioned materials in the freezer.

5. Do not place the freezer on areas with high moisture.

6. After setting the freezer in a suitable place, wait at least 2h before connecting it to the power supply.

7. Make sure that the power source to which you want to connect the device meets the specifications given on the nameplate. This device is equipped with a grounded type plug and must be plugged into a grounded type outlet. If any power flickers take place, connect a special device to the freezer, controlling the power automatically.

8. The power cord should not be extended or wound when the device is on. Moreover, take care the power cord is not placed too close to the compressor at the freezer back. The operating compressor generates high temperature and can damage the power cord.

9. Following installation, freezer will start about 10 minutes after operation is started.

10. Operate for about 2 hours to cool the freezer compartment before placing items in the freezer.

11. In case of accidental disconnection from the power supply wait at least 5 minutes before restarting.

Restarting the unit immediately after it has been turned off may cause fuses to blow

and activate the circuit-breaker, the compressor may be overloaded, and/or other damage may occur.

FIRST USE

Regulation of temperature controller and quick-frozen

After connecting the freezer to a power source switch the thermostat knob to the position between 1 and 3. The freezer will start working.

Close the door, after about 30 minutes the housing of the freezer on the right or left side should be warm, and the temperature in the cooling chamber should decrease. This means proper operation of the compressor.

Freezer is controlled by thermostat.

In "0" - OFF position freezer stops working.

For positions "1 to 3", the lower setting, the higher cooling temperature.

The appliance should be set at a higher level for the user. The level "3" is suitable for fast freezing.

After rapid freezing it is recommended to bring the thermostat to its normal operating position.

Storage and frozen food

Add a freezer inside the room temperature of food should not be too much, or the food will have an impact on the effect of freezing and preservation.

Connect power, freezer compressor started, the full cooling box to be confirmed, the add to be frozen food, the first time in more run-time should be longer, about 2 \~ 3 hours

Food storage, food should stay around a certain gap in order to facilitate the flow of inside air-conditioning, cooling evenly

Do not put in freezer the box below the freezing point temperature of bottled, canned drinks, which to prevent Frost Crack.

DEFROSTING AND CLEANING

When 5mm frost forms in the freezer, please shave it and throw it away.

If you defrost completely, please do it as follows.

Please make inside empty. And disconnect the power cord plug.

When frost start thawing, please shave it and you will be able to defrost in the short time.

After draining, please wipe the inside.

Do not use metal tools or electric heaters to accelerate the defrosting process. If you use it, it give damage to inside evaporator and chest freezer cannot cool, and inside goods can thaw, pis do not destroy the freeze loop.

√ Remove water from the freezer with a soft cloth. Clean the device inside and outside using a soft, wet cloth with a neutral washing agent. Dry the chambers.

Do not pour water over the outer part of the freezer. This can damage the insulation layer.

It is forbidden to wash with hot water, acid, alkalis, gasoline, benzene, caustic means, alcohol or abrasives.

√ Place food in the freezer, set the thermostat to the desired position and plug the device.

Cleaning

To ensure hygiene, clean the freezer interior with sufficient frequency. To do this:

√ unplug the power cord from the electrical outlet
√ wash with a soft damp cloth with a neutral detergent
√ dry afterwards.

Pay special attention to keep the rubber seals at the door in the appropriate condition. They should always be clean.

If the device is not used for an extended period of time, remove clothes, clean the fridge and freezer chamber and dry them. The door should remain open.

WARNING: Do not splash water directly onto the cooler and do not wash with water. Short-circuit and electrical shock could result.

Clean the cooler regularly to keep tl clean at all times. Never use polishing powder, soap powder, benzine, oil or hot water as these will damage the painting and plastic components.

IN CASE OF THE FOLLOWING

Sudden power failure

Keep opening and closing of the door to a minimum to prevent cold air from escaping from the freezer compartment.

Announced power suspension

In case of a long power suspension, place dry ice in the freezer compartment.

Keep opening and closing of the door to a minimum.

Avoid placing new items In the cooler as this will raise the temperature Inside the compartment.

When not used for along period

Remove all Items from the compartment and disconnect the power cord plug from the wall outlet. Clean the compartment interior and wipe away all water.

To prevent meld formation and bad smell, leave the door open to dry the compartment completely.

CHECK BEFORE CALLING FOR SERVICE

Please check the following Items if you encounter problems with the unit.

No refrigeration at all	- Is the power supply interrupted?- Is the power cord plug disconnected from the wall outlet?- Are the power fuses blown and/or the circuit breaker activated?- The temperature control did in the direction of MAX. if foo cold, turn dial indirection of OFF?
Inadequate Refrigeration	- Is the place of installation badly ventilated?- Is the freezer exposed to direct sunlight, placed near a heater or stove? 1 Are the lids opened and closed frequently?- Are items stocked beyond the load line?- The temperature control dial in the direction of MAX. If too cold, turn dial in direction of MIN?- Much frost forms in the chest freezer?
Excessive noise	- Is the floor underneath the freezer sturdy enough?- Is the unit shaking and rattling?- Is the rear panel of the unit contacting a wall, etc,?- A container or something is behind the chest freezer?- The compressor will generate a rather loud sound for a while after operation is started. The noise will cease together with refrigeration.
Condensation on cooler exterior	- Condensation may condense on the exterior and door during hot and humid days or depending on the place of installation. This occurs when the humidity is high and water particles in the air contact cold surfaces. This is normal. Wipe away condensation with a dry cloth.
The circumference of chest freezer feels hot	- Especially in summer or in starting running, the circumference of chest freezer feels hot. Because chest freezer inside has a pipe for radiating and preventing condensation.The heat do not affect inside goods.

Appliance sometimes stop running when thermostat furns off.

WARNING! If, despite compliance with the specified rules, a freezer is not working properly, inform the manufacturer's authorized service centre.

The current list of service points can be found at: www.ravanson.pl Service is provided by the Quadra-Net network, please visit: www.quadra-net.pl and the helpline number: 61 853 44 44

WARNING! If an electric shock (tingling) is sensed after touch a refrigerator-freezer housing, immediately turn it off and ask a certified electrician to check the protective circuit in the socket

TRANSPORTATION

Transport (carry) only in vertical position. A tilt should not exceed 45^

Transport in a package protecting from humidity, dust and mechanical damages.

NOTE!

The illustrations and descriptions may differ from reality depending on the product model. Manufacturer reserves the right to change the technical parameters of the device without notice.

The producer reserves the right to mistakes and misprints.

ADDITIONAL INFORMATION:

Minimum duration of the guarantee offered by the manufacturer: 24 months

Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU)

2019/2019 is found: www.ravanson.pl

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative consequences for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have been limited in this device.
