Product Type	Portable convection heater
Model	CH-2000MT
Rated Voltage	220-240 V AC, 50 Hz
Rated Power	1800-2000 W
Maximum Power	2000 W
Power Settings	750 W (minimum), 1250 W (medium), 2000 W (maximum with both switches on)
Turbo Function	Additional airflow to shorten heating phase (for CH-2000MT only)
Thermostat	Mechanical thermostat with variable temperature control
Overheating Protection	Automatic thermal fuse; resets after cooling down
Safety Features	Grounded plug; do not cover; keep away from children; automatic shut-off if overheated
Mounting / Placement	Floor-standing with included feet; place on level, stable surface
Suitable Spaces	Well-insulated rooms, occasional use; indoor only
Cleaning	Wipe exterior with dry or slightly damp cloth; do not use detergents or water inside
Storage	Clean, dry place; protect from dust; cool down before storage
Power Cord	Grounded plug; do not replace; if damaged, have replaced by qualified person
Indoor Use Only	Not for use in bathrooms, showers, or near pools

Frequently Asked Questions - CH-2000MT Ravanson

How do I assemble the heater for floor use?

Attach the included feet to the base of the heater using the four tapping screws provided. Ensure screws are correctly located in the bottom ends. Place the heater on a level and stable surface.

Why does the heater emit a burning smell when first used?

It is normal for the heater to emit some odor when turned on for the first time or after long storage. This is caused by dust on the heating element and will disappear after a short period of operation.

How do I set the desired room temperature?

Plug in the heater and turn the thermostat dial to the right until you hear a click. Then continue turning to the desired temperature setting. The heater will automatically switch off when the set temperature is reached and switch on again when the temperature drops.

What is the TURBO function and how do I use it?

The TURBO function activates an additional air supply to shorten the heating phase. It is available on models CH-2000MT and CH-2000RT. Enable it by pressing the TURBO button (if present) or adjusting the control knob accordingly.

What should I do if the heater overheats and shuts off?

The heater has an overheating protection fuse. If it shuts off, unplug the heater and wait about 15 minutes for it to cool down. Then it can be turned on again. Check that the air vents are not blocked.

Can I use the heater in a bathroom or near water?

No. The heater is for indoor use only and must not be used in the immediate surroundings of a bath, shower, or swimming pool to avoid electric shock risk.

Is it safe to leave the heater unattended?

It is recommended to disconnect the heater from the mains when not in use. Do not leave it switched on with the thermostat set to minimum or unattended. Always unplug when leaving the room or going to sleep.

How should I clean the heater?

Always unplug the heater and allow it to cool before cleaning. Wipe the exterior with a dry or slightly damp cloth. Do not use detergents, abrasives, or allow water to enter the heater. Never clean while connected to the mains.

What should I check if the heater does not work?

First, ensure the power cord is plugged in and the wall socket has power. Check that the thermostat and power switches are in the correct positions. If it still does not work, contact the manufacturer's authorized service center; do not attempt to repair yourself.

Is the heater energy efficient?

The heater is suitable for well-insulated spaces and occasional use. It has a nominal heat output of 1.9 kW and features mechanical thermostat control. For maximum efficiency, use the appropriate power setting and avoid blocking air vents.

USER MANUAL CH-2000MT Ravanson

Line drawing of a portable electric heater with cooling fins and mounting feet (no text or symbols)

EN This product is only suitable for well insulated spaces or occasional use.

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

INSTRUKCJA UŻYTKOWANIA

Before first start-up, read thoroughly this operation manual.

WARNING: To reduce the risk of fire, electric shock or injury, it is necessary to follow the tips presented below:

Please keep this operation manual in order to be able to use it at any time, because it contains important information.

1. WARNING: In order to avoid overheating, do not cover the heater.

2. The heater must not be located immediately below a socket-outlet.

3. Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exist if the heater is covered or positioned incorrectly.

4. The heater grille prevents direct access to the heating elements and has to be in place when the heater is being used.

5. The heater grille does not provide full protection for small children and infirm persons.

6. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

7. Children under the age of 3 should be kept away or supervised at all times.

8. Children between 3 and 8 years of age may only switch the device on and off if it is placed and installed in normal position as per its intended use, under supervision only and in a safe way as per the manual and provided they understand the hazards related to the device. Children between 3 and 8 years of age must not unplug, adjust, clean, or service the device.

9. This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under

supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must not play with the device. Cleaning and maintenance must not be performed by unsupervised children.

1. WARNING: Some parts of the product may be very hot and cause burns. Pay particular attention to children and sensitive person.
2. The device cannot be covered. It may result in overheating or fire.
3. Always inspect power cord, and do not operate heater with a damaged cord or plug. If the power cord becomes damaged, it should be replaced by the manufacturer, in a specialist repair workshop, or by a qualified person in order to prevent any hazards.
4. Disconnect the unit from the mains when you don't use it. Do not leave it with the switch off and/or with thermostat set to minimum when you don't use it.
5. Use the device at a safe distance from inflammable materials such as: curtains, paper, bedding, wooden or plastic elements, etc.
6. Do not cover or obstruct top and bottom air vents of the heater, otherwise will cause the heater overheating, to warn this, a phrase “Do not cover” and its symbol have been print near the top air vents of the heater.
7. Always switch off the device when you don't use it. While removing the plug from the socket do not pull by the power cord.
8. Do not allow children or animals to play around the device. Touching the outlet grate may result in burns.
9. Do not use it in the rooms where gas or other volatile or inflammable substances can occur.
10. The device should be cleaned with a dry or slightly wet cloth. During cleaning the device cannot be connected to the mains.
11. Before starting any maintenance or repair work always disconnect the device from the power source. In addition, do not

forget to let the device cool down.

1. Do not use the device in dusty rooms.

a. Store it in a clean and dry place.

1. The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors.

2. Its place of operation should provide stability. The power cord cannot run in the vicinity of hot air outlets. It cannot be bent or crushed or run in the neighborhood of sharp edges.

3. Do not insert any objects into the opening of the device's body.

4. Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

5. It must be possible to unplug the device after it is installed; access to the plug must be provided.

6. Do not use glue to fix the device. Gluing is not considered a reliable fastening method.

7. WARNING: Before switching the device on, make sure that the power characteristics comply with the parameters on the nameplate. This heater is equipped with a grounded type plug and must be plugged into a grounded type outlet. This is a safety feature: DO NOT REPLACE THIS PLUG!

PURPOSE

The device is intended for use in domestic or similar environments, such as:

• offices and other working environments
• use by clients in hotels, motels and other residential environments

SPECIFICATIONS

Model	CH-2000M/ CH-2000R	CH-2000MT*/ CH-2000RT*
Nominal power consumption	1800 - 2000W	1800 - 2000W
Maximum power	2000W	2000W
Heating power setting	750W, 1250W	750W, 1250W
Additional airflow TURBO*	-	+
Nominal voltage	220-240V, AC	220-240V, AC
Nominal frequency	50Hz	50Hz

*Models CH-2000MT and CH-2000RT with additional airflow TURBO

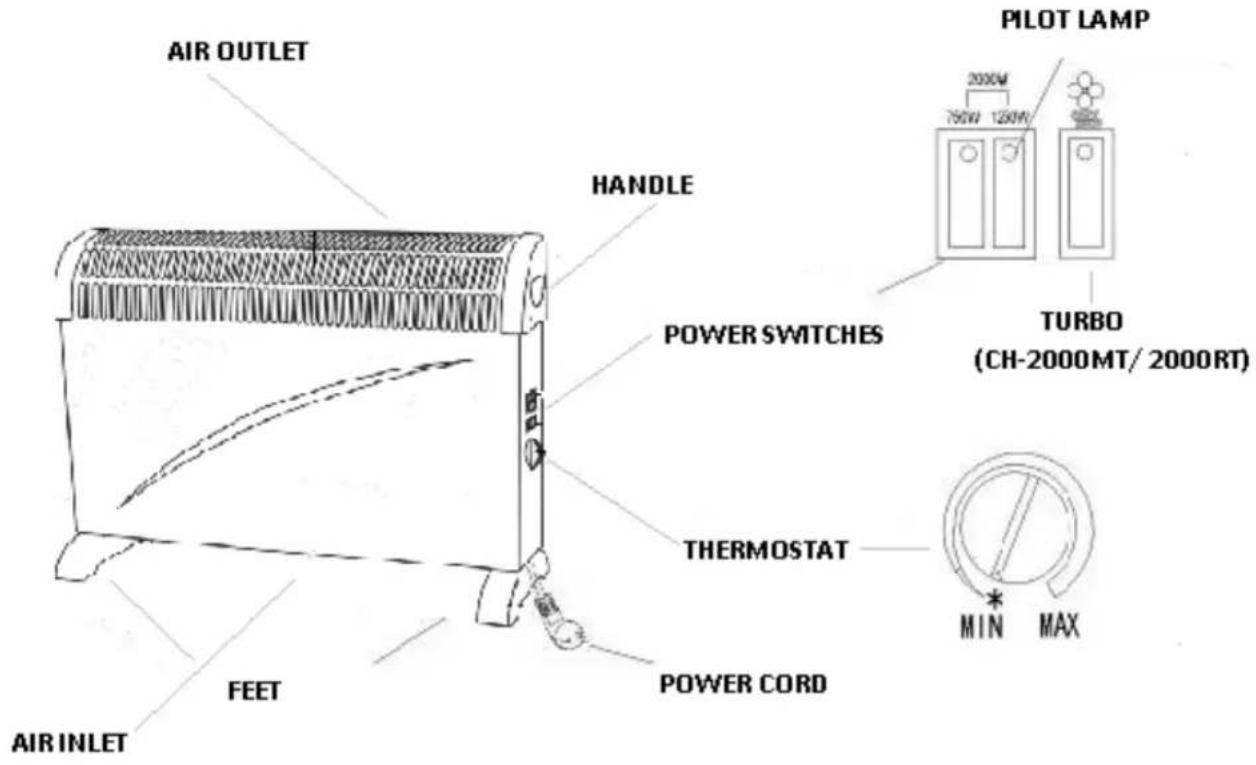

CONSTRUCTION

ASSEMBLY FOR FLOOR

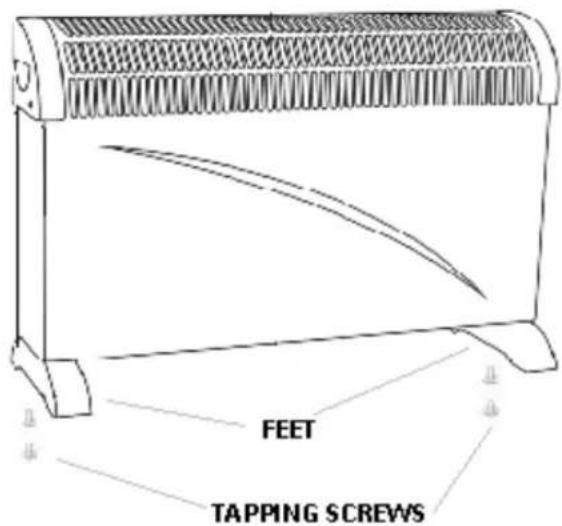

Before using the heater, attach the feet (included separately in the gift box) to the unit.

Attach to the base of the heater using the 4 tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater (see below).

The perfect place for the device is places where draughts are possible, such as near windows, in hallways, etc.

The device should be placed on a level and stable surface.

Technical line drawing of a mechanical component with a tool and a striped top section (no text or symbols)

OPERATION

It is normal for the heater to emit some odor when it is turned on for the first time, or after having not been used for a long period of time. A burning smell may be produced by the dust on the heating element. This will disappear when the heater has been on a short while.

1. Choose a suitable location for the heater, taking into account the safety instructions above.
2. Insert the plug of the heater into a suitable outlet (220-240V).
3. Once you plug the device in, switch the thermostat on by turning it slightly to the right until you hear a characteristic clicking sound.

4. Then put the thermostat in the selected position turning it further right.

5. You may adjust the device's power by means of the power switches on the side of the heater: (*) 750W – minimum power, (**) 1250W – medium power, (***) 2000W – maximum power. For maximum power 2000W - both switches should be on.

6. Once the heat output control knobs are on, control lights will be lit.

7. When the device heating elements heat to the values set by the User, the convection heater will switch off and when the heating elements' temperature falls down, it will automatically switch on.

8. You can control the heating intensity for the selected heat output by turning the thermostat left (without switching it off, you will hear a characteristic clicking sound) and to the right to MAX position.

9. You can enable TURBO function to switch on the additional air supply which will shorten the heating phase (for models CH-2000MT and CH-2000RT).

NOTE!

If you are not able to reach the desired temperature in room, it is necessary to use next device.

OVERHEATING PROTECTION

This device is equipped with fuse preventing overheating.

WARNING!

In the event that the thermal fuse is automatically engaged and the device is turned off due to the danger of overheating, it is necessary to disconnect the power cord from power source and to wait approx. 15 minutes until the device cools down. Only then will it be possible to turn it on again.

CLEANING THE HEATER AND MAINTENANCE

• Always un-plug the heater from the outlet.
- Allow it to cool down before cleaning.
- Clean the outside of the heater by wiping with a dry or slightly wet cloth and buff with a dry cloth. Do not use any detergents or abrasives and do not allow any water to enter the heater.

DO NOT:

• Install the device near furniture, curtains, below shelves, inside walls.
- Cover the device when it is turned on

TRANSPORT AND STORAGE

• When the heater is not used for long periods of time, it should be protected from dust and stored in a clean, dry place.
• Store out of reach of children. Protect against dust, humidity, and mechanical damage.
• Transport in the original packaging. Protect against dust, humidity, and mechanical damage.
  • Always let the device cool down prior to storage or transport.

FAILURES

If any damage is disclosed after purchase, contact the seller.

Follow the rules in this manual.

Do not modify the product.

When the device does not work, unplug it. Check if there is power in the socket the device is connected to. If power was not disrupted, do not attempt to repair the device on your own. Contact manufacturer's authorized service centre.

TECHNICAL SERVICE

All devices undergo a thorough post production control. If you still find any fault, you can ask technical service for help.

Before you talk to technical service, check if:

• There is power in the wall socket.
• You followed this manual when turning the device on.

Such a marking informs that this equipment cannot be disposed of together with other household waste. The user is obliged to pass the device to a company authorized to dispose of electronic/electric devices. Both the person who deals with direct disposal, shops and other local units make a system enabling to dispose of the device. Proper procedures concerning electric/electronic equipment disposal are intended to avoid any harmful impact to humans and environment resulting from dangerous components and improper storage or

processing of the devices. Substances having negative environmental impact have been reduced to make the product safer after its disposal.

Model identifier(s):		CH-2000M/CH-2000R/CH-2000MT/CH-2000RT
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,9/1,9/1,9/1,9	kW		manual heat charge control, with integrated thermostat	-
Minimum heat output (indicative)	P_min	0,7/0,7/0,7/0,7	kW		manual heat charge control with room and/or outdoor temperature feedback	-
Maximum continuous heat output	P_max	1,9/1,9/1,9/1,9	kW		electronic heat charge control with room and/or outdoor temperature feedback	-
Auxiliary electricity consumption					fan assisted heat output	-
At nominal heat output	el_max	-	kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	-	kW		single stage heat output and no room temperature control	no
In standby mode	el_SB	-	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	yes
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Ravanson Ltd. ul. Mazowiecka 6, 09-100 Płońsk, Polska
