Product Type	Portable Thermoelectric Cooler/Warmer
Brand	Ravanson
Model	CS-24
Capacity	24 Liters
Cooling Technology	Peltier (Semiconductor) – no compressor or coolant
Cooling Performance	Approximately 12–15°C below ambient temperature (min. +8°C)
Heating Function	Yes, for keeping pre‑heated food warm (not for heating cold food)
Power Supply (DC)	12V DC from vehicle lighter port (only – AC not supported for CS‑24S)
Power Consumption – Cooling	45 W (12V DC)
Power Consumption – Heating	40 W (12V DC)
Control Panel	Function switch (OFF/COLD/HOT), Power switch (OFF/DC), LED indicators (green for cool, red for heat)
Ventilation Requirement	Ensure free air circulation around the unit; do not cover ventilation holes
Recommended Use	Short‑term storage of pre‑cooled food and drinks; not a substitute for a domestic refrigerator
Maximum Continuous Operation	6 days, then switch off for at least 2 hours to defrost the radiator
Cleaning	Wipe interior and exterior with a slightly damp, soft cloth and mild detergent; do not use solvents or abrasive cleaners
Safety Features	Overheat protection via ventilation; do not immerse in water; check power cord for damage before use
Weight (approx.)	4 kg (estimated)
Dimensions (approx.)	40 × 25 × 35 cm (estimated)
Accessories Included	12V DC power cord with cigarette lighter plug
Disposal	Do not dispose with household waste; take to an authorized electronic waste recycling center

Frequently Asked Questions - CS-24 Ravanson

How does the Ravanson CS-24 work?

The CS-24 uses a Peltier cell (semiconductor) to cool or heat the interior. When powered via 12V DC, it can cool the contents to about 12–15°C below ambient temperature or warm them for short periods.

Can I use it as a refrigerator at home?

No, the CS-24 is designed for short‑term portable use (e.g., in a car) and is not a substitute for a domestic refrigerator. It only maintains a temperature difference relative to the environment.

What temperature can I expect in cooling mode?

In ideal conditions, the interior will be 12–15°C cooler than the surrounding air, with a minimum achievable temperature of about +8°C. Actual performance depends on ambient temperature, load, and ventilation.

How do I switch between cooling and heating?

First, turn the device off using the power or function switch. Open the lid for about 30 minutes to let the interior reach room temperature, then select the desired mode (COLD or HOT) with the function switch and turn the device back on.

Can I plug it into a wall outlet?

The CS-24 model (CS‑24S) is designed for 12V DC only (vehicle lighter port). Do not connect it to a standard 220–240V AC wall outlet, as that could damage the device. Other models like CS‑24S SUPER are compatible with both 12V DC and 230V AC.

How should I clean the cooler?

Disconnect the power first. Use a slightly damp, soft cloth with a mild detergent to wipe the inside and outside. Never use harsh solvents, petrol, or alcohol, and never submerge the device in water.

Why is my cooler not cooling?

Check that the power switch is set to DC and the function switch is in COLD mode. Ensure the 12V lighter socket is working and the fuse in the plug is intact. Verify that ventilation holes are not blocked and the unit has free airflow.

How long can I run the cooler continuously?

The manual recommends a maximum of 6 days of continuous operation. After that, switch it off for at least 2 hours to allow the aluminum radiator to defrost and prevent frost buildup.

Is it safe to leave it on overnight?

Yes, as long as the unit is placed on a stable surface with adequate ventilation and the power cord is undamaged. However, do not cover the cooler or block its ventilation holes to avoid overheating.

Can I put ice or liquids inside the cooler?

No, do not fill the interior with ice, water, or any liquid directly. The device is designed for solid food and packaged drinks only. Moisture can damage the electronics.

USER MANUAL CS-24 Ravanson

ENG User's man+al Car Cooler

DE Bedien+ngsanleit+ng A+to-Kühlbox

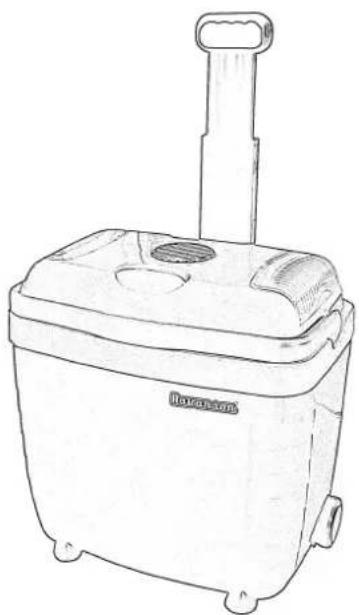

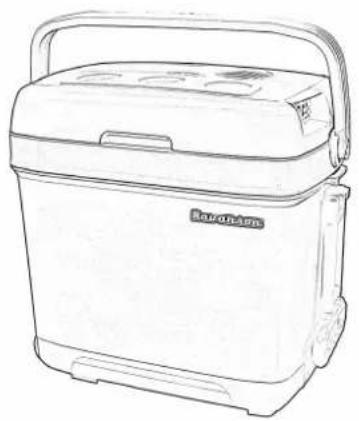

Line drawing of a simple rectangular toolbox with handle and lid (no text or symbols)

Line drawing of a portable electric water heater with lid and handle (no text or symbols)

Line drawing of a portable kitchen appliance with a chimney and side-mounted lid (no text or symbols)

MODEL: CS-24S/ CS-24S SUPER/ CS-25 S SUPER/ CS-28S SUPER/ CS-30S SUPER /CS-33S SUPER/CS-45S

Ravanson®

Ravanson Ltd. Sp. z o.o. ul. Mazowiecka 6, 09-100 Płońsk, Polska

tel.: [phone], fax: [phone]

www.ravanson.pl

We wo+ld l]ke to con[rat+late yo+ on (+rchas]n[ the (rod+ct and welcome amon[ Ra9anson Users!

Before f]rst +se, read thoro+[hly th]s o(erat]on man+al. Please kee( th)s o(erat]on man+al ]n order to be able to +se ]t at any t]me, beca+se ]t conta]ns ]m(ortant ]nformat]on.

Before f]rst +se, read caref+lly e9ery warn]n[s and safety ]nstr+ct]ons.

To red+ce the r]sk of f]re, electr]c shock or ]nj+ry, ]t ]s necessary to follow the t](s (resented below.

Please kee( th)s warn]n[s and safety ]nstr+ct]ons ]n order to be able to f+t+re +se.

I. SAFETY INSTRUCTIONS

A. GENERAL SAFETY

WARNING: To red+ce the r]sk of f]re, electr]c shock or ]nj+ry, ]t ]s necessary to follow the t](s (resented below:

1. This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must not play with the device. Cleaning and maintenance must not be performed by unsupervised children.
2. Children are not aware of dangers that may arise during the use of electric devices.
3. Device keep away from children.
4. Before every use, check the power cord for damage
5. Do not operate the appliance with a damaged cord.
6. Always disconnect the unit from the power source before removing accessories, before cleaning, after use and when the device is not working properly.
7. When removing the plug from an outlet, pull it out by the plug rather than the cord.
8. Do not allow the power cord to touch sharp edges or hot surfaces. Damaged supply cable can cause electric shock.
9. Do not touch wet areas in contact with the plugged device. Unplug the device immediately.
10. You can not remove any part of the housing.
11. Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

B. SAFETY DURING OPERATION

1. Before starting the device, insure that the plug and the cord were dry.
2. Do not place the device in close proximity to open flames or other heat source.
3. Do not use device in the rooms where gas or other volatile or inflammable substances can occur.
4. Do not insert any objects into the opening of the device's body.
5. Keep away from direct sunlight, humidity, raindrops and snowflakes.
6. Protect from h+m]d]ty!
7. Do not s+bmer[e]n water!
8. Use only ]n 9ert]cal (os)t]on!
9. ATTENTION! Dan[er of o9erheat]n[! Do not cover the ventilation hole. Please ensure proper device distance from walls and other objects to allow for the free circulation of air.
10. Do not fill liquid or ice directly inside the unit.
11. Protect device and power cord from heat and humidity.

NOTE!

The manufacturer is not liable for the use does not conform to specifications, or improper handling.

II. INTENDED USE

The device is designated for short-term storage of food cooled in the domestic refrigerator and for cooling drinks. The cooling system is based on the semi-conducting Peltier cells without the compressor and coolant.

ATTENTION!

The de9ice is not designated for cooling warm or hot food!

NOTE!

The fridge cools food products to about 12 - 15°C below ambient temperature. The device is not a substitute of a domestic refrigerator.

The cooling temperature depends on multiple factors, e.g. ambient temperature, quantity of cooled products, products' temperature.

In favourable conditions, temperature decrease by 12 - 15°C below the ambient temperature may take place in about 2 hours of continuous operation. (min + 8°C)

ATTENTION!

The fridge with a heating f+nction is not designated for heating prod+cts. It can be +sed solely for extending the cool-down time for prod+cts pre-heated in designated de9ices.

III. TECHNICAL PARAMETERS

Model Voltage	[V]	Nominal power cons+mption for cooling [W]	Nominal power cons+mption for heating [W]	Capacity [l]
CS-24S	12V - d.c. 45 40	24
CS-24S S+per	12V - d.c. 45		40	24
	230V, 50Hz	Max 60 55
CS-25S S+per 12V	- d.c.	50 45 25
	230V, 50Hz	60 50
CS-30S S+per	12V - d.c.	50	42	30
	230V, 50 Hz	60 48
CS-28S S+per	12V - d.c.	53	48	28
	230V, 50Hz 62 55
CS-33S SUPER 12V	d.c. 46 42			33
	220-240V	57 55
CS-45S	12V - d.c. 55 50			45
	230V, 50Hz 62 55

IV. GENERAL GUIDELINES FOR USE

NOTE!

Before first use, clean the inside of the appliance by wiping with a slightly wet (not wet) cloth with mild detergent.

1. The fridge is not designated for continuous operation. Frost can accumulate on the aluminium radiator. Switch the fridge off after 6-day operating period. The device can be switched on again after 2 hours.

2. To prevent condensation, dry the surface of cooled meals and drinks thoroughly.

3. During operation (ref. 12V supply) ensure there is no recurring voltage interruption when the vehicle engine is switched on and off frequently.

ATTENTION!

When the fridge is powered by means of a vehicle battery, during stops it can discharge it significantly which can hinder vehicle engine activation.

NOTE!

Temperature change in the insulated fridge container (frequent opening or switching off) leads to natural phenomena in the form of frost or condensation on the container walls, on the cover inside and on the food products.

V. OPERATION

Place the refrigerator on a stable and level surface. Connect the power cord to the power source. The fridge will start cooling or heating the internal chamber immediately.

ATTENTION!

After reach]n[ the m]n]m+m/max]m+m tem(erat+re the de9]ce does not t+rn off a+tomat]cally.

The cool]n[ system o(erates cont)n+o+sly when ]t ]s connected to the (ower so+rce and the f+nct]on and (ower sw)tches are ]n the work mode.

ADVICES TO ACHIEVE THE BEST COOLING PERFORMANCE:

• Choose a well ventilated place for the fridge. Protect against sunlight
  • Always put pre-cooled food/drinks in the fridge
• Do not open the refrigerator more than necessary
• Do not open for longer than is necessary

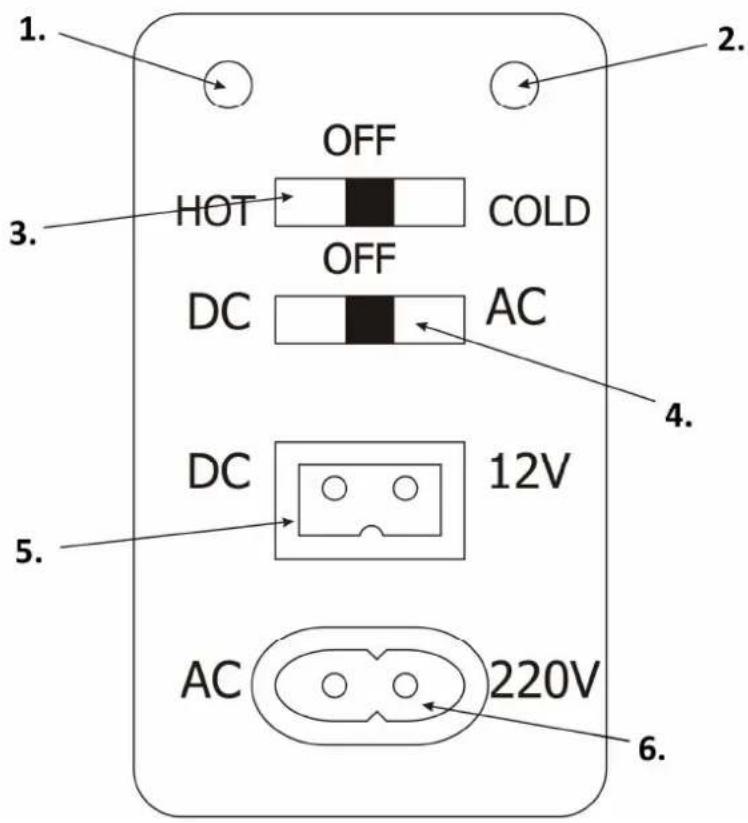

A. CONTROL PANEL

1. Cooling indicator
2. Heating indicator
3. Function switch
4. Power switch
5. Power port 12V (DC)
6. Power port 220-240V, 50Hz (AC)

NOTICE!

Depending on the fridge model, the control panels can differ.

B. POWER CONNECTION

ATTENTION!

CS-24S model can be powered ONLY from the 9vehicle lighter port (12V - DC)!

BEFORE CONNECTING:

1. Check if the FUNCTION SWITCH is in the 8OFF8 position
2. Check if the POWER SWITCH is in the 8OFF8 position
3. Connect the appropriate power cord, depending on the power source:

a. From the vehicle lighter port 12V to the fridge port marked as 8DC 12V8

b. From the mains 220-240V to the fridge port marked as 8AC 220V8

1. Put the POWER SWITCH in the position corresponding to the power source:

a. DC - power supply from the vehicle lighter port 12V
b. AC - from the mains 220-240V

1. Insert the plug to the power port

2. Using the FUNCTION SWITCH switch to the selected work mode (8COLD8 for cooling and 8HOT8 for heating). The selected work position is indicated by a red LED for heating or by a green LED for cooling

The device can be switched off any time by putting the POWER SWITCH or FUNCTION SWITCH in the 8OFF8 position.

ATTENTION!

• Do not connect two power cables at the same time!
• Changing the power s+pply type with a switch d+ring the de9ice operation may damage the de9ice and render the g+arantee 9oid.

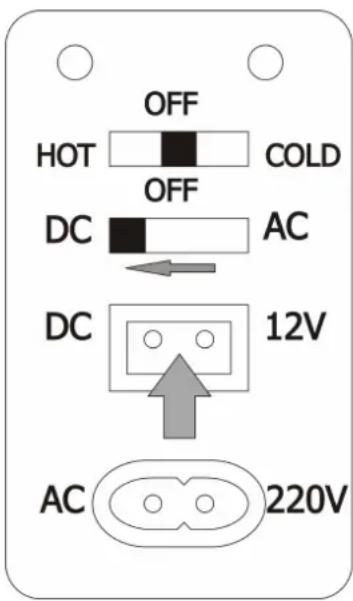

12V connection -
power supply from the vehicle lighter port

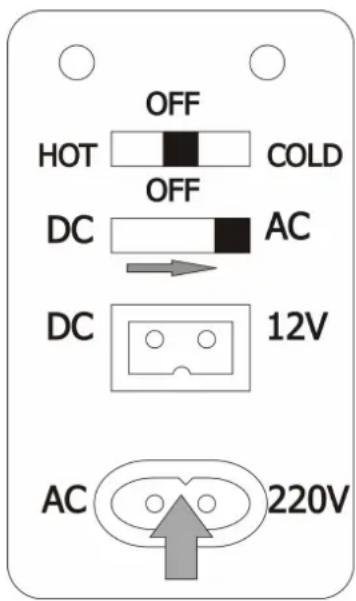

220-240V, 50Hz connection -
mains power supply

C. SWITCHING THE WORK MODE

ATTENTION!

Do not sw]tch the heat]n[f+nct]on (HOT) or cool]n[f+nct]on (COLD) when the de9]ce operates!

Before you switch to the cooling function (COLD) from the heating function (HOT) or to the heating function (HOT) from the cooling function (COLD) you always should:

1. Switch the device off
2. Open the fridge for about 30 minutes to ensure equal temperatures
3. Switch the function and turn the device on

VI. CLEANING, MAINTENANCE, TRANSPORT AND STORAGE

ATTENTION!

1. Before any cleaning, disconnect the power cord from the outlet.
2. Never clean the device with running water.
3. clean the inside and outside of the appliance by wiping with a slightly wet (not wet), soft cloth with mild detergent. Do not use solvents, petrol, alcohol and other measures that would damage the device. For cleaning do not use harsh detergents.
4. Store out of reach of children. Protect against dust, humidity, and mechanical damage.
5. Transport in the original packaging. Protect against dust, humidity, and mechanical damage.

VII. POSSIBLE DISRUPTION

First ensure the operating instructions were followed for the fridge and then check:

• If the power cable is connected correctly and if the lighter operates as appropriate?
- If the POWER SWITCH is in the position corresponding to the power source?
- If the fridge is placed in a way ensuring unrestricted circulation of air and ventilation of the chilling unit?
- If the fuse in the power cable plug 12V is OK?
- If there is voltage in the power socket 220-240V?

If you are unable to remove any defects in operation, please contact the authorized warranty service.
