Product Type	Dashcam / Car Video Recorder
Brand	Xblitz
Model	A2 GPS
Display	1.5-inch IPS (240x240)
Front Camera Resolution	1920x1080 (Full HD)
Rear Camera Resolution	640x480 (VGA)
Front Camera Viewing Angle	140°
Rear Camera Viewing Angle	120°
Video Format (Front)	MOV
Video Format (Rear)	AVI
Photo Format	JPG
G-Sensor (Accelerometer)	Yes
Parking Mode	Yes (records on impact detection)
Loop Recording	Yes (selectable 1/3/5 min)
Motion Detection	Yes
Built-in GPS	Yes (records speed and coordinates)
WDR (Wide Dynamic Range)	Yes
Memory Card Support	Micro SD up to 64GB Class 10 (FAT32)
Power Supply	5V / 1.5A car charger (included)
Battery	Built-in rechargeable
Dimensions (without handle)	45 x 50 x 18 mm
Weight (without handle)	50 g
Warranty	24 months
Water Resistance	Rear camera splash-proof; front camera interior use only
Included Accessories	Video recorder, magnetic mount, rear camera with cable, car charger, memory card reader, manual

Frequently Asked Questions - A2 GPS Xblitz

What should I do if the device does not turn on or off?

Check if the cigarette lighter socket provides permanent power. If so, the device may not turn off automatically. Try using a switched power source.

Why does the device restart while driving?

This is often due to an unstable power source. Ensure the car charger is firmly connected and the socket provides consistent power. Try using the original charger.

How do I enable loop recording properly?

Make sure motion detection is disabled in the settings. When motion detection is on, it can interfere with loop recording. Set loop time to 1, 3, or 5 minutes.

What does 'card full' mean and how to fix it?

The memory card is full of protected files. Check the G-sensor and parking mode settings; set them to minimum or off to avoid unnecessary file protection. Also format the card to FAT32 on a computer and then in the camera.

The device is not responding. How to reset it?

Press the RESET button (located near the multi-pin connection) with a pin. If that fails, restore factory settings via the menu (Default settings).

Why are there horizontal stripes in the video?

This is caused by incorrect frequency setting. In the general settings, select 50 Hz for Europe or 60 Hz for the USA/other regions.

How does the GPS function work?

The built-in GPS module records the vehicle's speed and current coordinates. This information can be displayed on the video when playback is viewed with compatible software.

Can I install the rear camera outside the car?

Yes, the rear camera is splash-proof and can be mounted outside the vehicle. Ensure the cable is routed securely and the camera is not submerged in water.

How to properly format the memory card?

Before first use, format the micro SD card to FAT32 file system using a computer. Then insert it into the camera and use the 'Format' option in the general settings. Always turn off the camera before inserting or removing the card.

What should I do if parking mode doesn't work?

Parking mode requires the camera to be connected to a constant power source (e.g., direct battery connection). It detects impacts and records a short protected video, then turns off to save battery. Ensure the battery is sufficiently charged or the camera is hardwired.

USER MANUAL A2 GPS Xblitz

Black and white photo of a black BLITZ A2 video camera with lens and head mount (no visible text or symbols on body)

A

B

Top-down schematic of a car's interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

INSTRUKCJA OBSŁUGI

WIDEOREJESTRATOR

Thank you for choosing an Xblitz video recorder!

The camera is designed for video recording of vehicle routes and traffic incidents.

Carefully read the enclosed operating instructions and safety notes before use.

01. KIT

1. Video recorder
2. Magnetic mounting bracket
3. Rear camera with cable
4. Car charger
5. Memory card reader
6. Operating instructions

02. PRODUCT DESCRIPTION

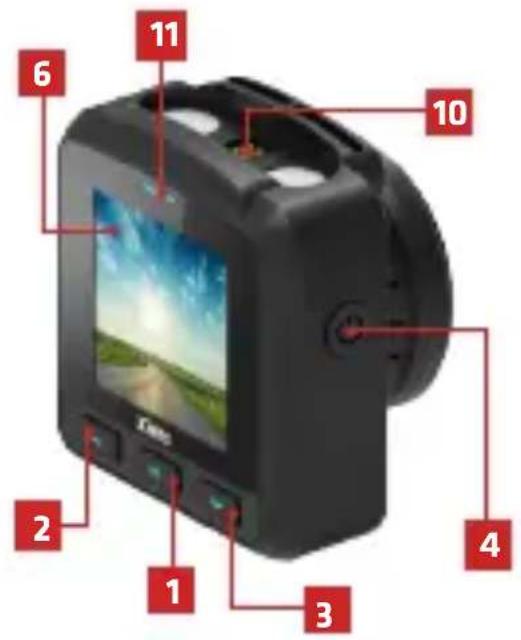

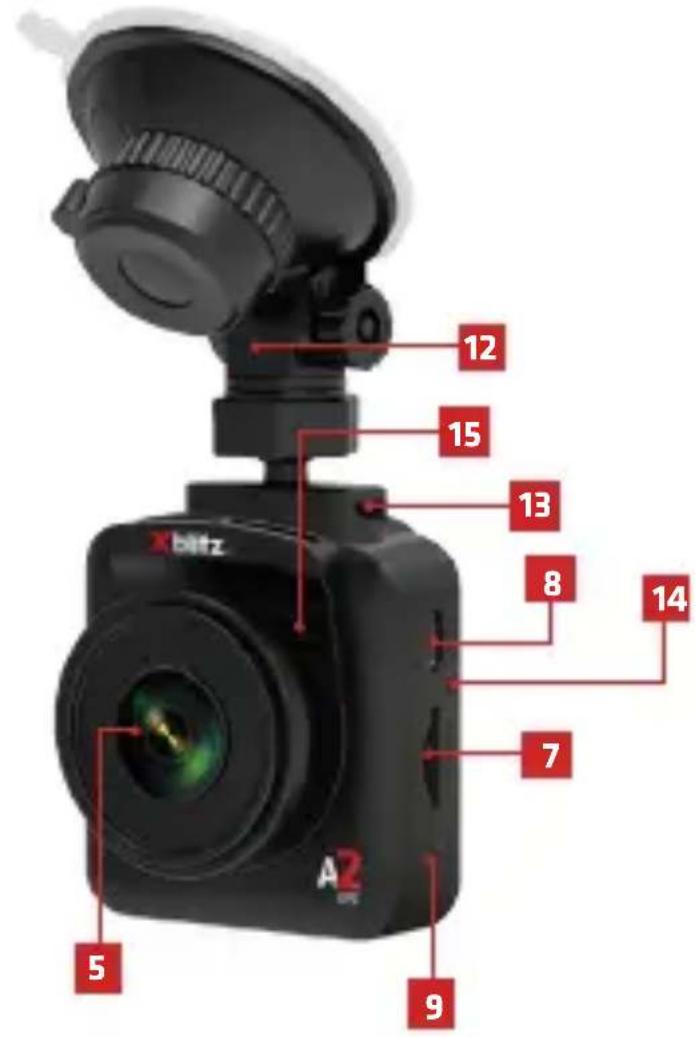

SEE FIG. A

1. Menu button
2. Up button
3. Power button
4. Down button
5. Lens
6. Display

7. MicroSD card slot

8. Micro-USB port (rear camera)

9. Reset button
10. Multi-pin connection
11. LED
12. Handle
13. Micro-USB port (camera charging)
14. Microphone
15. Speaker

03. MAIN FEATURES OF THE CAMERA

1. Operating modes. The camera has three modes of operation: recording mode (video recording), photo mode (taking photos), and playback mode (viewing footage recorded by the camera)
2. Loop recording. The camera divides the recording files according to the selected time set by the user. When the memory card fills up the oldest recording will be overwritten.
3. GPS. The built-in GPS module is responsible for displaying information about the vehicle's speed and its current coordinates in the camera recordings.
4. G-Sensor. Otherwise known as an accelerometer. When the sensor is activated at the time of a shock (e.g. collision), the recording file is protected from being overwritten. It is recommended that the lowest available value is set, as at a higher value the camera may pick up shocks caused by unevenness of the road, which can cause the memory card to become full.
5. Parking mode. When enabled, the camera catches a jolt from the car (for example during a parking bump), turns on, and starts recording a short video (recordings are automatically protected against overwriting). It is advisable to switch this function off for the duration of the drive, as it may block loop recording. Note: To ensure that the camera properly records a full-length recording, make sure the battery level is sufficient, or leave the camera under a constant power source.
6. Rear view camera. The included rear view camera captures the image behind the car. Where it is installed depends on the user's preference. The camera is splash-proof and can be placed outside the vehicle.
7. Motion detection mode. When enabled and the camera is running left under constant power when the lens detects movement, it will start recording video.

04. BEFORE USE

1. The use of branded microSD cards is recommended.
2. Before inserting the card into the recorder, it must be formatted to FAT32.
3. The camera must be switched off when inserting the memory card,

otherwise the card and the device may be damaged. The same applies when removing the card from the device.

1. When the memory card fills up, the oldest unprotected recordings are overwritten. to

2. It is recommended to set the G - SENSOR option to the minimum to avoid securing unnecessary material and thus losing space on the memory card.

05. MONTAGE

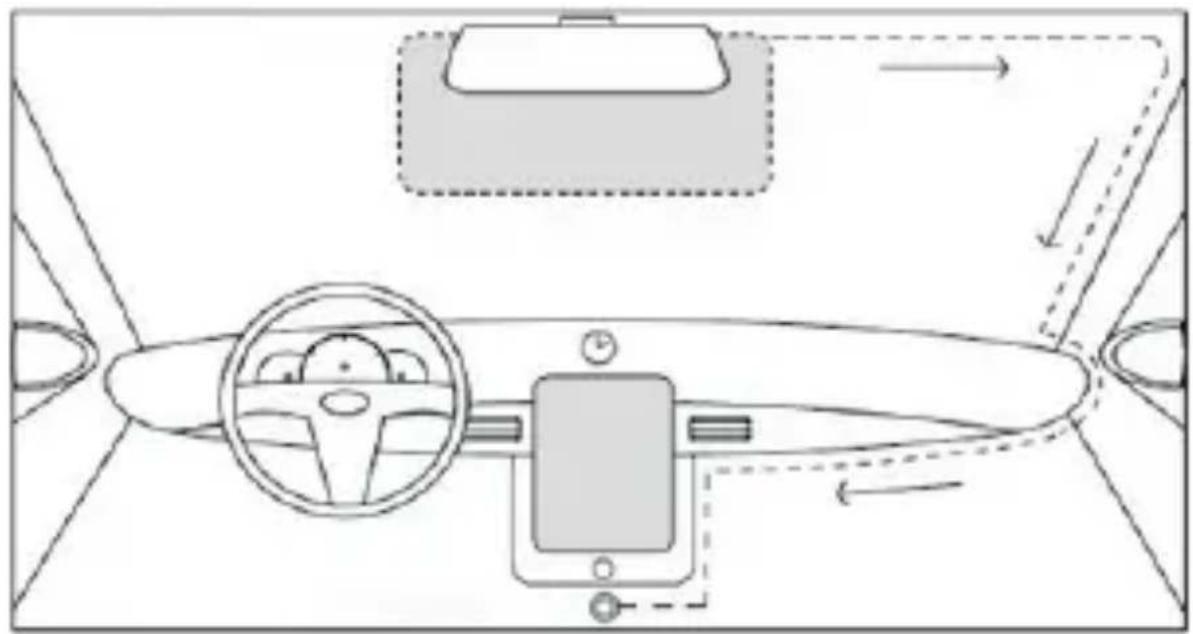

SEE FIG. B

1. Select and clean the camera mounting location.
2. Mount the camera.
3. Insert the memory card into the slot in the camera.
4. Place the camera in the mount.
5. Point the camera lens towards the roadway.
6. Connect the power supply to the camera.
7. Route the power supply cable so that it does not obstruct your view while driving.
8. Plug the power supply plug into the car's cigarette lighter socket.
9. Install the rear camera according to your preferences.

06. MENU FUNCTIONS

1. Video settings

a) Recording resolution: 1080p/720p/VGA
b) Loop time: off /1 min./3 min./5 min.
c) WDR: enable/disable wide dynamic range recording mode
d) Exposure: video exposure value settings
e) Motion detection: off/on
f) Audio recording: off/on
g) Date stamp: enable/disable information about the date and time of the recording in the video file
h) G-sensor: off/low/medium/high
i) Parking mode: off/on
j) Loop recording: time of single recordings: 1min/3min/5min
k) GPS information: GPS position data of the video recorder

1. General settings (press and hold the MENU button to access the general settings)

a) Screen saver: off/ 30 seconds/1 min./2 min.
b) Frequency: 50 Hz/60 Hz
c) Menu sounds: off/on
d) Language: choice of language
e) Date/time: date and time settings
f) Time zone: selection of time zone

g) Format: micro SD card formatting
h) Default settings: restore the device to default settings
i) Version: information about the firmware version

3. Photo settings

a) Capture mode: delay settings for the image being captured.

b) Resolution: selection of photo resolution

c) Continuous shooting: on/off

d) Quality: low/medium/high

e) Sharpness: low/medium/high

f) White balance: automatic/daylight/cloudy/tungsten

g) Color: normal/ black and white/sepia

h) ISO: Auto/100/200/400

i) Exposure: selection of exposure values

j) Anti-shock mode: on/off.

k) Quick view: off /2 s./5 s. (setting the display time of the photo after it has been taken)

I) Date stamp: enable/disable information about the date and time of the recording in the video file

07. DESCRIPTION OF THE KEY FUNCTIONS

1. Power

a) Longer press: switching on/off the device.
b) Short press: start/end recording - video mode. Taking a photo - photo mode. Start playback - view mode. Confirm selection - camera settings.

2. Menu

The camera is not recording:

a) Short press: switch between camera modes and the "back" function in the menu.
b) Longer press: activate the camera menu and switch between video and general settings.

The camera records:

a) Short press: switch between camera modes (interrupt recording).

b) Longer press: protects the current loop from being overwritten.

3. Top/bottom

Navigating in the settings menu and scrolling forwards/backward in browse mode.

4. Reset

When the device hangs up and cannot be switched on or off normally, press the reset button to reset the device and restart it.

08. PRECAUTIONS

1. Do not disassemble the camera yourself or interfere with its construction. In

the event of a malfunction, contact the service department.

1. Use only original accessories.

2. Use only the original charger supplied. The use of any other power supply may adversely affect the performance of the device, battery, or GPS module.

3. The device may not be used in contravention of the laws of your country or region.

4. Permissible operating temperatures are 0-35 °C, storage temperatures 5-45 °C.

5. Do not subject the device to damage or impacts.

6. Take care of the cleanliness of the product, especially the lens. Do not use detergents or chemicals when cleaning.

7. Clean only when the unit is unplugged.

8. Keep the device out of the reach of children.

9. Do not expose the device to very high temperatures or fire.

10. If you smell burnt plastic or electronics from the camera, unplug the unit as soon as possible and contact the service.

11. The device is designed for use inside the car. It should not be exposed to water or dust. The exception is the rear view camera, which is splash-proof and can be mounted outside the vehicle. It should not be submerged in water.

09. FAQ

1. The device does not switch on/off. The reason may be a permanent power source in the cigarette lighter socket.

2. The device restarts while driving. It is recommended to check the power source.

3. The device does not record in a loop (it records randomly). Check the settings of the “motion detection” function - it should be switched off.

4. The device shows the message "card full". Check the "G-sensor" and "parking mode" functions and set them to minimum. The card must be formatted in FAT32 format first on the computer and then on the recorder.

5. The device is not responding. Briefly press the RESET button or restore the device to factory settings.

6. There are transverse stripes in the video. Incorrect setting of the frame rate value. Set the frequency value to 50Hz or 60Hz depending on local settings.

10. NOTE

1. Due to continuous product improvement, the manufacturer reserves the right to make changes to the device and its kit without prior notice. Some functions described in this manual may differ slightly from reality.

2. Use only the original charger. Do not connect directly to a 220/230V socket. Failure to do so may damage the camera or lead to dangerous situations.

3. The Parking Mode function only works on direct battery power or battery power (if the device has one). When an impact is detected (depending on the sensitivity of the sensor set), the camera starts recording and switches off, which allows the device to remain in standby mode for as long as possible. Parking mode recordings may be of lower quality due to the lower frame rate characteristic of this mode. The manufacturer accepts no responsibility for any damage not recorded when using parking mode.

11. SPECIFICATION

Display: 240x240; 1,5" IPS | Front camera viewing angle: 140° | Rear camera viewing angle: 120° | Front camera recording resolution: 1920x1080 | Rear camera recording resolution: 640x480 | Front camera video recording format: MOV | Rear camera video recording format: AVI | Photo format: JPG | G-Sensor: YES | Parking mode : YES | Loop recording: YES | Micro SD memory card support up to 64 GB class 10 | Power supply: 5V/1.5A | Battery: built-in | Dimensions (without handle): 45 x 50 x 18 mm | Weight (without handle): 50 g

12. WARRANTY/COMPLAINT CARD

This product is covered by a 24-month warranty. The warranty conditions are available on the website: https://xblitz.pl/gwarancja/

Complaints should be submitted with the complaint form which can be found at: http://reklamacje.kgktrade.pl/

Contact details and the address of the service can be found on the website: www.xblitz.pl

KGK Trade declares that the XBLITZ A2 GPS complies with the essential requirements of Directive 2014/53/EU. The text of the declaration can be found at the link: https://xblitz.pl/download/DOC/deklaracja-UE-Xblitz-A2-GPS.pdf

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.
