MO-121235.1 - Oven Emerio - Free user manual and instructions

Product Type	Multi Oven
Brand	Emerio
Model	MO-121235.1
Power Consumption	1300W
Voltage	220-240V~50/60Hz
Heating Functions	Top heat, Bottom heat, Combined top and bottom
Temperature Range	Up to 230°C (based on recommended cooking table)
Timer	Mechanical timer with audible bell, up to 60 minutes (estimated)
Control Type	Knobs for temperature, function, and timer
Accessories	Baking tray, Wire rack, Tray handle
Door Type	Glass door with handle
Interior Light	Not specified
Safety Features	Auto shut-off via timer, caution for hot surfaces, keep away from children
Cleaning	Wipe exterior with damp cloth; wash accessories in hot soapy water; do not immerse appliance
Warranty	2 years
Usage	Household use only

Frequently Asked Questions - MO-121235.1 Emerio

How do I preheat the oven?

Select the desired function (top, bottom, or both) using the function knob, turn the temperature knob to the desired temperature, and set the timer to preheat. Wait about 5-10 minutes before placing food inside. The indicator light will remain on during preheating.

Can I use metal containers or aluminum foil?

Yes, you can use metal baking pans and aluminum foil in this conventional oven. However, ensure they do not touch the heating elements. Always use the provided baking tray or wire rack as recommended.

What should I do if the oven does not heat up?

First, check that the power cord is plugged into a working outlet and that the timer knob is set to a time other than 'OFF'. Ensure the function and temperature knobs are set correctly. If the indicator light does not turn on, the oven may not be receiving power. Try a different outlet or contact customer service.

How do I clean the oven?

Unplug the oven and let it cool completely. Wipe the exterior and interior with a damp, lint-free cloth. Do not use abrasive cleaners. Wash the baking tray, wire rack, and tray handle in hot soapy water, rinse, and dry. Do not place any parts in the dishwasher. Never immerse the oven body in water.

Can I use the oven without the baking tray?

Yes, you can place food directly on the wire rack, but it is recommended to slide the baking tray underneath to catch dripping oils. For foods like pizza or baked goods, use the baking tray directly.

What is the maximum cooking time?

The mechanical timer has a maximum setting of approximately 60 minutes. For longer cooking times, you can reset the timer after it rings. Always monitor the cooking process to avoid overcooking.

Is this oven suitable for baking cakes?

Yes, it is suitable for baking cakes. Use the combined top and bottom heat function, preheat to the recommended temperature (e.g., 180-200°C), and place the cake pan on the wire rack. Adjust time and temperature as needed.

Why does the indicator light stay on after cooking?

The indicator light only turns off when the timer knob is turned to the 'OFF' position. If you set the timer and it completes, the light goes off automatically. If the light remains on, ensure the timer is set to 'OFF' after use.

Can I leave the oven unattended while in use?

No, the manual explicitly states: 'Do not leave the appliance unattended while in use.' Always stay nearby to monitor cooking and avoid hazards. Use oven mitts when handling hot items.

What do the different function positions do?

The function knob has three settings: top heat (upper heating element only), bottom heat (lower heating element only), and combined (both elements). Top heat is good for browning, bottom for crisping, and combined for general baking and roasting.

USER MANUAL MO-121235.1 Emerio

Black standard microwave oven with control knobs and a clear glass door (no visible text or symbols)

Multi-Backofen (DE)

Multi Oven (EN)

Cuptor electric universal (RO)

Instruction manual – English ...... - 7 -

VOR DEM GEBRAUCH

Before using the appliance, the user should read the following instructions carefully.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. This appliance is intended to be used in household and similar application such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

7. Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects.

8. Protect against electrical shock, do not immerse cord, plug or body in water or any other liquid.

9. Always plug the appliance into an earthed plug socket.

10. Unplug from power outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts.

11. While using the oven, do not apply water to the glass door, otherwise the door may get broken.

12. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the distributor (or any authorized service facility) for examination, repair or adjustment.

13. The use of accessory attachments not recommended by us may cause injuries.

14. Do not use outdoors.

15. Do not let supply cord hang over edge of tables or counters, or touch hot surfaces.

16. Do not place the appliance on or near heat sources such as a gas or electric burner.

17. Caution must be taking hard when putting in or removing food out from appliance.

18. Do not leave the appliance unattended while in use and remove the plug from wall socket after use.

19. Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any inflammable materials, and do not position any objects on top of the appliance.

20. Warning: When in use, the oven is hot! Never touch the hot surfaces and the glass door. Use handles or knobs.

21. The oven can't be put into the water or washed with water.

22. This product is for household use only.

23. The appliance should be stood on a level, stable and clean surface while it is in use.

24. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

25. When operating the oven, keep at least four inches of free space on all sides (except back side) of the oven to allow for adequate air circulation. And the rear surface of appliances shall be placed against wall.

26. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. The oven must be placed against a wall. Regarding the information pertaining to the cleaning of the appliance, please refer to the below paragraph of the manual.

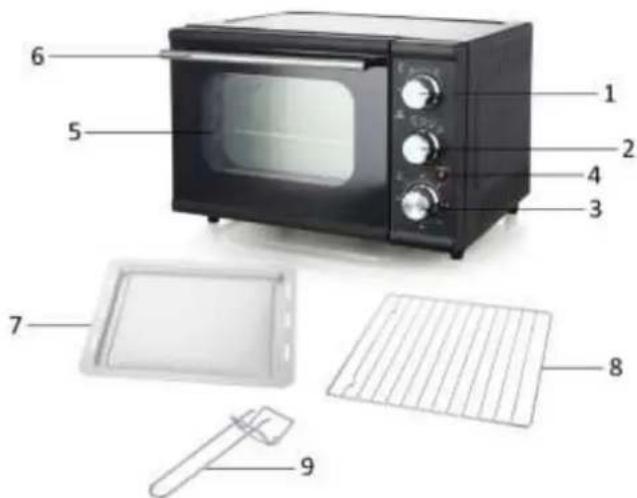

PARTS DESCRIPTION

1. Temperature knob
2. Function knob
3. Timer knob
4. Indicator light
5. Glass door
6. Door handle
7. Baking tray
8. Wire rack
9. Tray handle

BEFORE USE

• Remove all packaging materials from the appliance. Clean the appliance according to the section "How to clean" below.
  • Make sure the appliance is unplugged and the timer knob is set at position "OFF".
• Before initial use, it is recommended that you run the oven with the function “☐” for approximately 15 minutes to eliminate the remaining packing residue and odor.

OPERATION

1. Place the appliance on a flat and heat resistant surface. Make sure that there is enough ventilation around the appliance.
2. Insert the power plug into the socket.
3. Slide the wire rack with food into the slot of the appliance. And then slide the baking tray under the wire rack to collect the dripping oils. You can also directly put food on the baking tray itself. Choose your desired rack position according to the food height and type.
4. Close the oven door, and turn the function knob to choose the desired function “☐” (The top element will heat.), “☐” (The bottom element will heat.), or “☐” (Both top and bottom elements heat simultaneously.). Turn the temperature knob to choose the desired temperature.
5. Turn the timer knob to select desired cooking time. The indicator light will be on.
6. When the cooking is finished, you will hear the timer bell rings. You can also switch off the appliance manually by turning the timer knob to "OFF". The indicator light will be off.
7. When finished cooking, turn the oven function knob back to position "OFF".

RECOMMENDED COOKING TABLE

MEAT	OVEN TEMP	COOKING TIME
RIB STEAK	230	20-25MIN
T-BONE STEAK	230	20-25MIN
HAMBURGER	230	15-25MIN
PORK CHOPS	230	25-35MIN
LAMB CHOPS	230	30-40MIN
CHICKEN LEGS	230	25-35MIN
FISH FILETS	200	15-25MIN
SALMON STEAKS	200	15-25MIN

WARNING: Food should not touch the heating elements. This table is for reference only, always keep an eye on the baking process.

Note:

1. For the best taste, preheating is recommended.
2. Try to place the food on the backing tray evenly.

Caution: Always use extreme care when removing baking tray, wire rack or any hot container from a hot oven.

Always use an oven mitt when removing hot items from the oven.

HOW TO CLEAN

1. Unplug the supply cord from the power outlet.

2. Let the appliance cool down completely.

3. Clean the housing with a damp, lint-free cloth. DO NOT IMMERSE THIS APPLIANCE INTO WATER.

4. Clean the door, the inside walls with wet and dry cloth. Do not use abrasive detergents.

5. Wash the wire rack and backing tray in hot soapy water. Rinse and dry.

6. Do not place any parts in the dishwasher for cleaning purpose.

SPECIFICATIONS

Supply Voltage: 220-240V\~50/60Hz

Power consumption: 1300W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

POMEMBNA OPOZORILA:

Pred uporabo pozorno preberite celotna navodila za uporabo.

PRED UPORABO

HASZNÁLAT ELÓTT

PŘED POUŽITÍM

PŘED POUŽITÍM

PRIJE UPORABE

• Uklonite svu ambalažu iz uređaja. Očistite uređaj prema uputama u odjeljku "Čišćenje" u nastavku.
• Pazite da je uređaj iskopčan iz struje i da je regulator vremena podešen na položaj „OFF“.
• Prije prvog korištenja uključite pećnicu na funkciju „☐“ 15 minuta, kako biste eliminirali mirise i eventualne ostatke ambalaže.

KORIŠTENJE

1. Postavite uređaj na ravnu površinu otpornu na vrućinu. Osigurajte dovoljnu cirkulaciju zraka oko uređaja.
2. Stavite utikač u utičnicu.
3. Gurnite rešetku za pečenje s hranom u odgovarajuću šipku na uređaju. Zatim gurnite lim za pečenje ispod kako biste uhvatili ulje koje kaplje. Također možete staviti hranu direktno na lim za pečenje. Odaberite željenu poziciju za rešetku za pečenje ovisno o visini i vrsti hrane.
4. Zatvorite vrata pećnice i podesite regulator funkcija na željenu funkciju: "☐" (gornji grijaći element se zagrijava), "☐" (donji grijaći element se zagrijava) ili "☐" (gornji i donji grijaći elementi zagrijavaju se istovremeno.), Podesite regulator temperature na željenu temperaturu.
5. Podesite regulator vremena na potrebno trajanje pečenja. Pali se kontrolna lampica.
6. Po završetku pečenja oglašava se zvučni signal. Uređaj možete i ručno isključiti, tako što ćete regulator vremena podesiti na položaj "OFF". Gasi se kontrolna lampica.
7. Po završetku pečenja podesite regulator funkcija ponovno na položaj „OFF”.

PREPORUČENE TEMPERATURE I VRIJEME KUHANJA

MESO	TEMPERATURA PEČENJA	VRIJEME KUHANJA
GOVEĐI ODREZAK	230	20-25 MIN
T-BONE-ODREZAK	230	20-25 MIN
HAMBURGER	230	15-25 MIN
SVINJSKI KOTLET	230	25-35 MIN
JANJEĆI KOTLET	230	30-40 MIN
BATAK	230	25-35 MIN
RIBLJI FILETI	200	15-25 MIN
LOSOS ODRESCI	200	15-25 MIN

UPOZORENJE: Hrana ne smije dirati grijaće elemente. Tablica je samo vodič, uvijek pazite na proces kuhanja.

Napomena:

ÎNAINTEA UTILIZĂRII

PRZED UŻYCIEM
