Product Type	Microwave
Brand	Zelmer
Model	29Z010
Capacity	20 L
Power Output	800 W
Power Levels	6 levels
Defrost Function	Yes, by weight and time
Timer	Up to 60 minutes
Display	Digital LED
Turntable	Rotating glass plate
Door Safety Lock	Automatic safety interlock
Dimensions (W x D x H)	45 x 35 x 26 cm
Weight	11 kg
Power Source	230 V, 50 Hz
Power Consumption	1100 W
Interior Light	Yes
Ease of Cleaning	Removable glass plate and easy-clean interior
Repairability Index	7.0 / 10
Spare Parts Availability	Available from authorized service centers
Certification	CE, RoHS

Frequently Asked Questions - 29Z010 Zelmer

What is the capacity of the Zelmer 29Z010 microwave?

The Zelmer 29Z010 has a capacity of 20 liters, suitable for medium-sized dishes.

How do I use the defrost function?

Press the Defrost button, then enter the weight or time using the dial. The microwave will automatically adjust power and time.

Can I use metal containers in this microwave?

No, metal containers can cause sparks and damage. Use microwave-safe glass, ceramic, or plastic containers only.

How do I clean the microwave?

Wipe the interior with a damp cloth after each use. Remove the glass turntable and wash it with mild soap. Avoid abrasive cleaners.

What does the child lock do?

The child lock prevents accidental operation. To activate, press and hold the Stop button for 3 seconds until a beep sounds.

Why is my microwave not heating?

Check if the door is fully closed. If the problem persists, the magnetron may be faulty. Contact Zelmer support.

What power levels are available?

There are 6 power levels from low (defrost) to high (full power). Adjust using the Power Level button.

How do I set the timer?

Turn the timer dial to the desired time (up to 60 minutes). The microwave starts automatically.

Is the turntable removable?

Yes, the glass turntable and its support ring can be removed for easy cleaning. Reassemble before use.

Where can I find spare parts?

Spare parts are available through Zelmer authorized service centers. Visit the Zelmer website for a list of service partners.

USER MANUAL 29Z010 Zelmer

PANEL STEROWANIA

GOTOWANIE MIKROFALOWE

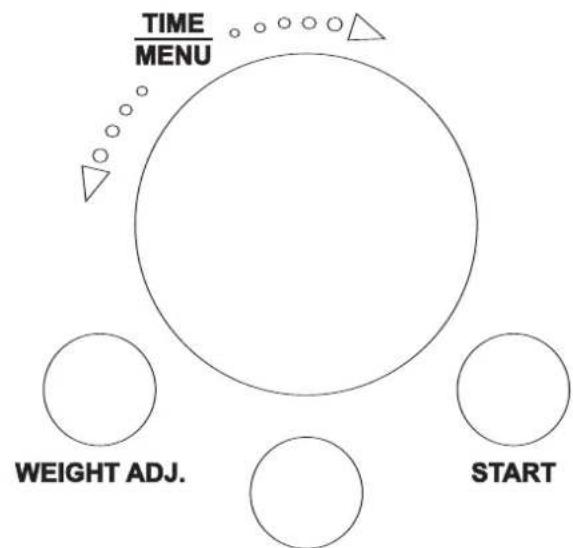

PANEL STEROWANIA

1. Coffee/Soup
2. Rice
3. Spaghetti
4. Potato
5. Auto Reheat
6. Fish
7. Chicken
8. Beef/Mutton
9. Skewered Meat
10. Auto Defrost

COMB.1

COMB.2

STOP/CANCEL

\* USTAWIENIE MINUTNIKA

OVLÁDACÍ PANEL

- DISPLEJ

MIKROVLNNÝ OHŘEV

OVLÁDACÍ PANEL

1. Coffee/Soup
2. Rice
3. Spaghetti
4. Potato
5. Auto Reheat
6. Fish
7. Chicken
8. Beef/Mutton
9. Skewered Meat
10. Auto Defrost

COMB.1

COMB.2

STOP/CANCEL

RIADIACI PANEL

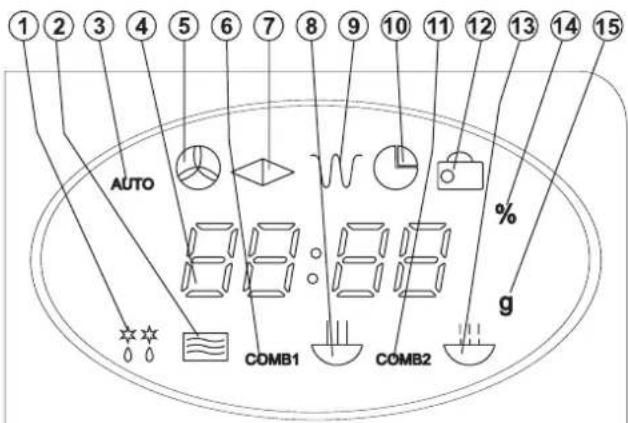

• OBRAZOVKA MENU

- Obrazovka ukazuje: hodiny, čas varenia a pracovné symboly.

• POWER (Výkon)

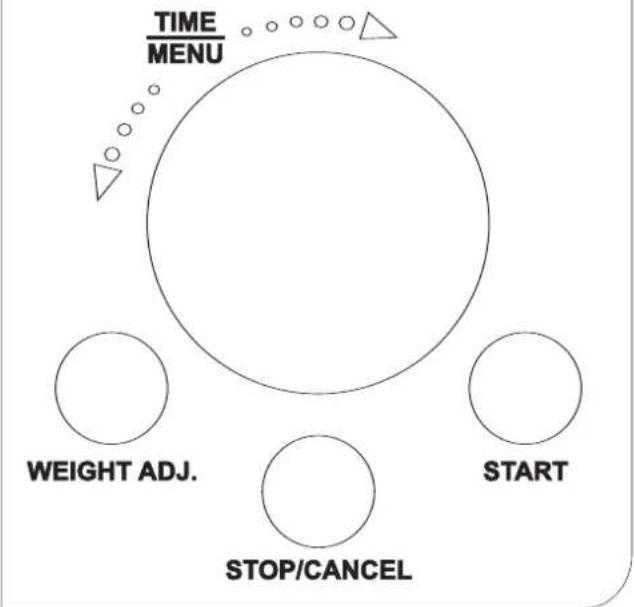

MIKROVLNNÉ VARENIE

RIADIACI PANEL

1. Coffee/Soup
2. Rice
3. Spaghetti
4. Potato
5. Auto Reheat
6. Fish
7. Chicken
8. Beef/Mutton
9. Skewered Meat
10. Auto Defrost

COMB.1

COMB.2

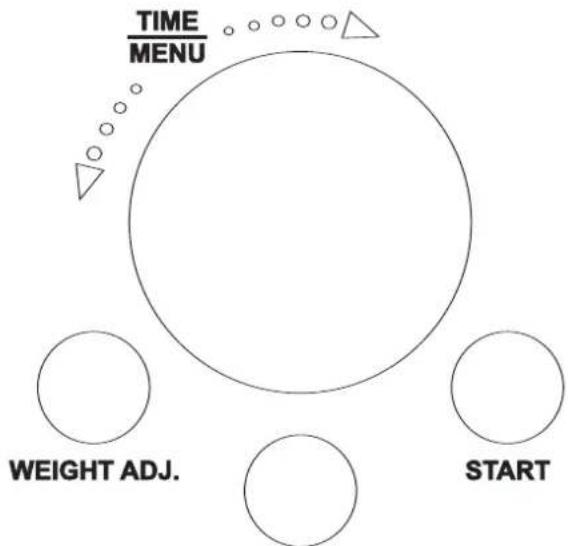


- START (Štart)

- Slúži na spustenie programu varenia.

• STOP/CANCEL (Zastav/Zruš)

VEZÉRLŐ PANEL

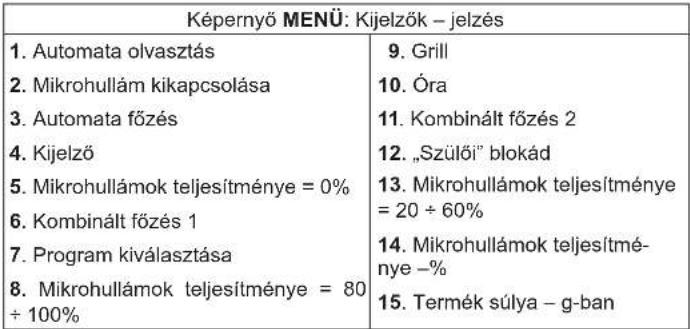

• MENÜ KÉPERNYŐ

MIKROHULLÁMÚ FÖZÉS

VEZÉRLŐ PANELL

POWER

CLOCK

GRILL

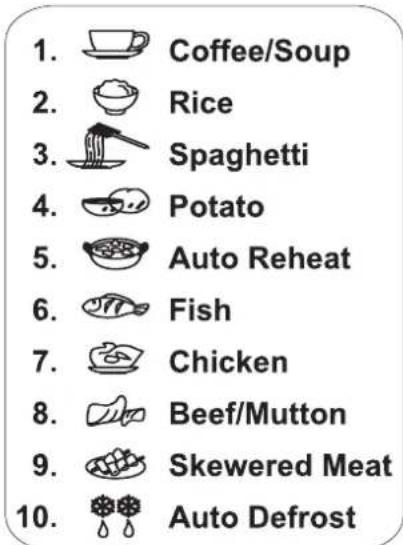

1. Coffee/Soup
2. Rice
3. Spaghetti
4. Potato
5. Auto Reheat
6. Fish
7. Chicken
8. Beef/Mutton
9. Skewered Meat
10. Auto Defrost

COMB.1

COMB.2

STOP/CANCEL

PANOU DE COMANDĂ

- MENIU ECRAN

GĂTIREA CU MICROUNDE

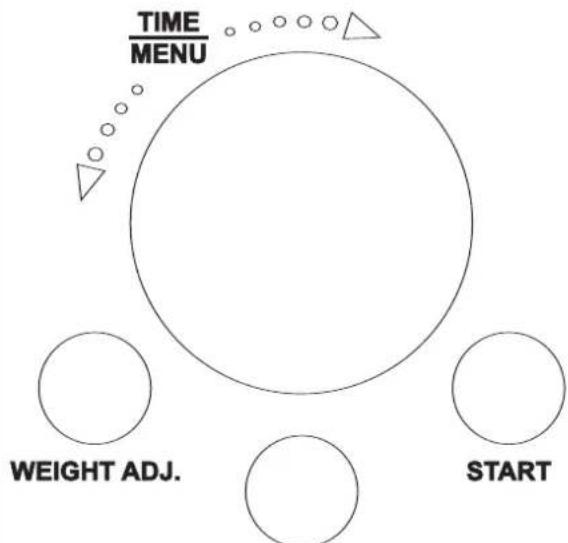

PANOU DE COMANDĂ

1. Coffee/Soup
2. Rice
3. Spaghetti
4. Potato
5. Auto Reheat
6. Fish
7. Chicken
8. Beef/Mutton
9. Skewered Meat
10. Auto Defrost

COMB.1

COMB.2

STOP/CANCEL

- MENIU ECRAN

ПАНЕЛЬ УПРАВЛЕНИЯ

• ДИСПЛЕЙ МЕНЮ

МИКРОВОЛНОВОЙ РЕЖИМ

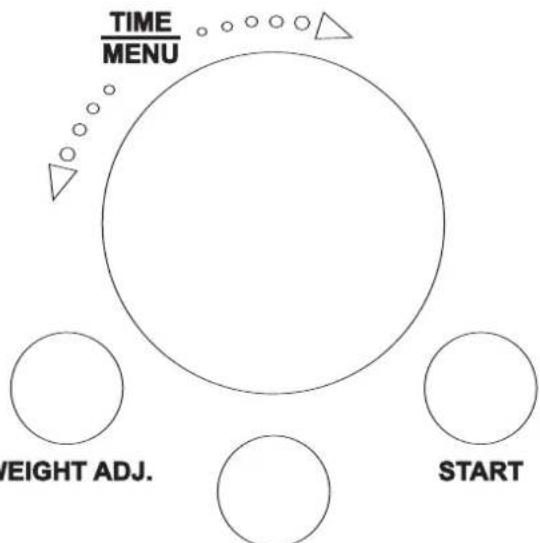

ПАНЕЛЬ УПРАВЛЕНИЯ

1. Coffee/Soup
2. Rice
3. Spaghetti
4. Potato
5. Auto Reheat
6. Fish
7. Chicken
8. Beef/Mutton
9. Skewered Meat
10. Auto Defrost

COMB.1

COMB.2

STOP/CANCEL

Simple concentric circle diagram with no text or symbols

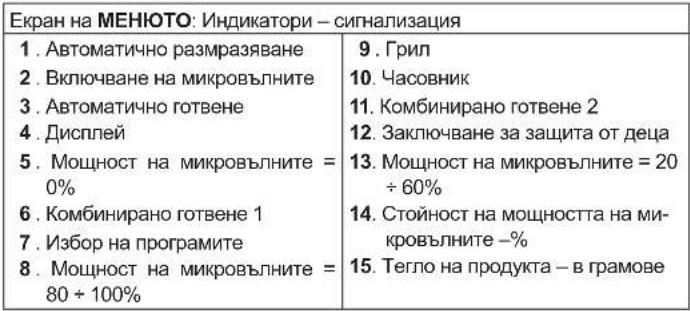

КОНТРОЛЕН ПАНЕЛ

POWER

CLOCK

GRILL

COMB.1

COMB.2

STOP/CANCEL

ПАНЕЛЬ УПРАВЛІННЯ

• ЕКРАН МЕНЮ

ПАНЕЛЬ УПРАВЛІННЯ

4. Potato
5. Auto Reheat
6. Fish
7. Chicken
8. Beef/Mutton
9. Skewered Meat
10. Auto Defrost

COMB.1

COMB.2

STOP/CANCEL

• EKPAH MEHIO

Please read these instructions carefully. Pay special attention to important safety instructions.

Keep this User's Guide for future reference.

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Write the SERIAL NUMBER indicated on the oven in the box below and keep for future reference.

SERIAL NUMBER:

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any objects between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and there is no damage:
4. "deformities"
5. this also concerns the hinges and latches (broken or loosened),
   • door seals and sealing surfaces.
6. The oven can be adjusted or repaired only by properly qualified service personnel.

Table of contents

Precautions to avoid possible exposure to excessive microwave energy ....63

Important safety instructions....63

Installation 63

Grounding instructions....64

Radio interference 64

Child lock 64

Cleaning and maintenance 64

Before you contact the service center 64

MICROWAVE OVEN TYPE 29Z010 64

Technical parameters 64

Microwave cooking – tips 64

Kitchen utensils – tips 64

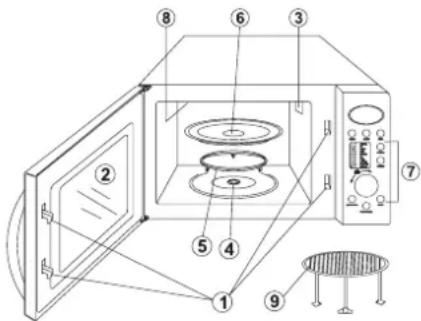

Microwave oven features TYPE 29Z010 65

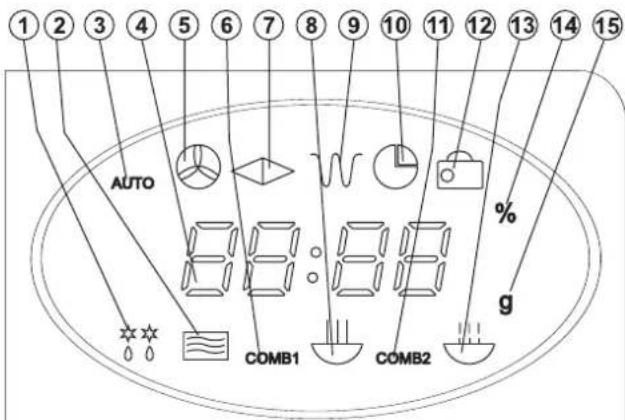

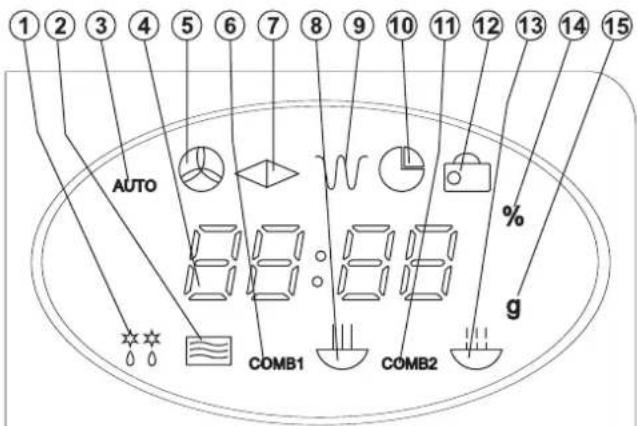

Control panel – description 65

Dynamic Flicker Function 65

Setting the clock 65

Microwave cooking 66

AUTO DEFROST 66

Grill 66

Combination mode 1 66

Combination mode 2 66

QUICK START 66

AUTO COOK 66

Automatic cooking menu – Food/cooking mode....66

Multi stage cooking 67

MICROWAVE OVEN TYPE 29Z011....67

Technical parameters 67

Kitchen utensils – tips 67

Microwave cooking – tips 67

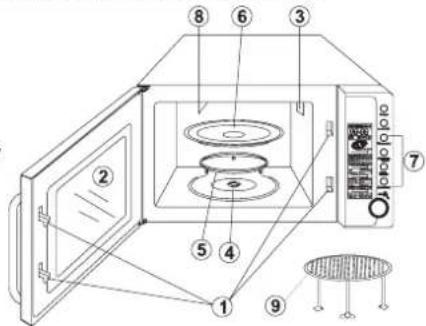

Microwave oven features TYPE 29Z011 67

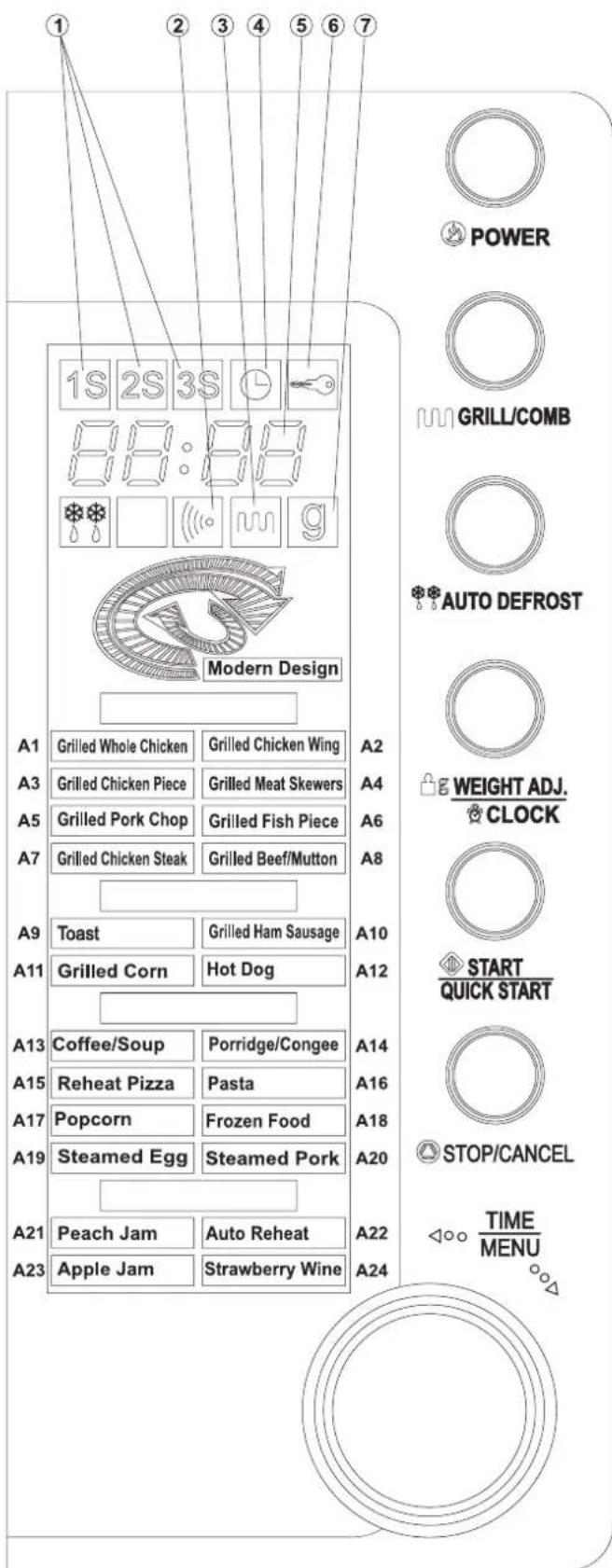

Control panel – description 67

Setting the oven functions 68

Setting the clock 68

Microwave cooking 68

* Setting the timer 68

Grill 68

Combination mode 1 68

Combination mode 2 68

AUTO DEFROST 69

AUTO COOK 69

Automatic cooking menu – Food/cooking mode....69

QUICK START 69

Norm requirements 69

Ecology – Environmental protection 69

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy follow the precautions:

1. The microwave ovens Type 29Z010 and Type 29Z011 are intended for household use only.
2. Plug the oven only to a grounded 230 V electrical outlet.

3. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat, cook and dry food. It is not designed for industrial or laboratory use.

4. WARNING: Do not operate an empty oven.

5. Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified ZELMER service center.

1. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

2. To reduce the risk of fire inside the oven:

3. While heating food in plastic or paper containers, carefully attend the oven due to the possibility of ignition.

4. Remove wire twist-ties from paper or plastic bags before placing them in the oven.
5. If smoke is observed, switch off and unplug the appliance. Do not open the door in order to stifle any flames.

6. Do not use the oven cavity for storage purposes. Do not leave paper products, dishes and kitchen utensils or food inside the oven when it is not used.

7. WARNING: Liquids and other foods must not be heated in tightly sealed containers since they are liable to explode.

8. Microwave heating of beverages can result in delayed eruptive boiling; therefore take care when handling the container. Do not use the oven to fry food. Hot oil may damage the oven parts or accessories and even cause skin burns.

9. Eggs in shell and whole hard-boiled eggs should not be heated in the microwave oven since they may explode even after microwave heating has ended.

10. Prick food covered with thick skin such as potatoes, whole marrows, apples and chestnuts before cooking.

11. Stir and shake the contents of feeding bottles and baby food jars. Check the temperature before consumption in order to avoid burns.

12. Kitchen utensils may become hot due to the heat from the food. Use appropriate handles while handling them.

13. Before using check if the utensils are suitable for use in microwave ovens.

14. WARNING: Microwave oven maintenance and repair which involves removing the cover which gives protection against exposure to microwave energy is dangerous, therefore it can only be performed by a qualified person.

15. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

1. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

2. WARNING: It is strictly forbidden to remove the foil located at the inner side of the door. It can result in damage of the appliance.

INSTALLATION

1. Make sure all wrappings have been removed from the inside of the oven.

2. WARNING: Check for damage such as a door that is not lined up correctly, damage to door seals and sealing surfaces, broken or loosened hinges or latches, dents inside the oven or on the door.
   In case of any damage do not operate the appliance and contact the qualified service personnel.

3. Place the microwave oven on an even and stable surface that is strong enough to hold the oven and the heaviest foods you put in it.

4. Do not expose the microwave oven to high temperatures and humidity. Do not place the oven near flammable materials.

5. For the oven to work properly provide an appropriate airflow. Leave a clearance of 20 cm above the oven, 10 cm behind the oven. A clearance of 5 cm is required at the sides. Do not cover or block the ventilation openings. Do not remove the legs.

6. Do not operate without the glass tray, turntable shaft and turntable ring support properly installed.
7. Make sure the cord is not damaged, is not placed under the oven or above any hot or sharp surface.
8. Ensure an easy access to the outlet so that it is possible to easily unplug the appliance in case of emergency.
9. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

The appliance must be grounded. The oven is equipped with a cord having a grounding wire with a grounding plug.

The plug must be plugged into an outlet that is properly installed and grounded.

In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

The oven should be used in a separate electric circuit.

WARNING: Improper plugging can result in the risk of an electric shock.

Notice: In case of any doubts concerning the grounding or plugging instructions contact a qualified electrician or serviceman.

WARNING: Both the manufacturer and the seller do not accept any liability for any oven damages or injuries resulting from not following the plugging instructions.

RADIO INTERFERENCE

Operating the microwave oven may cause interference to the radio, TV or similar equipment.

Interference can be reduced or removed in the following way:

1. Clean the door and sealing surfaces of the oven.
2. Adjust the receiving antenna of the radio and television.
3. Move the microwave oven so that it changes its position towards the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch circuits.

CHILD LOCK

The child lock prevents little children using the appliance unsupervised.

The CHILD LOCK indicator will light on the display. - Type 29Z010

and 📄 – Type 29Z011. The oven does not operate when the CHILD LOCK is on.

1. To set the CHILD LOCK:
   Press and hold STOP/CANCEL for 3 seconds. You will hear a beep and the CHILD LOCK indicator will light.
2. To unblock the microwave oven:
   Press and hold STOP/CANCEL for 3 seconds until the CHILD LOCK indicator lights out.

CLEANING AND MAINTENANCE

1. Switch off and unplug the oven before cleaning.
2. Keep the inside of the oven clean. If necessary remove the food deposits or spilled liquid from the oven walls with a damp cloth. Use a mild detergent to remove heavier soil. Do not use spray cleaners and other strong cleaning agents as they may stain, tarnish or leave streaks on the surface of the oven and door.
3. Clean the outside surface with a damp cloth. To avoid damaging the subassemblies inside the oven make sure that water does not leak to the inside of the oven ventilation openings.
4. Regularly wipe both sides of the door and window, the door seals and neighboring parts with a damp cloth to remove food deposits or spilled liquid.

Do not use abrasive cleaners.

1. Do not use abrasive detergents such as emulsions, cream cleaners, polishes, etc. to clean the housing. They may remove the graphic information symbols such as scales, marks, warning signs etc.

2. Do not allow the control panel to moisten. To clean use only a soft, damp cloth. In order to avoid accidental starting of the oven open the door before cleaning the control panel.

3. If condensed water vapor begins to appear on the inside or outside of the door, wipe it with a soft cloth. Condensation may occur when the

microwave oven is operating under high humidity conditions. In such a case it is a normal situation.

1. Take out and clean the glass tray every once in a while. Wash it in warm water with dishwashing liquid or in the dishwasher.

2. Regularly clean the turntable ring and the bottom of the oven to avoid noise. Clean the bottom surface with a mild detergent. Wash the turntable ring in water with dishwashing liquid or in the dishwasher. While installing the turntable ring make sure to place it properly.

3. To get rid of odors inside the oven boil about 200 ml of water with lemon juice and lemon peel in a microwave safe bowl for 5 minutes. Thoroughly dry the inside of the oven with a dry, soft cloth.

4. If it is necessary to replace the inside light bulb, turn to a service center.

5. Regularly clean the oven and remove food deposits. Failure to follow these instructions may lead to a degradation of the surface which may affect the lifespan of the appliance and lead to a dangerous situation.

BEFORE YOU CONTACT THE SERVICE CENTER

If the oven does not work:

1. Make sure the oven is properly plugged in. If not, unplug the appliance, wait 10 seconds and plug it in again.
2. Check if the fuse is not blown or the circuit breaker tripped. If the above function properly check the electrical outlet by plugging a different electrical appliance.
3. Check if the control panel is properly programmed and the time set.
4. Check if the door is properly closed and latched. The microwave energy shall not be otherwise supplied to the oven.

IF AFTER PERFORMING THE ABOVE ACTIONS THE OVEN STILL DOES NOT WORK CONTACT THE SERVICE CENTER. A MICROWAVE OVEN SHOULD NEVER BE ADJUSTED OR REPAIRED BY A 'DO-IT-YOURSELF' REPAIR PERSON.

MICROWAVE OVEN TYPE 29Z010

TECHNICAL PARAMETERS

Energy consumption	230 V~ 50 Hz, 1200 W (Microwaves)1000 W (Grill)
Rated input power (microwaves)	800 W
Frequency 2450 MHz
External dimensions (mm) H = 277 x W. = 464 x D = 382
Internal dimensions (mm) H = 219 x W = 298 x D = 325
Oven capacity 20 liters
Turntable Diameter = 270 mm
Net weight about 13,6 kg

* The above parameters are subject to change therefore the user should verify them with the information on the rating label. Any customer complaints regarding errors in these parameters shall not be considered.

1. Carefully arrange the food. Place the thickest pieces next to the edges of the dish.
2. Check the cooking time. Cook for the shortest indicated time and if necessary prolong cooking. Heavily burned products may generate smoke or ignite.
3. Cover food while cooking. The cover shall prevent the food from "splashing out" and ensure even cooking.
4. During cooking turn products in order to speed up the cooking process of food such as chicken or hamburgers. Turn large products such as roast meat at least once.
5. Change the arrangement of food products such as meatballs in the middle of the cooking period. Products placed on the top should be moved to the bottom and those in the middle should be moved towards the edges of the dish.

KITCHEN UTENSILS- TIPS

Use only microwave safe dishes and kitchen utensils. The ideal material to use in the microwave oven is a transparent one, as it allows energy to infiltrate through the container and heat the food.

1. Do not use metal utensils or dishes with metal trims – microwaves do not infiltrate through metal.
2. Before cooking remove wrappings made of recycled paper, as it may contain metal particles which may cause arcing and/or fire.

3. We advise you to use oval/round dishes instead of square/rectangular ones as food in the corners of the dish burns more often.

4. Protect exposed areas by covering them with narrow stripes of aluminum foil. Remember, however, not to use too much foil and to keep the foil at least 3 cm away from the oven walls.

The list below shall make the choice of the right dishes and kitchen utensils easier.

Kitchen utensils	Micro-waves	Grill	Combination mode
Heat-resistant glass	Yes	Yes	Yes
Non-heat-resistant glass	No	No	No
Heat-resistant ceramic utensils	Yes	Yes	Yes
Microwave safe plastic dishes	Yes	No	No
Parchment paper	Yes	No	No
Metal tray	No	Yes	No
Metal gridiron	No	Yes	No
Aluminum foil and foil containers	No	Yes	No

MICROWAVE OVEN FEATURES TYPE 29Z010

1. Safety lock
2. Oven window
3. Ventilation opening
4. Roller
5. Turntable ring assembly
6. Glass turntable
7. Control panel
8. Grill heating element
9. Metal gridiron

CONTROL PANEL

• MENU DISPLAY
• The clock, cooking time and operation symbols are shown on the display.

- POWER

- Is used to set the microwave program.

• GRILL/COMB (Grill/Combination mode)

- Is used to set the grill program and the combination mode

- AUTO DEFROST

- Is used to set the defrosting program.

- WEIGHT ADJ./CLOCK (Weight adjustment/Clock)

- Is used to determine the weight of the food.

- Is used to set the clock.

- START/QUICK START

- Is used to start a program or to set the quick cooking mode.

- STOP/CANCEL

• Is used to cancel a setting and reset the oven before setting a cooking program.
• Press once to pause cooking or press twice to cancel the whole cooking process.
• Press and hold to set the child lock.

- TIME/MENU

- Is used to set the time or menu.

DYNAMIC FLICKER FUNCTION

In the standby mode, the Dynamic Flicker Function will start immediately when WEIGHT ADJ./CLOCK and POWER are pressed at the same time.

SETTING THE CLOCK

The appliance is equipped with a 12 or 24 hour clock.

To set the current time, press and hold for 3 seconds the WEIGHT ADJ./CLOCK button in the standby mode. The clock indicator will start to flash on the display.

The display will show Hr24 which allows setting the clock in the 24 hour mode. Press again to set the clock in the 12 hour mode.

Set the current time using the knob.

EXAMPLE: In order to set the oven clock at 8:30.

1. Press and hold the WEIGHT ADJ./CLOCK button for 3 seconds to start setting the time.

2. Turn the TIME/MENU knob so that the display shows the digit 8.

3. Press the WEIGHT ADJ./CLOCK button.
4. Turn the TIME/MENU knob to set 30 minutes.
5. Press the WEIGHT ADJ./CLOCK button to confirm the setting.

MENU: Indicators – signalling

1. Multi stage cooking 2. Switching on the microwaves3. Grill 4. Clock 5. Display6. Child lock 7. Product weight in grams

MICROWAVE COOKING

Press POWER several times to select the cooking power level (see table). Next, set the desired cooking time using the TIME/MENU knob.

Press START/QUICK START

EXAMPLE: In order to set the cooking time for 20 minutes at 60% microwave power.

1. Press POWER 3 times.
2. Turn the TIME/MENU knob so that the display shows the digits 20:00.
3. Press START/QUICK START.

Press POWER Cooking power
Once P-H1 100%
Twice P-80 80%
3 times P-60 60%
4 times P-40 40%
5 times P-20 20%
6 times P-00 0%

AUTO DEFROST

The auto defrost function allows setting the weight of the food on the basis of which the system determines the time required to defrost a given product. While selecting the weight of the food to be defrosted check if the appropriate values are shown on the display. Do the following:

1. Press AUTO DEFROST once.
2. Press WEIGHT ADJ./CLOCK to set the weight of the food (from 100 g to 1800 g).
3. Press START/QUICK START.

GRILL

The maximum grilling time is 95 minutes. Grilling is especially useful to roast thin slices of meat, steaks, chops, kebab, sausages or chicken pieces. It is also suitable to prepare warm sandwiches and baked dishes.

EXAMPLE: In order to set the grilling program for 12 minutes.

1. Press the GRILL/COMB button – the display will show the symbol 🐎.
2. Turn the TIME/MENU knob so that the display shows the digits 12:00.
3. Press START.

COMBINATION MODE 1

The maximum cooking time is 95 minutes.

30% of the time – microwave cooking 70% of the time – grilling. Combination mode 1 is used to prepare fish, potatoes and baked dishes.

EXAMPLE: In order to set the combination mode "1" for 25 minutes:

1. Press GRILL/COMB twice.
   The display will show CO - 1.
2. Turn the TIME/MENU knob so that the display shows the digits 25:00.
3. Press START.

COMBINATION MODE 2

The maximum cooking time is 95 minutes.

55% of the time – microwave cooking, 45% of the time – grilling. Combination mode 2 is used to prepare omelets, baked potatoes and poultry.

EXAMPLE: In order to set the combination mode 2 for 12 minutes:

1. Press GRILL/COMB three times.
   The display will show CO - 2.
2. Turn the TIME/MENU knob so that the display shows the digits 12:00.
3. Press START.

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the high temperatures generated.

QUICK START

This function enables a quick cooking start.

Press the START/QUICK START button several times to set the cooking time and the microwave oven will start to operate at full power.

AUTO COOK

The system has a 24 item automatic menu of dishes showed on the display. After setting the appropriate weight the system shall select the time needed to perform the operation.

1. Turn the TIME/MENU anticlockwise to select the desired dish from the menu.

2. Press WEIGHT ADJ./CLOCK to select the weight of the food. Check if the correct value is shown on the display.

3. Press START/QUICK START.

Automatic cooking menu

Code	Food/cooking mode
A-1	Grilled chicken (whole)
A-2	Grilled chicken wings
A-3	Grilled chicken (pieces)
A-4	Grilled Meat Skewers
A-5	Grilled bone-in pork chops
A-6	Grilled fish
A-7	Grilled chicken steak
A-8	Grilled beef/mutton
A-9	Toasts
A-10	Grilled sausages
A-11	Grilled corn
A-12	Hot Dog
A-13	Coffee/soup 250 ml cup, reheating
A-14	Porridge/congee (Pour an appropriate amount of water)
A-15	Pizza reheat (defrosted, cover the pizza)
A-16	Pasta (make sure there is enough water to cook)
A-17	Popcorn
A-18	Frozen food (reheat)
A-19	Steamed egg
A-20	Steamed pork (cover the food)
A-21	Peach jam
A-22	Auto reheat (defrosted food, requires covering)
A-23	Apple jam
A-24	Strawberry wine

Notice:

If the food is not appropriately cooked, continue cooking for several minutes at high power.

The results of automatic cooking depend on factors such as the shape and size of the food product, cooking preferences and the way the food is arranged in the oven. If you are not satisfied with the cooking results, adjust the cooking time to your own needs.

The manufacturer not liable for the end effect and the quality and taste of the food prepared according to the enclosed recipes – as it depends on the individual cooking preferences.

EXAMPLES:

Porridge – congee – ingredients:

Wheat – about 60 g, rice – 100 g, dates – 5 pieces, hot water – 5 cups Wash the wheat, rice and dates and place them in a deep microwave safe container. Add hot water and run the program.

Toasts

Size 10 cm x 10 cm, Thickness: 1 cm.

Place the bread on the metal gridiron. Stop the process in the middle of the cooking time and check the food.

Apple jam – ingredients:

Apples - 4 pieces, sugar - 150 g, lemon juice - 1 cup

Step 1: - Wash and peel the apples, cut them into small pieces.

Step 2: – Place the apples in a heat-resistant dish, add lemon juice and sugar and stir carefully. Cover the dish and start the cooking program.

Steamed egg – ingredients:

2 eggs, white sugar - 4 spoons, fresh milk- 3 / 4 cup, ginger juice - 1 teaspoon.

Step 1: - Pour 3 spoons of sugar into boiling water and stir.

Step 2: - Mix eggs in a glass container, add sugar and water and mix with fresh milk.

Step 3: - Cover and leave a small opening to allow airflow and place in the oven. Cook for the specified time - program A19.

Peach jam – ingredients:

Peaches - 4, sugar - 12 cup, water - 2 cups

Step 1: - Wash and peel the peaches, cut into small pieces;

Step 2: - Put the peaches, water and sugar into a heat-resistant container, place in the oven and run the program.

Strawberry wine – ingredients:

Strawberries - 500 g, sugar - 1 or 2 cups, lemon - 4 pieces, sake - 5 cups

Step 1: - Wash strawberries, remove stalks and dry, wash lemon, peel and cut into pieces.

Step 2: – Put into a heat-resistant container, add sugar and sake. Cover and cook at high power for the indicated time.

Step 3: – put in a covered demijohn for one day, add soda water before serving.

NOTICE: 1 cup = 250 ml, 1 spoon = 15 ml, 1 teaspoon = 5 ml.

MULTI STAGE COOKING

The system can be used to cook in several stages, which occur automatically after setting the multi stage cooking function. You can set up to 3 stages.

During multi stage cooking you can set the desired microwave power (100% – 0%), operation time (max 95 minutes) and the GRILL function in each of the cooking stages.

You will hear a beep between the stages indicating the change of the stage.

STAGE I

1. To select the desired cooking power press POWER. The display will show the indicator "1S" and the symbol – see table.
2. Set the desired operation time using the knob.

STAGE II

1. To select the desired cooking power press POWER. The display will show the indicator "2S" and a symbol – see table.
2. Set the desired operation time using the knob.

STAGE III

1. To select the desired cooking power press POWER. The display will show the indicator "3S" and a symbol – see table.
2. Set the desired operation time using the knob.
3. Press START/QUICK START

NOTICE – you can also choose the GRILL function at each stage.

Press POWER Cooking power
Once P-H1 100%
Twice P-80 80%
3 times P-60 60%
4 times P-40 40%
5 times P-20 20%
6 times P-00 0%

Each time a mode ends the display will show END and you will hear a beep which indicates the end of operation.

MICROWAVE OVEN TYPE 29Z011

TECHNICAL PARAMETERS

Energy consumption	230 V~ 50 Hz, 1200 W (Microwaves)230 V, 1000 W (Grill)
Rated input power (microwaves)	800 W
Frequency 2450 MHz
External dimensions (mm)	H. = 295 × W. = 458 × D. = 396
Internal dimensions (mm)	H = 206 × W = 300 × D = 302
Oven capacity	20 liters
Turntable	Diameter = 270 mm
Net weight about 15,1 kg

KITCHEN UTENSILS- TIPS

Use only microwave safe dishes and kitchen utensils. The ideal material to use in the microwave oven is a transparent one, as it allows energy to infiltrate through the container and heat the food.

1. Do not use metal utensils or dishes with metal trims – microwaves do not infiltrate through metal.
2. Before cooking remove wrappings made of recycled paper, as it may contain metal particles which may cause arcing and/or fire.
3. We advise you to use oval/round dishes instead of square/rectangular ones as food in the corners of the dish burns more often.
4. Protect exposed areas by covering them with narrow stripes of aluminum foil. Remember, however, not to use too much foil and to keep the foil at least 3 cm away from the oven walls.

The list below shall make the choice of the right dishes and kitchen utensils easier.

Kitchen utensils	Microwaves	Grill	Combination mode
Heat-resistant glass	Yes	Yes	Yes
Non-heat-resistant glass	No	No	No
Heat-resistant ceramic utensils	Yes	Yes	Yes
Microwave safe plastic dishes	Yes	No	No
Parchment paper	Yes	No	No
Metal tray	No	Yes	No
Metal gridiron	No	Yes	No
Aluminum foil and foil containers	No	Yes	No

1. Carefully arrange the food. Place the thickest pieces next to the edges of the dish.
2. Check the cooking time. Cook for the shortest indicated time and if necessary prolong cooking. Heavily burned products may generate smoke or ignite.
3. Cover food while cooking. The cover shall prevent the food from "splashing out" and ensure even cooking.
4. During cooking turn products in order to speed up the cooking process of food such as chicken or hamburgers. Turn large products such as roast meat at least once.
5. Change the arrangement of food products such as meatballs in the middle of the cooking period. Products placed on the top should be moved to the bottom and those in the middle should be moved towards the edges of the dish.

MICROWAVE OVEN FEATURES TYPE 29Z011

1. Safety lock
2. Oven window
3. Ventilation opening
4. Roller
5. Turntable ring assembly
6. Glass turntable
7. Control panel
8. Grill heating element
9. Metal gridiron

CONTROL PANEL

MENU Display: Indicators – signalling
1. Auto defrost2. Microwave switch on3. Auto cook4. Display5. Microwave power = 0%6. Combination mode 17. Program selection8. Microwave power = 80 ÷ 100%	9. Grill10. Clock11. Combination mode 212. Child lock13. Microwave power = 20 ÷ 60%14. Microwave power value –%15. Product weight– in grams

- MENU DISPLAY

- The clock, cooking time, cooking power and operation symbols are shown on the display

POWER

- Is used to set the microwave program

- GRILL

- Is used to set the grilling program

• COMB.1/COMB.2 (Combination mode)

- Is used to set the combination mode

TIME/MENU

- Is used to set the time or menu

• WEIGHT ADJ. (Weight adjustment)

- Is used to determine the weight of the food.

- CLOCK

- Is used to set the clock

- START

- Is used to start the cooking program

- STOP/CANCEL

• Is used to cancel a setting and reset the oven before setting a cooking program.
• Press once to pause cooking or press twice to cancel the whole cooking process.
• Press and hold to set the child lock.

POWER

CLOCK

GRILL

1. Coffee/Soup
2. Rice
3. Spaghetti
4. Potato
5. Auto Reheat
6. Fish
7. Chicken
8. Beef/Mutton
9. Skewered Meat
10. Auto Defrost

COMB.1

COMB.2

STOP/CANCEL

SETTING THE OVEN FUNCTIONS

After plugging the appliance you will hear a beep each time you press a button.

SETTING THE CLOCK

When the oven is ready for programming press CLOCK once.

EXAMPLE: In order to set the oven clock at 8:30.

1. Press CLOCK once.
2. Press CLOCK.
3. Turn the TIME/MENU knob to set 30 minutes.

4. Press CLOCK to confirm the setting.

5. Turn the TIME/MENU knob so that the display shows the digit 8.

To check the time during cooking press CLOCK once. The clock will appear on the display for 5 seconds.

MICROWAVE COOKING

1. Press POWER several times to select the cooking power level and then set the desired cooking time using the knob.
2. Select the power level by pressing POWER. The maximum cooking time is 60 minutes.

Press POWER Cooking power
Once 100%
Twice 80%
3 times 60%
4 times 40%
5 times 20%
6 times (Setting the timer *) 0%

EXAMPLE: In order to cook for 1 minute at 60% microwave power:

1. Press POWER three times.
2. Turn the TIME/MENU knob so that the display shows the digits 1:00.
3. Press START.

\* SETTING THE TIMER

In this mode the appliance can be used as an alarm which will beep at a previously set time.

GRILL

The maximum grilling time is 60 minutes. Grilling is useful especially when roasting thin slices of meat, steaks, chops, kebab, sausages or chicken pieces. It is also suitable to prepare warm sandwiches and baked dishes.

EXAMPLE: In order to set the grilling program for 12 minutes.

1. Press GRILL once.
2. Turn the TIME/MENU knob so that the display shows the digits 12:00.
3. Press START.

COMBINATION MODE 1

The maximum cooking time is 60 minutes.

30% of the time – microwave cooking, 70% of the time – grilling. Combination mode 1 is used to prepare fish, potatoes and baked dishes.

EXAMPLE: In order to set the combination mode "1" for 25 minutes:

1. Press the COMB.1 (Combination mode 1) button once.
2. Turn the TIME/MENU knob so that the display shows the digits 25:00.
3. Press START.

COMBINATION MODE 2

The maximum cooking time is 60 minutes.

55% of the time – microwave cooking, 45% of the time – grilling Combination mode 2 is used to prepare omelets, baked potatoes and poultry.

EXAMPLE: In order to set the combination mode 2 for 12 minutes.

1. Press the COMB.2 (Combination mode 2) button once.
2. Turn the TIME/MENU knob so that the display shows the digits 12:00.
3. Press START.

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the high temperatures generated.

AUTO DEFROST

Auto defrost is used to defrost frozen food e.g. meat, poultry and seafood according to its weight. The defrosting time and power level are set automatically after selecting the food category and weight.

EXAMPLE: In order to defrost 200 g of meat:

1. Turn the TIME/MENU knob clockwise so that the display shows the defrosting symbol and the weight - 100 g.
2. Keep turning the knob until the display shows 200 g.
3. Press START.

AUTO COOK

In case of food or cooking code it is not necessary to program the cooking time and cooking power. It is enough to indicate the type of food to be cooked and the weight.

In order to achieve an even cooking effect you can turn the food in the middle of the cooking time.

EXAMPLE: In order to cook 400 g of fish.

1. Turn the TIME/MENU knob clockwise so that the display shows the food code = 6.
2. Press WEIGHT ADJ. (Weight adjustment) to set 400 g.
3. Press START.

Automatic cooking menu

Code	Food/Cooking mode NOTICE
1.	Coffee/Soup cup 250 ml, reheating	After pressing the WEIGHT ADJ (Weight adjustment) button once or several times the display will show several portions or weight parameters. Choose one according to the weight of the food placed in the oven.
2.	Rice (g)
3.	Spaghetti (g)
4.	Potatoes (g)
5.	Automatic reheat (g)
6.	Fish (g)
7.	Chicken (g)
8.	Beef/Mutton (g)
9.	Skewer (g)

The results of automatic cooking depend on factors such as the shape and size of the food product, cooking preferences and the way the food is arranged in the oven. If you are not satisfied with the cooking results, adjust the cooking time to your own needs.

QUICK START

This function allows to quickly start cooking.

Press START several times to set the cooking time, the oven will operate at full power.

Each time a mode ends you will hear a beep which indicates the end of operation.

NORM REQUIREMENTS

ZELMER microwave oven fulfills the requirements of the existing norms.

The appliance is in conformity with the requirements of the directives:

Low voltage appliance (LVD) - 2006/95/EC. - Electromagnetic compatibility (EMC) - 2004/108/EC.

The appliance was marked by the CE sign on the rating label.

ECOLOGY - ENVIRONMENT PROTECTION

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!!!
