ZHC39012 (39Z012) - Beard trimmer Zelmer - Free user manual and instructions

Product Type	Beard trimmer / hair clipper
Brand	Zelmer
Model	ZHC39012 (39Z012)
Power Supply	230 V AC via adapter (included) or cordless with rechargeable battery
Battery Runtime	Approximately 60 minutes after full charge
Charging Time	First charge: 16 hours; subsequent charges: 10 hours
Cutting Length Range (with attachments)	4 mm to 40 mm (small attachment: 4-20 mm; large attachment: 24-40 mm, adjustable in steps)
Cutting Length Without Attachment	Approximately 1-2 mm
Blade Material	Titanium coated ceramic
Hair Thinning Function	Yes, via integrated knob
Power Modes	Corded (with adapter) and cordless (rechargeable)
Included Accessories	2 small comb attachments, 2 large comb attachments, comb, cleaning brush, oil, scissors, casing, power adapter, charging base
Cleaning and Maintenance	Remove comb attachment, detach cutting head, brush hair remnants; rinse plastic combs under water and dry; oil blades periodically
Safety Features	RCD recommended (30 mA); do not use near water; automatic cut-off? Not specified; child supervision advised
Weight	Approximately 200 g (estimated)
Dimensions (approx.)	180 x 50 x 40 mm (estimated)
Noise Level	68 dB(A)
Protection Class	II (double insulation, no grounding)
Intended Use	Domestic only (not for commercial use)
Applicable Directives	LVD 2006/95/EC, EMC 2004/108/EC, CE marked

Frequently Asked Questions - ZHC39012 (39Z012) Zelmer

How long does the battery last after a full charge?

The hair clipper can operate up to 60 minutes when fully charged.

How long does it take to charge the device for the first time?

Charge it for 16 hours before first use. Subsequent charges take 10 hours.

Can I use the trimmer while charging?

Yes, you can use it with the power adapter plugged in for corded operation.

How do I adjust the cutting length?

Attach the desired comb attachment and slide the setting bar to your preferred length. The small attachment offers lengths from 4 to 20 mm, the large one from 24 to 40 mm.

What is the hair thinning feature and how do I use it?

Turn the hair thinning knob to the ON position to raise the thinning blade. This reduces hair volume without changing length.

How do I clean the trimmer?

Remove the comb and cutting head. Brush hair clippings from the blades with the included cleaning brush. Rinse plastic combs under running water and dry them thoroughly before reuse.

Can I use the trimmer in the shower or wet hair?

No. The device is not waterproof. Avoid water, and never immerse it. Use only on dry, clean hair.

How do I replace the blades?

The cutting head can be removed for cleaning or replacement. Push the thinning knob to the ON position, then press the cutting head forward to release it. To reattach, insert the protrusion into the locking hole and press until you hear a click.

Why is the trimmer not turning on?

Ensure the battery is charged. If using corded, check the adapter is properly connected to the trimmer and mains. Also make sure the ON/OFF switch is set to 1.

Is the trimmer suitable for professional or commercial use?

No, it is designed for domestic use only. Commercial use may void the warranty.

USER MANUAL ZHC39012 (39Z012) Zelmer

Close-up of a hand holding a black object with a white mark, possibly a tool or device (no visible text or symbols)

Close-up of a hand holding a black electronic device with a small component, against a plain background (no visible text or symbols)

I. Zastrihávač vlasov

Close-up of a hand holding a black electronic device (no visible text or symbols)

I. Hajnyíró

Close-up of a hand holding a black electronic device with a white connector (no visible text or symbols)

Close-up of a hand holding a black electronic device (no visible text or symbols)

Close-up of a hand holding a black electronic device (no visible text or symbols)

Close-up of a hand holding a black object with white markings (no visible text or symbols)

Close-up of a hand holding a black electronic device (no visible text or symbols)

Safety instructions and recommendations 44

Specifications 45

Outline and parts of the hair clipper 46

Handling and operation of hair clipper 46

Cleaning and maintenance 48

Ecology – Environment protection ....48

Dear Customers!

The hair clipper with two easy replaceable comb attachments provides possibility of obtaining different lengths of cutting and clipping hairline. Additionally, the feature of thinning is available.

The cutting set consists of titanium coated ceramic blades. The material provides optimum and exact clipping and is especially gentile for skin.

Please read these instructions carefully. Pay your special attention to important safety instructions. Keep this "Instructions for use" for future reference.

Safety instructions and recommendations

Herewith information concerns your health and safety. It is obligatory to learn about all instructions for use and safety information before first usage of the clipper.

— The hair clipper is intended for domestic use. In case it is used for commercial use, the guarantee conditions change.
Connect the power supply adaptor to AC mains supply 230 V.
– Disconnect the power supply adaptor from the mains supply outlet when not in use or before cleaning.

Do not unplug pulling by the cord. —

- The supplying cord should not hang over the edge of a table or desktop, nor touch hot surface.

If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

• This device is intended for cutting natural hair, only. It is allowed to use it only for human hair; it can not be used for cutting artificial or animal hair. Using the product for other than intended purposes shall cause nullifying the guarantee.
• Do not touch the power supply adaptor with wet hands, especially when plugging or unplugging it from the mains supply outlet.
• For the operation with mains use only the adaptor supplied with the hair clipper.
• Connect only to easily accessible mains supply outlet.
• Do not cover the adaptor; it can lead to dangerous temperature increase.
• Always At first connect the plug into the socket in the clipper or loading base. When it is done, you can connect it to the mains supply outlet.
  -Do not use during bath.

• Never immerse the device and cord in water or other liquids.

• Do not place the hair clipper on wet surface or cloth during operation.
  — Do not place or store the device in the area where it can fall into water.

• Do not use the device with damaged comb attachment. It can cause injuries hazard.
• Never try to remove the foreign bodies out of the clipper using sharp objects (i.e. comb).

Always clean after using. –

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  – Children should be supervised to ensure that they do not play with the appliance.

Do not apply not recommended attachments.

The hair clipper can be used both as a mains and cordless device. -

The cut hair should be clean, dry and combed. —

• Put the towel around the neck to avoid getting the cut hair under the collar.
• Use the hair clipper only as intended according to the herewith instructions.

ATTENTION: In order to provide additional protection, it is recommended to install the residual current device (RCD) with nominal residua Power not exceeding 30 mA. You should contact the professional electrician in this concern.

WARNING: Do not use the device near water, over the bath tube, pool or other water basin.

WARNING: Observe the above mentioned rules in order to avoid burning, electric shock or fire hazard.

Make sure you understood the a/m instructions.

Specifications

The product technical parameters are included at the name plate.

The device is built in II class isolation, it does not require grounding.

ZELMER hair clippers meet the requirements of effective standards.

The device meets the requirements of the following directives:

-Low Voltage Device (LVD) - 2006/95/EC

– Electro- Magnetic Compatibility (EMC) – 2004/108/EC.
– Noise generated by the appliance: 68 dB/A.
The product is marked with CE symbol on the name plate.

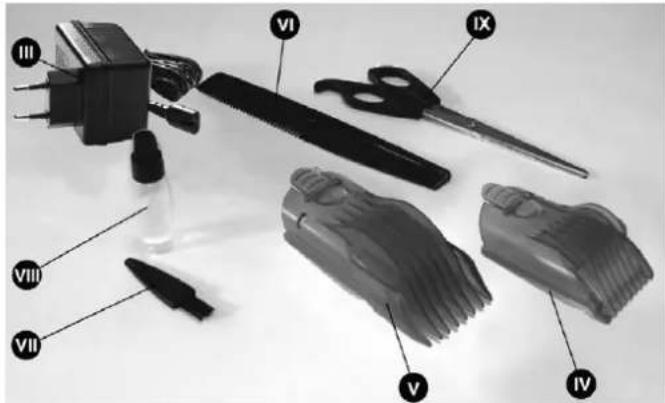

Outline and parts of the hair clipper

1. Hair clipper
2. Cutting head
3. Hair thinning knob (position OFF, position ON)
4. ON/OFF switch
5. Pilot light
6. Loading socket
   II. Loading base
   III. Power supply adaptor
   IV. Small comb attachment (2 pieces)
   V. Big comb attachment (2 pieces)
   VI. Comb
   VII. Cleaning brush
   VIII. Clipper oil
   IX. Scissors
   X. Casing

Handling and operation of hair clipper

The hair clipper can be used both as a mains supplied or cordless device.

1. Operation with power supply adaptor

At first insert the adaptor plug into the device and then insert the adapter plug into the mains supply outlet (230 V). In mains supplied mode the device is ready for use.

2. Loading accumulators and cordless operation

TIP: Load the device minimum 16h before first usage and when 2–3 next loadings.

• In order to load the device move the ON/OFF switch (3) to OFF position.
  — Place the device on the loading base (II).
• Connect the loading base (II) to the adapter cord (III).
• Insert the plug of the adapter (III) into appropriate mains supply outlet (230 V). The loading process is indicated by red pilot light (5) glowing. When fully loaded the hair clipper can operate approximately sixty minutes.
• The hair clipper accumulator obtains optimum power after three cycles of loading and unloading. Ten hours is enough for next loading. In order to provide long life of accumulators, they should be completely unloaded before loading.

3. Using the clipper for hair cutting and thinning

TIP: Cut the hair for demanded length in stages, start form bigger length.

• Insert appropriate comb attachment (small (IV) or big (V)).
• A small comb attachment (IV) is good for cutting hair from 4–20 mm, whereas the big one (V) from 24–40 mm (see: Comb attachments inserting/ replacing).
• Switch the device on moving the ON/OFF switch (3) to 1 position.

Cut only small areas. —

Move the clipper slowly along hair. —

Hold the device so, that the comb attachment is laid flat. -

- Always start the cutting from the neck upwards or from the forehead and temples upwards to the top of head.

In order to thin the hair turn the hair thinning knob (2) to position; position; the thinning attachment integrated with cutting head (1) shall be moved up.

You can reduce the hair volume with this feature. It provides a modern, changed look without the change of hair length.

4. Cutting hair without attachment

WARNING: The cutting head (1) is very sharp. Injury hazard!

You can cut the hair in uniform length of 1–2 mm without comb attachment.

For clipping the hairline of bristle and whiskers, neck shaving:

-Move the hair clipper slowly along hair.

– Turn the device so, that the back part was directed upwards.
- Place the edge of the cutting head (1) without comb attachment on desired length of bristle hairline.
-Move down the clipper in operation.

5. Comb attachments inserting/replacing

It is possible to select one of two comb attachments:

• The small attachment can cut hair for the length of: 4 mm, 7 mm, 10 mm, 13 mm, and 16 mm.
• The big attachment can cut hair for the length of: 18 mm, 21 mm, 24 mm, 27 mm, and 30 mm.

– Insert an attachment into the side runners of the hair clipper housing.

• At the bottom of the comb attachment there is an oval setting bar. Press it with your thumb and simultaneously push the attachment into desired position.
  — Before you start cutting, make sure that the attachment is firmly blocked.
• Replace one attachment removing it and inserting another as described above.
• In order to shorten hear or beard more, move down the attachment into another position and repeat the cutting process.

Cleaning and maintenance

- Do not hold the adaptor with wet hands while plugging and unplugging form mains supply outlet.

The adaptor and supplying cord should be always dry.

- It is forbidden to immerse the hair clipper in water or other liquids for cleaning, as the device is not waterproof. It can damage the live parts (accumulators).

Set the ON/OFF switch - (3) to OFF position.

- Always switch off the hair clipper and unplug the adaptor from the mains supply outlet before cleaning and maintenance.

Remove the comb attachment from the hair clipper.

• In order to remove cutting head (1), at first move the hair thinning knob (2) right into position.
• Press forward cutting head (1) with your thumb, in order to release the cutting head from the frame.
• If necessary, rinse the plastic comb attachments under running water, and then dry them thoroughly.
• Remove the remains of hair from the cutting head (1) with attached cleaning brush (VII).
• Insert the protrusion of cutting head (1) back into the locking hole in the frame of cutting head.
• Press gently the cutting head (1) in, until you hear a clicking sound of locking.

TIP: In order to reduce friction, from time to time insert one or two drops of oil between the blades and distribute it evenly.

You can use any kind of acidless oil (such as oil for sewing machine). Remove the exceeding oil with cloth.

Close-up of a hand holding a black handheld device with plastic wrap nearby (no visible text or symbols)

Ecology – Environment protection

Each user can contribute to protect the environment. It is neither difficult nor expensive. In order to do so:

Return cardboard packages to recycling points.

Throw polyethylene (PE) bags into appropriate containers.

Batteries contain substances harmful to the natural environment. Do not throw them away with other household waste. Return used batteries to recycling points. Before disposing of or returning the appliance to a recycling point make sure to remove the batteries from the battery compartment.

Return a worn out appliance to an appropriate collecting point as the components of the appliance may pose a threat to the environment.

Do not dispose into the domestic waste disposal!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
