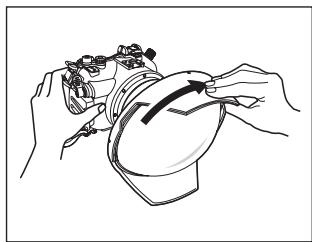

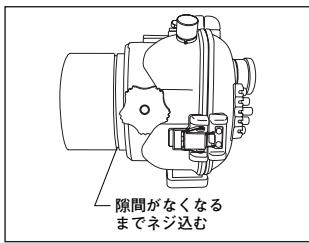

2 防水プロテクタへの取付け方

Technical line drawing of a mechanical assembly showing a component before and after assembly (no text or symbols)

Line drawing of hands assembling or adjusting a mechanical component (no text or symbols)

Mechanical assembly diagram showing a piston-cylinder joint and internal components (no text or labels)

Line drawing of hands holding a camera lens (no text or symbols)

Technical line drawing of a mechanical assembly with a flange and housing (no text or symbols)

Line drawing of hands holding a small object with an arrow indicating rotation (no text or symbols)

Simple diagram of a bag with two curved arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical component with curved arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a symmetrical, curved object with two handles (no text or symbols)

Illustration of a mechanical device inside a container with droplets, no text or symbols present

Line drawing of hands holding a bowl with food items (no text or symbols)

Technical illustration of a mechanical component with a circular housing and a cross-sectional view (no text or symbols)

Simple line drawing of a biological or geological structure with no text, numbers, or symbols

Illustration of hands holding a bowl with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical component with a rotating arrow and a cross-section view (no text or symbols)

Line drawing of hands holding a camera lens (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no text or symbols

Line drawing of a DSLR camera with lens and aperture (no text or symbols)

①レンズをカメラ本体から取外します。

10

Technical line drawing of a mechanical component with a circular dial and directional arrow (no text or symbols)

Technical illustration of a camera component with exploded view and side view (no text or symbols)

Technical line drawing of a camera module with no visible text or symbols

Technical diagram showing mechanical assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a highlighted section (no text or symbols)

Diagram of a container with liquid and a container with a lid, showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand pressing down on a curved surface with an upward arrow (no text or symbols)

Line drawing of two hands tying a knot around a string (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of two hands holding a thin object, no text or symbols present

©2005 OLYMPUS IMAGING CORP.

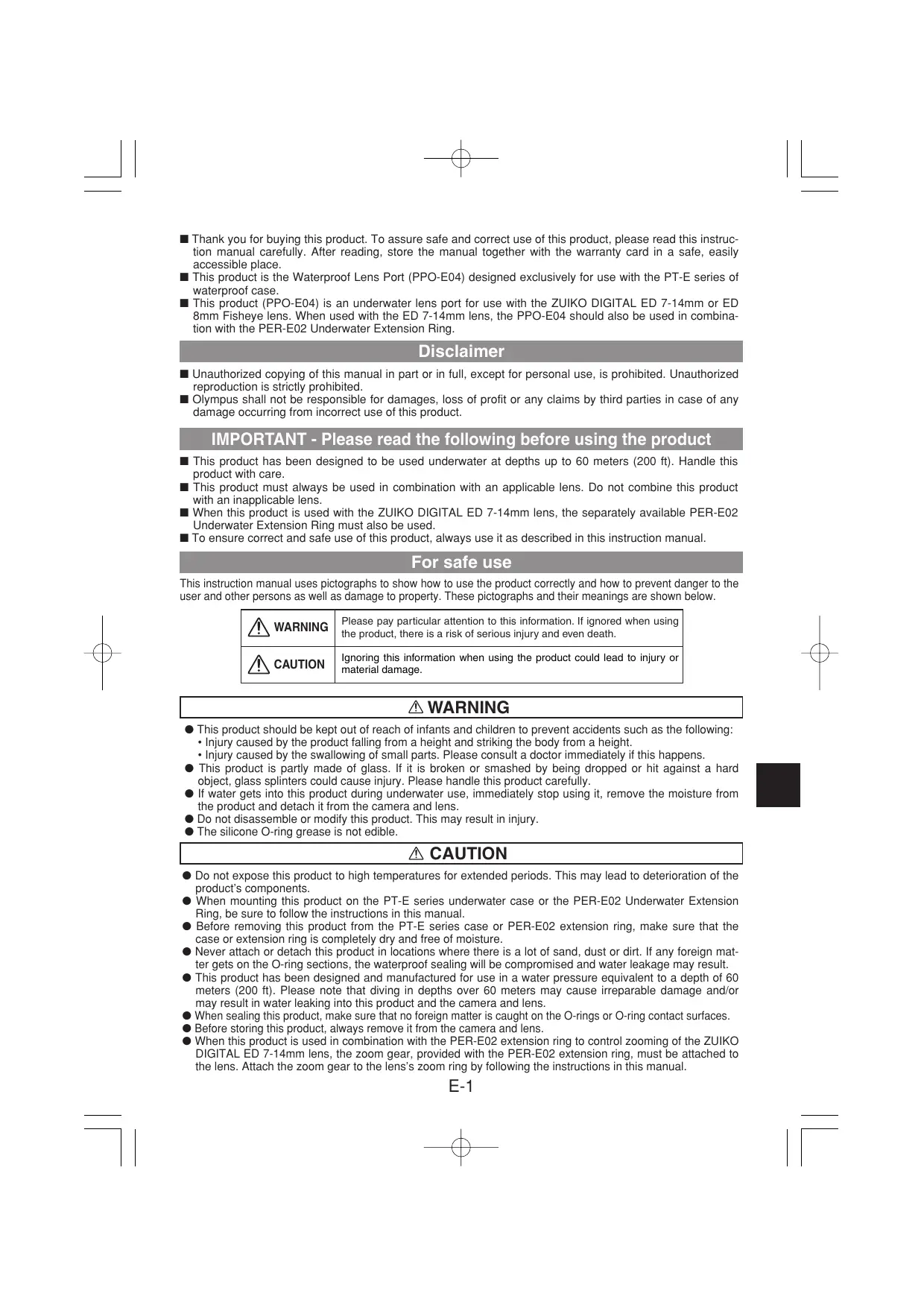

Thank you for buying this product. To assure safe and correct use of this product, please read this instruction manual carefully. After reading, store the manual together with the warranty card in a safe, easily accessible place.
This product is the Waterproof Lens Port (PPO-E04) designed exclusively for use with the PT-E series of waterproof case.
This product (PPO-E04) is an underwater lens port for use with the ZUIKO DIGITAL ED 7-14mm or ED 8mm Fisheye lens. When used with the ED 7-14mm lens, the PPO-E04 should also be used in combination with the PER-E02 Underwater Extension Ring.

Disclaimer

■ Unauthorized copying of this manual in part or in full, except for personal use, is prohibited. Unauthorized reproduction is strictly prohibited.

■ Olympus shall not be responsible for damages, loss of profit or any claims by third parties in case of any damage occurring from incorrect use of this product.

IMPORTANT - Please read the following before using the product

This product has been designed to be used underwater at depths up to 60 meters (200 ft). Handle this product with care.
This product must always be used in combination with an applicable lens. Do not combine this product with an inapplicable lens.
■ When this product is used with the ZUIKO DIGITAL ED 7-14mm lens, the separately available PER-E02 Underwater Extension Ring must also be used.
■ To ensure correct and safe use of this product, always use it as described in this instruction manual.

For safe use

This instruction manual uses pictographs to show how to use the product correctly and how to prevent danger to the user and other persons as well as damage to property. These pictographs and their meanings are shown below.

WARNING	Please pay particular attention to this information. If ignored when using the product, there is a risk of serious injury and even death.
CAUTION	Ignoring this information when using the product could lead to injury or material damage.

⚠ WARNING

● This product should be kept out of reach of infants and children to prevent accidents such as the following:
- Injury caused by the product falling from a height and striking the body from a height.
- Injury caused by the swallowing of small parts. Please consult a doctor immediately if this happens.
- This product is partly made of glass. If it is broken or smashed by being dropped or hit against a hard object, glass splinters could cause injury. Please handle this product carefully.
- If water gets into this product during underwater use, immediately stop using it, remove the moisture from the product and detach it from the camera and lens.
- Do not disassemble or modify this product. This may result in injury.
● The silicone O-ring grease is not edible.

CAUTION

• Do not expose this product to high temperatures for extended periods. This may lead to deterioration of the product's components.
• When mounting this product on the PT-E series underwater case or the PER-E02 Underwater Extension Ring, be sure to follow the instructions in this manual.
• Before removing this product from the PT-E series case or PER-E02 extension ring, make sure that the case or extension ring is completely dry and free of moisture.
• Never attach or detach this product in locations where there is a lot of sand, dust or dirt. If any foreign matter gets on the O-ring sections, the waterproof sealing will be compromised and water leakage may result.
• This product has been designed and manufactured for use in a water pressure equivalent to a depth of 60 meters (200 ft). Please note that diving in depths over 60 meters may cause irreparable damage and/or may result in water leaking into this product and the camera and lens.
• When sealing this product, make sure that no foreign matter is caught on the O-rings or O-ring contact surfaces.
  ● Before storing this product, always remove it from the camera and lens.
• When this product is used in combination with the PER-E02 extension ring to control zooming of the ZUIKO DIGITAL ED 7-14mm lens, the zoom gear, provided with the PER-E02 extension ring, must be attached to the lens. Attach the zoom gear to the lens's zoom ring by following the instructions in this manual.

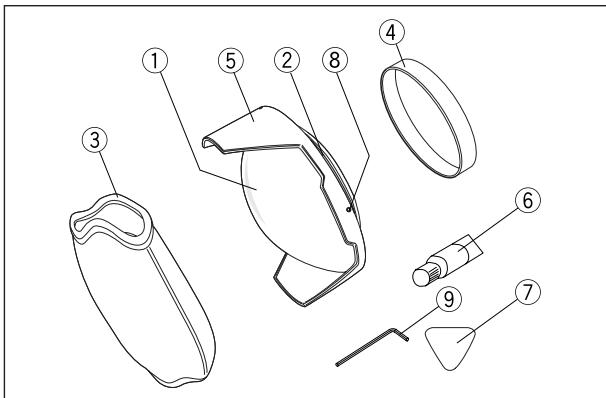

1 Name of Parts

① PPO-E04 main body
② Silicon O-ring (POL-E101)
③ Front cap
④ Rear cap
⑤ Lens hood
⑥ Grease for silicone O-ring
⑦ Pick for O-ring removal
⑧ Lens hood clamping screws (x 4)
⑨ Clamping screw securing wrench

Exploded view diagram of a device with numbered parts for identification

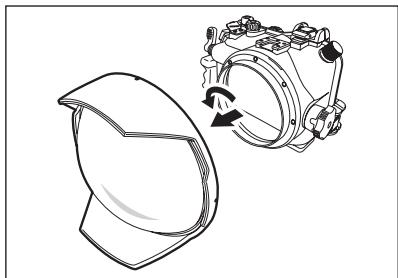

2 Mounting the PPO-E04 on the Underwater Case

This chapter describes how to mount this product and an applicable lens on the PT-E series Underwater Case. Before mounting, make sure that no foreign matter is attached to the PPO-E04's O-ring and threaded section or to the case's port mount thread and O-ring contact surface. Apply a thin layer of the provided silicone O-ring grease to each of these parts.

1) When using the ZUIKO DIGITAL ED 8mm Fisheye lens

Silicone grease application surfaces

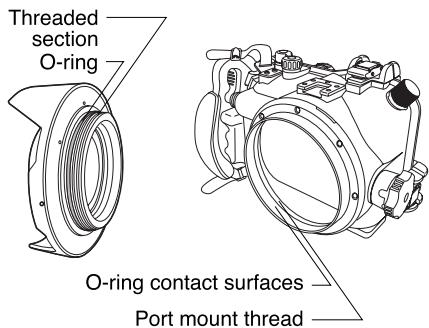

Threaded section O-ring O-ring contact surfaces Port mount thread

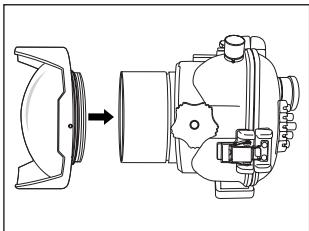

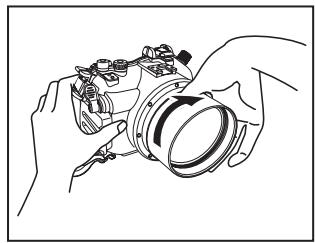

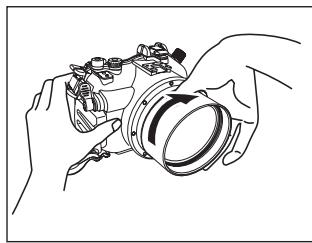

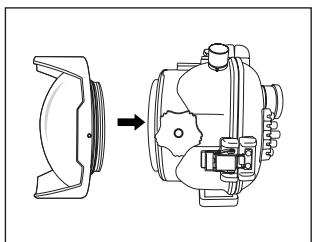

① Align the threaded section of the PPO-E04 with the port mount thread on the PT-E series case.

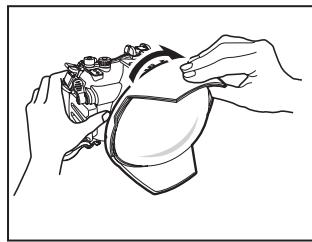

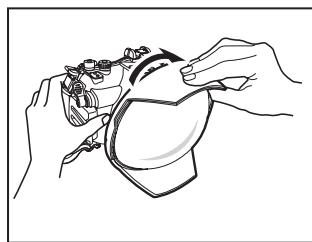

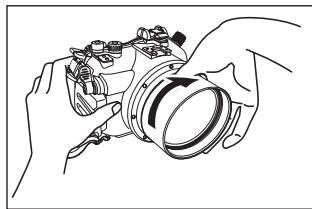

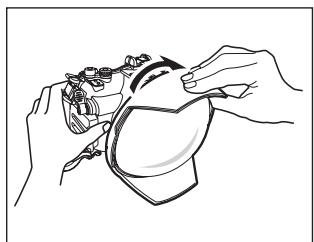

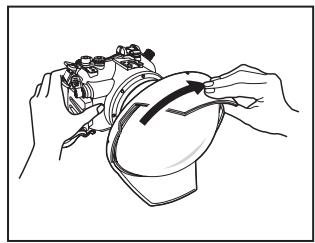

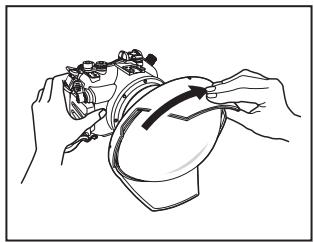

② Hold the PT-E series case firmly with one hand, hold the lens hood around the lens of the PPO-E04 with your other hand and screw it into the PT-E series by turning the PPO-E04 clockwise.

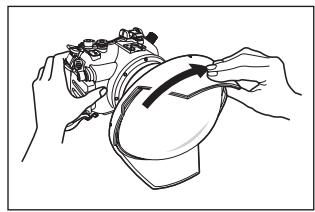

③ Resistance increases as the PPO-E04 is screwed in more deeply. However, be sure to screw it in all the way until there is no gap visible between the case's port mount thread and the PPO-E04's threaded section. If the resistance is extremely high, apply some more silicone O-ring grease again to surfaces listed above.

Technical line drawing of a mechanical device with an arrow indicating transformation (no text or symbols present)

Line drawing of hands assembling a mechanical component (no text or symbols)

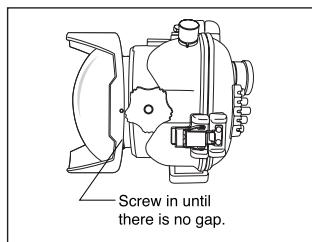

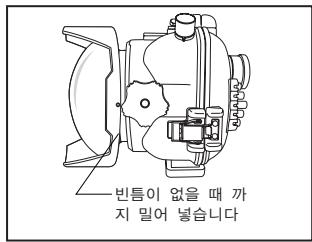

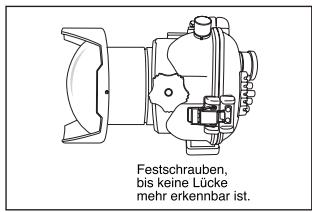

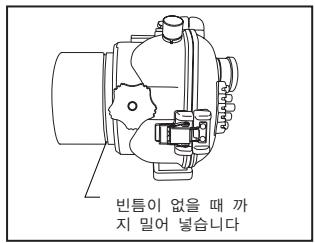

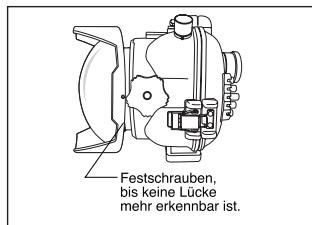

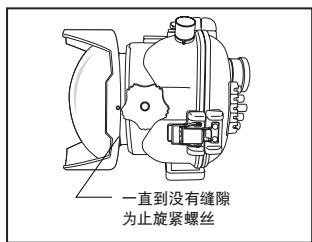

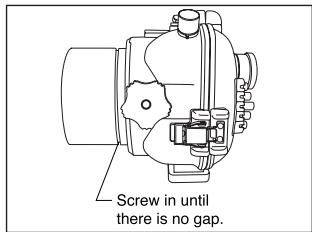

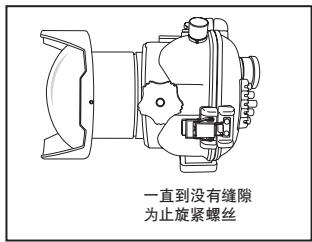

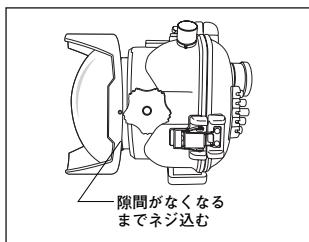

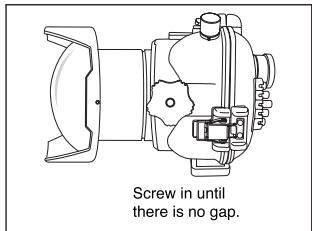

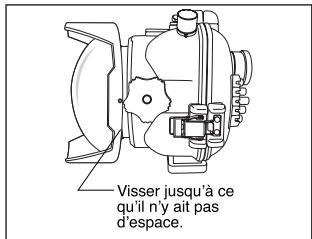

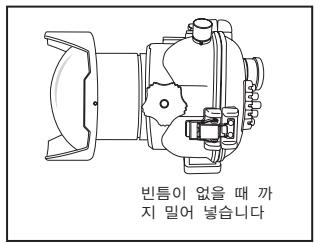

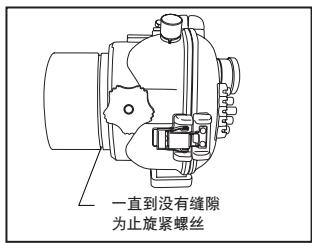

Screw in until there is no gap.

2) When using the ZUIKO DIGITAL ED 7-14 mm lens

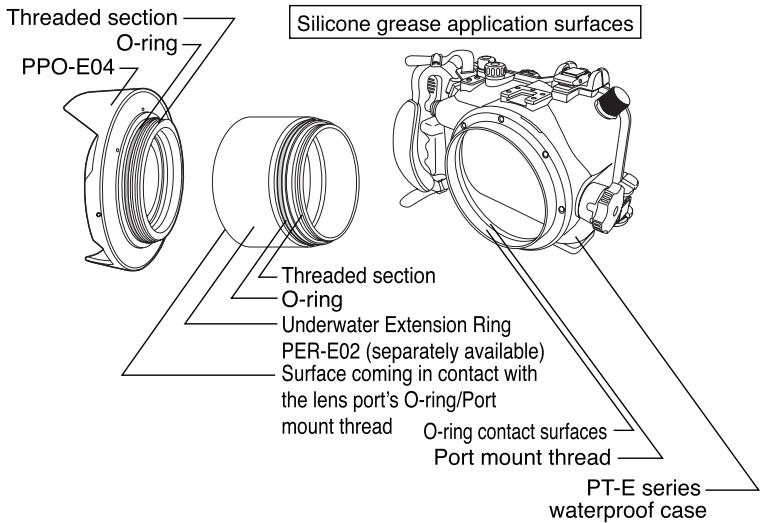

Threaded section O-ring PPO-E04 Silicone grease application surfaces Threaded section O-ring Underwater Extension Ring PER-E02 (separately available) Surface coming in contact with the lens port's O-ring/Port mount thread O-ring contact surfaces Port mount thread PT-E series waterproof case

When using the ZUIKO DIGITAL ED 7-14 mm lens, the separately available PER-E02 Underwater Extension Ring should be mounted between the PPO-E04 and PT-E series Underwater Case. Before mounting, make sure that no foreign matter is attached to the O-rings, O-ring contact surfaces, port mount threads and threaded sections of the three modules. After this, apply thin layers of the provided silicone O-ring grease on these parts.

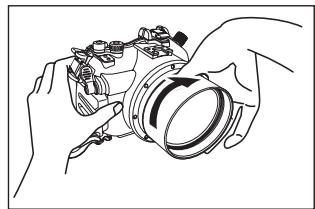

① Align the threaded section of the PER-E02 extension ring with the port mount thread on the PT-E series case.
② Hold the PT-E series case firmly with one hand, hold the main body of the PER-E02 extension ring with your other hand and screw it into the PT-E series by turning the extension ring clockwise.
③ Resistance increases as the PER-E02 extension ring is screwed in more deeply. However, be sure to screw it in all the way until there is no gap visible between the case's port mount thread and the extension ring's threaded section. If the resistance is extremely high, apply some more silicone O-ring grease again to surfaces listed above.

Mechanical assembly diagram showing a piston-cylinder joint and internal components (no text or labels)

Line drawing of hands holding a camera lens (no text or symbols)

Screw in until there is no gap.

④ Align the lens port mount thread of the PER-E02 extension ring with the threaded section on the PPO-E04.
⑤ Hold the PT-E series case and PER-E02 extension ring firmly with one hand, hold the lens hood around the lens of the PPO-E04 with your other hand and turn it clockwise to screw it into the extension ring.
⑥ Resistance will increase as the PPO-E04 is screwed in. However, be sure to screw it in all the way until there is no gap visible between the PPO-E04's thread section and the extension ring's port mount thread. If the resistance is extremely high, apply some more silicone O-ring grease again to surfaces listed above.

Mechanical assembly diagram showing a motor and housing components (no text or labels)

Line drawing of hands holding a small object with an arrow indicating direction (no text or symbols)

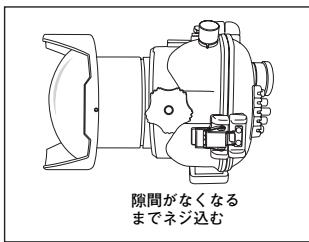

Screw in until there is no gap.

3 Attaching/Removing the Front Cap

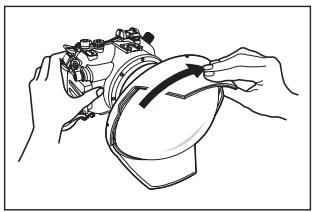

To attach the front cap, fit it into the front end (lens hood) of the PPO-E04 as shown below. The front cap can be removed by reversing the attaching procedure. Be sure to remove the front cap before shooting.

Simple diagram of a bag with two curved arrows indicating flow or movement (no text or symbols)

Diagram of a helmet with arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a symmetrical, curved object resembling a stylized face or mask (no text or symbols)

CAUTION: Make sure that the PPO-E04 is completely dry before attaching or removing the front cap.

4 Adjusting the Lens Hood Position

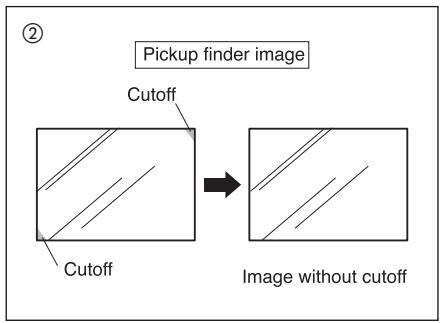

If the corners of the image in the pickup finder are cut off after the PPO-E04 is attached, adjust the lens hood position.

① Using the clamping screw securing wrench provided with the PPO-E04, loosen the four lens hood clamping screws on the PPO-E04.

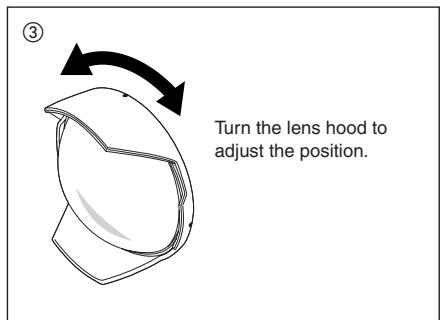

② Adjust the hood until the image in the pickup finder is not cut off.
③ Set the lens hood to the position where the image is not cut off.

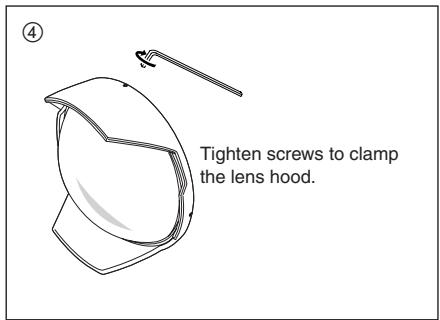

④ Tighten the lens hood clamping screws to clamp the lens hood in that position.

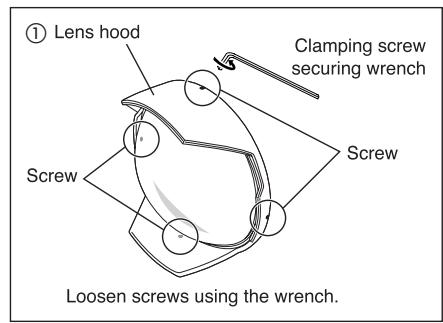

① Lens hood Clamping screw securing wrench Screw Loosen screws using the wrench.

Turn the lens hood to adjust the position.

④ Tighten screws to clamp the lens hood.

5 Dismounting the PPO-E04

1) When the PPO-E04 is mounted directly on the PT-E series case (When using the ZUIKO DIGITAL ED 8mm Fisheye lens)

Illustration of a water tank with bubbles and droplets inside, no text or symbols present

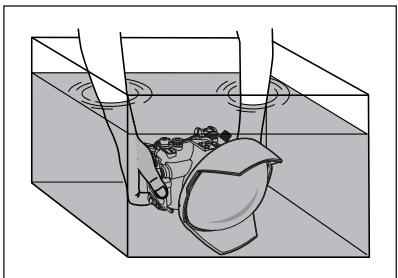

① If any water is on the product, wipe it completely away and make sure that the product is dry.

Line drawing of hands holding a bowl with food items, no text or symbols present

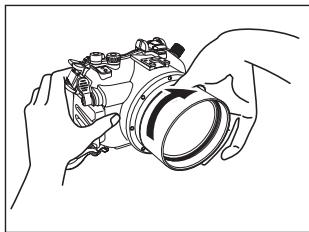

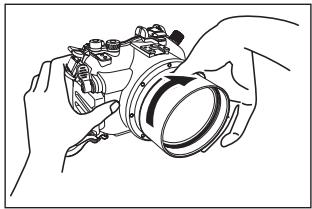

② Holding the PT-E series case firmly with one hand, loosen the PPO-E04 by turning it about 90 degrees counterclockwise. If the PPO-E04 is attached too tightly to turn, wrap it with a piece of rubber or similar non-slip material.

Technical illustration of a mechanical component with a top view showing a rotating part and a side view showing a cutaway view (no text or symbols)

③ After loosening the PPO-E04, point its lens downward and turn it further counterclockwise until it is separated from the PT-E series case. Be careful not to drop the PPO-E04 or PT-E series case.

CAUTION: When the PPO-E04 is removed from the PT-E series case, water drops on the O-rings may splash on the lens or camera. If this happens, wipe the water drops away from the lens and camera with a dry cloth.
- Make sure that all of the parts are completely dry before dismounting.

2) When the PPO-E04 is combined with the PER-E02 Extension Ring (When using the ZUIKO DIGITAL ED 7-14mm lens)

Simple line drawing of a biological or medical structure with no visible text, numbers, or symbols.

① If any water is on the product, wipe it completely away and make sure that the product is dry.

Line drawing of hands holding a bowl with a curved arrow indicating rotation (no text or symbols)

② Holding the PT-E series case firmly with one hand, loosen the PPO-E04 from the PER-E02 extension ring by turning the PPO-E04 about 90 degrees counterclockwise. If the PPO-E04 is screwed in too tight, wrap it with a piece of rubber or other slip-resistant material.

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

③ After loosening the PPO-E04, position it so that its lens points down and turn it further counterclockwise until it separates from the extension ring. Be careful not to drop the PPO-E04, PER-E02 extension ring or PT-E series case.

Line drawing of hands holding a camera lens (no text or symbols)

④ Holding the PT-E series case firmly with one hand, loosen the PER-E02 by turning it about 90 degrees counterclockwise. If the PER-E02 is screwed in too tight, wrap it with a piece of rubber or other slip-resistant material.

Mechanical assembly diagram showing a clamped component with arrows indicating motion (no text or symbols)

⑤ After loosening the PER-E02, point its lens down and turn it further counterclockwise until it is separated from the PT-E series case. Be careful not to drop the PER-E02 or PT-E.

CAUTION: When the PPO-E04 and PER-E02 extension ring are removed from the PT-E series case, water drops on the O-rings may splash on the lens or camera. If this happens, wipe the water drops away from the lens and camera with a dry cloth.
- Make sure that all of the parts are completely dry before dismounting.

6 Attaching the Zoom Gear on the Lens

1) When using the ZUIKO DIGITAL ED 7-14mm lens

To control zooming of the ZUIKO DIGITAL ED 7-14mm lens using the combination of the PPO-E04 with the PER-E02 Underwater Extension Ring, the zoom gear, provided with the extension ring, must be attached to the zoom ring on the lens.

Line drawing of a DSLR camera with lens and control panel (no text or symbols)

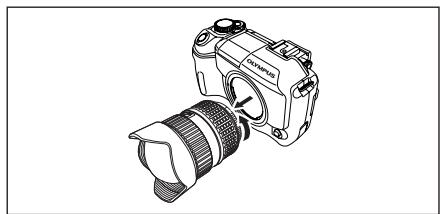

① Remove the lens from the camera.

10

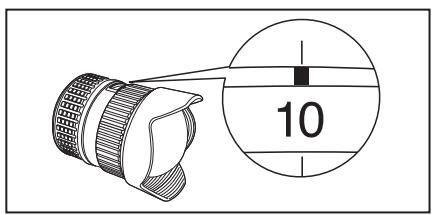

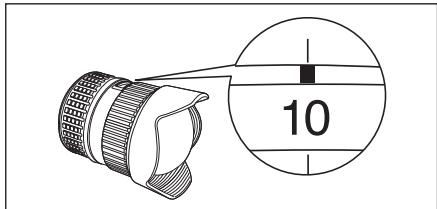

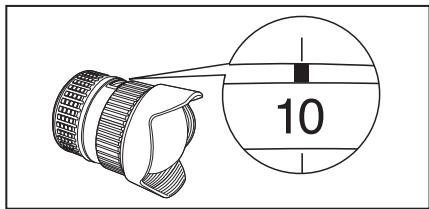

② Turn the lens's zoom ring so that the "10mm" mark is aligned with the zoom index.

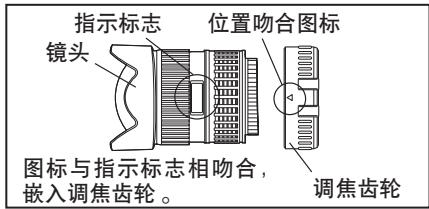

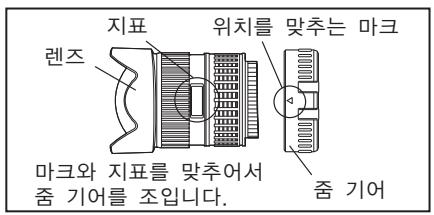

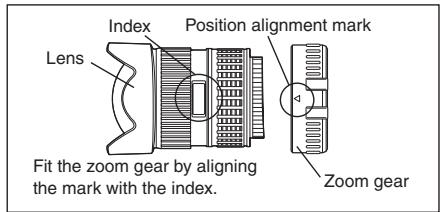

Lens Index Position alignment mark Fit the zoom gear by aligning the mark with the index. Zoom gear

③ Fit the zoom gear from the lens mount side so that the position alignment mark (two marks are provided on the gear periphery and either can be selected for use as reference in the position alignment operation) is aligned with the index on the lens.

Confirm alignment.

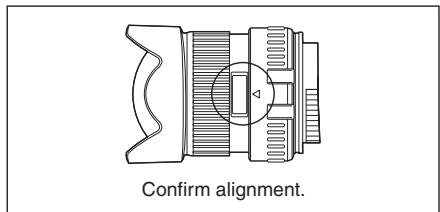

④ Confirm that the position alignment mark on the zoom gear is aligned correctly with the index on the lens and that the zoom gear is attached properly.

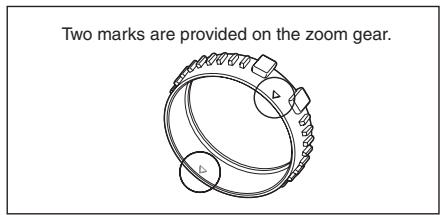

Two marks are provided on the zoom gear.

⑤ Two position alignment marks are provided on the gear periphery. Either mark can be used as reference in the position alignment operation for zooming control.

CAUTION: If the zoom gear position is not aligned correctly, smooth zooming control is not possible. Be sure to attach the zoom gear to the correct position.

2) When using the ZUIKO DIGITAL ED 8mm Fisheye lens

To enable manual focusing of this lens, we are developing a separately available MF gear (to be released in early 2006) for attachment to the lens's MF ring.

7 Loading the Camera and Lens

The following description is applicable when the ZUIKO DIGITAL ED 7-14mm lens is used.

After installing the lens on the camera and attaching the zoom gear provided with the PER-E02 extension ring, insert the camera into the PT-E series case on which the PER-E02 extension ring and PPO-E04 are mounted.

Technical line drawing of a mechanical component with a circular dial and directional arrow (no text or symbols)

① Screw the camera table provided with the PT-E series case firmly into the bottom of the camera.

Technical illustration of a camera assembly showing lens, head, and adjustment mechanism (no text or symbols)

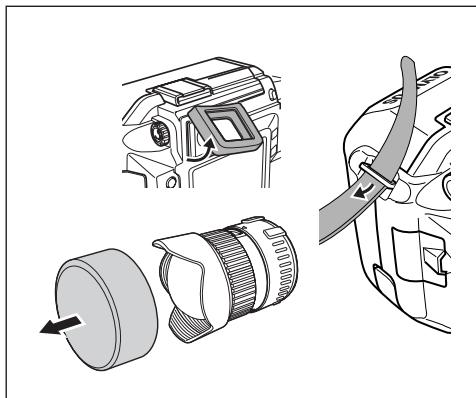

② Remove the eyecup from the camera's viewfinder. If a lens cap or filter is attached to the lens or the strap is attached to the camera, remove them as well.

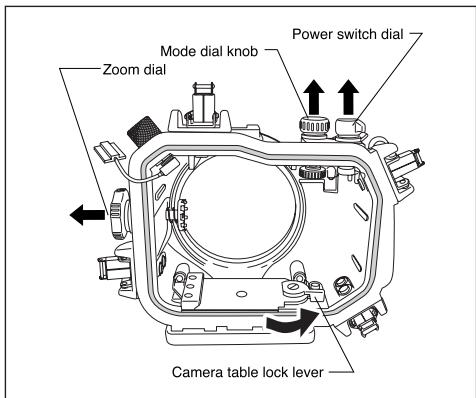

Zoom dial Mode dial knob Power switch dial Camera table lock lever

③ Lift the PT-E series case's power switch dial, mode dial knob and zoom dial, and turn the case's camera table lock lever counterclockwise to release the lock. Refer to the PT-E series case's instruction manual for instructions of how to attach the hot shoe cable for the flash.

Pull out the zoom dial further. 10

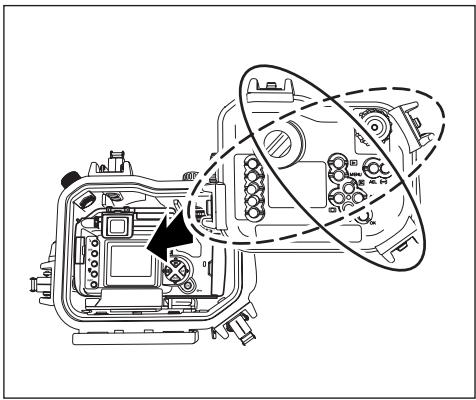

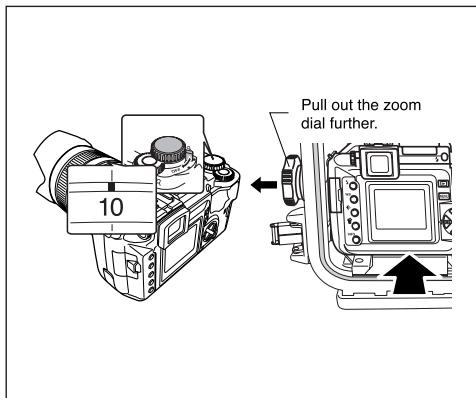

④ Confirm that the camera's power switch is OFF. Align the "10 mm" zoom position with the zoom index of the lens and, while pulling out the zoom dial of the PT-E series case further, place the camera table (with camera attached) on the camera table mount on the inner side of the front lid of the PT-E series case.

Technical line drawing of a camera module with no visible text or symbols

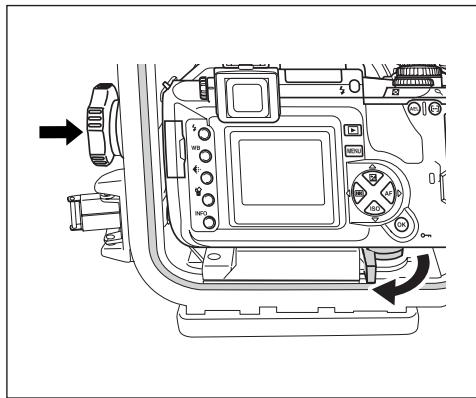

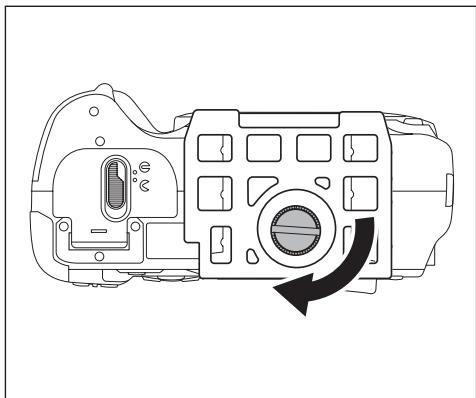

⑤ After inserting the camera, turn the PT-E series case's camera table lock lever all the way clockwise to lock the camera table. Then, push in the zoom dial on the case and engage it with the zoom gear attached to the lens. Turn the zoom dial to confirm that it can control zooming.

Technical diagram showing mechanical assembly with directional arrows (no text or symbols)

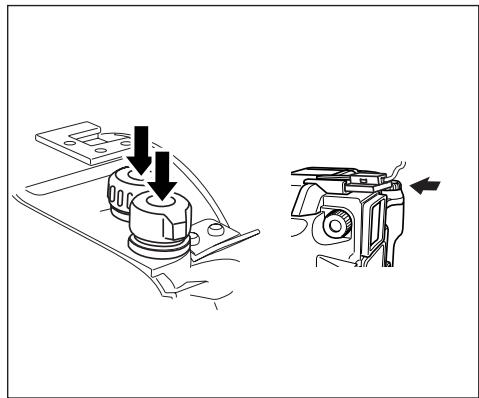

⑥ Push in the PT-E series case's power switch dial and mode dial knob. Turn the power switch dial and mode dial knob and confirm that they can control the camera power ON-OFF and mode switching. Connect the hot shoe mount section of the hot shoe cable that has been connected to the PT-E series case to the hot shoe of the camera.

Technical line drawing of a mechanical assembly with internal components and a highlighted section (no text or symbols)

⑦ Attach the rear lid of the PT- E series case and lock the four buckles (two diagonally located buckles first, and then the other two diagonally located buckles). Underwater shooting is now possible.

8 Maintenance

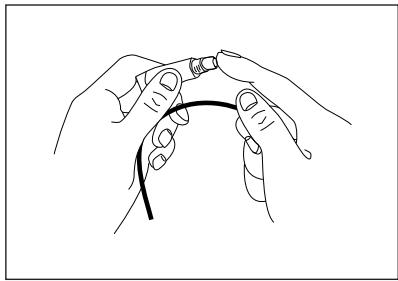

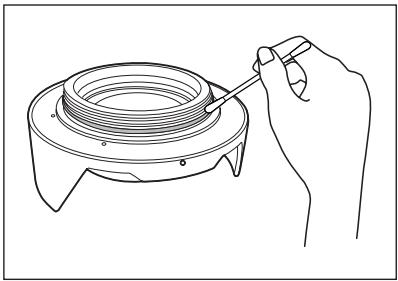

For safe use of this product, always perform maintenance after each diving session.

For details, refer to “Handling After Shooting” and “Maintaining the Waterproof Function” in the PT-E series case instruction manual. Apply the same procedures to this product.

Diagram of a mechanical device inside a container with internal components (no text or symbols)

① After shooting, remove the inserted camera and lens, then re-seal the empty case and immerse it in tap water to remove any salt as soon as possible.

Technical line drawing of a mechanical assembly with no visible text or symbols

② After making sure that the PT-E series case is completely dry, dismount this product from the case.

Illustration of a hand pressing down on a curved surface with an upward arrow indicating motion (no text or symbols)

③ Remove the O-rings from this product using the provided pick for removing O-rings. Take care not to damage the O-rings.

Line drawing of two hands tying a knot around a string (no text or symbols)

④ Remove sand and dust from the O-rings. Pinch each O-ring between your fingers and lightly rub the entire circumference to check for foreign matter, scratches and cracks.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

⑤ If any foreign matter is attached to the O-ring grooves, remove it using a clean, lint-free cloth or cotton swab. Also remove any foreign matter from the O-ring contact surfaces and from the port mount thread on the PT-E series case.

Line drawing of two hands holding a thin cable or wire, no text or symbols present

⑥ After removing foreign matter, apply the provided grease to the O-rings and fit them into the O-ring grooves.
To apply grease to each O-ring, squeeze a drop of grease about the size of a grain onto your finger and lightly rub the entire circumference of the O-ring to spread the grease thinly and evenly.

9 Specifications

Applicable case	: PT- E series
Applicable lens	: ZUIKO DIGITAL ED 7-14mm F4.0*, ED 8 mm F3.5 Fisheye* The separately available PER-E02 Underwater Extension Ring is required.
Main materials
Main body	: Aluminum.
Lens	: Glass dome lens (AR multi-coated)
O-rings	: Silicon rubber.
Front cap	: Neoprene
Rear cap	: Polyethylene resin.
Withstanding pressure	: Water depth of 60 m (200 ft)
Dimensions	: Max. diameter 176 mm x Depth 78 mm
Weight	: Approx. 935 g

Note) We reserve the right to change the external appearance and specifications without notice.

10 Consumable Items

This product uses the following consumable items.

■ Silicon O-rings

Product Model	Description
POL-E101	O-ring for use with the PT-E series case.

■ Grease for silicone O-ring

Product Model	Description
PSOLG-1	Grease for O-rings

OLYMPUS®

http://www.olympus.com/

OLYMPUS IMAGING CORP.

Shinjuku Monolith, 3-1 Nishi Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS IMAGING AMERICA INC.

Two Corporate Center Drive, Po Box 9058, Melville, NY 11747-9058, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm (Monday to Friday) ET

E-Mail: [e-mail] Olympus software updates can be obtained at: http://www.olympus.com/digital/

OLYMPUS IMAGING EUROPA GMBH

Premises : Wendenstrasse 14-18, 20097 Hamburg, Germany Tel: [phone] Fax: [phone]

Goods delivery : Bredowstrasse 20, 22113 Hamburg, Germany
Letters : Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

*Please note that some (mobile) phone services/ provider do not permit access or request an additional prefix to +800 numbers.

For all not listed European Countries and in case that you can't get connected to the above mentioned number please make use of the following

CHARGED NUMBERS:

+49 180 5 - 67 10 83 or +49 40 - 237 73 899

Our Technical Customer Support is available from 9am to 6pm MET (Monday to Friday)

Exploded view diagram of a device with numbered parts for identification

Technical line drawing of a mechanical device with a circular component and internal components, showing an assembly process (no text or symbols)

Line drawing of hands assembling a mechanical component (no text or symbols)

Mechanical assembly diagram showing a piston-cylinder joint and internal components (no text or labels)

Line drawing of hands holding a camera lens (no text or symbols)

Technical line drawing of a mechanical assembly showing a component being processed into a housing (no text or symbols present)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Simple diagram of a bag with arrows indicating flow or movement (no text or symbols)

Diagram of a helmet with arrows indicating rotation around the head (no text or symbols)

Simple line drawing of a symmetrical, rounded object with curved edges (no text or symbols)

Simple line drawing of a folded garment with a curved arrow indicating rotation (no text or symbols)

Illustration of a biological structure with internal components and droplets, no text or symbols present

Line drawing of hands holding a bowl with food items (no text or symbols)

Technical illustration of a mechanical component with a downward rotation arrow (no text or symbols)

Simple line drawing of a biological or geological structure with no text, numbers, or symbols

Line drawing of hands holding a bowl with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical component with a rotating arrow and a cross-sectional view (no text or symbols)

Line drawing of hands holding a camera lens (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with a rotating component (no text or symbols)

Line drawing of a Nikon DSLR camera with lens and adjustment knob (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical illustration of a camera assembly showing lens, gear shift, and car wheel (no text or symbols)

Technical line drawing of a camera module with no visible text or symbols

Technical diagram showing mechanical assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a container with liquid and a container with a lid, showing internal components (no text or symbols)

Technical line drawing of a mechanical component with a flanged base and rotating arm (no text or symbols)

Illustration of a hand pressing down on a curved surface with an upward arrow (no text or symbols)

Line drawing of two hands tying a knot around a string (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of two hands holding a curved object, no text or symbols present

Shinjuku Monolith, 3-1 Nishi Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS IMAGING AMERICA INC.

Two Corporate Center Drive, Po Box 9058, Melville, NY 11747-9058, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm (Monday to Friday) ET E-Mail: [e-mail] Olympus software updates can be obtained at: http://www.olympus.com/digital/

OLYMPUS IMAGING EUROPA GMBH

Premises : Wendenstrasse 14-18, 20097 Hamburg, Germany Tel: [phone] Fax: [phone]

Goods delivery : Bredowstrasse 20, 22113 Hamburg, Germany Letters : Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom *Please note that some (mobile) phone services/ provider do not permit access or request an additional prefix to +800 numbers.

For all not listed European Countries and in case that you can't get connected to the above mentioned number please make use of the following

CHARGED NUMBERS:

+49 180 5 - 67 10 83 or +49 40 - 237 73 899

Our Technical Customer Support is available from 9am to 6pm MET (Monday to Friday)

Exploded view diagram of a device with numbered parts for identification

Technical line drawing of a mechanical device with a cross-sectional view showing internal components (no text or symbols)

Line drawing of hands holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Line drawing of hands holding a camera lens (no text or symbols)

Technical line drawing of a mechanical assembly showing a component before and after assembly (no text or symbols)

Line drawing of hands holding a bowl with an arrow indicating rotation (no text or symbols)

Simple diagram of a bag with two curved arrows indicating flow or movement (no text or symbols)

Diagram of a helmet with arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a symmetrical, rounded object with two handles (no text or symbols)

Illustration of a water tank with bubbles and droplets inside, no text or symbols present

Line drawing of hands holding a bowl with food items, no text or symbols present

Technical line drawing of a mechanical component with a cross-sectional view (no text or symbols)

Simple line drawing of a biological or geological structure with no visible text, numbers, or symbols.

Line drawing of hands holding a bowl with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical component with a rotating arrow and a cross-section view (no text or symbols)

Line drawing of hands holding a camera lens (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with a rotating component (no text or symbols)

Line drawing of a DSLR camera with lens and adjustment knob (no text or symbols)

Technical line drawing of a mechanical component with a circular dial and arrow indicating rotation (no text or symbols)

Technical illustration of a camera assembly showing lens, head, and propeller components (no text or symbols)

Technical line drawing of a camera module with no visible text or symbols

Technical diagram showing mechanical assembly with directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a container with liquid and a pitcher, no text or symbols present

Technical line drawing of a mechanical assembly with a flanged component and rotating component (no text or symbols)

Illustration of a hand pressing down on a curved surface with an upward arrow (no text or symbols)

Line drawing of a hand using a tool to adjust a cylindrical component (no text or symbols)

Line drawing of two hands holding a curved object, no text or symbols present

Shinjuku Monolith, 3-1 Nishi Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS IMAGING AMERICA INC.

Two Corporate Center Drive, Po Box 9058, Melville, NY 11747-9058, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm (Monday to Friday) ET

E-Mail: [e-mail]

Olympus software updates can be obtained at: http://www.olympus.com/digital/

OLYMPUS IMAGING EUROPA GMBH

Premises : Wendenstrasse 14-18, 20097 Hamburg, Germany Tel: [phone] Fax: [phone]

Goods delivery : Bredowstrasse 20, 22113 Hamburg, Germany
Letters : Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

*Please note that some (mobile) phone services/ provider do not permit access or request an additional prefix to +800 numbers.

For all not listed European Countries and in case that you can't get connected to the above mentioned number please make use of the following

CHARGED NUMBERS:

+49 180 5 - 67 10 83 or +49 40 - 237 73 899

Our Technical Customer Support is available from 9am to 6pm MET (Monday to Friday)

Exploded view diagram of a device with numbered parts for identification

Technical line drawing of a mechanical device with a cross-sectional view and assembly arrow (no text or symbols)

Line drawing of hands holding a small object with a curved line above, no text or symbols present

Mechanical assembly diagram showing a piston and housing component (no text or labels)

Line drawing of hands holding a camera lens (no text or symbols)

Technical line drawing of a mechanical assembly showing a component before and after assembly (no text or symbols)

Line drawing of hands holding a mechanical component with an arrow indicating rotation (no text or symbols)

Simple diagram of a bag with arrows indicating flow or movement (no text or symbols)

Diagram of a helmet with arrows indicating rotation around the head (no text or symbols)

Simple line drawing of a symmetrical, rounded object with two curved handles (no text or symbols)

Simple line drawing of a folded garment with a curved arrow indicating rotation (no text or symbols)

Illustration of a biological structure with internal components and droplets, no text or symbols present

Line drawing of hands holding a bowl with food items (no text or symbols)

Technical illustration of a mechanical component with a circular head and a cross-sectional view (no text or symbols)

Simple line drawing of a medical device with droplets and a container (no text or symbols)

Illustration of hands holding a bowl with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with a top view showing internal components and a cross-section (no text or labels)

Line drawing of hands holding a camera lens (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with a rotating component (no text or symbols)

Line drawing of a DSLR camera with lens and aperture (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical illustration of a camera assembly showing lens, gear shift, and car seat (no text or symbols)

Technical line drawing of a camera module with no visible text or symbols

Technical diagram showing mechanical assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a container with a container filled with liquid and floating objects, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand pressing down on a curved surface with an upward arrow (no text or symbols)

Line drawing of two hands tying a knot around a string (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

⑤ If any foreign matter is attached to the O-ring grooves, remove using a clean, lint-free cloth or cotton swab. Also remove any foreign matter from the O-ring contact surfaces and the port mount thread on the PT-E series case.

Line drawing of two hands holding a thin, curved object with a looped end (no text or symbols)

Shinjuku Monolith, 3-1 Nishi Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS IMAGING AMERICA INC.

Two Corporate Center Drive, Po Box 9058, Melville, NY 11747-9058, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm (Monday to Friday) ET

E-Mail: [e-mail]

Olympus software updates can be obtained at: http://www.olympus.com/digital/

OLYMPUS IMAGING EUROPA GMBH

Premises : Wendenstrasse 14-18, 20097 Hamburg, Germany Tel: [phone] Fax: [phone]

Goods delivery : Bredowstrasse 20, 22113 Hamburg, Germany Letters : Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

*Please note that some (mobile) phone services/ provider do not permit access or request an additional prefix to +800 numbers.

For all not listed European Countries and in case that you can't get connected to the above mentioned number please make use of the following

CHARGED NUMBERS:

+49 180 5 - 67 10 83 or +49 40 - 237 73 899

Our Technical Customer Support is available from 9am to 6pm MET (Monday to Friday)

Exploded view diagram of a device with numbered parts for identification

2 与防水机壳的安装方法

Line drawing of a camera with attached components (no text or symbols)

镜头防水罩安装螺丝部

Mechanical assembly diagram showing a component being processed into a motor housing (no text or labels)

Line drawing of hands holding a small object with floral elements, no text or symbols present

Technical line drawing of a mechanical assembly with a cylindrical component and internal components (no text or symbols)

Line drawing of hands holding a camera lens (no text or symbols)

Technical line drawing of a mechanical assembly showing a component being processed into a housing (no text or symbols present)

Line drawing of hands holding a bowl with a curved arrow indicating rotation (no text or symbols)

Simple diagram of a bag with two curved arrows indicating flow or movement (no text or symbols)

Diagram of a helmet with curved arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a symmetrical, curved object with two handles, resembling a stylized helmet or mask (no text or symbols)

Simple geometric diagram with diagonal lines inside a rectangle (no text or symbols)

没有阴影的状态

③

Simple line drawing of a folded garment with a curved arrow indicating rotation (no text or symbols)

旋转镜头遮光罩， 调整位置

④

Line drawing of a curved mechanical component with a separate rod (no text or symbols)

旋入螺丝，固定镜头遮光罩。

5 取下PPO-E04的方法

Illustration of a fish inside a tent with water droplets (no text or symbols)

Line drawing of hands holding a bowl with food items, no text or symbols present

Technical line drawing of a mechanical component with two views: top shows a circular component with internal features, bottom shows a cross-section (no text or symbols)

Illustration of a biological structure with droplets and granules, no text or symbols present

Line drawing of hands holding a bowl with a lid and fruit, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of hands holding a camera lens (no text or symbols)

Mechanical assembly diagram showing a bearing housing and a cylindrical component (no text or symbols)

Line drawing of a DSLR camera with lens and adjustment knob (no text or symbols)

10

Technical line drawing of a mechanical component with a circular dial and directional arrow (no text or symbols)

Technical illustration of a camera assembly showing lens, gear shift, and wheel (no text or symbols)

Line drawing of a DSLR camera with control panel and adjustment knobs (no text or symbols)

Technical diagram showing mechanical assembly with two views of a device (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a magnified detail (no text or symbols)

Diagram of a container with liquid and a container with a lid, showing internal flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with a flanged component and rotating housing (no text or symbols)

Illustration of a hand pressing down on a curved surface with an upward arrow (no text or symbols)

Simple line drawing of two hands tying a knot around a string (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of two hands holding a thin cable or wire (no text or symbols)

Shinjuku Monolith, 3-1 Nishi Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

URL: http://www.olympus.com

Tel:[phone]

OLYMPUS SINGAPORE PTE LTD.

OLYMPUS STUDIO

1 North Bridge Road #01-05/34/35 High Street Centre,

Singapore 179094

URL: http://www.olympus.com.sg

Tel:[phone] Fax: [phone]

Enquiry Hotline: 1800-OLYMPUS(1800-659-6787)

OLYMPUS (MALAYSIA) SDN. BHD.

Suite D-10-P1, Level 10, Plaza Mont' Kiara, 2 Jalan 1/70C,

Mont' Kiara, 50480 Kuala Lumpur, Malaysia

Tel: [phone] Fax: [phone]

OLYMPUS AUSTRALIA PTY. LTD.

31 Gilby Road, Mt. Waverley, VIC, 3166

1300 659 678 (Customer Service Line)

Labeled diagram of a device with numbered parts for identification

2 방수 케이스에 부착 방법

Technical line drawing of a mechanical assembly showing a component before and after assembly (no text or symbols)

Line drawing of hands holding a small object, possibly a container or tool, with no visible text or symbols.

Mechanical assembly diagram showing a piston-cranked component being inserted into a motor housing (no text or labels)

Line drawing of hands holding a camera lens (no text or symbols)

Technical line drawing of a mechanical assembly showing a component being processed into a housing (no text or symbols present)

Line drawing of hands holding a small object with an arrow indicating rotation (no text or symbols)

Diagram showing transformation of a rectangular box with diagonal lines to a larger square, labeled with Chinese text.

검은 상
검은 상이 없는 상태

③

Simple line drawing of a curved mechanical component with an arrow indicating rotational motion (no text or symbols)

렌즈 후드를
회전시켜 위치
조정

④

Line drawing of a mechanical component with a handle and curved internal structure (no text or symbols)

Simple line drawing of a biological or geological structure with no visible text, numbers, or symbols.

Line drawing of hands holding a bowl and a spoon, no text or symbols present

Technical line drawing of a mechanical component with two views: top shows a circular component with internal features, bottom shows a cross-sectional view (no text or symbols)

Illustration of a biological structure with droplets and granules, no text or symbols present

Line drawing of hands holding a bowl with a lid and fruit, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of hands holding a camera lens (no text or symbols)

Technical illustration of a mechanical assembly with a cylindrical component and a base, showing no text or symbols.

Technical line drawing of a DSLR camera with lens and aperture (no text or symbols)

10

Technical line drawing of a mechanical component with a circular arrow indicating rotation or movement (no text or symbols present)

Technical illustration of a camera assembly showing lens, gear, and seat components (no text or symbols)

Line drawing of a DSLR camera module with adjustment knobs and control buttons (no text or symbols)

Technical diagram showing mechanical assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a container with liquid and a pitcher, no text or symbols present

Technical line drawing of a mechanical assembly with a flanged component and rotating component (no text or symbols)

Illustration of a hand pressing down on a curved surface with an upward arrow (no text or symbols)

Simple line drawing of two hands tying a knot around a string (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of two hands holding a thin cable or wire (no text or symbols)

Shinjuku Monolith, 3-1 Nishi Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

URL: http://www.olympus.com

Tel:[phone]

OLYMPUS SINGAPORE PTE LTD.

OLYMPUS STUDIO

1 North Bridge Road #01-05/34/35 High Street Centre,

Singapore 179094

URL: http://www.olympus.com.sg

Tel:[phone] Fax: [phone]

Enquiry Hotline: 1800-OLYMPUS(1800-659-6787)

OLYMPUS (MALAYSIA) SDN. BHD.

Suite D-10-P1, Level 10, Plaza Mont' Kiara, 2 Jalan 1/70C,

Mont' Kiara, 50480 Kuala Lumpur, Malaysia

Tel: [phone] Fax: [phone]

OLYMPUS AUSTRALIA PTY. LTD.

31 Gilby Road, Mt. Waverley, VIC, 3166

1300 659 678 (Customer Service Line)
