Product Type	Hammer Drill
Brand	Graphite
Model	58G862
Rated Voltage	230 V AC
Frequency	50 Hz
Rated Power	1500 W
No Load Speed	750 rpm
Chuck Type	SDS-PLUS
Max Drilling Diameter (Concrete)	36 mm
Max Drilling Diameter (Steel)	13 mm
Max Drilling Diameter (Wood)	40 mm
Impact Energy	4.5 J
Impact Rate	3200 min⁻¹
Protection Class	II
Weight	6.03 kg
Vibration Level (Front Handle)	9.64 m/s² (K=1.5 m/s²)
Vibration Level (Rear Handle)	16.573 m/s² (K=1.5 m/s²)
Sound Pressure Level	96 dB(A)
Sound Power Level	107 dB(A)
Overload Clutch	Yes
Working Modes	Drilling without impact, Impact drilling, Chiselling
Included Accessories	Additional handle, Depth gauge, Dust cover, Grease container, Special key, Transport case, Drill bit, Chisel

Frequently Asked Questions - 58G862 Graphite

How do I install a working tool in the SDS-PLUS chuck?

First, disconnect the power tool from the power supply. Hold the fixing sleeve on the chuck and pull it back. Insert the working tool shank into the chuck until it stops, then release the sleeve to lock it in place.

How do I set the depth gauge?

Loosen the butterfly nut on the additional handle collar. Slide the depth gauge rod into the hole in the collar, set the desired drilling depth, and tighten the butterfly nut.

What safety precautions should I take when using the hammer drill?

Always wear protective glasses and ear protection. Use the additional handle. Ensure the working tool is properly fixed. Hold the drill by insulated parts to avoid electric shock if a live wire is damaged.

How do I switch between drilling modes?

Use the impact mode switch and drilling mode switch. For drilling without impact set to position I, for impact drilling position II, and for chiselling position III. Press the lock button before changing the drilling mode switch, and do not change modes while the motor is running.

What should I do if the tool jams during drilling?

The overload clutch will activate, stopping the spindle. Turn off the hammer drill immediately to prevent damage. Remove the jammed drill from the hole.

How do I maintain the carbon brushes?

Check carbon brushes regularly. Replace them if they are shorter than 5 mm, burnt, or cracked. Always replace both brushes at a time. Have replacement done by a qualified person using original parts.

How do I grease the gear?

After every 50 hours of operation, check the grease level. Loosen the lid for greasing inlet (turn left), fill with grease, then tighten the lid (turn right without overtightening). Use the supplied grease or a high-temperature resistant alternative.

Can I use the hammer drill for chiselling?

Yes. Set the drilling mode switch to position III (chiselling). Use a chisel with an SDS-PLUS shank. The drill should be held with slight pressure.

What is the overload clutch and how does it work?

The overload clutch is a factory-set safety feature. If the working tool jams, the clutch disengages the spindle to prevent motor overload and damage. After jamming, turn off the tool immediately.

How do I clean the hammer drill?

Keep the drill clean. Use compressed air to blow out dust from ventilation slots. Clean plastic parts with damp cloth and mineral soap; do not use petrol or caustic agents.

USER MANUAL 58G862 Graphite

Icon of a person using a computer inside a circle (no text or symbols)

58G862

PL INSTRUKCJA OBSŁUGI 5
GB INSTRUCTION MANUAL 11
DE BETRIEBSANLEITUNG....16
RU РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ ..... 21
UA ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ ..... 26
HU HASZNÁLATI UTASÍTÁS. 31
RO INSTRUCTIUNI DE DESERVIRE ..... 36
© INSTRUKCE K OBSLUZE....41
SK NÁVOD NA OBSLUHU 46
SI NAVODILA ZA UPORABO 51
LT APTARNAVIMO INSTRUKCIJA. 56
LV LIETOŠANAS INSTRUKCIJA ..... 61
EE KASUTUSJUHEND 66
BG ИНСТРУКЦИЯ ЗА ОБСЛУЖВАНЕ ..... 71
HR UPUTE ZA UPOTREBU....76
SR UPUTSTVO ZA UPOTREBU 81
GR OΔΗΓΙΕΣ ΧΡΗΣΗΣ 86
ES INSTRUCCIONES DE USO....91
⑪ MANUALE PER L'USO ..... 96

INSTRUKCJA ORYGINALNA (OBSŁUGI)

MŁOT UDAROWY

58G862

UWAGA: PRZED PRZYSTĄPIENIEM DO UŻYTKOWANIA ELEKTRONARZĘDZIA NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ I ZACHOWAĆ JĄ DO DALSZEGO WYKORZYSTANIA.

SZCZEGÓŁOWE PRZEPISY BEZPIECZEŃSTWA

/EC Declaration of Conformity/

/The above listed product is in conformity with the following UE Directives:/

/Machinery Directive 2006/42/EC/

/ 2006/42/EK Gépek /

/EMC Directive 2004/108/EC /

/and fulfils requirements of the following Standards:/

/Last two figures of CE marking year:/

/Name and address of the person who established in the Community and authorized to compile the technical file/

CAUTION: BEFORE USING THE POWER TOOL READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

DETAILED SAFETY REGULATIONS

PRECAUTIONS FOR USING HAMMER DRILL

Caution: Unplug the power cord from the mains socket before commencing any activities related to adjustment, repair or maintenance.

- During hammer operation use protective glasses or goggles, ear protection and protective helmet (when there is danger of falling objects). Use of protection half-mask and anti-slip boots is recommended. Use dust extraction systems whenever required by the nature of the work performed.

Prior to operation ensure the drill chuck of the hammer is properly fixed in its place.

• During operation working tool may get loosened due to vibrations. Check carefully how the working tool is fixed prior to operation. Unwanted slack may cause tool damage or accident during operation.
• If the hammer is to be operated at low temperature or after long storage, allow the hammer to operate for few minutes without load, for its internal elements get properly lubricated.
• When operating the hammer held high, stand firmly on the ground and ensure there are no bystanders below.

Always hold the hammer with both hands, use additional handle.

- Do not touch moving parts of the hammer. Do not stop rotating spindle of the hammer with your hands. Such behaviour can cause hand injury.

Do not direct operating hammer at other persons or at yourself.

• When operating the hammer, hold it by insulated parts to avoid electric shock in case of damaging live electrical wire.
• Do not allow any dust to get inside the hammer. Use mineral soap and damp cloth to clean hammer surface. Do not use petrol or other cleaning agents that could damage plastic parts.
• When use of extension cord is necessary always remember to use appropriate one (up to 15 m, section 1.5 mm ^2 ; between 15 and 40 m, section 2.5 mm ^2 ). Extension cord should be unwound whole.
• Do not use three jaw drill chuck when the hammer drill is set to impact drilling or chiselling mode. This chuck is designed only for regular drilling in wood or steel.

CAUTION! This device is designed to operate indoors.

The design is assumed to be safe, protection measures and additional safety systems are used, nevertheless there is always a small risk of operational injuries.

CONSTRUCTION AND USE

Hammer drill is a hand-operated power tool with insulation class II. The tool is driven by single-phase commutator motor. Hammer drill can be used for drilling holes in working modes with or without impact, digging channels, or surface processing of materials such as concrete, stone, brick etc. Range of use covers repair and building works, and any work from the range of individual, amateur activities (tinkering).

Use the power tool according to the manufacturer's instructions only.

DESCRIPTION OF DRAWING PAGES

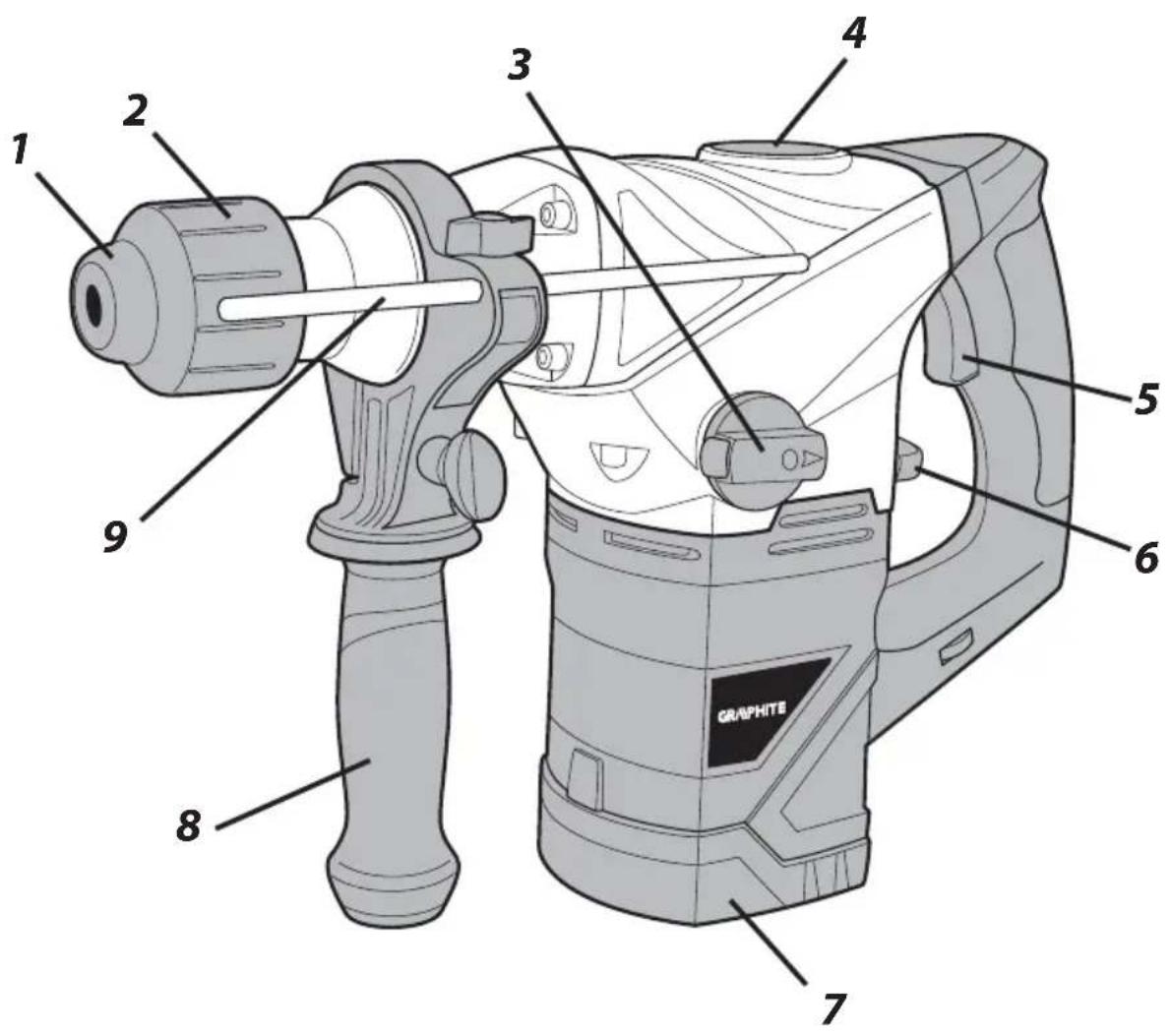

Below enumeration refers to the device elements depicted on the drawing pages of this manual.

SDS-PLUS chuck1.

Fixing sleeve2.

Drilling mode switch 3.

Lid for greasing inlet4.

Switch5.

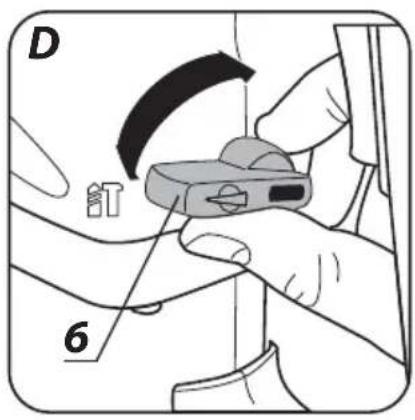

Impact mode switch6.

Bottom engine casing7.

Additional handle8.

Depth gauge rod9.

* Differences may appear between the product and drawing

MEANING OF SYMBOLS

CAUTION

WARNING

ASSEMBLY/SETTINGS

INFORMATION

EQUIPMENT AND ACCESSORIES

Drill - 1 pce1.

Chisel - 1 pce2.

Depth gauge - 1 pce3.

1. Dust cover

- 1 pce

1. Grease container

- 1 pce

Additional handle

- 1 pce6.

Special key

- 1 pce7.

Transport case

- 1 pce8.

INSTALLATION OF ADDITIONAL HANDLE

Due to safety issues, always use additional handle (8) when operating the hammer drill. It can be fixed in any chosen position.

Loosen the wheel lock that locks collar of the blocking handle (8) by turning it counter-clockwise.

• Slide the handle collar over cylindrical part of the hammer drill body.
• Turn for the most comfortable position.
• Turn the wheel lock clockwise tight to clamp the handle (8).

DEPTH GAUGE ROD INSTALLATION

Depth gauge (9) serves to limit the depth of drill penetration of material.

• Loosen the butterfly nut on the additional handle collar (8).
• Slide depth gauge rod (9) into the hole in the additional handle collar.
• Set desired drill depth.
• Tighten the butterfly nut.

INSTALLATION AND REPLACEMENT OF WORKING TOOLS

Hammer drill is designed to operate with working tools with SDS-PLUS shanks.

Prior to starting operation clean the hammer drill and working tools. Use grease and apply thin layer onto shank of the working tool. It will improve tool durability.

Disconnect the power tool from power supply.

Put the hammer against work bench. ●

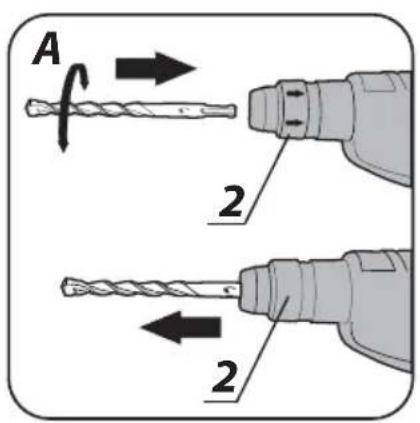

• Hold the fixing sleeve (2) of the SDS chuck (1) and pull it to the back, overcoming the spring resistance.
• Insert working tool shank into the chuck and slide it to mechanical stop (it may be necessary to turn the working tool so it can reach appropriate position) (fig. A).

Release the fixing sleeve (● 2), it will finally fix the tool.

Working tool is properly seated if it cannot be removed without pulling off the fixing sleeve.

If the sleeve does not return to its default position, remove the working tool and repeat the whole operation. ●

High efficiency of the hammer drill operation can be achieved by using sharp and undamaged working tools.

DEINSTALLATION OF WORKING TOOL

Just after the operation is finished, the working tool may be hot. Avoid direct contact and use appropriate protective gloves. Clean the working tool after removal.

Disconnect the power tool from power supply.

Pull the fixing sleeve (● 2) to the back and hold.

Remove the working tool with your second hand by pulling it to the front. ●

OVERLOAD CLUTCH

Hammer drill is equipped with factory set overload clutch. Spindle of the hammer drill stops immediately after working tool jams, which might overload the power tool.

USE OF ANTI-DUST COVER

Anti-dust cover is round, rubber casting of appropriate shape. It is placed on the drill to catch dust when drilling in ceiling for example. Put the cover on a drill, bring the drill close to the surface and move the cover along the drill until it reaches surface of the processed material. As the tool gets deeper into the material, the cover slides on the drill and catches the dust produced. Empty the cover from time to time.

Always use glasses or anti-splinter goggles, especially when drilling a hole above your head.

SWITCHING ON / SWITCHING OFF

The mains voltage must match the voltage on the rating plate of the hammer drill.

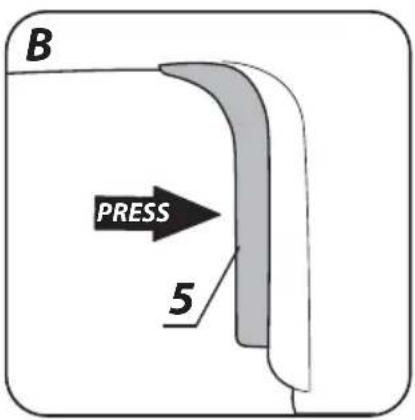

Switching on – press the switch button (5) and hold in this position (fig. B).

Switching off – release pressure on the switch (5).

OPERATION MODE SWITCHES

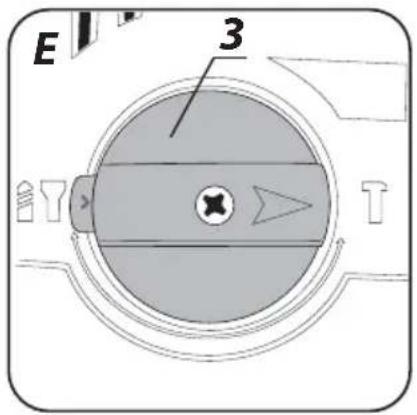

Hammer drill features two switches of the working mode: impact mode switch (6) (fig. D) and drilling mode switch (3) (fig. E). Depending on its settings, a drilling only, impact drilling or chiselling is possible. Impact drilling and chiselling require to slightly press the hammer drill. Excessive pressure would cause excessive motor load. Check technical condition of the working tools regularly. Sharpen or replace working tools when needed.

Appropriate setting of switches for each of the functions is shown on (fig. F).

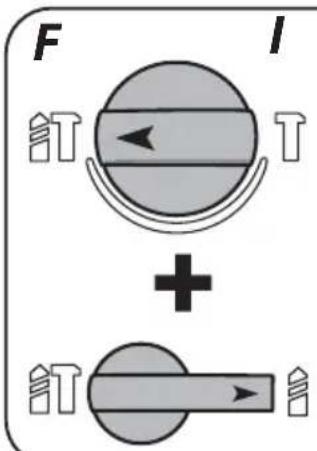

Drilling without impact – pos. I

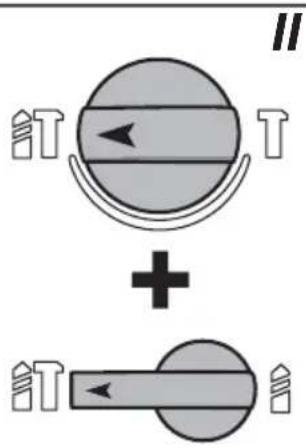

Impact drilling – pos. II

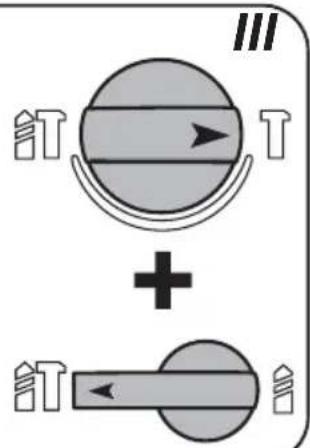

Chiselling – pos. III

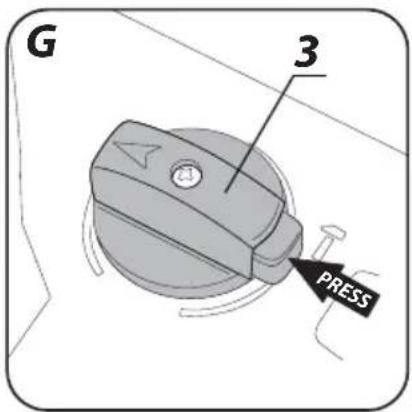

Press the lock button (fig. G) prior to change of position of the drilling mode switch (3). Do not try to change position of the working mode switches when the hammer drill motor is operating. Such action may cause serious damage of the hammer drill.

DRILLING HOLES

• When drilling a hole with large diameter, it is recommended to drill smaller hole and then ream it to desired diameter. It prevents overloading the hammer drill.
• When drilling deep holes drill gradually to smaller depths, then slide the drill out of the hole to remove chips and dust.
• If a drill jam occurs during drilling, the overload clutch will work. Turn off the hammer drill immediately to prevent its damage. Remove jammed drill from the hole.
• Keep the hammer drill in the axis of the hole. Keeping the drill perpendicular to the surface of the processed material is highly desirable. If a drill is not kept perpendicular to the surface during operation, it may get jammed or broken in the hole and injure the user.

Long lasting drilling at low rotational speed of the spindle may cause motor overheating. Make periodic breaks in operation. Do not cover holes for motor ventilation in the hammer drill body.

IMPACT DRILLING

- Choose appropriate mode of operation, impact drilling in this case.

Insert appropriate drill with SDS-PLUS shank into the chuck (● 1).

To get the best results use high quality drills with sintered carbide inserts. ●

Press the drill against processed material. ●

Switch on the hammer drill, the hammer mechanism should operate smoothly and the tool should not bounce on the processed material surface.

Unplug the power cord from the mains socket before commencing any activities related to installation, adjustment, repair or maintenance.

● Always keep the hammer drill clean.

Never use any caustic agent for cleaning plastic parts of the hammer drill. ●

After operation use compressed air to blow through the hammer drill to remove dust deposit, especially to keep ventilation slots pervious.

It is necessary to regularly check technical condition of carbon brushes of the motor (dirty or worn out brushes can cause excessive sparking and loss of spindle speed of the hammer drill).

GEAR GREASING

It is recommended to check grease in the gear every 50 hours of hammer drill operation and fill up grease according to needs, using the grease supplied with the hammer drill.

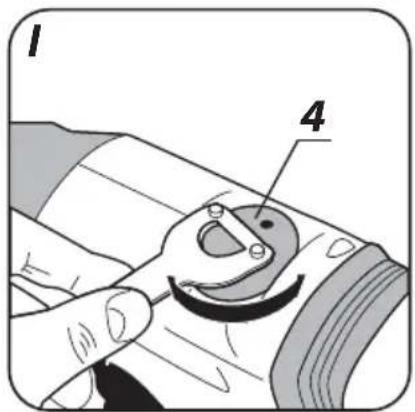

- Loosen the lid (4) for greasing inlet by turning it left (fig. I).

Fill up grease.

- Fix the lid (4) and turn it right (do not twist it too tightly to avoid thread damage).

Do not apply too much grease. After the supplied grease ends, use another available grease resistant to high temperature.

REPLACEMENT OF CARBON BRUSHES

Replace immediately worn out (shorter than 5 mm), burnt or cracked motor carbon brushes. Always replace both brushes at a time.

Entrust replacement of carbon brushes only to a qualified person. Only original parts should be used.

ADDITIONAL HINTS FOR USING HAMMER DRILL

To achieve the best possible efficiency when working on concrete, apply moderate (not excessive) pressure on the hammer drill. Excessive pressure leads to efficiency loss. Hammer drill filled with solid grease requires some time to heat up, depending on the ambient temperature. New hammer drill requires some time to work before it achieves full working efficiency.

All faults should be repaired by service workshop authorized by the manufacturer.

TECHNICAL PARAMETERS

RATED PARAMETERS

Hammer Drill
Parameter Value
Rated voltage 230 V AC
Input current frequency 50 Hz
Rated power 1500 W
No load rotational speed 750 rpm
Chuck SDS-PLUS
Maximum drilling diameter	concrete 36 mm
	steel 13 mm
	wood 40 mm
Impact energy 4,5 J
Impact rate 3200 min		-1
Protection class II
Weight 6,03 kg
Year of production 2014

NOISE LEVEL AND VIBRATION PARAMETERS

Sound pressure: L_p=96 dB(A) K=3 dB(A)

Sound power: Lw_A=107 dB(A) K=3 dB(A)

Vibration acceleration (front handle) 9,64 m/s K = 1,5 m/s

Vibration acceleration (rear handle) = 16,573 m/s K = 1,5 m/s

ENVIRONMENT PROTECTION

Do not dispose of electrically powered products with household wastes, they should be utilized in proper plants. Obtain information on wastes utilization from your seller or local authorities. Used up electric and electronic equipment contains substances active in natural environment. Unrecycled equipment constitutes a potential risk for environment and human health.

* Right to introduce changes is reserved.
