DV-2-X 227 DU - DVD player HYUNDAI - Free user manual and instructions

Product Type	DVD Player
Brand	Hyundai
Model	DV-2-X 227 DU
Dimensions (W x D x H)	225 x 230 x 33 mm
Weight	2.25 kg
Power Supply	AC 220-240 V, 50 Hz
Power Consumption	15 W
Standby Consumption	< 0.5 W
Supported Disc Types	DVD, VCD, HDCD, CD, DVD±R/RW, MPEG4 3.0/4.0/5.0, WMA, MP3, Kodak Picture CD
Output Terminals	Composite Video, S-Video, 2.0ch Audio, Digital Coaxial, SCART, Y/Pb/Pr Component
Video Output Level	1 Vpp (75 Ω)
Audio Output Level	2 Vpp
Signal System	PAL / NTSC / Multi
Frequency Response	CD: 4 Hz – 20 kHz; DVD: 4 Hz – 22 kHz (48K) / 4 Hz – 44 kHz (96K)
S/N Ratio	> 92 dB
THD	< 0.04%
Audio Format	MPEG 1 Layer 1/2/3, AC-3
USB Port	Front USB for media playback (max 500 files per folder)
Remote Control	Infrared, 45° angle range
Parental Control	8-level rating (Kid Safe to Adult) with password
Safety Features	Polarized AC plug, overload protection, auto shutdown on fault
Maintenance & Cleaning	Unplug before cleaning; use a soft dry cloth; no liquid cleaners
Spare Parts & Repairability	Use only manufacturer-specified parts; service by qualified personnel only
General Information	Designed for private use; keep away from heat, moisture, and children

Frequently Asked Questions - DV-2-X 227 DU HYUNDAI

How do I set parental control on my Hyundai DV-2-X 227 DU?

Press SETUP, navigate to Rating and select Parental Control. Enter the default password 8888. Choose a rating level from 1 (Kid Safe) to 8 (Adult). To change the password, go to Set Password and follow the on-screen instructions.

How can I switch between disc and USB playback?

While playback is stopped, press the USB button on the remote to toggle between DISC and USB modes. Note: You must press STOP first if a disc is playing.

What should I do if the remote control stops working?

First, check the batteries and replace them if needed (use two AAA batteries). Ensure the remote is pointed at the IR sensor (within 45°). Remove any obstacles between the remote and the player. If it still fails, reset the player by unplugging it for a few seconds.

Can I play audio CDs and MP3 files on this player?

Yes, the player supports CD, MP3, WMA, and Kodak Picture CD formats. It also plays DVD, VCD, SVCD, and MPEG4 video discs.

How do I program a playlist of MP3 songs?

During MP3 playback, press PROG. Use arrow keys to select Edit Mode, then choose songs with Add to Program. To view the program, select Program View. Press PLAY to start the programmed list. To cancel, press STOP twice and use Clear Program.

What is the PBC function on VCDs?

PBC (Playback Control) allows you to navigate interactive menus on VCD/SVCD discs. When PBC is ON, you can select tracks via on-screen menus. Press the PBC button on the remote to toggle it on or off.

How do I adjust the aspect ratio?

Press SETUP, go to Video, then Aspect Ratio. Choose between 4:3 (standard) or 16:9 (widescreen). Also, under View Mode, you can select Fill, Original, Auto Fit, or Pan Scan.

Can I use the zoom feature?

During playback of DVD, VCD, SVCD, or MPEG4 discs, press ZOOM repeatedly to magnify the image up to 3x. The zoom function enlarges but does not reduce. Press PLAY to return to normal view.

Why won't the disc tray open?

If the tray does not open with the OPEN/CLOSE button, the player may be reading a disc. Press STOP first, then try again. If still stuck, unplug the player from power, wait 10 seconds, plug it back, and immediately press OPEN/CLOSE.

How do I clean the player?

Always unplug the player before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or aerosols. Avoid inserting objects into ventilation slots.

USER MANUAL DV-2-X 227 DU HYUNDAI

Simple line drawing of a person in a cup with a tool and lightning, no text or symbols present

Teplo

Simple line drawing of an electronic component with no text or symbols

Ventilace

Illustration of three scenes: a portable air conditioner, a person relaxing in a room with a microphone, and a CD-ROM (no text or symbols)

Příslušenství

Simple line drawing of a desktop computer setup with monitor, keyboard, and mouse (no text or symbols)

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

POUŽITÍ

Zdroj elektriny

Pure electrical circuit lines without any symbols

Illustration of a person standing next to a plug inserted into a socket, with another person holding a bag (no text or symbols present)

Simple line drawing of a desktop computer setup with monitor, tower, and power cord (no text or symbols)

Příslušenství

Illustration of a hand using a pen to press down an electronic device with stars around (no text or symbols)

ANTÉNY

Simple line drawing of a girl reacting to a water bottle pouring liquid into a washing machine (no text or symbols)

Illustration of a person using a device to interact with another person (no text or symbols visible)

Illustration of a person using a phone to listen and ear, with a radio nearby (no text or symbols)

Illustration of a person using an air conditioner (no text or symbols visible)

Cartoon illustration of a person using a radio with sound waves, no text or symbols present

Náhradní díly

Simple line drawing of a person in a cup with a tool and lightning, no text or symbols present

Teplo

Simple line drawing of an electronic component with no text or symbols

Ventilácia

Illustration of three scenes: a portable air conditioner, a person relaxing in a room with a microphone, and a CD-ROM (no text or symbols)

Príslušenstvo

Neumiest'ujte zariadenie na nestabilné vozíky, stojany, statívy, konzoly či stolíky.

Simple line drawing of a desktop computer setup with monitor, keyboard, and mouse (no text or symbols)

Pripevnenie na stenu či strop

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

POUŽITIE

Zdroj elektriny

Pure electrical circuit lines without any symbols

Illustration of a person standing next to a plug inserted into a socket, with another person holding a bag (no text or symbols present)

Simple line drawing of a server rack with indicator lights and a small battery (no text or symbols)

Príslušenstvo

Illustration of a hand using a pen to press down an electronic device with stars around (no text or symbols)

ANTÉNY

Uzemnenie vonkajšej antény

Simple line drawing of a girl reacting to a water bottle pouring liquid into a washing machine (no text or symbols)

Illustration of a hand holding a device with arrows indicating motion or force (no text or symbols)

Illustration of a person using a phone to listen and ear, with a radio nearby (no text or symbols)

Illustration of a person using a handheld device (no text or symbols visible)

Cartoon illustration of a person using a toaster with sound waves, no text or symbols present

Náhradné diely

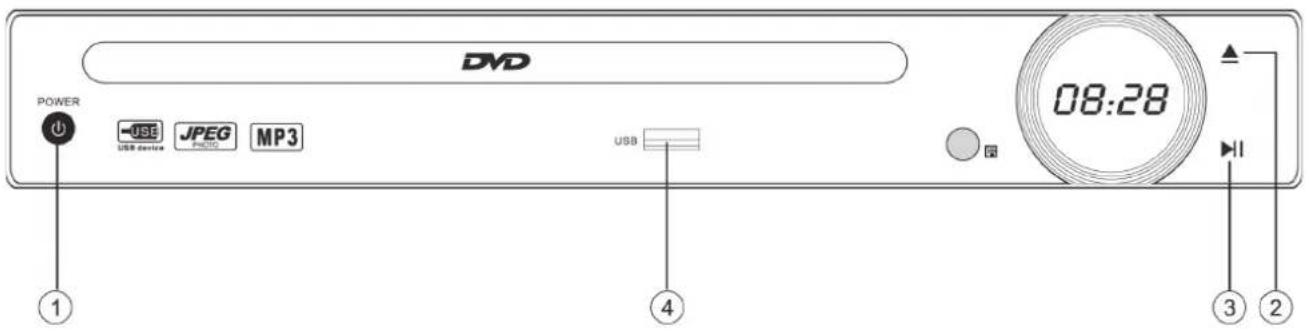

VYOBRAZENÍ PREDNÉHO A ZADNÉHO PANELU

PREDNÝ PANEL

Simple line drawing of a person holding a tool with lightning bolts, no text or symbols present

Ciepło

Simple line drawing of an electronic component with no text or symbols

Wentylacja

Illustration of three scenes: a portable air conditioner, a person sleeping in a bed with a lamp, and a computer setup with books (no text or symbols)

Akcesoria

Simple line drawing of a desktop computer with monitor and keyboard (no text or symbols)

Silhouette of a person pushing a large object inside a circular frame (no text or symbols)

ZASTOSOWANIE

Pure electrical circuit lines without any symbols

Illustration of a person standing next to a broken electrical plug and a door, with no visible text or symbols.

Ochrona przewodu

Simple line drawing of a server rack with indicator lights and a small plug, no text or symbols present

Akcesoria

Illustration of a hand using a pen to press down an electronic device with stars around (no text or symbols)

ANTÉNY

Simple line drawing of a girl reacting to a water bottle pouring liquid into a washing machine (no text or symbols)

Illustration of a hand inserting a device into a device with arrows indicating motion (no text or symbols)

Simple line drawing of a person talking on the phone while using a radio with stars and stars nearby (no text or symbols)

Illustration of a person using an air conditioner (no text or symbols visible)

Cartoon illustration of a person using a toaster with sound waves, no text or symbols present

Cząści zamienne

ILUSTRACJA PRZEDNIEGO I TYLNEGO PANELU

PRZEDNI PANEL

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

• The appliance is designed exclusively for private use and for the envisaged purpose.
  • This appliance is not fit for commercial use.
• Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands.

If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis.

Do not use the appliance if it is damaged.

- Do not try to repair the appliance on your own. Always contact an authorized technician.

To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

- Pay careful attention to the following "Special Safety Instructions for this unit".

SAFETY

• No naked flame sources such as lighted candles, should be placed on the apparatus.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device will remain readily operable.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Ensure minimum distances around the apparatus for sufficient ventilation.

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• Attention should be drawn to the environmental aspects of battery disposal.
• The use of apparatus in moderate climates.
• Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Do not place the product in closed bookcases or racks without proper ventilation.
• This appliance is not intended for use by persons people (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the way of use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

INSTALLATION

Water and Moisture

Do not use powering operated appliances near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Cartoon illustration of a person holding a device with lightning bolts, standing beside a large vessel (no text or symbols)

Heat

Do not place the appliance near or over a radiator or heat register, or where it is exposed to direct sunlight.

Simple line drawing of an electronic device with no text or symbols

Ventilation

The slots and openings in the cabinet are provided for necessary ventilation.

To ensure reliable operation of the appliance, and to protect it from overheating, these slots and openings must never be blocked or covered.

Never cover the slots and openings with a cloth or other materials.

Never block the slots and openings by placing the appliance on a bed, sofa, rug or other similar surface.

Never place the appliance in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

Illustration of three different household appliances: a portable air conditioner, a person relaxing in a bed, and a CD with books (no text or symbols present)

Accessories

Do not place the appliance on an unstable cart, stand, tripod, bracket, or table.

The appliance may fall, causing serious injury to a child or an adult, and serious damage to the appliance.

An appliance and cartcombination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Simple line drawing of a desktop computer with monitor and keyboard (no text or symbols)

WALL or Ceiling Mounting

If your appliance can be mounted to a wall or ceiling, mount it only as recommended by Hyundai.

Silhouette of a person pushing a large object inside a circular frame (no text or symbols)

USE

Power Source

This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult yourdealer or local power company. For those appliances designed to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization

This appliance is equipped with a polarized AC power cord plug (a plug having one blade wider than the Other), or with a three-wire grounding type plug) a plug having a third pin for grounding). Follow the instructions below:

- For the appliance with a polarized AC power cord plug:

This plug will fit into the power outlet only one way. This is a safety featurefl you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.

- For the appliance with a three-wire grounding type AC plug:

This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose, of the grounding plug.

Overloading

Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

Pure electrical circuit lines without any symbols

When not in use

Unplug the power cord of the appliance from the outlet when left unused for a long period of time. To disconnect the cord, pull it out by grasping the plug. Never pull the plug out by the cord.

Illustration of a person standing next to a plug emerging from a socket, with another figure holding a bag (no text or symbols present)

Power-Cord Protection

Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

Simple line drawing of a desktop computer setup with monitor, tower, and power button (no text or symbols)

Attachments

Do not use attachments not recommended by Hyundai, as they may cause hazards

Lightning

For added protection for this appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and powerline surges.

Cleaning

Unplug the appliance from the wall outlet before cleaning or polishing it.

Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the appliance.

Object and Liquid Entry

Never push objects of any kind into the appliance through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

Illustration of a hand using a pen to press down an electronic device with stars and control buttons (no text or symbols)

ANTENNAS

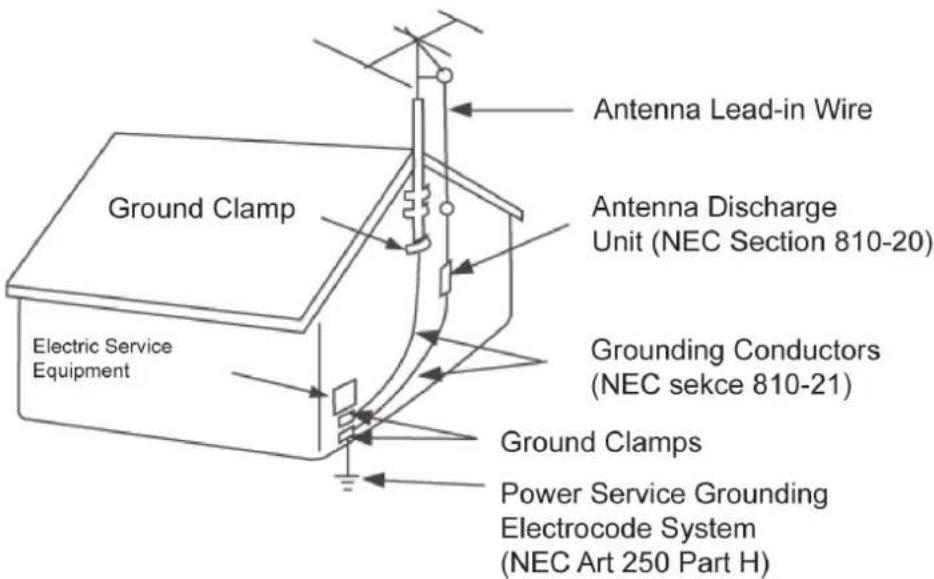

Outdoor Antenna Grounding

If an outdoor antenna or cable system is insttaled, follow the precautions below.

An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, Grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

- Antenna Grounding According to the National Electrical code

SERVIS

Damage Requiring Service

Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled or objects have fallen into the appliance.

Simple line drawing of a girl reacting to a water bottle pouring liquid into a washing machine (no text or symbols)

- If the appliance has been exposed to rain or water

Illustration of a person using a device to interact with another person (no text or symbols visible)

- The appliance does not appear to operate normally or exhibits a marked change in performance. This indicates a need for service.

Illustration of a person talking on the phone while using a radio with star decorations (no text or symbols)

- If the appliance does not operate normally when following the operating instructions, adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

Illustration of a person using an air conditioner (no text or symbols visible)

- If the appliance has been subject to excessive shock by being dropped, or the cabinet has been damaged..

Servicing

- Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Cartoon illustration of a person using a power supply device with arrows indicating electrical or mechanical operation (no text or symbols)

Replacement parts

- When replacement parts are required, be sure the service technician has used replacement parts specified that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check

- Upon completion of any service or repairs to the appliance, ask the service technician to perform routine safety checks (as specified) to determine that the appliance si in safe operating condition.

FRONT PANEL AND REAR PANEL ILLUSTRATION

FRONT PANEL

The front of the DVD player

1) POWER
2) OPEN/CLOSE
3) PLAY/PAUSE
4) USB FAUCET

The back of the DVD player

1) LEFT output jack
2) RIGHT output jack
3) VIDEO output jack
4) Y output jack

5) Pb/Cb output jack
6) Pr/Cr output jack
7) SCART output jack

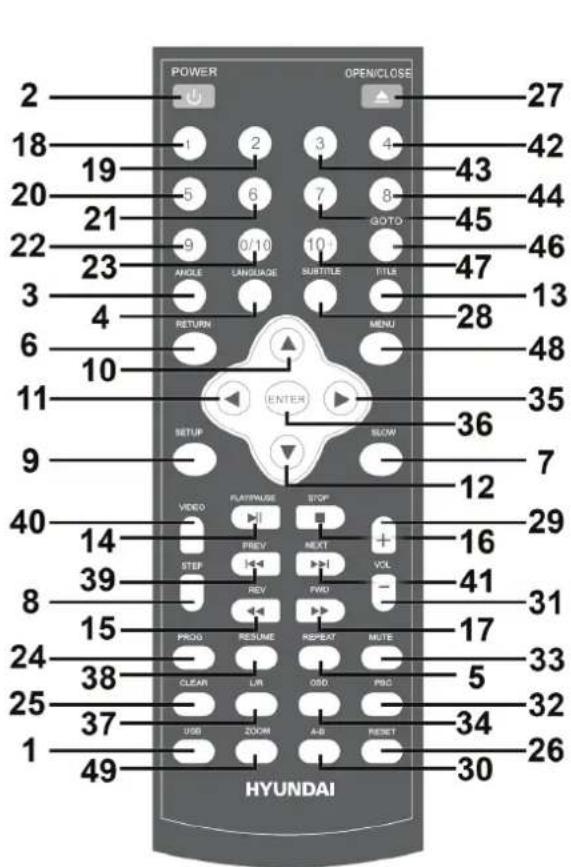

REMOTE CONTROL

-When use, direct the remote control to the infra-red sensor (within 45 degrees).
-Do not put remote control near to the place with high temperature or moisture.
-Do not put water or any other object on remote control.
-Do not use new and old batteries or different type batteries together.
-Please replace batteries when find remote control out of work or weak sensitivity.

This player allows you to customise the performance to your personal preferences.

The selected category will provide you the Setting detail s using the following screen.

MAIN PAGE

Language	OSD Language English / Polish / Hungarian / Czech / Slovak
	Subtitle	English / Polish / Hungarian / Czech / Slovak / Auto / Off.
	MPEG4 Subtitle Western	European / Central European
	Subtitles position High / Middle / Bottom
	Background color Grey / Transparent
	Audio English / Polish / Hungarian / Czech / Slovak
	DVD Menu English / Polish / Hungarian / Czech / Slovak
Video	Aspect Ratio 4:3 / 16:9
	View Mode Fill / Original / Auto Fit / Pan Scan
	TV System NTSC / PAL / Auto
	Video Out Composite / S-video / Component / RGB / P-Scan
Rating	Parental Control:8. AdultSet Password	1) 1.Kid Safe2) G3) PG4) PG-135) PG-R6) R7) NC-178) Adult
Misc	Use Default Settings Yes / No
	Screen Saver On / Off

Note:

Set on “PARENTAL CONTROL” under “Rating”, enter and input code. The original factory code is 8888. After input and confirm the code, press “PARENTAL CONTROL” and choose the desired rating. Move below to “SET PASSWORD”, press enter and input the code “8888”, them input the new code, under “SET PASSWORD”, input again the code, and confirm. The function of “PARENTAL CONTROL” is effective.

POWER During playback, press POWER to stop the player and Close the power.
OPEN/CLOSE	To open the disc tray, press OPEN/CLOSETo close the disc tray, press OPEN/CLOSE again.
TITLE	During DVD playback, press TITLE to display the DVD title menu or play the first title. Note: this function is subject to the disc.
MENU	During DVD playback, press MENU to display the disc menu of the current title. Note: This function is subject to the disc.
V-MODE(Video režim)	Under the stop mode, Press this button to switch the video of 1) Composite 2) Component 3) YCbCr 4) RGB 5) YPbPr
OSD	During VCD/DVD playback, press OSD to display the current time counter position as follows.VCD 2.0 Time __:__/__:____ Elapsed time Left time for the current track DVD Video Time __:__/__:____ Elapsed time Left time for the current track
PBC	During VCD/SVCD playback, Press PBC to select the mode of PBC On or PBC Off PBC is: playback control used to navigate VCD/SVCD
0-10 Keys	These keys are used to input the time, as well as title, chapter and track numbers.When a CD, DVD, MP3 or VCD is playing (with PBC off), press the 0-10 keys to select a track Directly.When a numeric item is displayed on the screen, press the 0-10 keys to select the desired entry.
SLOW	During MPEG4,DVD, VCD or SVCD playback, press SLOW for slow motion play back. Once you press SLOW, the disc will play at 1/2, 1/4, 1/6 and 1/8 normal speed as follows: Press PLAY to resume normal playback.
PREV	During MPEG4, DVD, CD, MP3 or VCD playback, press PREV to play the previous chapter, title or track.
NEXT	During MPEG4, DVD, CD, MP3 or VCD playback, press NEXT to play the next chapter, title or track.
REPEAT	Each press of the REPEAT button will change the repeat mode.During MPEG4, VCD, CD, MP3 playback, there are three modes: repeat Single, repeat All and Off. During DVD, playback, there are three modes: Repeat Chapter, Repeat Title and Off.Note: During VCD playback,the PCB mode must be set to Off.
A-B	During playback, press A-B to select point A.Press it again to select point B. The player will repeat the section from A to B automatically. Press A-B a third time to cancel A-B repeat and clear points A and B.Note: During CD/VCD/SVCD playback, points A and B must be within the same track.
REV	During MPEG4, DVD playback, points A and B can be selected from different chapters. During MPEG4, DVD, CD, MP3 or VCD playback, press REV to scan in reverse.The player will review the disc at 2, 4, 8 and 16 times speed as follows:Press PLAY to resume normal playback
FWD	During MPEG4, DVD, CD, MP3 or VCD playback, press FWD to scan forward. The player will cue the disc at 2, 4, 8 and 16 times speed as follows: Press PLAY to resume normal playback.
RESUME To resume	normal playback press RESUME button.
MUTE	Press MUTE to turn off the audio.Press MUTE again to resume normal sound.
R/L	During VCD/SVCD playback, press R/L repeatedly to select the channel of audio-output: Left / Right / Mix / Stereo.
PLAY/PAUSE	Press PAUSE during playback to pause playback.Press again to step forward one frame.Press PLAY to resume normal palyback.NOTE: the step function is not available during CD playback
STOP	Press STOP once during playback to stop and hold playback.Press PLAY to resume playback from the point you have pressed STOP.Press STOP twice to stop playback completely.
RETURN	When the PBC is on, select your item press return, you can select once again from the menu displaying. This function is only valuable to VCD.
ZOOM	During VCD/SVCD/DVD/MPEG4 playback, press ZOOM to magnify the image as follows: 1 Q2 Q3 This function can zoom, can't lessen.
STEP	When playing DVD, VCD, SVCD disc, press STEP once, the picture changes to next frame, Press PLAY to resume normal play.
SETUP	Press the SETUP button on you remote control to access the setup menu.The setup menu is a multi-level menu.Use the ▼ or ▲ buttons to select the menu option that you need.Use the ◀ and ▶ to go back to previous level menu or to enter the next level menu. Press ENTER button to confirm selection.Press SETUP button to exit setup.
VOL	Press VOL + to enlarge the volume.Press VOL - to reduce the volume.
ANGLE	During DVD playback:Press ANGLE to view scenes from different camera angles.Press ANGLE to repeatedly to change from one camera angle to another.Note: This function is disc specific.
SUBTITLE	During DVD playback:Press SUBT repeatedly to select from up to 32 subtitle languages.Note: This function is disc specific (language will vary).
LANGUAGE	Press LANGUAGE repeatedly to select from up to 8 audio languages/formats during DVD playback. Press repeatedly to select from up to 4 audio languages/formats during SVCD playback.Note: This function is disc specific.
GO TO	During DVD, VCD, MPEG4 playback, press GOTO and the menu will display as follow:
	DVD:	Title	Use ↑ ↓ to select TITLE, CHAPTER, TIME.
		Chapter	Use the number keys to input the desired time or track, then press ENTER to confirm.
		Time	During DVD playback, press GOTO and the menu will display as follow:
	VCD:	Track	Use ↑ ↓ to select TRACK, TIME or DISC TIME.
		Time	Use the number keys to input the desired time, title or chapter, then press ENTER to confirm.
		Disc Time	Note:1) TIME searches for an exact time in the track.2) TRACK searches for a desired title or chapter3) For some DVD discs, the search function is unavailable.
PROG	Press PROG to get programme menu when reading DVD & VCD, then program your wanted songs.(DVD programme needs TITLE and MENU.)
USB	Choose this button to setup the DISC,USB output mode:DISC: Choose this settings if your DISC output mode is connected to a DISC.USB: Choose this settings if your USB output mode is connected to a USB.The default setting is DISC.Only press STOP buton can you switch to USB mode when this unit on playback disc.

Program:

When playing mp3, press "right", "up" or "down" and "enter" to choose edit mode and then Press "left" and "enter" to choose the music you want.

After that, press “right” and “enter” to choose “add to program”, and then “up” and “enter” to choose “program view”, next press “up” to choose “edit mode” and then press “Left” and “enter” to choose the music, press play to play the music.

Cancel program:

After program, press “stop” twice and press “Right to choose “editmode” and then Press “left” to choose the music you’d like to cancel and “enter” to confirm your operation. Press “right” and “enter” to choose “clear program”, next press “Right” to browse view and return to play in order.

Shuffle:

During VCD SVCD playback, the function is unuseful in PBC ON when PBC OFF, press “shuffle” key, shuffle on ,your favorite programs in a different order every time; Press shuffle key again,shuffle off this function is only for VCD and SVCD playback.

Note:

"if play mp3 songs or jpeg pictures, can only play maximum 500pcs at onetime, if there're more than 500 pcs. or mp3 songs in the usb or card reader, please create two or more files to make sure each file not exceed 500 pcs., for example if totally 1020 pcs. pictures in one usb, then create three files, one file is 500 pcs., second file is 500 pcs., third file is 20 pcs. in this case can play all the 1020 pcs pictures."

TROUBLE SHOOTING

REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK

Check the batteries of remote control and make sure that they are to be powerful and good conductivity. Direct the remote control to the IR sensor of the player.

Check whether there are some obstacles between the remote control and IR sensor.

ABNORMAL FUNCTION OPERATION

Turn off the power, and then turn on again.

The disc can not be taken out of the tray when the player is reading, so you have to turn off the power and turn on again, and press OPEN/CLOSE key immediately to open the tray.

Typ of disc	DVD/VCD/HDCD/CD/DVD±R/RW/MPEG43.0, 4.0, 5.0,WMA, MP3 KodakPicture CD	Frequency Response	CD: 4 Hz – 20kHz (EIAT)
			DVD: 4Hz – 22kHz (48K) 4Hz – 44 kHz (96K)
Video format MPEG4		S/N radio > 92 dB
		THD < 0,04%
Audio format	MPEG 1, LAYER 1,LAYER 2, LAYER 3	Output terminals	Video (composite) output x 1S-Video output x 12.0ch output x 1Digital coaxial output x 1SCART output x 1Y/Pb/Pr output x 1
Signal Output	Color system: PAL/NTSC/MULTIAudio system: AC-3Digital outputAudio DAC 16 bit/48 kHzVideo Output: 1 Vpp (at 75 Ω)Audio Output: 2 Vpp	Power input	AC 220-240 V, 50 Hz, 25 W
		Dimensions	Body size:W 225 x D 230 x H 33 mmWeight (NETTO): 2,25 kg
Power Consumption 15 W
Standby Power Consumption < 0,5 W

We reserve the right to change technical specifications.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT (APPLICABLE IN THE EUROPEAN UNION AND OTHER EUROPEAN COUNTRIES WITH SEPARATE COLLECTION SYSTEMS)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Simple line drawing of a person in a cup with a tool and lightning bolts, no text or symbols present.

Hõ

Simple line drawing of an electronic component with no text or symbols

Szellőzés

Illustration of three different household appliances: a portable air conditioner, a person sleeping in a bed, and a vintage computer with books (no text or symbols present)

Kellékek

Simple line drawing of a desktop computer with monitor and keyboard (no text or symbols)

Silhouette of a person pushing a large object inside a circular frame (no text or symbols)

HASZNÁLAT

Áramforrás

Pure electrical circuit lines without any symbols

Illustration of a person standing next to a plug emerging from a cable, with another figure holding a briefcase (no text or symbols present)

Simple line drawing of a desktop computer setup with monitor, tower, and power cord (no text or symbols)

Alkatrészek

Illustration of a hand using a pen to write on a device with stars around (no text or symbols)

ANTENNÁK

SZERVIZELÉS

Simple line drawing of a person reacting to a water bottle pouring water from a radio (no text or symbols)

Illustration of a hand holding a device with motion lines indicating movement (no text or symbols)

Illustration of a person talking on the phone with a ringing phone and starburst symbols (no text or symbols present)

Illustration of a person using a handheld air conditioner (no text or symbols visible)

Cartoon illustration of a person reacting to a ringing device with arrows indicating sound or vibration (no text or symbols)

Alkatrészcsere

1) Baloldali kimenet
2) Jobboldali kimenet
3) VIDEO kimeneti jack
4) Y kiemneti jack

5) Pb/Cb kimeneti jack
6) Pr/Cr kimeneti jack
7) SCART kimeneti jack

TÁVIRÁNYÍTÓ

Licensed by HYUNDAI Corporation Holdings, Korea
